Гидравлический выключатель для экскаватора
65 563,96-95 365,76 ₽
Гидравлический молоток для pc220 7
- Категория: >>>
- Поставщик: Shandong Yingshi Import & Export Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601216342824:
Описание и отзывы
Характеристики
Product Overview

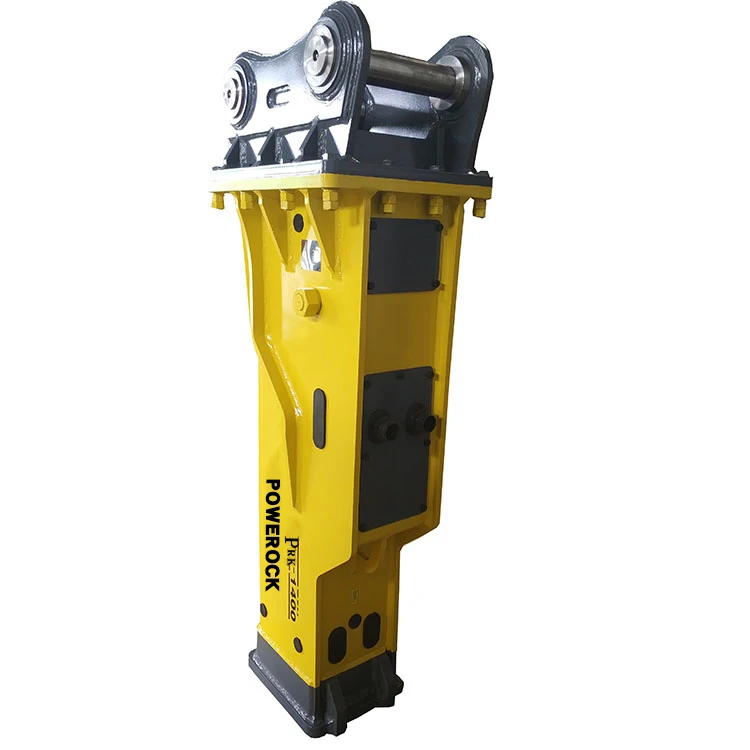

BOX/OPEN/SIDE TYPE PRK1400 MODEL BREAKER TECHNICAL DATA | ||||
Required Oil Flow | L/min | 130-170 | ||
Impact Rate | bmp | 350-500 | ||
Working Pressure | kg/cm2 | 190-220 | ||
Rod diameter | mm | 140 | ||
Valve Ass’y Position | ** | internal | ||
operating weight | kgs | 1825/1720/1750 | ||
Applicable Carrier | ton | 20-26 | ||
BOX/OPEN/SIDE TYPE PRK680 MODEL BREAKER TECHNICAL DATA | ||||
Required Oil Flow | L/min | 40-70 | ||
Impact Rate | bmp | 500-800 | ||
Working Pressure | kg/cm2 | 100-140 | ||
Rod diameter | mm | 68 | ||
Valve Ass’y Position | ** | internal | ||
operating weight | kgs | 350/320/300 | ||
Applicable Carrier | ton | 4-7 | ||
BOX/OPEN/SIDE TYPE PRK1350 MODEL BREAKER TECHNICAL DATA | ||||
Required Oil Flow | L/min | 100-150 | ||
Impact Rate | bmp | 350-600 | ||
Working Pressure | kg/cm2 | 180-210 | ||
Rod diameter | mm | 135 | ||
Valve Ass’y Position | ** | internal | ||
operating weight | kgs | 1780/1720/1650 | ||
Applicable Carrier | ton | 18-21 | ||
SKID STEER TYPE BREAKER TECHNICAL DATA | ||||||||||
** | RPK-450 | RPK-530 | RPK-680 | PRK-750 | ||||||
Required Oil Flow | L/min | 15-25 | 25-50 | 40-70 | 50-90 | |||||
Impact Rate | bmp | 700-1200 | 550-1000 | 500-800 | 450-800 | |||||
Working Pressure | kg/cm2 | 90-120 | 90-120 | 100-140 | 120-150 | |||||
Rod diameter | mm | 45 | 53 | 68 | 75 | |||||
Valve Ass’y Position | ** | internal | internal | internal | internal | |||||
operating weight | kgs | 140/110/100 | 180/152/130 | 350/320/300 | 435/400/396 | |||||
Applicable Carrier | ton | 1-3 | 2.5-4.5 | 4-7 | 6-9 | |||||
Assembly
2PCS*Chisel,
2PCS*Hose,
1PC*Tool Box,
1PC*Nitrogen Bottle,
1PC* Pressure Gauge,
1PC* Seal Kit,
1SET*User Manual
Welcome to contact Kathy
If you can not confirm the model what you need, you can contact our sales Kathy
Product Paramenters
SOOSAN SYSTEM Hydraulic Breakers for Excavators technical data | ||||||||||||||
Model No. | Operating Weight | Working Flow | Working Pressure | Impact Rate | Hose Dia. | Tool Dia. | Excavator Weight | |||||||
(kgs) | (L/min) | (bar) | (bpm) | (inch) | (mm) | (ton) | ||||||||
Light Type Hydraulic Breakers | ||||||||||||||
PRK450(SB20) | 125 | 15-30 | 90-120 | 600-1200 | 1/2 | 45 | 0.8-3 | |||||||
PRK530(SB30) | 152 | 25-50 | 90-120 | 550-1000 | 1/2 | 53 | 2.5-4.5 | |||||||
PRK680(SB40) | 320 | 40-70 | 100-140 | 500-800 | 1/2 | 68 | 4-7 | |||||||
PRK750(SB43) | 400 | 50-90 | 120-150 | 450-800 | 3/4 | 75 | 6-9 | |||||||
PRK1000(SB50) | 820 | 80-120 | 160-180 | 350-700 | 3/4 | 100 | 11-16 | |||||||
Medium Type Hydraulic Breakers | ||||||||||||||
PRK1350(SB70) | 1680 | 100-150 | 180-210 | 350-600 | 1 | 135 | 18-21 | |||||||
PRK1400(SB81) | 1720 | 130-170 | 190-220 | 350-500 | 1 | 140 | 20-26 | |||||||
PRK1500(SB100) | 2230 | 150-210 | 210-230 | 300-450 | 1 1/4 | 150 | 25-30 | |||||||
PRK1550(SB121) | 2780 | 170-220 | 220-240 | 300-450 | 1 1/4 | 155 | 28-35 | |||||||
Heavy Type Hydraulic Breakers | ||||||||||||||
PRK1650(SB131) | 3350 | 200-260 | 230-250 | 250-400 | 1 1/4 | 165 | 30-40 | |||||||
PRK1750(SB151) | 3850 | 210-260 | 240-260 | 250-350 | 1 1/4 | 175 | 35-45 | |||||||
All important spare parts of hydraulic breakers are made in our factory, we used best material and adopted the advanced Korean technology. From material selection to processing, we aim for excellence in quality control and maintenance costs decrease.
We have a skilled after-sales service team to help clients with technical issues, and our products have garnered praise from customers all over the world and are sold to over 30 countries and regions globally.
Quality is soul of an enterprise. Excellent working performance will tell you who is the best, who is of high quality. We only do long-term business, not a one-shot deal. Our hydraulic breakers can compete with Korea brands'.
Quality is soul of an enterprise. Excellent working performance will tell you who is the best, who is of high quality. We only do long-term business, not a one-shot deal. Our hydraulic breakers can compete with Korea brands'.
FURUKAWA SYSTEM Hydraulic Breakers for Excavators technical data | ||||||||||||||
Description/Model | Unit | PRK-15G | PRK-20G | PRK-30G | PRK-40G | PRK-50G | ||||||||
Operating Weight | Box | kg | 1310 | 1777 | 2540 | 3110 | 4150 | |||||||
Open | kg | 1230 | 1740 | 2420 | 3020 | 4100 | ||||||||
Side | kg | 1200 | 1700 | 2380 | 2900 | 3922 | ||||||||
Required Oil Flow | L/min | 90-120 | 130-150 | 150-190 | 190-250 | 180-350 | ||||||||
Working Pressure | kg/cm3 | 160-180 | 160-180 | 170-190 | 180-200 | 200-220 | ||||||||
Rod Diameter | mm | 120 | 135 | 150 | 160 | 180 | ||||||||
Impact Rate | bpm | 400-900 | 400-800 | 300-750 | 250-500 | 110-190 | ||||||||
Hose Diameter | inch | 3/4 | 1 | 1 | 5/4 | 5/4 | ||||||||
Excavator tonnage | ton | 13-18 | 18-22 | 27-30 | 35-45 | 35-50 | ||||||||
The parts size and working performance are same as the FAMOUS brand made in Korea. | ||||||||||||||
HB30G is with 2 adjust valves,
FEATURES AT A GLANCE
We are specialized in manufacturing hydraulic hammers, chisels, and other construction machinery attachments. Our POWEROCK brand hammers are famous for the durable lifetime, stronger impact force, and easy maintenance. We also provide OEM services for well-known brands.
1. Latest heat treatment technology
Piston, cylinder, front part of the main body, and other main parts of the gear are all treated by lastest heat treatment
equipment. Years of technical heat treatment experience has ensure the quality and stability of our YANTAI YINGSHI series product, making us the leading role in the production of broken hammer.
2. Efficient work efficiency & unique valve system
Hydraulic breakers adopt unique hydraulic circuit, requiring less oil, which greatly improve the efficiency of power generation.
3. High Strength and wear resistance steel plate adopted
The bottom of hydraulic breaker adopted high strength and wear resistance steel plate, which not only guarantees the long life of breakers, but also enhances the working efficiency.
4. Combined the oil pressure technology with the leading- edge technology
The advanced crystallization of complete oil pressure and slight oil adjustment was introduced, which guarantees the incredible impact force and durability. And it makes all clients satisfied under any working conditions.
1. Latest heat treatment technology
Piston, cylinder, front part of the main body, and other main parts of the gear are all treated by lastest heat treatment
equipment. Years of technical heat treatment experience has ensure the quality and stability of our YANTAI YINGSHI series product, making us the leading role in the production of broken hammer.
2. Efficient work efficiency & unique valve system
Hydraulic breakers adopt unique hydraulic circuit, requiring less oil, which greatly improve the efficiency of power generation.
3. High Strength and wear resistance steel plate adopted
The bottom of hydraulic breaker adopted high strength and wear resistance steel plate, which not only guarantees the long life of breakers, but also enhances the working efficiency.
4. Combined the oil pressure technology with the leading- edge technology
The advanced crystallization of complete oil pressure and slight oil adjustment was introduced, which guarantees the incredible impact force and durability. And it makes all clients satisfied under any working conditions.
We supply all kinds of accessories for breakers, each part is strictly quality controlled including the raw material, heat
treatments, size and production technology, etc.
Back head and cylinder body front head: 20CrMo material, impact energy is accumulated due to charged nitrogen gas in the block, high quality with long life using.
Valve: We adopt production process by grinding machine, with high precision.
Piston: Longer service life by optimized design and high-quality special steel.

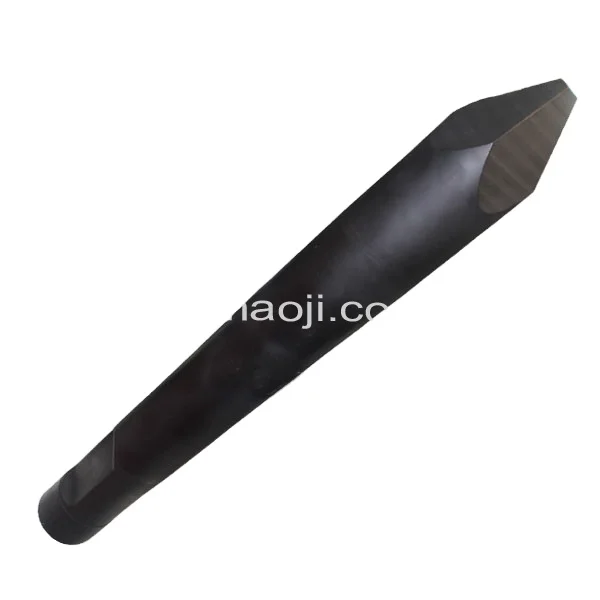

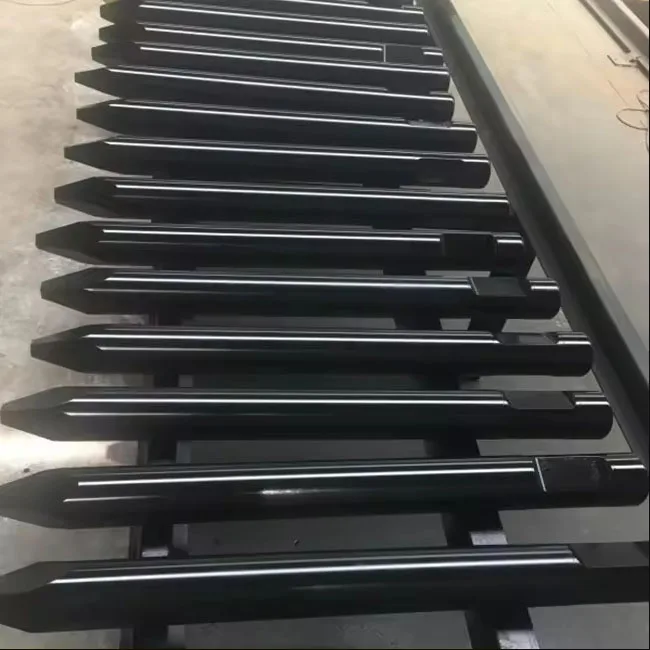

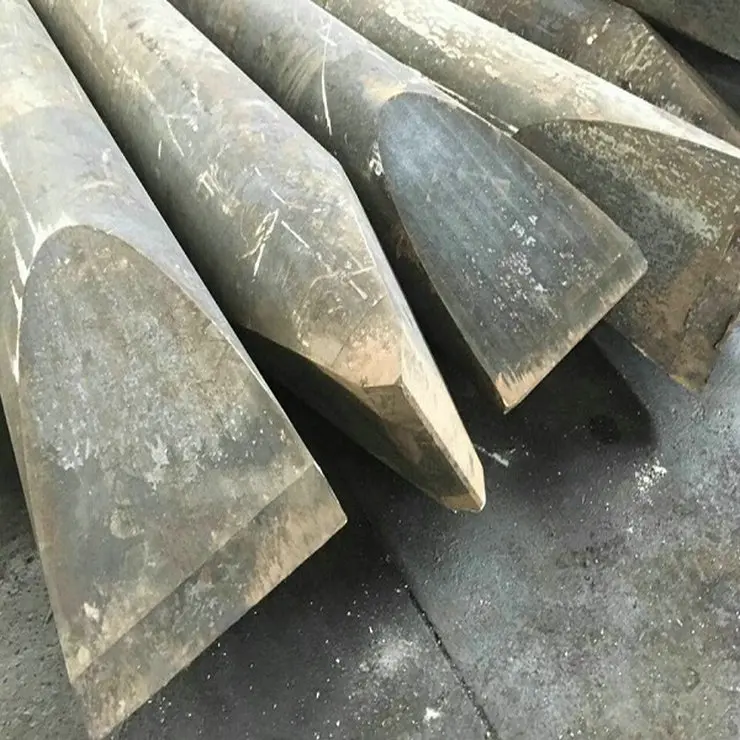

Chisel: 42Crmo material. The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point.
Seal Kit: We can supply both Parker and NOK seal kit which are the most famous brands in the business line.
treatments, size and production technology, etc.
Back head and cylinder body front head: 20CrMo material, impact energy is accumulated due to charged nitrogen gas in the block, high quality with long life using.
Valve: We adopt production process by grinding machine, with high precision.
Piston: Longer service life by optimized design and high-quality special steel.
Chisel: 42Crmo material. The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point.
Seal Kit: We can supply both Parker and NOK seal kit which are the most famous brands in the business line.

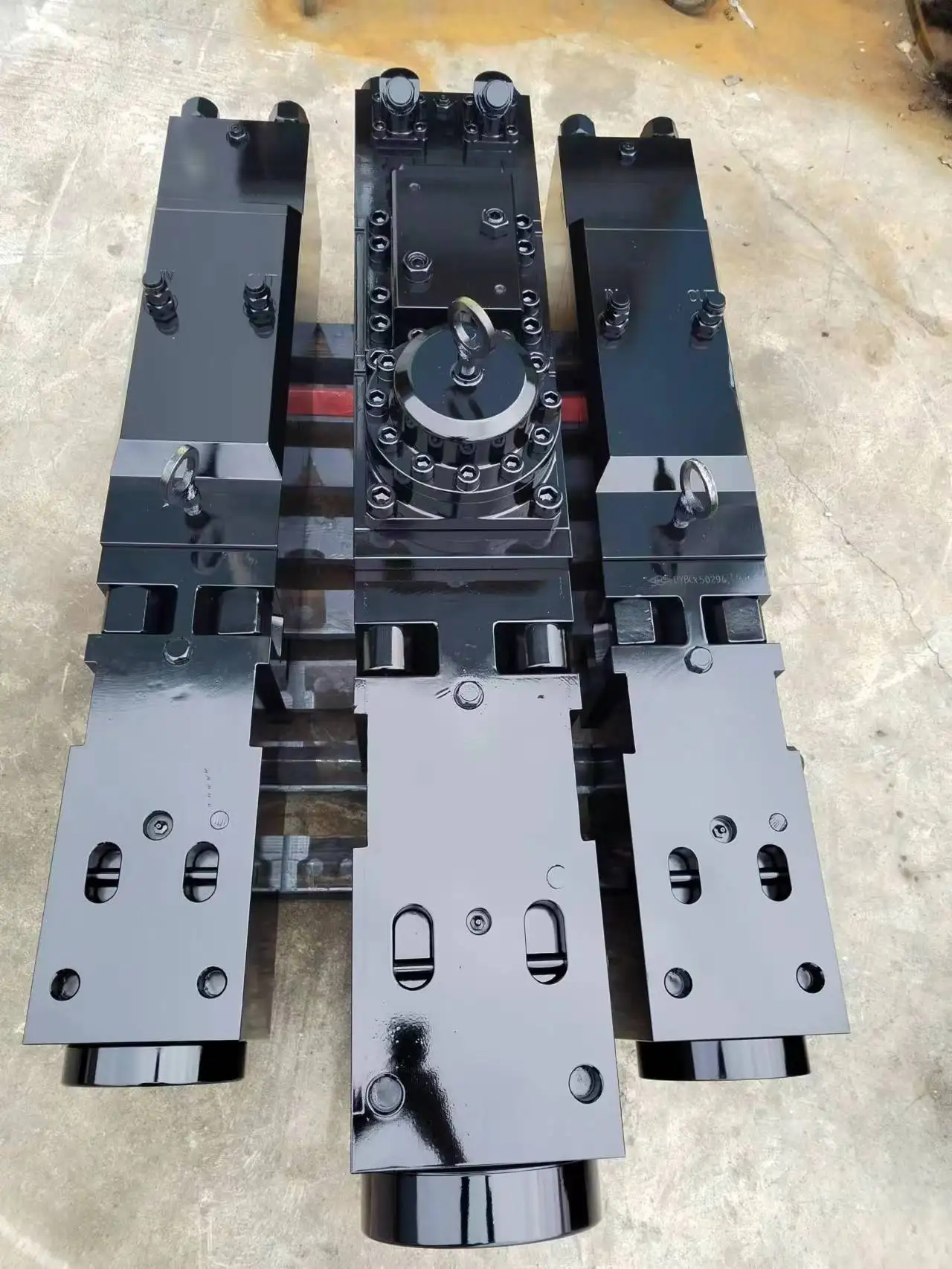

Cylinder +Front Head +Back Head
Piston-20Cr2Ni4
Control Valve with high precision

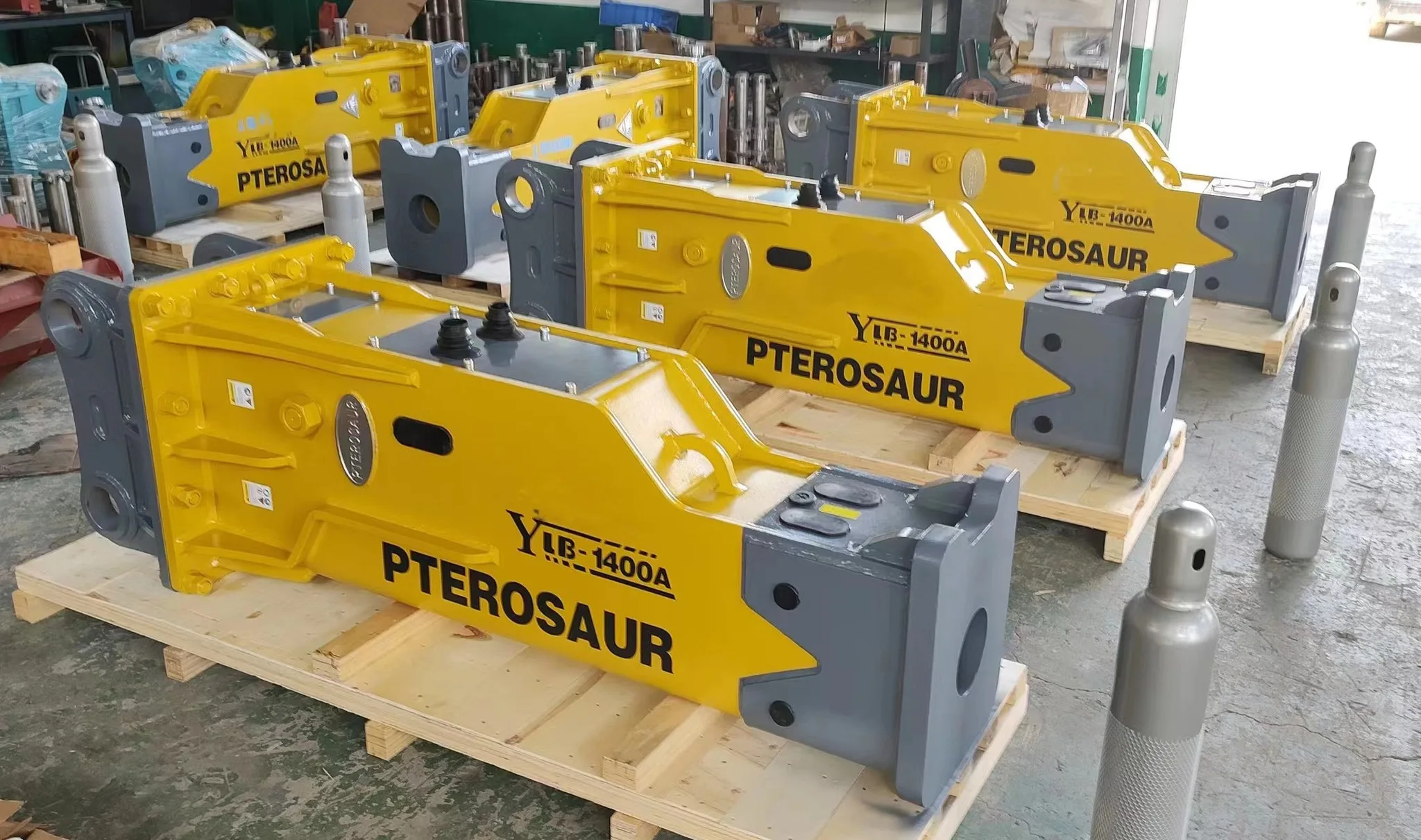

Whole Set
Tool box
Tool box
Our Service
1. 7Days*24Hours after-sales service by email and phone
2. Providing local market information and trends and how to develop market
3. Your inquiry will be replied in 24 hours during working days
4. Our customer-oriented sales and technical team are always at your service
5. Warranty: 18 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
6. Would you like to customize your brand hammer? OEM is available MOQ is 1 unit.
2. Providing local market information and trends and how to develop market
3. Your inquiry will be replied in 24 hours during working days
4. Our customer-oriented sales and technical team are always at your service
5. Warranty: 18 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
6. Would you like to customize your brand hammer? OEM is available MOQ is 1 unit.
Project in Mauritius
Project in America
Project in Peru

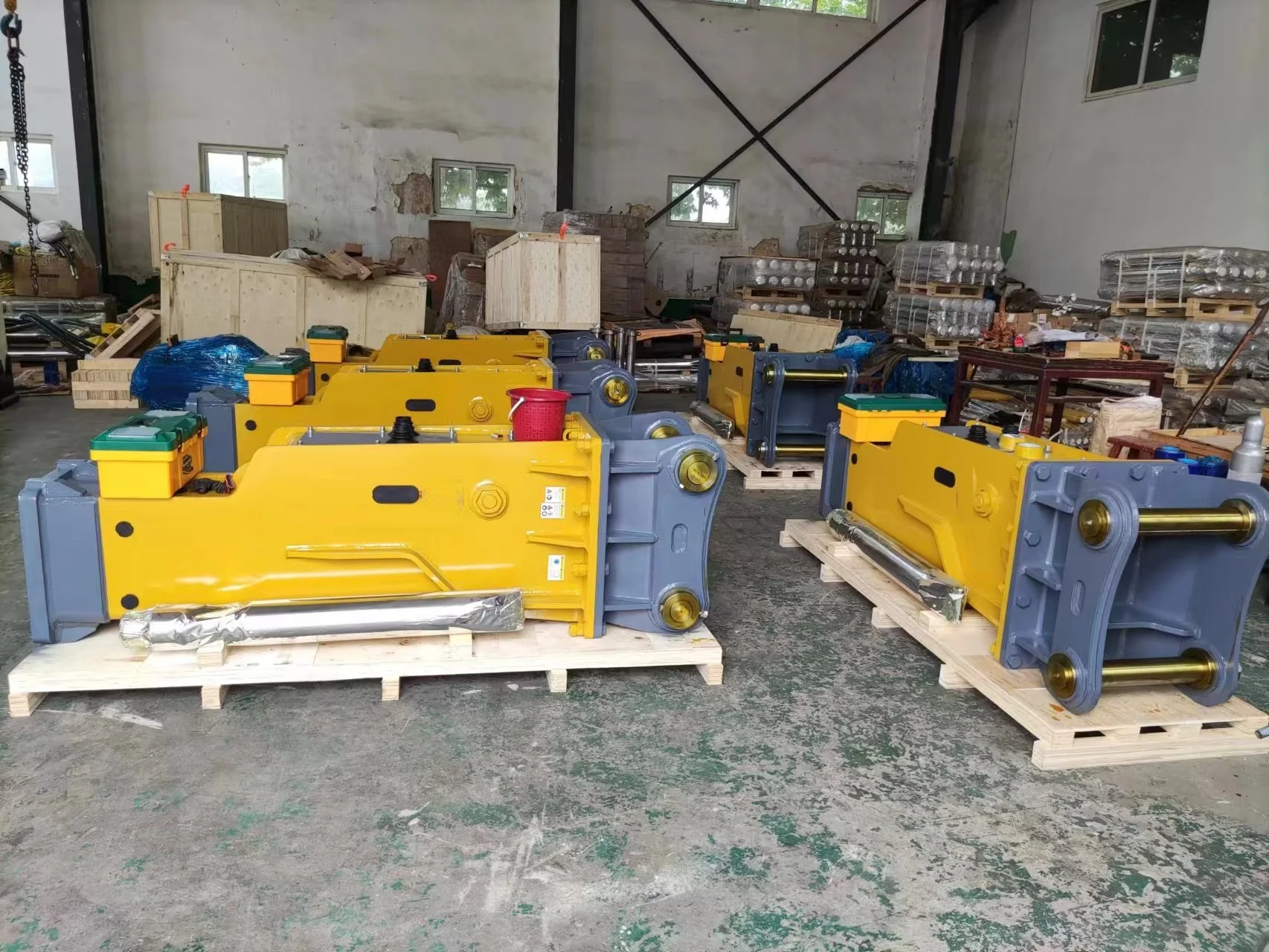

Packing & Delivery
FAQ
1. Are you a manufacturer?
Yes, our factory was established in 2004
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time?
3-7 working days after receiving the payment.
5. After-sale Service
12months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.
6. Impact Test
Every hydraulic breaker will do impact test before shipment.
Yes, our factory was established in 2004
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time?
3-7 working days after receiving the payment.
5. After-sale Service
12months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.
6. Impact Test
Every hydraulic breaker will do impact test before shipment.
SIMILAR PRODUCTS
Похожие товары

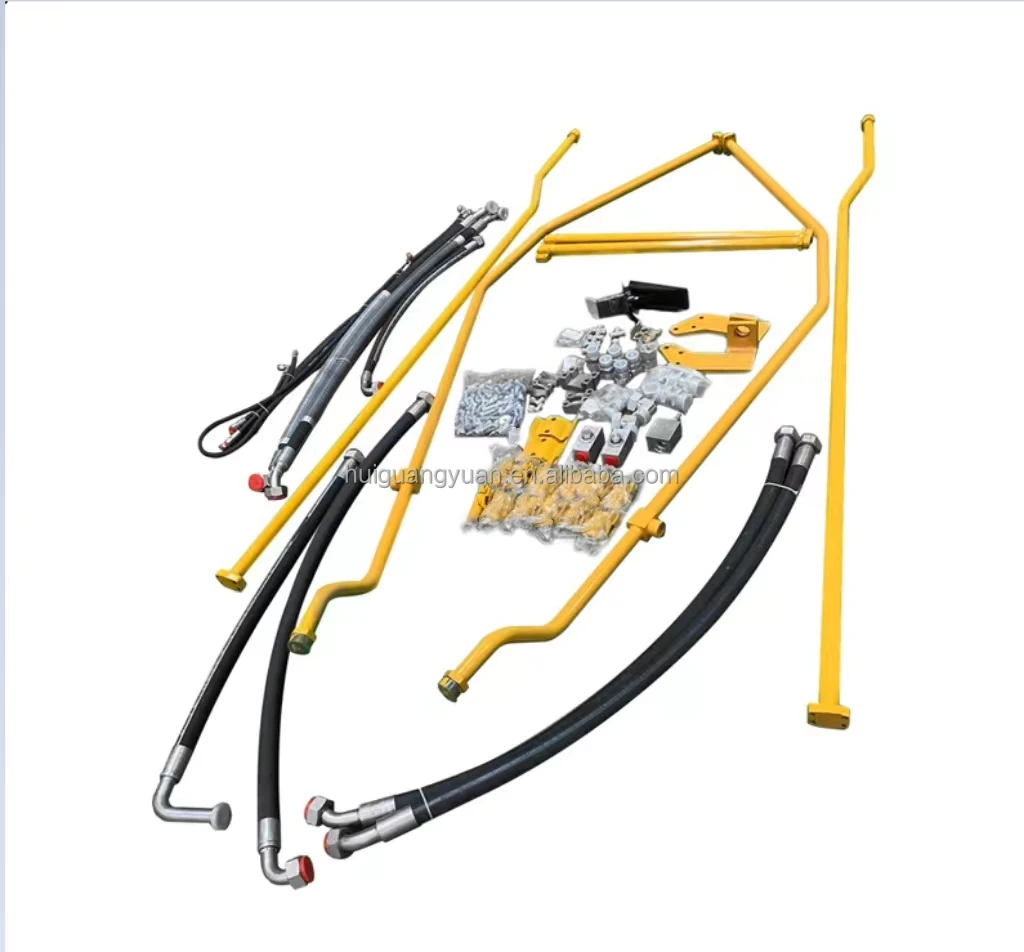

Запасные части для экскаватора гидравлические шланги и фитинги отбойного молотка с использованием гидравлических трубопроводов
37 038,87 ₽
Поставщики высококачественных деталей для гидравлического молотка долота Kwanglim Hydro-Khan модель SG2500 moil point
Гидравлический выключатель Hb30G долот Moil Point 42Crmo
5 841,16-29 682,60 ₽

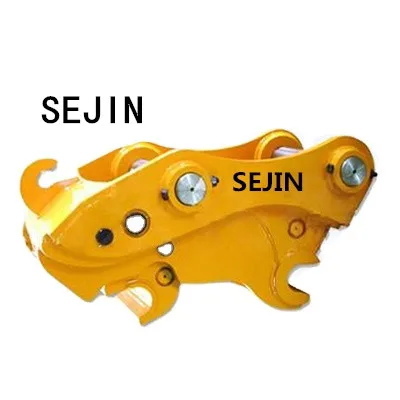

Быстросъемный соединитель для экскаватора
21 457,30-26 225,59 ₽
SH30G 420CrMo долото 150 мм для экскаватора камнедробилка
10 490,24 ₽

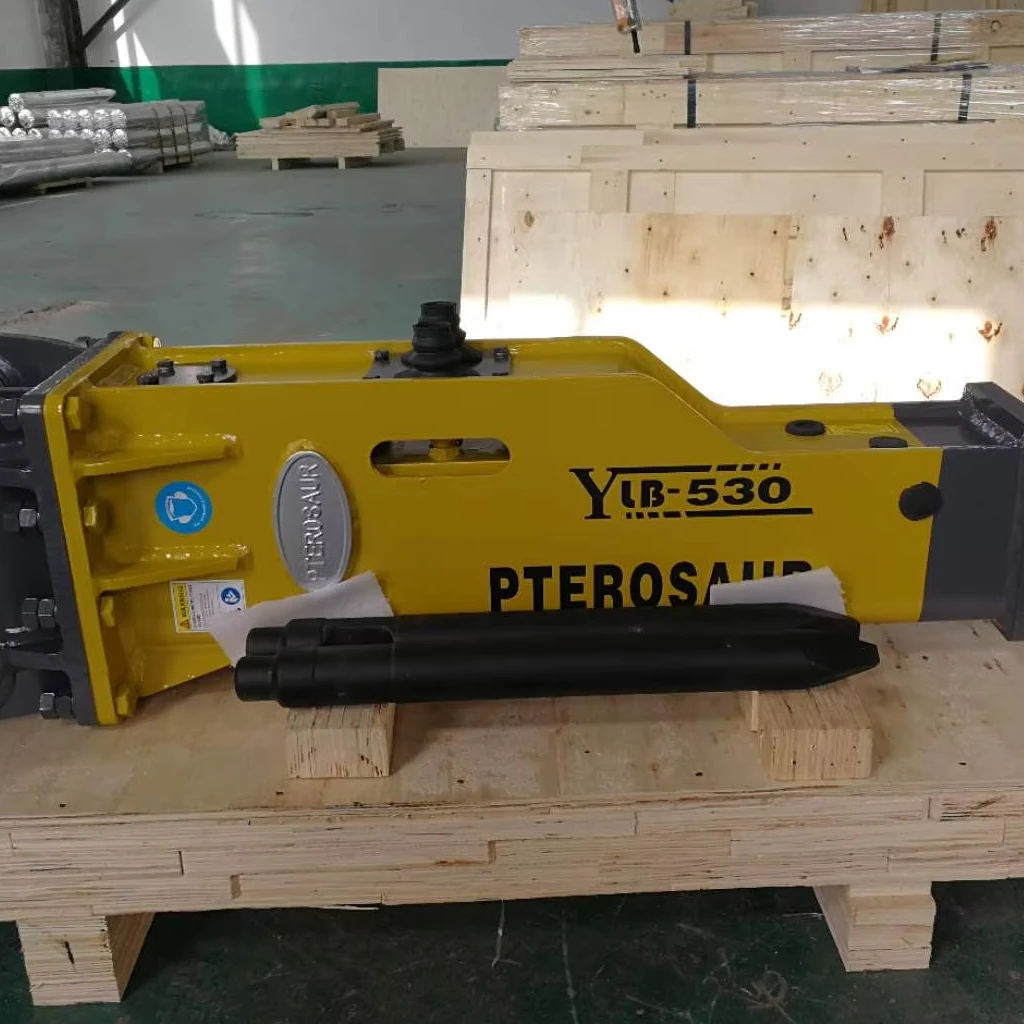

Экскаватор Yantai Baicai Pterosaur вес 2 5-4 5 тонны гидравлический отбойный молоток
