Product Overview

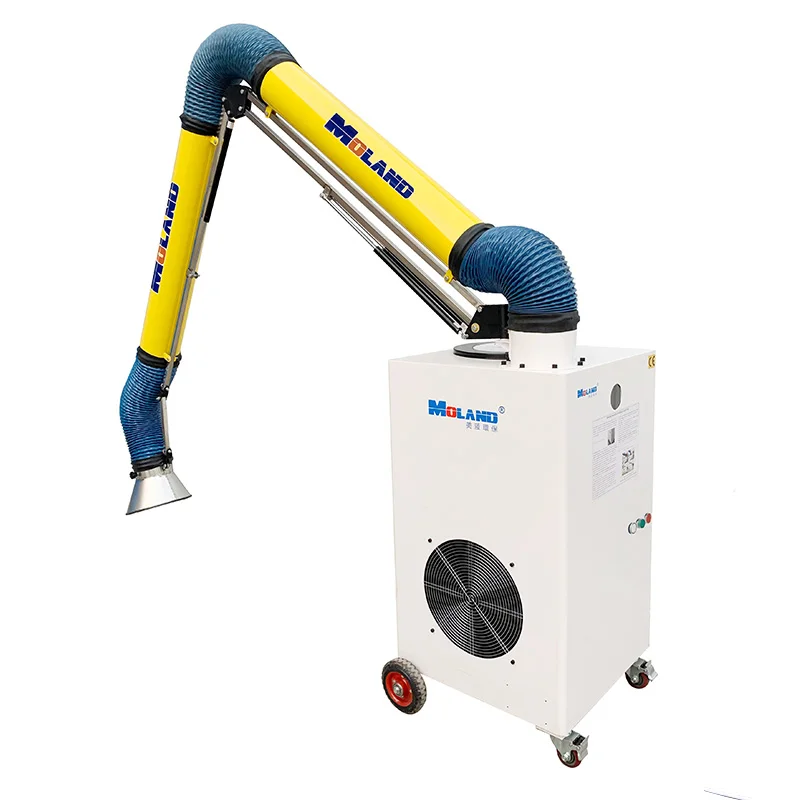

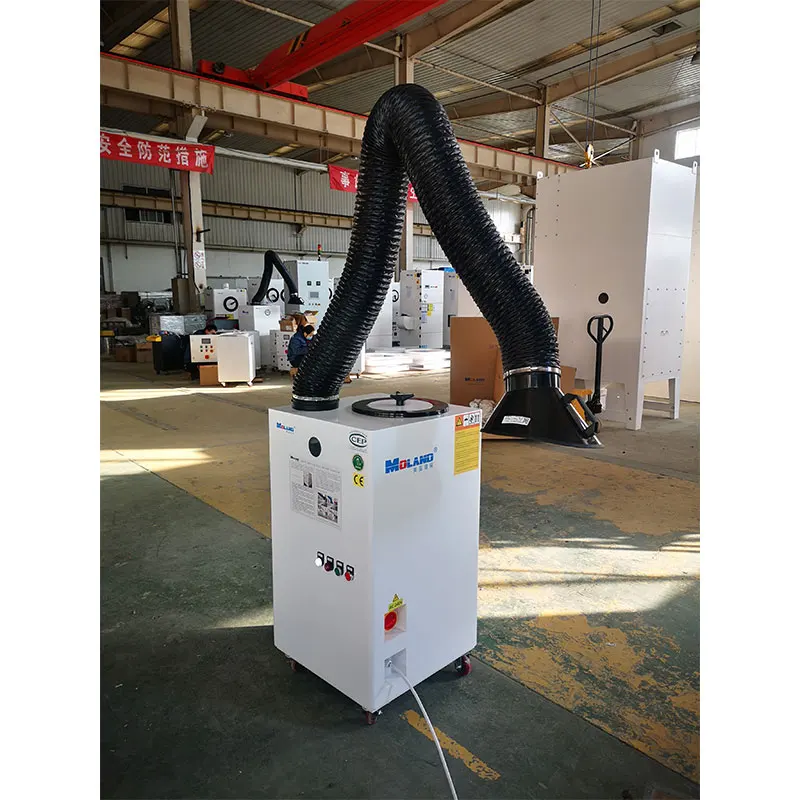

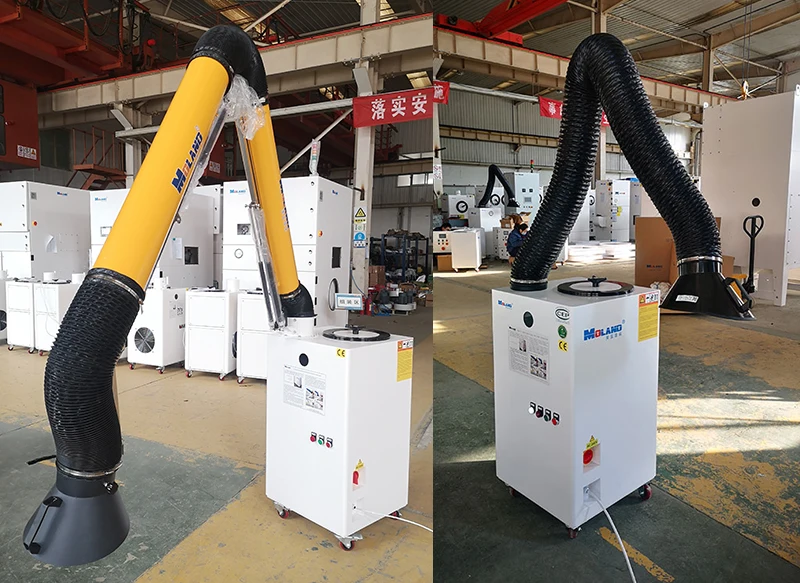

MLWF200 Fume Extractor
Welding Fume and Dust Collector is a small Dust Collector specially designed for small particles that harmful to human body produced during welding. It is suitable for single and double welding positions. It is light, flexible and easy to operate.
The purifier consists of box, filter, dust collection drawer, fan, dust cleaning device and electrical system. It uses the
principle of submerged flow, the top air is filtered through a high-efficiency Filter Element and absorbed by activated carbon to meet the national environmental protection discharge standards.
Application: Dispersed manual and small workpiece welding
The purifier consists of box, filter, dust collection drawer, fan, dust cleaning device and electrical system. It uses the
principle of submerged flow, the top air is filtered through a high-efficiency Filter Element and absorbed by activated carbon to meet the national environmental protection discharge standards.
Application: Dispersed manual and small workpiece welding
Specification
Model | MLWF200 |
Motor Power | 1.5KW |
Working Voltage | 380V 50Hz |
Air Volume | 2500 m^3/h |
Filter Accuracy | 0.3μm |
Filter Material | Flame retardant coated polyester fiber |
Filter Size | Dia.325*400mm |
Filter Qty | 1 pcs |
Cleaning Mode | Manual |
Noise Level | 65dBA |
Size | 550*550*1050mm |
Weight | 95kg |
Details Images
Fume Extractor Top Introduction

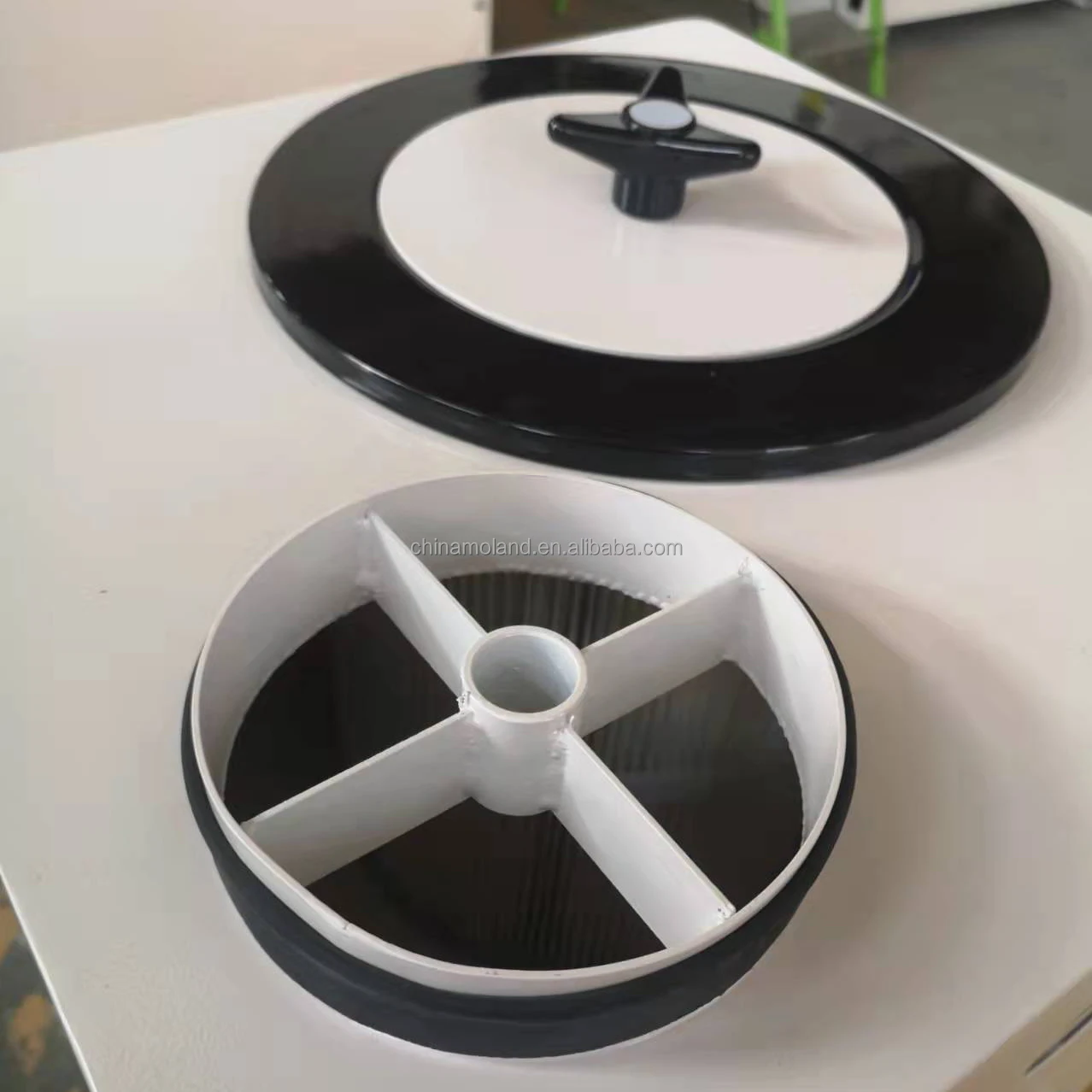

1. Filter Replacement
Unscrew the triangular handle, then remove the cartridge filter cover, and pull the cartridge filter out. Then put the new filter in, then put the top cover, and finally, screw on the triangular handle.
2. Extraction Arm Installation
Insert the suction arm into the suction arm base. Use a hose clamp to secure the hose to the base. Finally, put on a rubber seal to prevent air leakage.

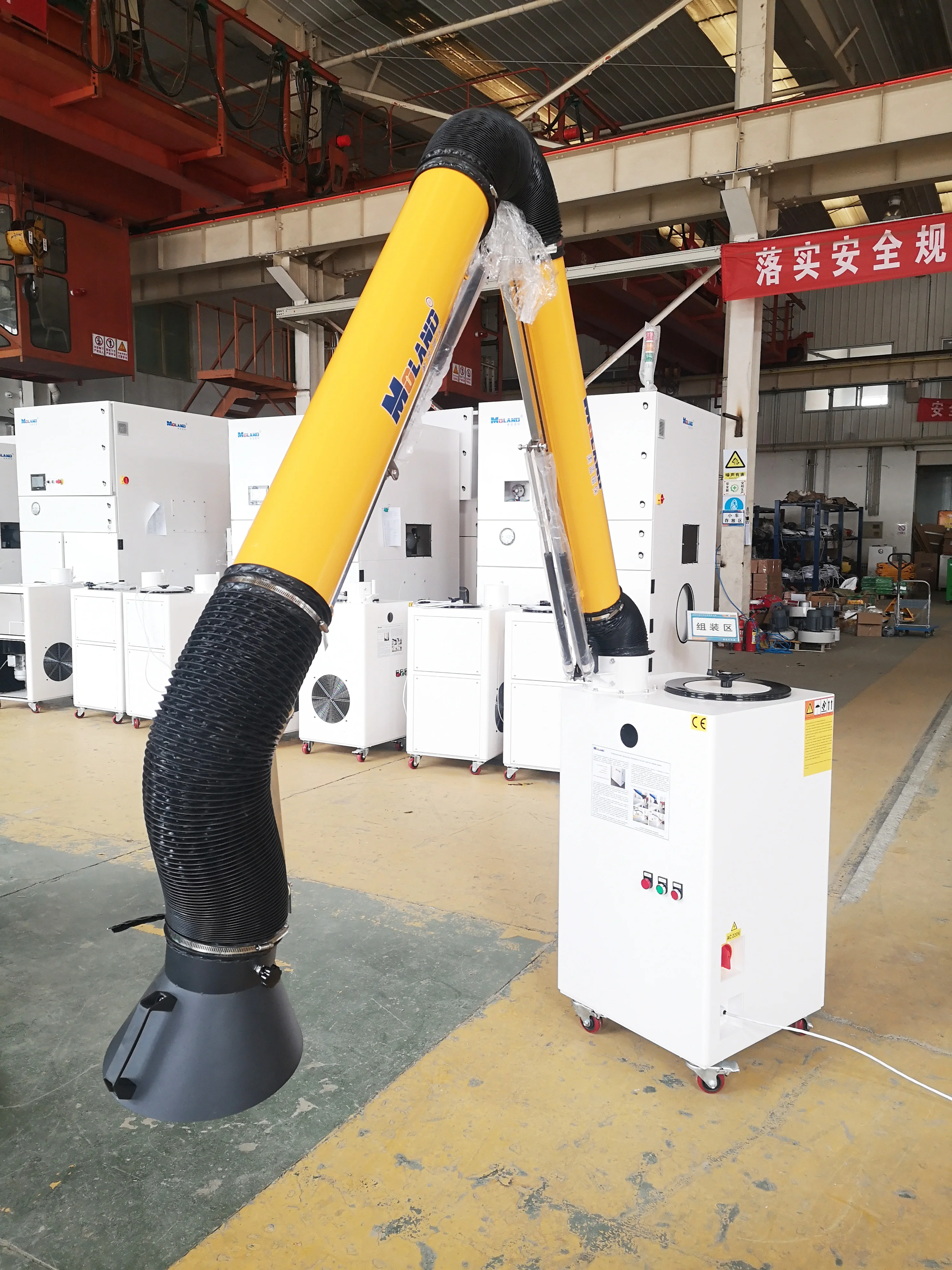

Extraction Arm
1. Extraction arm type:
internal skeleton extraction arm
external skeleton extraction arm
2. Extraction arm size:
Diameter: 160mm, 200mm, or customized.
Length: 2m, 3m, or customized.
Hood diameter: 350mm, 400mm, 500mm or
customized
3. The extraction arm can rotate 360 ° horizontally and pull the hood up and down.
Brand Fan - Stable operation, strong wind
The fume extractor is equipped with brand motor, which provides steadily run performance and strong wind.
Metal Mesh Filter - Spark Aressting
The fume extractor is equipped with metal mesh filter under the extraction arm, to intercept large paritcles and sparks.
Flame Retardant Film Coated Filter
1. Filter Material:
Flame retardant film coated polyester fiber
2. Main parameter:
Size: 325*400mm
Filter area: 8m2
2. Main parameter:
Size: 325*400mm
Filter area: 8m2
Easy to Operate
1. How to operate?
Start: Turn on the main power switch, then press the Start button. Stop: Press the Stop button and turn off the main power switch.
2. Voltage: 220V 50Hz 1P, or customized.
Application industry
WELDING
CUTTING
GRINDING
Manual Welding
Robot Welding
wheel grinding

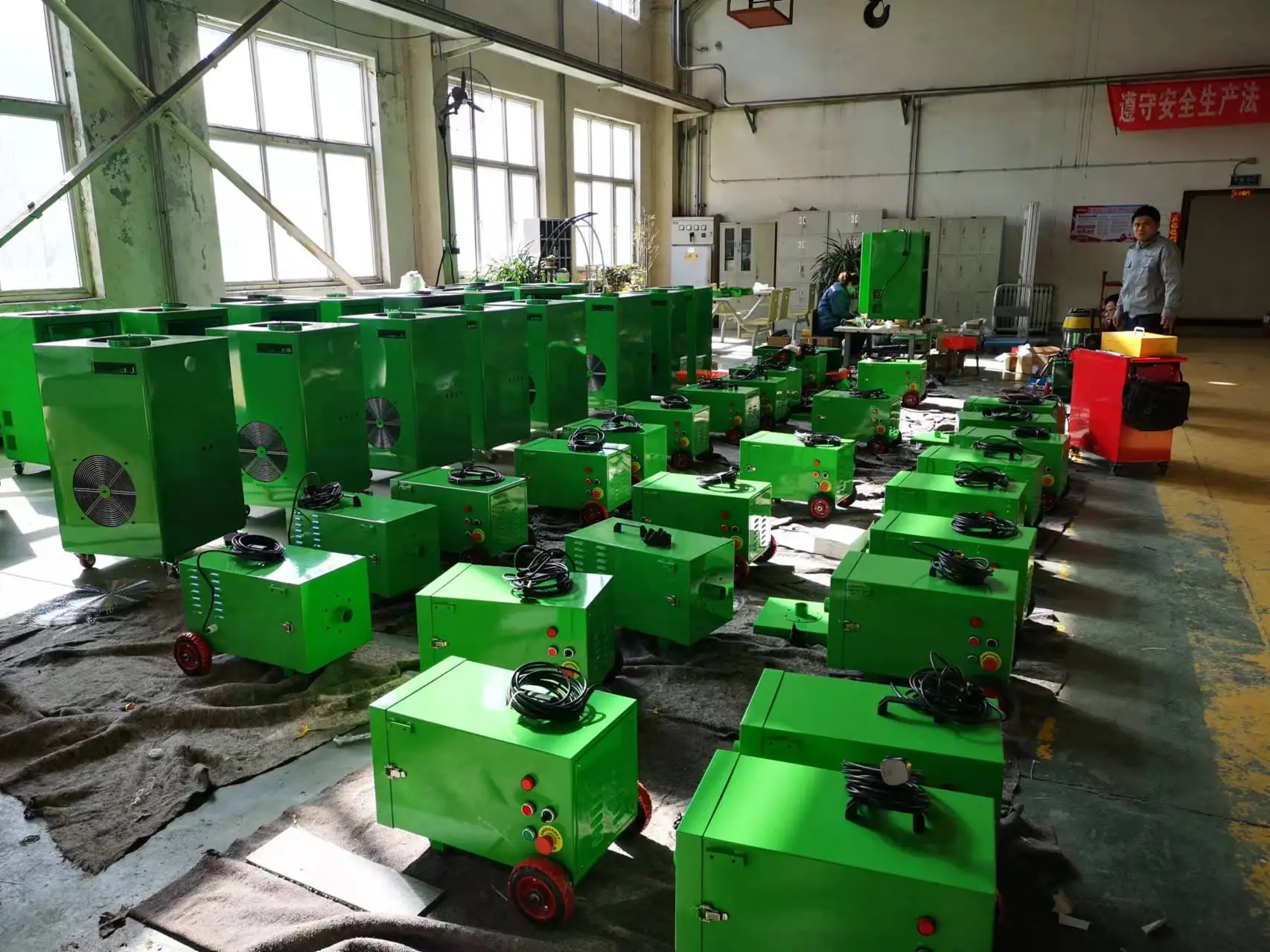

Company Profile
Shandong Moland Environmental Tech Co.,Ltd is located in No. 11889 Jingshi West Road, Changqing District, Jinan City, Shandong, China, established in 2016. It’s an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification systems.
The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries. The company has passed the ISO 9001 quality management system certification, obtained the certification of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents.
Through continuous R&D and innovation, many products of the company have reached the international leading level.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.

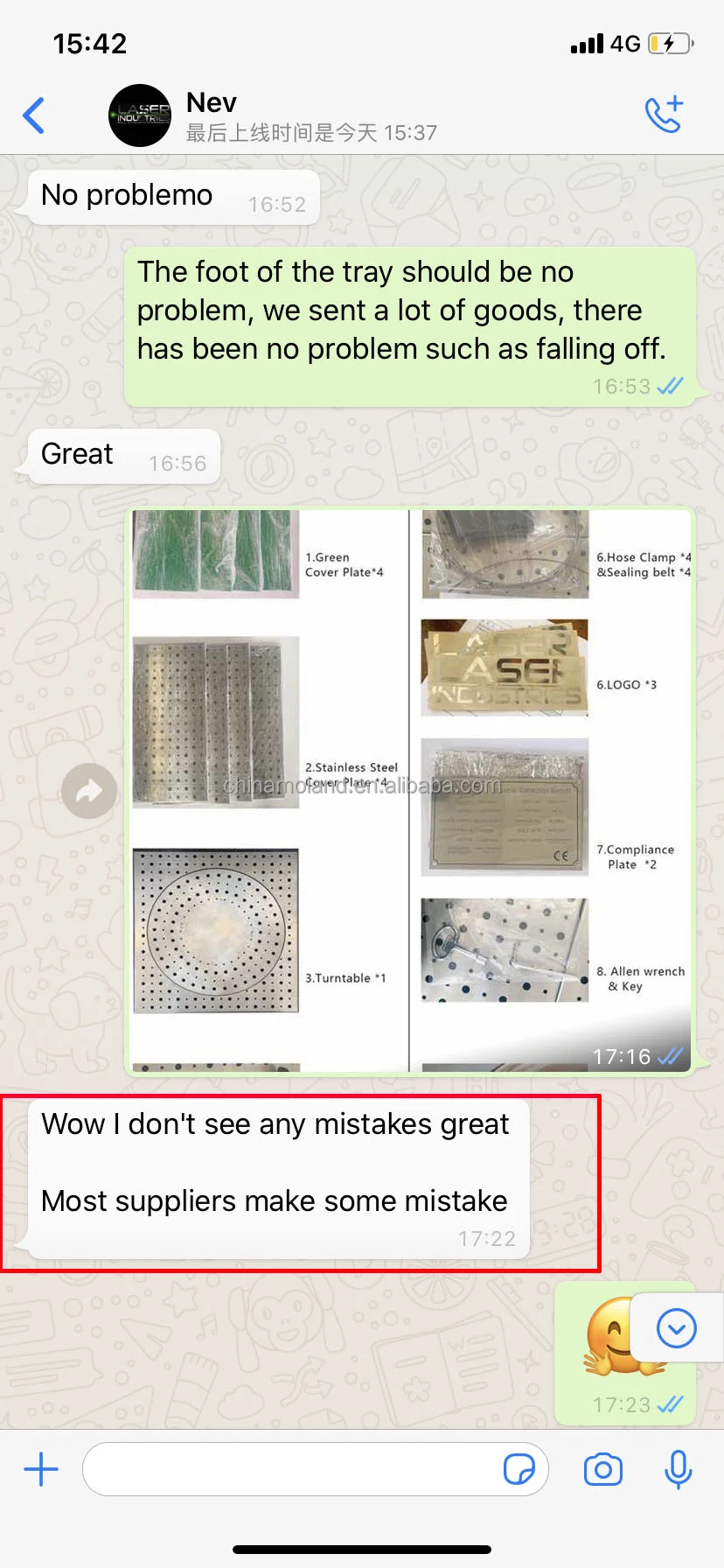

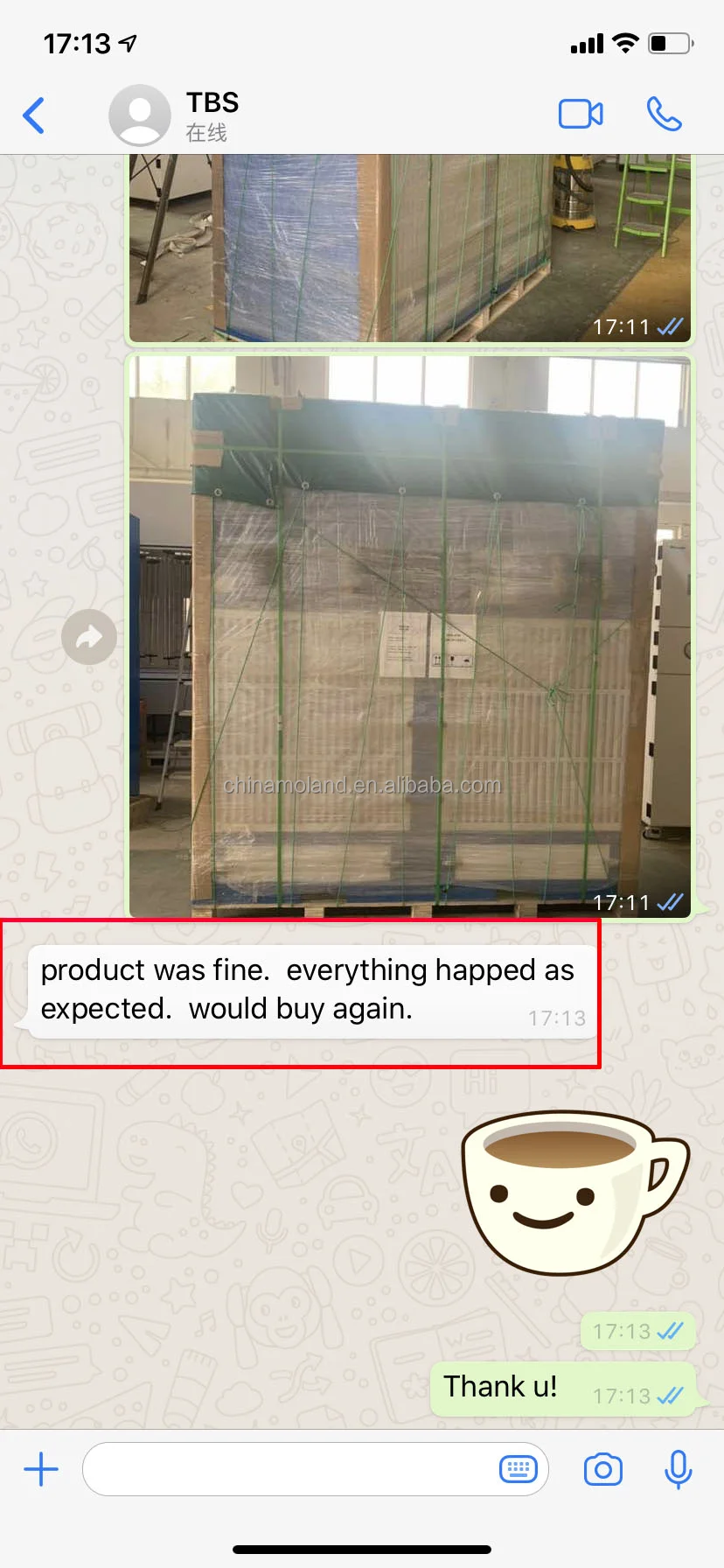

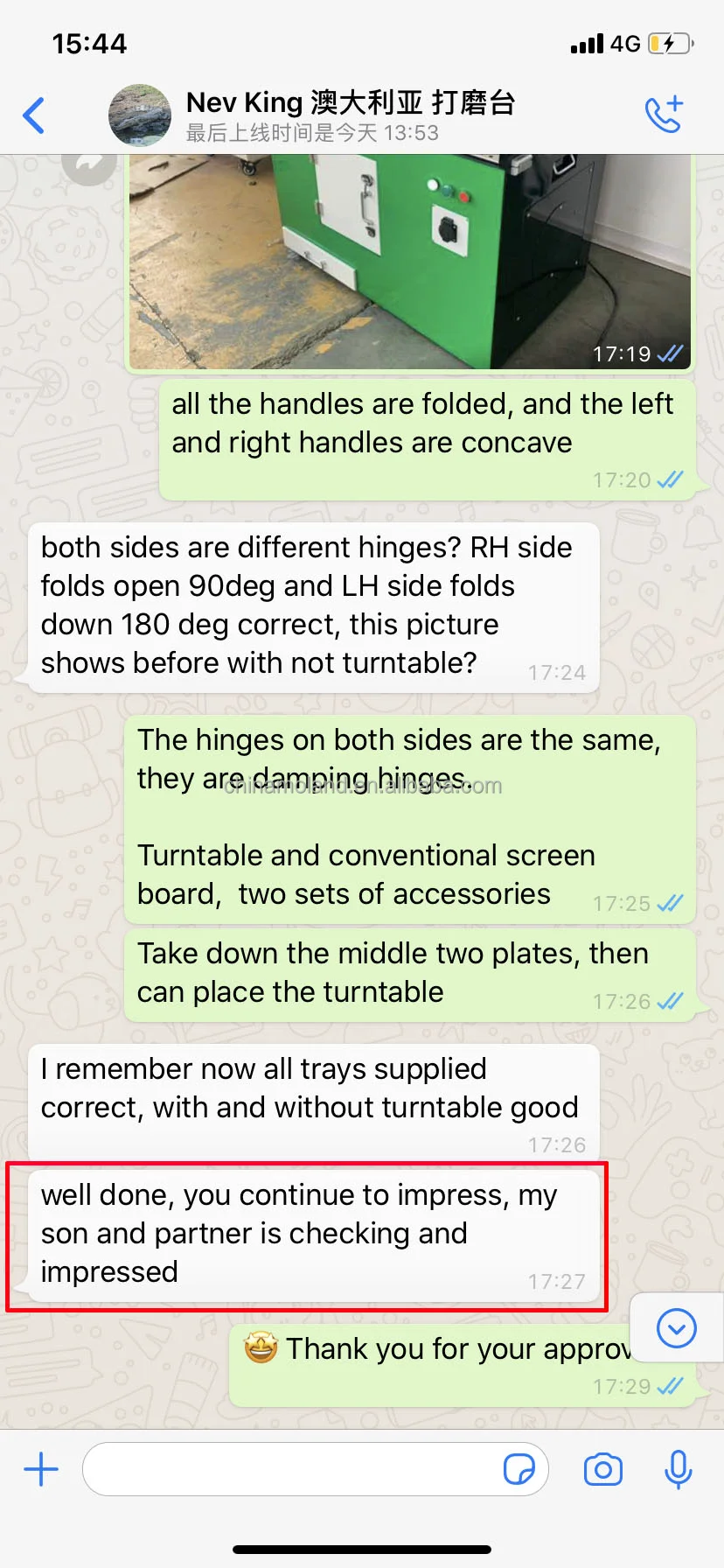

Exhibition &Customer Feedback
FAQ
Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements,colors, etc.
Q2: What's the package?

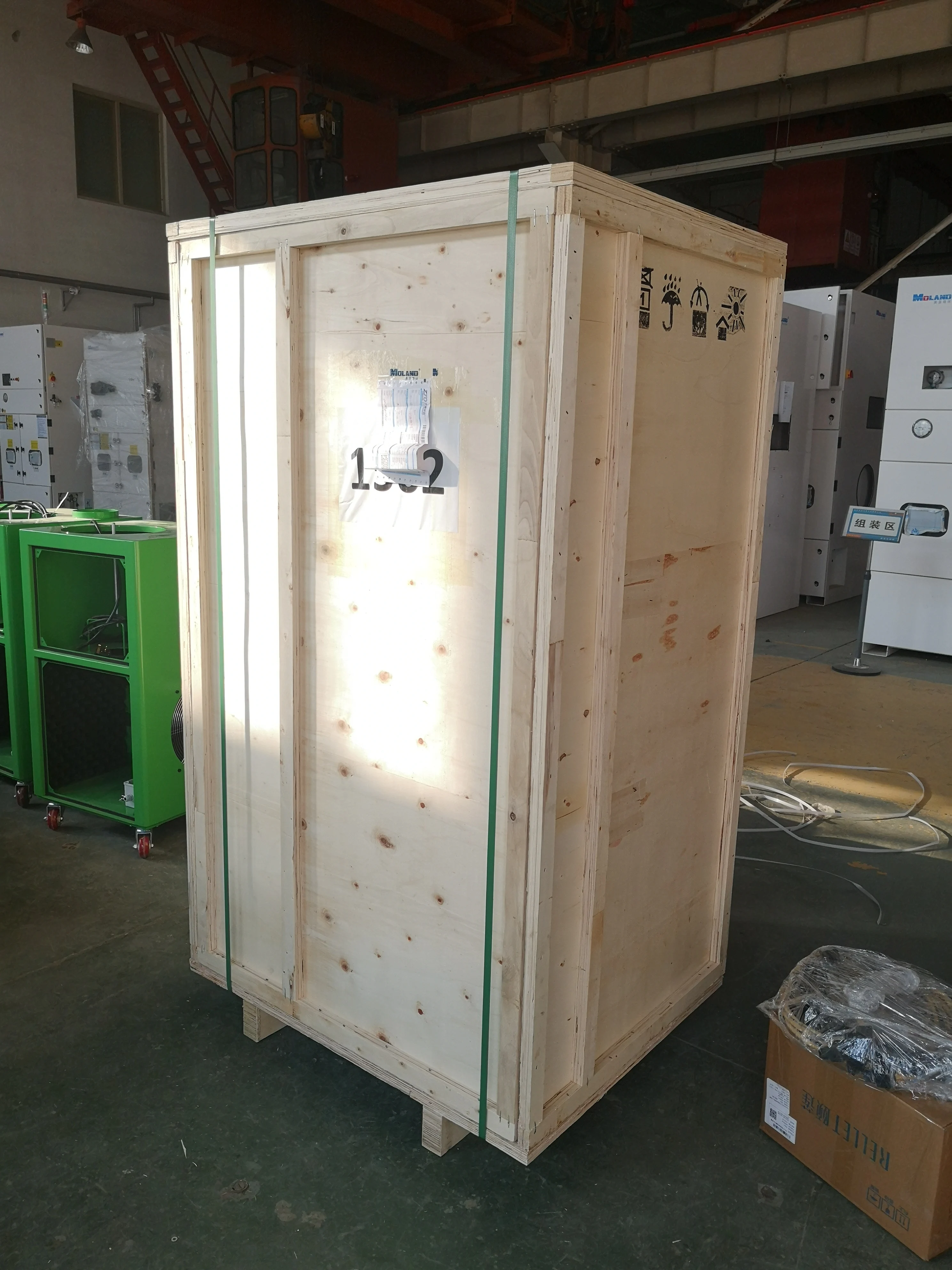

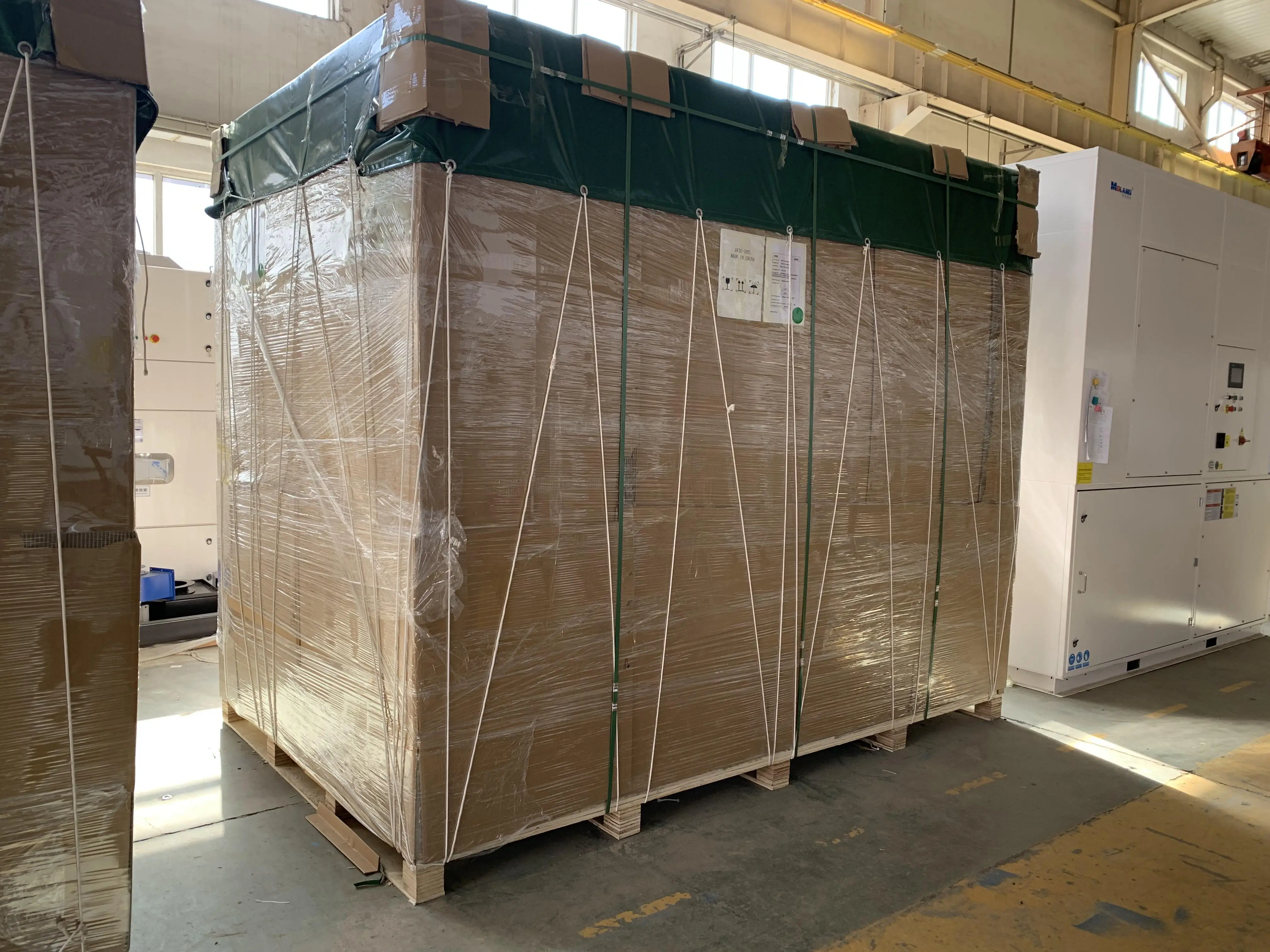

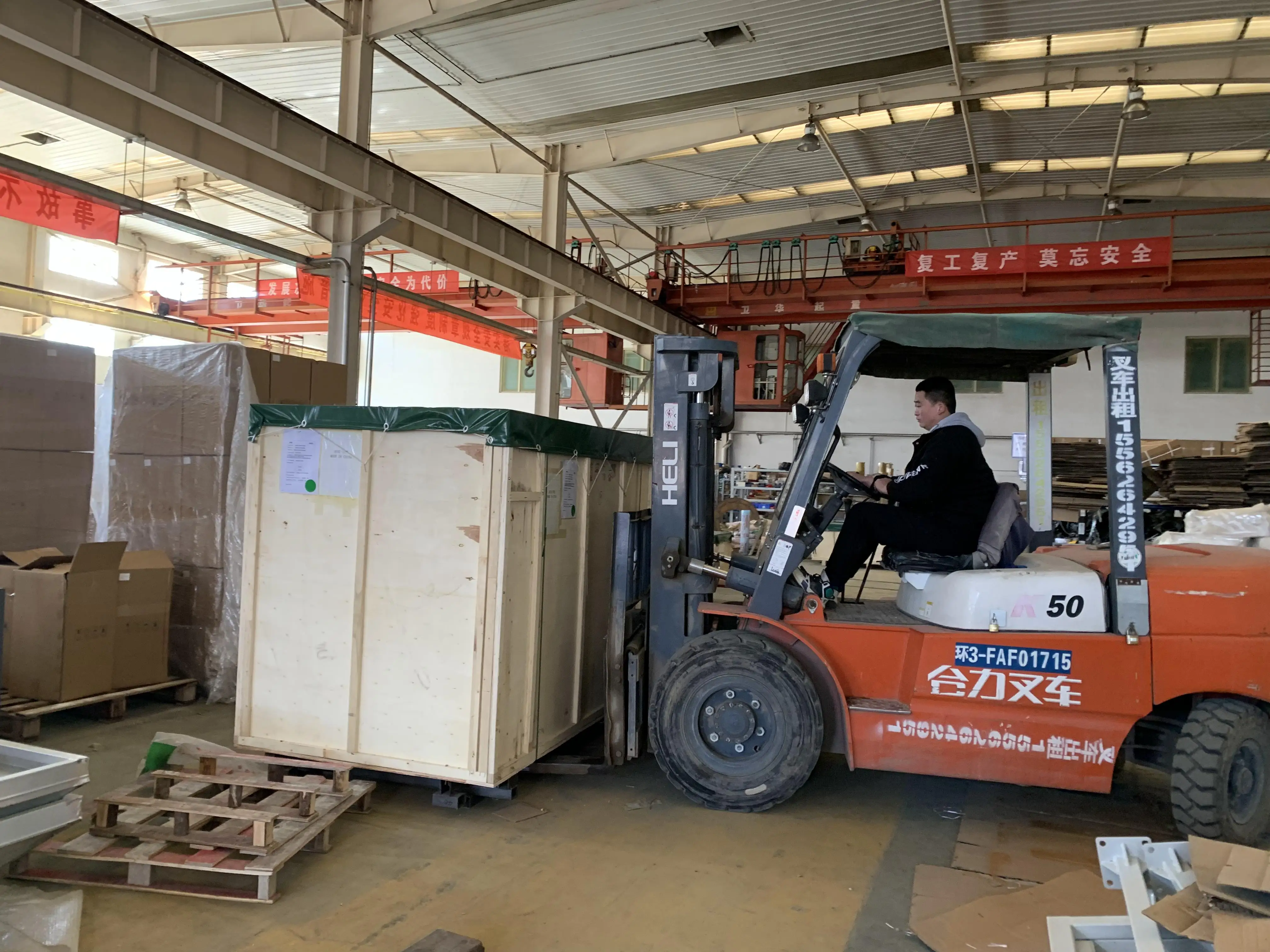

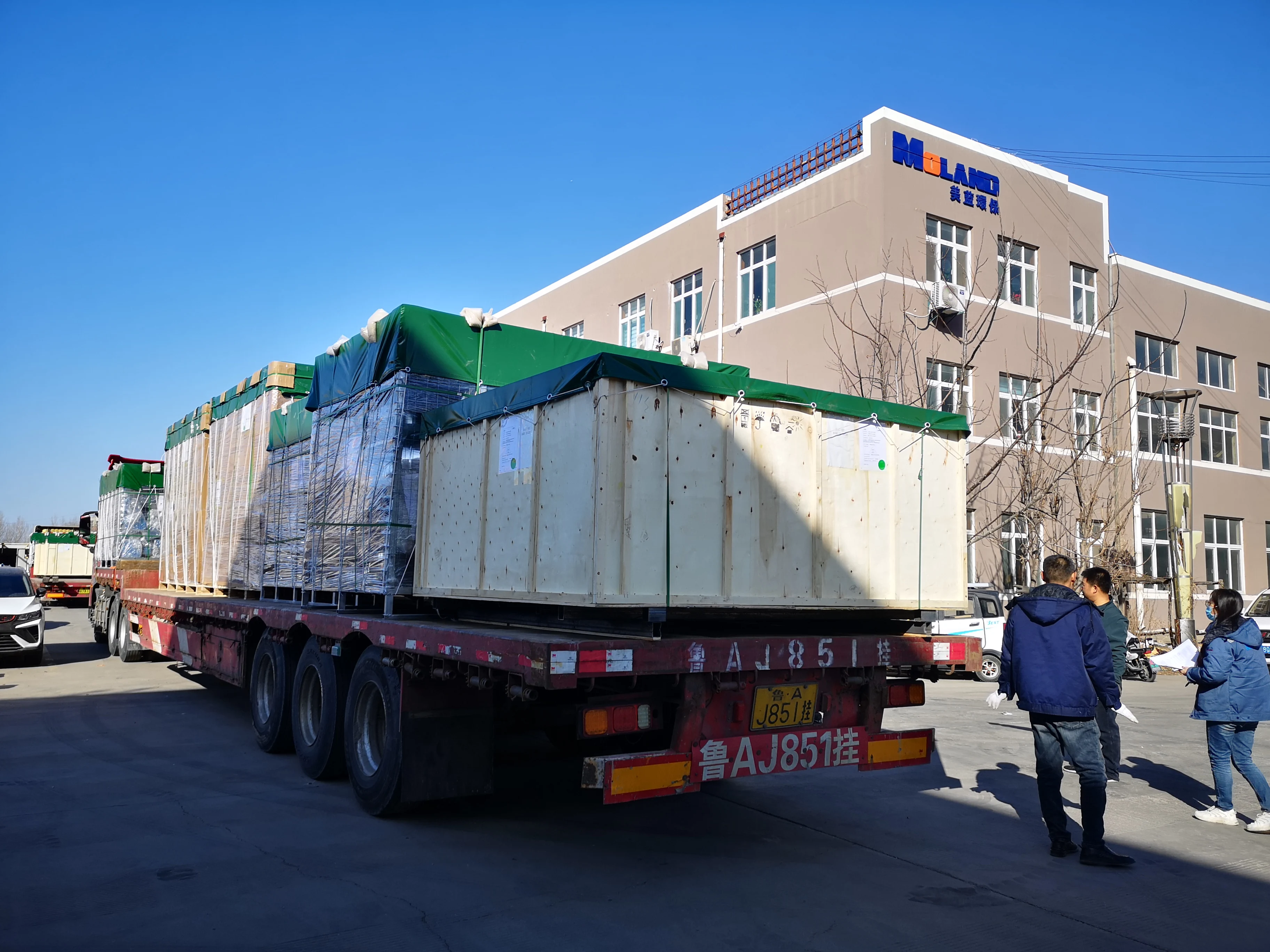

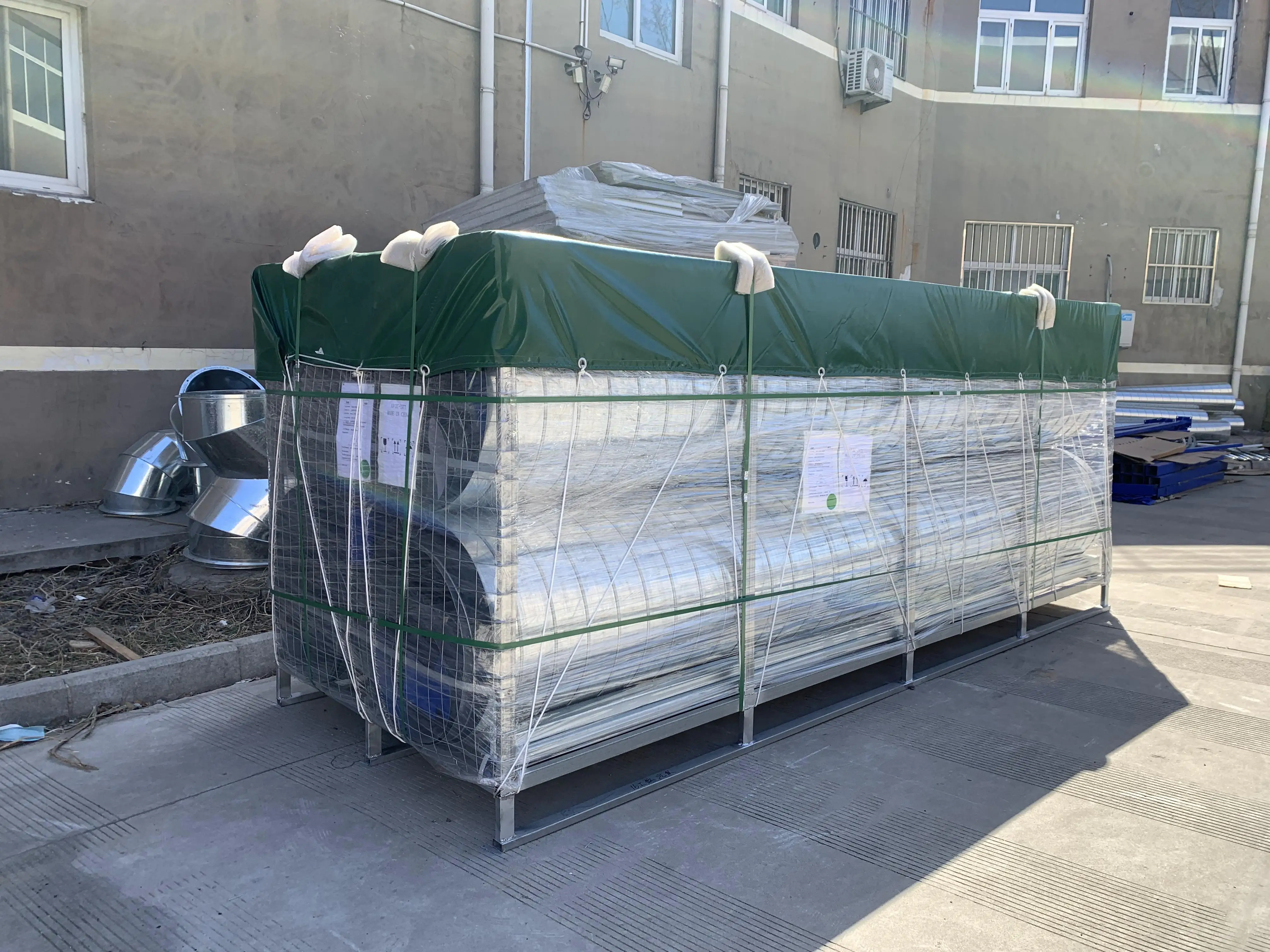

A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements,colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
