Карбидное сверло из сплава, 5 дюймов
5 811,37 ₽ - 6 030,67 ₽

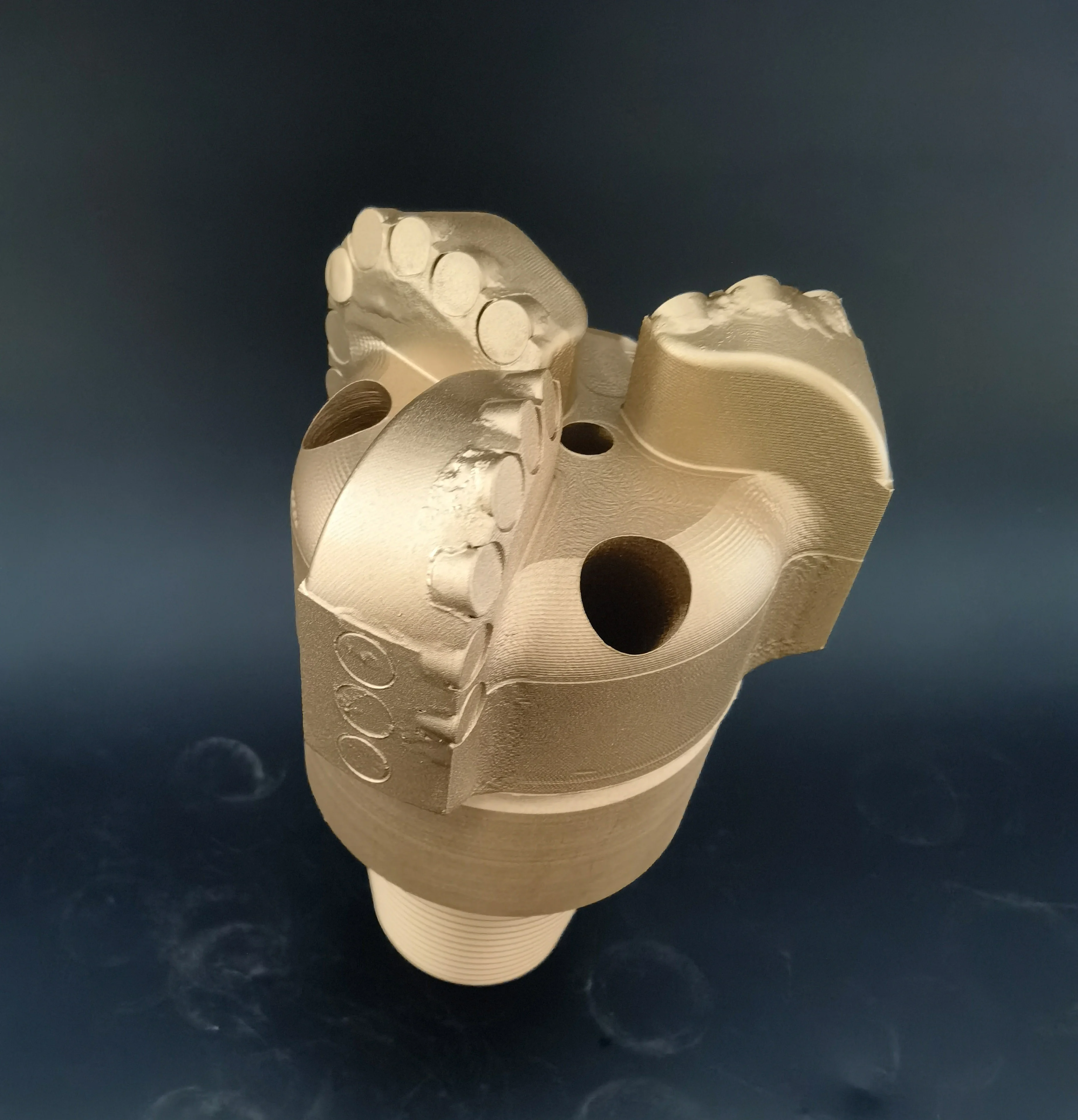

Буровое долото для бурения скважин 6 дюймов
- Категория: >>>
- Поставщик: Zhengzhou Sungood New Material Technology Co. Ltd.
Сохранить в закладки 1601216658695:
Описание и отзывы
Характеристики
Product Description

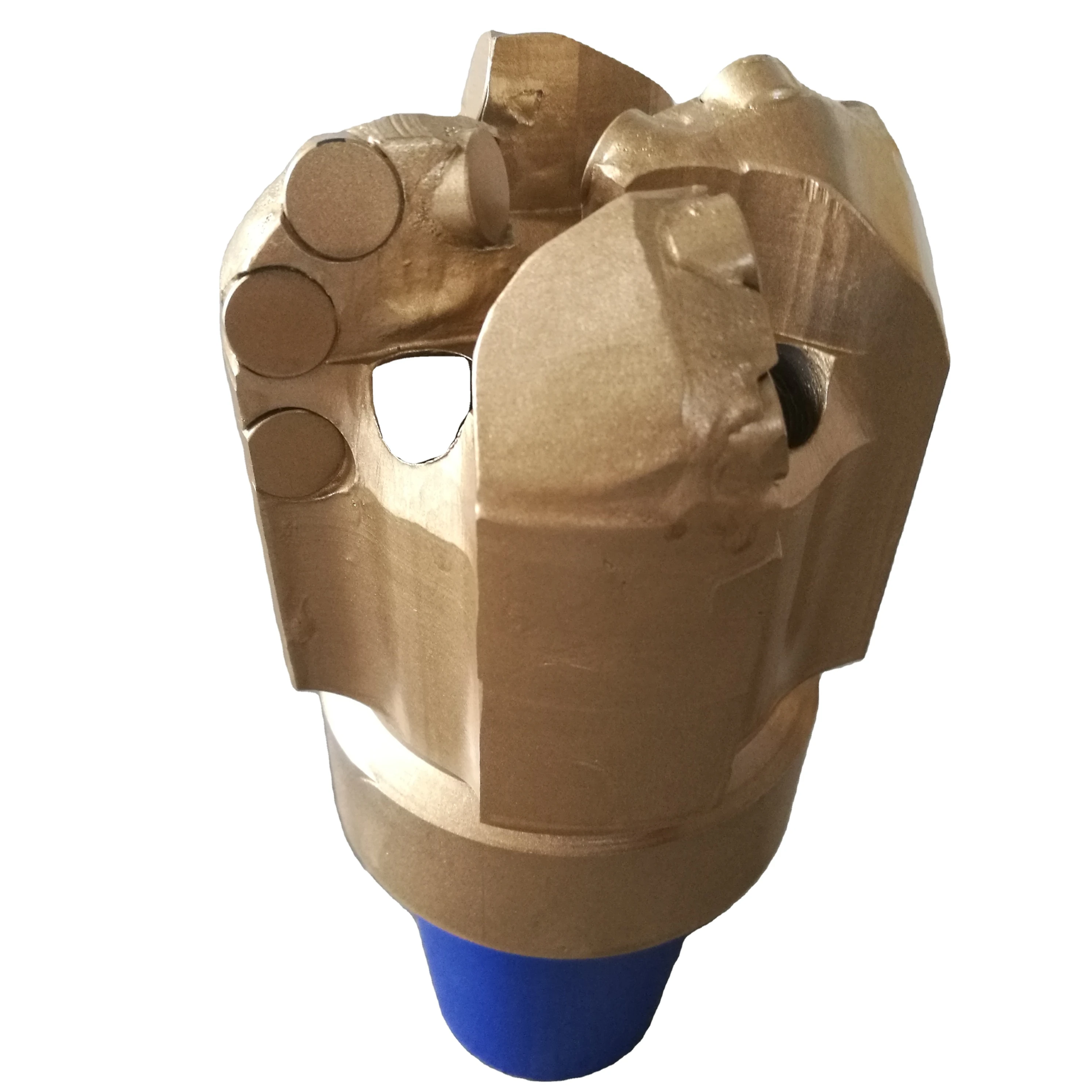

Φ 6inch PDC BIT 4 WINGS | ||
Diameter (mm) | Φ6inch | |
Weight on bit (Kg) | 640-1600 | |
Speed (rpm) | 150-250 | |
Pump capacity (1/min) | 200-250 | |
Production process | High quality steel forging and forming, the hardest diamond composite material, and sintered hard alloy | |
Main purpose | Diamond drill bits are suitable for petroleum drilling, geological exploration, water conservancy and hydropower, railway and highway construction, tunnel construction, and other operations, especially for drilling and drilling in medium to hard geological conditions | |
1. Size: | The product you searched for is a 6inch concave three wing product. Other sizes include 50mm, 55mm, 60mm, 65mm, 75mm, 85mm, 94mm,113mm, 133mm, 140mm, 153mm, 173mm, all the way up to 300mm. You can also customize according to your needs. |
2. Drill bit type: | column type, concave, three wing, four wing |
3. PDC tool size: | 1308, 1304,1313,1613,1908,1913,ect |
4. Valve body material: | C45# steel, tungsten carbide matrix. |
5. Applicable rocks: | mud rock, limestone, shale, sandstone,granite, etc. |
6. Color: | gray, gold, blue, or according to customer requirements |
Advantages
This series of diamond PDC drill bits are formed by calcining high-quality steel and processed with vacuum fully automatic heat treatment equipment to enhance their mechanical properties. The ordinary model uses high-quality domestic composite blades as blade blades, while the ultra strong model uses blades produced by GE Company in the United States. Corresponding quality levels are selected according to different geological conditions, which can achieve higher product cost-effectiveness and achieve energy-saving and efficient economic indicators.
Drag drilling bit works under low drilling pressure, medium-low drive speed, big drainage. High wear resistance; Impacttoughness;High drilling efficiency; Long service life.
Specification
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Function
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning toavoidhuge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formationis improved.
Application
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.
Company Profile
Why did you choose us?
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
Body Material
1.Steel body:suitable for soft to medium hard chunks of homogeneous,hard and abrasive high formation.
2.Matrix body:Suitable for harder geological conditions
Cutter size | 13X 8 mm | The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed . | ||||
13X19 mm | ||||||
16X13 mm | ||||||
19X13 mm | ||||||
Unmatched quality gives you peace of mind
Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.
PDC flat top drill bits (65mm, 75mm, 94mm, 113mm, 133mm, etc.)
Matrix body pillart type PDC bit(PDC flat face frill bit) is made by with PDC cutter brazed to Matrix Body. With higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,the bit has enhanced reliability and drilling efficiency.
Application: Mainly used in coal mining, water well, geothermal well, dam construction, blasthole, oil das drilling. Suitable for medium hard to hard, very hard rock, like limestone, sandstone, quartz, gravel, marble, granite, basalt, etc.
Application: Mainly used in coal mining, water well, geothermal well, dam construction, blasthole, oil das drilling. Suitable for medium hard to hard, very hard rock, like limestone, sandstone, quartz, gravel, marble, granite, basalt, etc.
Main features
1) Wear resistance and long service life;2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Diameter (mm) | 30 | Material | diamond+hard alloy |
Length (mm) | 32 | Production process | high-quality steel forging and forming |
Weight on bit (Kg) | 300-700 | Main Use | Diamond drill bits are mainly used in industries such as coal fields, oil drilling, geological exploration, water conservancy and hydropower, railways and highways, tunnel construction, etc. across the country |
Speed (rpm) | 300-500 | ||
Pump capacity (1/min) | 150-200 |
Unmatched product performance
The diamond drill bits produced by our company are widely used in domestic and foreign industries such as coal fields, oil drilling, geological exploration, water conservancy and hydropower, railways and highways, and tunnel construction., etc. The two wing PDC anchor bit (half standard type) is suitable for rock layers below grade 8. Under the same rock layer conditions, the drilling life is 10-30 times that of ordinary alloy bits, and the efficiency is improved by at least 60%. It does not require grinding, greatly reducing the labor intensity of workers and saving labor hours. The key raw materials for the two wing PDC anchor bit (half reinforced) blade are produced by GE Company in the United States. Its diamond content is 1.5 times that of a regular drill bit, with excellent wear resistance, significantly improved efficiency, and reduced overall cost. It is suitable for medium hard rock layers below grade 12.
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
Packing & Delivery
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
FAQ
To provide you with thoughtful service
Question 1. What are your packaging conditions?
Answer: Usually, we package the goods in neutral white boxes and brown cardboard boxes. If you have a legally registered patent, we can package the goods in your brand box after receiving your authorizationletter.
Question 2. What are your payment terms?
Answer: T/T 50% as deposit, 50% before delivery. Before you make the remainingpayment, we will show you photos of the product and packaging.
Question 3. What are your delivery terms?
Answer: EXW, FOB, CFR,CIF.
Question 4. What is your delivery time?
Answer: Generally speaking, it takes 10 to 15 working days after receiving the advance payment. The specific delivery time depends on the items and quantity in your order.
Question 5. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Question 6. What is your sample policy?
Question 6. What is your sample policy?
Answer: If we have ready-made inventory of parts, we can provide samples, but customers must pay for sample and courier fees.
Question 7. Do you test all the goods before delivery? Answer: Yes, we have 100% testing before delivery
Question 8: How can you establish long-term good relationships with our business?
Answer: 1. We maintain good quality and competitive prices to ensure that our customers benefit; 2. We respect every customer as our friend, no matter where they come
from, we sincerely do business with them and make friends.
from, we sincerely do business with them and make friends.
Похожие товары

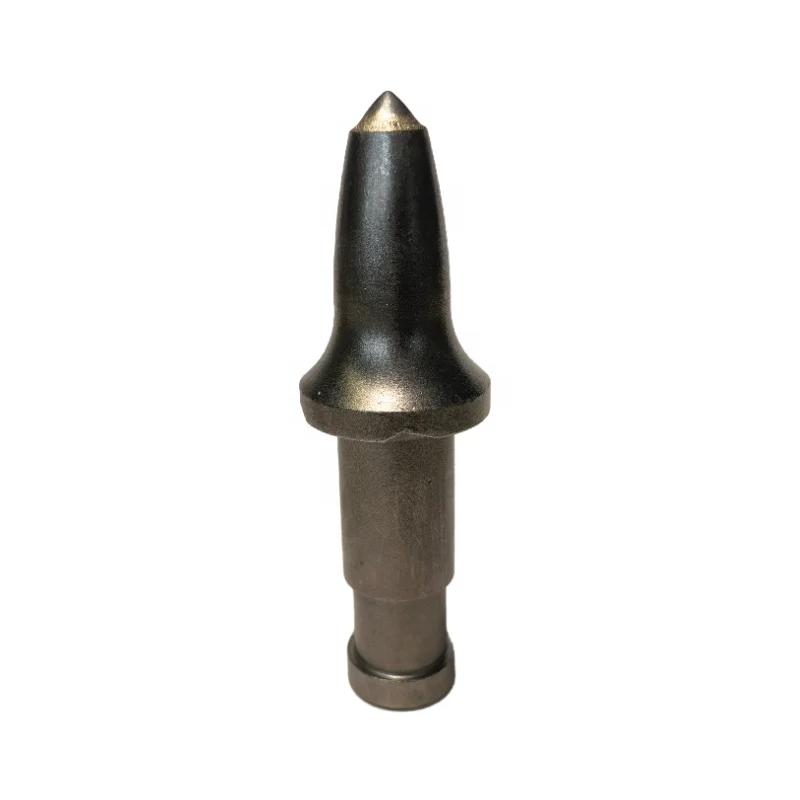

Заводская распродажа, молотковая серия, эксперт, 42crmo D25, конические дорожные коллекторные машины, твердая каменная основа, сверлильный щит
2 521,92 ₽ - 2 741,21 ₽

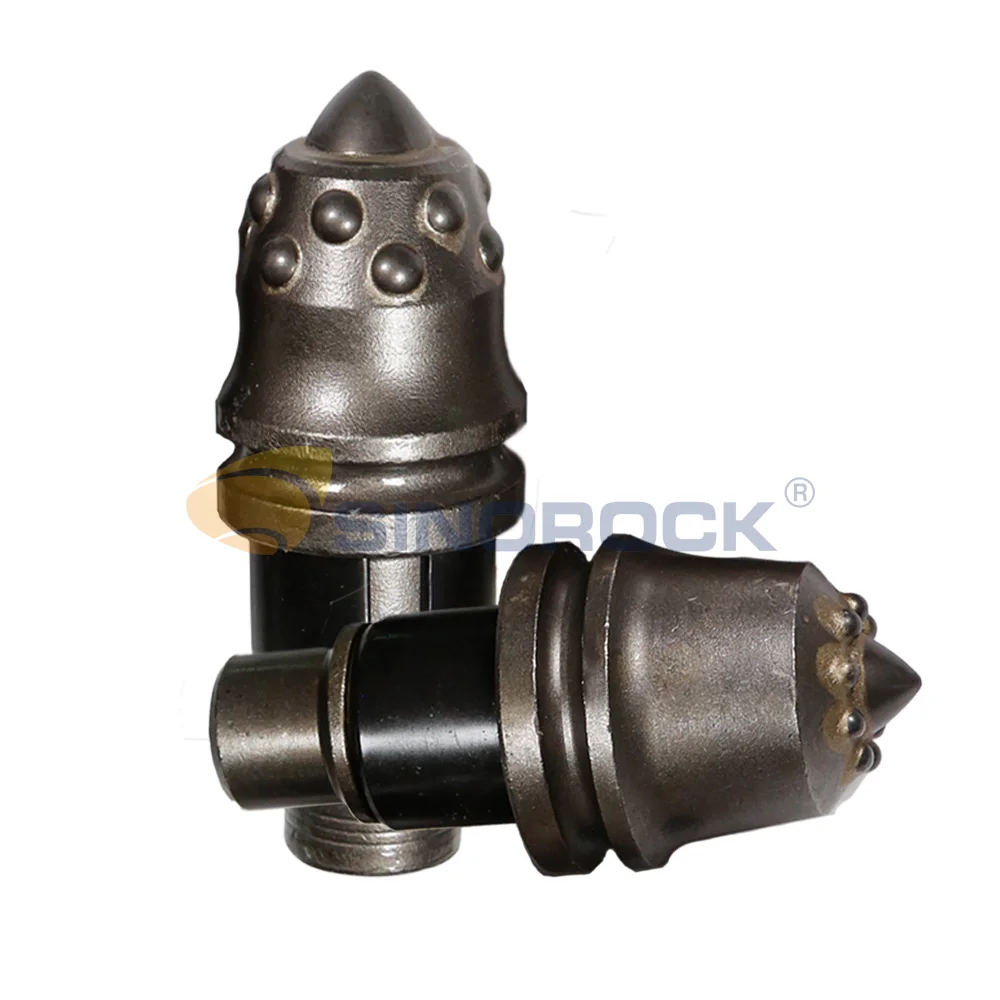

Измельчитель SINOROCK, инструменты для резки с хвостовиком
767,54 ₽ - 986,84 ₽
Высокопрочная резка по камню
548,25 ₽

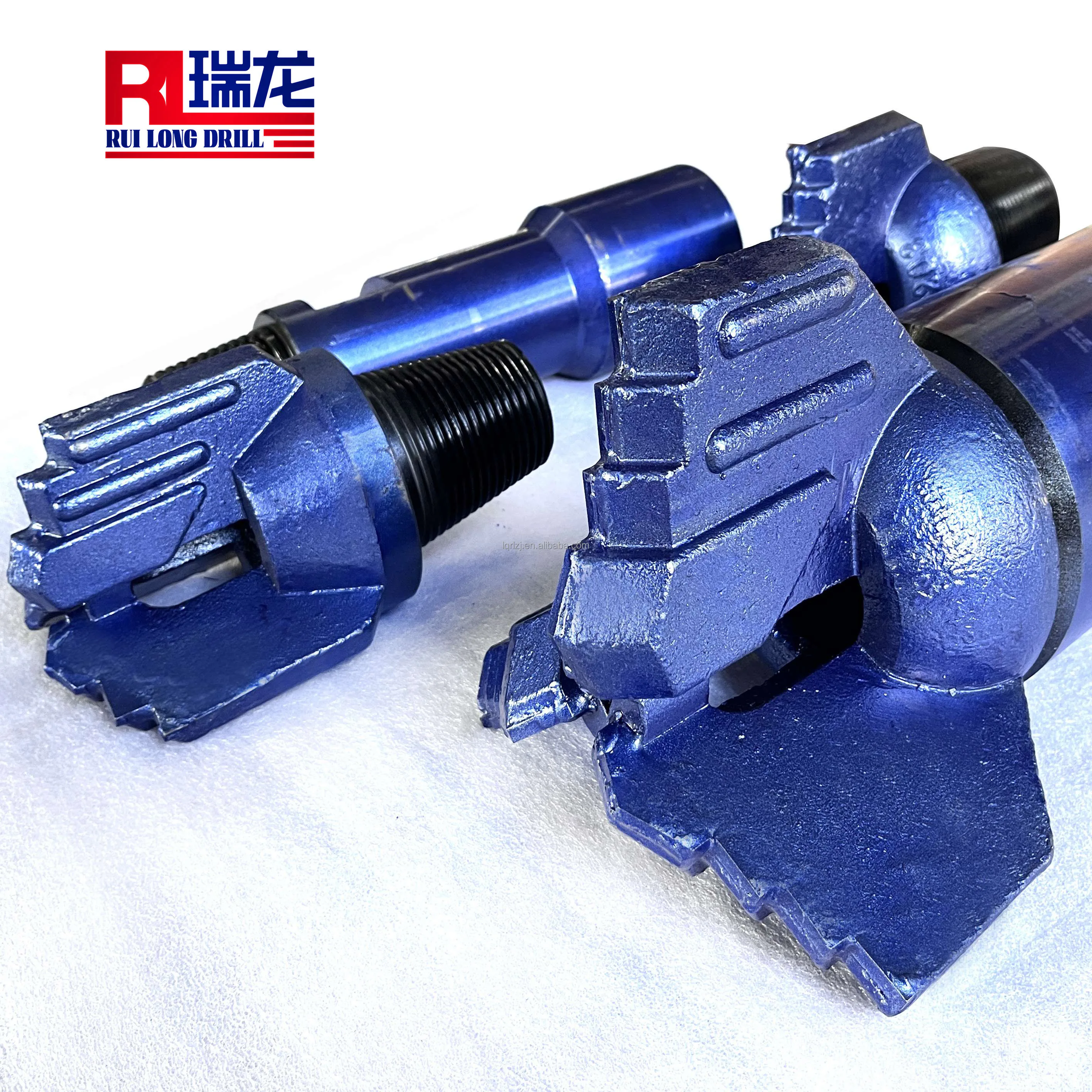

Оптом, инструменты для глубокого бурения скважин, долота pdc, долота pdc, коронки для нефтяной воды, скважина
8 771,88 ₽ - 16 447,26 ₽
Высококачественные фрезы для фрезерного станка PDC
26 315,62 ₽ - 32 894,52 ₽

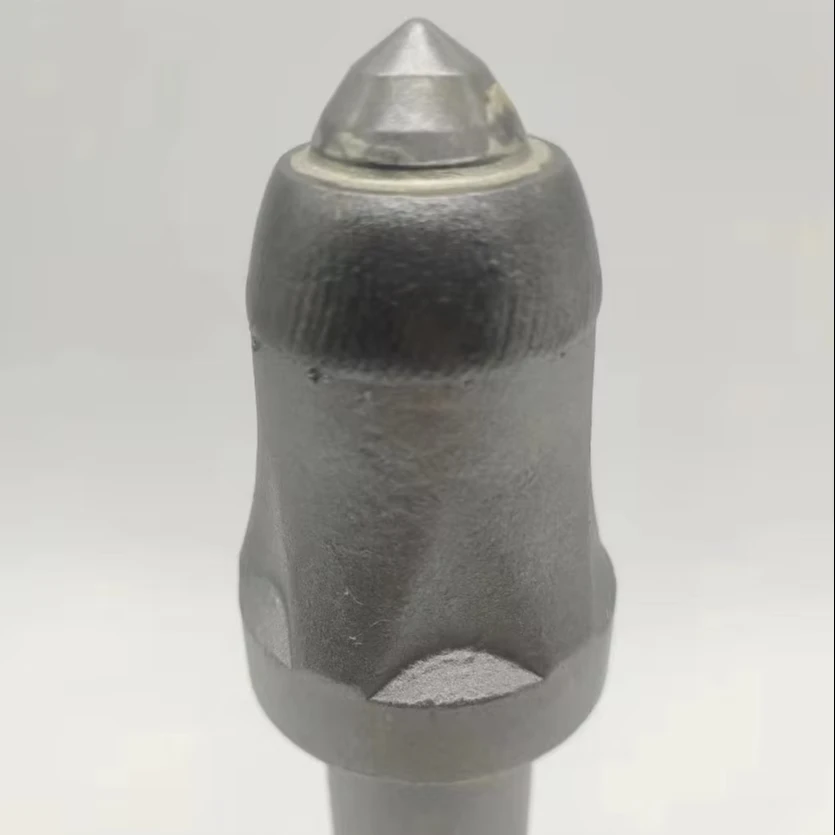

Держатель сверл 85-2 для корпуса пулевидных зубцов, изготовлен из 42CrMo, наконечник из карбида вольфрама, китайский руллистер
789,47 ₽ - 877,19 ₽

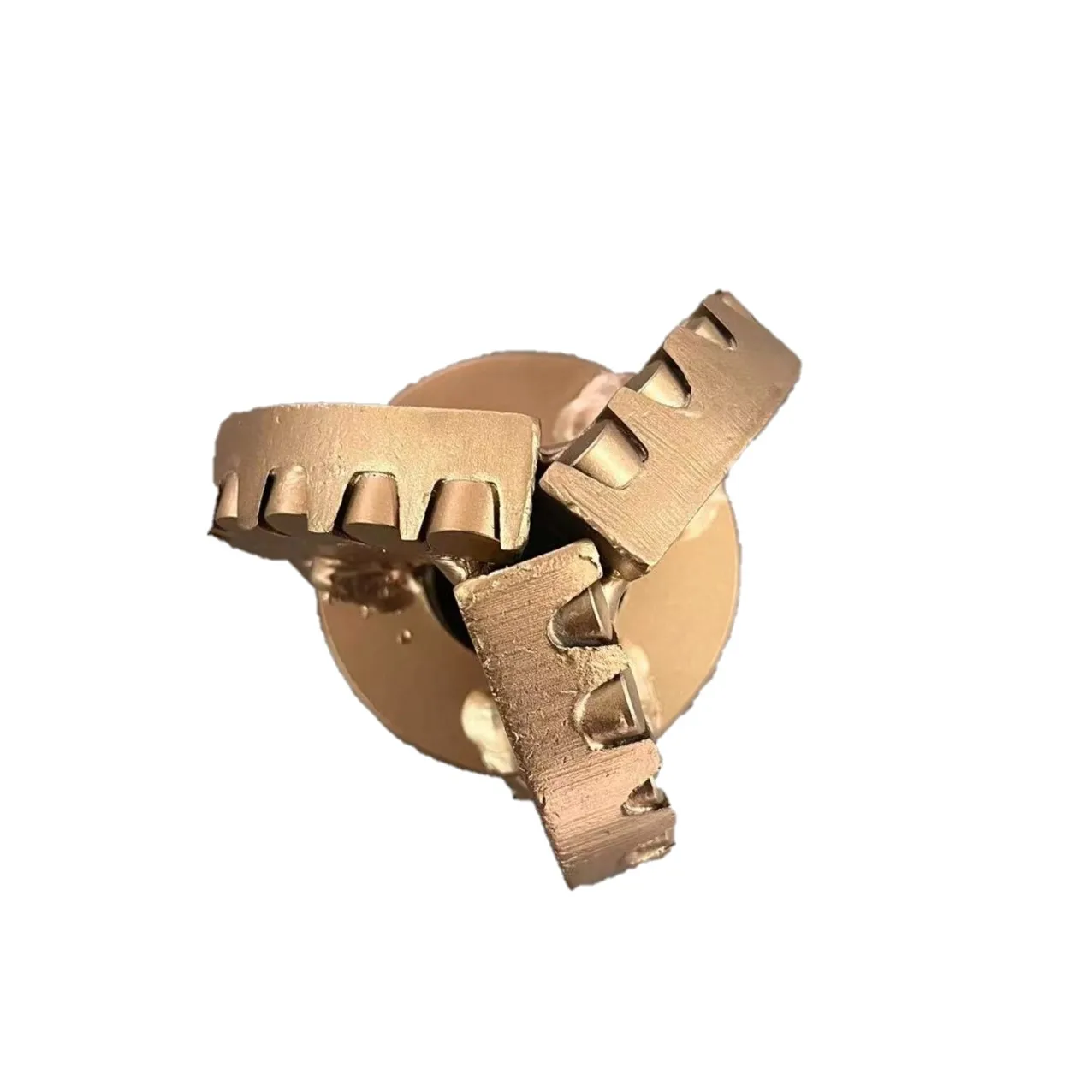

3 крыла 4 крыла 5 крыло фрикцион бит PDC дрель
