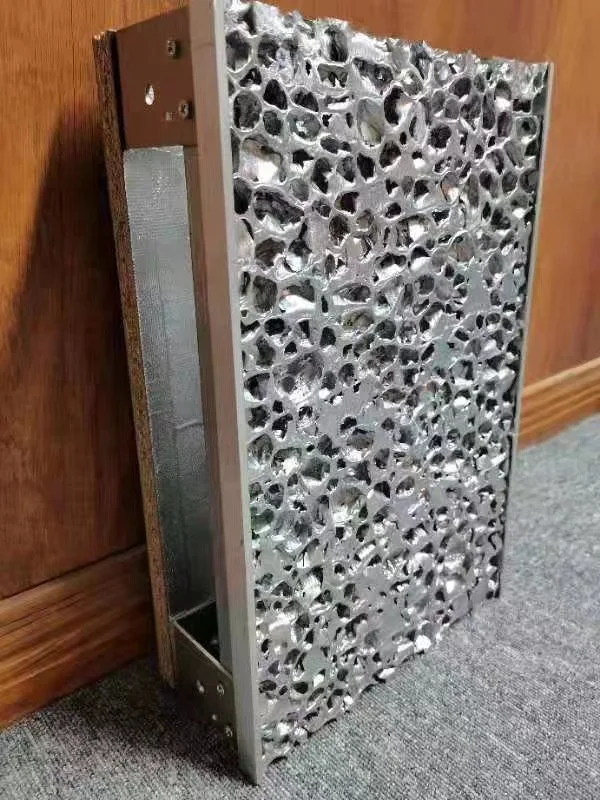

Высококачественная архитектурная пористая акустическая панель Композитная Панель алюминиевая пена для архитектуры и украшения
2 204,23 ₽ - 8 376,06 ₽
1 м * 2 алюминиевая пена шумоподавление звукопоглощающие панели металлическая от китайского завода
- Категория: >>>
- Поставщик: Baotong (shandong) Import And Export Co. Ltd.
Сохранить в закладки 1601216770312:
Описание и отзывы
Характеристики
Best quality 100% made in China
Ultra light recyclable pure aluminum foam wall board
Warranty for 20 years

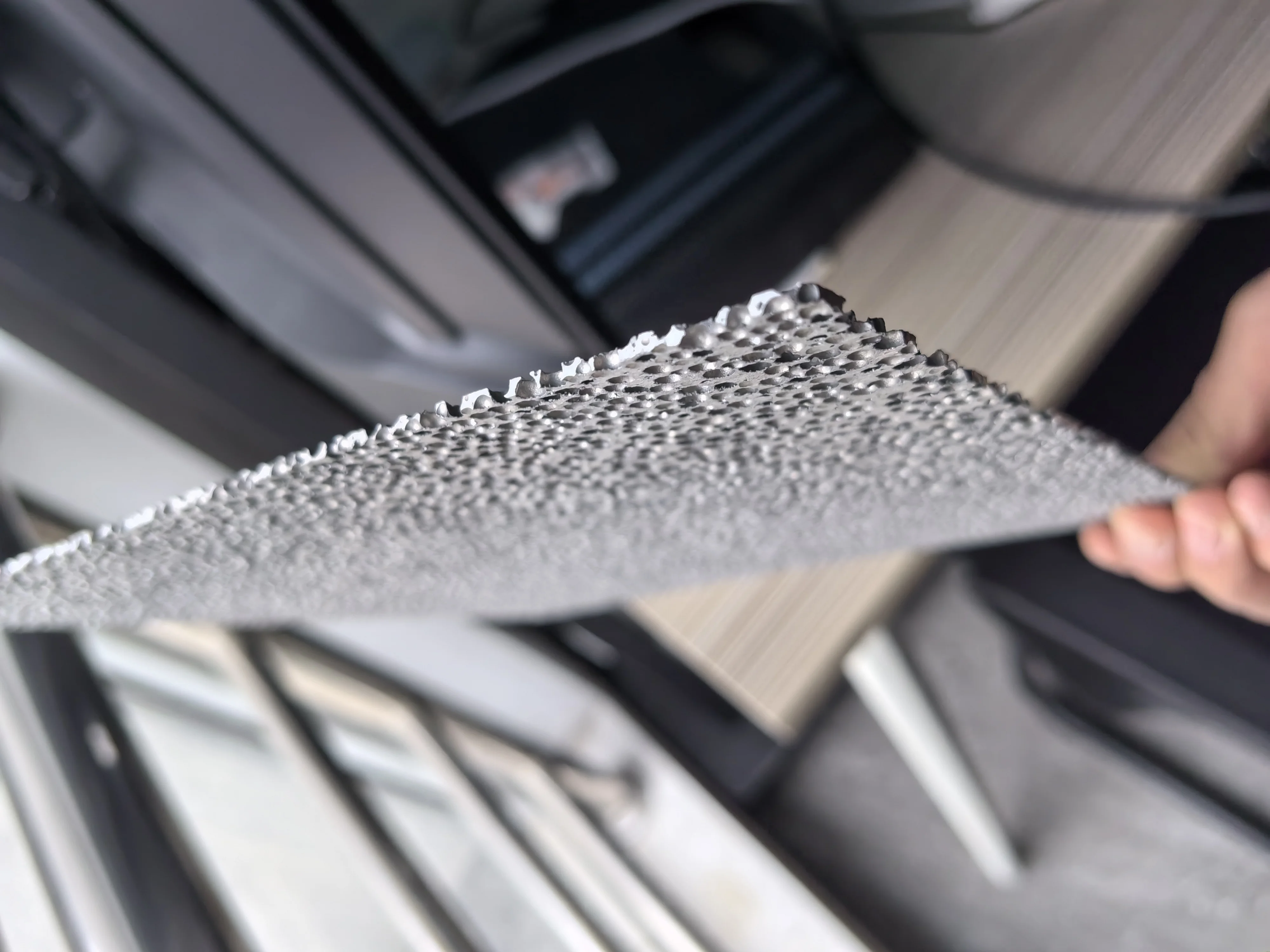

Aluminum foam is a new type of light metal material produced by aluminum alloy foam based on the principle of bionics structure.It is light and strong, with a density less than water. It has many excellent properties, such as sound insulation and noise reduction, electromagnetic shielding, energy absorption buffer, flame retardant and explosion proof, and is widely used in equipment manufacturing, transportation facilities, building decoration, civil plate and other fields.
Its porous structure gives AlumiFoam excellent energy absorption properties like shock and sound absorption, thermal insulation and blast mitigation features.AlumiFoam is non-flammable. It generates non toxic fumes in case of fire. 100% recyclable.
Product Paramenters
Pore diameter | Main 5-10 mm |
Density | 0.25g/cm 3-0.85g/cm 3 |
Color | We can paint different color as customer need |
Thickness | 6 -300 mm |
Size | availability 600*600mm.1200*600mm. Biggest size is 2400*800mm |
Shape | mainly. panel; customize special shape acceptabl |
performance | Finger mark | analogy | remarks |
density | Commonly used 0.1~1.0 g/cm³ | 1/10 of aluminum and 1/4-1/3 of water. | The actual controllable density range is 0.05-2.7 g/cm³ |
compressive strength | 1-35Mpa | Under the same weight, the specific strength is 5 times that of steel and 2 times that of aluminum. | |
stiffness | The elastic modulus is 0.7-1.4GPa | The stiffness ratio is 50-100 times that of aluminum alloy. | When large deformation occurs, local bees |
thermal expansivity | (14-20)x10-6℃ | Equivalent to concrete. | |
Thermal conductivity | 0.2-0.8W/(m·K) | 1/10 of stone and 1/4 of cement, similar to wood. | |
heat resistance | No deformation at 780°C and heat resistance of 1000°C | Combustible materials with combustion performance meeting and exceeding GB8624 (Grade A) | 100% flame retardant |
Energy absorption | 2-25J/cm³ | The best energy-absorbing buffer material produced by human beings. | When the strain rate is high, the energy absorption capacity increases, with a specific increase of 20-100%. |
sound-absorbing | Noise reduction coefficient NRC 0.4~0.8 | A few sound-absorbing materials that are fire-resistant and do not degrade in wet environment. | Absorb more than 70% of sound |
insulate against sound | 20-40dB | Six times that of ordinary plastics. | Cut off 80-90% of the sound |
electromagnetic shielding | 60~100dB | Excellent high-power electromagnetic shielding material, the shielding efficiency reaches more than 30 times of ferrite, industrial pure iron and other materials. | High electromagnetic shielding, shielding more than 90% electromagnetic waves. |

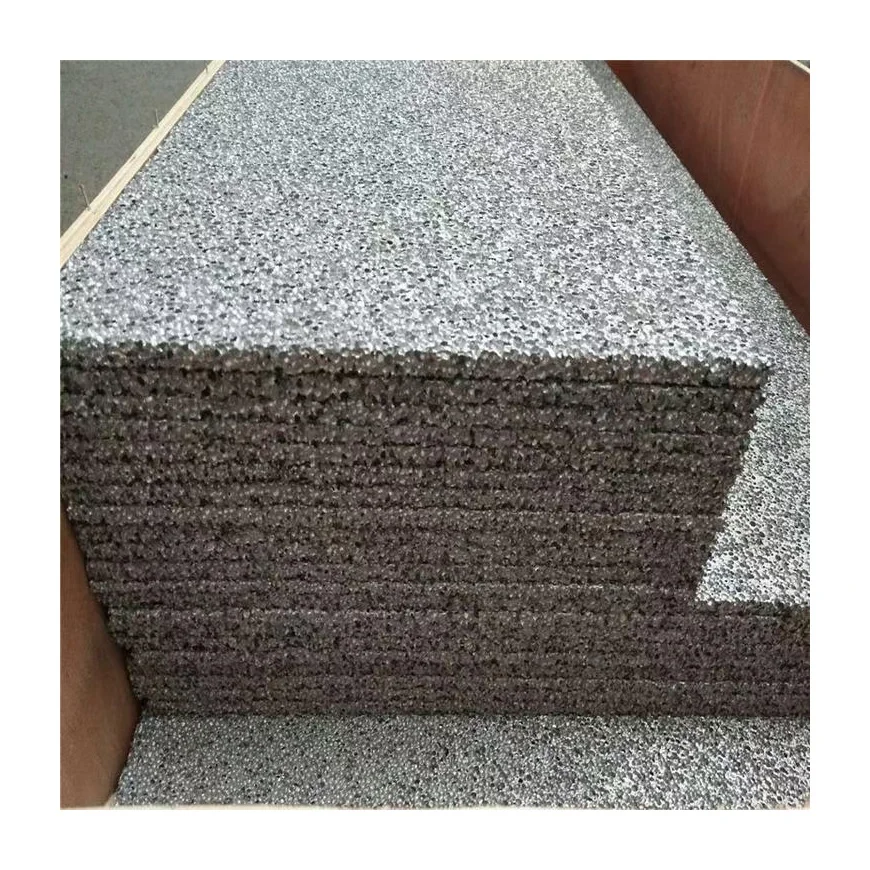

Aluminum foam products
Aluminum foam can also be made into sandwich structure, is a kind of high strength and very light plate, can be bonded on the two sides of aluminum foam aluminum, copper, titanium sheet, made into sandwich board, aluminum foam surface decoration effect is good, coating on aluminum foam sound absorption effect is almost no damage.
Our Advantages
SCOPE OF APPLICATION

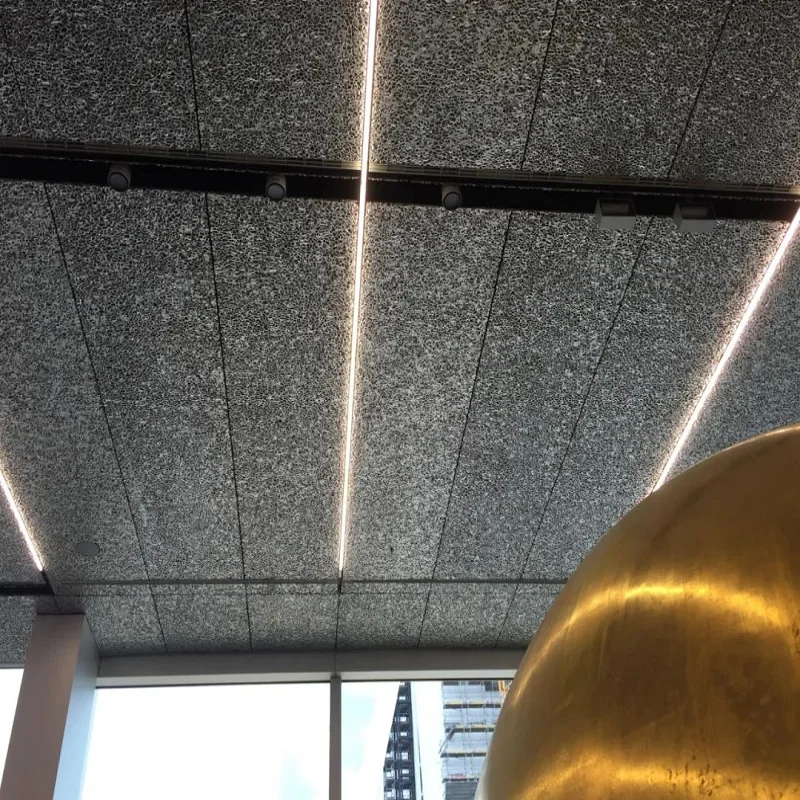

Aluminum foam can be painted in other rich colors, or in patterns of materials such as stone and wood, and can be used in any design for interior and exterior decoration of buildings and other materials.
Specifically, the main application of aluminum foam in the field of construction can be summarized as
> Aluminum foam plywood can be used to make the walls and roofs of long-span buildings (such as Olympic venues, hangars, exhibition centers, factories, theaters, etc.);
> Aluminum foam sandwich board can be made recording studio, karaoke, concert hall, coffee shop, office space;
> Aluminum foam bare board can be produced in recording studios, theaters, lecture halls and other places of sound-absorbing decorative board;
> Aluminum foam material placed under the floor can play a sound insulation between floors; > Aluminum foam sandwich board can be made of sound-proof door;
> Aluminum foam sandwich board can be made of noise equipment (such as large air conditioners, air compressors, grinding machines, etc.) soundproof device.
Company Profile
Shandong Baotong Aluminum Co. LTD is a high-tech enterprise with deep cooperation with Tsinghua University. Company R & D production base, a total investment of 350 million, covers an area of 100 mu, building area of about 20,000 square meters. Mainly engaged in the development and production of aluminum foam technology and products, because aluminum foam is light and strong, small density, high specific strength, with sound insulation and noise reduction, electromagnetic shielding, energy absorption buffer, flame retardant and explosion proof and many other excellent properties, its products are widely used in aerospace, equipment manufacturing, transportation facilities, building decoration, civil plate and other fields.
The company will be guided by technological innovation, integration of production and research, based on strong scientific research strength and production capacity, to create a national energy conservation and environmental protection, low carbon emission reduction, recycling and recycling of green environmental protection enterprises. "To protect the motherland's clear water and blue sky" is the responsibility of the enterprise, "to replace traditional materials with new environmental protection materials" is the enterprise's development mission.
The company will be "scientific, rigorous, pragmatic, efficient" enterprise philosophy for the majority of partners to provide quality products and satisfactory service!
The company will be guided by technological innovation, integration of production and research, based on strong scientific research strength and production capacity, to create a national energy conservation and environmental protection, low carbon emission reduction, recycling and recycling of green environmental protection enterprises. "To protect the motherland's clear water and blue sky" is the responsibility of the enterprise, "to replace traditional materials with new environmental protection materials" is the enterprise's development mission.
The company will be "scientific, rigorous, pragmatic, efficient" enterprise philosophy for the majority of partners to provide quality products and satisfactory service!
PRODUCTION OF PAGKAGING
Test report Certificate
EVALUATION
FAQ
Q:Are you trading company or manufacturer?
A: We are a professional manufacturer of aluminum products and a professional foreign trade company of aluminum foil products. We have rich export experience, competitive prices and the best after-sales service. Based on this, we can provide a wide range of Aluminum foam products to meet customer requirements
Q:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra?
A:The sample could can provide for customer with free but the freight will be covered by customer account.The sample freiaht will be returned to customer account after we cooperate
Q: How can I get your quotation as soon as possible?
A:The email and fax will be checked within 24 hours,meanwhile the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us vour reauirement and order information.sdecification(Steel arade size.auantity destination port).we will work out a best price soon.
Q:Do you have any certifications?
Q:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not.Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra?
A:The sample could can provide for customer with free but the freight will be covered by customer account.The sample freiaht will be returned to customer account after we cooperate
Q: How can I get your quotation as soon as possible?
A:The email and fax will be checked within 24 hours,meanwhile the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us vour reauirement and order information.sdecification(Steel arade size.auantity destination port).we will work out a best price soon.
Q:Do you have any certifications?
A：Yesthat's what we quarantee to our clients.we have lS09000.1S09001 certificate,API5L PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.
Q: What is your terms of payment?
A:Payment<=1000USD.100%inadvance.Payment>=1000USD.30% T/T in advance balance before shipment or paid againstcopy ofB/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.
Q:Do you accept thethird party inspection?
A:Yes absolutely we accept.
Q: What is your terms of payment?
A:Payment<=1000USD.100%inadvance.Payment>=1000USD.30% T/T in advance balance before shipment or paid againstcopy ofB/L within 5 working days.100% Irrevocable L/C at sight is favorable payment term as well.
Q:Do you accept thethird party inspection?
A:Yes absolutely we accept.
