Боново понтонная ходовая часть амфибия многоцелевой земснаряд
- Категория: >>>
- Поставщик: Xuzhou Bonovo Machinery & Equipment Co. Ltd.
Сохранить в закладки 1601216906395:
Описание и отзывы
Характеристики
Bonovo © 2022 All Rights Reserved

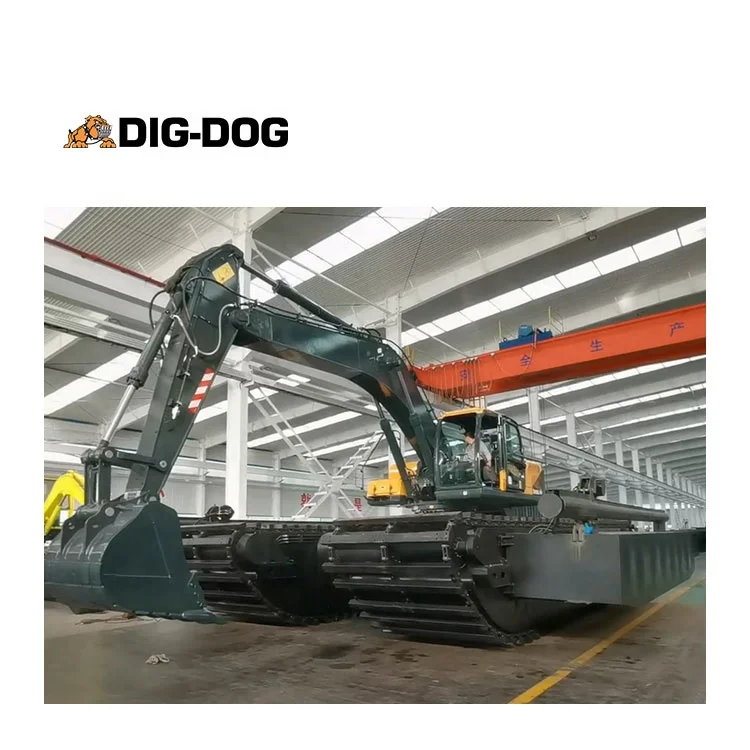

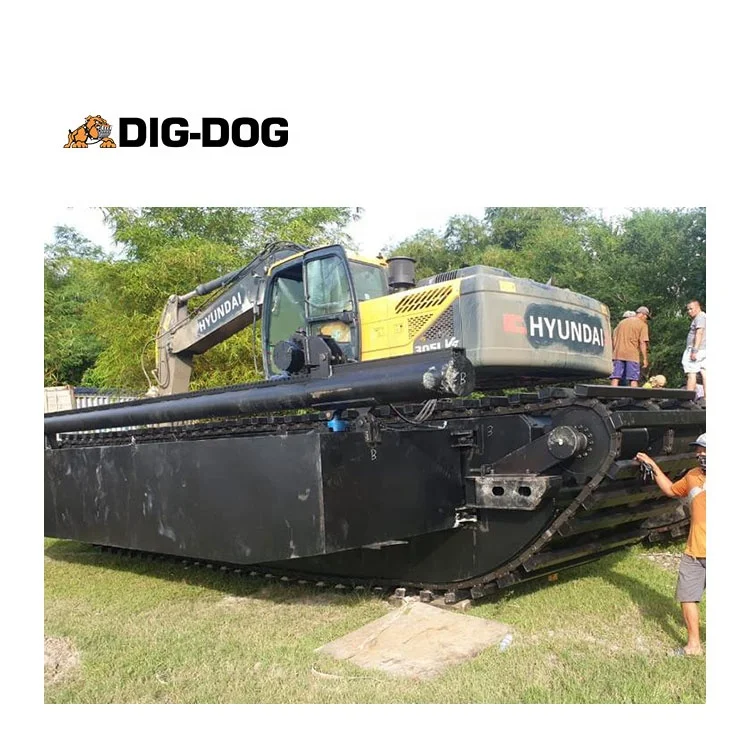

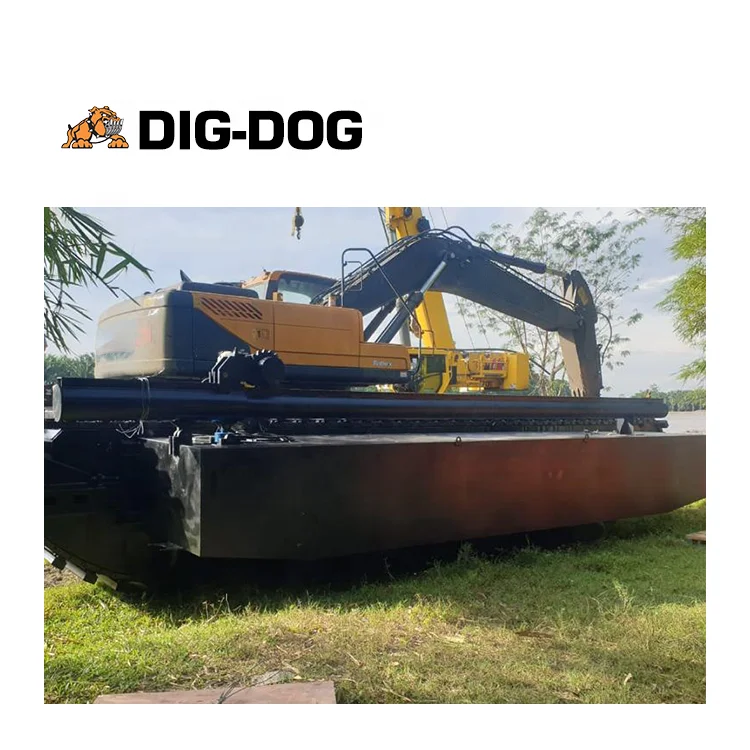

AMPHIBIOUS EXCAVATOR
DIG-DOG Amphibious Excavator is specially designed to work in a swampy area, wetland, shallow water, and all soft terrains with the ability to float on water. DIG-DOG well-designed amphibious pontoon/undercarriage has been widely and effectively applied for removing silty clay, clearing silted trenches, removing wood, and all swampland and shallow water operation where the traditional standard excavators have limits.
Amphibious excavator is also called floating excavator, which is specially designed to function effectively on rivers, swampy lakes, canals and settling pond rehabilitation areas. We have professional team to design and custom made high quality and versatile models of amphibious excavators for all major brands of excavators ranging from 5 to 50 tons.Bonovo team can offer different project solutions including dredging pump, long-way walking, loading platform,
sectional barge and long reach arms.
Amphibious excavator is also called floating excavator, which is specially designed to function effectively on rivers, swampy lakes, canals and settling pond rehabilitation areas. We have professional team to design and custom made high quality and versatile models of amphibious excavators for all major brands of excavators ranging from 5 to 50 tons.Bonovo team can offer different project solutions including dredging pump, long-way walking, loading platform,
sectional barge and long reach arms.

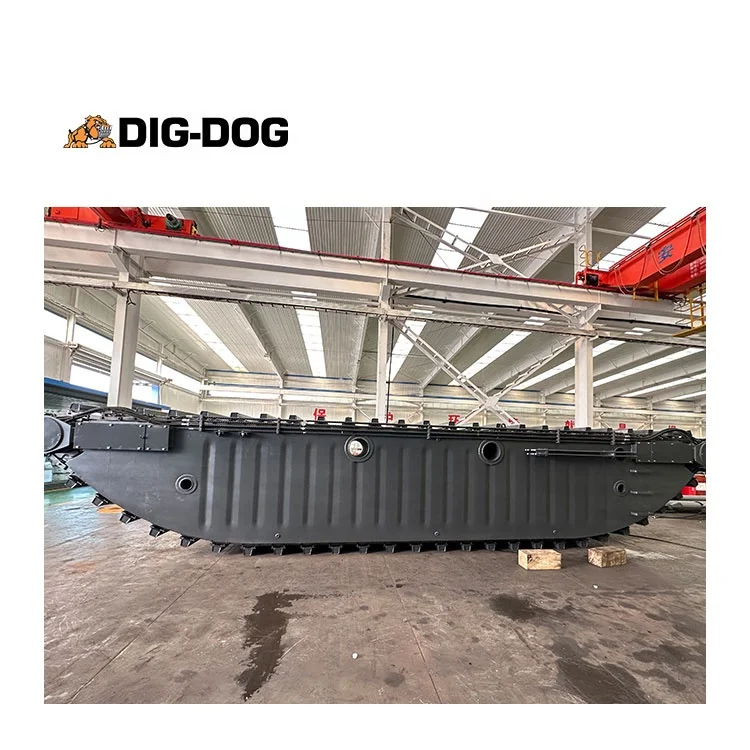

Description | Amphibious Undercarriage Models | ||||||||||||||||
AP-50 (3T-5T) | AP-80 (6T-10T) | AP-140 (11T-15T) | AP-180 (16T-19T) | AP-200 (20T-24T) | AP-250 (25T-27T) | AP-300 (27T-30T) | AP-350 (35T-40T) | AP-400 (40T-50T) | |||||||||
Pontoon Grounded Length (mm) | 1200 | 2000 | 3500 | 4500 | 5000 | 6000 | 6500 | 7000 | 7000 | ||||||||
Undercarriage Length (mm) | 5200 | 5700 | 6200 | 8500 | 9500 | 10500 | 10500 | 11500 | 13500 | ||||||||
Overall Length (mm) | 6100 | 7260 | 8070 | 10290 | 11460 | 13300 | 13610 | 14480 | 14480 | ||||||||
7300 | 9550 | 11300 | 12950 | 14450 | 14450 | 15450 | 15950 | 15950 | |||||||||
8500 | 10550 | 12300 | 13950 | 15750 | 15750 | 16750 | 17100 | 17100 | |||||||||
Overall Height (mm) | 2600 | 3700 | 3770 | 2870 | 3950 | 3980 | 4040 | 4140 | 4800 | ||||||||
Counterweight Ground Clearance (mm) | 1510 | 1810 | 2010 | 2010 | 2010 | 2010 | 2010 | 2200 | 2540 | ||||||||
Spuds Height (mm) | 6000 | 6000 | 6000 | 8000 | 8000 | 10000 | 10000 | 12000 | 12000 | ||||||||
Overall Width (mm) | 4700 | 5500 | 6160 | 6360 | 6800 | 6800 | 8000 | 8000 | 8000 | ||||||||
Pontoon Height (mm) | 1340 | 1640 | 1840 | 1840 | 1840 | 1840 | 1840 | 2040 | 2340 | ||||||||
Track Gauge (mm) | 2700 | 3500 | 3660 | 3660 | 3700 | 3700 | 4700 | 4700 | 4700 | ||||||||
Overall Width (mm) | 3700 | 4500 | 5160 | 5160 | 5200 | 5200 | 6400 | 6400 | 6400 | ||||||||
Pontoon Width (mm) | 1000 | 1300 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 | ||||||||
Spuds Cross Range (mm) | 3500 | 4000 | 4500 | 5000 | 5600 | 5600 | 5600 | 6000 | 6000 | ||||||||
Spuds Width (mm) | 4100 | 4900 | 5560 | 5560 | 5600 | 5600 | 6800 | 7000 | 7000 | ||||||||
Does it float?
Yes. However, working in open water requires additional pontoons and anchoring legs that are designed to give the extra stability necessary for safe operation on open water.
Is it safe to operate an amphibious excavator?
Stability of the pontoons is the best on the market, hands down. We do the design calculations with a “safety first” frame of mind and our instructions explain how to operate the machinery in a safe manner. Each pontoon is divided into several water-tight compartments to minimize any risk in case of accident.
What are the advantages of your brand？
We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with customers for any customized orders.

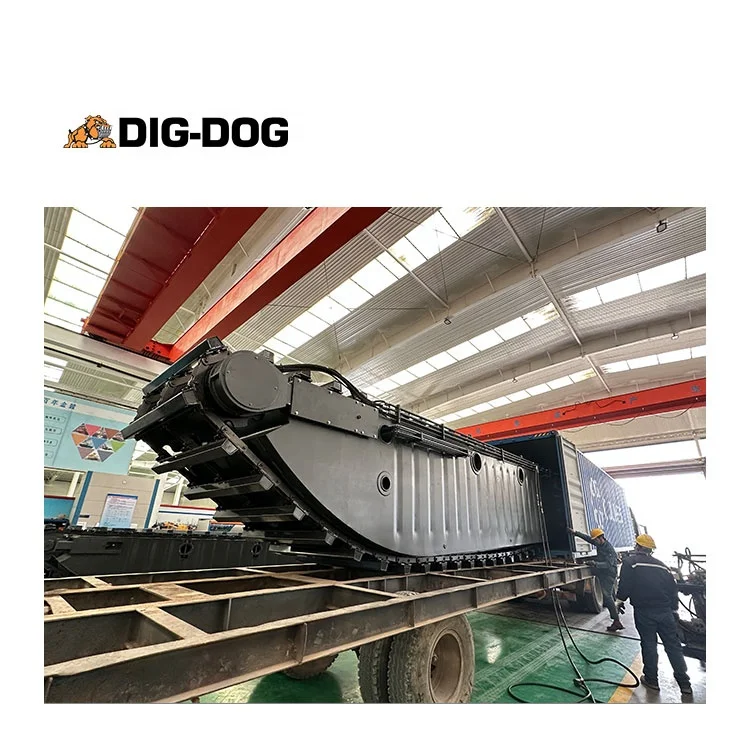

What logistics way for product delivery?
1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
Which payment terms do you accept?
We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
Похожие товары
4-дюймовый DN100 9 метров SK124 гибкий резиновый шланг-цементный насосный шланг с заводским поставщиком

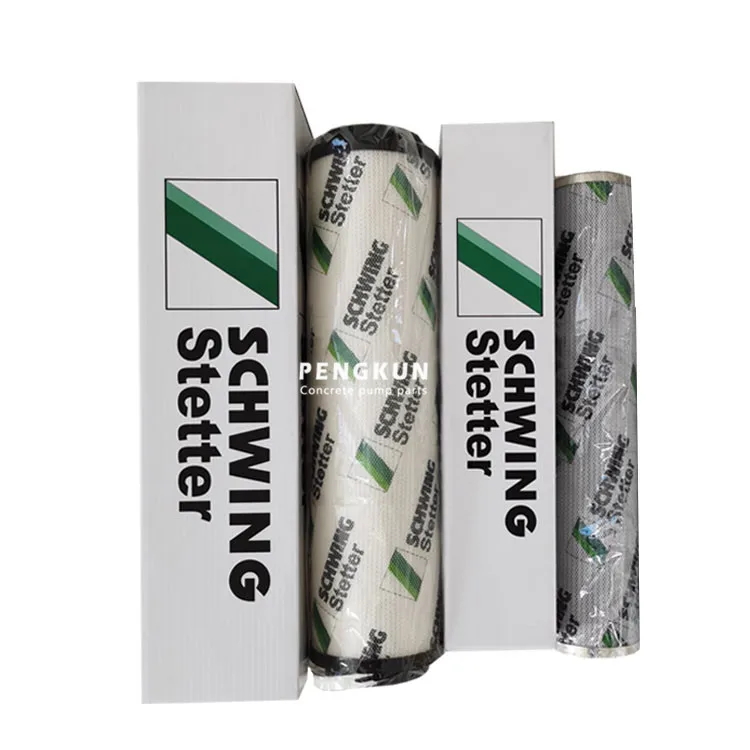

Поставка китайского поставщика высококачественный фильтр для бетонного завода двигателя элемент фильтра насоса
4 437,10 ₽

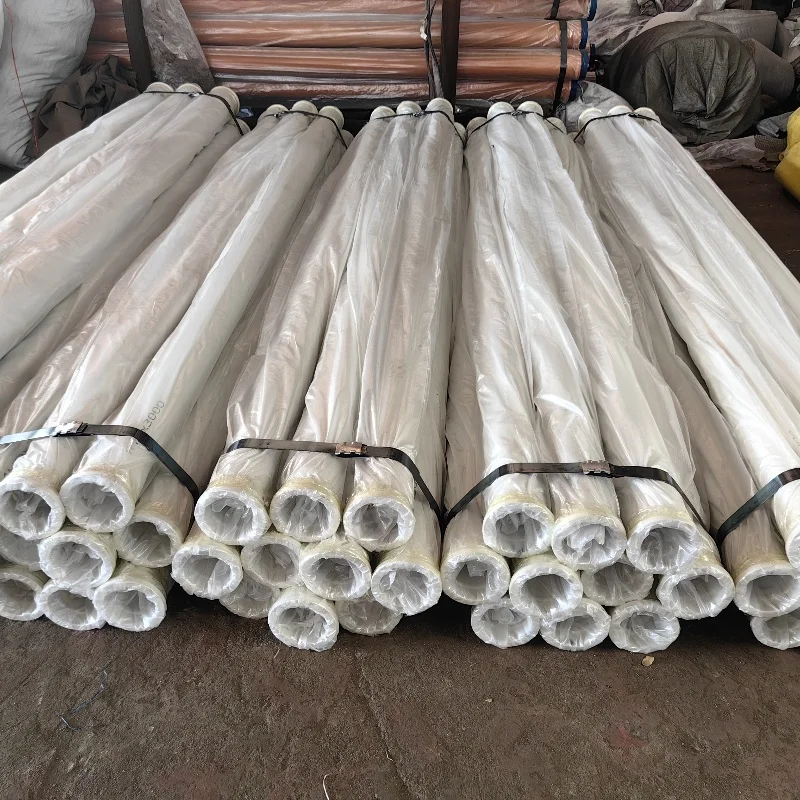

Китайский завод поставщик бетононасос двойные трубы Mn55 Mn45

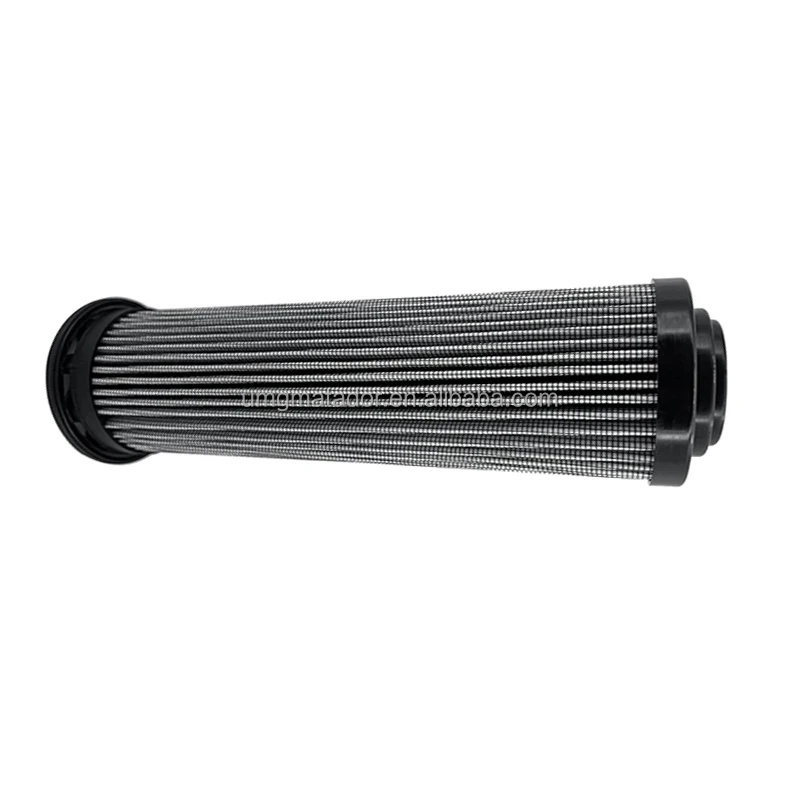

JLG воздушный подъемный Гидравлический масляный фильтр 70002231 для подъемников 340AJ 1250AJP H800AJ 18RS 18RSJ 24RS
2 773,19 ₽ - 3 327,83 ₽

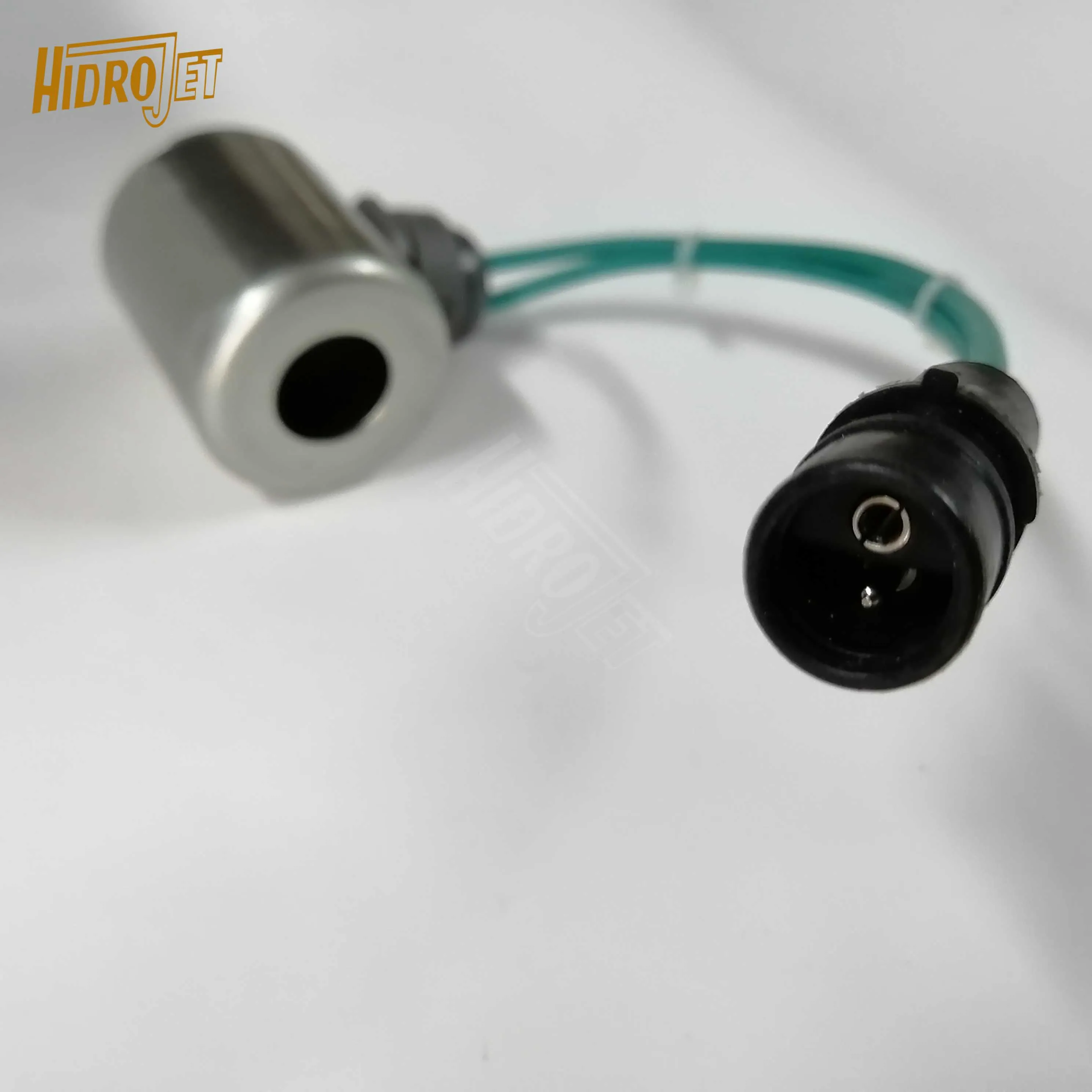

Катушка соленоидного клапана постоянного тока 24 Вольта 301-3118 3013118 CA3013118 для гусеничных экскаваторов
