Product Description




Product Features


*One-lifting slide design to smooth lifting
*Drawer  control  assembly  make  easy  repair
*Pressure shovel with multi-angle adjustable design
*The best WANDA full alloy aluminum motor avoid rusting
*Backward curved arms
*Premium oily water separator
*Auto reverse with pneumatic locking



Rim Clamping from Outside
10"-24"
Rim Clamping from Inside
12"-26"
Working Pressure
8-12 Bar
Power
0.75kw/1.5kw

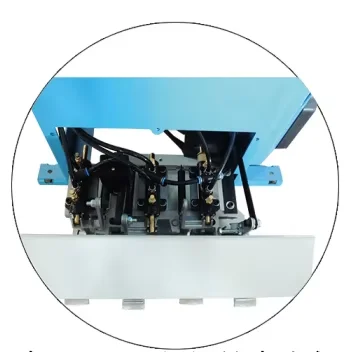

Pneumatic valve piston rod assembly


Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer
life. Drawer control assembly, simple structure, fast and easy maintenance.

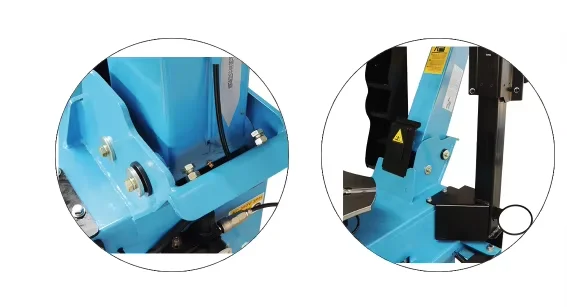

The trapezoid column base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.
Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub



















The trapezoid colum base and housing oerall box welding design, fully ensure the high intensity. Operation under the bearing
structure, the overall stability and reliability.
Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub

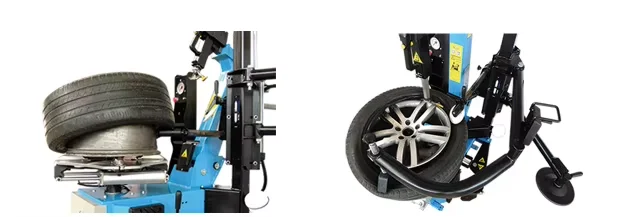

Help 5 auxiliary pneumatic lever arm means double and single crank pressure tire design, tire fitting job
Multi assisted pressure tires. The lower plate, in the demolition process can be assisted tire lift. One lifting slide design ,with fine-tuning to ensure
smooth lifting and stability , more efficient and easier to use

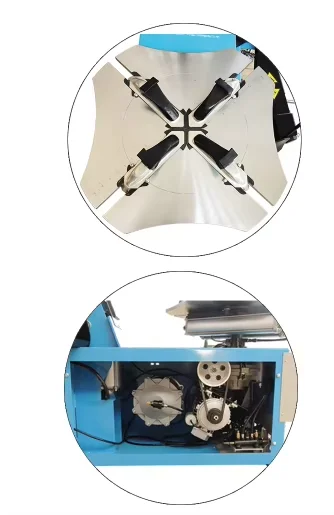

Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
