Product Description

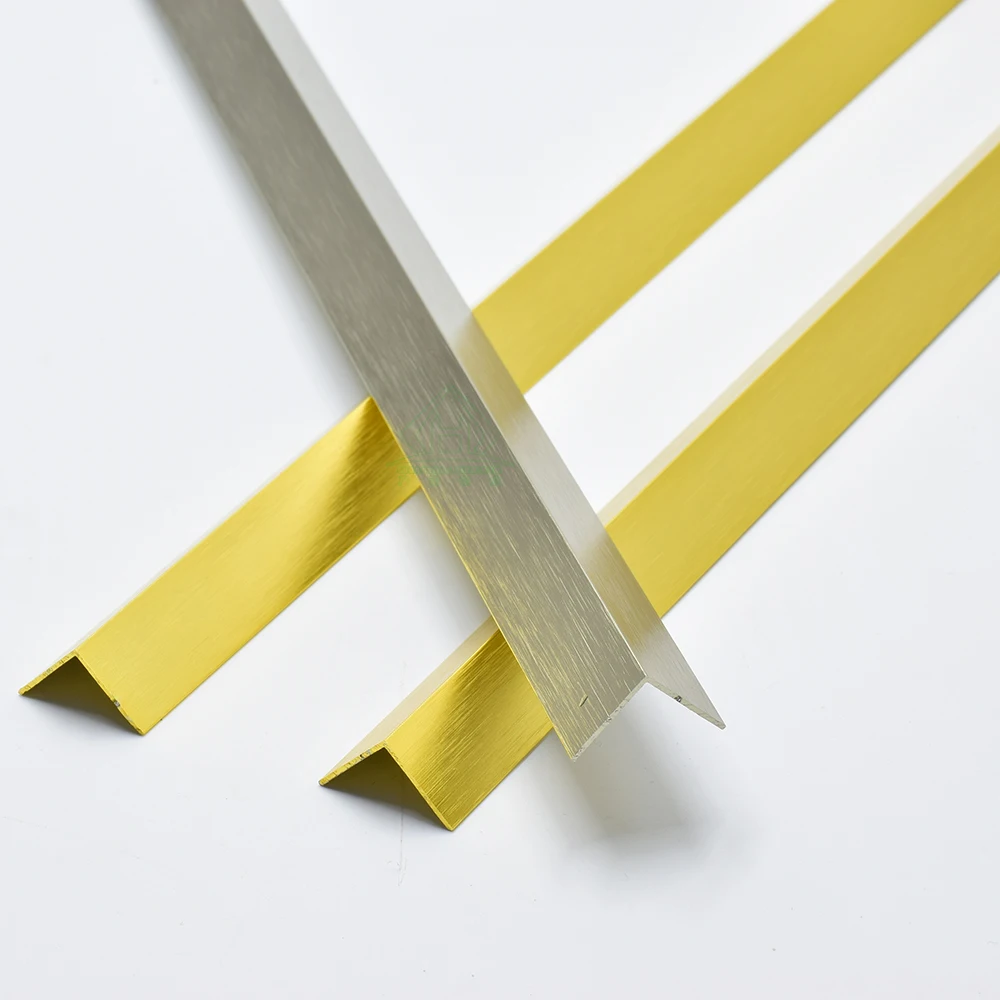

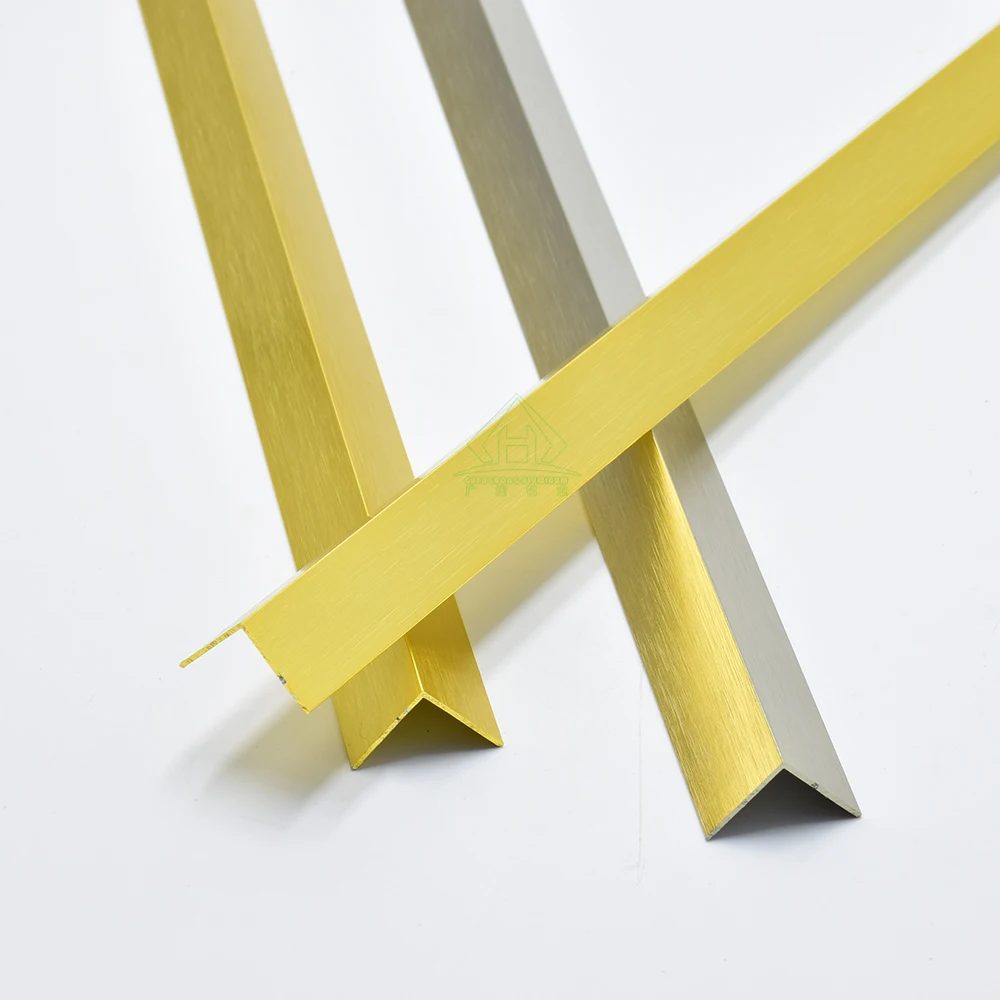

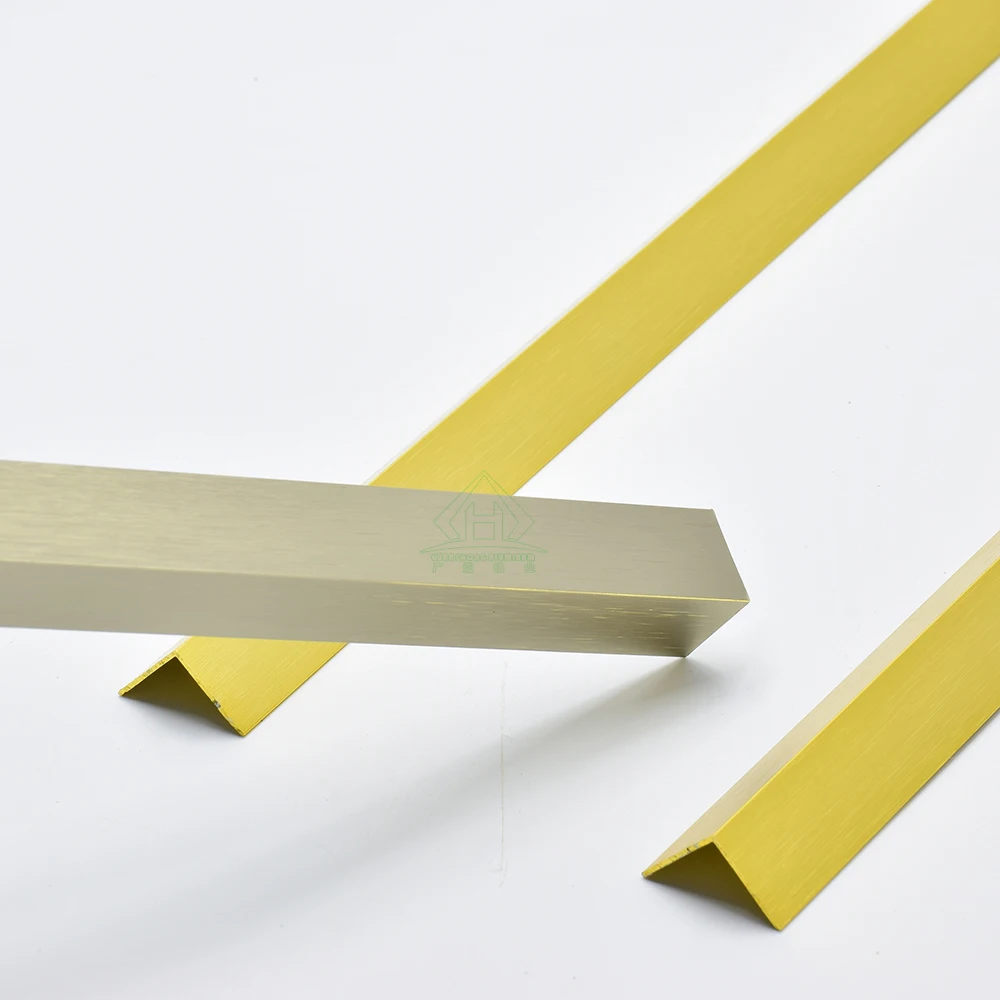

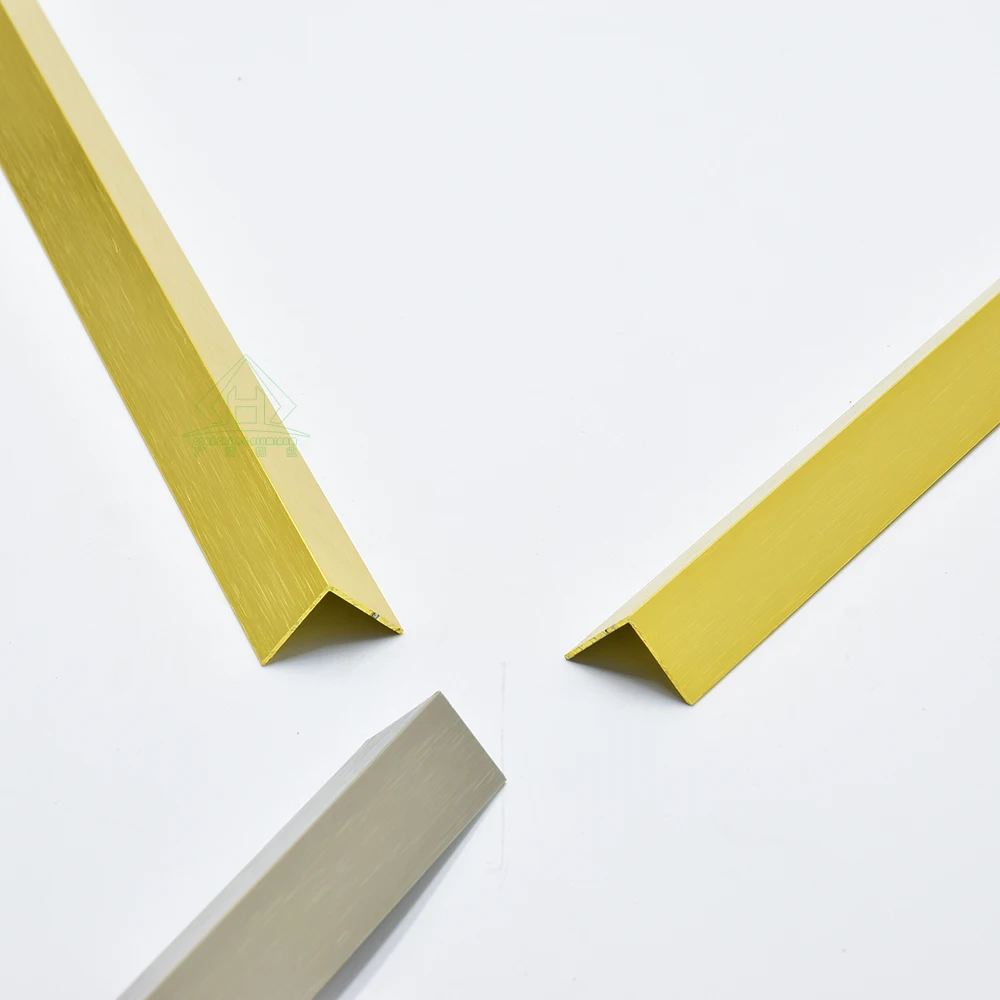

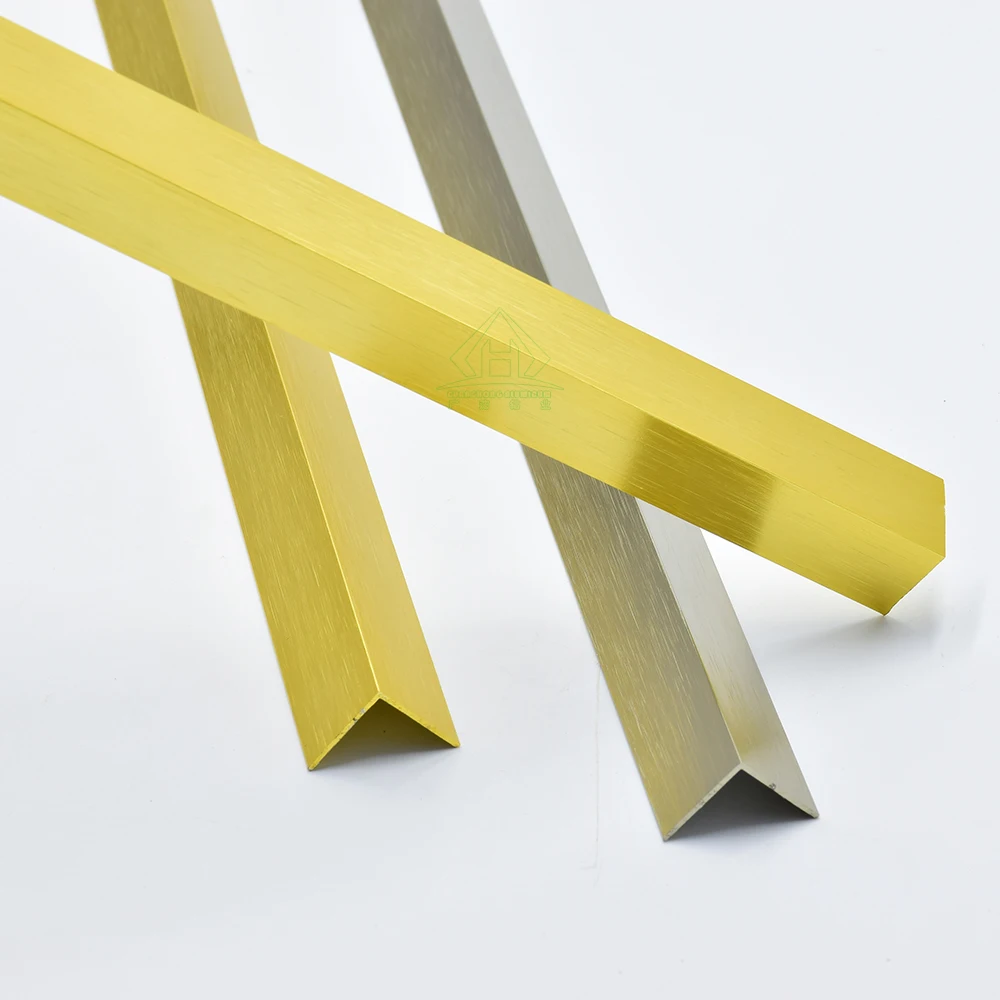

GUANGHONG ALUMINUM specialize in the manufacturing of aluminum edge trims available in a diverse range of shapes and finishes. There are matte, shiny, Satin, mimic stone or wooden, etc. providing aesthetic or seamless transition between different floor /wall surfaces.


Specification


Materials
Aluminum alloy 6063
Temper
T5 /T6
Physical Surface treatment options
Brush, polish, knurling
Chemical treatment options
Anodized, powder coated, electrophoretic, thermal transfer, Chrome plating
Finish effect options
Shiny, Matte, Mirror, Satin, Brushed, Stone appeal, Wooden effect, etc.
Available Color
Silver, Golden, Black, Brass, Copper, White, Beige, Champagne, any color
Membrane thick
Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis: 12-25 μ
Lifespan
Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor
Dimension (mm)
10*10, 10*20, 20*20, 30*30, 40*40
Length
2.44m, 2.5m, 2.6m, 3m customization
Wall Thickness
0.5-3mm
Shape
L shape, T shape, U-shape, H shape, C-shape, E-shape, F-shape, I-shape, V-shape, square, quarter rounded, etc.
Applications and Functionality
Tiling Finishing Edges, Transition Between Surfaces, Corner Protection, Decorative Accents, Waterproofing and Sealing, Expansion Joints
Features
Aesthetic appeal, clean and hygienic, high strength and stability, light weight, easy installation,  Durability and longevity, Versatility and extend endless possibility for decoration.
MOQ
1 tons
Production time
10-25 days
Default Brand
GUANGHONG
OEM /ODM
Highly Support




Physical properties


Aluminum Alloy
Density
Hardness
(Vickers)
Tensile strength
Yield Strength
Shear Strength
Fatigue Strength
Elongation at Break (24oC)
Melting point oC
6063-T5
2.70g/cc
70
186Mpa
145Mpa
117Mpa
68.9Mpa
22%
616-654
6063-T6
2.70g/cc
83
241Mpa
214Mpa
152Mpa
68.9Mpa
18%
616-654
6061-T6
2.70g/cc
107
310Mpa
276Mpa
207Mpa
96.5Mpa
17%
582-651.7
7005-T6
2.78g/cc
106
350Mpa
290Mpa
215Mpa
150Mpa
13%
607-643
7075-T6
2.81g/cc
175
572Mpa
503Mpa
331Mpa
159Mpa
11%
477-635


Component Elements


Al Alloy
Al%
Zn%
Mg%
Fe%
Cu%
Si%
Mn%
Ti%
Cr%
6061
95.8-98.6
<=0.25
0.45-0.9
<=0.35
<=0.1
0.2-0.6
<=0.1
<=0.1
<=0.1
6063
<=97.5
<=0.10
0.8-1.2
<=0.7
0.15-0.4
0.4-0.8
<=0.15
<=0.15
0.04-0.35
7005
91-94.5
4.0-5.0
1.0-1.8
<=0.4
<=0.1
<=0.35
0.2-0.7
0.01-0.06
0.06-0.2
7075
87.1-91.4
5.1-6.1
2.1-2.9
<=0.5
1.2-2.0
<=0.4
<=0.3
<=0.2
0.18-0.28
Other elements not in the list <=0.15%


Certifications


ISO14001
ISO9001
DET NORSKE VERITAS




Packing & Delivery




# Each aluminum profile will be applied protective films or tapes to its exposed surface.
# A certain amount of aluminum profiles make up a bundle and packed by kraft paper, usually under 25kg each bundle for saving labor costs during transportation.
# Customized package is available
# The aluminum profiles usually deliver by sea, we will coordinate with your appointed forwarder to ensure seamless delivery experience. Alternatively, we can provide our cooperative forwarders, rest assured that they are reliable and providing professional consultation and competitive delivery charges.


Company Profile


At Foshan Guanghong Aluminum Co.,Ltd. We take pride in being a leading manufacturer of premium aluminum profiles, serving diverse industries with excellence for over 20 years. With a relentless commitment to innovation, quality, and customer satisfaction, we have established ourselves as a trusted partner for all aluminum extrusion needs.




Experience You Can Trust
With over two decades of experience in the industry, we have honed our expertise and capabilities to deliver superior aluminum profiles that meet the highest standards of quality and performance. Our seasoned team of engineers, technicians, and craftsmen brings a wealth of knowledge and skill to every project, ensuring precision and reliability in every profile we produce.
Unmatched Fabrication Ability
Our fabrication ability sets us apart. We offer a comprehensive range of customization options to tailor aluminum profiles to our customers' exact specifications. From precision cutting and machining to welding, bending, and finishing, we have the expertise and technology to bring your designs to life with unmatched precision and craftsmanship.


Quality Without Compromise
Quality is at the core of everything we do. We source only the finest aluminum ingots and materials, meticulously inspecting and testing each batch to ensure consistency and integrity. Our state-of-the-art manufacturing facilities adhere to strict quality control measures at every stage of production, guaranteeing that every aluminum profile that leaves our facility meets the highest standards of durability, strength, and performance.
Competitive Pricing
At Guanghong Alu, we believe that quality should never come at a premium. Despite our unwavering commitment to excellence, we remain dedicated to offering competitive pricing that delivers exceptional value to our customers. By optimizing our manufacturing processes and supply chain efficiencies, we are able to provide cost-effective solutions without compromising on quality or reliability.


FAQ


1. Can you provide custom fabrication services for aluminum profiles?
Yes, we offer custom fabrication services such as cutting, drilling, milling, tapping, welding, CNC machining and assembly to meet our customers' specific design and dimensional requirements.

2. What is the lead time for ordering aluminum profiles?
Lead times may vary depending on the complexity of the order and current production schedule. We strive to provide timely delivery and can provide estimated lead times upon inquiry.

3. Do you offer technical support or assistance with product selection?
Yes, our team of experts is available to provide technical support and assistance with product selection, design optimization, and customization to ensure our customers' needs are met.

4. What quality control measures do you have in place for your aluminum profiles?
We have stringent quality control processes in place throughout the manufacturing process to ensure the highest standards of quality and consistency. This includes material inspection, dimensional accuracy checks, surface finish inspection, and product testing.

5. Can you provide samples of your aluminum profiles for evaluation?
Yes, we can provide samples of our aluminum profiles upon request for evaluation and testing purposes. Please contact our sales team for assistance with sample requests.

6. Do you offer customization options for surface finishes, such as color matching or specialty coatings?
Yes, we offer customization options for surface finishes, including color matching to specific requirements and specialty coatings such as anodizing, powder coating, and decorative finishes. Please specify your preferences when placing an order.

7. Do you offer design assistance or engineering support for custom profile development?
Yes, our team of experienced engineers and designers can provide design assistance and engineering support for custom profile development. We work closely with our customers to translate their concepts into optimized and manufacturable aluminum profiles.

8. Do you offer packaging and shipping options for your aluminum profiles?
Yes, we offer packaging and shipping options to ensure safe and secure transportation of our aluminum profiles to our customers' locations. We can accommodate various packaging requirements and shipping methods based on customer preferences.
