Заводская цена горячая распродажа 30 100 т/ч горная смесь медный кварц кварцевый песок камень спиральный машина для промывки золота
- Категория: >>>
- Поставщик: Henan Gaoda Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601217354730:
Описание и отзывы
Характеристики

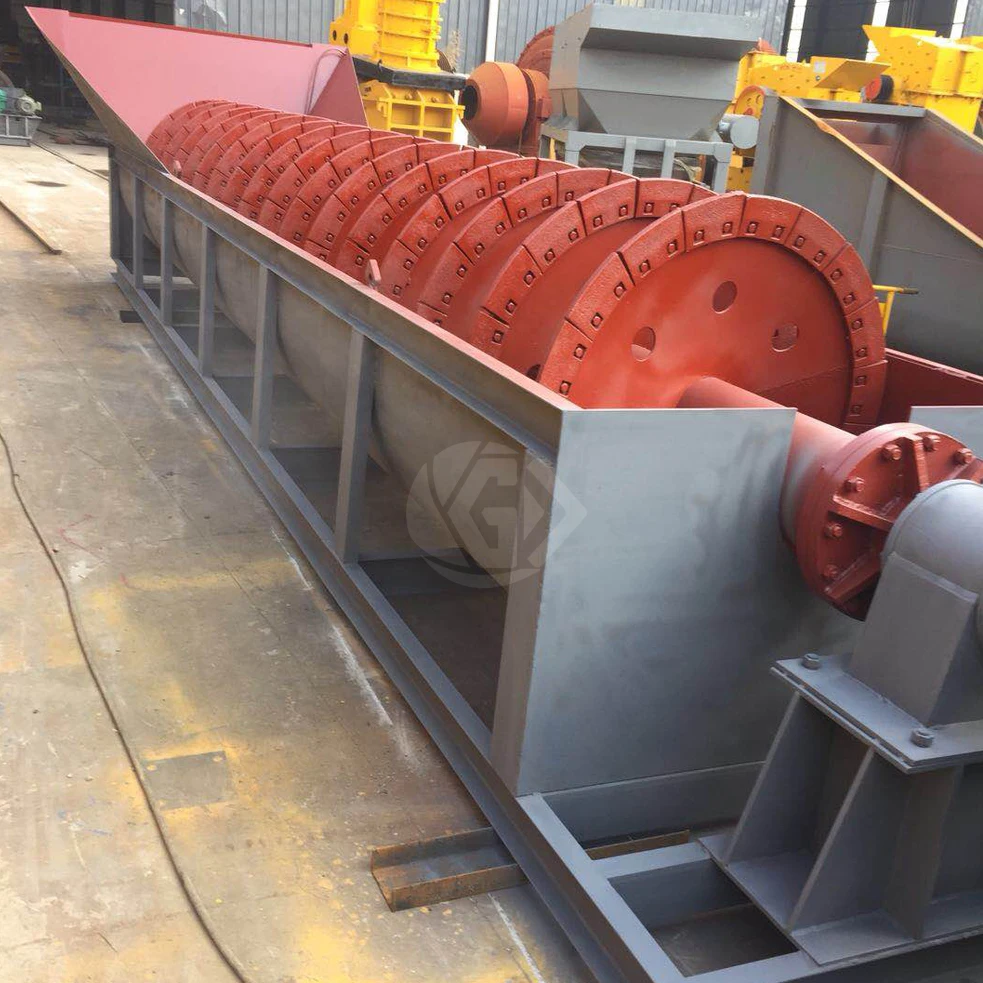

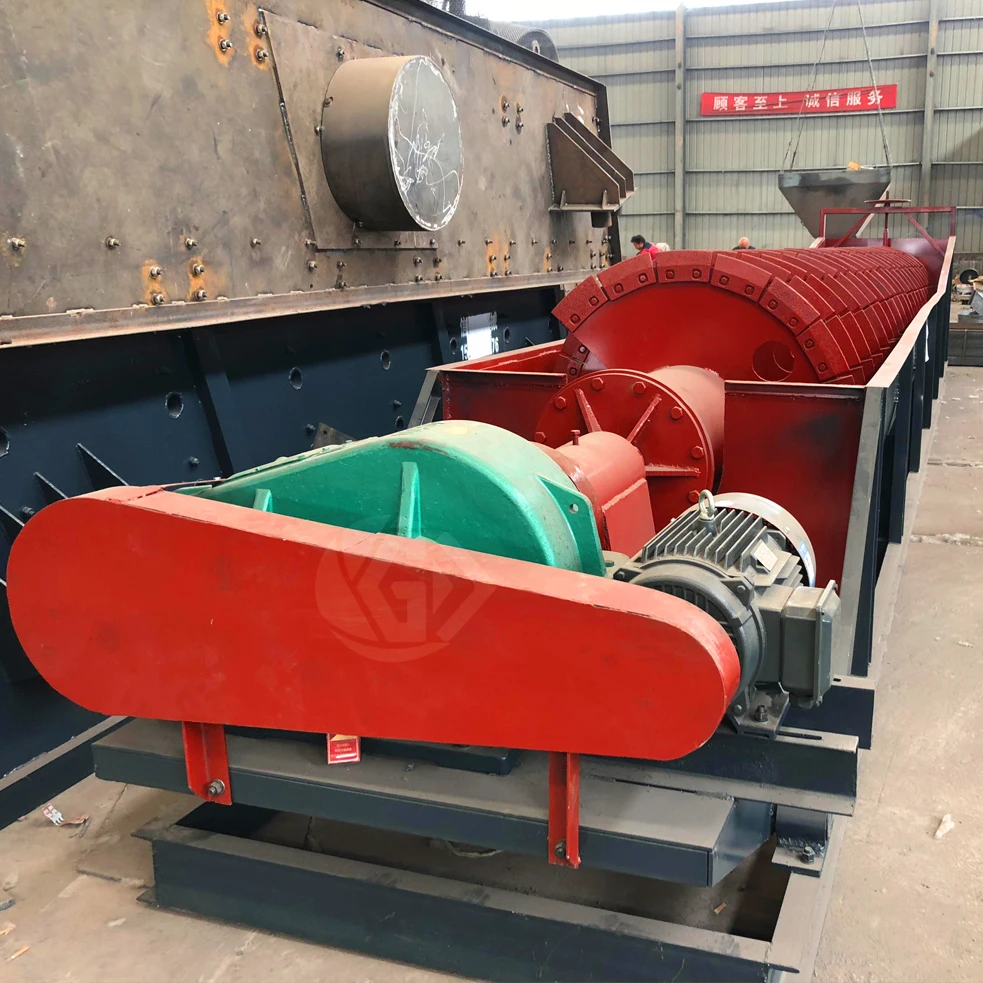

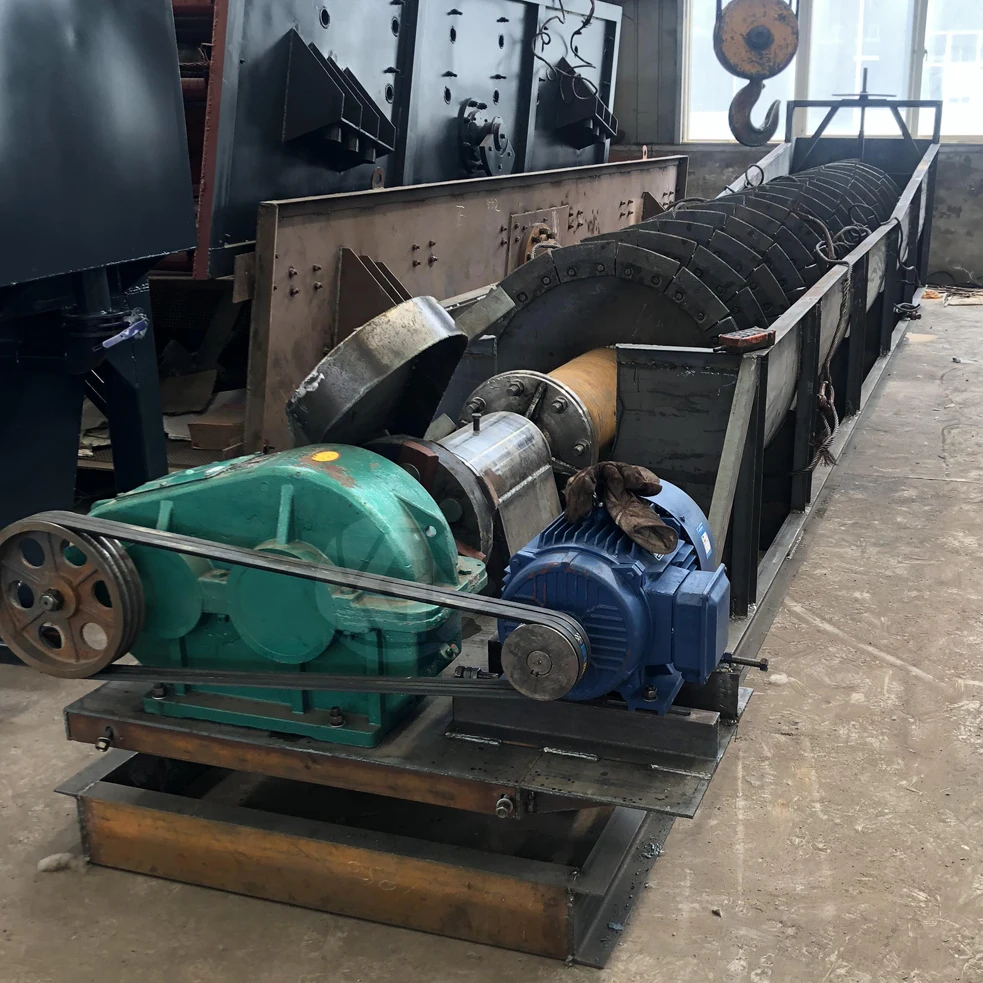

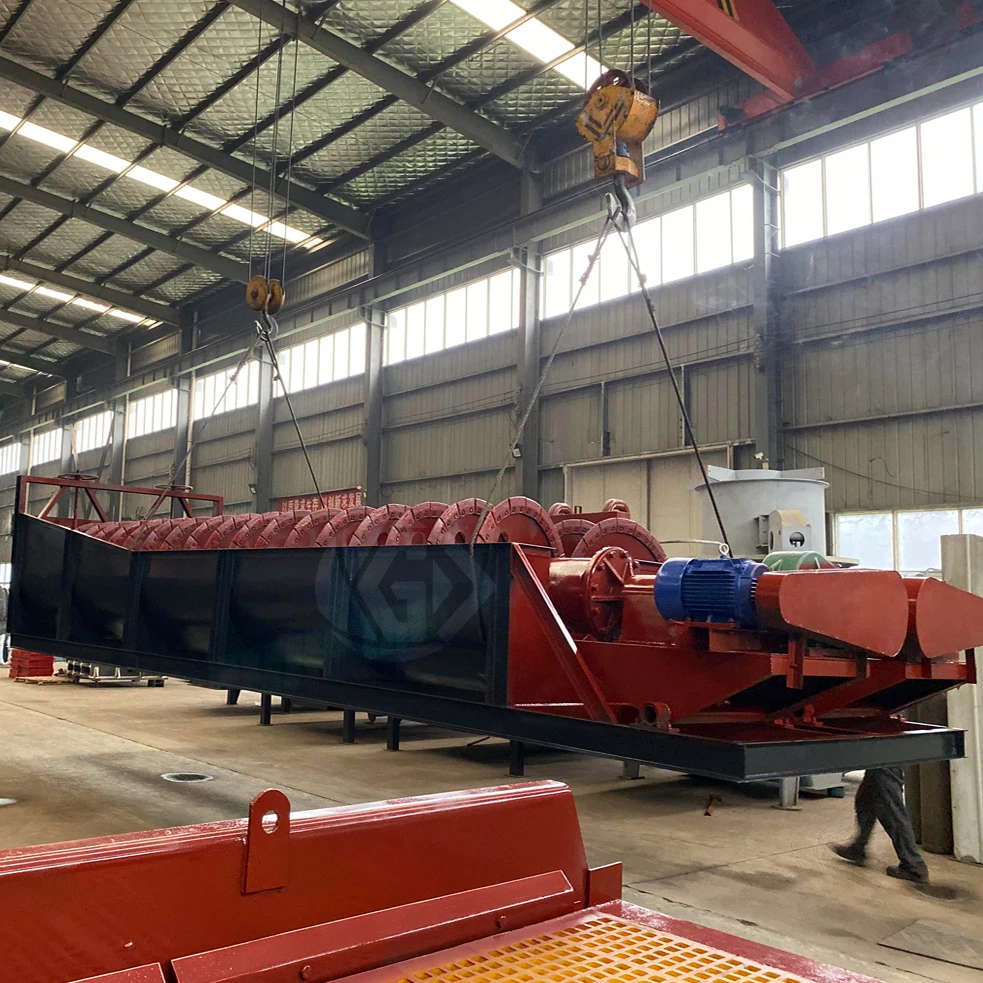

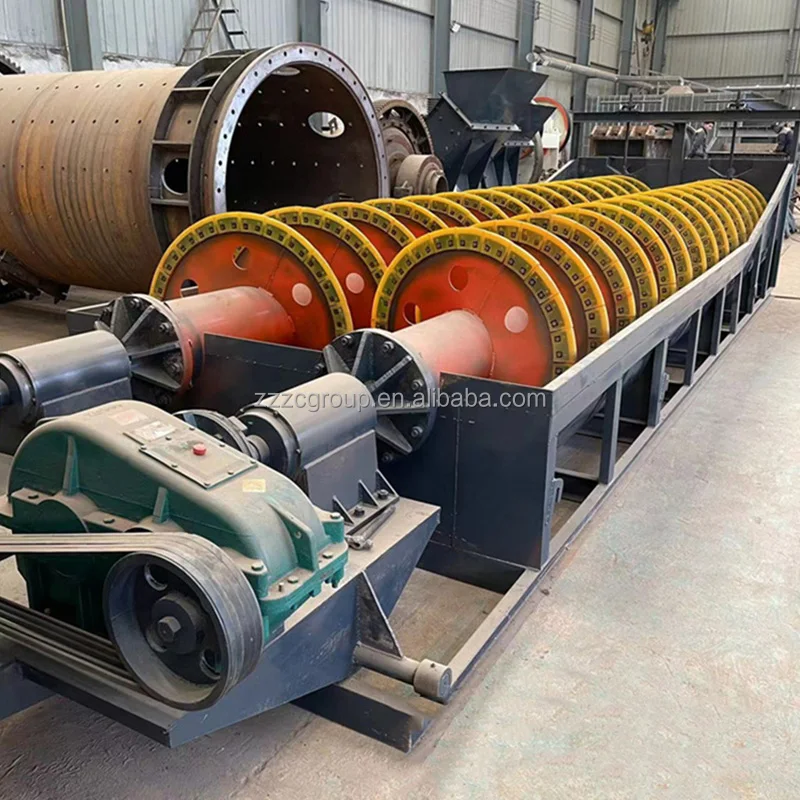

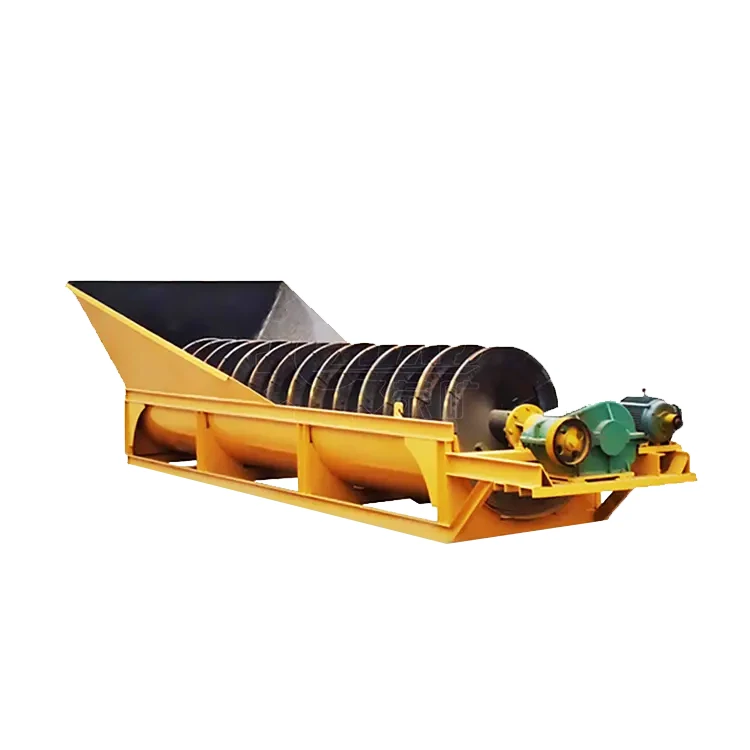

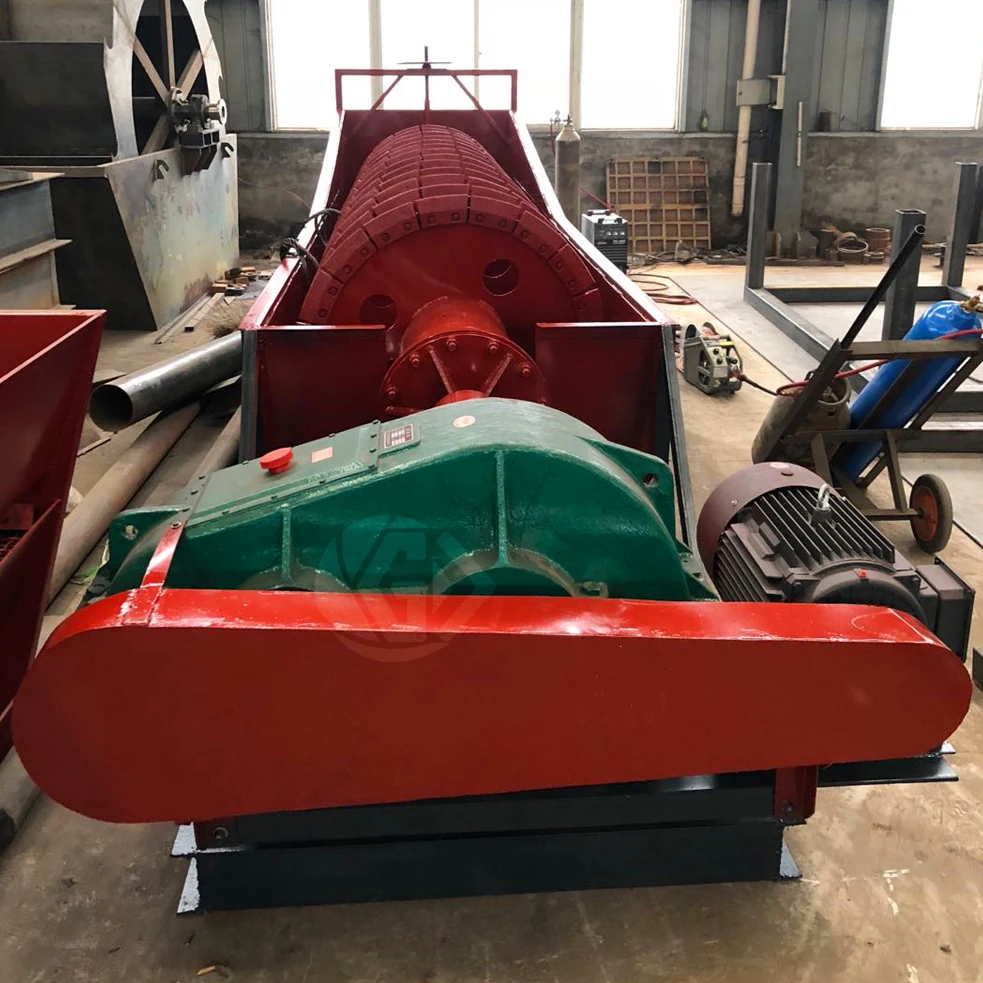

Spiral sand washing machine is suitable for washing, grading, impurity removal and other operations in metallurgy, building materials, hydropower and other industries, and is used for washing fine-grained and coarse-grained materials.Mainly used for cleaning construction sand and road construction sand.The sand and gravel materials are mainly stirred through the spiral device in the equipment, so that the soil and water in the sand and gravel materials are mixed and discharged from the outlet on the equipment, while the sand and gravel materials are gradually screened under the action of the spiral device, from the top It is discharged from the discharge port, thereby achieving the cleaning and screening effect of sand and gravel materials.
The spiral sand washing machine has reasonable structure, convenient maintenance, large processing capacity, low power consumption and high cleanliness.The spiral stone washing machine's novel sealing structure, fully enclosed oil bath transmission device, and adjustable overflow weir ensure that this series of products is efficient, durable, has good cleaning and dehydration effects, and keeps fine-grained products stable.
Model | 2WCDS-1118 | 2WCDS-914 | 2WCDS-762 |
Screw Diameter(mm) | 1118 | 914 | 762 |
Length of Tub(mm) | 6850 | 6350 | 6380 |
Washing Granularity(mm) | ≤80 | ≤80 | ≤80 |
Capacity(t/h) | 200-300 | 150-175 | 100-145 |
Speed of Screw(rpm) | 26 | 30.33 | 35 |
Motor Power(kw) | 3x37 | 2x30 | 2x22 |
Water Consumption(t/h) | 200-250 | 160-220 | 136-182 |
Weight(kg) | 22530 | 18996 | 16800 |
Overall Dimensions (mm) | 7840x2600x3840 | 7350x2310x3650 | 8440x2091x4790 |
Guangxi Liuzhou Powder Production Line

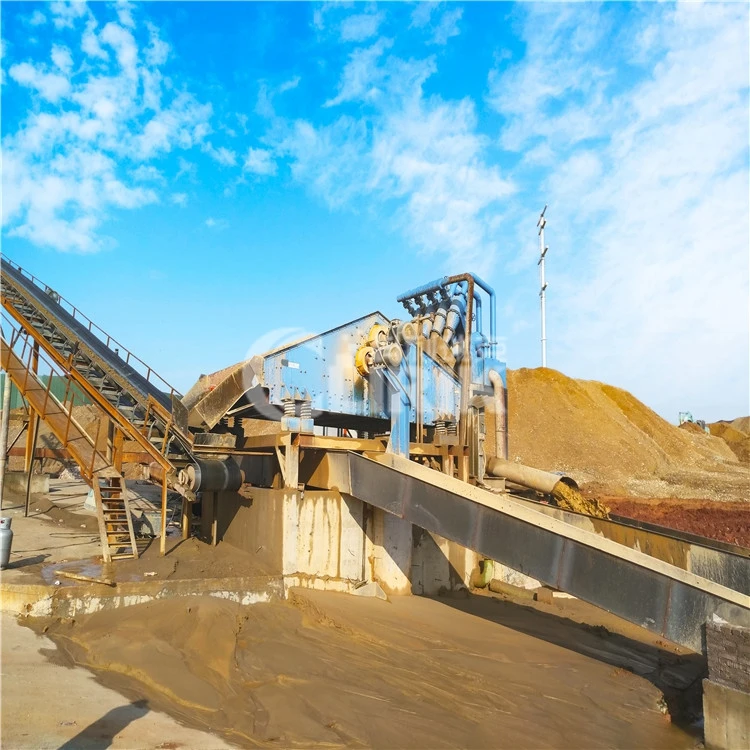

African gold mine washing project
Indonesian tailings washing complete process
Q: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
Company Information
Henan Gaoda Mechanical Manufacturing Co., Ltd. is located on the Central West Road of Gongyi City, Henan Province. It is a professional manufacturer of mining equipment and environmental protection equipment, with many years of technical strength and experience. The main products developed and produced are: crushing equipment, sand making equipment, screening and washing equipment, mobile crushers, mobile screening equipment, sand washing and recovery equipment, dehydration screens, vibrating screen separators, etc. 5 major series and nearly 50 products, which are widely sold to various parts of China as well as Indonesia, Iran, Russia, Pakistan, India, South Africa and other 10 countries.
