Производители труб для водоснабжения водопроводная труба орошения питьевая вода
244,00 ₽ - 290,37 ₽

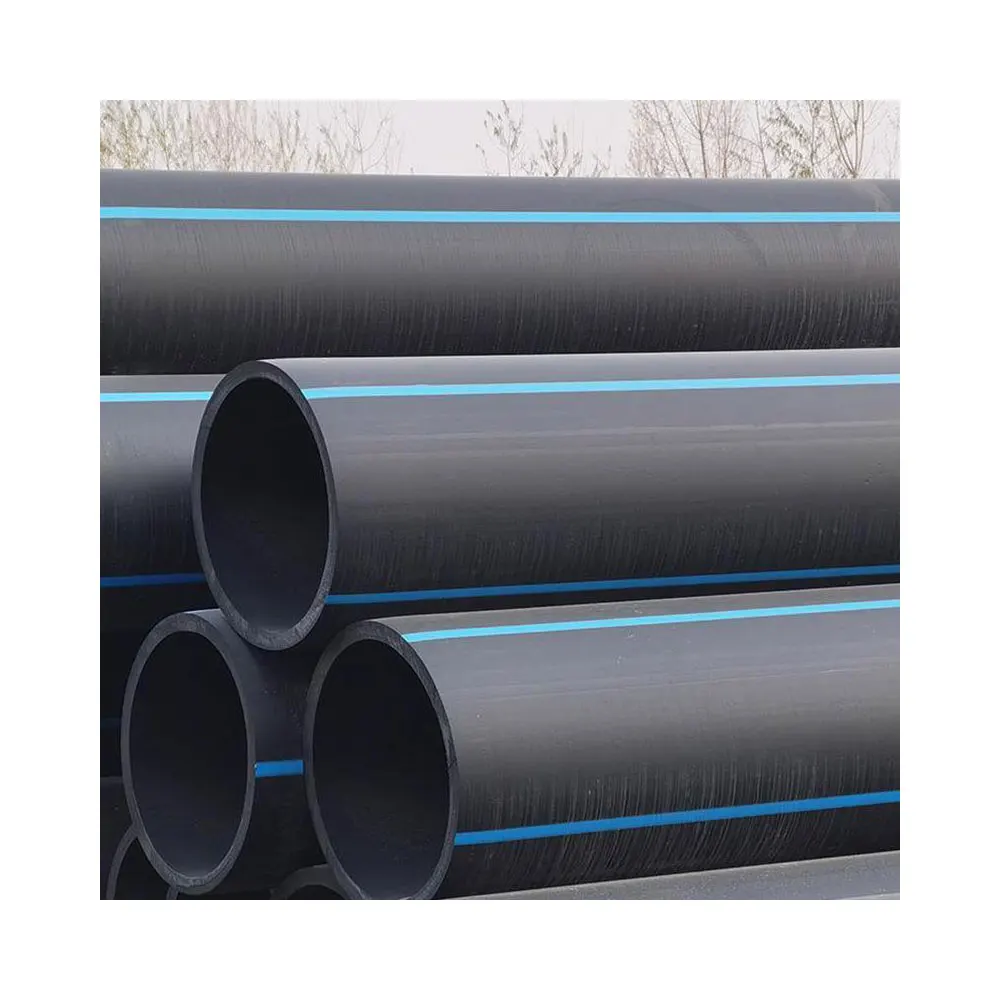

PN16 Большого Диаметра HDPE трубы цены для подземного питьевого водоснабжения
- Категория: >>>
- Поставщик: Xiamen Tide Piping System Co. Ltd.
Сохранить в закладки 1601218084323:
Описание и отзывы
Характеристики

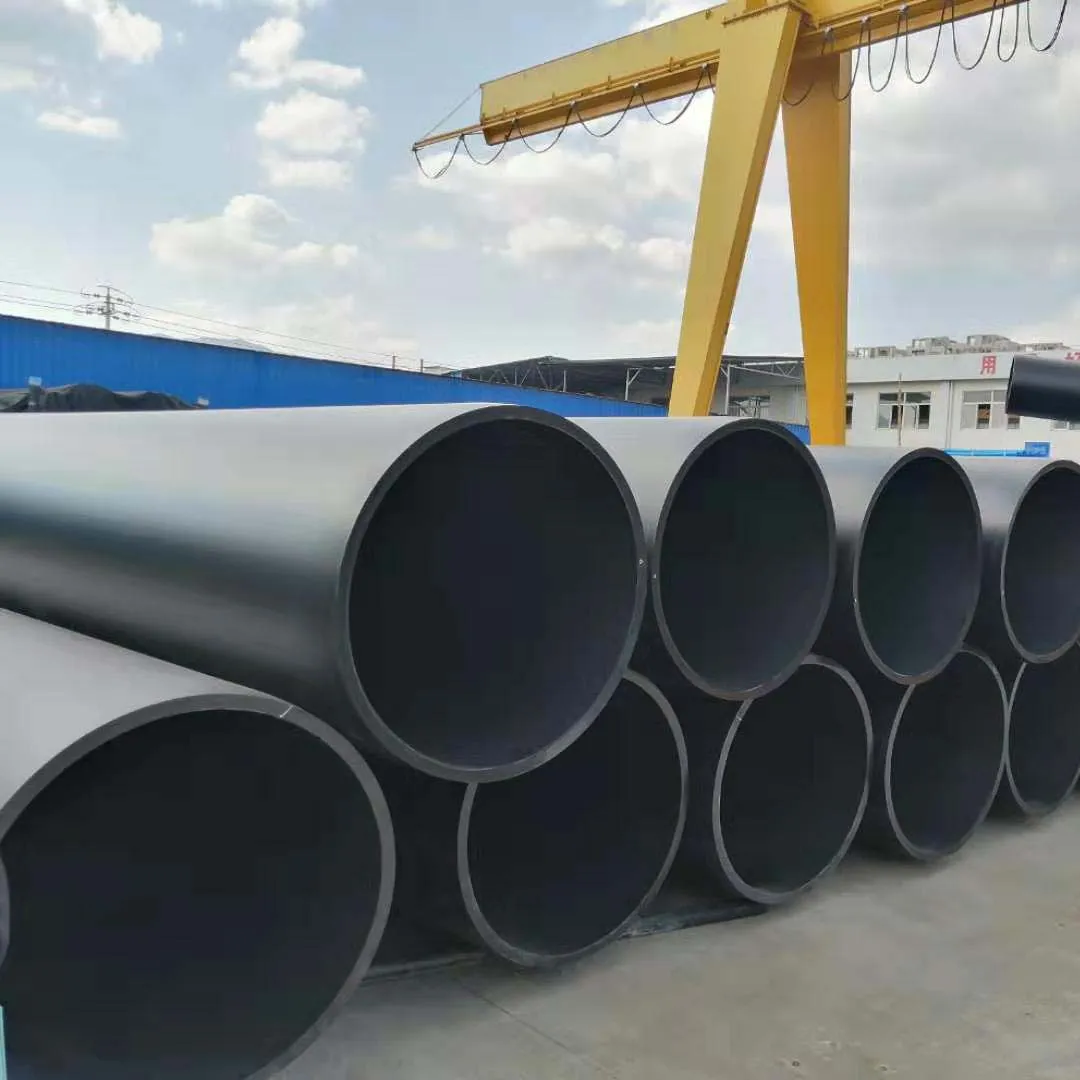

PN16 Large Diameter HDPE Pipe Prices for Underground Potable Water Supply
Product Description
| Product Name | Large Diameter 900mm 1000mm UV Resistance HDPE Pipe Plastic Plumbing for Water Supply | ||||||||||||||||||
| INCH | Wroking Pressure | 0.6MPa (PN6) | 0.8MPa (PN8) | 1.0MPa(PN10) | 1.25MPa (PN12.5) | 1.6MPa (PN16) | 2.0MPa (PN20) | ||||||||||||
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | |||||||||||||
| OD (MM) | WT (mm) | ID (MM) | Weight (KG/M) | WT (MM) | ID (MM) | Weight (KG/M) | WT (MM) | ID (MM) | Weight (KG/M) | WT (MM) | ID (MM) | Weight (KG/M) | WT (MM) | ID (MM) | Weight (KG/M) | WT(MM) | ID(MM) | Weight (KG/M) | |
| 3/8" | 16 | 2.3 | 11.40 | 0.10 | |||||||||||||||
| 1/2" | 20 | 2.3 | 15.40 | 0.12 | 2.3 | 15.40 | 0.12 | ||||||||||||
| 3/4" | 25 | 2.3 | 20.40 | 0.16 | 2.3 | 20.40 | 0.16 | 3 | 19.00 | 0.20 | |||||||||
| 1" | 32 | 2.3 | 27.40 | 0.21 | 2.4 | 27.20 | 0.21 | 3 | 26.00 | 0.26 | 3.6 | 24.80 | 0.31 | ||||||
| 1-1/4" | 40 | 2.3 | 35.40 | 0.26 | 2.4 | 35.20 | 0.27 | 3 | 34.00 | 0.33 | 3.7 | 32.60 | 0.41 | 4.5 | 31.00 | 0.48 | |||
| 1-1/2" | 50 | 2.3 | 45.40 | 0.33 | 2.4 | 45.20 | 0.34 | 3 | 44.00 | 0.43 | 3.7 | 42.60 | 0.52 | 4.6 | 40.80 | 0.63 | 5.6 | 38.80 | 0.75 |
| 2" | 63 | 2.5 | 58.00 | 0.46 | 3 | 57.00 | 0.54 | 3.8 | 55.40 | 0.68 | 4.7 | 53.60 | 0.83 | 5.8 | 51.40 | 1.00 | 7.1 | 48.80 | 1.20 |
| 2-1/2" | 75 | 2.9 | 69.20 | 0.63 | 3.6 | 67.80 | 0.78 | 4.5 | 66.00 | 0.96 | 5.6 | 63.80 | 1.17 | 6.8 | 61.40 | 1.40 | 8.4 | 58.20 | 1.69 |
| 3" | 90 | 3.5 | 83.00 | 0.91 | 4.3 | 81.40 | 1.11 | 5.4 | 79.20 | 1.38 | 6.7 | 76.60 | 1.68 | 8.2 | 73.60 | 2.02 | 10.1 | 69.80 | 2.43 |
| 4" | 110 | 4.2 | 101.60 | 1.34 | 5.3 | 99.40 | 1.67 | 6.6 | 96.80 | 2.06 | 8.1 | 93.80 | 2.49 | 10 | 90.00 | 3.02 | 12.3 | 85.40 | 3.62 |
| 5" | 125 | 4.8 | 115.40 | 1.74 | 6 | 113.00 | 2.15 | 7.4 | 110.20 | 2.62 | 9.2 | 106.60 | 3.21 | 11.4 | 102.20 | 3.91 | 14 | 97.00 | 4.69 |
| 5-1/2" | 140 | 5.4 | 129.20 | 2.19 | 6.7 | 126.60 | 2.69 | 8.3 | 123.40 | 3.30 | 10.3 | 119.40 | 4.03 | 12.7 | 114.60 | 4.88 | 15.7 | 108.60 | 5.89 |
| 6" | 160 | 6.2 | 147.60 | 2.88 | 7.7 | 144.60 | 3.54 | 9.5 | 141.00 | 4.31 | 11.8 | 136.40 | 5.27 | 14.6 | 130.80 | 6.40 | 17.9 | 124.20 | 7.67 |
| 7" | 180 | 6.9 | 166.20 | 3.60 | 8.6 | 162.80 | 4.45 | 10.7 | 158.60 | 5.46 | 13.3 | 153.40 | 6.69 | 16.4 | 147.20 | 8.09 | 20.1 | 139.80 | 9.69 |
| 8" | 200 | 7.7 | 184.60 | 4.47 | 9.6 | 180.80 | 5.51 | 11.9 | 176.20 | 6.75 | 14.7 | 170.60 | 8.22 | 18.2 | 163.60 | 9.98 | 22.4 | 155.20 | 12.00 |
| 9" | 225 | 8.6 | 207.80 | 5.61 | 10.8 | 203.40 | 6.98 | 13.4 | 198.20 | 8.55 | 16.6 | 191.80 | 10.43 | 20.5 | 184.00 | 12.64 | 25.2 | 174.60 | 15.19 |
| 10" | 250 | 9.6 | 230.80 | 6.96 | 11.9 | 226.20 | 8.55 | 14.8 | 220.40 | 10.50 | 18.4 | 213.20 | 12.85 | 22.7 | 204.60 | 15.56 | 27.9 | 194.20 | 18.69 |
| 12" | 280 | 10.7 | 258.60 | 8.69 | 13.4 | 253.20 | 10.77 | 16.6 | 246.80 | 13.19 | 20.6 | 238.80 | 16.12 | 25.4 | 229.20 | 19.50 | 31.3 | 217.40 | 23.48 |
| 13" | 315 | 12.1 | 290.80 | 11.05 | 15 | 285.00 | 13.57 | 18.7 | 277.60 | 16.71 | 23.2 | 268.60 | 20.42 | 28.6 | 257.80 | 24.70 | 35.2 | 244.60 | 29.70 |
| 14" | 355 | 13.6 | 327.80 | 14.00 | 16.9 | 321.20 | 17.23 | 21.1 | 312.80 | 21.25 | 26.1 | 302.80 | 25.89 | 32.2 | 290.60 | 31.35 | 39.7 | 275.60 | 37.75 |
| 16" | 400 | 15.3 | 369.40 | 17.75 | 19.1 | 361.80 | 21.94 | 23.7 | 352.60 | 26.90 | 29.4 | 341.20 | 32.86 | 36.3 | 327.40 | 39.82 | 44.7 | 310.60 | 47.90 |
| 18" | 450 | 17.2 | 415.60 | 22.45 | 21.5 | 407.00 | 27.79 | 26.7 | 396.60 | 34.09 | 33.1 | 383.80 | 41.62 | 40.9 | 368.20 | 50.46 | 50.3 | 349.40 | 60.64 |
| 20" | 500 | 19.1 | 461.80 | 27.70 | 23.9 | 452.20 | 34.32 | 29.7 | 440.60 | 42.13 | 36.8 | 426.40 | 51.41 | 45.4 | 409.20 | 62.25 | 55.8 | 388.40 | 74.75 |
| 22" | 560 | 21.4 | 517.20 | 34.76 | 26.7 | 506.60 | 42.94 | 33.2 | 493.60 | 52.75 | 41.2 | 477.60 | 64.46 | 50.8 | 458.40 | 78.01 | 62.5 | 435.00 | 93.78 |
| 24" | 630 | 24.1 | 581.80 | 44.04 | 30 | 570.00 | 54.29 | 37.4 | 555.20 | 66.84 | 46.3 | 537.40 | 81.51 | 57.2 | 515.60 | 98.81 | 70.3 | 489.40 | 118.67 |
| 28" | 710 | 27.2 | 655.60 | 56.01 | 33.9 | 642.20 | 69.12 | 42.1 | 625.80 | 84.80 | 52.2 | 605.60 | 103.56 | 64.5 | 580.91 | 125.65 | 79.3 | 551.40 | 150.84 |
| 32" | 800 | 30.6 | 738.80 | 71.01 | 38.1 | 723.80 | 87.55 | 47.4 | 705.20 | 107.59 | 58.8 | 682.40 | 131.44 | 72.6 | 654.80 | 159.27 | 89.3 | 621.40 | 191.41 |
| 36" | 900 | 34.4 | 831.20 | 89.80 | 42.9 | 814.20 | 110.89 | 53.3 | 793.40 | 136.11 | 66.2 | 767.65 | 166.42 | 81.7 | 736.60 | 201.63 | |||
| 40" | 1000 | 38.2 | 923.60 | 110.81 | 47.7 | 904.60 | 137.00 | 59.3 | 881.40 | 168.24 | 72.5 | 855.00 | 202.80 | 90.2 | 819.60 | 247.50 | |||
| 48" | 1200 | 45.9 | 1108.20 | 159.76 | 57.2 | 1085.60 | 197.15 | 70.6 | 1058.80 | 240.48 | 88.2 | 1023.53 | 295.85 | ||||||
| 55" | 1400 | 53.5 | 1293.00 | 217.26 | 66.7 | 1266.60 | 268.21 | 82.3 | 1235.40 | 327.07 | 102.9 | 1194.12 | 402.69 | ||||||
| 63" | 1600 | 61.2 | 1477.60 | 284.02 | 76.2 | 1447.60 | 350.19 | 94.1 | 1411.80 | 427.37 | 117.6 | 1364.71 | 525.96 | ||||||
| 71" | 1800 | 69.1 | 1661.80 | 360.72 | 85.7 | 1628.60 | 443.09 | 105.9 | 1588.20 | 541.07 | |||||||||

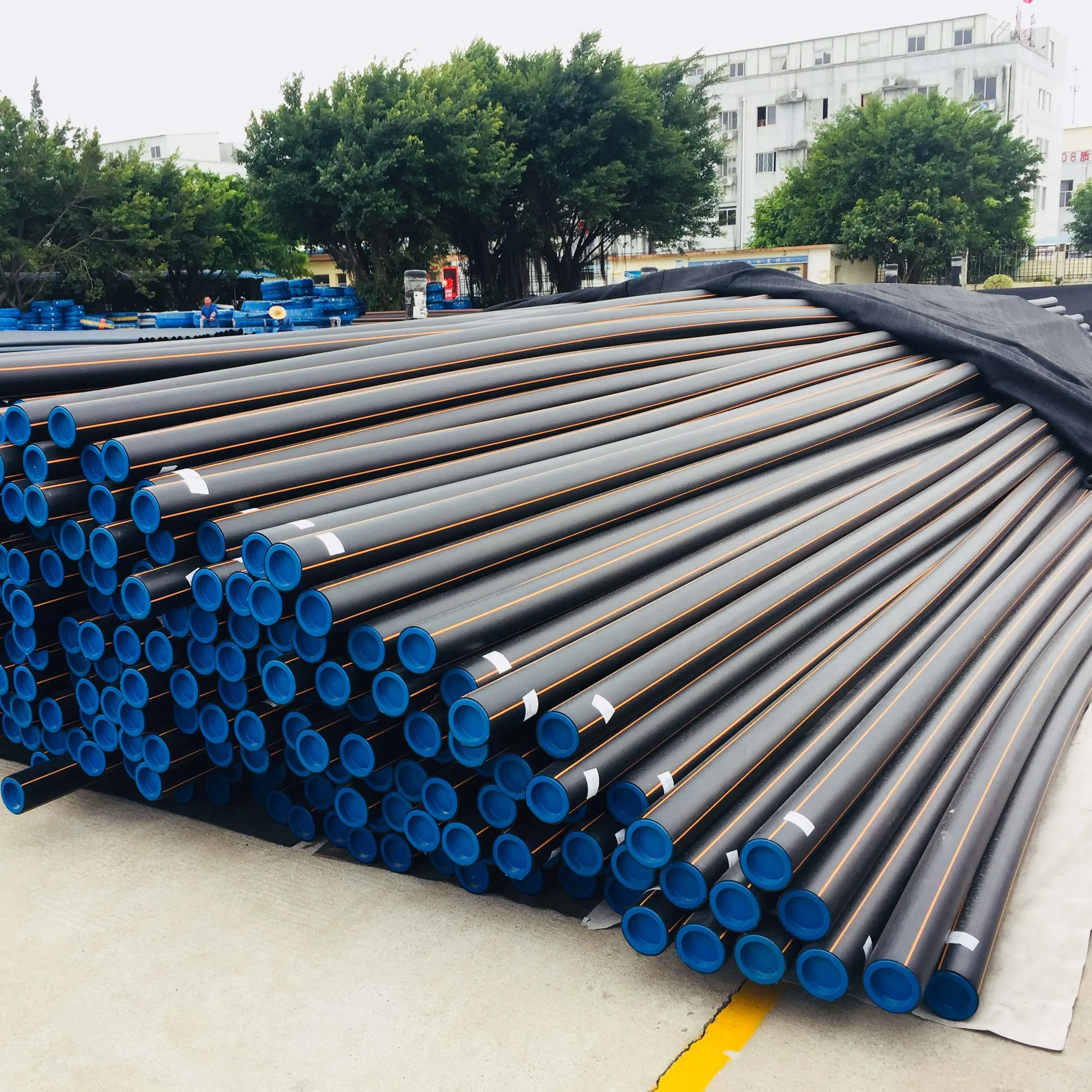

Packaging & Shipping
Company Information
Xiamen Tide Piping Syestems Co.,Ltd was founded in 2020, which covers an area of 90,000 square meters, with more than 100 employees. Factory has been certified by ISO 9001 International Quality Management System.
We are committed to providing most quality products. Our products ranges are metal pipes and fittings, plastic pipes and fittings.And the products we manufactured have been widely be used in building constructions, marine construction, water treatment, chemical engineering, and electricty.At Tide Piping ,we are dedicated to serving every customer, by delivering a high quality product and most competitive price.
At Tide Piping, we are dedicated to serving every customer, by delivering a high quality product and most competitive price
Why Choose Us
1. Quick Delivery
2. Competitive Price
3. Free Sample Available
4. Do Most Exacting and Challenging Specifications
Product Process
Certifications
Exhibition
FAQ
1. Who are we?
We are based in Fujian, China, start from 2020,sell to Domestic Market(18.00%),South America(15.00%),North America(15.00%),Central America(10.00%),Northern Europe(8.00%),Western Europe(8.00%),Oceania(10.00%),Africa(5.00%)Southern Europe(5.00%),),Eastern Europe(3.00%),Southeast Asia(3.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
STEEL PIPE,STEEL DRILLING PIPE,PVC PIPE,PPR PIPE,HDPE PIPE
4. Why should you buy from us not from other suppliers?
Quick Delivery Competitive Price Free Sample Available Do Most Exacting and Challenging Specifications
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Похожие товары
Распродажа водопроводные трубы большого диаметра канализационная труба пластиковая каратная для дренажной системы
1 766,46 ₽ - 2 760,09 ₽

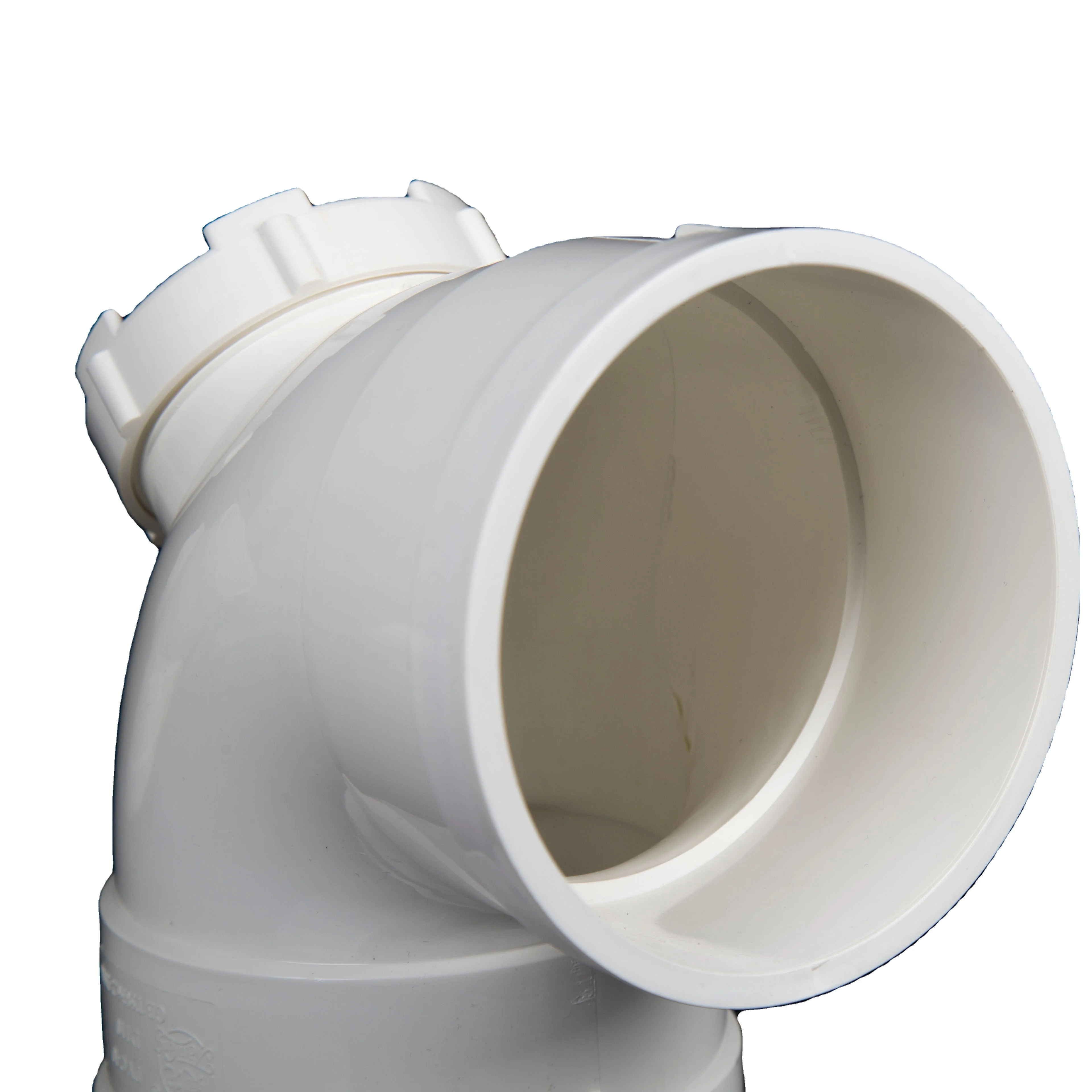

Белые пластиковые фитинги дренажной системы с проверкой локтя 50*90 ° высокого качества ПВХ канализационные трубы пластиковая труба
8,84 ₽
Полиэтиленовая дренажная канализационная труба для добычи дренажа и канализации
60,73 ₽ - 81,70 ₽

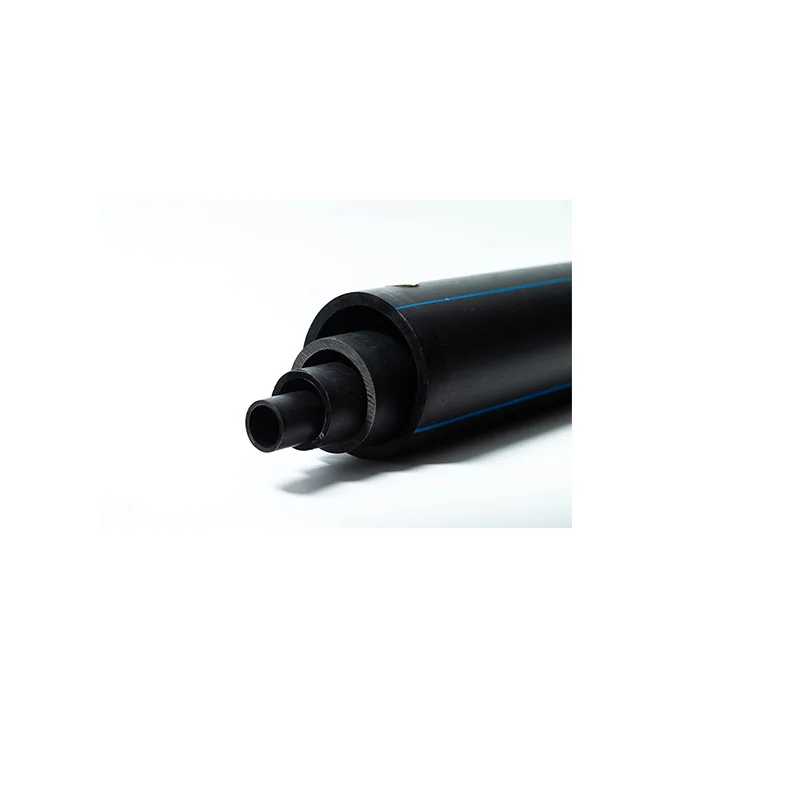

Чистый материал HDPE поли трубы для водоснабжения и водостоков
22,09 ₽

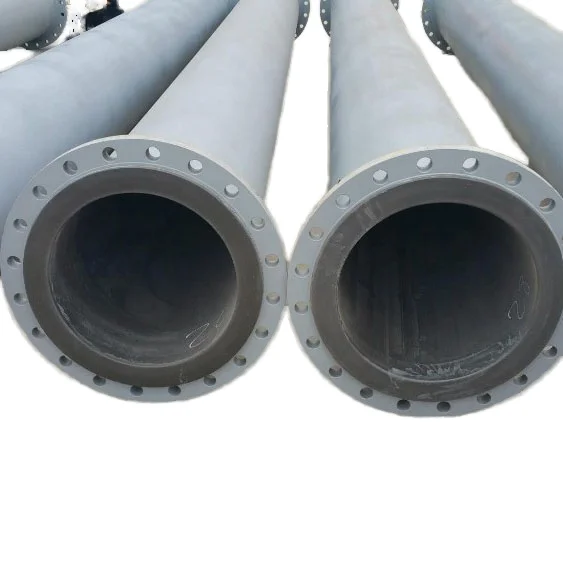

UHMWPE облицованная труба для дноуглубительных работ подкладки медного золотого угля
