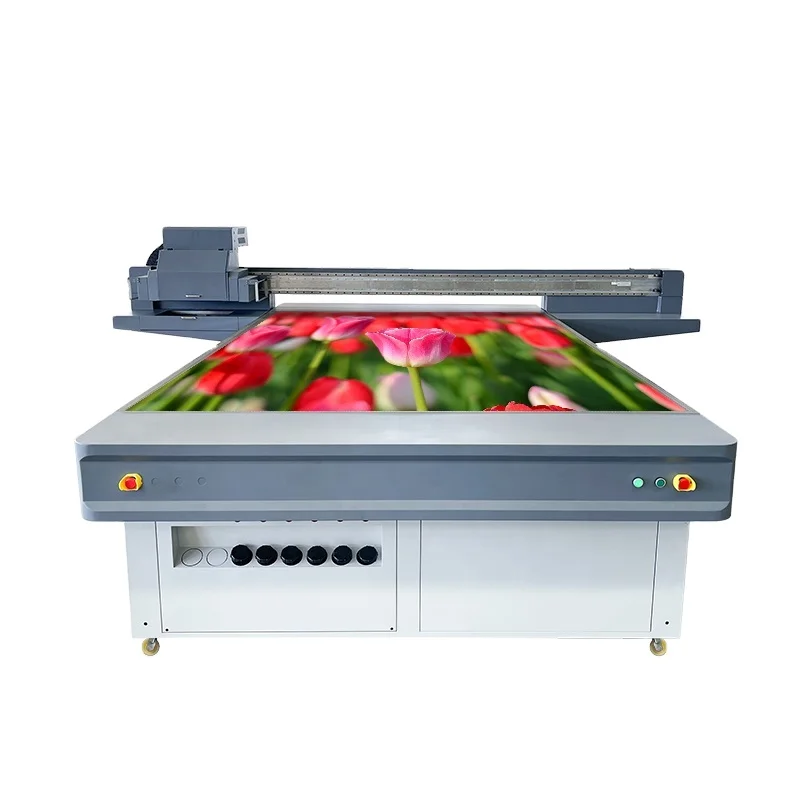

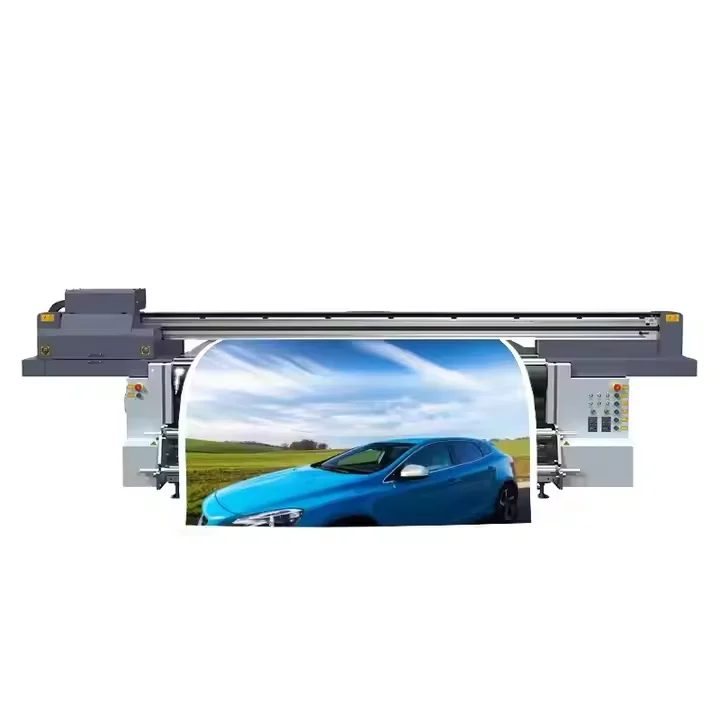

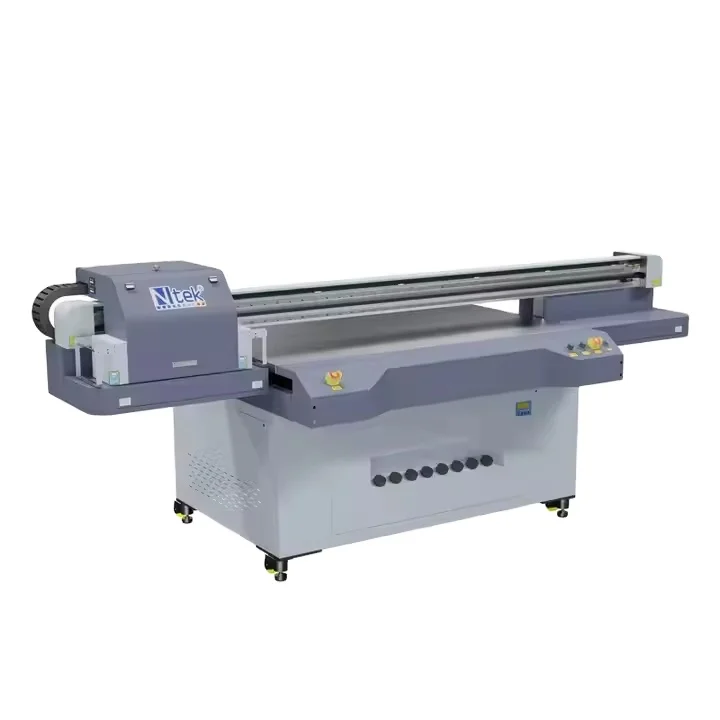

УФ принтер визуальное позиционирование вращающийся барабан сканер изображений для бутылки/ПВХ/акрил/стекло/баннер вывески печатная машина

Сохранить в закладки 1601218091497:


Цена:1 074 693,20-1 179 741,64 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Paramenters


2023 NEW Fully Automatic Printing Machine with CCD Vision Registration to meet highest demands, with CCD-camera system and movable print table to produce high-quality prints on flat materials such as EL-foils, LGP panels, BEF-films, touch screens, membrane switches, flexible printed circuits, and much more.

Product Applications : LCD cell sealant, Touch panel, Touch screen, Monitor, ITO, Diffusers for back light module, Light guide plate, EL panel, Automobile glass, Automotive Glass, Car glass, LOGO printing, Graphics printing.




Printhead
G5i or Toshiba CE4M or Epson l1600 printhead
Colors
CMYK+W+P+V support to (LC、LM、LK)
Print resolutions
300*900、300*12000r726*600 726*1200726*1500
Print speed (4 color mode)
Up to 3000/pcs (hour)
Maximum print Area
1600mmx1200mm
Curing
UV LED
Maximum media thickness
up to 100mm
Maximum media weight
96Kg
Ink type
UV ink
Interface
TCP/USB3.0
Power supply
AC220V,50/60Hz
Powerconsumption
4kW orless
Operating environment
Temperature 20-30°C(68°-86° F) Humidity: 40-80 % RH (Non condensing)
Dimensions(WxL xH)
320cm*210cm*140cm(125" x82" x55")
Weight
720kg


Our Advantages


Visual scanning barrel accurate positioning

1, 1200 dpi high-precision measurement: telecentric lens can eliminate perspective errors, ensure the accuracy and repeatability of the measurement, is the best choice for high-precision color printing


2、Scanning accuracy: can scan objects of different sizes and shapes, different heights, with better flexibility



New technologies Vision Positioning System
Automatically identify product position,match pattern printing,bid farewell to mold positioning methods,just lay the printing surface flat


Special motor, fast acceleration, quiet sound, high precision
The X-axis is equipped with a magnetic levitation linear motor, which has fast acceleration, quiet souno and high precision.
Each secondary ink cartridge is connected to a temperature control board to prevent long-term working temperatures from being too high, affecting ink fluency and reducing the life of the nozzle.


High positioning accuracy
In addition to hardware accuracy,software positioningis also a key condition.most aspects will affect positioning accuracy. The positioning accuracy algorithm developed by lishi can track the real position for you.


High quality imported accessories
Kaiou equipment accessories are of higher quality than other manufacturers to ensure that the machine can operate for a long time, cost-effective.
Germany imported drag chain, Japan imported double guide rail, Foshan Yinmei platform.


Products Application




CCD Vision Registration System Advantages:
1. The products' position and angle can be freely placed on vacuum bed, the CCD vision system automatically captures without fixture positioning, and automatically printing.
2. The visual positioning system enlarge the marking area and solves the accuracy problem of the small parts.
3. Adopts a coaxial CCD camera, the marking position is accurate, without missing or re-marking.
4. It can be equipped with assembly line or other automatic loading and unloading mechanism to realize automatic printing.
5. Especially suitable for digital printed paper/films which have no fixed cross mark.







KAIOU Factory




Guangzhou Kaiou Digital Technology Co., LTD. is established in 2009, focusing on the design, development, production and exportation of inkjet printers, certificated by CE and ISO9001.

As a professional inkjet printers ( DTF printers, DTG printer, UV DTF printer, UV printer, eco solvent printer, solvent printer) manufacturer over 14 years. For your special requirements of every products, our professional research and technical team will offer you comprehensive solution.

Based on our reliable quality and sincere after sale service, we get highly recognized by Middle East, Africa, Asia, North America, and South America. Providing good quality is our business philosophy, at the same time we also provide marketing solutions to help our customers add value, achieve a win-win situation!

Why choose us as your supplier?
1. 20+ foreign-language technicians providing 24-hour online and on-site service
2. 4,000+ domestic and overseas customers have long-term relationships, we deliver professional-grade digital printing with an unwavering commitment to excellence
3. Door-to-door service to help you solve transport problems
4. 3500 square metres of plant, multiple production lines, to achieve fast delivery.

The only thing we always devote to is to meet customers needs with our high quality products, timely services and competitive prices.

Look forward to build long cooperation with you.









Our R&D Team








Packaging




We offer door to door service, if you need, please feel free to contact us.


FAQ


1.Q: What’s the machine installation?
A: We provide the machine usage & installation videos and instruction manual, afford the 24 hour online service support for oversea customers. If need, we could provide the on-site installation and training service.

2.Q: How about the machine’s package and transportation ?
A:We will protect the machine with film and bubble film around the machine when it leaves the factory, and fix it on the bottom of the wooden case with iron nails. After the wooden case is packed, we will choose the mode of transportation according to the customer's requirements, and provide export service according to the customer's requirements.

3.How about the machine’s maintenance ?
A:With 1 Year warranty of whole printer ( not included the printer head) , simultaneously we will provide the lifetime warranty if use together with our ink. Also our after-sales engineers will provide 24 hour online technical consulting service.

4.What’s your delivery time?
A:We will arrange the delivery within 3~7 working days after received the deposit.
