Высвободив потенциальную 545 ватт монокристаллического кремния на крыше панель солнечных батарей 500 модуль системы для устойчивой
- Категория: >>>
- Поставщик: Xc Technology Co. Ltd.
Сохранить в закладки 1601218312513:
Описание и отзывы
Характеристики
Products Description
1. Positive power tolerance:0~+5w
2. 100%EL Double-inspection ensures modules are defects free
3. 9BB, 10BB, 12BB, 16BB Available4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. XC Solar Brand or Tier 1 Optional
8. Waterproof Label on Back of Panel
Supply of renowned brand components(jinko/longi/ja etc.): As a supplier, we collaborate with various renowned brand component manufacturers, providing customers with a wide range of options. Whether it's monocrystalline, polycrystalline, or thin-film modules, we offer high-quality products to meet different customer needs and budgets.

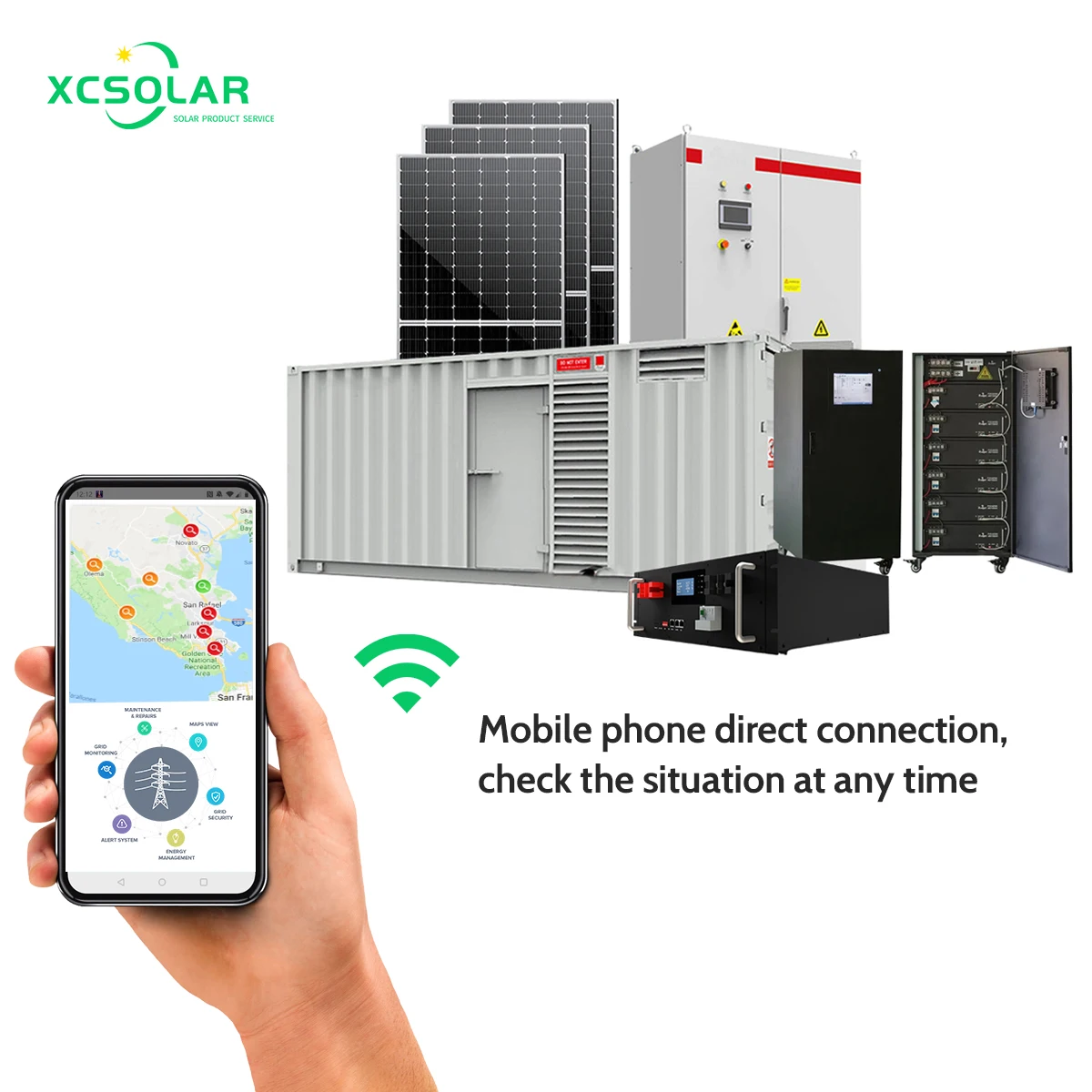

PowerRack
High Safety LFP
Cell level monitoring and balancing
APP Monitoring
Remote upgrade aviliable
Modular Design
Free parallel configuration
Expandable
Capacity from 5.12 to 204.8kWh
Wide Application
Cover all needs in commercial fields
Wide Compatibility
Matching leading inverter brand
Cell level monitoring and balancing
APP Monitoring
Remote upgrade aviliable
Modular Design
Free parallel configuration
Expandable
Capacity from 5.12 to 204.8kWh
Wide Application
Cover all needs in commercial fields
Wide Compatibility
Matching leading inverter brand
High-efficiency inverter
1. Advanced control algorithm
2. Safe and reliable
3. IP65 protection grade
4. Integrated AC and DC lightning protection
1. Advanced control algorithm
2. Safe and reliable
3. IP65 protection grade
4. Integrated AC and DC lightning protection
5.Ultra-wide operating temperature range
Our inverters play a crucial role in the solar system by converting the direct current (DC) electricity generated by the solar
panels into alternating current (AC) electricity that can be used to power appliances and equipment. We provide reliable and
high-efficiency inverters that ensure optimal energy conversion and system performance.
panels into alternating current (AC) electricity that can be used to power appliances and equipment. We provide reliable and
high-efficiency inverters that ensure optimal energy conversion and system performance.
PV Cable
Connector
Flow box
4 STEP SOLAR DESIGN PROCESS
STEP 1: Project Requirements
✔ Analysis or estimate of monthly energy use (kWh) and costs for most recent 12 months
✔ Assessment of roof or property site, including dimensions, shading, obstructions, slope, tilt, azimuth direction toward
Sun,local snow load, wind speed, and exposure category
✔ Evaluation of current electrical setup, including the location and size of circuit breaker box(s) and existing wires
✔ Review of local permit or utility requirements, including homeowner association HOA
✔ Owner requirements for aesthetics or location of the system
STEP 2: System Size and Layout
✔ Solar PV system sizing options (e.g. how many watts of solar are needed now and desired in the future)
✔ Estimated solar energy production scenarios (e.g. how many kWh or kilowatts hours will be produced using PVwatts)
✔ Solar array site plan, including the location of all components
✔ Design layout options and preliminary engineering for rooftop or ground mount configuration
STEP 3: Compare Solar Panel Systems
✔ Solar panel and inverter compatibility options
✔ Best price wholesale cost estimates for all equipment from your choice of manufacturers
✔ Easily compare systems side-by-side to evaluate price, performance, quality and compatibility
✔ Tax credit, rebate, and incentive summary
✔ Calculate expected payback, lifetime savings, and ROI
STEP 4: Final Plan
✔ Site plan, including the location of all components and setbacks
✔ Electrical specifications, single-line drawing - wiring diagram, with NEC required labels and calculations
✔ Engineering specifications for layout and mounting with all required calculations
✔ Product specifications for solar panels, inverters, mounting and electrical components
✔ Final purchase order and list of materials
✔ 10 to 20 page Solar PV System Permit Plan, printable on 11x17 paper
✔ OPTIONAL: Electrical or structural engineer review and stamps as required by building department or utility.

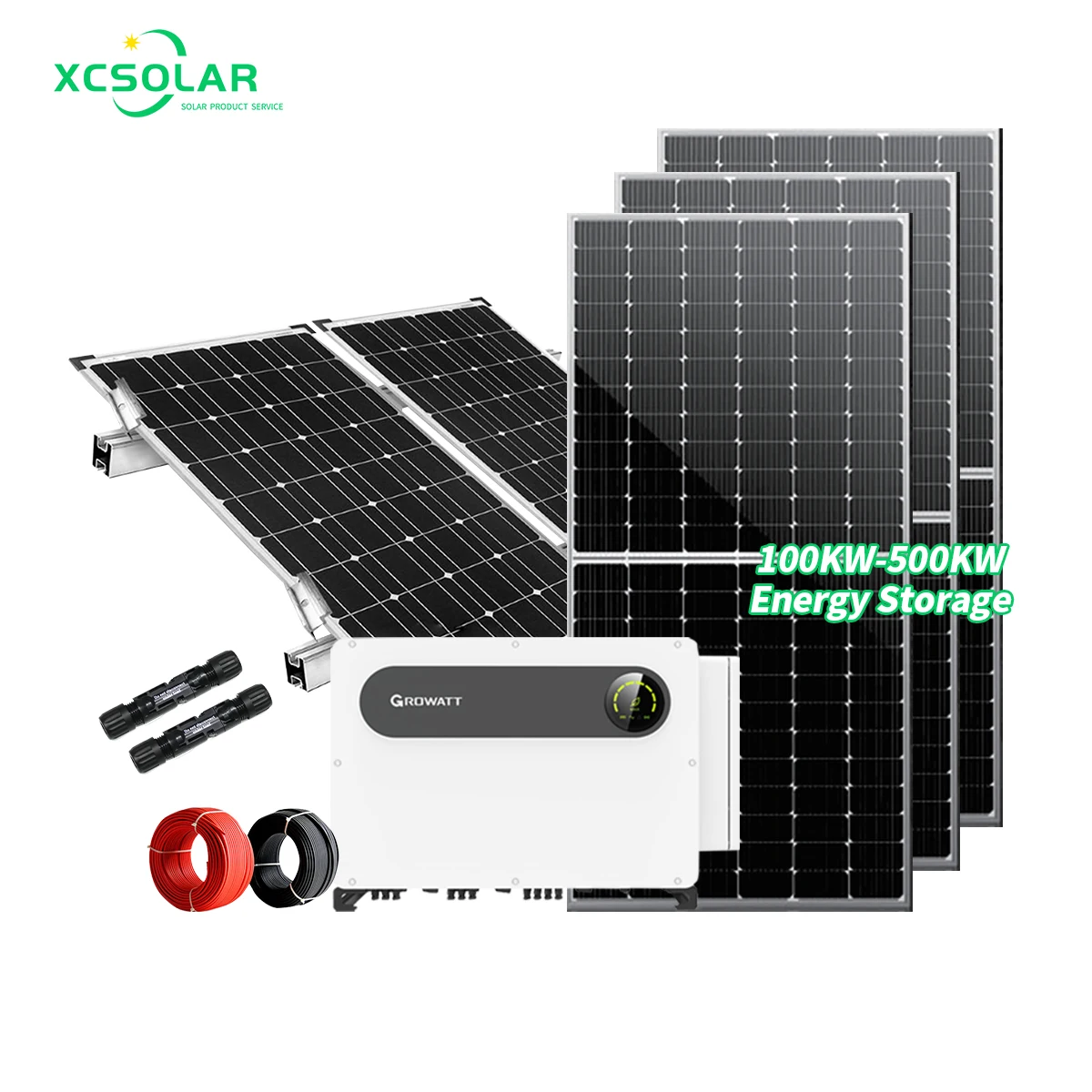

Model | 30KW-OFF | 60KW-OFF | 100KW-OFF | ||
Half Cut Mono 560W Solar Panel | 55 Pieces | 108 Pieces | 180 Pieces | ||
PV Combiner Box | 5 Input 2 output 1Piece | 3 Input 1 output 3Pieces | 5 Input 1 output 3Pieces | ||
Off Grid Hybrid Inverter Charger | 30KVA | 60KVA | 100KVA | ||
Deep Cycle VRLA GEL Battery | 30Kwh | 60Kwh | 100Kwh | ||
DC Cable 4mm2 | 500 meter | 1000 meter | 1500 meter | ||
MC4 Connector | 20 Pairs | 50 Pairs | 90 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Model | 200KW-OFF | 300KW-OFF | 500KW-OFF | ||
Half Cut Mono 560W Solar Panel | 360 Pieces | 540 Pieces | 900 Pieces | ||
PV Combiner Box | 5 Input 1 output 6Pieces | 5 Input 1 output 9Pieces | 5 Input 1 output 15Pieces | ||
Off Grid Hybrid Inverter Charger | 100KVA/2PCS | 100KVA/3PCS | 100KVA/5PCS | ||
Deep Cycle VRLA GEL Battery | 200Kwh | 300Kwh | 500Kwh | ||
DC Cable 4mm2 | 3000 meter | 4500 meter | 7500 meter | ||
MC4 Connector | 180 Pairs | 270 Pairs | 450 Pairs | ||
Mounting System | Customized Product Based On Installation Roof/Ground | ||||
PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||
Company Profile

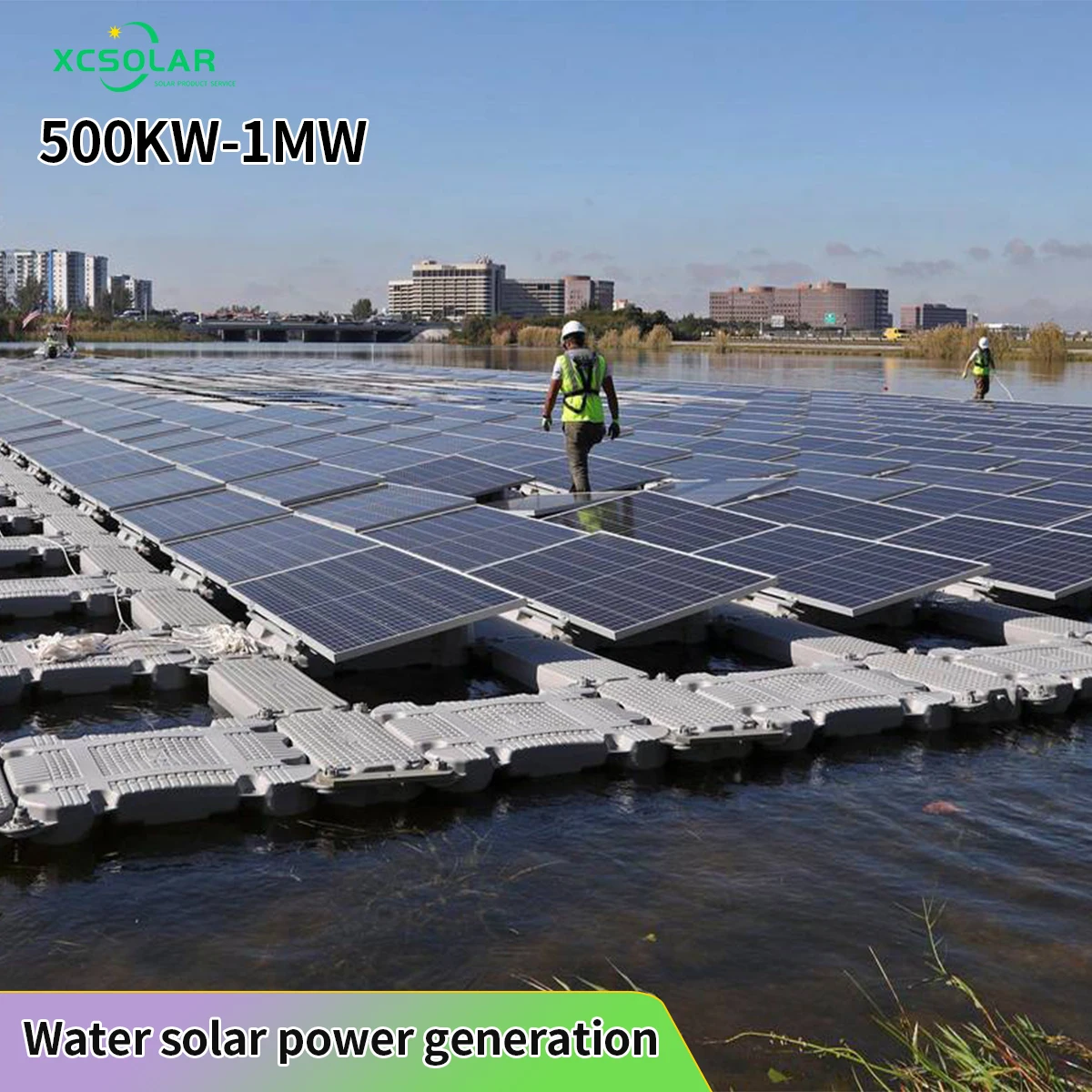

Our Projects
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
FAQ
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, TUV. RoHS
Q:How is your technical support?
A：We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime, our engineer will also go to oversea help our customers if necessary.
Q.How to become your agent?
A：Contact us through Alibaba/email, and we can talk about details to confirm.
Q：what services can we provide?
A：Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,German,Russian,French
Language Spoken:English,Chinese,Spanish,German,Russian,French
Q: Do you support OEM/ODM?
A：Of course, we can do customized services for our partners.
Похожие товары

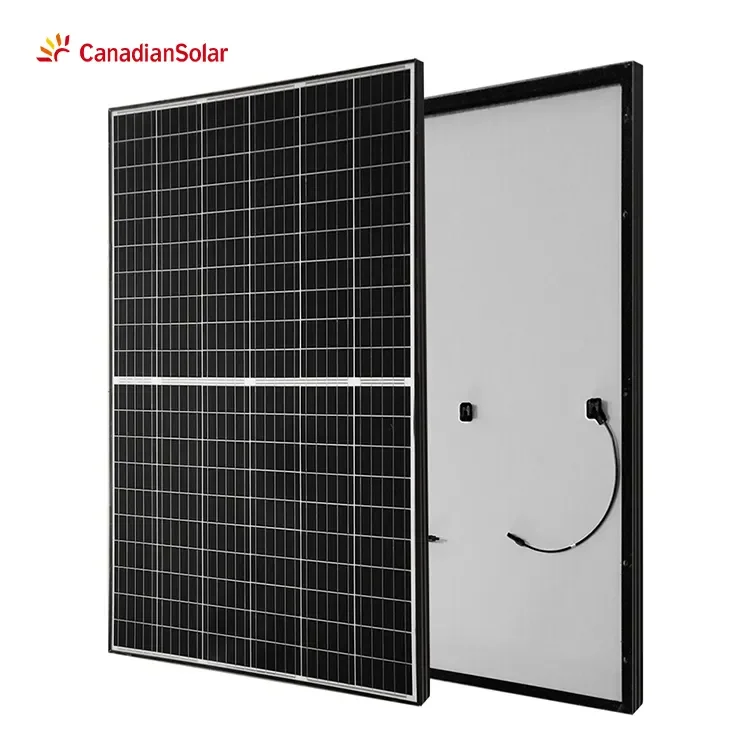

Канадская моно дешевая полуэлементная солнечная панель 380 Вт 385 390 395 400 405 Pannello Solare цена Pv модуль полный
16,45 ₽ - 17,55 ₽
Высококачественная мусульманская женская длинная модная черная маска для лица оптовая продажа никаб
54,83 ₽ - 241,23 ₽
Японские Замороженные Свежие покупатели целая круглая рыба филе
1 359,65 ₽

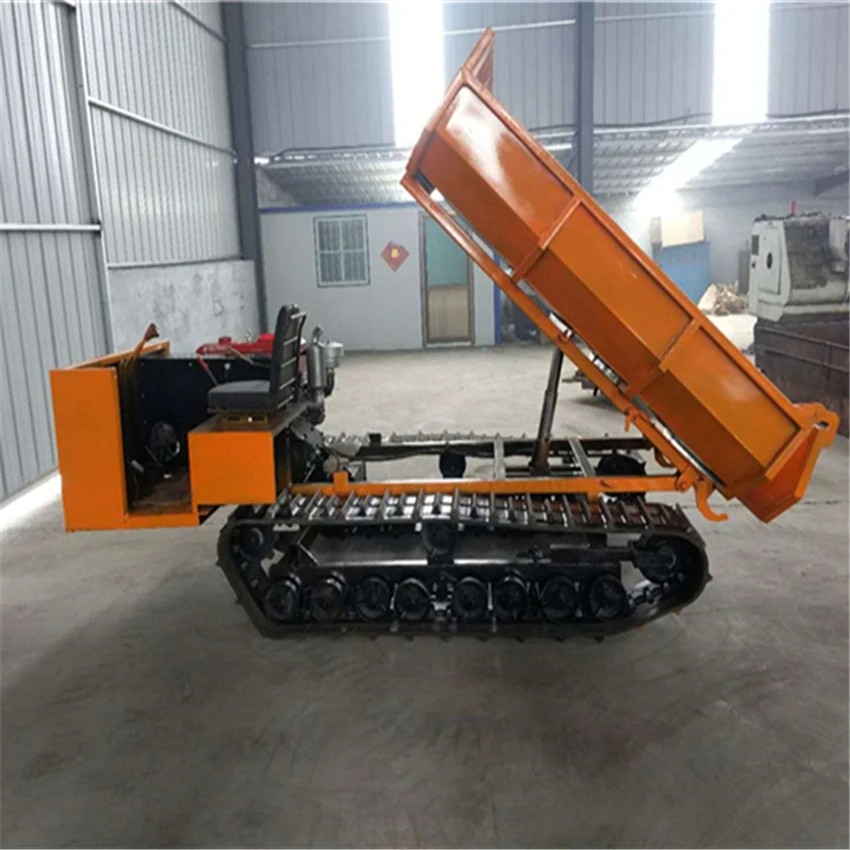

Дизельный самосвал большой емкости 4 тонны мини-самосвал для продажи евро 1 автоматический 2000-6000 кг HAOHONG 1600 мм 4000
328 945,20 ₽ - 712 714,60 ₽

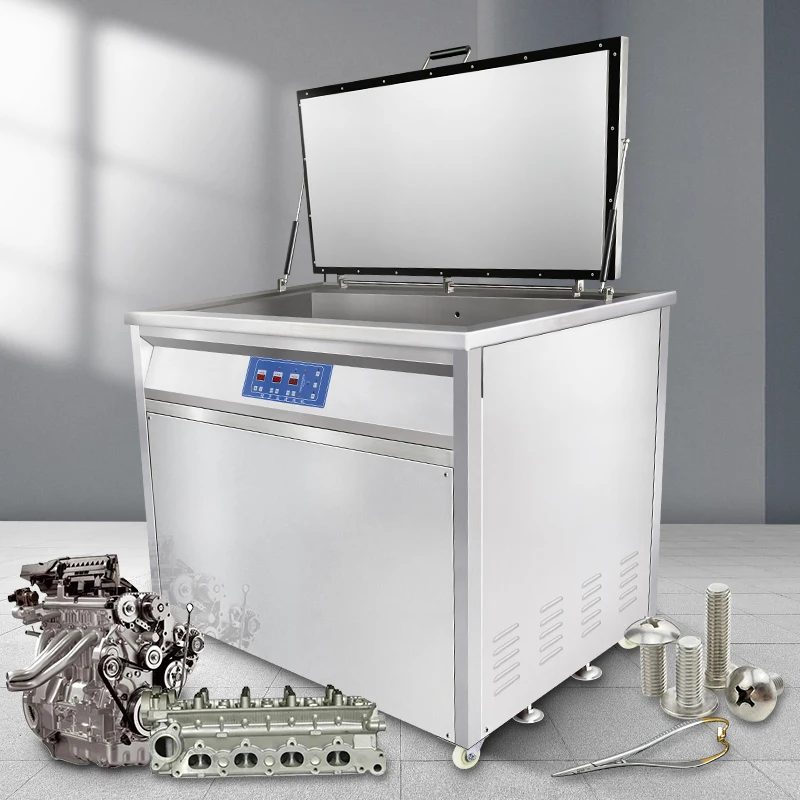

Лучший поставщик хорошая ультразвуковая стиральная машина для
107 455,44 ₽ - 118 420,28 ₽

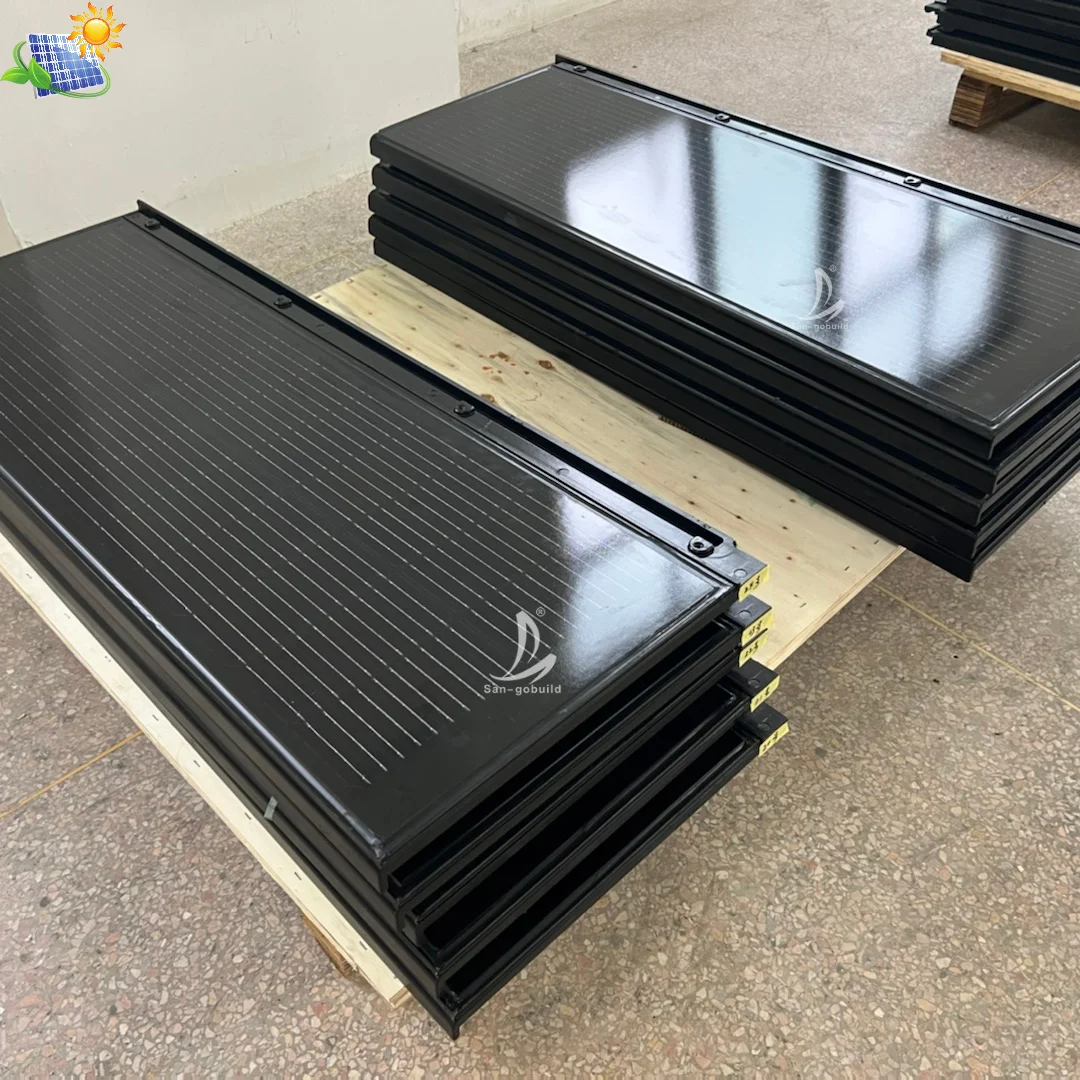

Экономичная Энергоэффективная Солнечная плитка европейские солнечные панели BIPV разумная цена для коммерческих и жилых
