Solis S5 GR3P(3 20)K трехфазный сетевой Солнечный инвертор

Solis S5 GR3P(3 20)K трехфазный сетевой Солнечный инвертор

Категория: >>>
Поставщик: Henan Livefun Solar Tech Co. Ltd.Henan Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

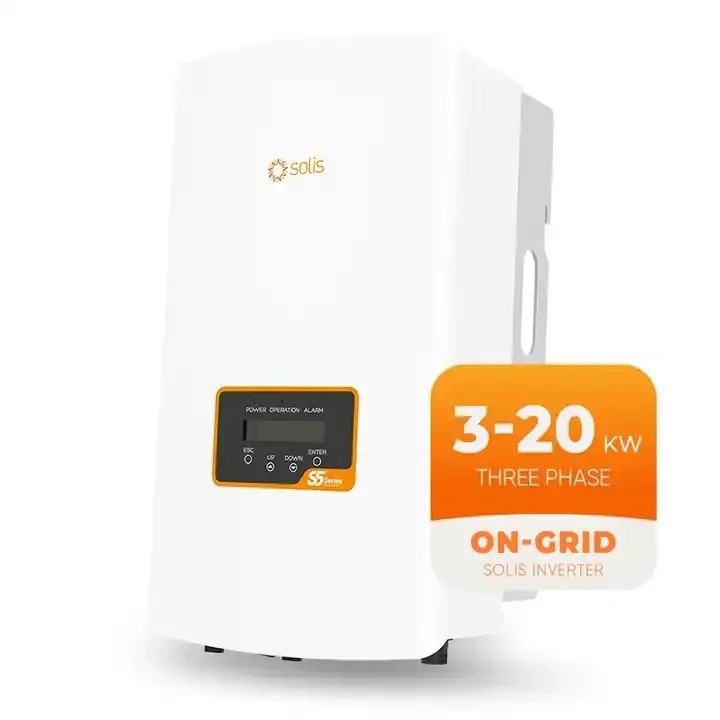

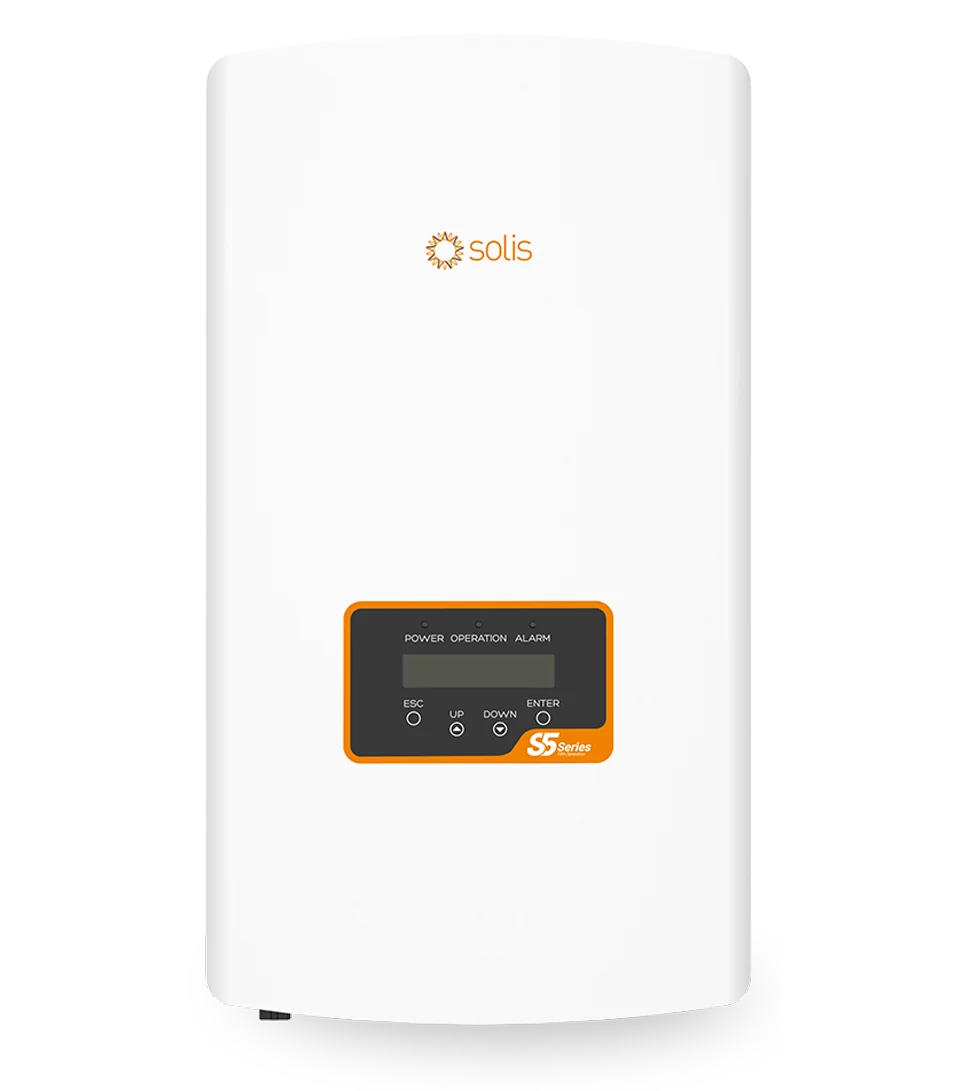

Solis S5-GR3P(3-20)K Three Phase Grid-Tied Solar Inverter

Specification

Models

3K

4K

5K

6K

8K

10K

12K

15K

20K

Input DC

Recommended max. PV power

4.5 kW

6 kW

7.5 kW

9 kW

12 kW

15 kW

18 kW

22.5 kW

30 kW

Max. input voltage

1100 V

Rated voltage

600 V

Start-up voltage

180 V

MPPT voltage range

160-1000 V

Max. input current

16 A / 16 A

32 A / 32 A

Max. short circuit current

20 A / 20 A

40 A / 40 A

MPPT number/Max. input strings number

2/2

2/4

Output AC

Rated output power

3 kW

4 kW

5 kW

6 kW

8 kW

10 kW

12 kW

15 kW

20 kW

Max. apparent output power

3.3 kVA

4.4 kVA

5.5 kVA

6.6 kVA

8.8 kVA

11 kVA

13.2 kVA

16.5 kVA

22 kVA

Max. output power

3.3 kW

4.4 kW

5.5 kW

6.6 kW

8.8 kW

11 kW

13.2 kW

16.5 kW

22 kW

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

4.6 A /
4.3 A

6.1 A /
5.8 A

7.6 A /
7.2 A

9.1 A /
8.7 A

12.2 A /
11.5 A

15.2 A /
14.4 A

18.2 A /
17.3 A

22.8 A /
21.7 A

30.4 A /
28.9 A

Max. output current

4.7 A

6.4 A

7.9 A

9.5 A

12.7 A

15.9 A

19.1 A

23.8 A

31.8 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<2%

Efficiency

Max. efficiency

98.3%

98.5%

98.6%

98.7%

EU efficiency

97.7%

97.9%

98.0%

98.1%

Protection

DC reverse-polarity protection

Yes

Short circuit protection

Yes

Output over current protection

Yes

Surge protection

Yes

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Integrated AFCI (DC arc-fault circuit protection)

Yes (1)

Integrated DC switch

Optional

General Data

Dimensions (W*H*D)

310*563*219 mm

Weight

17.8 kg

18.8 kg

20 kg

Topology

Transformerless

Self-consumption (night)

<1 W

Operating ambient temperature range

-25 ~ +60°C

Relative humidity

0-100%

Ingress protection

IP66

Cooling concept

Natural convection

Intelligent redundant fan-cooling

Max. operation altitude

4000 m

Grid connection standard

G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530

Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features

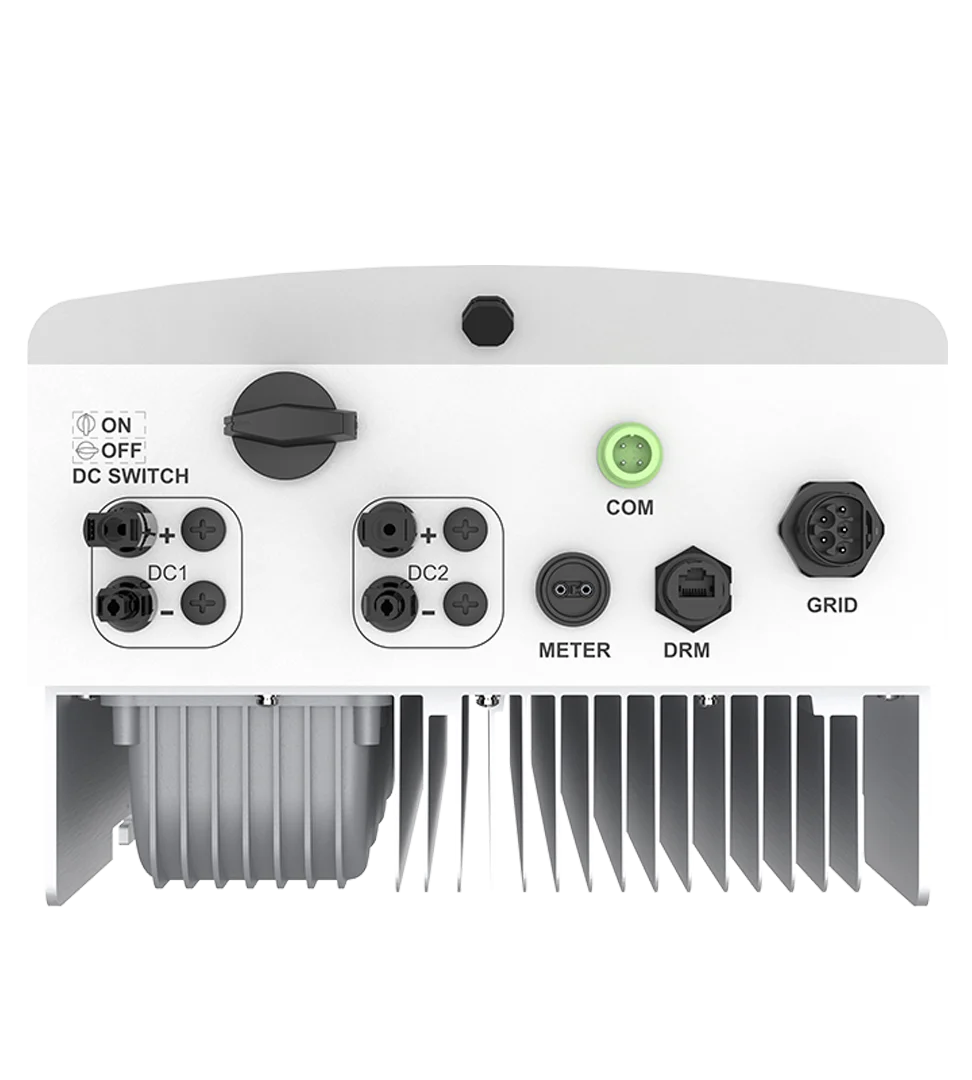

DC connection

MC4 connector

AC connection

Quick connection plug

Display

LCD

Communication

RS485, Optional: Wi-Fi, GPRS

System Architechture

Product Packaging

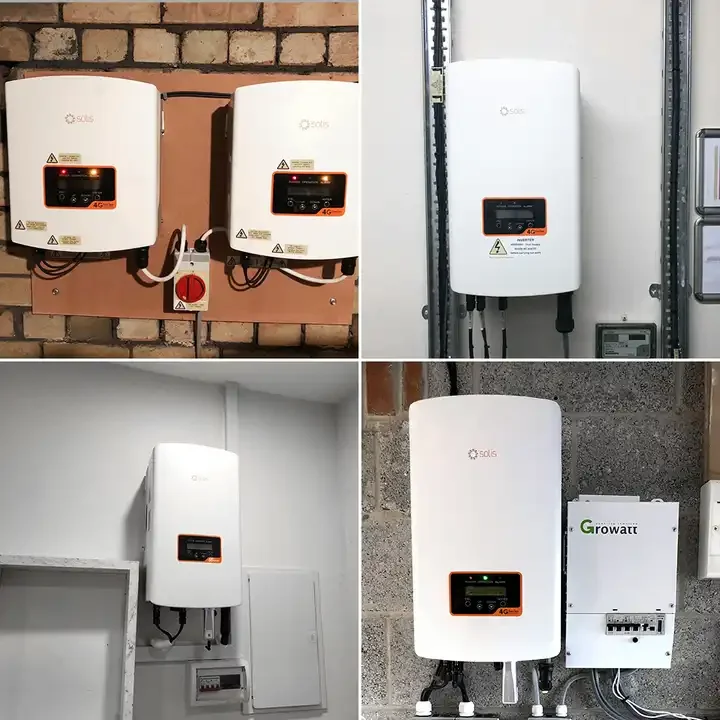

Project Cases
