Мелкомасштабные картофельные чипсы, 20-50 кг
5 054 690,16 ₽
Производственная линия картофельные чипсы Цена картофеля
- Категория: >>>
- Поставщик: Xingtai Zhengruo Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601218560835:
Описание и отзывы
Характеристики
Product descriptions from the supplier
Introduction

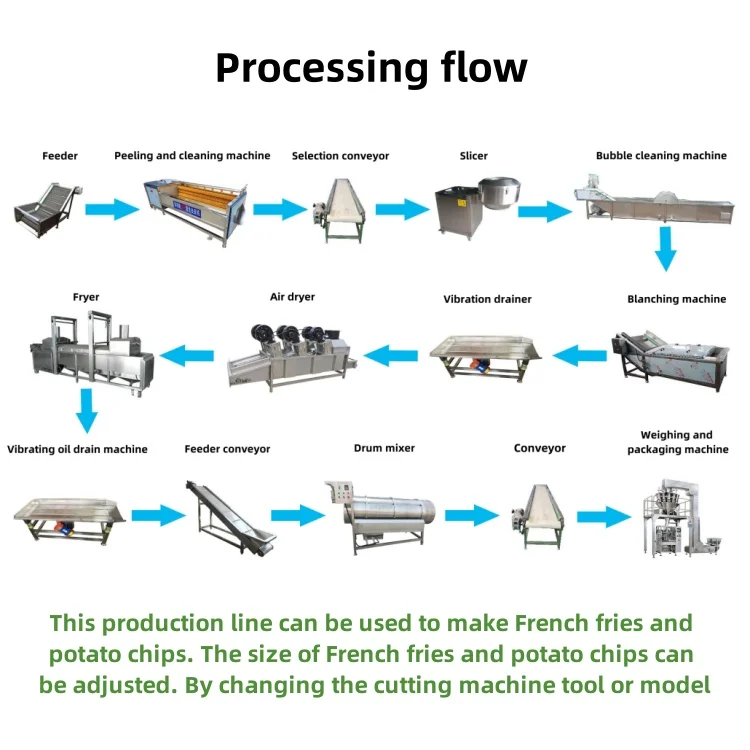

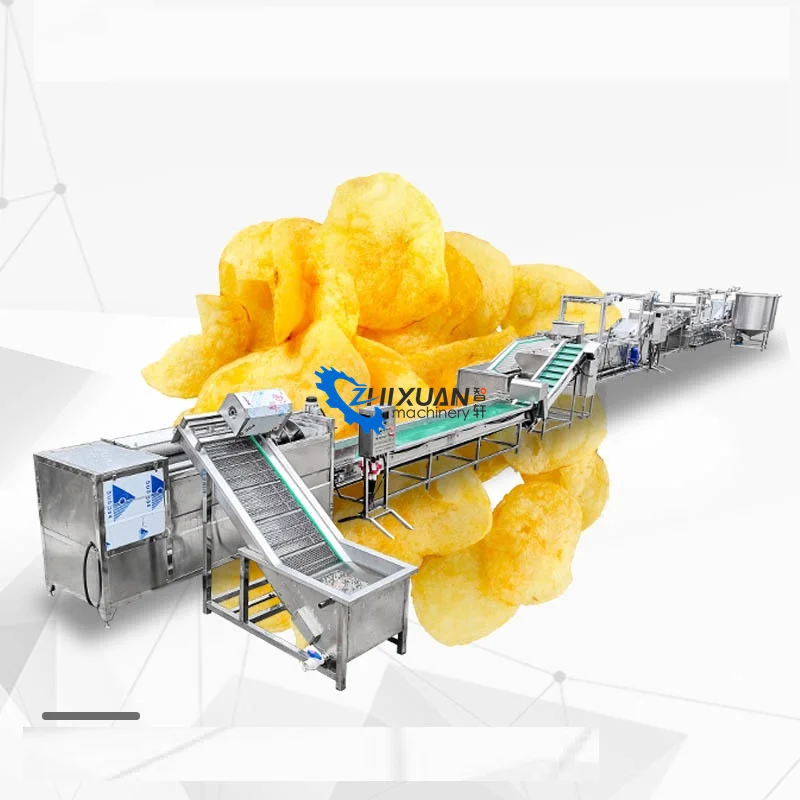

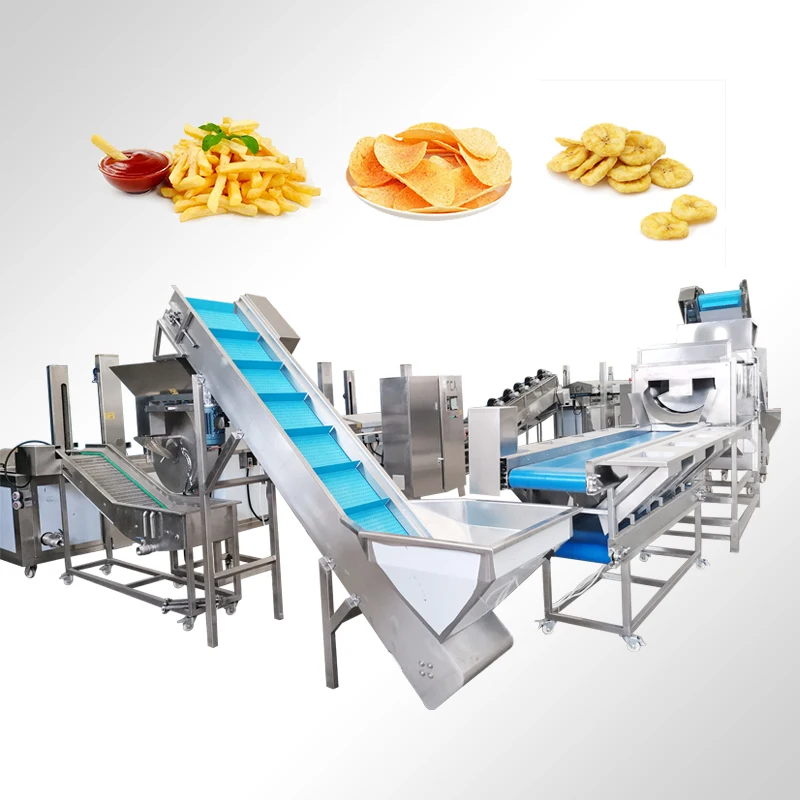

Automatic French fries production line includes lifting machine, cleaning and peeling machine, sorting line, French fries machine,bucket elevator, descaling machine, blanching line, vibration dehydrator, air cooling dehydrator, elevator, continuous frying machine, vibration degreasing machine, air trunk, elevator, vibration cloth machine, frozen line, elevator, ten head weighing
packaging machine This set of production line developed by our company, developed a new French fries potato chips production line with international standards, this set of production line of high quality 304 stainless steel, high PLC electrical control, technology, security,efficiency, bearings are made of imported stainless steel bearings, electrical and other imported brand-name products, leading technical level.
Application
This production line is widely used in large-scale food processing factories such as snack processing factories and potato chip factories.
packaging machine This set of production line developed by our company, developed a new French fries potato chips production line with international standards, this set of production line of high quality 304 stainless steel, high PLC electrical control, technology, security,efficiency, bearings are made of imported stainless steel bearings, electrical and other imported brand-name products, leading technical level.
Application
This production line is widely used in large-scale food processing factories such as snack processing factories and potato chip factories.
Features
1. Optional heating method: electricity, gas, steam, electromagnetism, etc.
2. AFrying time can be set, automatic temperature control 0-300°C.
3. Double mesh belt and the conveyor speed is adjustable.
4. Can be equipped with oil filter machine and oil tank.
5. Equipped with mesh lifting system, easy to clean.
6. With oil storage tank and oil pump.
7. Fire-extinguishing device is optional.
8. Oil refined filtration device is optional.
1. Optional heating method: electricity, gas, steam, electromagnetism, etc.
2. AFrying time can be set, automatic temperature control 0-300°C.
3. Double mesh belt and the conveyor speed is adjustable.
4. Can be equipped with oil filter machine and oil tank.
5. Equipped with mesh lifting system, easy to clean.
6. With oil storage tank and oil pump.
7. Fire-extinguishing device is optional.
8. Oil refined filtration device is optional.
Paramater
Product Name | Power（kw） | Voltage（V/Hz） | Dimensions（mm） |
Feeding elevator | 2.25 | 380/50 | 2100*1100*1450 |
Peeling and cleaning machine | 1.5 | 380/50 | 2300*1000*1350 |
Manual picking platform | 0.75 | 380/50 | 3000*800*1400 |
Slicing machine | 1.5 | 380/50 | 1200*800*1250 |
Bubble cleaning machine | 3.75 | 380/50 | 3100*1500*1650 |
Blanching machine | 91.5 | 380/50 | 3100*1500*1650 |
Parallel air drying machine | 5.25 | 380/50 | 3100*1300*1650 |
Frying machine | 207.3 | 380/50 | 3600*1500*2350 |
Vibrating screen | 1.1 | 380/50 | 1900*1100*1350 |
Lifting air drying machine | 3 | 380/50 | 3100*1300*1750 |
Drum mixer | 1.15 | 380/50 | 2600*900*1950 |
Conveyor belt | 0.75 | 380/50 | 3100*700*1000 |
Vertical packaging machine | 10 | 380/50 | 3350*2500*2800 |
Detail display

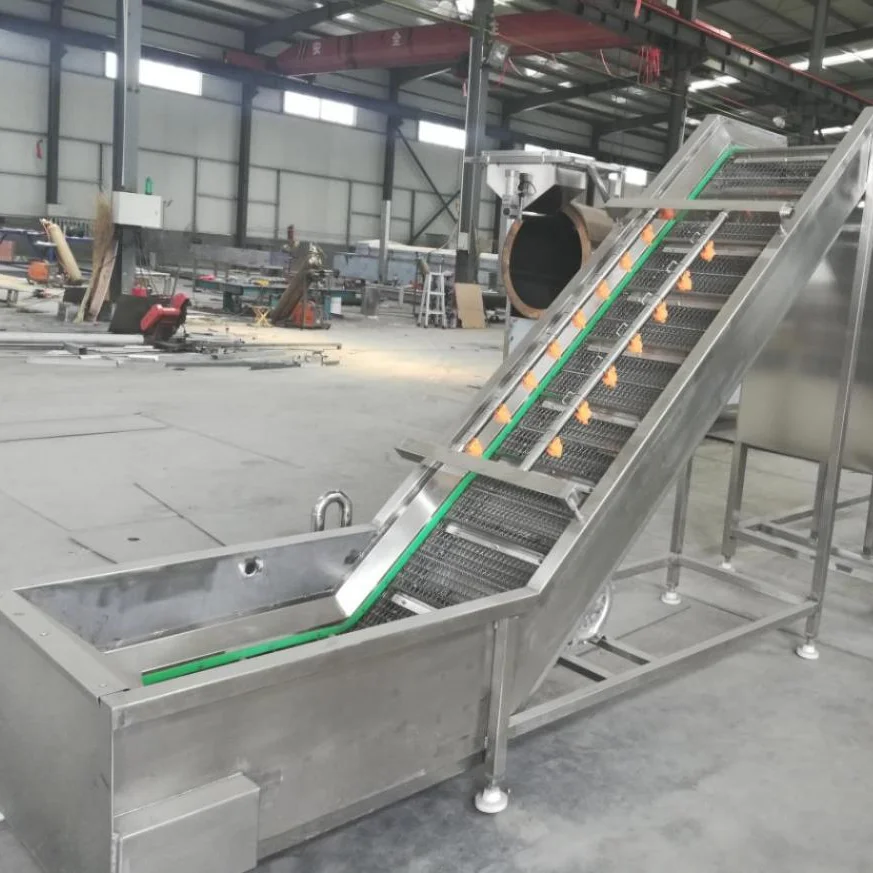

Feeding elevator
Pre-clean the potatoes, equipped with a water tank to further clean the dirt on the potatoes, and lift them to the peeling machine.
The lifting net is a stainless steel 304 mesh belt with a mesh diameter of 8mm*50*3mm, high-quality 304 stainless steel square tube, stainless steel bearings, and the motor is a high-quality copper wire speed-adjustable motor with adjustable speed
The lifting net is a stainless steel 304 mesh belt with a mesh diameter of 8mm*50*3mm, high-quality 304 stainless steel square tube, stainless steel bearings, and the motor is a high-quality copper wire speed-adjustable motor with adjustable speed
Peeling and cleaning machine
The potatoes pass through the elevator, brush and water spray, and enter the drum peeling machine to completely peel the potatoes. The potatoes are automatically discharged, and the stainless steel spiral drives the potatoes to the picking platform.
The number of rollers used is 9. The bottom circulation filter tank can effectively save water resources. The peeling time can be adjusted. The frame used is 50*50*3mm, high-quality 304 stainless steel square tube and 2mm304 stainless steel. The mesh thickness on both sides is 6mm. Bearing Stainless steel 316 bearing. The brush is made of high-quality imported nylon
The number of rollers used is 9. The bottom circulation filter tank can effectively save water resources. The peeling time can be adjusted. The frame used is 50*50*3mm, high-quality 304 stainless steel square tube and 2mm304 stainless steel. The mesh thickness on both sides is 6mm. Bearing Stainless steel 316 bearing. The brush is made of high-quality imported nylon
Manual picking and conveying platform
The washed and peeled potatoes are transported to this picking platform. Potatoes that are not completely peeled will be peeled, the damaged parts will be cut off, the crushed potatoes will be picked out, and then thrown into the holes on both sides.
PVC high-quality food-grade conveyor belt is selected, which is safe and hygienic, and the outer frame is 304 high-quality stainless steel.
The motor speed is adjustable, the conveyor belt speed is adjustable, and the height is adjustable. The bearing seat is FL206 stainless steel
Bearing seat
PVC high-quality food-grade conveyor belt is selected, which is safe and hygienic, and the outer frame is 304 high-quality stainless steel.
The motor speed is adjustable, the conveyor belt speed is adjustable, and the height is adjustable. The bearing seat is FL206 stainless steel
Bearing seat
Slicer
The potatoes automatically enter the slicer through the transmission line and cut into smooth surface potato chips.
The slicer can complete the cutting operation continuously. The electric blade is made of high-speed stainless steel, the turntable is made of high-quality aluminum-magnesium alloy, and the other materials are 304 stainless steel. The slice thickness is adjustable.
The slicer can complete the cutting operation continuously. The electric blade is made of high-speed stainless steel, the turntable is made of high-quality aluminum-magnesium alloy, and the other materials are 304 stainless steel. The slice thickness is adjustable.
Bubble cleaning machine
Qualified potato chips fall directly into the bubble cleaning line. The potato chips are washed away by bubbles and waves,
The starch on the surface of the potato chips is fully washed. The function of secondary spray cleaning with clean water is provided.
The purpose is to make the potato chips taste better after frying
The thickness of the plate is 2mm and the width of the mesh belt is 800 mm.
The starch on the surface of the potato chips is fully washed. The function of secondary spray cleaning with clean water is provided.
The purpose is to make the potato chips taste better after frying
The thickness of the plate is 2mm and the width of the mesh belt is 800 mm.
Blanching machine
This machine keeps the crispness of potato chips and prevents browning.
This machine adopts electric heating, automatic water temperature control, and is made of high-quality 304 stainless steel. The ring seat is a 304 stainless steel bearing seat. The mesh belt width is 800 mm and the mesh hole is 3mm.
This machine fixes the enzyme activity of potato chips, maintains the original color, improves the softness of cells, and prevents water evaporation. The mesh belt motor is a speed-adjustable motor with a 50 mm thick insulation layer, which effectively prevents heat loss.
This machine adopts electric heating, automatic water temperature control, and is made of high-quality 304 stainless steel. The ring seat is a 304 stainless steel bearing seat. The mesh belt width is 800 mm and the mesh hole is 3mm.
This machine fixes the enzyme activity of potato chips, maintains the original color, improves the softness of cells, and prevents water evaporation. The mesh belt motor is a speed-adjustable motor with a 50 mm thick insulation layer, which effectively prevents heat loss.
Parallel air dryer
Dry the potato chips, transport them through a mesh belt, and turn them over several times, using the wind's multi-faceted and uniform properties. The wind from the high-pressure blower cools the potato chips and removes surface moisture.
The air drying line uses high-quality 304 stainless steel, 4 mesh belts, 800mm mesh belt width, 12 fans, each 0.75kW, and adjustable fan height. It is set in a knife shape, which effectively increases the air volume pressure, so that the moisture is blown away from the surface of the material in a short time, which is convenient for subsequent processing. A water receiving tray is provided at the bottom of the air dry line.
The air drying line uses high-quality 304 stainless steel, 4 mesh belts, 800mm mesh belt width, 12 fans, each 0.75kW, and adjustable fan height. It is set in a knife shape, which effectively increases the air volume pressure, so that the moisture is blown away from the surface of the material in a short time, which is convenient for subsequent processing. A water receiving tray is provided at the bottom of the air dry line.
Frying machine
After rinsing and air drying, the potato chips are lifted to the entrance of the fryer, the oil temperature is set to 180-200 degrees, the potato chips are fried in the oil for about 2-3 minutes, and then output from the conveyor belt to the next degreasing process.
The equipment adopts pure oil technology and is equipped with a dynamic filtration system to achieve automatic filtration and deslagging during the working process to ensure the quality of the frying oil. All 304 high-quality stainless steel is made, and the motor is a 2.2KW variable frequency speed motor. The mesh belt width is 600 mm and is equipped with an automatic lifting function. In order to facilitate cleaning and hygiene, double mesh belts are used to convey food, the upper and lower mesh belts can be adjusted by variable frequency, and the oil temperature can be adjusted. The temperature can reach 200 degrees.
The machine has an oil inlet and an oil drain port.
The equipment adopts pure oil technology and is equipped with a dynamic filtration system to achieve automatic filtration and deslagging during the working process to ensure the quality of the frying oil. All 304 high-quality stainless steel is made, and the motor is a 2.2KW variable frequency speed motor. The mesh belt width is 600 mm and is equipped with an automatic lifting function. In order to facilitate cleaning and hygiene, double mesh belts are used to convey food, the upper and lower mesh belts can be adjusted by variable frequency, and the oil temperature can be adjusted. The temperature can reach 200 degrees.
The machine has an oil inlet and an oil drain port.
Vibrating screen
Remove oil stains from the surface of potato chips through high-frequency vibration. The potato chips are dispersed and evenly sent to the oil drain line through vibration. At the same time, the oil stains fall from the small holes at the bottom to the tray.
The machine is made of 304 stainless steel. The plate thickness is 3mm, the frame square tube is 80×80×3mm,
high-quality 304 stainless steel square tube, and the impact amplitude is adjustable.
The machine is made of 304 stainless steel. The plate thickness is 3mm, the frame square tube is 80×80×3mm,
high-quality 304 stainless steel square tube, and the impact amplitude is adjustable.
Lifting air dryer
The potato chips are air-dried, transported through a mesh belt, and turned over several times, using the wind's multi-faceted and uniform properties. The wind from the high-pressure blower cools the potato chips and removes surface moisture.
The air drying line is made of high-quality 304 stainless steel, 4 circles of mesh belt, 800mm mesh belt width, 8 fans, each 0.75kW, and adjustable fan height. It is set in a knife shape, which effectively increases the air volume pressure, so that the moisture is blown away from the surface of the material in a short time, which is convenient for subsequent processing. A water receiving tray is provided at the bottom of the air dry line.
The air drying line is made of high-quality 304 stainless steel, 4 circles of mesh belt, 800mm mesh belt width, 8 fans, each 0.75kW, and adjustable fan height. It is set in a knife shape, which effectively increases the air volume pressure, so that the moisture is blown away from the surface of the material in a short time, which is convenient for subsequent processing. A water receiving tray is provided at the bottom of the air dry line.
Drum Mixer
Potato chips fall into the drum, are driven upward by the stirring blades, fall from above, and mix with the seasoning powder. During the operation, the powder box always keeps seasonings. If the seasonings are insufficient, add them in time. Equipped with a spiral powder feeding device, it can stir automatically while spreading the powder. It is equipped with a stirring powder spreading device, which is uniform and accurate in quantity.
The equipment consists of a bracket, a drum, a drum transmission system, a powder spreading system, a powder spreading transmission system, and a switchboard.
The equipment consists of a bracket, a drum, a drum transmission system, a powder spreading system, a powder spreading transmission system, and a switchboard.
Vertical packaging machine
Made of 304 stainless steel (except accessories), composed of hopper + Z-type elevator + multi-head
scale + automatic packaging machine + conveyor; Workflow:
1) Potato chips enter the hopper.
2) The Z-type elevator puts the cold potato chips into the multi-head scale
3) The multi-head scale automatically weighs according to the set weight
4) After the potato chips are weighed, they enter the packaging machine and are automatically sealed and packaged
5) The conveyor transports the packaged bags to the workbench and packs them in cartons
6) A nitrogen generator is used to flush nitrogen into the bags.
scale + automatic packaging machine + conveyor; Workflow:
1) Potato chips enter the hopper.
2) The Z-type elevator puts the cold potato chips into the multi-head scale
3) The multi-head scale automatically weighs according to the set weight
4) After the potato chips are weighed, they enter the packaging machine and are automatically sealed and packaged
5) The conveyor transports the packaged bags to the workbench and packs them in cartons
6) A nitrogen generator is used to flush nitrogen into the bags.

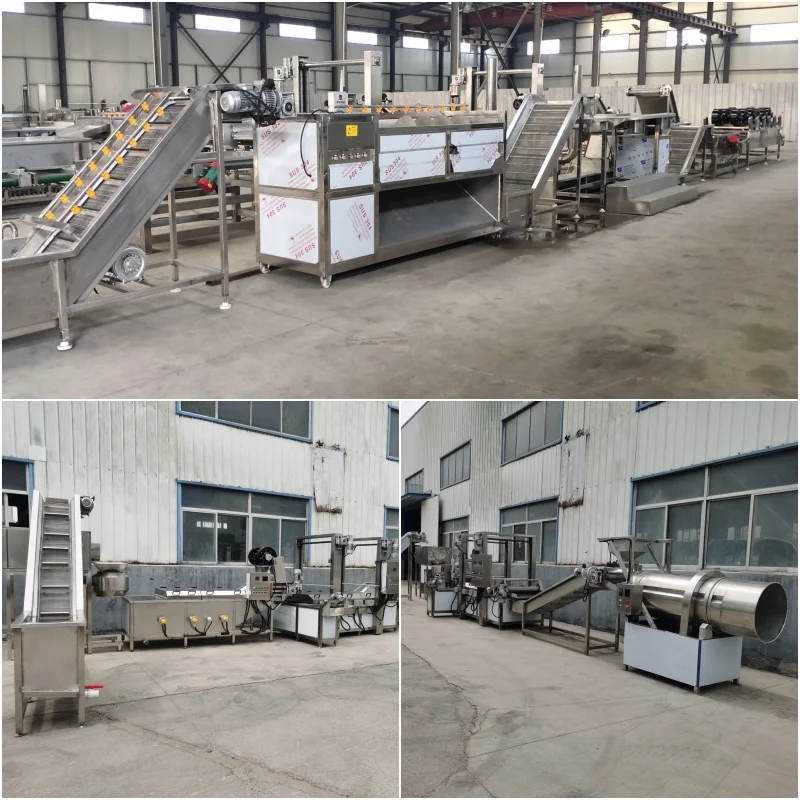

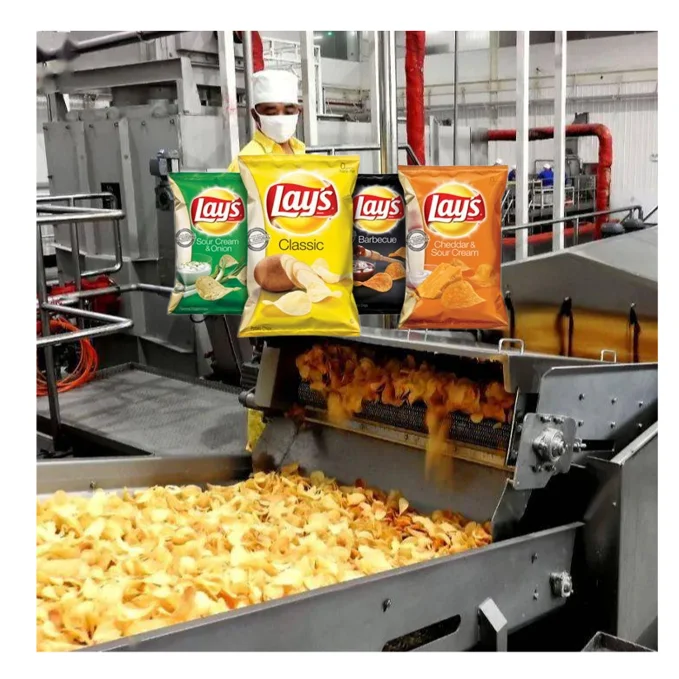

Processing effect show
FAQ
Q1 Can the voltage of the machine be adapted ?
A: We can adapt the machine to your needs to match your local voltage.
Q2 Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q3 Can I go to China and visit your factory?
A: Sure, welcome to our factory.
Q4 Do you have English Manual for each machinery?
A: Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q5 What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
A: We can adapt the machine to your needs to match your local voltage.
Q2 Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q3 Can I go to China and visit your factory?
A: Sure, welcome to our factory.
Q4 Do you have English Manual for each machinery?
A: Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q5 What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Packing & Delivery
Install waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
For customized type , delivery date need to be negotiated before taking order.
Our Company
Our Company
Zhengruo is committed to the research and development, production and installation of food processing, including various fruit processing and vegetable processing. Baking equipment, cereal product making machines, etc.
Zhengruo has a professional engineering team that provides a full range of factory planning and design services. As an enterprise integrating industry and trade, our company has the ability to design, manufacture, customize, and install equipment, and has obtained an import certificate
Zhengruo has a professional engineering team that provides a full range of factory planning and design services. As an enterprise integrating industry and trade, our company has the ability to design, manufacture, customize, and install equipment, and has obtained an import certificate
Certification and approval
Xingtai Zhengruo Machinery Manufacturing Co., Ltd. is an enterprise dedicated to machinery manufacturing with strong factory strength and technical strength.
Advanced production equipment: Xingtai Zhengruo Machinery Manufacturing Co., Ltd. has advanced production equipment and processes, including a series of high-precision manufacturing equipment such as CNC machining centers, CNC lathes, grinders, planers and so on. These equipments can meet the processing needs of various mechanical parts and ensure product quality and precision.
Excellent R&D team: The company has a R&D team composed of experienced engineers and technicians. They have profound mechanical design and manufacturing technology, and constantly innovate and improve products to meet market demands.
Strict quality management system: the company focuses on quality management and has established a strict quality inspection and control system. From the procurement of raw materials to the monitoring of the production process to the quality inspection of the final products, we ensure that our products meet the high standard of quality requirements.
Diversified product lines: Xingtai Zhengruo Machinery Manufacturing Co., Ltd. produces products that cover a wide range of fields, including industrial machinery and equipment, agricultural machinery and equipment, and automotive parts. Its products are characterized by reliability, durability and high efficiency.
High quality after-sales service: the company focuses on after-sales service, providing quick response and professional technical support. Whether it is product installation and commissioning or fault repair, the company is able to provide comprehensive solutions in time to ensure customer satisfaction.
Through continuous technical improvement and high quality products and services, the company has established a good reputation in the field of machinery manufacturing.
Advanced production equipment: Xingtai Zhengruo Machinery Manufacturing Co., Ltd. has advanced production equipment and processes, including a series of high-precision manufacturing equipment such as CNC machining centers, CNC lathes, grinders, planers and so on. These equipments can meet the processing needs of various mechanical parts and ensure product quality and precision.
Excellent R&D team: The company has a R&D team composed of experienced engineers and technicians. They have profound mechanical design and manufacturing technology, and constantly innovate and improve products to meet market demands.
Strict quality management system: the company focuses on quality management and has established a strict quality inspection and control system. From the procurement of raw materials to the monitoring of the production process to the quality inspection of the final products, we ensure that our products meet the high standard of quality requirements.
Diversified product lines: Xingtai Zhengruo Machinery Manufacturing Co., Ltd. produces products that cover a wide range of fields, including industrial machinery and equipment, agricultural machinery and equipment, and automotive parts. Its products are characterized by reliability, durability and high efficiency.
High quality after-sales service: the company focuses on after-sales service, providing quick response and professional technical support. Whether it is product installation and commissioning or fault repair, the company is able to provide comprehensive solutions in time to ensure customer satisfaction.
Through continuous technical improvement and high quality products and services, the company has established a good reputation in the field of machinery manufacturing.
Our Services
Our Services
1. 24- hour communication service
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
7. Reception service,help you to book good hotel
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
7. Reception service,help you to book good hotel
Похожие товары
Fresh Make машина для жарки картофельных чипсов
2 700 155,00 ₽ - 4 104 235,60 ₽
Линия продуктов, машина для производства картофельных чипсов
2 700 155,00 ₽ - 4 104 235,60 ₽

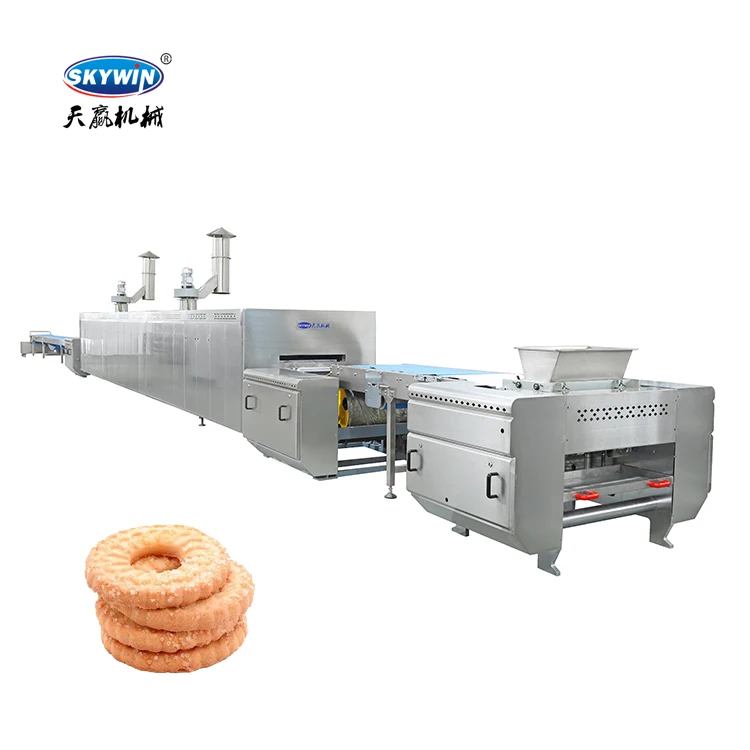

Автоматическая Линия для производства печенья Skywin малой мощности шириной 400 мм с 10 м
11 664 669,60 ₽
Картофель для картофеля фри, 2-3 тонны
4 682 037,52 ₽ - 4 900 824,32 ₽

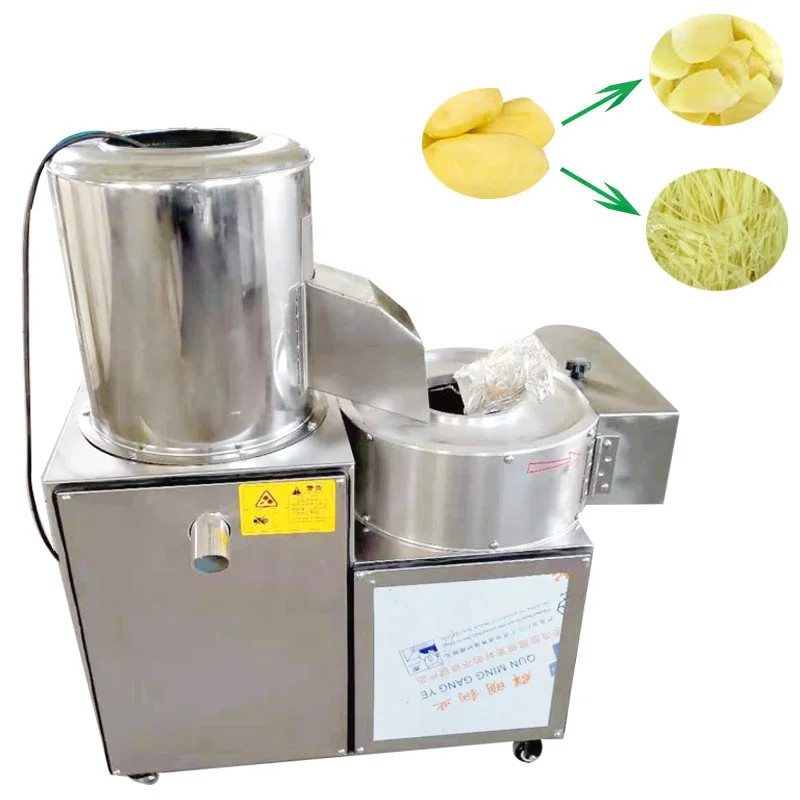

Многофункциональная машина для очистки и измельчения картофеля, комплексная машина для нарезки и измельчения картофеля
109 284,01 ₽
Полностью автоматическая машина для производства картофельных чипсов
TCA полностью автоматическая линия по производству картофеля фри/машина для производства картофельных чипсов
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
