Product Description

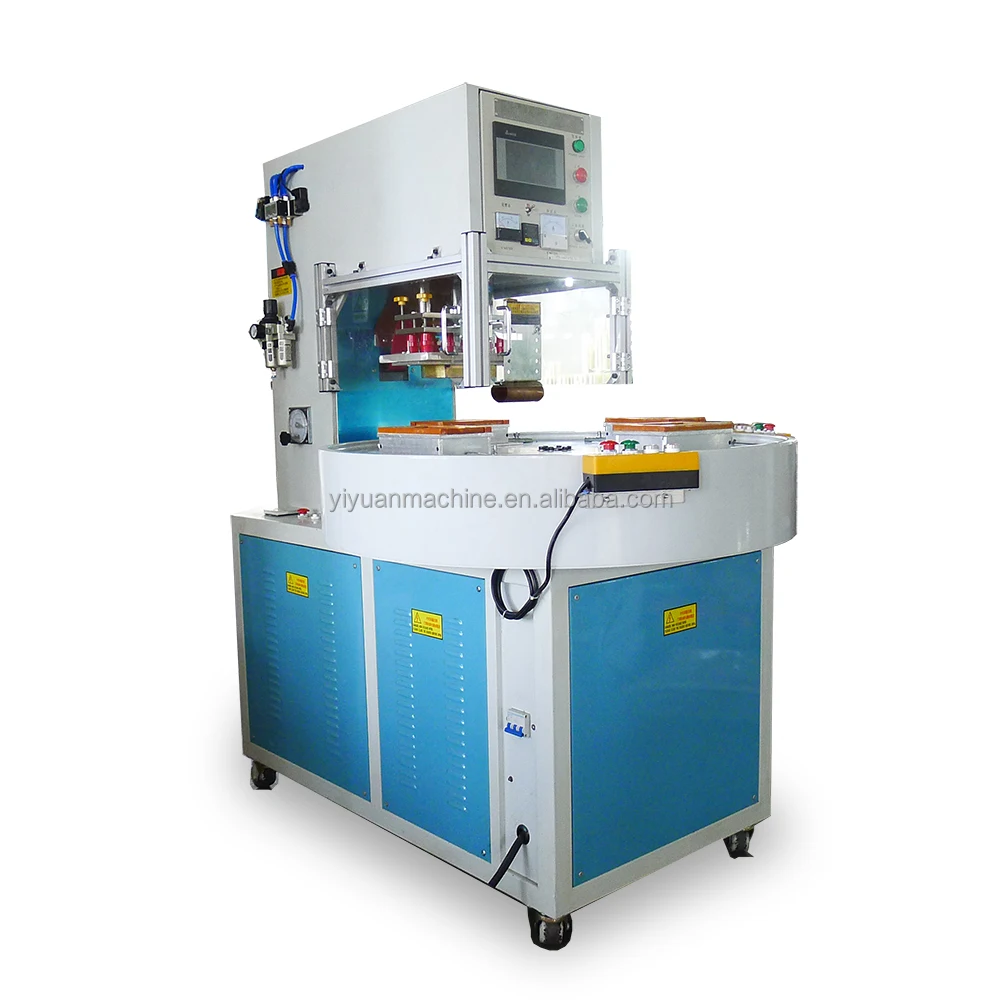

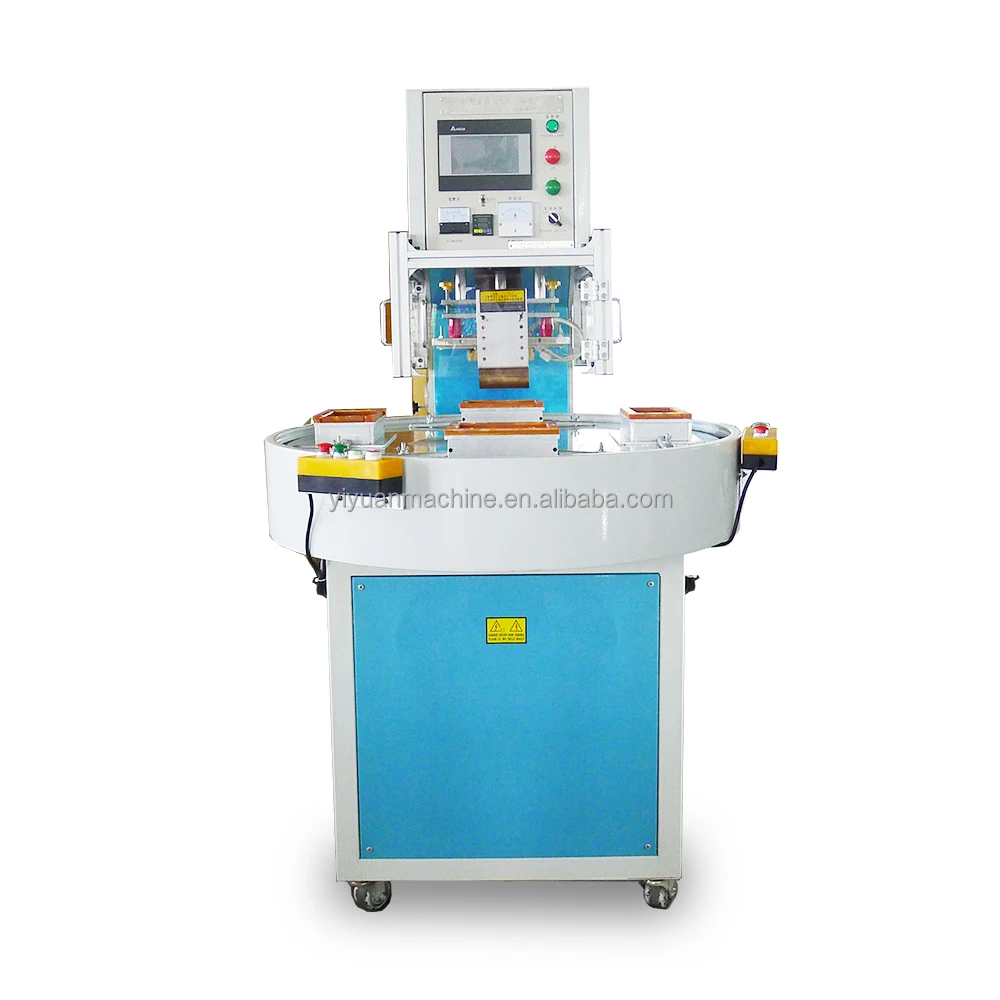

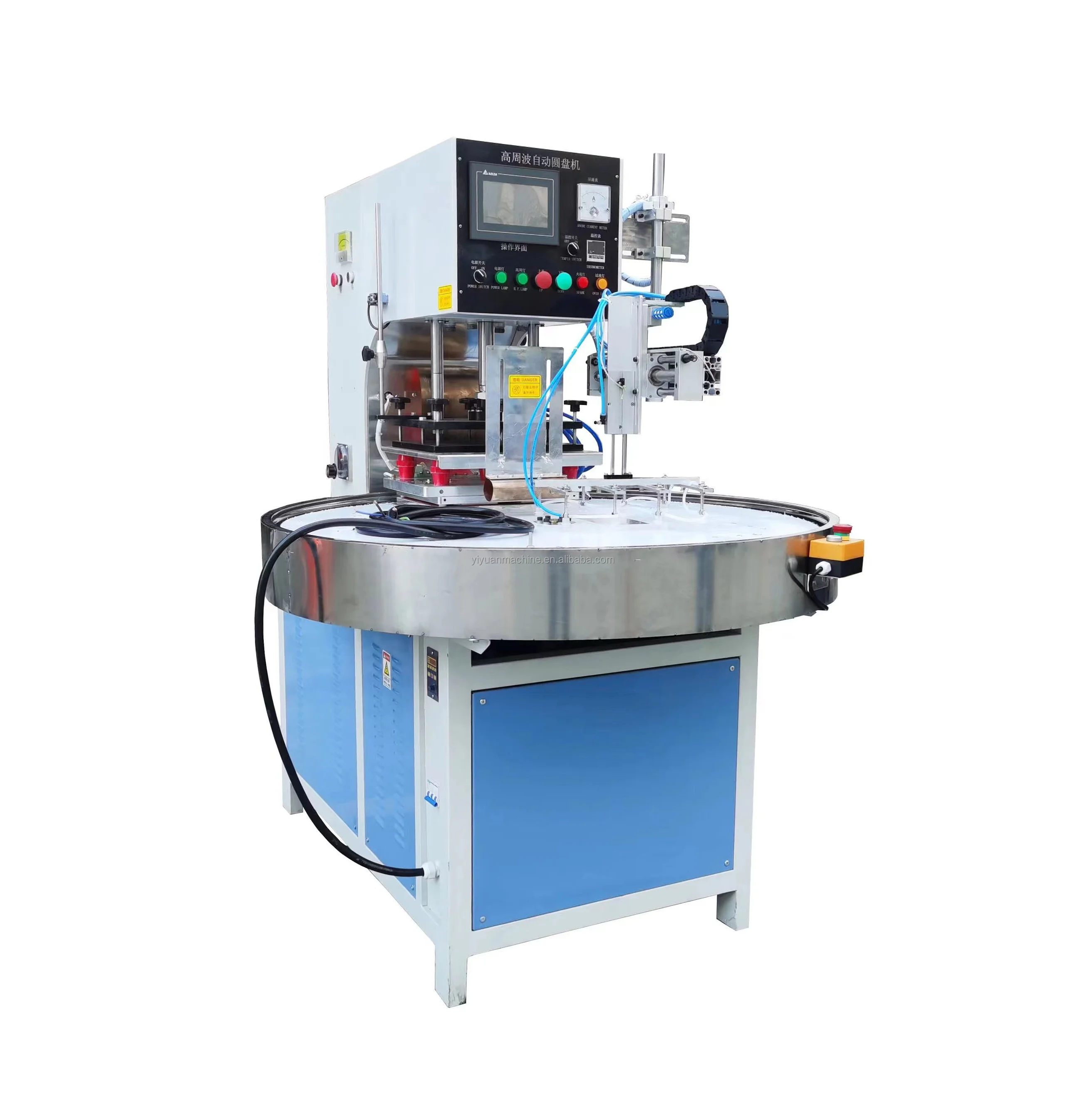

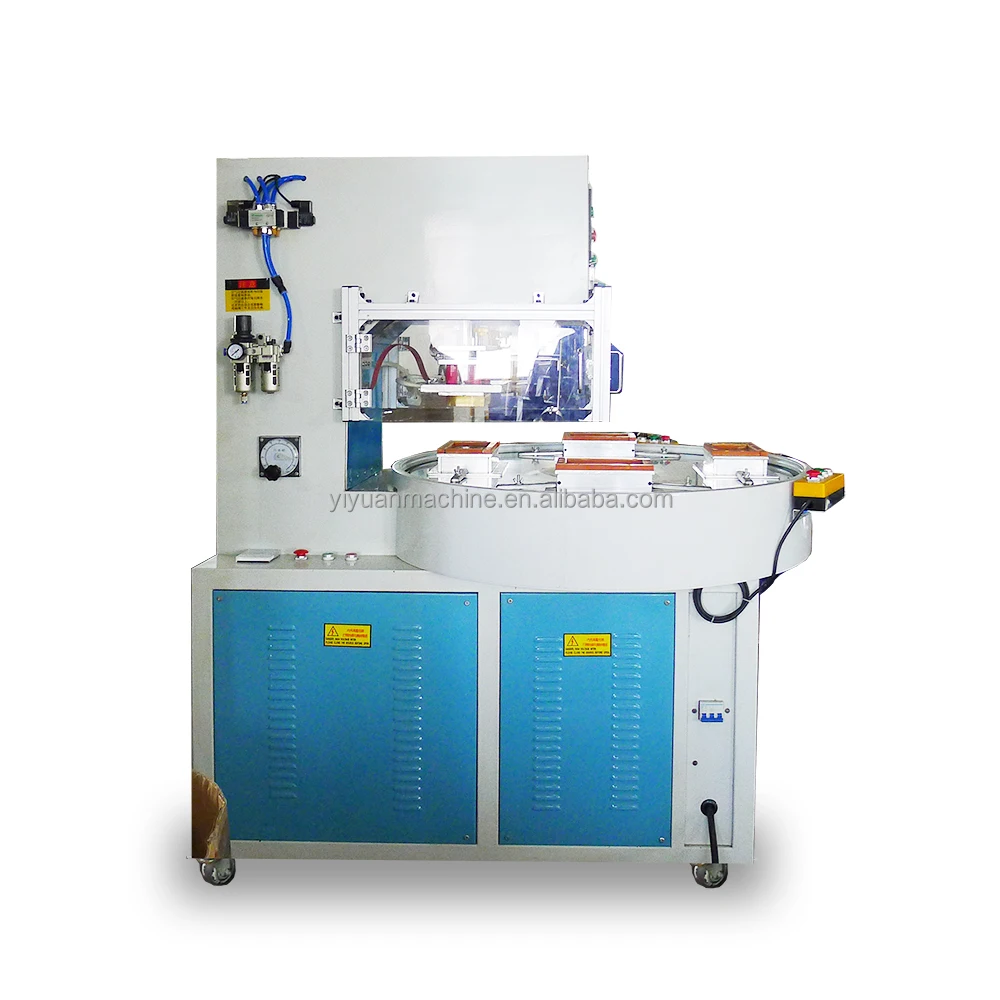

YIYUAN High Frequency Plastic blister packing Welding Machine
Machine Features
1.PLC+ Man-machine Interface
2.With easy setting system,our machine can process different kinds of products,with high efficiency and safe performance.
2. Anti-spark system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
3. High efficiency
This machine has three (Cuize) working stations.While one station is working, the worker can put the materials on the other stations at the same time. In this case, it can make most use of the machine and labor resource stom
Machine Features
1.PLC+ Man-machine Interface
2.With easy setting system,our machine can process different kinds of products,with high efficiency and safe performance.
2. Anti-spark system
When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.
3. High efficiency
This machine has three (Cuize) working stations.While one station is working, the worker can put the materials on the other stations at the same time. In this case, it can make most use of the machine and labor resource stom
Specification
Model | YY8000-ZP | YY10000-ZP | YY12000-ZP | ||
Output Power | 8KW | 10KW | 12KW | ||
Voltage | AC220/380/400/415/440V 3φ 50/60HZ(Customized) | ||||
Input Power | 15KVA | 18KVA | 21KVA | ||
Oscillation Frequency | 27.12MHZ | 27.12MHZ | 27.12MHZ | ||
Oscillation Tube | 7T69RB | E3069 | E3130 | ||
Anti-Spark System | NL-5557 | NL-5557 | NL-5557 | ||
Max Pressure | 800kg | 800kg | 800kg | ||
Gap of Electrode | 150mm | 150mm | 150mm | ||
Size of Upper Electrode | 350*450mm | 350*450mm | 350*450mm | ||
Size of Working Table | Diameter 1200mm | Diameter 1200mm | Diameter 1200mm | ||
Machine Size | 2220*1650*1950MM | 2220*1650*1950MM | 2220*1650*1950MM | ||
Machine Weight | 1350kg | 1450kg | 1500kg | ||
Application
APPLICATION OF HIGH FREQUENCY BLISTER PACKING WELDING MACHINE
.Urine bag, blood bag, medical bag welding，Battery blister packaging, electronic products blister packaging all kinds of PVC (PVC)-oriented plastic welding, all kinds of paper card blister packaging, TPU LOGO patches embossing, leather embossing and so on.
.Urine bag, blood bag, medical bag welding，Battery blister packaging, electronic products blister packaging all kinds of PVC (PVC)-oriented plastic welding, all kinds of paper card blister packaging, TPU LOGO patches embossing, leather embossing and so on.
Details Images
Anti-Spark Tube
Model: NL-5557
Function: High sensitive anti-spark tube to protect the welding bar and welding products.
Function: High sensitive anti-spark tube to protect the welding bar and welding products.
Oscillation Tube(Power Grid Tub)
Brand: Japan & JINGGUANG
Original: JAPAN & CHINA
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.
Original: JAPAN & CHINA
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.
Packing & Delivery
Standard export wood cases, no solid wooden. With soft packaging material inside the box
Company Profile
Since its foundation, Huizhou YIYUAN machinery CO.,Ltd has been devoted to optimization and integration of developing, producing,selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot AirWelding Machine(Hot Air Seam Sealing Machine), High Frequency Welding Machine, Ultrasonic PLastic Welding Machine, Ultrasonic Tube Sealing Machine, Heat Staking Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
Your available specialist for:
1.Solution for shoes upper welding: HF welding machine, HF welding and embossing machine, Hot press and could molding machine
2. Solution for plastic welding: HF welding machine, ultrasonic welding machine, metal welding machine, hot air welding machine etc.
3. Solution for blister packaging: blister vacuum forming machine, blister folding machine, blister cutting machine, blister sealing machine.
FAQ
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free chargeto replace the new one to you . The warranty will begin after the machine send out we received the B/L .
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free chargeto replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Services
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Huizhou YIYUAN machinery CO.,Ltd | ||
Contact Person | Carrie Gong | |
Mobile/Whats App/wechat | +86 13620006372 | |
Email: | dgyiyuan@aliyun.com | |
Youtube | www.youtube.com/@carriegong581 | |
Facebook | facebook.com/carrie.gong.92 | |
Website | www.yiyuanmachine.en.alibaba.com | |
Add: Longqiu 2nd Str,Longxi Town,Boluo County,Huizhou,Guangdong Province | ||
