Высокоэффективный самоочищающийся вращающийся экран для просеивания 80 сетчатого кристаллического графитового порошка
540 977,64 ₽ - 550 693,16 ₽
Высококачественная хромированная аллювиальная Хромовая машина для промывки руды продажи
- Категория: >>>
- Поставщик: Henan Hengtailong Machinery Co. Ltd.
Сохранить в закладки 1601218783455:
Описание и отзывы
Характеристики
Product Description
Rotary Scrubber Washing Machine for Sand and Gravel Wash Plant
SPECIFICATION OF Rotary Scrubber | ||||||||||
Model | GTX1030 | GTX1230 | GTX1430 | GTX1545 | GTX2265 | |||||
Drum Size(mm) | ø1000x3000 | ø1200x3000 | ø1400x3000 | ø1500x4500 | ø2200x6500 | |||||
Screen Size(mm) | ≤20 | ≤25 | ≤25 | ≤25 | ≤50 | |||||
Rotary Speed(R/Min) | 27.9 | 27.6 | 27.6 | 21 | 19 | |||||
Feeding Size(mm) | ≤80 | ≤100 | ≤100 | ≤160 | ≤230 | |||||
Water Consumption(m3/h) | 1 | 1.3 | 1.5 | 1.7 | 1.8 | |||||
Capacity(T/H) | 40 | 70 | 80 | 120 | 180 | |||||
Power(KW) | 15 | 22 | 22 | 30 | 37 | |||||
Weight(T) | 3.8 | 4.7 | 4.9 | 6.9 | 15.9 | |||||
Product Application
It is consisted of two parts: One is for washing the clay, another is for sieving different sizes ores. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it's a closed space, there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.
Technical Details
Feeding System
Name:Grizzly Hopper Feeder
Size (mm):1400*1400
Grizzly screen space:150mm or as required
Grizzly material:Railway tracks
Remark:Water spray pipes along hopper sides
Function:To feed the materials evenly to the scrubber and trommel
Size (mm):1400*1400
Grizzly screen space:150mm or as required
Grizzly material:Railway tracks
Remark:Water spray pipes along hopper sides
Function:To feed the materials evenly to the scrubber and trommel
Clay Processing System
Size (mm):φ1000*3000 or according to processing capacity
Remark:With inside water spray pipes
Function:To break off hard clays to increase gold recovery
Screening System
Name:Gold Trommel Screen
Size (mm):φ1500*3500 or according to processing capacity
Remark:2 layer trommel screen
Function:For washing, screening and separating the minerals
Water spray pipes:On both sides of the trommel
Mesh size:12mm and 6mm or according to clients requirement
Size (mm):φ1500*3500 or according to processing capacity
Remark:2 layer trommel screen
Function:For washing, screening and separating the minerals
Water spray pipes:On both sides of the trommel
Mesh size:12mm and 6mm or according to clients requirement
About Hengtailong
Our Services
Before-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Product Packaging
Packaging Details:
We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan.
After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A:1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
A:1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
Похожие товары
Прямая поставка с фабрики шаровые мельницы шлифовальные шарики для золотой руды цена завода
535 457,46 ₽ - 552 018,00 ₽

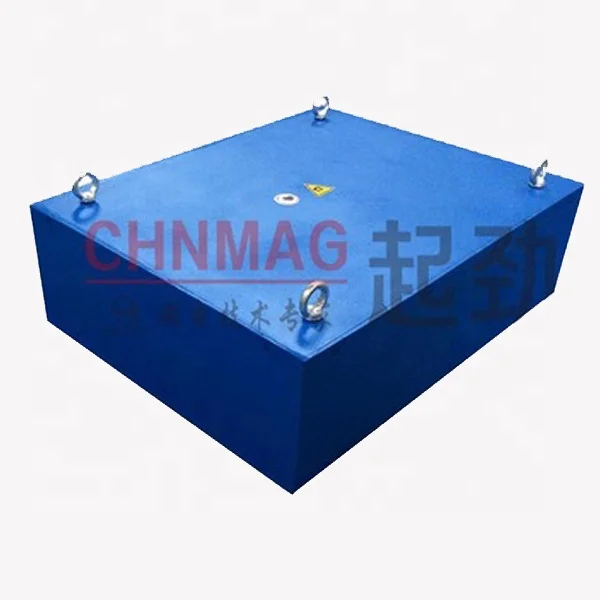

CHNAMG постоянные подвесные магниты для удаления железа

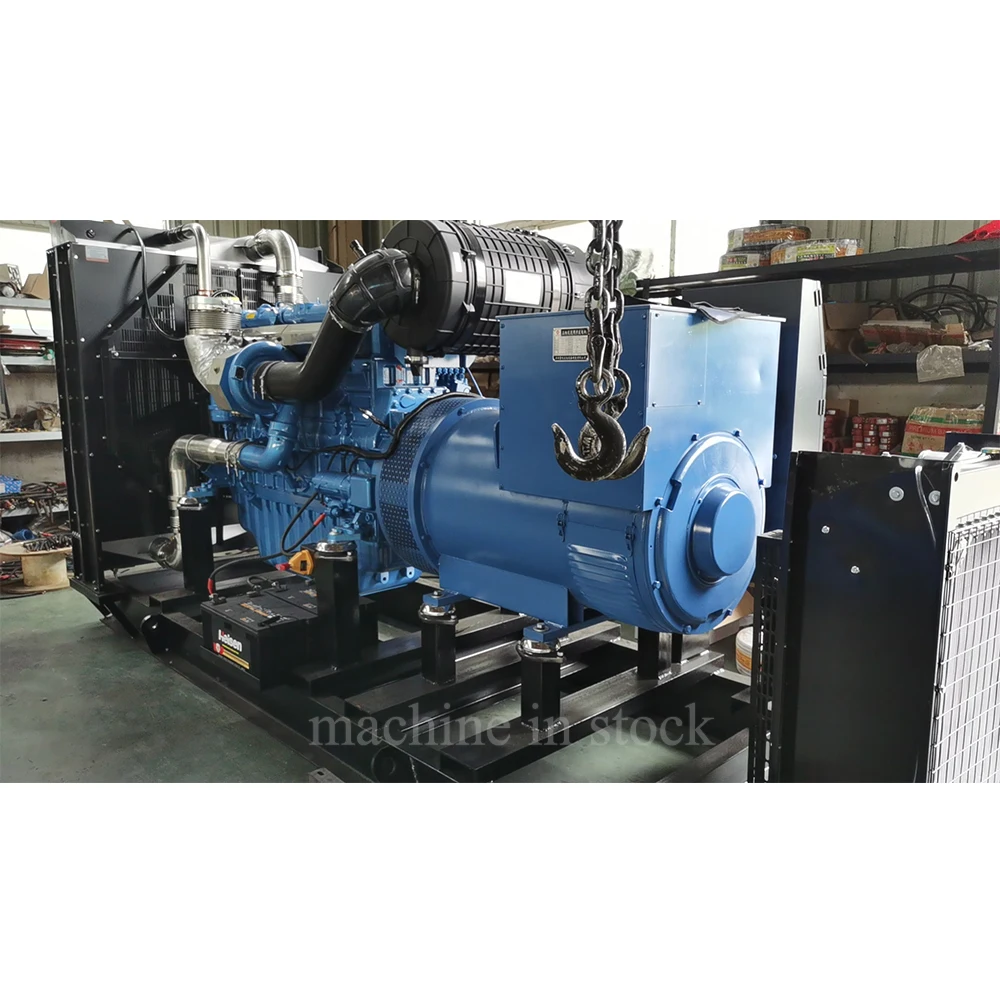

Компания В наличии! Дизельный генератор 500 кВА 1800 об/мин дизельный Weichai для горного завода по заводской цене
3 256 906,20 ₽

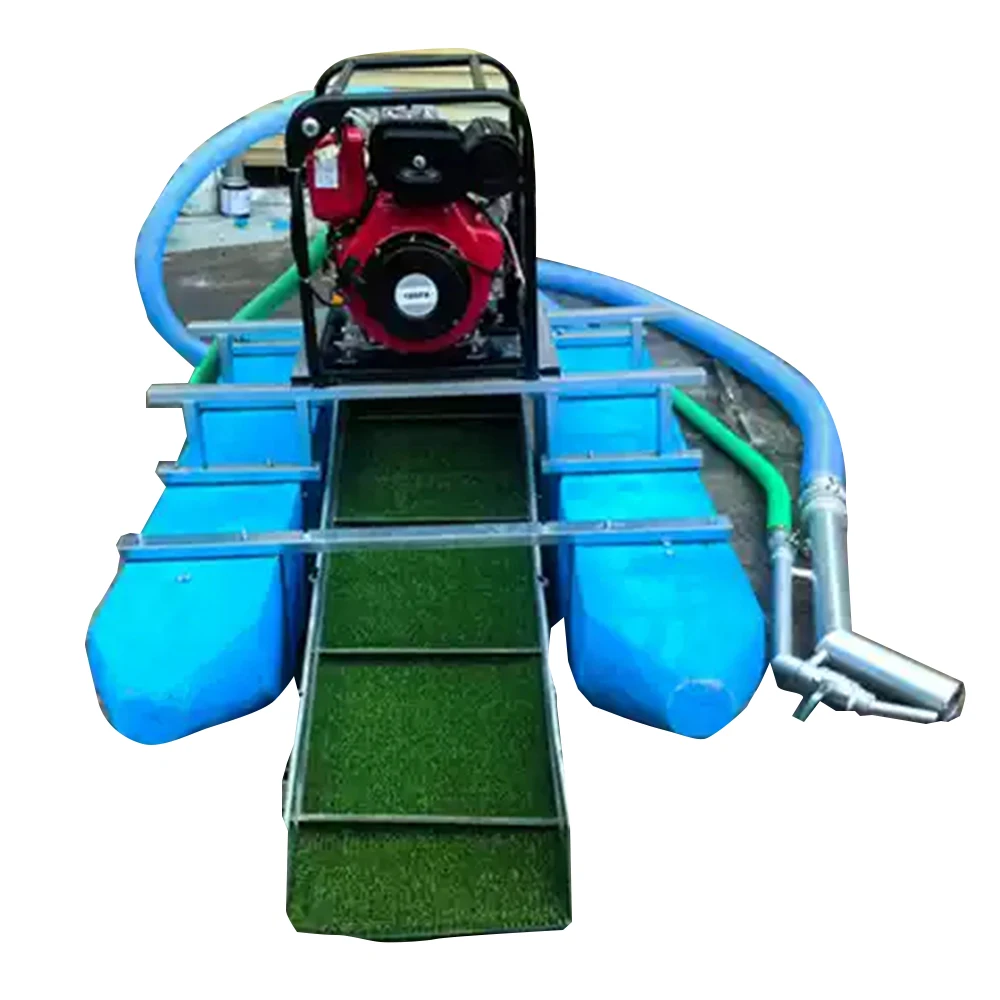

Хорошая цена небольшие баржи для продажи harga mesin jet мини-речной песок экспорт
509 071,00 ₽
Китайский двигатель Weichai мощность 500 кВт звуконепроницаемый бесшумный дизель-генератор 1800 об/мин 400 В 500KVA дизельный генератор цена
3 256 906,20 ₽

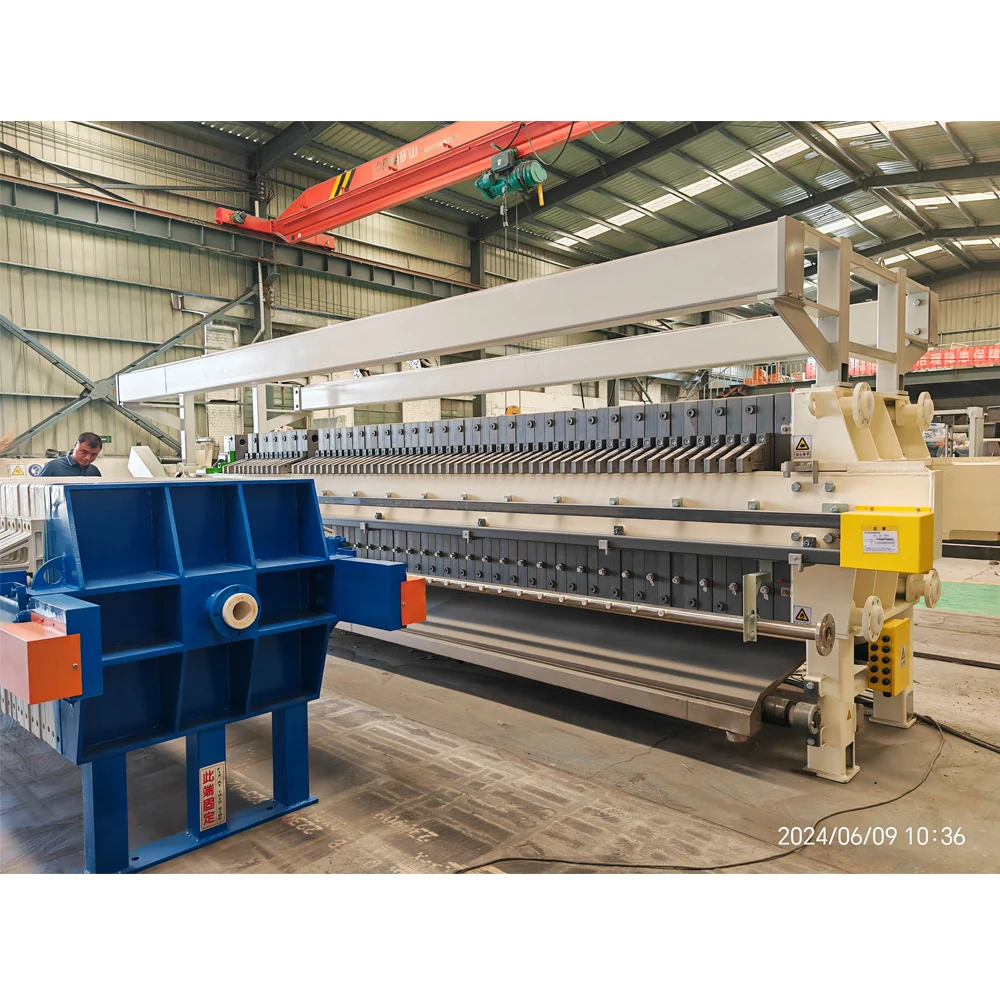

God Merrill-Crowe Plant Plate фильтр пресс стоимость машины

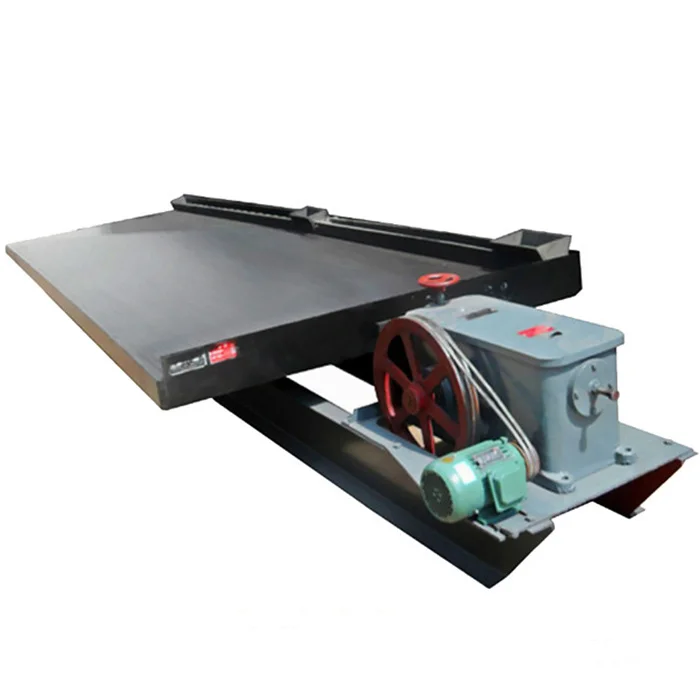

Китай высокая скорость Извлечения мелкого золота меди и кобальта шейкер для оловянной руды устройство разделения пыли машина сепаратора чистого песка
