Product Description
Main purpose
To determine the location, depth, water yield and other related information of groundwater to guide well digging and water extraction operations and improve the success rate of well digging. Detailed investigation and survey of regional hydrogeology.
Main features:
Compatible host: One machine is compatible with single-channel and multi-channel hosts, channels can be expanded and upgraded, and the maximum number of channels is 60.
Fast measurement: Complete a measurement in as fast as 10 seconds, and the measurement efficiency is increased by 10 times.
Automatic analysis: The measured data is automatically analyzed into a graph, and novices can quickly get started with the instrument.

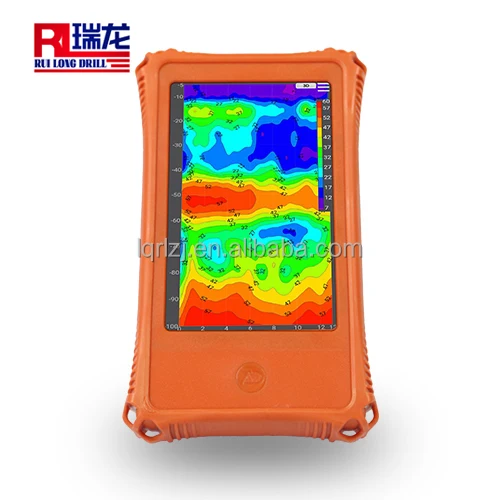

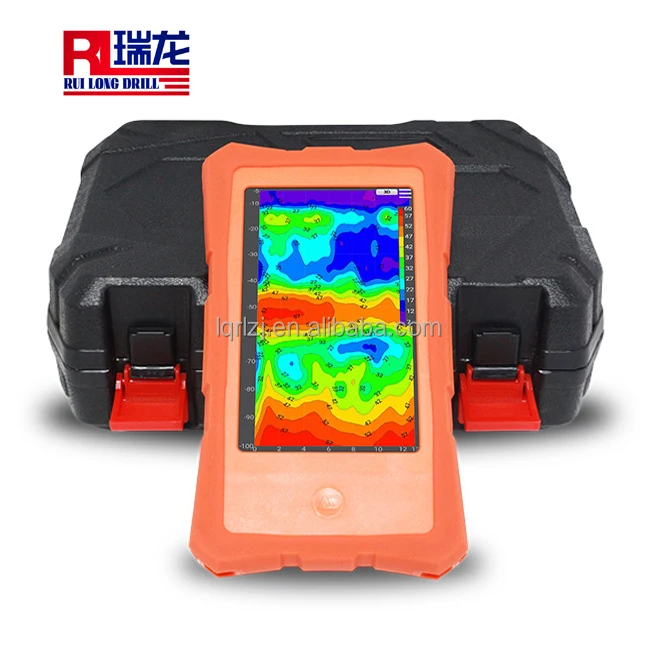

Real-time imaging: The 7-inch IPS high-brightness touch screen can be intelligently generated into 2D, 3D and curve images in real time.
Data intercommunication: Supports wireless screen projection, and supports multi-screen intercommunication between instrument screen, mobile phone screen, and computer screen.
Compatible host: One machine is compatible with single-channel and multi-channel hosts, channels can be expanded and upgraded, and the maximum number of channels is 60.
Fast measurement: Complete a measurement in as fast as 10 seconds, and the measurement efficiency is increased by 10 times.
Automatic analysis: The measured data is automatically analyzed into a graph, and novices can quickly get started with the instrument.
Real-time imaging: The 7-inch IPS high-brightness touch screen can be intelligently generated into 2D, 3D and curve images in real time.
Data intercommunication: Supports wireless screen projection, and supports multi-screen intercommunication between instrument screen, mobile phone screen, and computer screen.
180m water finder Groundwater detector Underground water measuring Automatic mapping instrument positioning of well drilling
Specification
Technical specifications | ||||||||||
Model | 180m | 300m | 600m | 900m | 1200m | |||||
Maximum depth (m) | ≤180 | ≤300 | ≤600 | ≤900 | ≤1200 | |||||
Depth layer | Set in sections with 5 meters spacing | Set in sections with 10 meters spacing | ||||||||
Channel compatibility | Compatible with 1-60 channels (optional accessories) | |||||||||
Measurement mode | MN/TT | |||||||||
Frequency range (Hz) | 1-5000HZ | |||||||||
Frequency selection filter | FFT intelligent frequency selection filtering | |||||||||
Resolution | 0.01mV±2% | |||||||||
Sampling time (seconds) | 10s | |||||||||
Connection method | Multifunctional magnetic connector (including charging, USB, signal input), Wifi, Bluetooth 4.0 | |||||||||
Display screen | 7-inch IPS high-brightness touch screen, automatic horizontal and vertical screen switching | |||||||||
Display resolution | 800*1280 | |||||||||
Operating system | Android 8.1 | |||||||||
CPU | 4 core A17 | |||||||||
GPU | Mali T746 | |||||||||
Memory | DDR3/2GB | |||||||||
Storage | 16GB | |||||||||
Main functions | Automatic analysis, free software upgrade, channel compatibility, depth segmentation setting, real-time curve graph, contour color map | |||||||||
Other functions | Waterproof and dustproof, photo taking (with fill light), wireless screen projection, multi-screen interaction | |||||||||
Battery capacity | 6000mAh | |||||||||
Host weight | 0.99kg | |||||||||

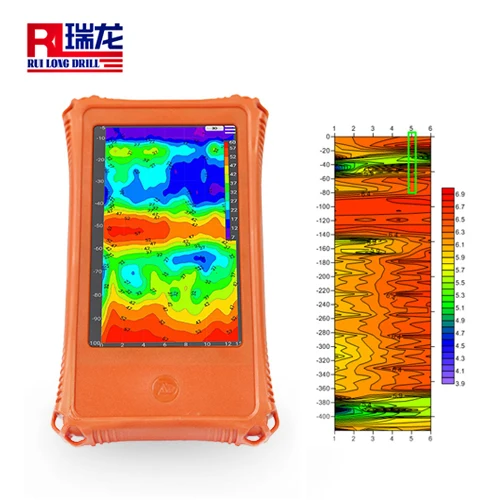

Multi-channel real-time imaging water finder (analysis by looking at the picture):
The analysis on the picture shows that a broken zone structure appears at around 15 meters, a low-resistance abnormal area exists at a depth of 30 meters, and a broken zone structure appears again at around 50 meters.
Water output:
Actually, water starts to flow out at 10 meters, and the main water-producing layer is around 30 meters. The water volume increases around 60 meters, and the total water volume is about 15 cubic meters per hour. The final hole is 83 meters, and the measurement results are consistent with the actual situation.
The analysis on the picture shows that a broken zone structure appears at around 15 meters, a low-resistance abnormal area exists at a depth of 30 meters, and a broken zone structure appears again at around 50 meters.
Water output:
Actually, water starts to flow out at 10 meters, and the main water-producing layer is around 30 meters. The water volume increases around 60 meters, and the total water volume is about 15 cubic meters per hour. The final hole is 83 meters, and the measurement results are consistent with the actual situation.
Finding water is more accurate and efficient！！
