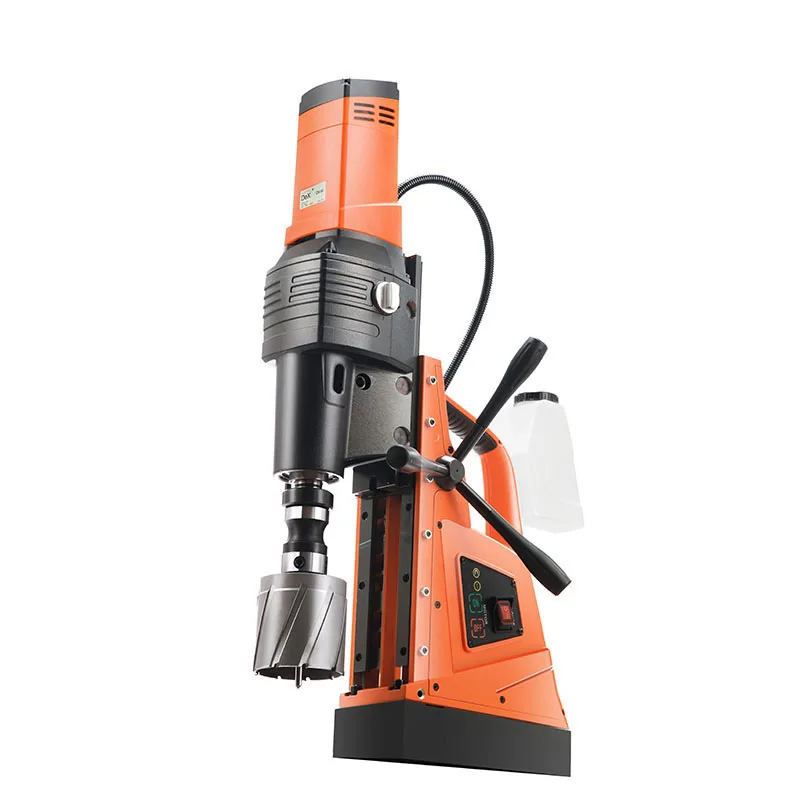

DX 120 настраиваемый 220 В 2500 Вт электрическая промышленная мощность переменная скорость магнит база мощный двигатель сделай «сделай» Китай
- Категория: >>>
- Поставщик: Zhejiang Xinxing Tools Co. Ltd.Zhejiang Ltd.
Сохранить в закладки 1601218997973:
Описание и отзывы
Характеристики
Product Description
Product Type | DX-120 |
Motor rated power | 2500W |
Load speed | 80/125/175/300rpm |
Tool holder | MT4 |
Magnetic adhesion | 25000N |
The max cutter capacity | 120mm ( 4-3/8" ) |
The max cutting depth | 100mm ( 4" ) |
The max diameter of twist drill | 42mm（1-11/16”） |
The min cutter depth | 15mm |
Stroke | 220mm |
Motor can adjust the height to | 60mm |
Magnetic drill machine dimension | 522mm*248mm*689mm |
Magnetic base size | 280mm*115mm*56.5mm |
Total weight | 48KG |
Countersunk drilling | 10-80mm |
1 | Split type machine body, in order to ensure sealing, there have a sealing groove design between body and cover. |
2 | The control panel is designed with the combination of mechanical ship switch and micro film switch. |
3 | Rigidity Design of DX-120 Magnetic drill machine: (1) 2500W high-power motor to meet high-feed drilling condition. (2) 20000N magnetic base suction, higher than most same model in the market. (3) High tooth ratio gear transmission design, spindle output torque up to 170Nm. (4) Adopt MT4 main shaft, can bear more torque. |
4 | Double dovetail design, economic and practical. |
5 | Elastic adjustment function of guide rail, make the force more uniform on cutting tool when drilling. |
6 | Gear box cooling pipe perforation design, to meet customer requirements for different arbor, different habits of use. |
7 | The enclosed and guided structure of air outlet to reduce lateral air flow at front operating position and handle. |

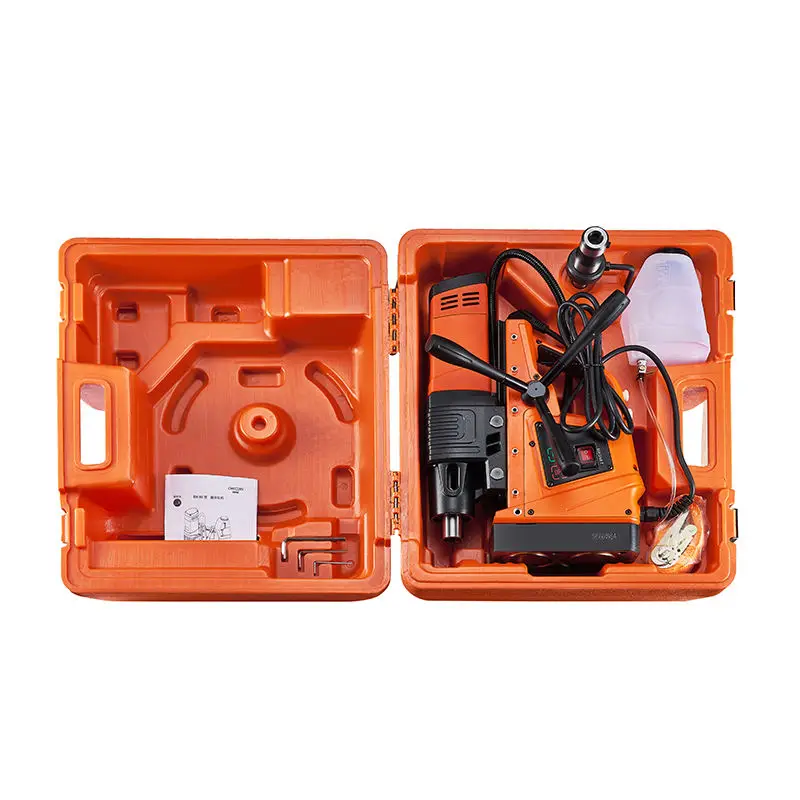

Product packaging
Comment & FAQ
FAQ
What do you do?
A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.
- Can you do OEM for us?
A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.
- Can you help us to do some change about your product?
A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.
- Can I get a sample?
A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.
- Are you a factory or trading company?
A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.
- Where is your company location?
A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
