Переносная Рабочая платформа Электрический складной алюминиевый сплав регулируемый
125 530,68 ₽ - 130 049,34 ₽

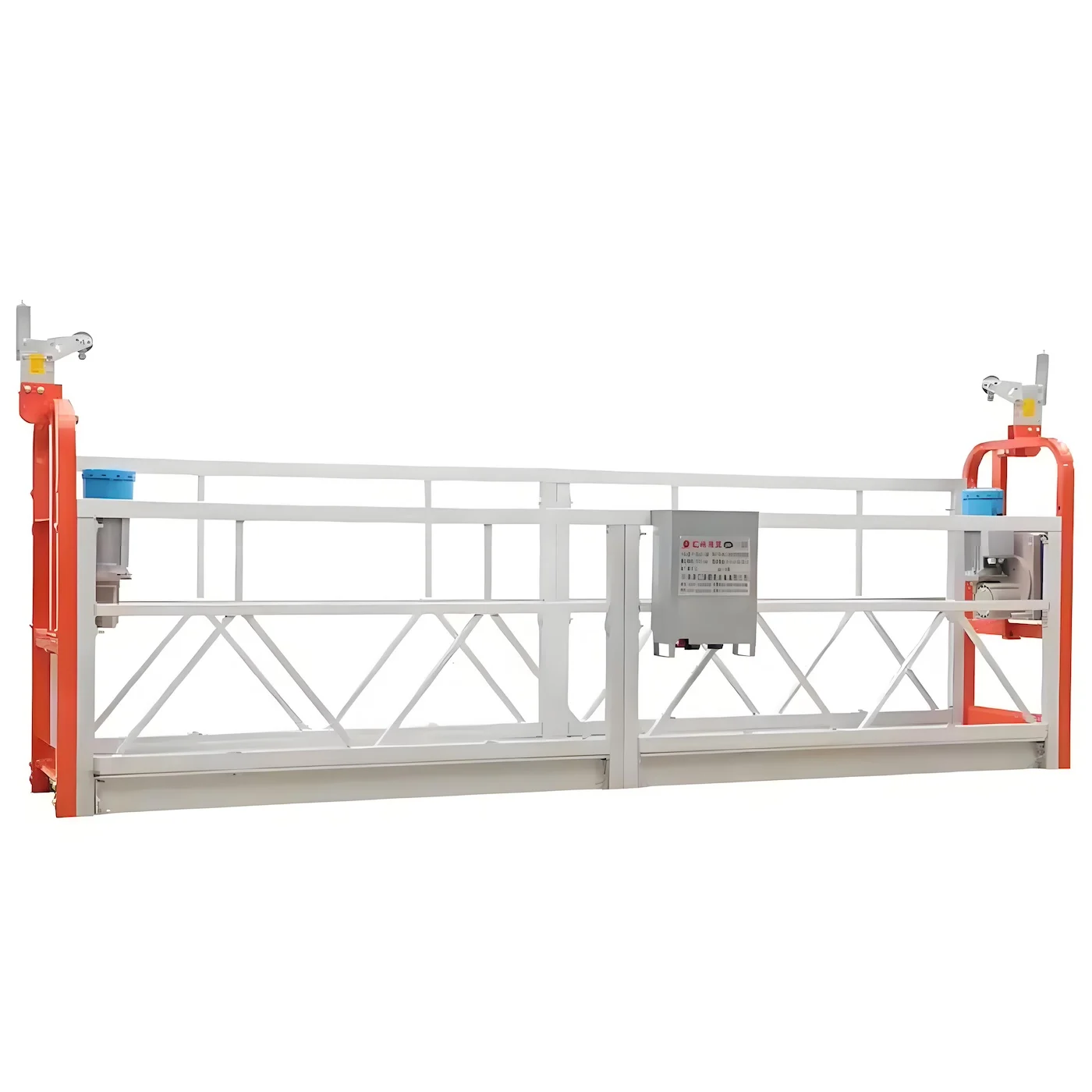

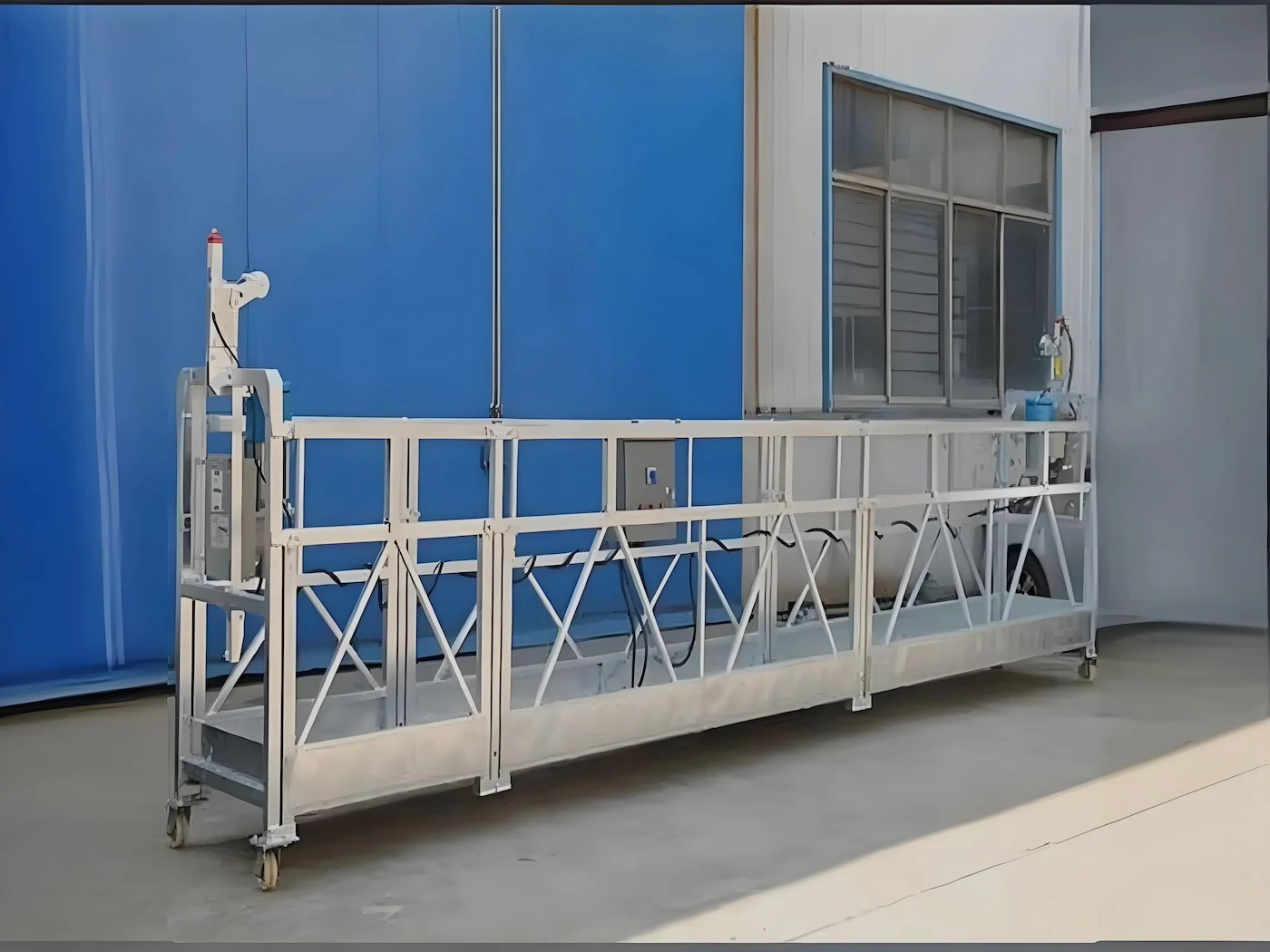

Электрические гондольные леса ZLP500 ZLP 630 подвесная алюминиевая платформа для строительства воздушных конструкций
- Категория: >>>
- Поставщик: Jiangsu Jinyang Industry Co. Ltd.
Сохранить в закладки 1601219142589:
Описание и отзывы
Характеристики
Products Description
Wire Rope Suspended Platform Application
Wire Rope Suspended Platform Application
1.Building Construction Work
2.Building Facades Cleaning
3.Building Painting Work
4.Wall Plastering, Wall putty& Texture
5.Construction/Repairing of Dams
6.Cooling Tower Work
7.Repairing & Maintenance of Cement Silo Plant
8.Reparing& Maintenance of Chinmneys
9.Working on Wind Mill
1.Building Construction Work
2.Building Facades Cleaning
3.Building Painting Work
4.Wall Plastering, Wall putty& Texture
5.Construction/Repairing of Dams
6.Cooling Tower Work
7.Repairing & Maintenance of Cement Silo Plant
8.Reparing& Maintenance of Chinmneys
9.Working on Wind Mill
Product Paramenters
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |||
Rated Capacity | 500KG | 630KG | 800KG | 1000KG | |||
Rated Lifting Speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min | |||
Length of Platform | 5m | 6m | 7.5m | 7.5m | |||
Wire Rope Diameter | 8.3mm | 8.3mm | 8.6mm | 8.6/9.1mm | |||
Traction Hoist Type | LTD5.0 | LTD6.3 | LTD8.0 | LTD10 | |||
Hoist Rated Lifting Force | 5KN | 6.3KN | 8KN | 9.8KN | |||
Motor Power | 1.5KW | 1.5KW | 1.8KW | 2.2KW | |||
Motor Voltage | 380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase | ||||||
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||
Rotation Speed | 1420rpm | 1420rpm | 1420rpm | 1420rpm | |||
Brake Torque | 15Nm | ||||||
Safety Lock Type | LSG30 | ||||||
Permission Force of Impact | 30KN | ||||||
Locking Cable Distance | <100mm | ||||||
Locking Cable | 3°~8° | ||||||
Suspension Mechanism Length | 1.3~1.7m | ||||||
Adjustable Height of the Beam | 1.1~1.8m | ||||||
Weight of platform Steel/Aluminum | 1770/1710kg | 1810/1730kg | 1950/1830kg | 2340/2240kg | |||
Weight of Suspension Mechanism | 310kg | ||||||
Counter Weight | 1000kg | 1000kg | 1000kg | 1300kg | |||
Details Images
Company Profile
Jiangsu Jinyang industrial Co., Ltd., founded in 2016, is an innovative enterprise focusing on the field of construction machinery products. Headquartered in Jiangsu province, the company has developed into a combination of research and development, production, sales and service. The company has a high-quality.professional research and development team, committed to continuous exploration and innovation, in order to meet the market for construction machinery products growing demand and higher quality requirements. lts product line is rich and diverse, covering the hanging basket, tower crane, crane, concrete mixer and other advanced construction machinery and equipment, widely used in all kinds of construction projects.tion machine and our RELIABLE company.
Jinyang industry always adhere to the quality as the life, strictly follow the international and domestic quality standards, from raw material procurement to the production process of every link, are strict quality control,to ensure that each equipment has excellent performance and reliable stability. In terms of service, the company has built a perfect pre-sale, sale and after-sales service system, and has won the trust and praise of customers with its professional, efficient and intimate service. Not only to provide customers with high-quality products, but also to provide customers with a full range of technical support and solutions, to help customers to achieve the smooth progress of the project. Looking forward to the future, Jiangsu Jinyang industrial Co., Ltd. will continue to uphold the concept of "innovation, quality, service", constantly improve their own strength, contribute to the development of the construction machinery industry, and strive to become a leading enterprise in the industry.
FAQ
Q:What the main products you can supply?
A: We are the professional and famous factory in China for suspended platform,electric suspended platform,construction suspended platform,working suspended platform,accessories of suspended platform.
Q:Will you can accept the customized and OEM products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
Q:What is your payment terms?
A:Commonly two payment term for new customers
A: T/T, L/C at sight, Escrow, Paypal, West Union
If you need other terms, please feel free to contact us too, we will try our best.
Q:How about the samples? Is it free to extra fees?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide discount based on the order volume.
Q:How long is your delivery time?
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Q:How to control and guarantee your product quality?
A:（1）All our factories are ISO 9001 certified facility;
（2）Worked with world famous origin mills as TISCO, Bao steel;
（3）Ex factory inspection by our own laboratory;
（4）SGS/BV Third party inspection before delivery.
A: We are the professional and famous factory in China for suspended platform,electric suspended platform,construction suspended platform,working suspended platform,accessories of suspended platform.
Q:Will you can accept the customized and OEM products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
Q:What is your payment terms?
A:Commonly two payment term for new customers
A: T/T, L/C at sight, Escrow, Paypal, West Union
If you need other terms, please feel free to contact us too, we will try our best.
Q:How about the samples? Is it free to extra fees?
A: Because this is large scale construction equipment, we do not supply samples for free. We would provide discount based on the order volume.
Q:How long is your delivery time?
A: It will take less than 7 days to finish one order, But the exact time is according to actual situation.
Q: How about the warranty?
A: One years warranty. If quality problems occur, please feel free to contact us.
Q:How to control and guarantee your product quality?
A:（1）All our factories are ISO 9001 certified facility;
（2）Worked with world famous origin mills as TISCO, Bao steel;
（3）Ex factory inspection by our own laboratory;
（4）SGS/BV Third party inspection before delivery.
Похожие товары

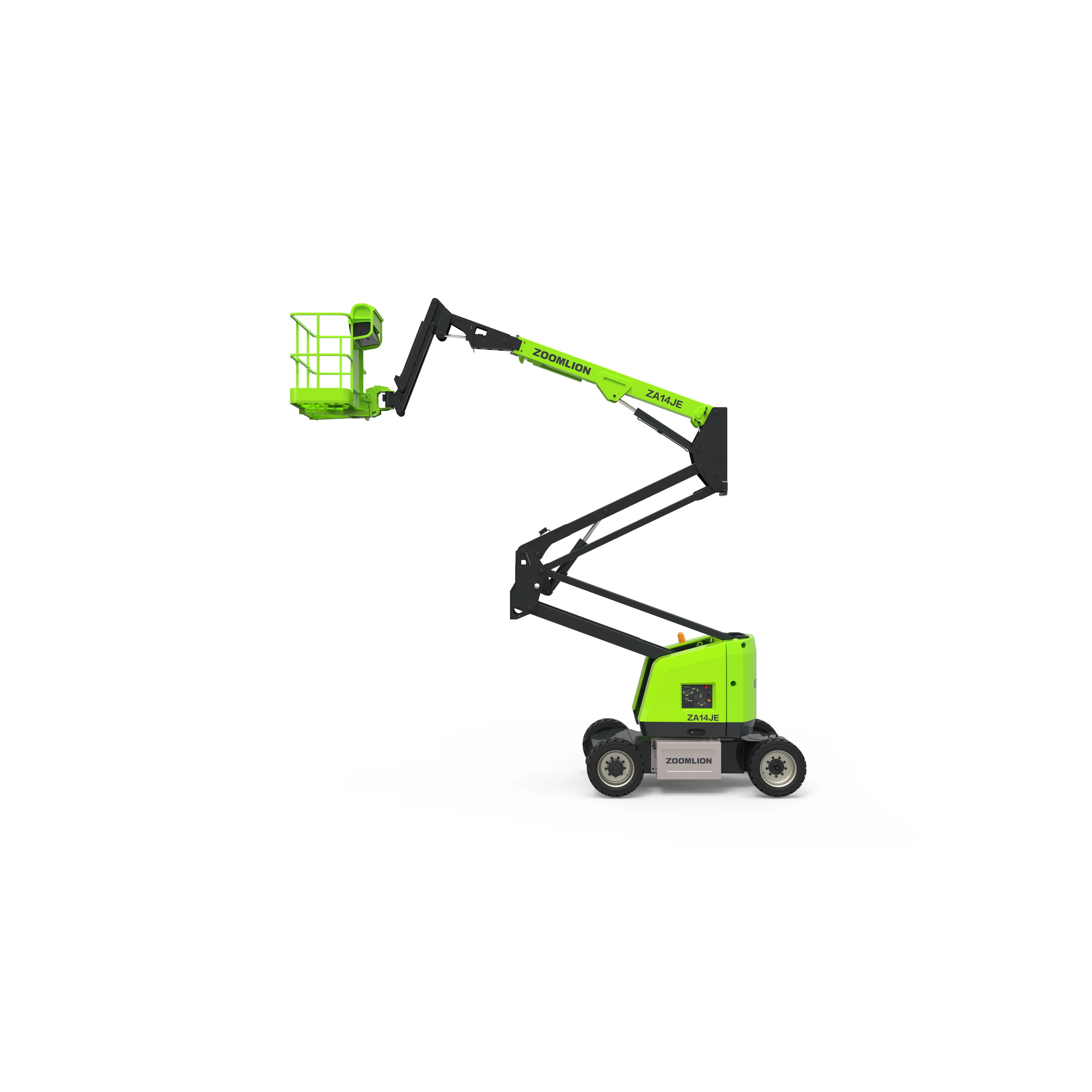

Zoomlion шарнирный подъемник ZA14JE китайское производство воздушная Рабочая платформа
