Китайский Лидер продаж классификатор цилиндр круглый просеиватель ротационный барабанный GT1015 GT1020 шлифовальный станок
1 900,00-2 000,00 $
Электрический экран 20 30 50
- Категория: >>>
- Поставщик: Jiangxi Victor International Mining Equipment Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601219190210:
Описание и отзывы
Характеристики
Products Description
Sand screening machine is used to separate fine and big material. It is a professional machine for screening and separating various mixed materials such as sand, coal, sediment,
etc. It is divided into electric screening engine and diesel screening engine according to power system.
etc. It is divided into electric screening engine and diesel screening engine according to power system.
It has the advantages of simple structure, large workload, low production cost and convenient maintenance, widely used in construction, highway, sand farm, building materials, mining and other industries.
Working Principles for rotary drum screen machine
1. The whole equipment of the cylindrical trommel screening machine is composed of feeding hopper, raw material feeding belt conveyor, flat screen mesh, finished sand pile material belt, and abandon stone discharge trough.
2. After the equipment is energized, the loader will load the raw materials.
3. Into the large-capacity storage hopper, the raw material is put into the flat sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen
surface.
4. Under the pushing and tumbling of the inner blade of the cylinder, the finished sand falls on the finished sand belt through the collecting hopper, and is lifted down by the belt into a finished material pile or directly into the storage hopper.
5. The whole process is continuous and the material classification is clear and accurate.
2. After the equipment is energized, the loader will load the raw materials.
3. Into the large-capacity storage hopper, the raw material is put into the flat sieve cylinder through the feeding belt, and the rotating sieve cylinder drives the raw material to form the artificial sieve effect of the raw material sliding on the screen
surface.
4. Under the pushing and tumbling of the inner blade of the cylinder, the finished sand falls on the finished sand belt through the collecting hopper, and is lifted down by the belt into a finished material pile or directly into the storage hopper.
5. The whole process is continuous and the material classification is clear and accurate.
Technical Parameter
Technical Parameter | ||||||
Model No | WKD20 | WKD30 | WKD50 | |||
Boundary Dimension | 4.3*1.1*2.3m | 8.2*1.6*3m | 9.2*1.95*3.5m | |||
Power | 6.7kw | 12kw | 13.7kw | |||
Hopper Size | 2.3*1.1m | 3.5*1.5m | 3.8*1.6m | |||
Belt Conveyor Width | 500mm | 800mm | 1000mm | |||
Screen Mesh Size | 8mm(replaceable) | 8mm(replaceable) | 8mm(replaceable) | |||
Capacity | about 40m³/h | about 70m³/h | about 110m³/h | |||
Sieve Size | 1.5*0.6m | 3*0.8m | 3.5*1.0m | |||
Details Images

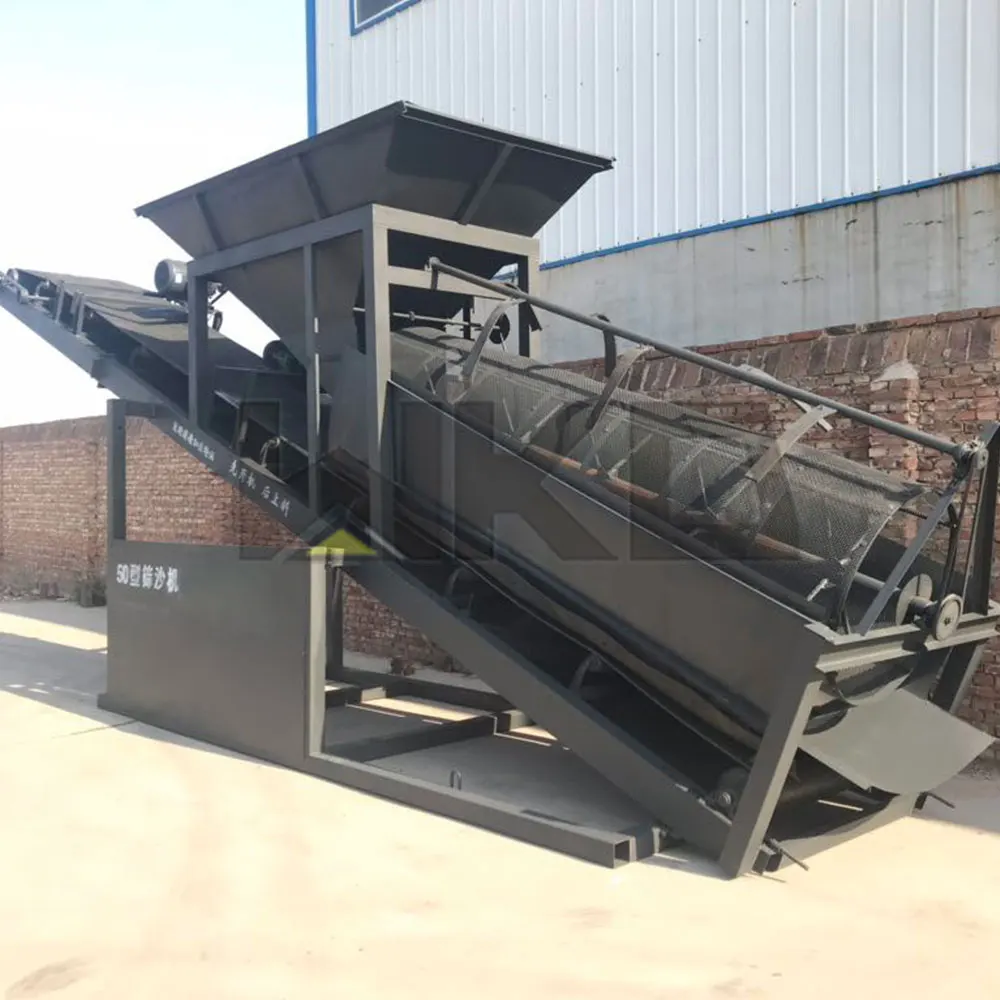

Hopper
The hopper material is thickened and can load big capacity

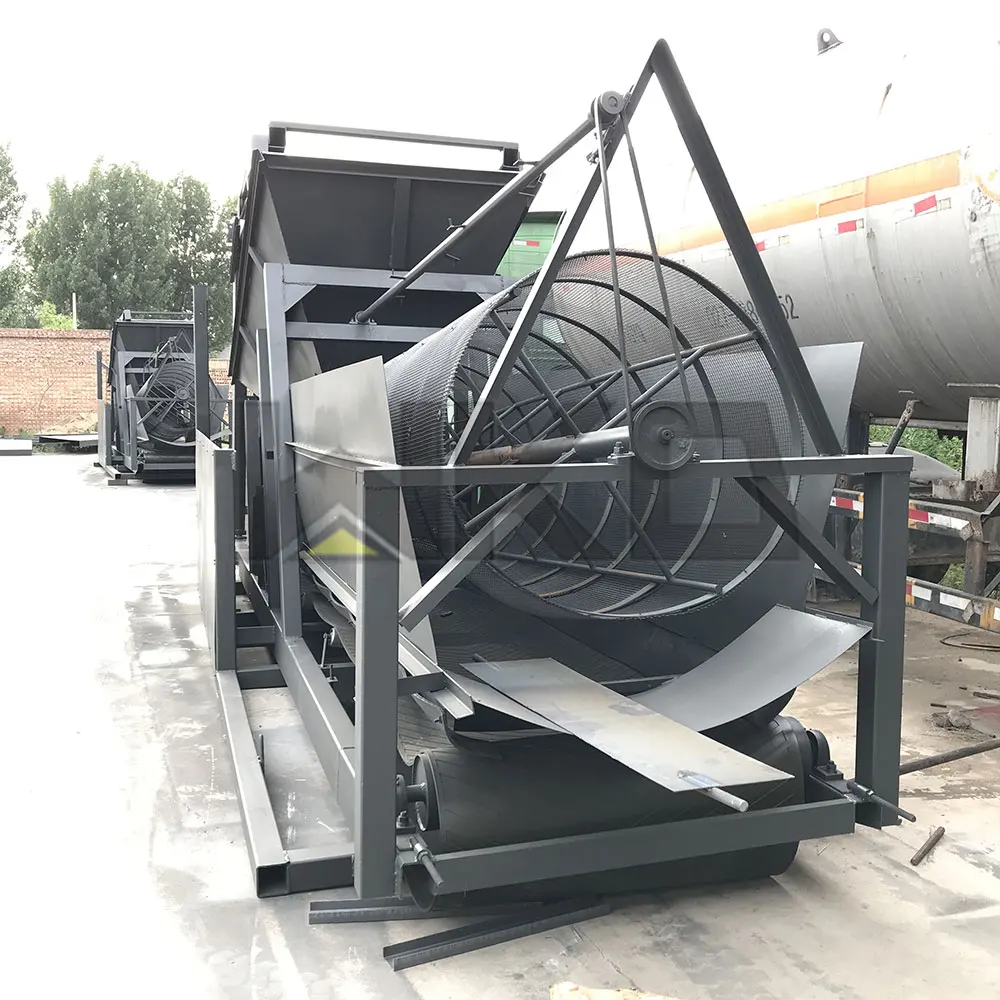

Drum Screen
The structure is strong and not easy to damage, for longtime use

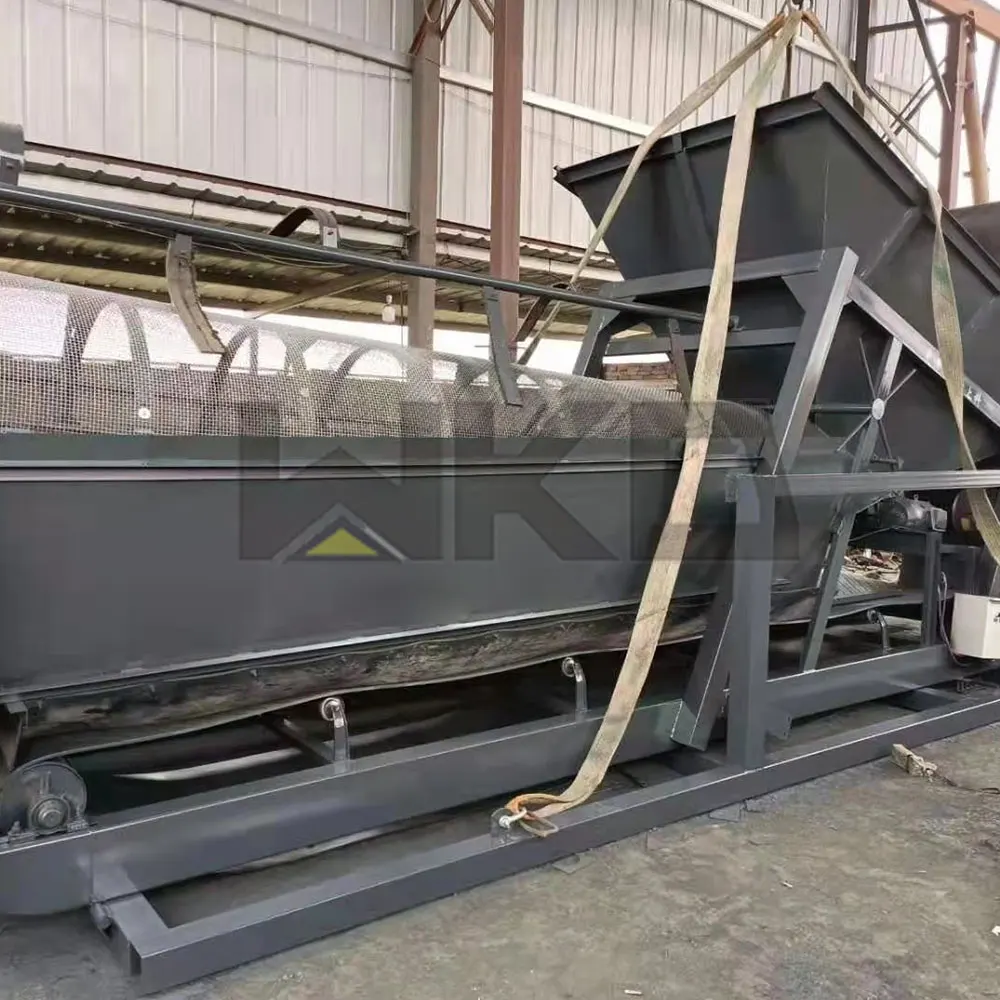

Belt Conveyor and Electric Control Box
Conveyor is to deliver the fine material into file. Electric control box is to control the operation
Project Case
Company Information
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 50 countries and regions.
-- We have 20+ manufacturing experience and can provide custom design.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
Похожие товары
Емкость для обследования составляет 1 тонна/час ~ 20 тонн/час обследование удобрений компостное сито
1 400,00-1 500,00 $

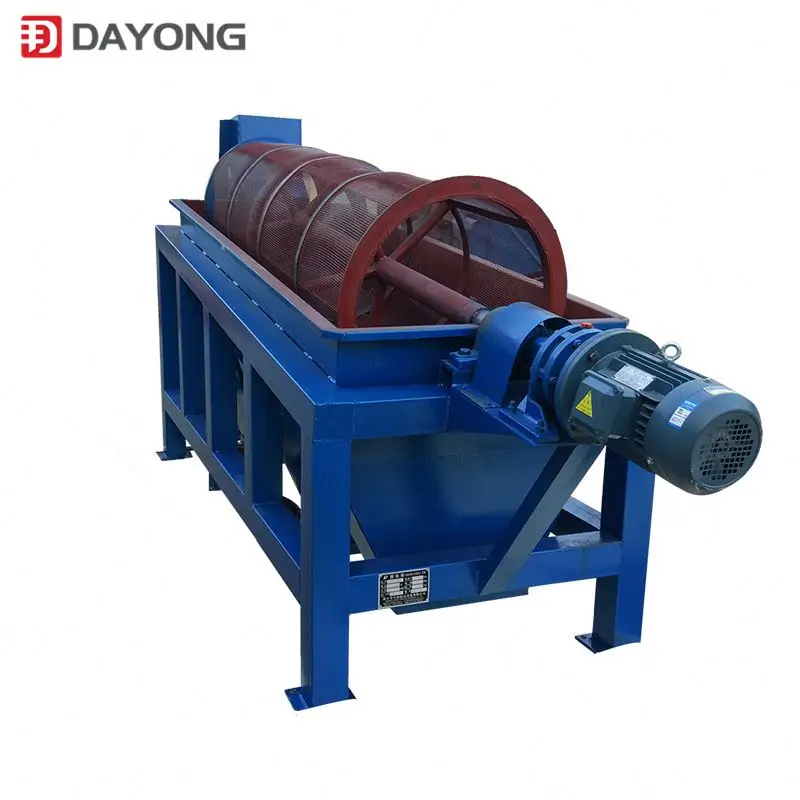

Небольшая ротационная барабанная машина для просеивания травы
1 000,00-1 100,00 $
Китайский Лидер продаж классификатор цилиндр круглый просеиватель ротационный барабанный GT1015 GT1020 барабанная пескоструйная машина
1 900,00-2 000,00 $

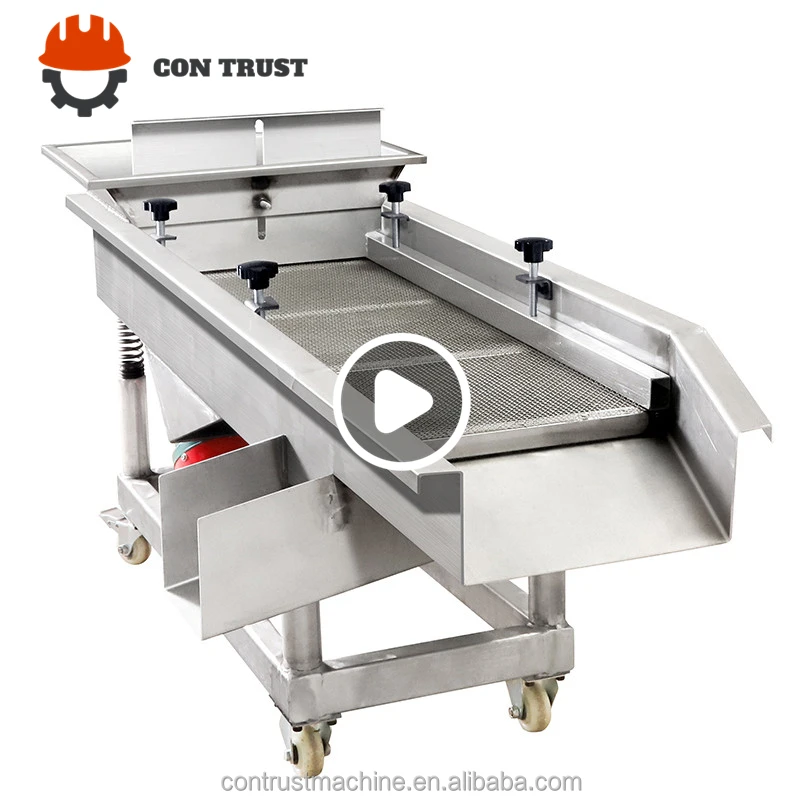

Квадратный вибрационный сито
22 900,00-23 900,00 $
2025 Лидер продаж угольная линейная вибрационная скрининговая машина/коксовый вибрационный экран цена
1 300,00-1 500,00 $

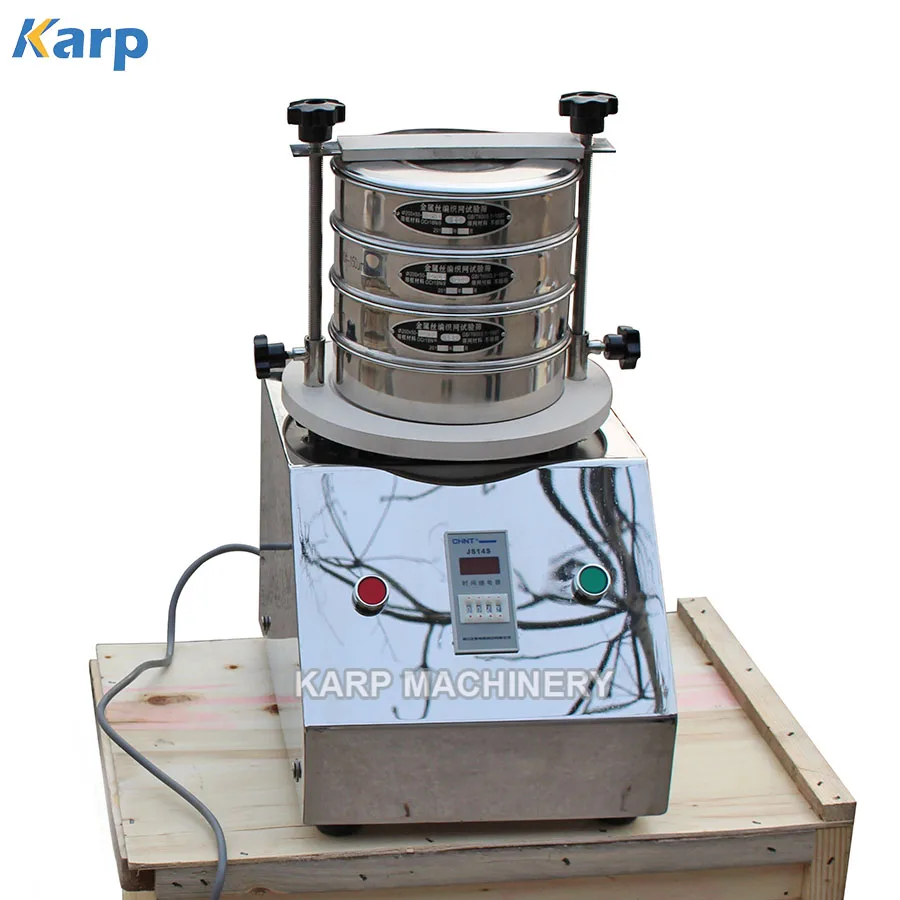

Порошковые частицы почвенного песка тест сито шейкер лабораторное оборудование для скрининга
