Крытый светодиодный дисплей P1.8 для умных городов и IoT инновационные настраиваемые решения инфраструктуры умного города
- Категория: >>>
- Поставщик: ShenZhen HighMight Technology Co. Ltd.
Сохранить в закладки 1601219291418:
Описание и отзывы
Характеристики
Products Description
LED small pitch(XA) series | ||||||||||
Model | XA0.9 | XA1.2 | XA1.5 | XA1.8 | XA2.3 | |||||
Pixel pitch | 0.9375(mm) | 1.25(mm) | 1.5625(mm) | 1.875(mm) | 2.34(mm) | |||||
Module Size | 300x168.75(mm) | 300x168.75(mm) | 300x168.75(mm) | 300x168.75(mm) | 300x168.75(mm) | |||||
Module pixel | 320x180 | 240x135 | 192x108 | 160x90 | 128x72 | |||||
Density pixel | 1137778(dot/m) | 640000(dot/㎡) | 409600(dot/ ㎡) | 284444(dot/ ㎡)) | 182044(dot/ ㎡) | |||||
Lamp bead model | MINI4in1 | SMD1010 | SMD1212 | SMD1515 | SMD1515/2020 | |||||
Brightness | 500-800(cd/㎡) | 500-800(cd/㎡) | 500-800(cd/㎡) | 500-800(cd/㎡) | 500-800(cd/㎡) | |||||
Refresh rate | 3840(Hz) | 3840(Hz) | 3840(Hz) | 1920/3840(Hz) | 1920/3840(Hz) | |||||
Scanning mode | 1/60S | 1/45S | 1/54S | 1/45S | 1/36S | |||||
Pcb thickness | 1.6(mm) | 1.6(mm) | 1.6(mm) | 1.6(mm) | 1.6(mm) | |||||

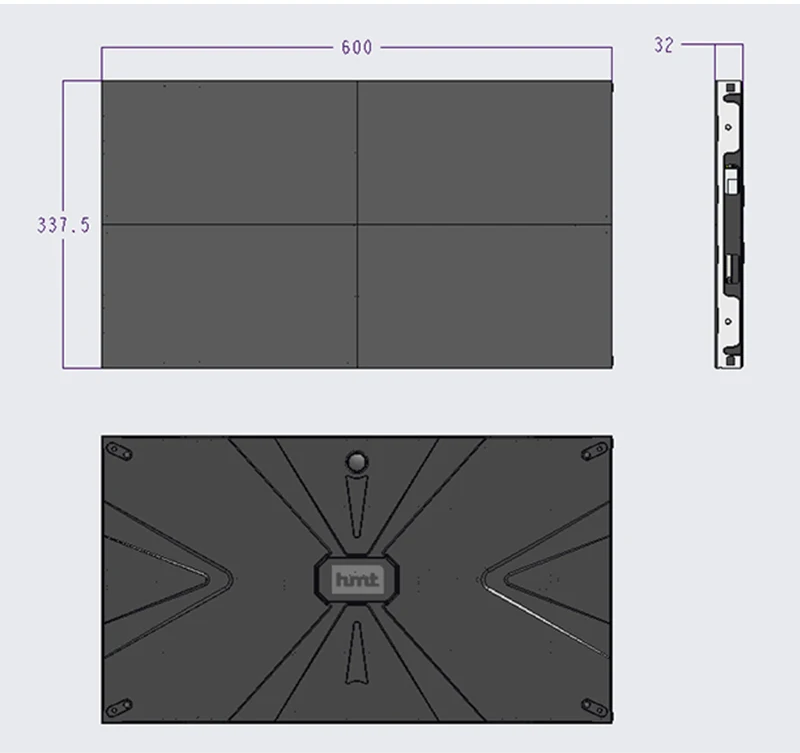

Overal Size | 600x337.5(mm) | 600x337.5(mm) | 600x337.5(mm) | 600x337.5(mm) | 600x337.5(mm) | |||||
Overall pixel | 640x360 | 480x270 | 384x216 | 320x180 | 256x144 | |||||
Overall thickness | 32.5mm | |||||||||
Service life | >=100000 hours | |||||||||
Contrast ratio | >=5000:1 | |||||||||
Colour temperature | 2000-9500K Adjustable | |||||||||
Grayscale | 16bit | |||||||||
Maximum power | 600-800(w/㎡) | |||||||||
Average power | 400-600(w/㎡) | |||||||||
input voltage | AC100-240V 50/60HZ | |||||||||
Module voltage | DC4.7-5V±0.2V | |||||||||
Environment | temperature-10-40℃ humidity10%-90% | |||||||||
Weight | 7.8(kg/PCS) | |||||||||
Material quality | Die-casting Aluminum | |||||||||
Maintenance | Front maintenance | |||||||||
Installation | Sitting installation | |||||||||
Recommend Products
Founded in 2010, Shen Zhen Highmight Technology Co.,Ltd is a professional LED high-tech enterprice engaged in research &development, design, produce,sales and sevice. Now we have more than 100 anthorized patents. HMT has built an excellent sales and service group system after Guang Zhou branch was established in 2020.Step by step, HMT is always adhered to the business philosophy of independent invovation, Customer first, technology continuous improvement and provide various high-quality,high-performance LED display products and solutions.
Since HMT was established, we had more 10,000 experences to build LED Display projects on the world.HMT brand is famous based on widely range project cases on smart city, transportation,millitary, energy source, advertising media,exhibition display,business show,government and enterprise image, cultural & real - estatestadium show and entertainment,etc.
Since HMT was established, we had more 10,000 experences to build LED Display projects on the world.HMT brand is famous based on widely range project cases on smart city, transportation,millitary, energy source, advertising media,exhibition display,business show,government and enterprise image, cultural & real - estatestadium show and entertainment,etc.
Highmight has owned R&D team of more than 50 people. The successful development of independent innovative products mainly involves independent patents that meet the relevant certification requirements: transparent screen series, high-efficiency energy-saving indoor and outdoor LED display screen series, floor tile screen series, chain bar series, leading peer ultra-high density small spacing LED display screen series, creative special-shaped customized LED display screen series, COB MINI flip series, OEM/ODM for customers, etc, And the corresponding application solutions of the above products. The market share of multiple products exceeds 50%.
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM/ODM manufacturer with 20+ years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained CE, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can be negotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
A1: We are a professional OEM/ODM manufacturer with 20+ years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained CE, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can be negotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Похожие товары
Дополнительная максимальная гибкость экрана с нашим светодиодным дисплеем

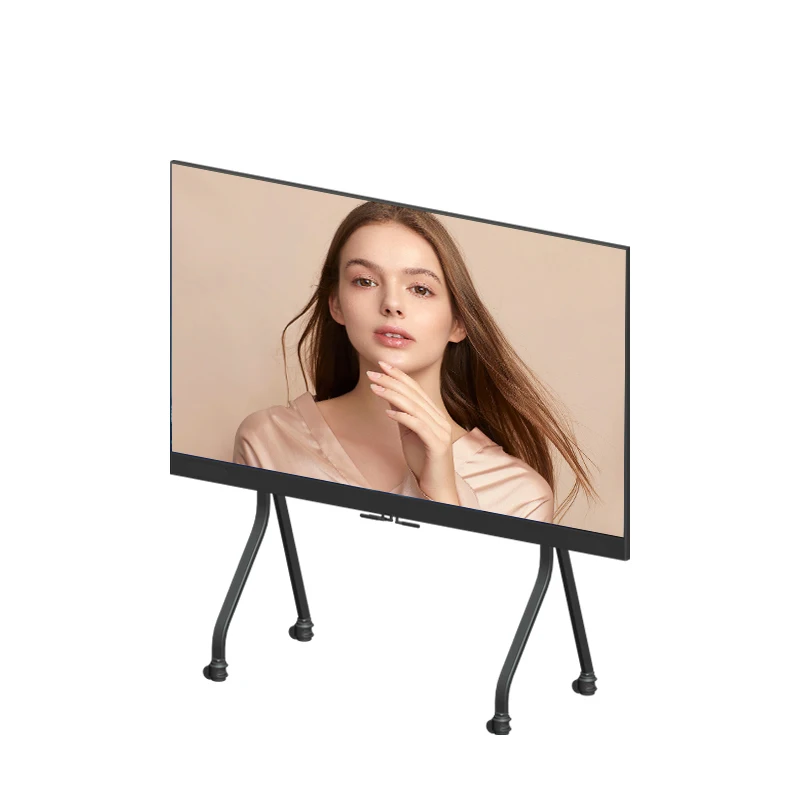

Все-в-одном светодиодные системы отображения: расширение возможностей интеллектуальной городской инфраструктуры, которая имеет 4k, что подходит для всех офисов
P3 домашние Бесплатные китайские японские секс-Фильмы hd tv Поставщики светодиодных дисплеев
81 868,70 ₽

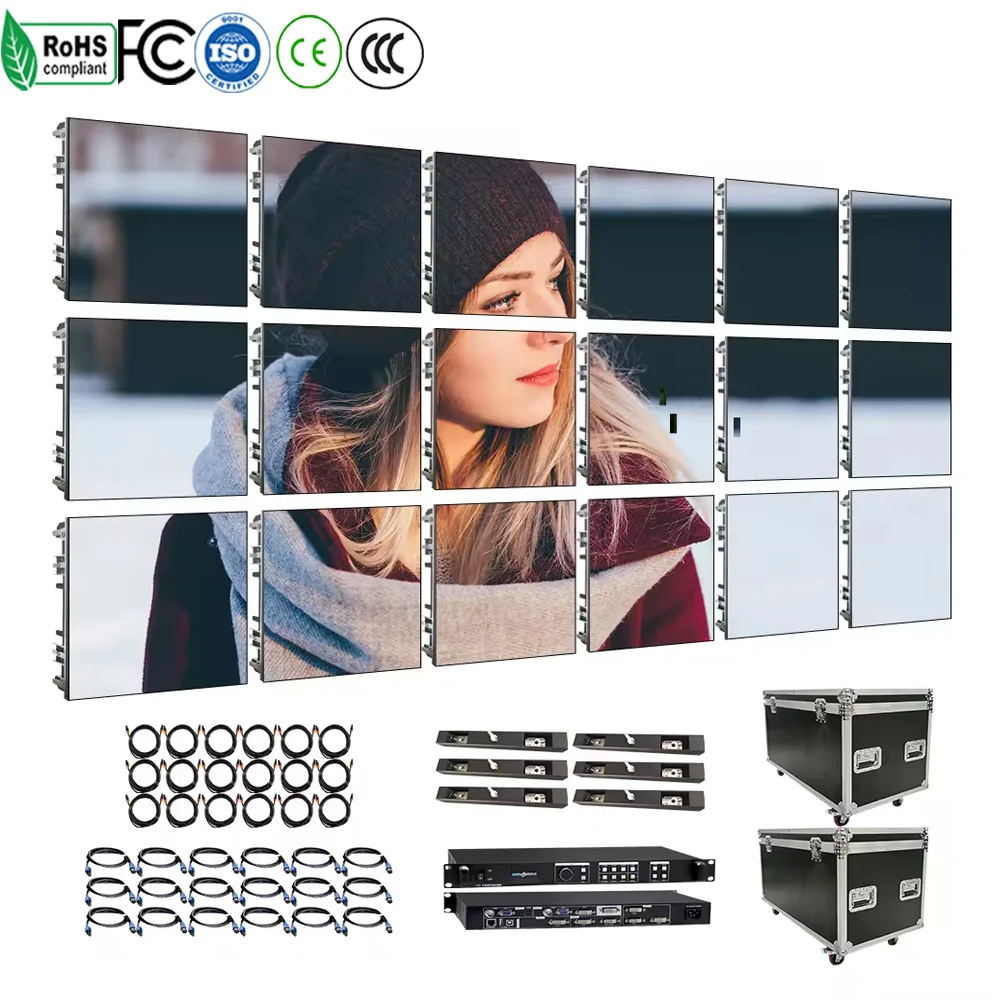

Крытый Открытый Гигантский сценический фон светодиодный видео настенный P2 P2.5 P3.91 P4.81 бесшовный Сращивание аренда светодиодный экран шкаф
5 400,31 ₽ - 5 940,35 ₽

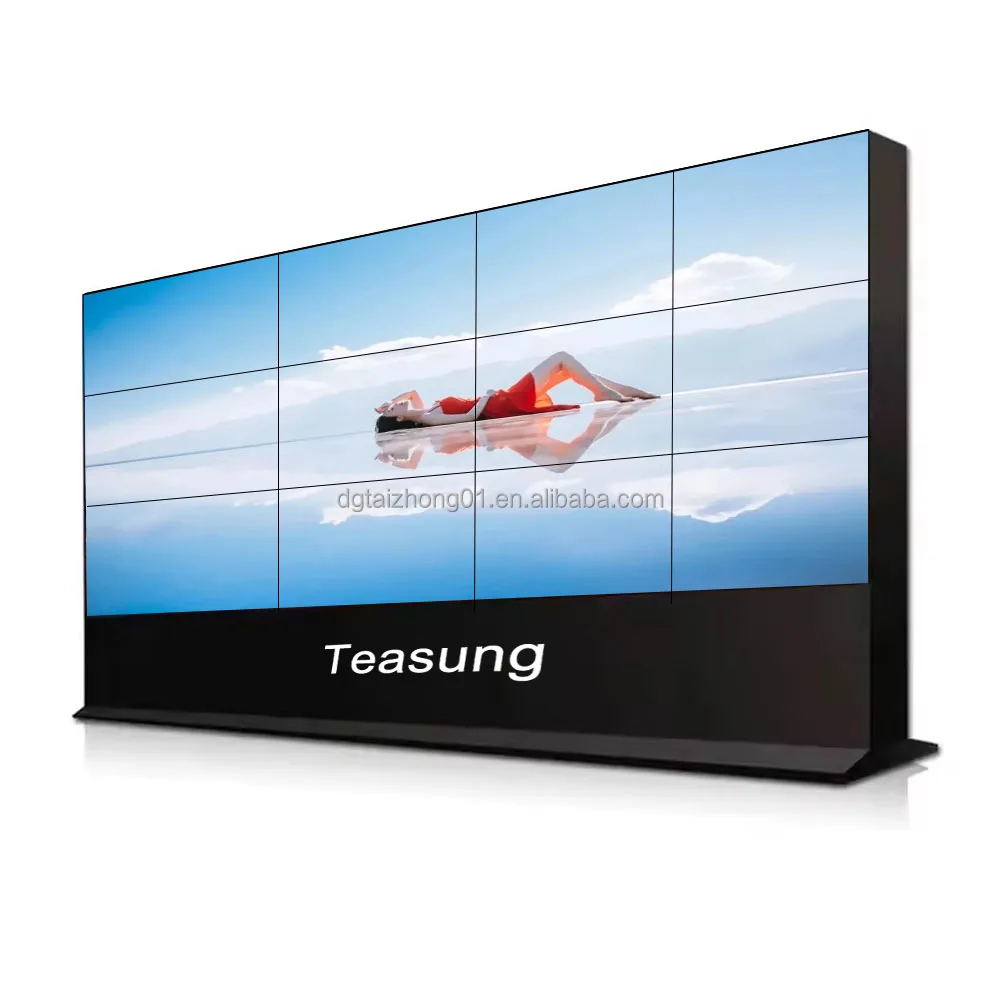

46/49/55/дюймов, ЖК-экран
Наружная Аренда диджея светодиодная видеостена Светодиодная панель цена p3.91 p4 p.481 светодиодный экран для церкви показывает события свадьбы

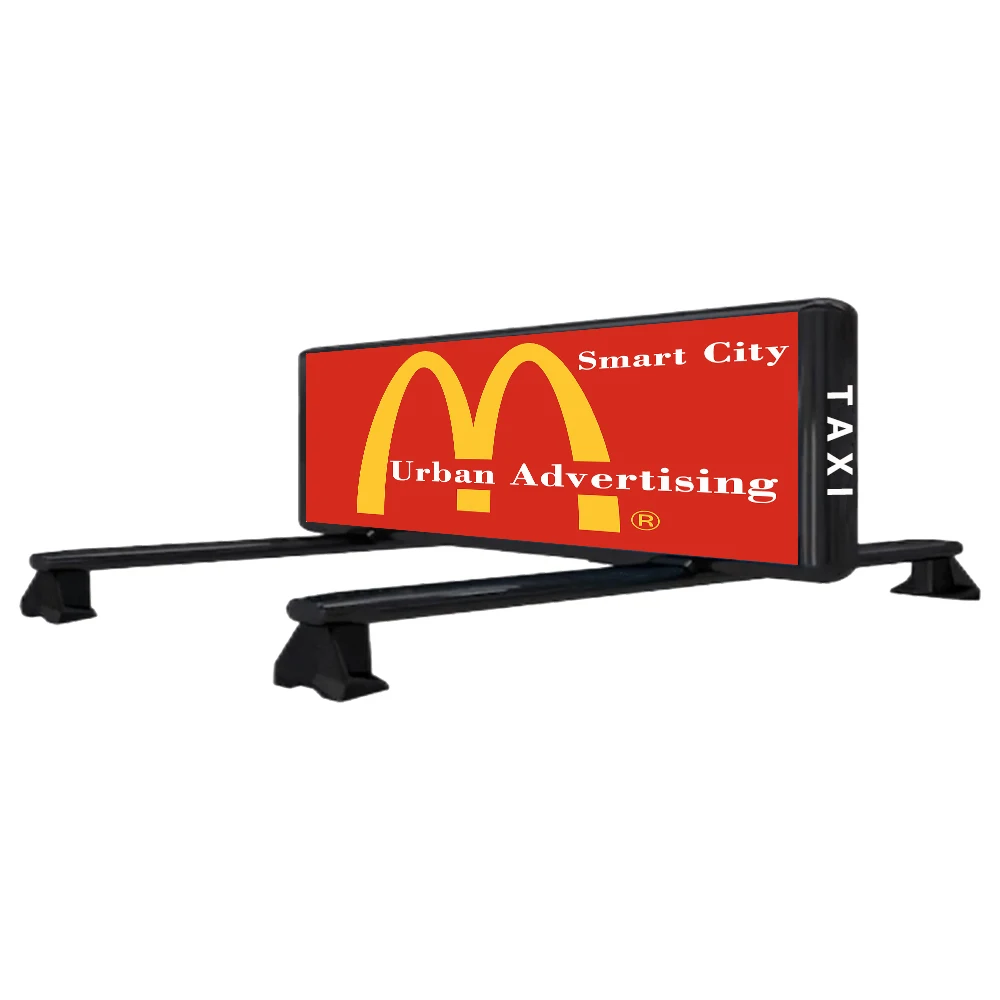

Мобильный рекламный светодиодный экран P2.5 P5 двухсторонний автомобильный дисплей наружная реклама такси верхний Автомобиль на крыше светодиодный экран завод
