The series of products are available to be provided by depending on the advanced produce technology and continual innovation for more than ten years:
1.Ultra-thin cutting wheel
2.Piston ring cutout wheel
3.Alloy steel cutting wheel
4.Metal and stainlesss steel 2 in 1 cutting wheel
Ultra-thin with 1 net:
| mm | inch | pcs/ctn | weight(kg) | volume(mm) | max r.p.m | max speed m/s |
| 150x1.0x19 | 6x3/76x3/4 | 200 | 9 | 330x172x174 | 7800 | 72 |
| 180x1.0x32 | 7x3/76x1 1/4 | 200 | 13 | 320x200x205 | 7800 | 80 |
| 180x1.2x32 | 7x1/21x1 1/4 | 200 | 15 | 320x200x205 | 7800 | 80 |
| 200x1.0x32 | 8x3/76x1 1/4 | 200 | 16 | 320x215x225 | 7800 | 80 |
| 200x1.2x32 | 8x1/21x1 1/4 | 200 | 18 | 320x215x225 | 7800 | 80 |
| 200x1.2x25.4 | 8x1/21x1 | 200 | 20 | 375x220x225 | 7800 | 80 |
| 205x1.2x19 | 8x1/21x3/4 | 200 | 20 | 375x220x225 | 7800 | 80 |

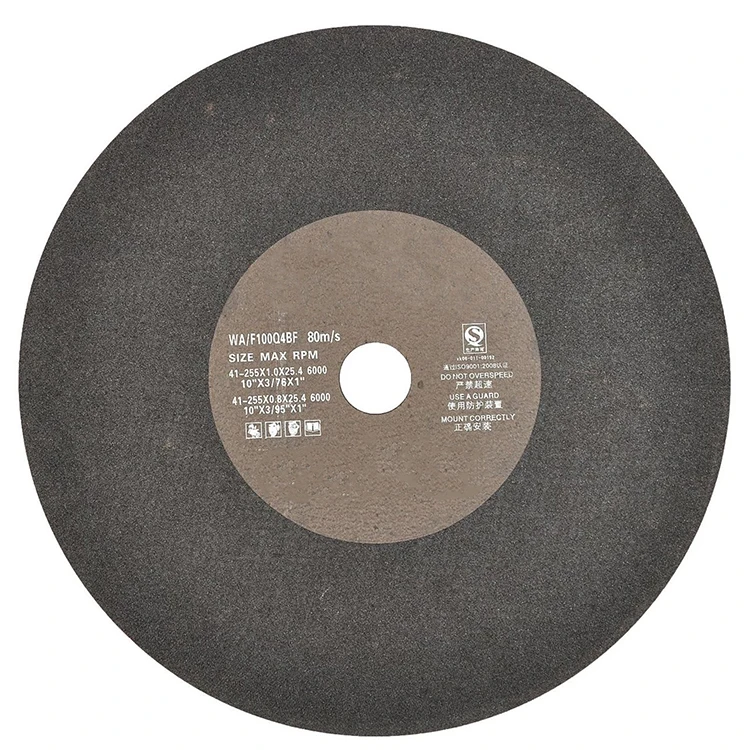

| 255x1.2x32 | 10x1/21x1 1/4 | 144 | 18 | 275x270x275 | 6000 | 80 |
| 255x1.5x32 | 10x1/17x1 1/4 | 120 | 18 | 275x270x275 | 6000 | 80 |
| 255x2.0x32 | 10x5/64x1 1/4 | 96 | 18 | 275x270x275 | 6000 | 80 |
| 255x1.2x25.4 | 10x1/21x1 | 144 | 18 | 275x270x275 | 6000 | 80 |
| 255x1.5x25.4 | 10x1/16x1 | 120 | 18 | 275x270x275 | 6000 | 80 |
| 255x2.0x25.4 | 10x5/64x1 | 96 | 18 | 275x270x275 | 6000 | 80 |
Application: cutting rare metal, die standard parts, stainless steel materials, electronic components and auto parts.

Ultra-thin without net:
| mm | inch | pcs/ctn | weight(kg) | volume(mm) | max r.p.m | max speed m/s |
| 150x1.0x19 | 6x3/76x3/4 | 200 | 9 | 310x172x174 | 6800 | 72 |
| 180x0.5x32 | 7x1/51x 1 1/4 | 200 | 7 | 315x195x205 | 6800 | 72 |
| 180x0.6x32 | 7x2/85x1 1/4 | 200 | 8 | 315x195x205 | 6800 | 72 |
| 180x0.7x32 | 7x2/73x1 1/4 | 200 | 9 | 315x195x205 | 6800 | 72 |
| 180x0.8x32 | 7x3/95x1 1/4 | 200 | 10 | 315x195x205 | 6800 | 72 |
| 180x1.0x32 | 7x3/76x1 1/4 | 200 | 13 | 315x195x205 | 6800 | 72 |
| 180x1.2x32 | 7x1/21x1 1/4 | 200 | 15 | 315x195x205 | 6800 | 72 |
| 200x0.7x32 | 8x2/73x1 1/4 | 200 | 10 | 320x215x220 | 6800 | 72 |
| 200x0.8x32 | 8x3/95x1 1/4 | 200 | 12 | 320x215x220 | 6800 | 72 |
| 200x1.0x32 | 8x3/76x1 1/4 | 200 | 16 | 320x215x220 | 6800 | 72 |
| 200x1.2x32 | 8x1/21x1 1/4 | 200 | 19 | 320x215x220 | 6800 | 72 |
| 255x1.0x32 | 10x3/76x 1 1/4 | 160 | 19 | 275x270x275 | 4500 | 60 |
| 255x1.2x32 | 10x1/21x1 1/4 | 144 | 21 | 275x270x275 | 4500 | 60 |
| 255x1.0x25.4 | 10x3/76x1 | 160 | 19 | 275x270x275 | 4500 | 60 |
| 255x1.2x25.4 | 10x1/21x1 | 144 | 21 | 275x270x275 | 4500 | 60 |
Application: cutting rare metal, die standard parts, stainless steel materials, electronic components and auto parts.

Automotive piston rings opening cutting wheel
150x1.0-1.7x32mm
180x1.0-1.7x32mm
200x1.0-1.7x32mm
Application: piston rings in automobiles and motorcycles piston rings in internal-combustion engine

Alloy steel dedicated cutting wheel
200-255x1.0-2.6x25.4(32)mm
Application: cutting alloy steel with high hardness, guide, slotting of die steel
