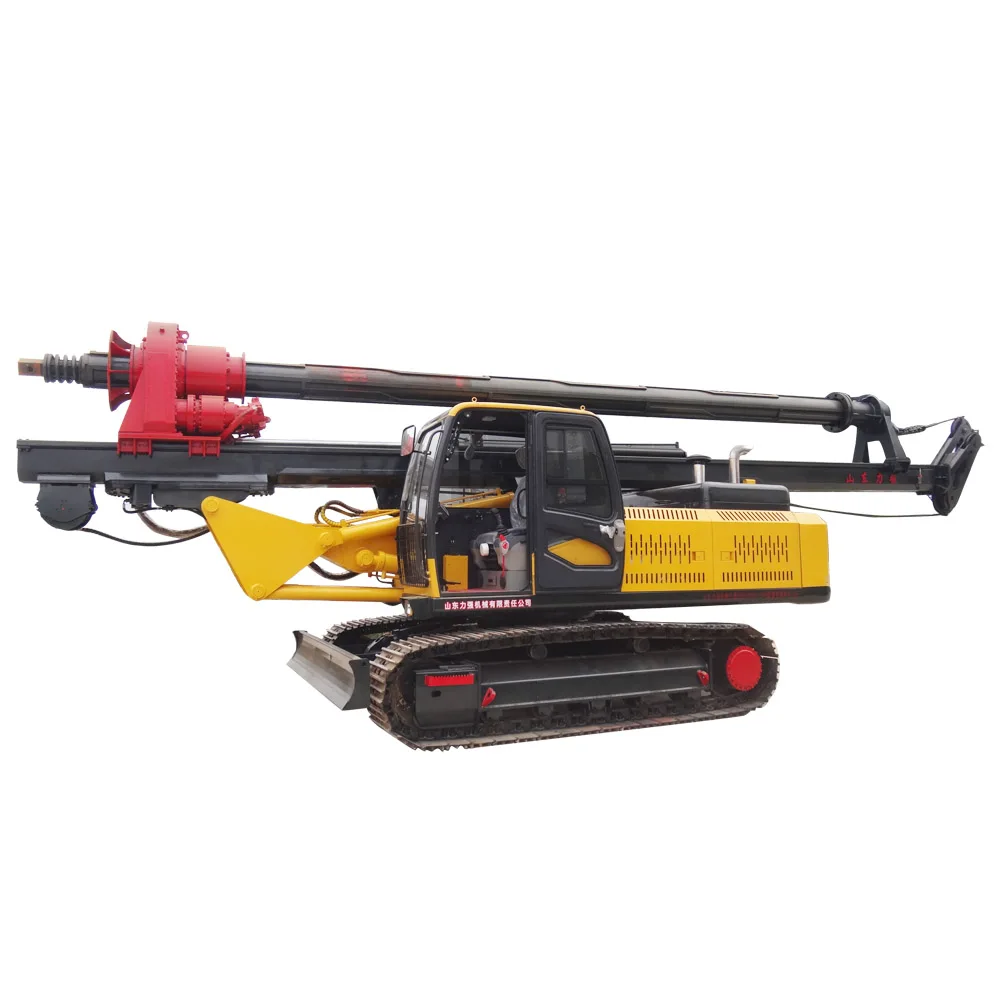

Вращающаяся головка буровой установки Поворотная сваебойная установка
3 281 802,00 ₽
Сохранить в закладки 1601219463523:
Product Type | DL-360 |
Chassis length.(mm) | 4700 |
tyre model | 825-16 |
Machine weight.(t) | 14 |
Maximum drilling depth.(m) | 20 |
Drilling diameter.(mm) | 500-1500 |
Engine brand | Weifang6105 |
Engine rated power.(KW/rpm) | 110KW |
Drive type | Four-wheel drive |
Maximum Torque of Power Head.(N.m) | 24000-30000 |
Power head speed.(rpm) | 10-30 |
Maximum working pressure of hydraulic system main pump.(MPa) | 25 |
Maximum working pressure of hydraulic system auxiliary pump.(MPa) | 12 |
Maximum lifting force of the pressurization system.(KN) | 80 |
Maximum travel pressure system.(m) | 20 |
Maximum lifting force of the main winch.(KN) | 80 |
Maximum lifting force of the auxiliary winch.(KN) | 15 |
Maximum pull-up speed of the auxiliary winch.(m/min) | 50 |
Left and right inclination angle of drilling mast.(°) | ±5 |
Forward inclination angle of drilling mast.(°) | 4 |
Maximum driving speed.(KM/h) | 35 |
Maximum climbing angle.(°) | 30 |
Overall length of transport status.(mm) | 9600 |
Overall width of transport status.(mm) | 2200 |
Overall height of transport status.(mm) | 3100 |
Drill rod type | Square rod. pressurized type |
Drilling tools whether to provide custom | Yes |
