DEYE 3.6/5/6KW HYBRID INVERTER
DEYE 3.6/5/6KW HYBRID INVERTER,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It equipped with RS485/CAN port for battery communication


Product Parameters


Model
SUN-3.6K-SG03LP1-EU
SUN-5K-SG03LP1-EU
SUN-6K-SG04LP1-EU
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60V
Max. Charging Current (A)
90
120
135
Max. Discharging Current (A)
90
120
135
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
4680
6500
7800
Rated PV Input Voltage (V)
370 (125~500)
MPPT Range (V)
150-425
Start-up Voltage (V)
125V
Full Load DC Voltage Range
300-425
PV Input Current (A)
13+13
13+13
No.of MPPT Trackers
2
No.of Strings Per MPPT Tracker
1
1
AC Output Data
Rated AC Output and UPS Power (W)
3600
5000
6000
Max. AC Output Power (W)
3690
5500
6600
Peak Power (off grid)
2 times of rated power, 10 S
AC Output Rated Current (A)
16.4/15.7
22.7/21.7
27.3/26.1
Max. AC Current (A)
18/17.2
25/23.9
30/28.7
Max. Continuous AC Passthrough (A)
35/40A
Output Frequency and Voltage
50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type
Single Phase
Current Harmonic Distortion
THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage Protection.
Surge protection
DC Type II / AC Type II
Certififications and Standards
Grid Regulation
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ )
-40~60℃, >45℃ derating
Cooling
Natural cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
20.5
Size (mm)
330W x 580H x232D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years

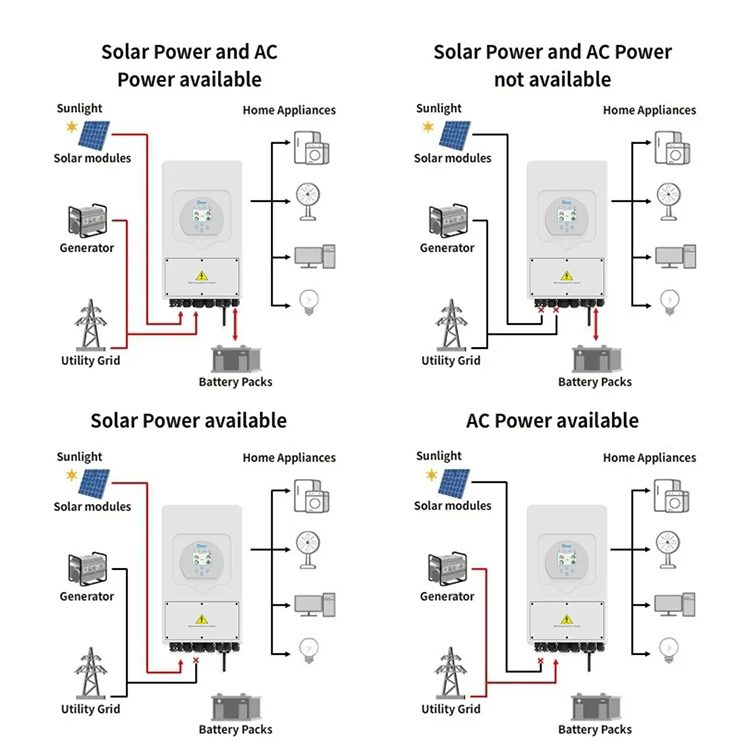

System Architecture




The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility - PV modules consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such asrefrigerator and air conditioner.

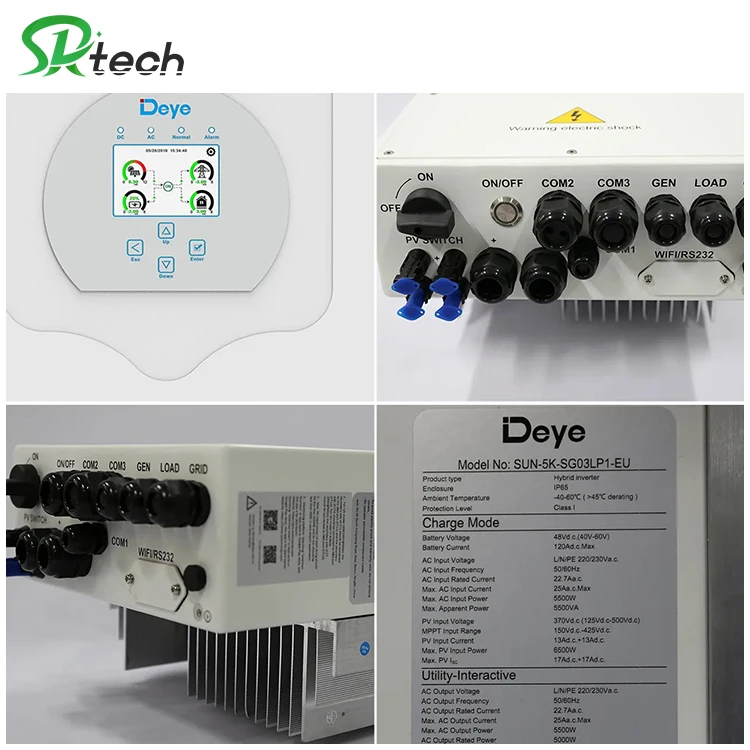

Product Details

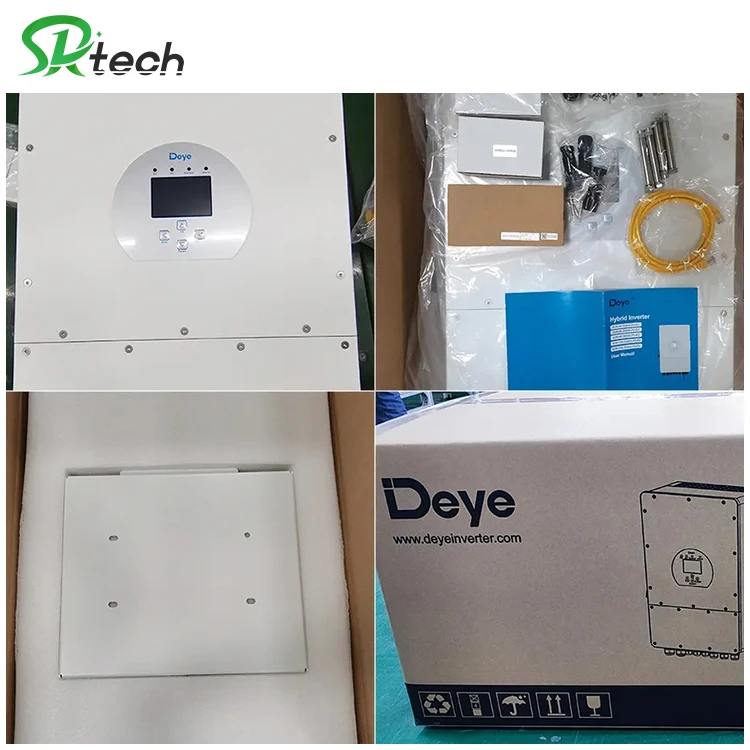

Product Packaging
