CW волоконно лазерная сварочная машина для ремонта пресс форм 3000 Вт 2000 1500 1000 металлическая сталь сплав меди тип стрелы лазерные точечные Сварщики
- Категория: >>>
- Поставщик: Beijing Boao Laser Tech Co. Ltd.
Сохранить в закладки 1601219732267:
Описание и отзывы
Характеристики

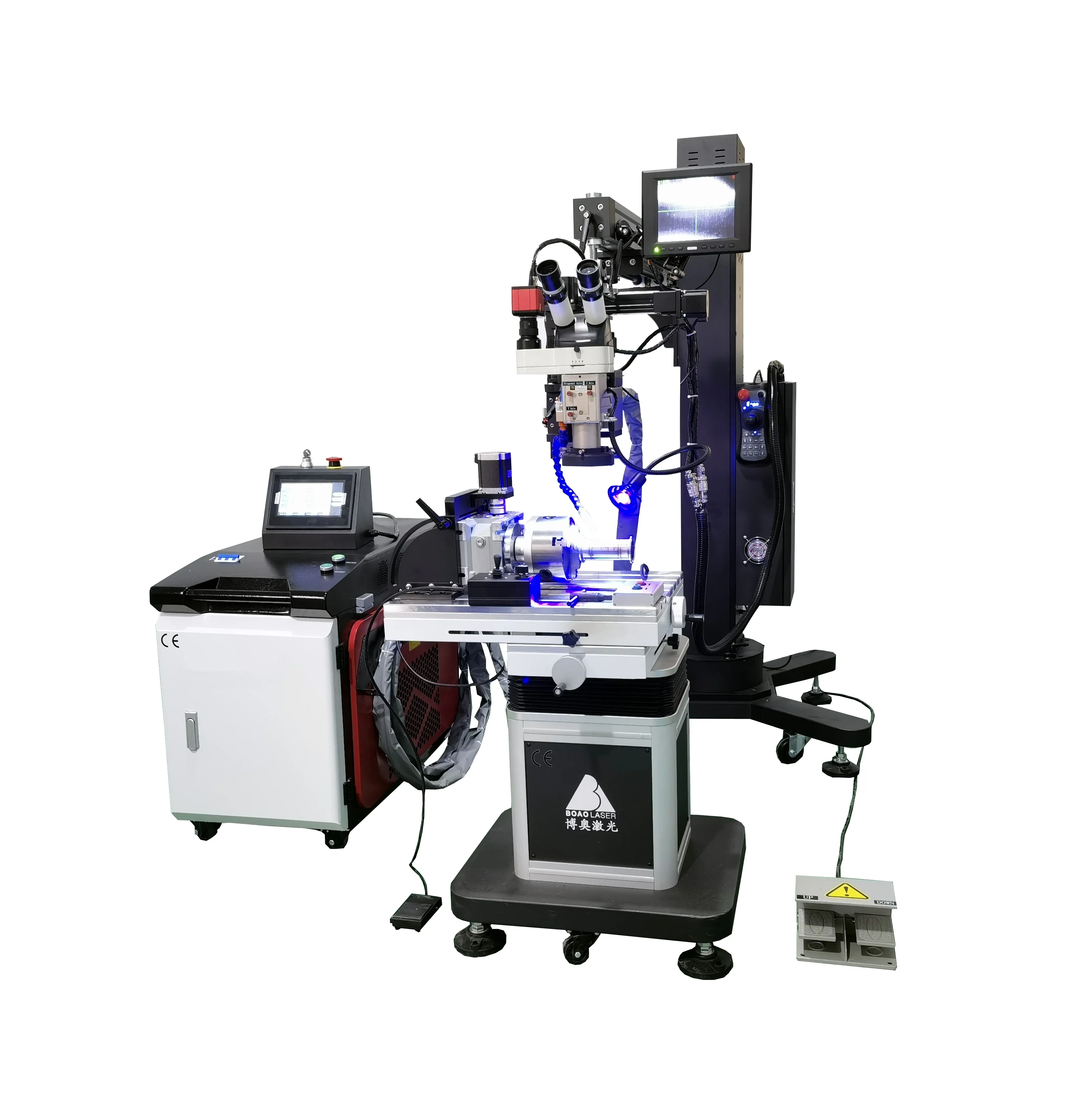

Machines Introduction
Special For Big Mold
it can meet Max Mold Size 2000x2000x2000mm To Repair by This laser.
Fiber laser Type
It adopted CW fiber laser 1KW ,1.5KW ,2KW and 3KW to meet different diameter welding wires
6 Axis Portable
Multi-Axis Application in this machine can meet different size mold laser repairing application .
Introduction
it was special designed for ultra size mold laser repairing application . It take fiber laser source with special designed welding head, Support high speed mold laser repairing application .
Advantages –
1. 100000 hours Working Life ,No consumptive materials .
2. Strong Stability, Easy operation
3. No special requirements for working environment
4. Be More flexible
5. Continuous welding and pulse spot welding Mode.
6. Welding Spot Adjustable
7. One-time investment , No more Cost.
Features :

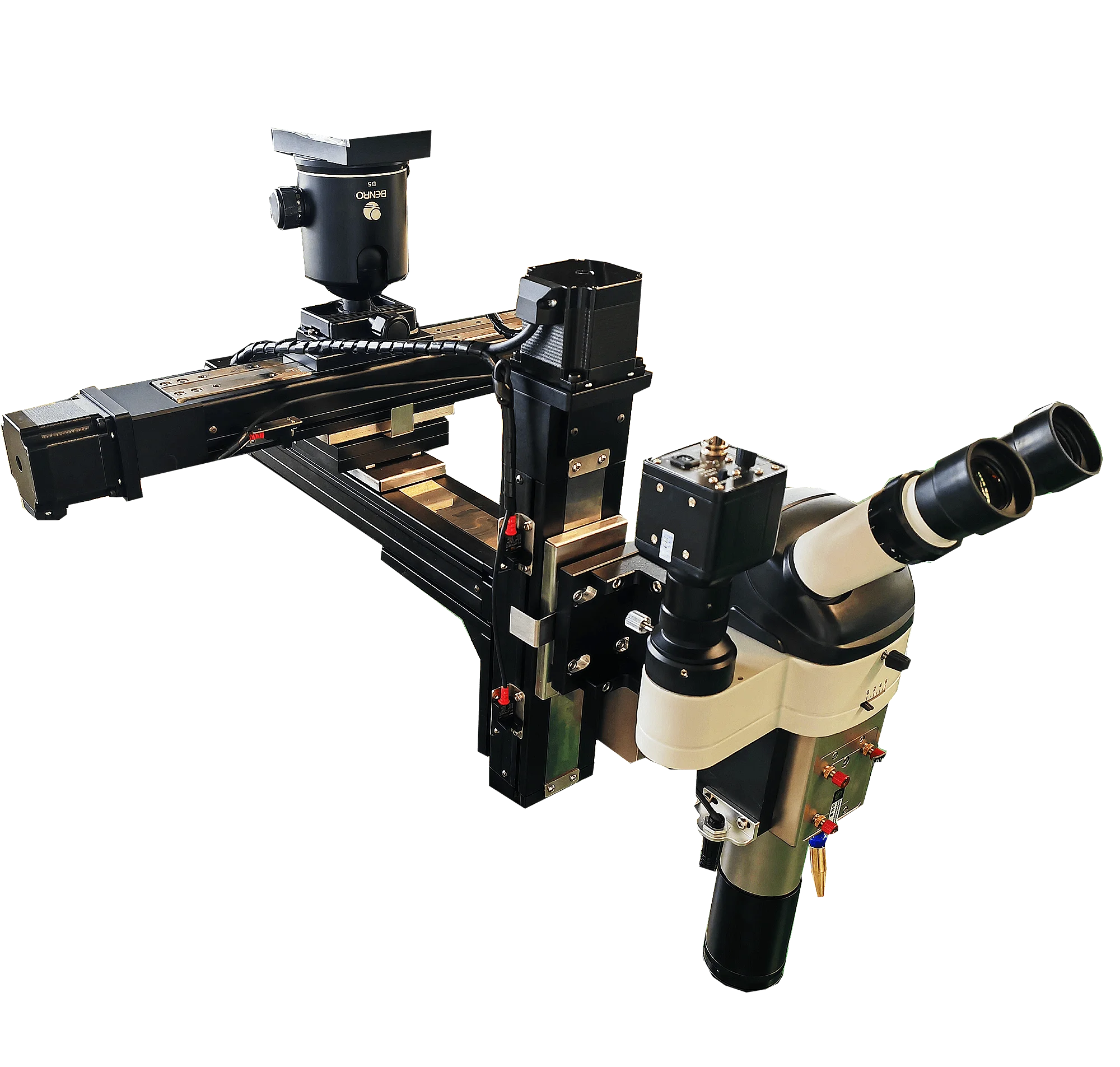

1-Laser Welding Head +Microscope
2-CCD Camera
3-3D Worktable X=150mm ,Y =150mm ,Z=100mm Control By Industrial -Joystick
4-,It can Rotating 360 Degreen And adjust the laser Head any Angle .
5-Crane Arm –Front&Back Movement Manaully 1400mm
6-Lifting Worktable –It can Up And Down movement 1600mm ,Control by Footswich
7-Bottom –It can rotating the Lifting worktable 360 Degree
8-Industrial Joystick –Control XYZ axis follow up movement for any shapes with Welding button on it .
9-Buttons Box –Control 3D worktable (number 12) Up And Down Movement Motorized .
10-Joystick control Rotating Axis Positive &negative, Speed adjutable .
11-3D Worktable –X =300mm ,Y =200mm. XY Axis Manual ,Z axis Motorized Controlled by Joystick
12-Big Footswich .Control Lifting worktable Up and Down movement motorized .
13-D125 Rotating Axis .It can be Positive And Negative Rotating Controlled by Joystick Speed adjutable .
14- Small Footswitch : Control Laser welding ,The Welding function is synchronized with Industrial Joysticks welding Button .
15-Main Cabinet : Control Software +Laser source +Control Boards +Chiller etc... in it .
16-Control Software Screen Sperately with 3.5 meters Cable
17-.Voltage Stabilizer (Optional )
2-CCD Camera
3-3D Worktable X=150mm ,Y =150mm ,Z=100mm Control By Industrial -Joystick
4-,It can Rotating 360 Degreen And adjust the laser Head any Angle .
5-Crane Arm –Front&Back Movement Manaully 1400mm
6-Lifting Worktable –It can Up And Down movement 1600mm ,Control by Footswich
7-Bottom –It can rotating the Lifting worktable 360 Degree
8-Industrial Joystick –Control XYZ axis follow up movement for any shapes with Welding button on it .
9-Buttons Box –Control 3D worktable (number 12) Up And Down Movement Motorized .
10-Joystick control Rotating Axis Positive &negative, Speed adjutable .
11-3D Worktable –X =300mm ,Y =200mm. XY Axis Manual ,Z axis Motorized Controlled by Joystick
12-Big Footswich .Control Lifting worktable Up and Down movement motorized .
13-D125 Rotating Axis .It can be Positive And Negative Rotating Controlled by Joystick Speed adjutable .
14- Small Footswitch : Control Laser welding ,The Welding function is synchronized with Industrial Joysticks welding Button .
15-Main Cabinet : Control Software +Laser source +Control Boards +Chiller etc... in it .
16-Control Software Screen Sperately with 3.5 meters Cable
17-.Voltage Stabilizer (Optional )
Additional Parts For Free:
1:User Manual 1pc
2 :Training Video In English (Operation and Installation ) 1 pc
3. Welding wires 200 meter(0.4-0.8mm)
4. Protective Len 6 pc
5.Lighting lamps 1 set
1:User Manual 1pc
2 :Training Video In English (Operation and Installation ) 1 pc
3. Welding wires 200 meter(0.4-0.8mm)
4. Protective Len 6 pc
5.Lighting lamps 1 set
Technical Parameters List
Model | BMII –1000 BMII -1500 BMII-2000 BMII-3000 |
3-axis stroke of work bench | X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted) |
Bearing of work bench | ≤100kg |
Whole Machine Weight | 700kgs |
Power supply | 380V ±10%/50Hz Or 220V±10%/50Hz |
Laser type | CW FIBER |
Laser wavelength | 1060nm |
Pulse width | ≤20ms |
Laser Spot Diameter | 0.1-3.0mm adjutable |
Maximum laser power | 1000W /1500W/2000W/3000W |
Pulse frequency | ≤100Hz |
Laser output focus length | 150mm |
Laser cooling | Water cooling |
Observing system | Microscope (360° adjustable) |
Protection gas | One line (xenon) |
Welding wire diameter | 0.1mm-1.6 mm |
222
Company:
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) asthe high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines.
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) asthe high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines.
Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of
the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of
the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Похожие товары
Новый дизайн, лазерная очистка, сварочная машина для резки 3 в 1, 1100 Вт, 1440 Вт, 2200 Вт, портативный лазерный сварочный аппарат 3 в 1
328 180,20 ₽ - 382 876,90 ₽
Сертификация качества 1500 Вт 3000 Вт Ручной Волоконно-лазерный сварочный аппарат для автоматизации промышленности
Лазерный сварочный аппарат с двойным оптическим путем
284 313,45 ₽ - 371 828,17 ₽

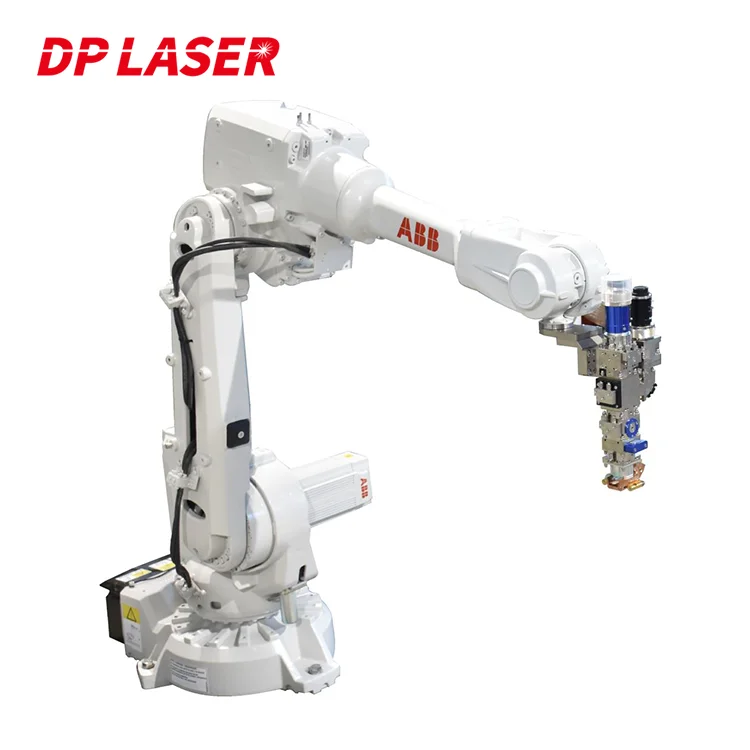

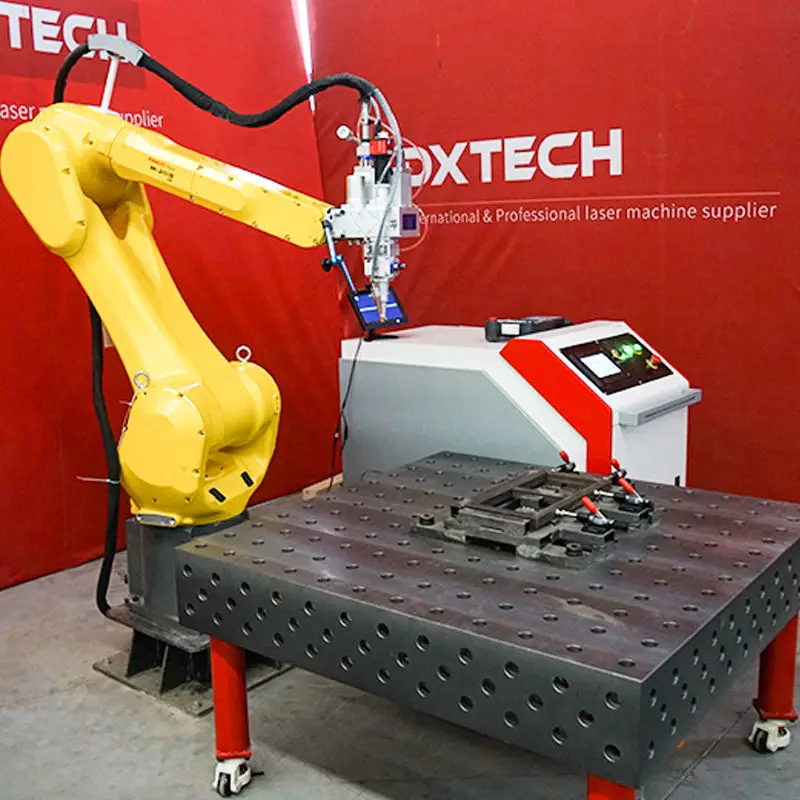

Серводвигатель 6 оси совместный робот рука лазерные сварочные аппараты многофункциональные роботизированные лазерные сварочные аппараты
