Сенсорный экран Смарт чек информационная бумага для печати документов киоск терминала государственного полицейского участка

Сенсорный экран Смарт чек информационная бумага для печати документов киоск терминала государственного полицейского участка

Категория: >>>
Поставщик: Guangzhou Chujie Information Technology Co. Ltd.

Цена:323 693,40 ₽ - 345 272,96 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

*PRODUCT NAME

(1)BASIC PARAMETERS

Product Name

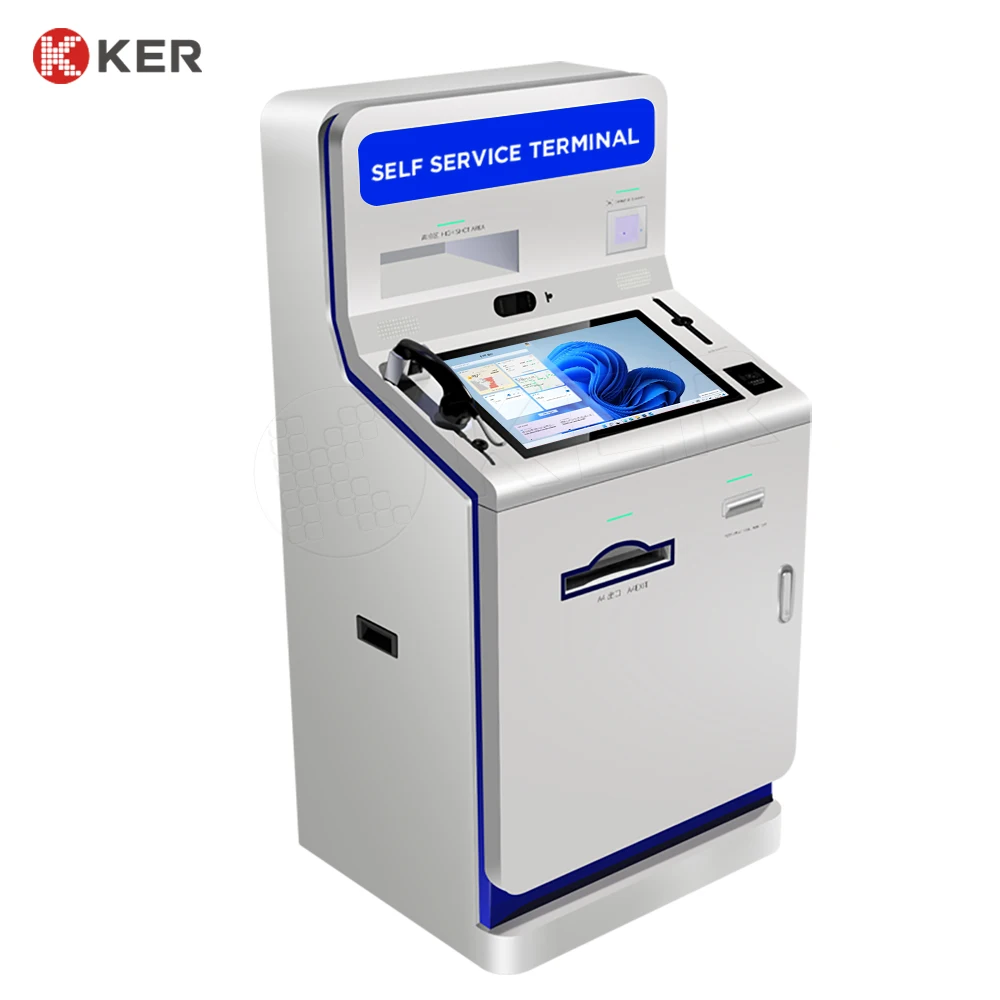

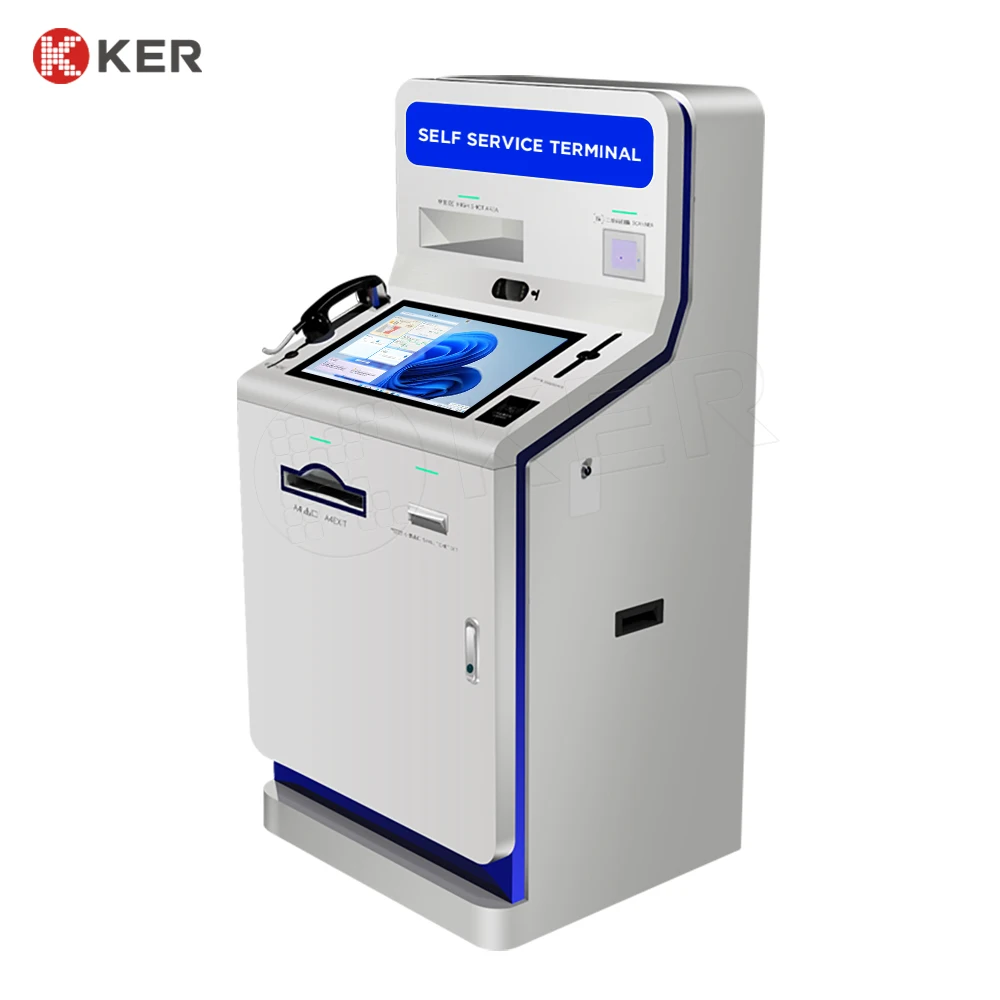

Self Service Multifunction Kiosk

Product Model

ST-MK-003

* PRODUCT SPECIFICATION

CATEGORIES

CATEGORIES -2

DESCRIPTIONS

*PRODUCT SPECIFICATION

(1)LCD PARAMETERS

Screen Size

27"

Screen Type

LED industrial grade A standard LCD screen

Screen Brand

LG

Display Area

942MM(L)*530MM(W)

Resolution

1920*1080

Screen Ratio

16:9

Brightness

350cd/㎡

Contrast

1500:1

Response Time

5.5ms

Max. Color

16.7m

Refresh Rate

50\\60hz

Visual Angle

178°(H)\\178°(V)

Service Lift

60000hours

(2)TOUCH SCREEN PARAMETERS

Touch Screen Type

Projected capacitive touch screen (G+G)

Response Time

3ms

Touch Points

10-point touch, can realize multi-touch functions such as zooming in and zooming out pictures

Effective Touch Recognition

＞1.5mm(Opaque objects such as fingers and touch pens)

Scan Rate

50scans\\s

Scan Accuracy

4096*4096

Communication Methods

Full speed USB2.0\\3.0

Theoretical Clicks

60 million times or more

Working Current/ Voltage

180ma\\dc+5v±5%

Anti-light Interference

Normal use when sunlight, incandescent lamp, fluorescent lamp, etc. strong light changes

Touch Data Output Method

Coordinate output

Surface Hardness

Physically tempered Mohs Grade 7 explosion-proof glass

Operating System Compatibility

Windows\\Android

Drive

Drive-free, plug and play

(3)HOST CONFIGURATION

Processor

Integrated 8th-Generation Intel®I5-8265u 1.6GHz/i7 8565u 1.8G quad-core eight-threaded processor, TDP 15W

Compatible with Intel® Whiskey Lake-U Celeron/Pentium/i3/i5/i7 low-power processor

Chipset

SOC

Memory

KINSTON 4GB DDR4, and supports maximum 32GB

Storage

KINGSTON 128G SSD, SSD solid -state hard disk supporting Intel protocol, transmission speed can reach 6Gbps

Display function

Integrated Intel® UHD Graphics support DirectX 12 OpenGL 4.5, support 4K

1*VGA interface, the maximum resolution support is: 1920x1200@60Hz

1*HDMI1.4 interface, the maximum resolution support is: 4096x2304@24Hz

1* Embedded Displayport (optional), the highest resolution support is: 4096x2304@60Hz

1* Support dual -channel 24bit LVDS interface Note: LVDS interface and Embedded DisplayPort interface is two selected

Network features

2*RTL811H Gigabit network card, support network wake -up, PXE function

Audio function

Integrated ALC662 6 -channel high -fidelity audio controller, support MIC, LINE OUT, and amplifier

The amplifier supports 2Ω \\ 5W dual -channel

Expansion port

1*Mini-PCIE slot, supports WiFi \\ 4G module

Back panel I\\O interface

2*USB3.0 interface

1*HDMI interface

1*VGA interface

2*RJ45 Gigabit Network Interface

1*DC12V power interface, support 12V power input and output

Operating system

Windows 10, Linux

(4.1)QR-CODE SCANNER PARAMETERS

Model name

QR-CODE scanner

Model no.

ECODE 8620

Image sensor

CMOS

Resolution

640*480

Commmunication interface

12PIN-FPC
4PIN DUPONT-TTL232
4PIN DUPONT-USB(HID, CDC)

Reading code system

2D: PDF417, QR Code, DataMatrix, etc
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1,
Databar, Matrix 2 of 5, Code 11,Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc

Reading accuracy

5 mil

Illumination

White LED

Rotating sensitivity

Rotate: 360°

Tilt: ±50°

Deflection: ±50°

Exercise tolerance

1.5m\\s

Symbolic contrast

≥30%

Field angle

Horizontal 68° Vertical 51°

Typical reading depth of field

EAN 13: 10MM-130MM (13MIL)

QR: 0MM-95MM (15MIL)

Data Matrix: 0mm-50mm (6.67mil)

QR-CODE: 10mm-260mm (32mil)

(4.2)CARD READER PARAMETERS

Model name

Card Reader

Model no.

M100

Magnetic card

Compliance with ISO7810 7811 standard card

IC card

EMV, 7816

RF card

S50, S70, ID card

SIM card

8 -bit inlet card

Method of card entry

Magnetic signal, photoelectric signal, back to the card

Electric gate

Guarantee the insertion of the legal card

Mechanical gate

Anti -dust, anti -foreign body

Instruct light

Instructions in the card, power supply, IC card on the electric instructions on the IC card

Card (stop) slot

Multi -card card (stop) slot

4.3)CASH ACCEPTOR & DISPENSER PARAMETERS

Model name

Cash acceptor & dispenser

Model no.

SMART PAYOUT

Banknote receiving rate

The first insert to receive rate is 98% or above.

Support currency

1 country currency, multiple banknote denominations

Support banknote

Accepts: Width: 60-85mm, Length: 115-170mm;
Recycles: Width: 60-82 mm;

Banknote outlet\\inlet

4 directions

Temporarily deposit

1 piece of banknotes or multiple banknotes

Sensor

Support the patented light, inductance and electronics sensor;

Protection against fraud

Light cross channel (anti -fishing) sensor can prevent the recognized and received banknotes from being caught; The loop banking
box mechanical door can prevent taking out the banknotes with your hands;

Circular cash box capacity

70 pieces of banknote capacity of circulators (available on the surface)

Support protocal

SSP\\ ccTalk

Program storage

Intelligent memory stick or remote download

Dispense speed

3ms

Entire banknote delivery cycle

3ms

Cash box capacity specifications

500\\1000 notes

4.4)COIN ACCEPTOR PARAMETERS

Model name

Coin acceptor

Model no.

MICROCOIN SP115

Support currency

Max 11 coin denominations

Support coin

Accepts: Diameter: 30-34mm, Thickness: 3-3.2mm;

Coin box capacity specifications

1500(€1)，1300(₣1)，800(₣2)

Mixture coin box capacity specifications

200(€2)+750(€1)+500(50c)

Accept speed

12coins\\ seconds

Support protocal

SSP\\ ccTalk

4.5)COIN DISPENSER PARAMETERS

Model name

Coin dispenser

Model no.

SMART HOPPER

Support currency

Max 11 coin denominations

Support coin

Accepts: Diameter: 18-28.5mm, Thickness: 1.65-3.2mm;

Mixture coin box capacity specifications

200(€2)+750(€1)+500(50c)

Dispense speed

12coins\\ seconds

4.6)PASSPORT READER PARAMETERS

Model name

Passport reader

Model no.

KR 420

Light source

Multi -band light source: contains visible light, infrared 850mm

Anti -glare function

Ensure that the color of the document is not distorted, and the effect of anti -counterfeiting membrane and reflection

Image Acquisition

Collection area 127*88mm

Sensor CMOS 5 million pixels (2592*1944)

Resolution 500 dpi

Image preservation

It can take a 24 -bit clear color photo of the full version of the passport certificate,

Visible light (white light), infrared light, and ultraviolet light sources can be saved as a variety of picture formats such as
BMP, PNG or JPEG, and the photos will not contain light spots caused by reflective;

At the same time, you can also save the electronic avatar photo from the certificate with a chip;

Image cut

After cutting the image, the face and the human head area are complete, and the proportion of non -photos areas in the image is
relatively small.

Photo -free spot

Certificate recognition (OCR)

Support ID card, driver's license, passport, Hong Kong and Macau Pass, Taiwan compatriots, driving licenses and other ID card
image collection and information recognition

Support ICAO9303 standard passports, visas and other travel certificates, information collection and information recognition,
including machine reading and other layout information

Support reading 1D barcode, Code128, Code39, EAN-13, etc.

Photo recognition speed is less than 1 second

Electronic passport reading card

Support ICAO9303 standard electronic passport reading card, the card reading time is less than 3 seconds

Support ISO14443Type A \\ B type card reading card

Support the basic access control of electronic passports (BAC)

Support the passive certification of electronic passports, verify the authenticity of the information information

Support electronic passport active certification, verify the authenticity of the chip

Machine reading area identification

Reading all documents that meet the ICAO standard and the non -ICAO standard documents issued by China

Analysis machine reading information

4.7)A4 SCANNER PARAMETERS

Model name

A4 scanner

Model no.

XHY-P800

Focus

AUTO FIX

Object distance

10CM~unlimited distance

Resolution

2500LW\\PH(center)

Sensor Type

IMX179

Active Array Size

3288*2512

Dark Current

8mV/s @ 60℃

Sensitivity

600mV/(lux • s)

Pixel size

1.4um*1.4um

Maximum Image Transfer Rate

3288*2512 5fps; 2592*1944 10fps; 1600*1200 15fps; 800*600 640*480 and below 30fps;

S/N Ratio (maximum)

34db

Dynamic range

67db@8X gain

(4.8)THERMAL PRINTER PARAMETERS

Model name

Thermal printer

Model no.

EPSON 532

Printing method

Thermal line

Way of paper entry

Curve or Straight or Drop in

Font

Font A : 12 x 24 / Font B : 9 x 17 / Kanji : 24 x 24

Sequence

Font A : 48 columns

Character size

1.25 (W) x 3.0 (H) mm (Font A) / 0.88 (W) x 2.13 (H) mm (Font B)

Character set

95 Alphanumeric, 37 International, 128 x 11 Graphic

Interface

RS -232 / IEEE 1284 Bi-directional parallel, USB

Interface buffer

4KB

Print speed (MAX)

150 mm / sec.

Paper size

82 ± 0.5 mm x dia. 254 mm max.

Paper thickness

0.06~0.15 mm (~ 0.18 mm for HF )

MCBF

37,000,000 lines

Printed head life

Mechanism : 15,000,000 lines
Thermal head : 100 km (62.14 miles )

(5)CABINET PARAMETERS

Cabinet Material

Tempered explosion-proof glass, Aluminum alloy frame, Iron sheet metal body

Cabinet Color

White+Blue\\White+Orange\\White+Green\\Customizable

* EQUIPMENT SPECIFICATION

CATEGORIES

CATEGORIES -2

DESCRIPTIONS

*EQUIPMENT SPECIFICATION

(1)POWER PARAMETERS

Input Power

AC110-240V, 50\\60Hz

Power Consumption

≤120W

Standby Power Consumption

＜3W

(2)WORKING ENVIRONMENT

Operating Temperature

0℃-38℃

Working Humidity

10%-95%

Storage Temperature

0℃-40℃

Storage Humidity

10%-95%

(3)ACCESSORIES

Bracket

\\

Power Cable

1 PC

Manual

1 PC

Warranty Card

1 PC

Certificate of Conformity

1 PC

(4)PHYSICAL PARAMETERS

Screen Size

27"

Net Weight

180 KGS

Gross Weight

220 KGS

Machine Dimension

2050MM(H)*661MM(W)*659MM(D)

Package(Carton) Dimension

2300MM(H)*900MM(W)*900MM(D)

Products Description

Company Profile

FAQ

1.How can I get the price?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

3.What is your lead time?

-It depends on the order quantity and the season you place the order.
-Usually we can ship within 10-15 days for small quantity, and about 30 days for large quantity.

4.What is your payment term?

-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).

Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
