Flipsky 65161 6000 Вт двигатель водонепроницаемый бесщеточный подводный подруливающий электрический лодочный

Описание и отзывы

Характеристики

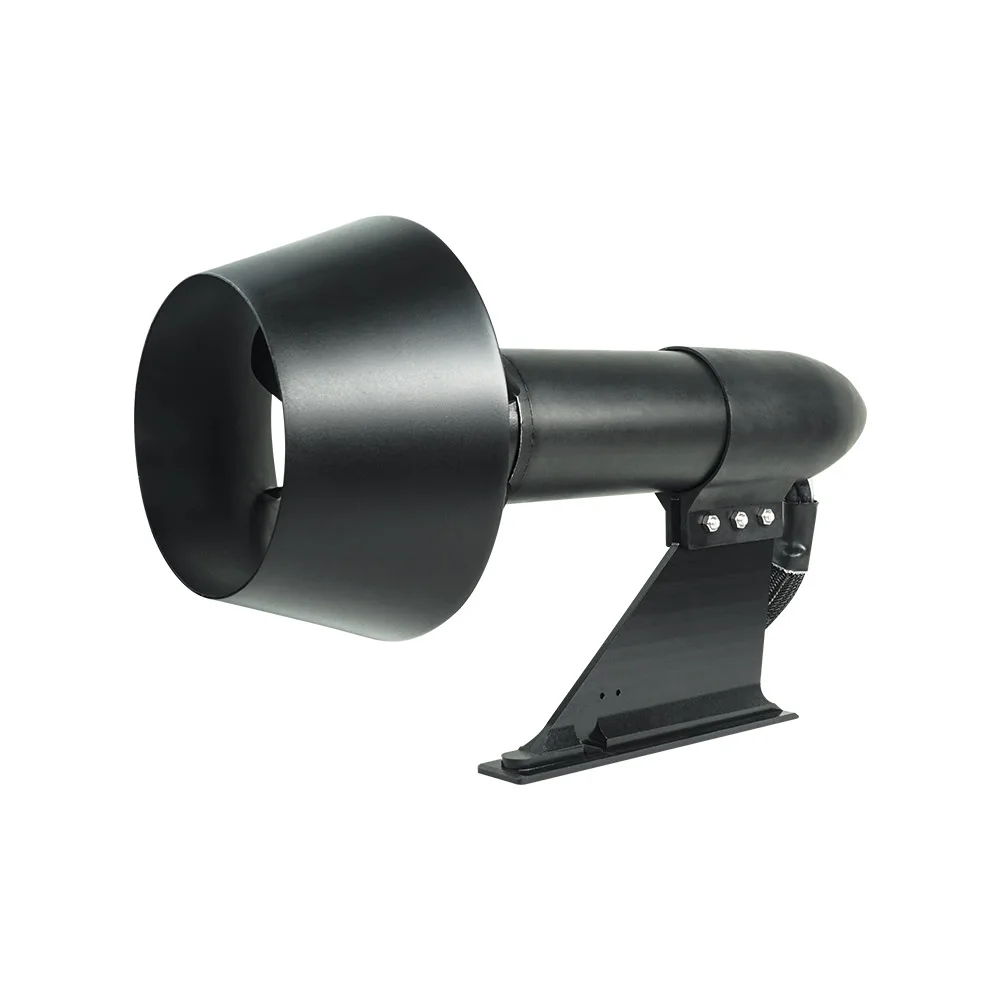

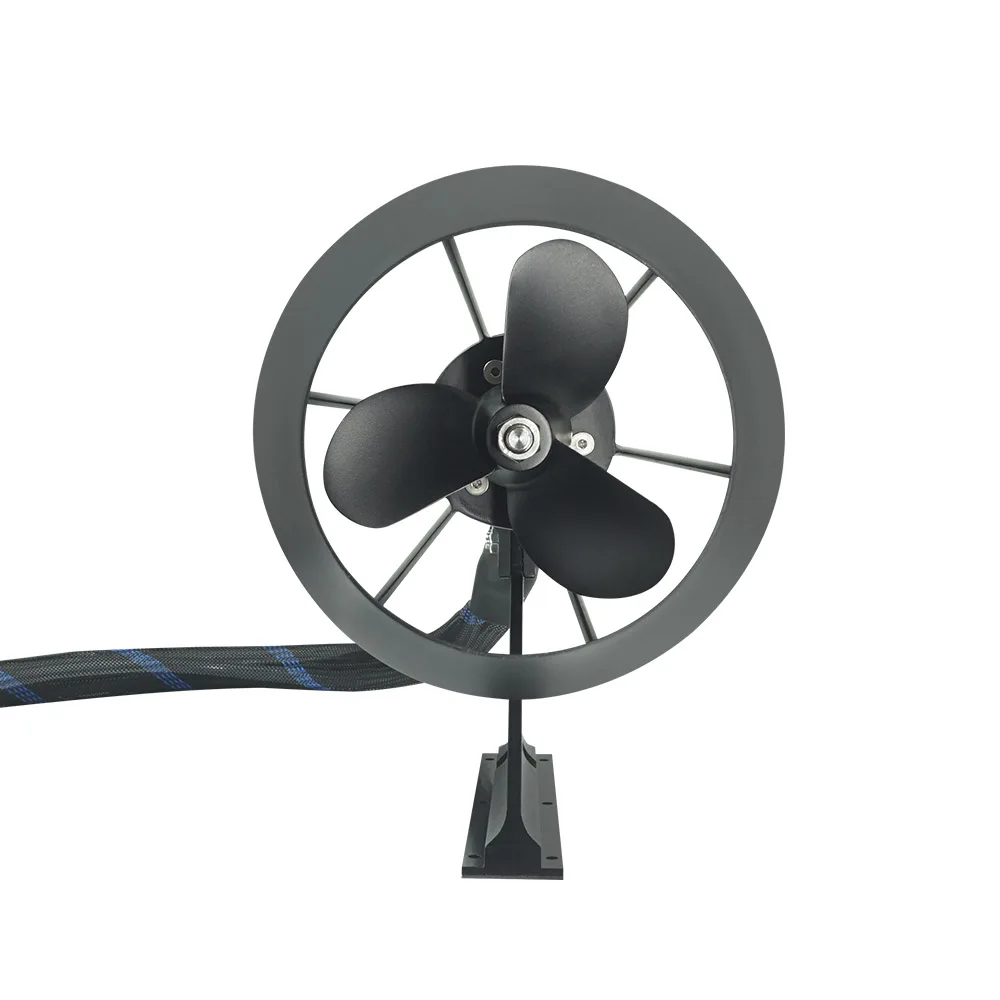

Flipsky Brushless 65161 6000W Motor Waterproof Underwater Thruster electric boat thruster Outboard motor  Drive boat jet

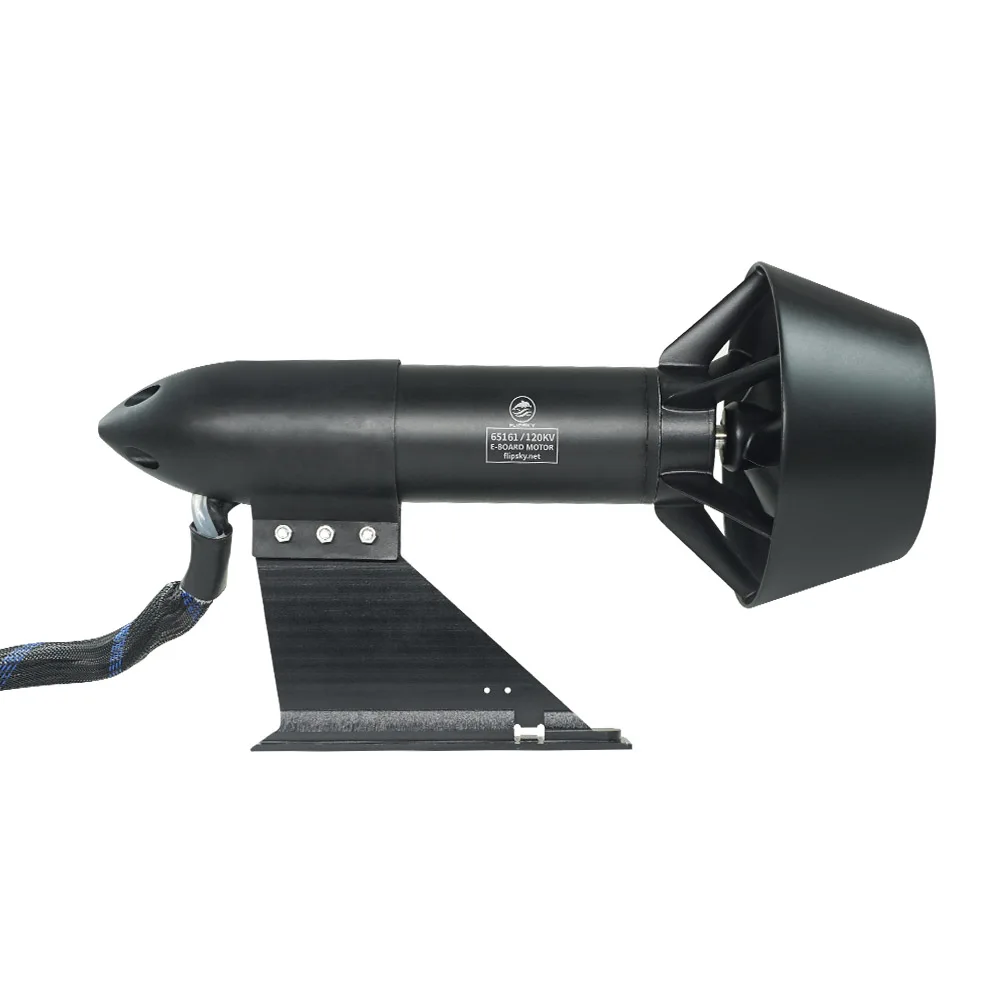

65161 Motor Spec:

• Voltage range: 6-20S (25.2-84V)


• Max Spin Speed(RPM): 16380


• KV(RPM/V): 120KV/100KV


• Max Power:6000W,rated power 3000W


• Peak current: 200A


• The number of pole: 6(please write 3 pairs when do setup)


• Max torque at 60%:9NM


• Demension: D65XL161mm


• Max working temperature: 120


• Insulation voltage & leak current: AC500V/10MA/3S


• Lead wires extension: 8AWGx1300mm


• Waterproof level:IP68


• Weight:3kg


• Plug: 8.0mm


• Motor wire: 8AWG

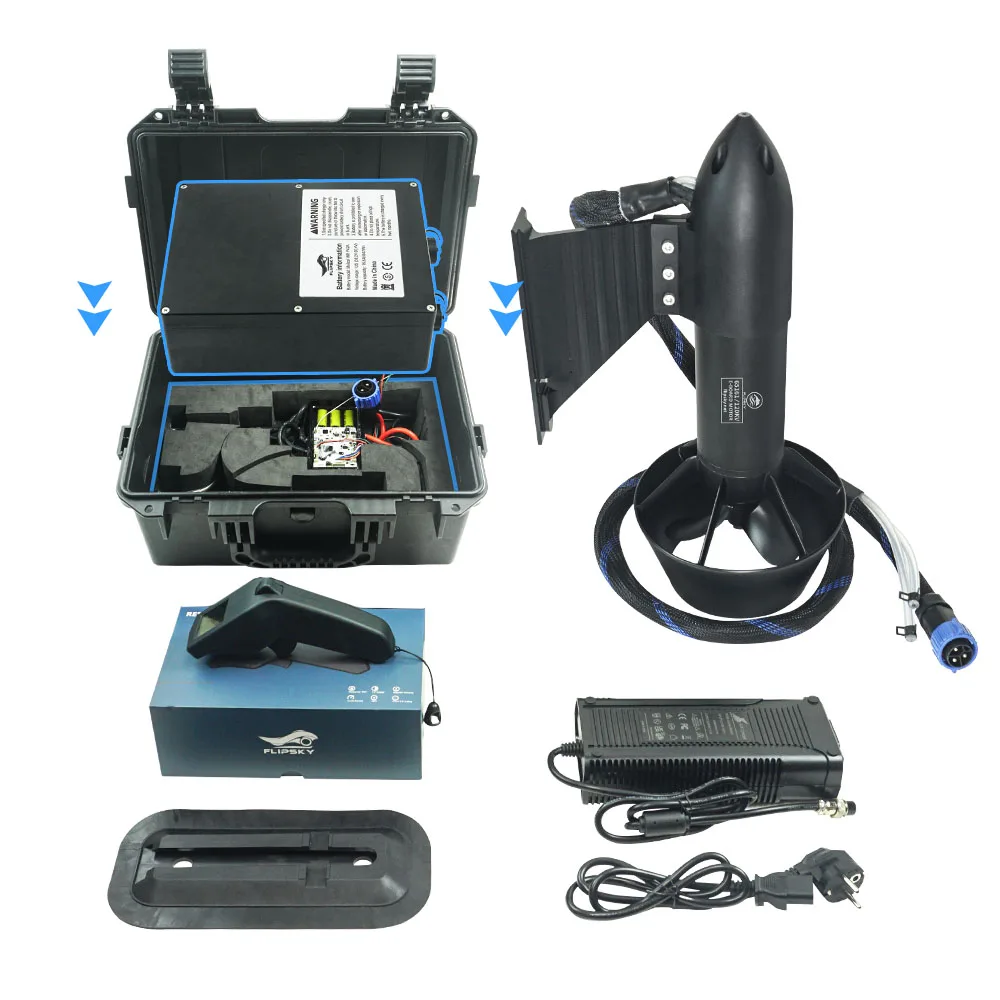

Battery box parameters:

• Battery outer box size: 371*269*186mm


• Waterproof grade: IP67


• Battery box material: ABS


• Voltage:50.4V


• Cell specifications: Molicel P42A 27100


• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.


• Environment: (-20 degrees Celsius + 50 degrees Celsius)


• Charger: 50.4V 5.5A


• Charging time: about 2.6 hours

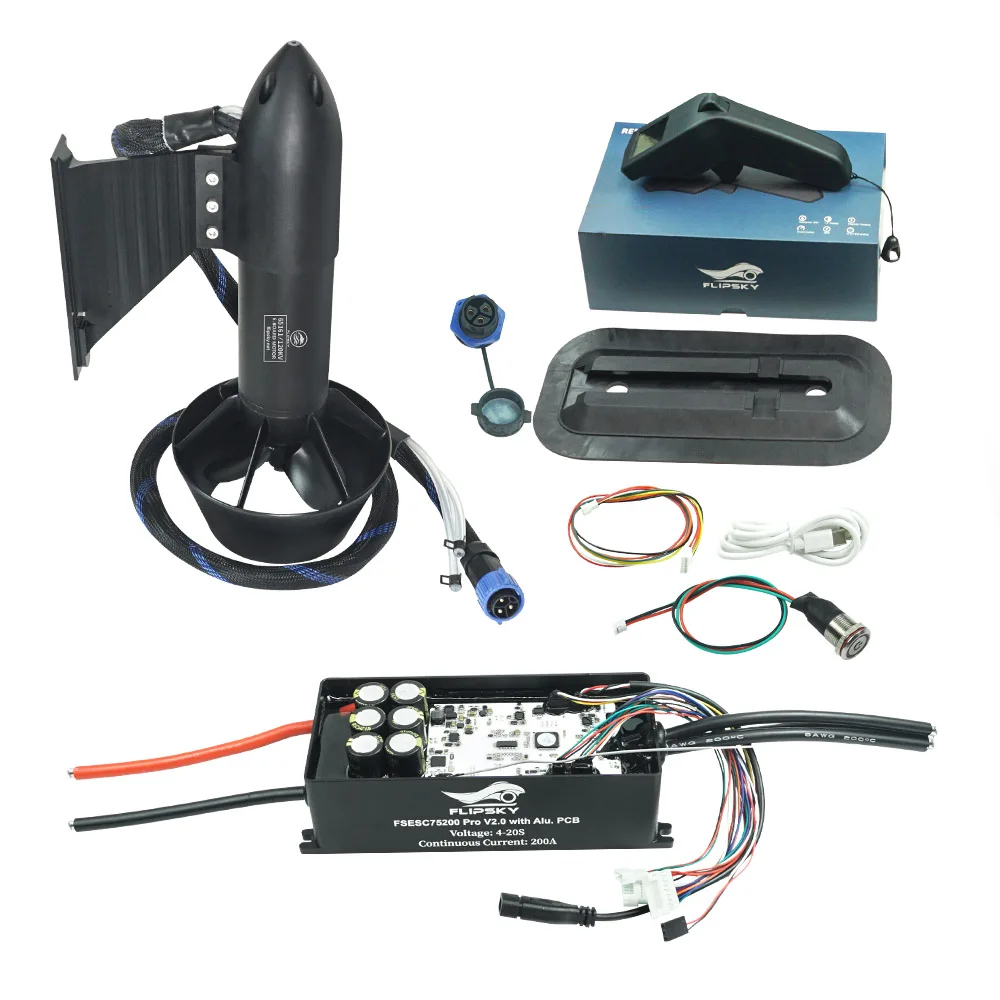

ESC:

• ESC model:75100 prov2.0


• Maximum discharge current: Maximum continuous 100A


• Voltage Range: 6-20s (25.2*84v)


• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)


• Support control protocols ppm, uart, adc, nrf, pas.

Remote control:

• Remote control:VX3 Pro


• Control mode :UART


• Remote control distance: no interference, 25 meters in a straight line


• Waterproof grade:IP67


• There are 3 adjustable gears (L/M/H)


• Functions: Cruise control, GPS speed display, infinite throttle

Wiring Diagram:

Patents&Certificates

FCC&CPSC Reports

Packing&Shipping

Company Information

Company Profile

  FLIPSKY Technology Co., Ltd was set up in 2017. It grows up quickly and powerfully. We have our own design team, manufacture team including the workshop, marketing and sales department. FLIPSKY mainly focus on second innovation research and development basing on the latest international electronic intelligence technology, manufactures and sells electronic intelligent control products and peripheral accessories.

  The co-founders of FLIPSKY is a group of passionate and innovative post-80s technology enthusiasts. They have been in the electronics intelligent automation industry for nearly 10 years and are skillful from circuit design to PCB layout, embedded software&hardware development, component selection and performance evaluation, product testing, SMT/DIP production and process quality control. Each process is fully experienced and well performed. In addition, the product mechanical designer is from TTI, who designed the RYOBI Brushless Driver Kits and other well-known products.

  The vision of FLIPSKY is to maximize the use of latest international technology and to change life by it. FLIPSKY's products can be applied in electric skateboards, electric vehicles, scooters, car models, ship models, robots and industrial equipment and other industries.

  We hope that more and more international companies and consumers will truly feel the progress that technological innovation has brought to our lives.

Contact Information

E-mail/Skype: flipskytech01(at)outlook.com

Wechat/Tel.: +86 13925798346 / +86 076982816997

FAQ

1.  Q: Can the KV value be customizable?

     A: Yes, and the extra cost is about 5USD per unit.

2.  Q: Can you do the motor without logo?

     A: Yes. Both logo customization or no logo can be acceptable if the order q'ty can fulfill the MOQ.

3.  Q: Is it FOC capable?

     A: Yes. FOC (sinusoidal) is capable.
