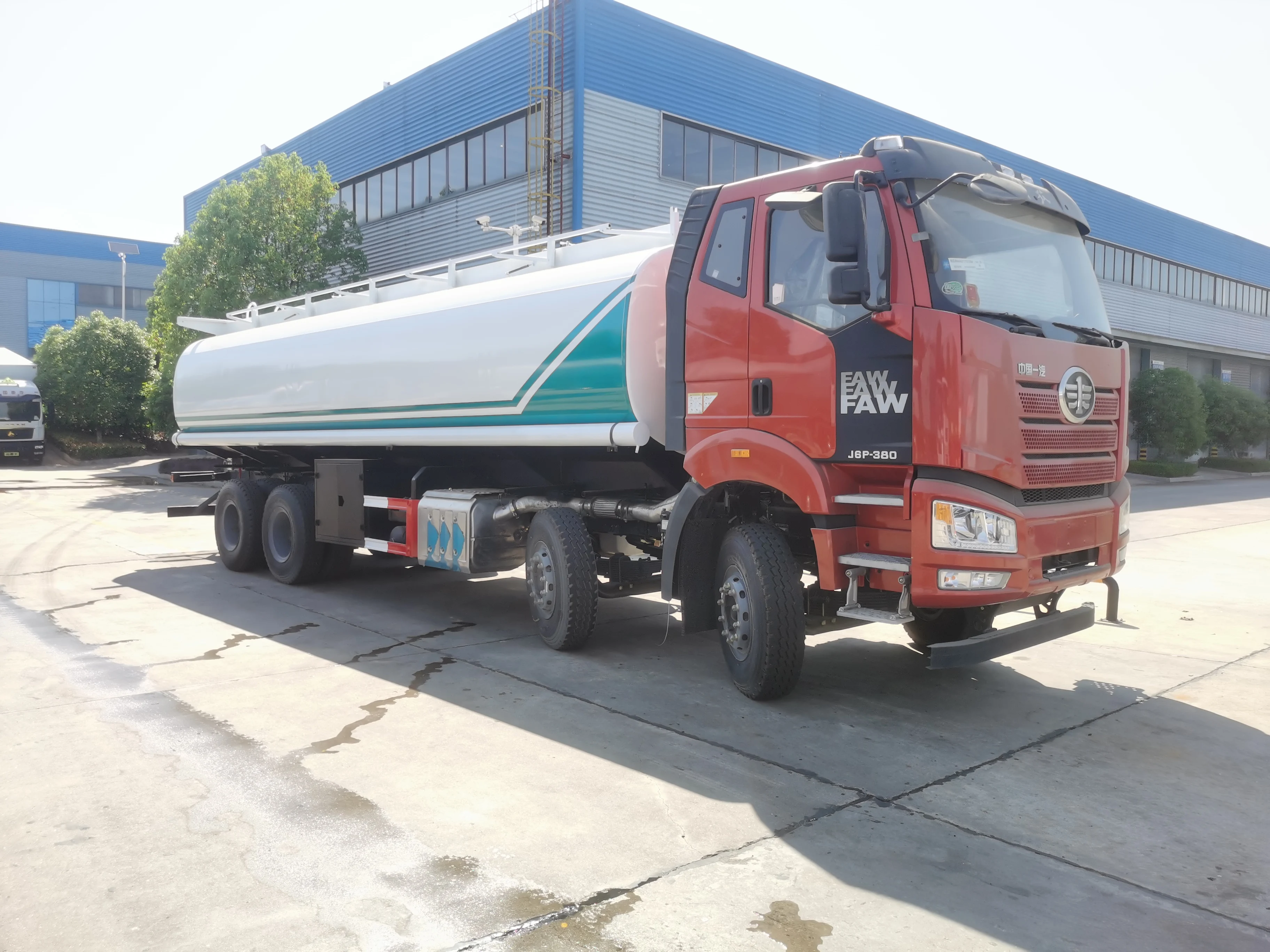

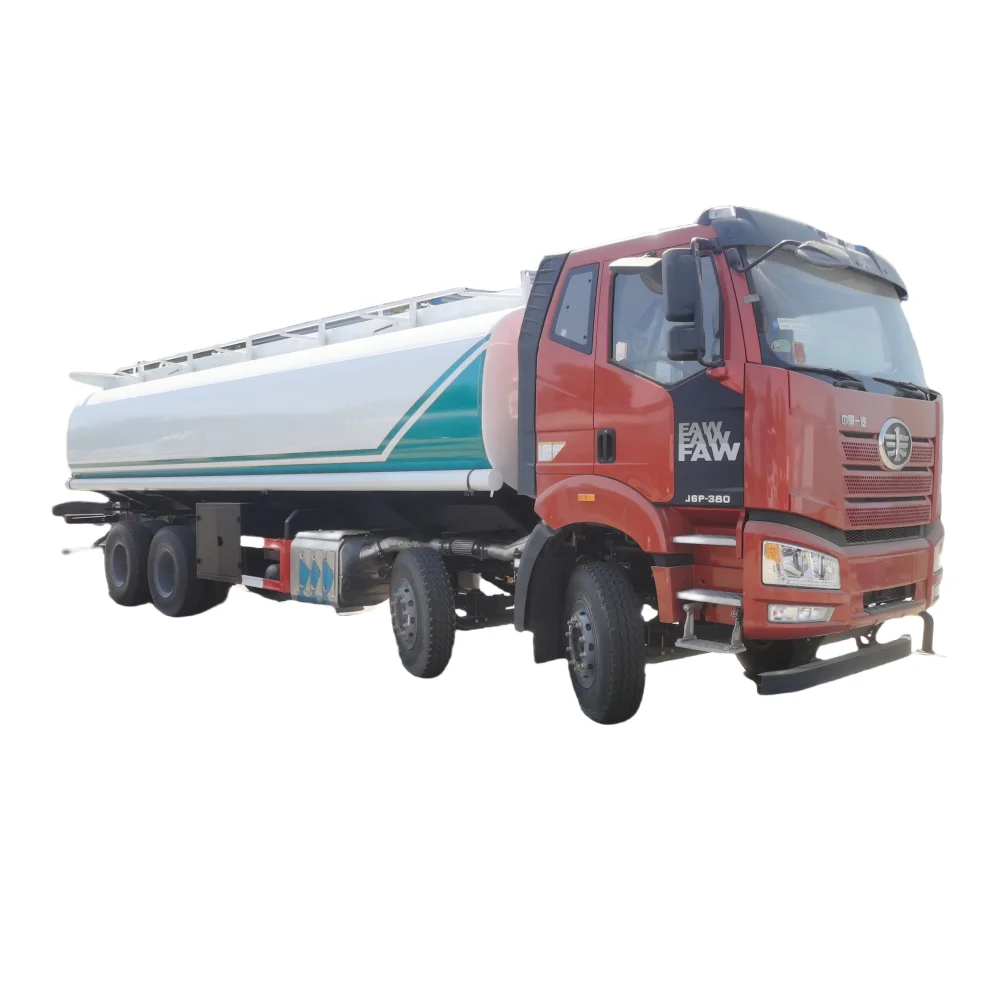

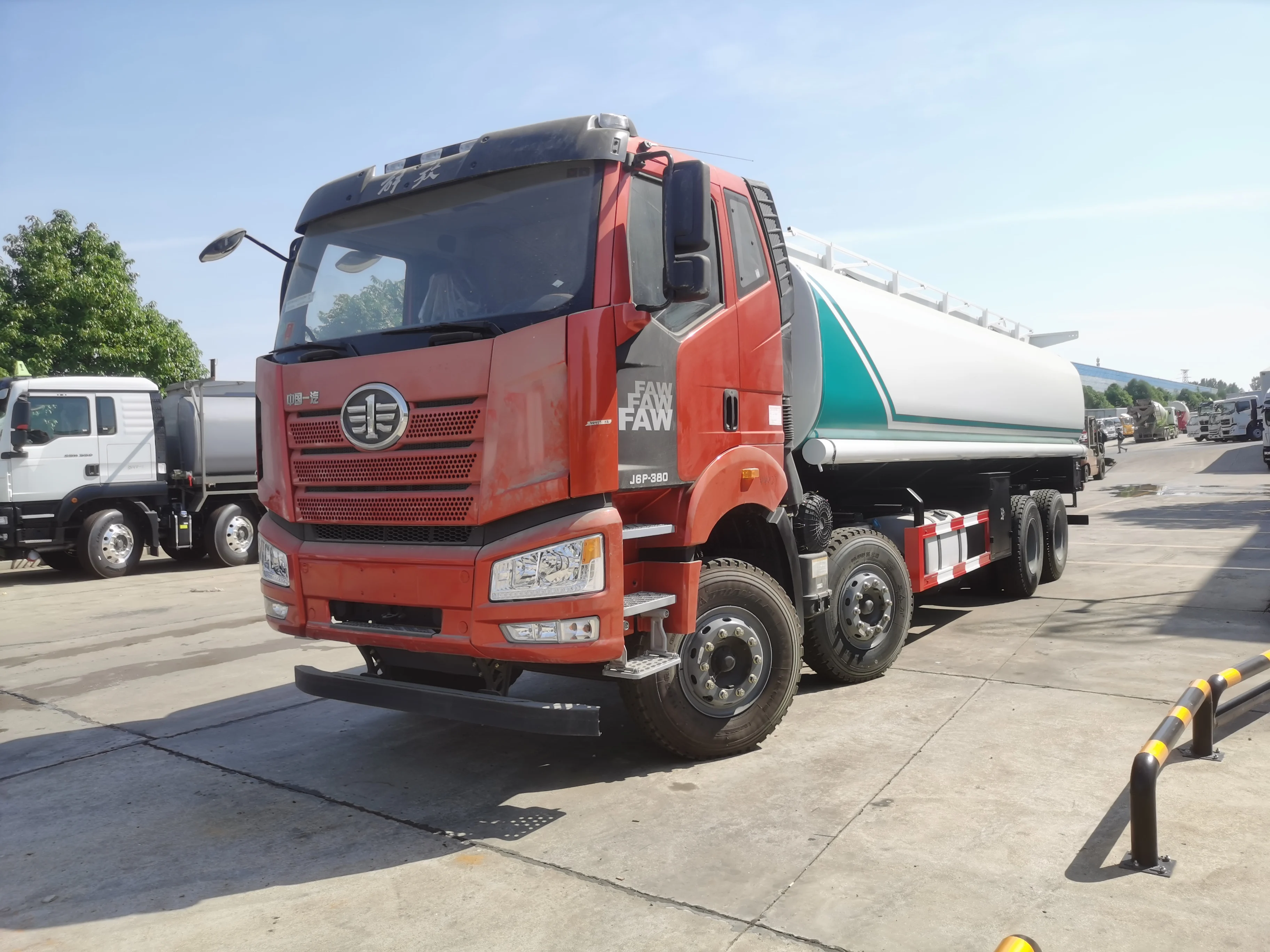

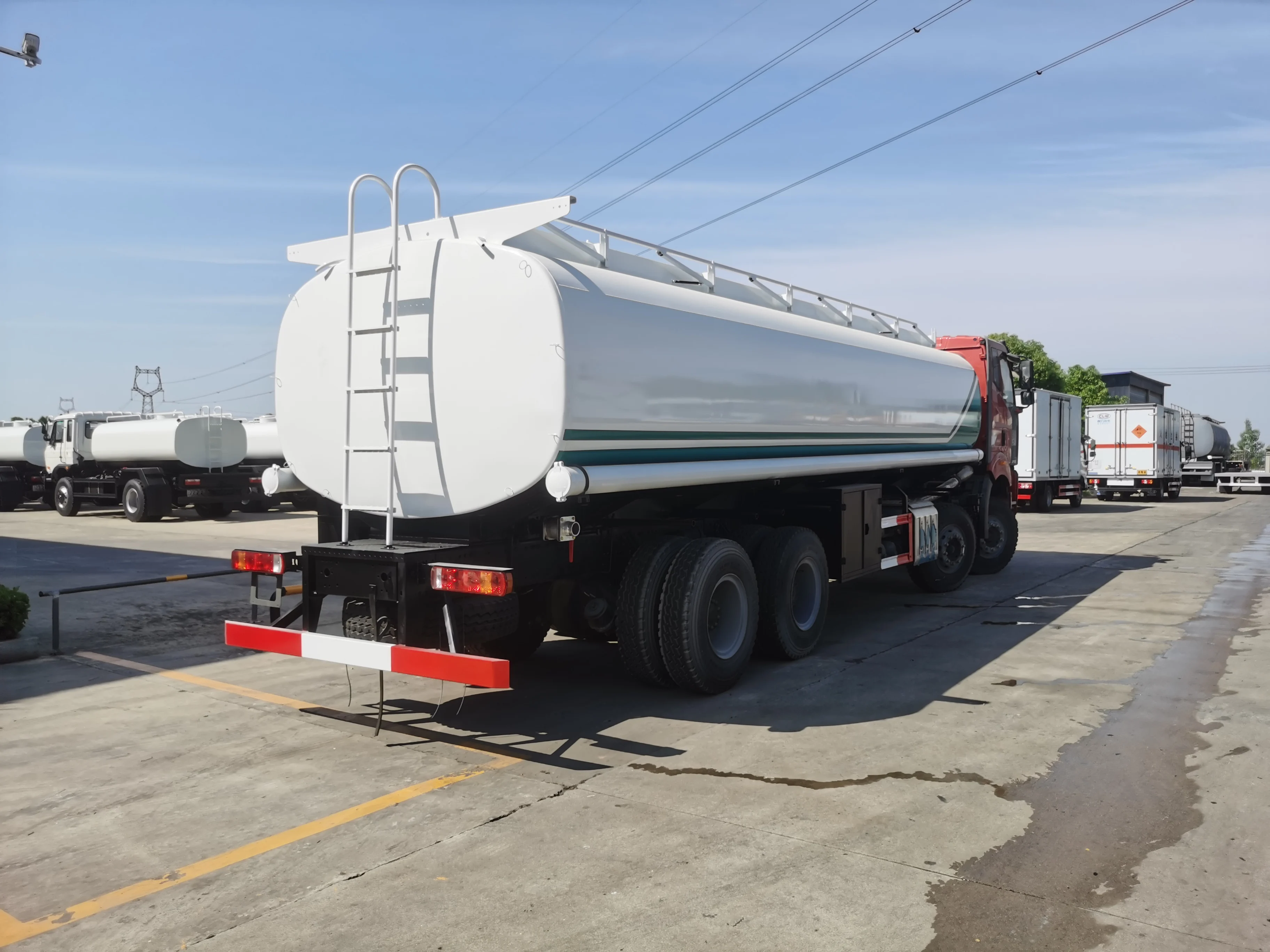

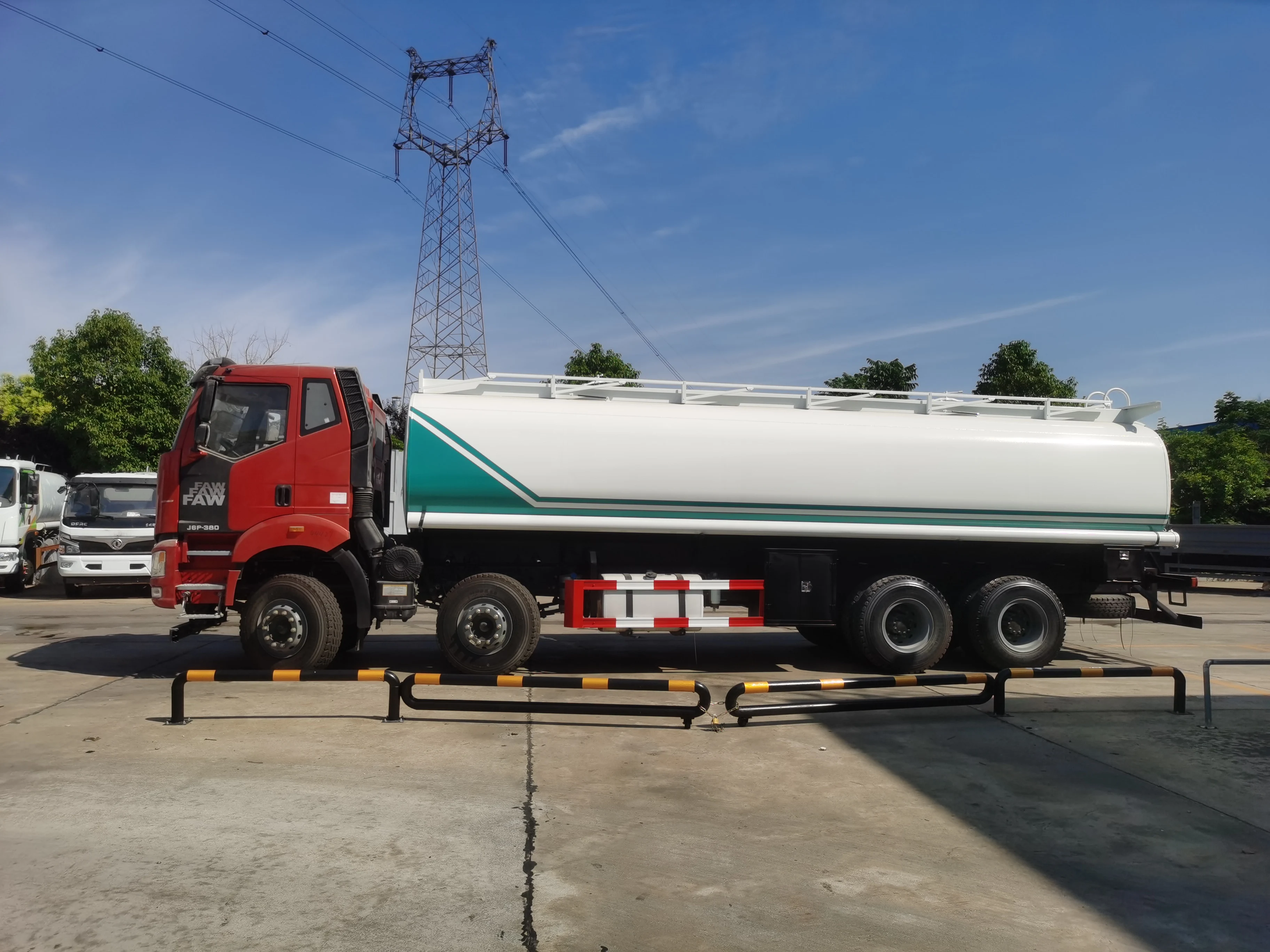

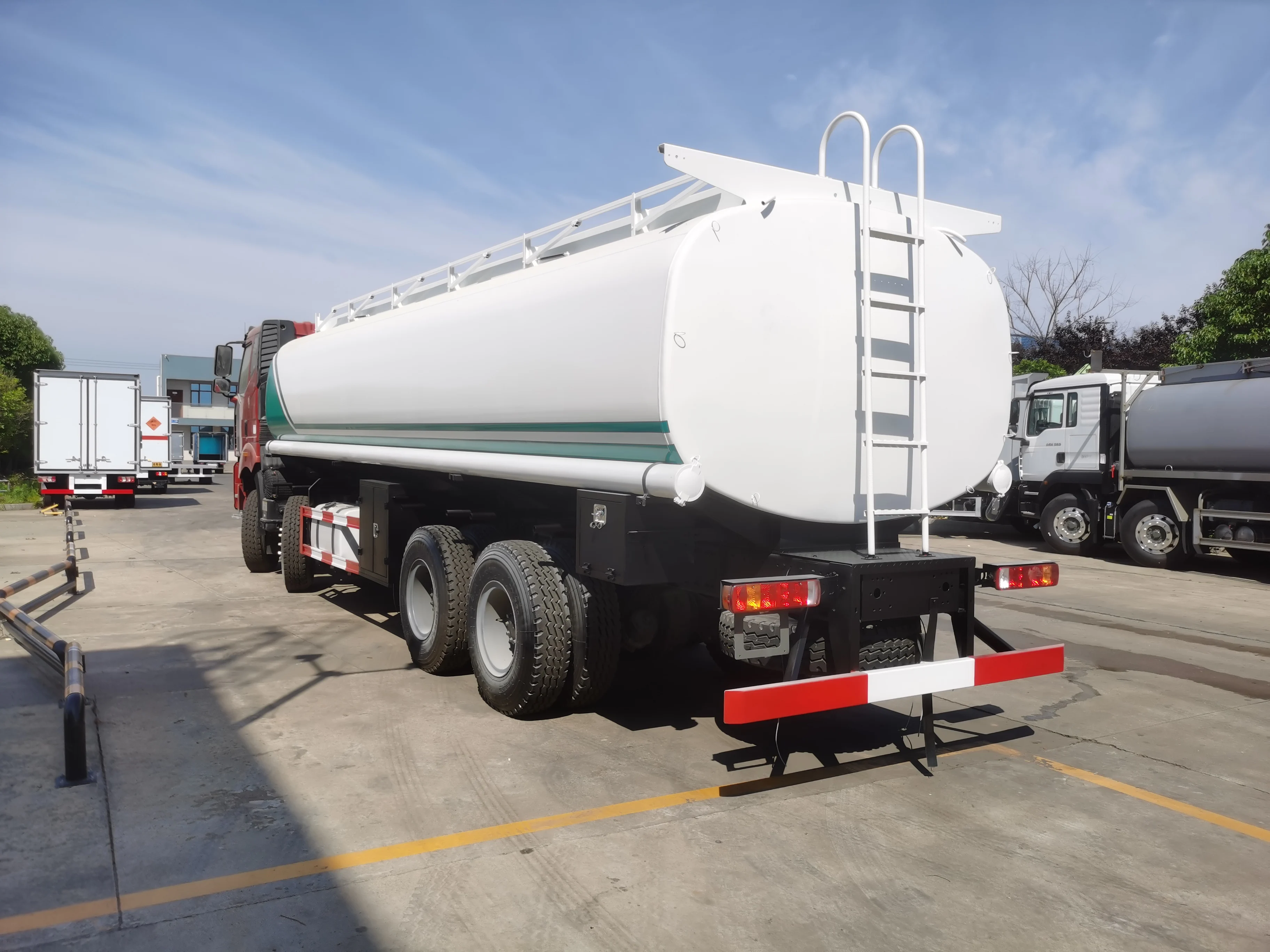

Поставка с китайского завода 8*4 FAW мобильный топливный грузовик/30000 литров бензовоз/топливный бак для продажи
2 145 729,60-2 264 936,80 ₽
FAW 30000 литров дизельного масла транспортер 8x4 топливный бак Автоцистерна для продажи
- Категория: >>>
- Поставщик: Hubei Jiangnan Special Automobile Co. Ltd.Hubei Ltd.
Сохранить в закладки 1601219851808:
Описание и отзывы
Характеристики
Product Description
Specification
Product name | FAW J6P 8×4 30 35 cubic meter fuel tanker truck refueling tanker truck | |
Chassis brand | FAW | |
Wheelbase | 4350+1300+1300 | |
Drive form | 6×4 | |
drive type | Right hand drive/ left hand drive | |
Steering gear | Hydraulic Power Steering | |
Dimensions | 9500mm*2480*3200 | |
Compacity | 30- 35 CBM | |
Engine | ||
Engine brand | FAW Xichai or weichai | |
Emission Standard | Euro 2 3 4 5 6 | |
Rated power | 240 260 290 336 , 380 HP | |
Engine Fuel | Diesel Oil | |
Gearbox | 8 OR 10 Forward gears, 2 Back gear | |
Brake | Dual-circuit, pneumatic brake Hand parking brake Engine exhaust brake | |
Tires model | 11.00.20 | |
The number of Tire | 12+1 (spare tire) | |
Front axle | 5 T 7T 9T | |
Rear axle | 10 T 13 T 16 T | |
CAB | FAW XIDAWEI OR JP6 cab with one bed ,air condition | |
Fuel tank | 400L | |
Body | ||
Material | Q355B | |
Thickness | Tank :6mm, dish head:6mm | |
Capacity | 30 to 35 m3 | |
compartment | One or two , three compartment depend on the tank capacity or the requirments of the customer | |
Baffle | Two or more depend on the tank capacity or the requirments of the customer | |
Fuel pomp | Famous brand PTO pomp | |
manhole cover and breather valve | One or two or 3 units EURO standard DN500 manhole with breather valve | |
Load ball valve adapters | One untis , DN100 or more depend on the compartment | |
Discharge ball valve adapters | One untis , DN100 or more depend on the compartment | |
level gauge | One units or more depend on the compartment | |
Emergency Valve | One unit or more depend on the compartment | |
Optional: European standard Bottom loading oil system | 1. Bottom Loading Components 2. Overfill Prevention and Grounding 3. Pneumatic Control System | |
Optional: refueling equipment | 1. flowmeter 2. refueling gun with 30 m hose reel 3. refueling machine with 30 m hose reel | |
operation box | One untis , on the right side of the truck | |
Tool box | One untis on the left side of the truck | |
Top Protection | Rollover damage protection along the top of the tanker, run the full length of the tank top, integral with the tank | |
Ladder and Walkway | A non-slip-rung ladder at the rear of the tank , with Handhold，A non-slip platform on the roof of the tank | |
Fuel hose and hose carrier | Two units 6 m flexible hose with connector , hose carrier in each side | |
Electrostatic ground belt | One , install on the rear of the chassis frame | |
Fire-Fighting | two units 4 kg dry-chemicalFire Extinguishers , two on each side | |
Hazardous Materials Signs and reflectors | 1) Three hazard warning signs to be provided at the three locations (two on both sides and one at end), sides and rear shall bear an inscription such as “FLAMMABLE LIQUID”. 2) Reflectors provided | |
Test | pressure: 5 PSI | |
pneumatic test: Certified hermetic and pneumatic testing provided with the tank | ||
Warranty | One year | |
Company Profile
Factory Show
Certifications
Customer Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you original manufacturer?
A: Yes, we are professional manufacturer of special trucks, built up in 2007, located in Suizhou City, Hubei
Province, the biggest production base of special purpose vehicles in China.
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show youthe
photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly
orapply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in
container.Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
Q8: How about the quality and warranty of your product?
A: Quality and integrity are the foundation of our enterprises to survive and success. We promise that all products we providewill
be brand new and high quality products. We give one year free warranty for all our normal products, and three years warranty for
some special products.
Q9: Why should we choose you?
A: We provide one-stop service to all of our customers, provide high quality products at low price, provide 24hours high
efficiency before&after service, provide free training. We treat our customers honestly and friendly, produce our products
strictly, operate trading processor flexibly, transport goods safely and efficiently, to ensure our customers enjoy a satisfied
business cooperation ship with us. We treat all our customers as friends and family members, and we always do our best to help
ourcustomers explore their market and grow up to stronger distributor.
Q10: What is the fastest access to start business cooperation with your factory?
A: Contact Mr Patton Gan +8617688927168 (Cell / WhatsApp / Wechat).
I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
A: Yes, we are professional manufacturer of special trucks, built up in 2007, located in Suizhou City, Hubei
Province, the biggest production base of special purpose vehicles in China.
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show youthe
photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly
orapply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in
container.Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
Q8: How about the quality and warranty of your product?
A: Quality and integrity are the foundation of our enterprises to survive and success. We promise that all products we providewill
be brand new and high quality products. We give one year free warranty for all our normal products, and three years warranty for
some special products.
Q9: Why should we choose you?
A: We provide one-stop service to all of our customers, provide high quality products at low price, provide 24hours high
efficiency before&after service, provide free training. We treat our customers honestly and friendly, produce our products
strictly, operate trading processor flexibly, transport goods safely and efficiently, to ensure our customers enjoy a satisfied
business cooperation ship with us. We treat all our customers as friends and family members, and we always do our best to help
ourcustomers explore their market and grow up to stronger distributor.
Q10: What is the fastest access to start business cooperation with your factory?
A: Contact Mr Patton Gan +8617688927168 (Cell / WhatsApp / Wechat).
I will give you most efficient service no matter you need an inquiring, visiting, buying truck, buying spares, or after service.
Похожие товары

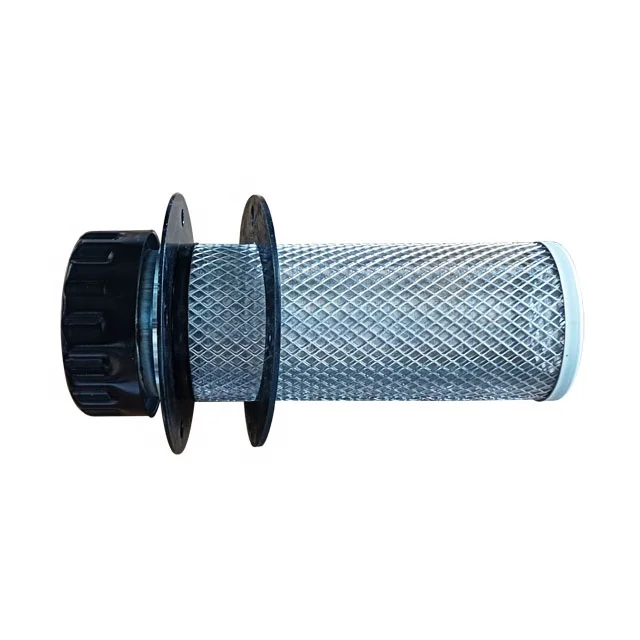

803164217 Гидравлический масляный фильтр LW300FN топливные гидравлические детали для колесных погрузчиков
1 263,60 ₽

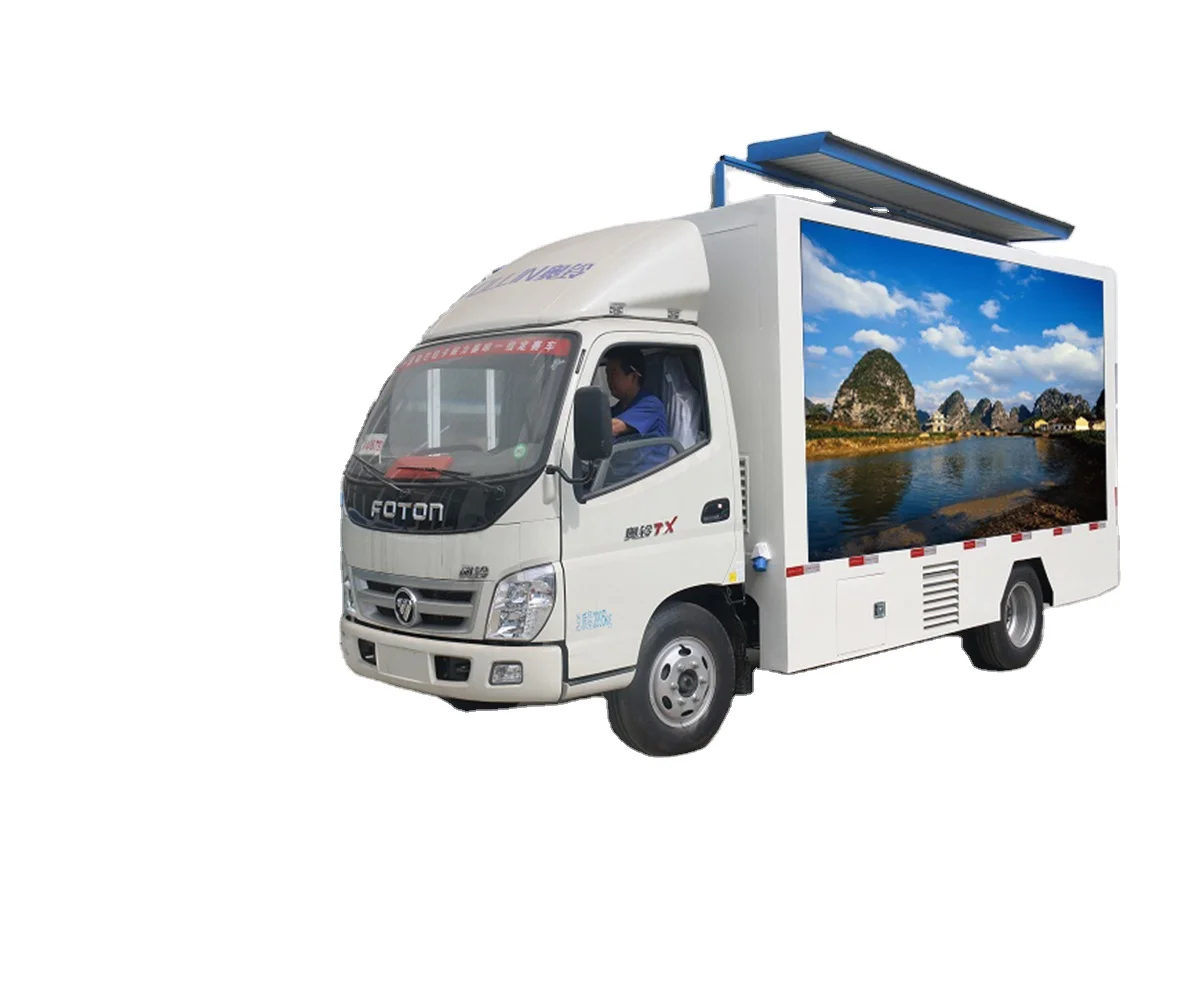

Foton специальный грузовик мобильная реклама светодиодный дисплей

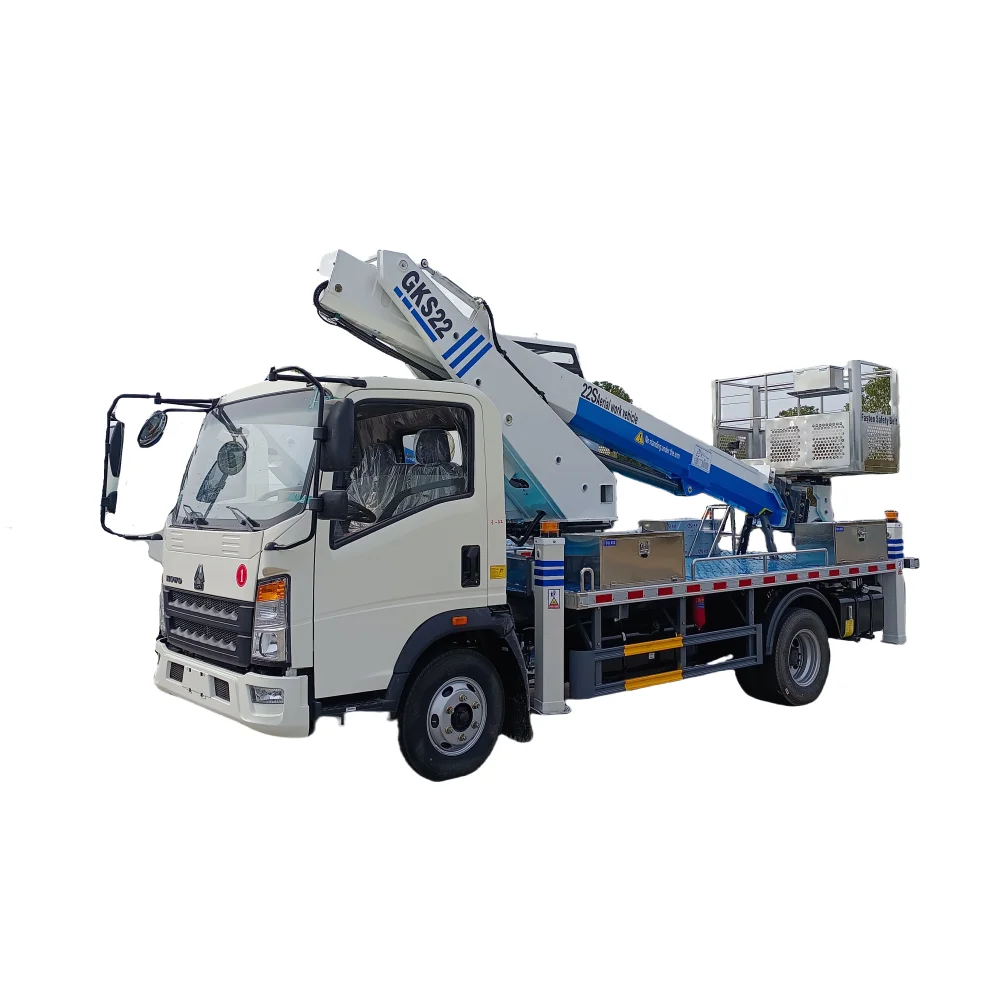

Грузовик с воздушной платформой 22 м
2 622 558,40-2 741 765,60 ₽
Sinotruk Howo высококачественный Автоцистерна для сжиженного нефтяного газа дизельный LPG служба розлива Bobtail
1 788 108,00 ₽

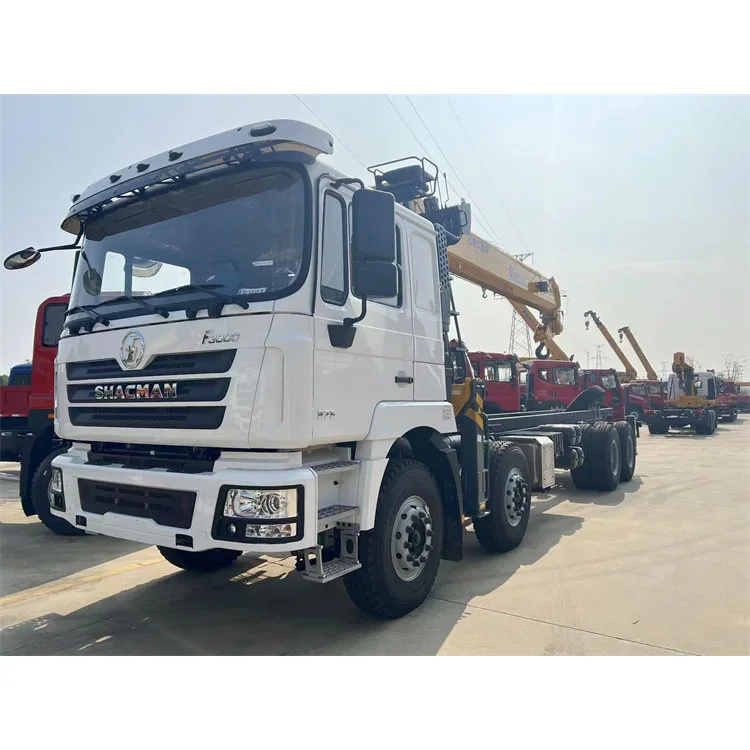

X-CMG прямой телескопический кран SHACMAN F3000 8x4 20 т
11 801 512,80-11 920 720,00 ₽

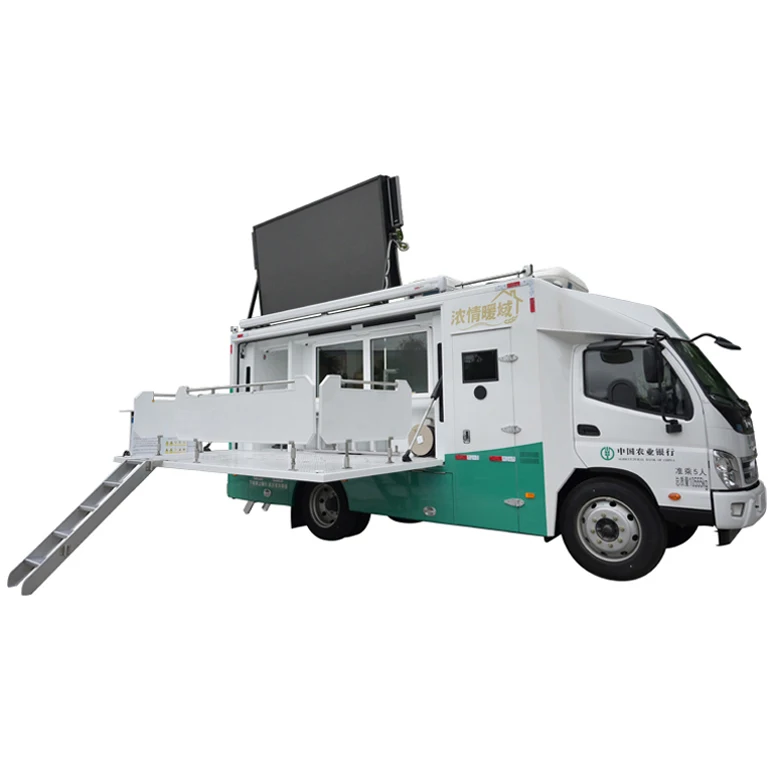

DIMA удобный для работы тяжелый грузовик шасси мобильный банковский автомобиль коммерческих районов
17 285 044,00 ₽

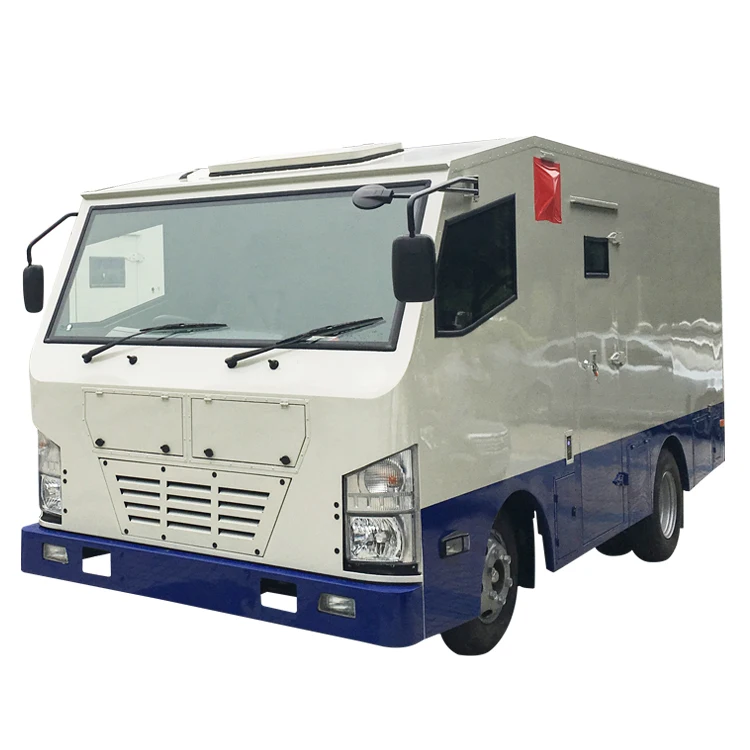

DIMA Прямая продажа с фабрики перевозчик банкнот кассовый защитный автомобиль для банковских перевозок
