Products Description



Grade A Ev 20Ah 3v 3.2v Sodium Ion Cylindrical SIB Cell 40160 40140 Cylindrical Battery For Solar Power Station Ev Ebike

This 20Ah Sodium Ion Battery Cells are a type of Cell designed for high performance, safety and durability. They are 3.1V cells with a storage temperature range of -20℃~45℃ and a charge rate of 0.5C. These cells are certified to ISO9001 standards and offer up to 3000 cycles of use.

Sodium Ion Battery cells are widely recognized as a superior battery technology that offers superior energy density, excellent thermal, good low temperature performance and chemical stability, and a high cycle life. They are perfect for applications requiring a more reliable and efficient power source.


Features and Applications




Why choose Yichen Sodium Ion Battery?

* Sodium ion batteries have better safety performance. The internal resistance of sodium ion batteries is slightly higher than that of lithium batteries, resulting in less instantaneous heat generation and lower temperature rise in safety tests such as short circuits. In the tests of all safety items such as overcharge, overdischarge, short circuit, acupuncture, extrusion, etc., no fire or explosion was found in the sodium ion battery.
* Na ion batteries have better high and low temperature performance. The high temperature discharge capacity (55°C and 80°C) exceeds 100% of the rated capacity, and the low temperature -40°C discharge capacity exceeds 70% of the rated capacity. And it can realize 0.1C charging and discharging at low temperature -20°C, and its charging and discharging efficiency is close to 100%, which has better low temperature charging performance than lithium batteries.
* Na ion batteries have better rate performance. The Stokes diameter of sodium ions is smaller than that of lithium ions, and the electrolyte with the same concentration has higher ionic conductivity than lithium salt electrolytes. The solvation energy of sodium ions is lower than that of lithium ions, resulting in faster kinetics and interfacial diffusion properties in the electrolyte


Applications of Sodium-ion Batteries

Due to the lower cost, and basically no pollution to the environment, sodium batteries will eventually be favored by energy storage and low-speed vehicles. Typical applications are as follows:

1. Solar Energy Storage System
2. Home Energy Storage System
3. Low Speed Vehicle
4. Electric boat
5. Scooter
6. Motorcycle
...


Product Paramenters








Electrical Characteristics
Model number
YCST-NA-40160-20





Nominal Voltage
3.1 V
Nominal capacity
20 Ah
Energy
62 Wh
Internal Resistance
≤ 1.8mΩ

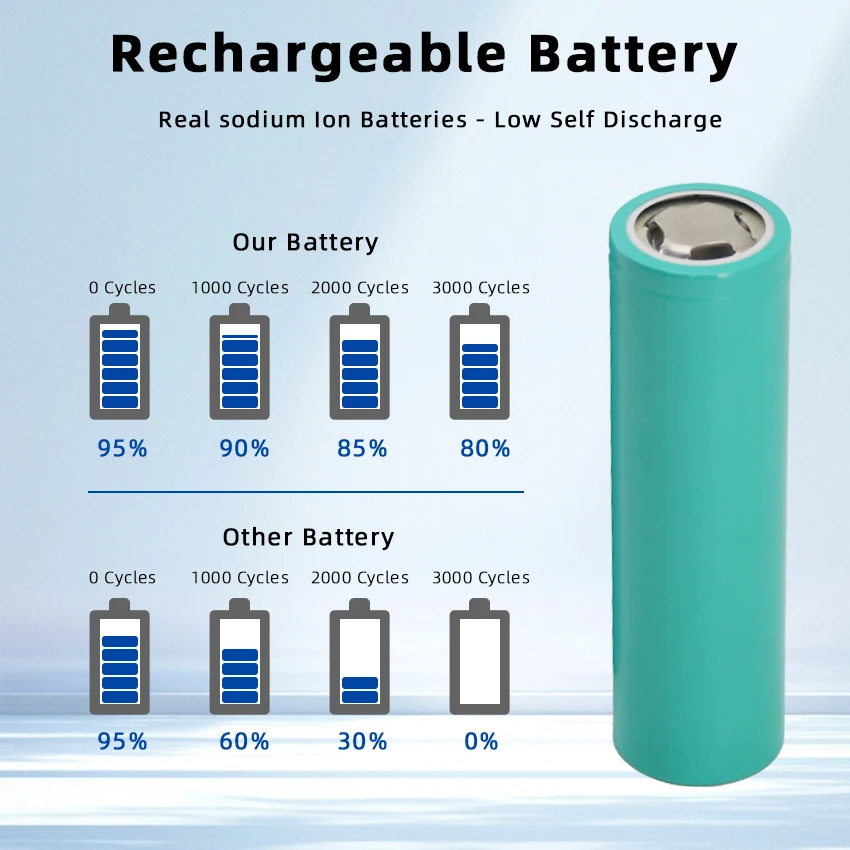

Cycle life
≥3000 cycles @ 70%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C



Standard Charge
Charge Cut-off Voltage
3.95V
Charge Mode
0.2C to 3.95V, then 3.95V,charge current to 0.02C (CC/CV)
Standard Charge Current
0.5C
Max. Charge Current
1C


Standard Discharge
Continuous Current
0.5C
Max. Continuous Current
2C
Discharge Cut-off Voltage
2V


Environmental
Charge Temperature
-10°C~45°C @60±25% Relative Humidity
Discharge Temperature
-40°C~65°C @60±25% Relative Humidity
Storage Temperature
-10℃ to 60 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
/


Mechanical
Plastic Case
/
Dimensions (mm)
40160
Weight
442 g
Terminal
/


Related Products


3.1V 75Ah Sodium Ion Battery
3.1V 185Ah Sodium Ion Battery




Why Choose YichenLFP Battery?







Technical Support and Service for Sodium Ion Battery Cells

We provide the highest level of technical support and service for sodium ion battery Cells. Our team of experienced technicians are available 24/7 to help you find the perfect solution to meet your unique needs.

Our experienced technicians can provide step-by-step instructions on how to install and use the batteries, as well as help troubleshoot any problems you may encounter. We also offer online and phone support, so you can get assistance anytime.

For larger battery projects, we can provide design and engineering services to help you create a custom solution that meets your exact requirements. We can also provide on-site installation and maintenance services to ensure that your batteries are always performing at their best.

At sodium ion battery cells, we are committed to providing the best possible customer service and technical support. Our knowledgeable and friendly team is here to help you get the most out of your batteries.


Active equalization module

Besides, we have added the active equalization module . This module can ensure that the voltage difference between cells is less than 5mV. This will greatly extend the battery life and ensure that the battery still have perfect voltage consistency after five years of operation.



Certification support

The company has been certified by TUV, UL, CE, CSA, CEC, JET, etc. At present, it has customers in more than 50 countries and regions, The cumulative production capacity in the past 5 years is greater than 300MWh, <0.3% after sale problem in 5 years.






About production:

    1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.

    2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .



Business Cooperation
As a medium level manufacturer in the development, we are more flexible and efficient in responding to medium volume orders. In addition, the potential of new energy is very promising. So we are looking for the agents and warehouses all over the world. If you are interested in working with us, please enter the command in the message: Cooperation.



Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




Company Profile


About US


Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.

The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.

Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.



Our Workshop & equipment








FAQ


Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.


Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.


Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.


Q4: Do you accept OEM/ODM?
Yes, welcome!


Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.


Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.


Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
