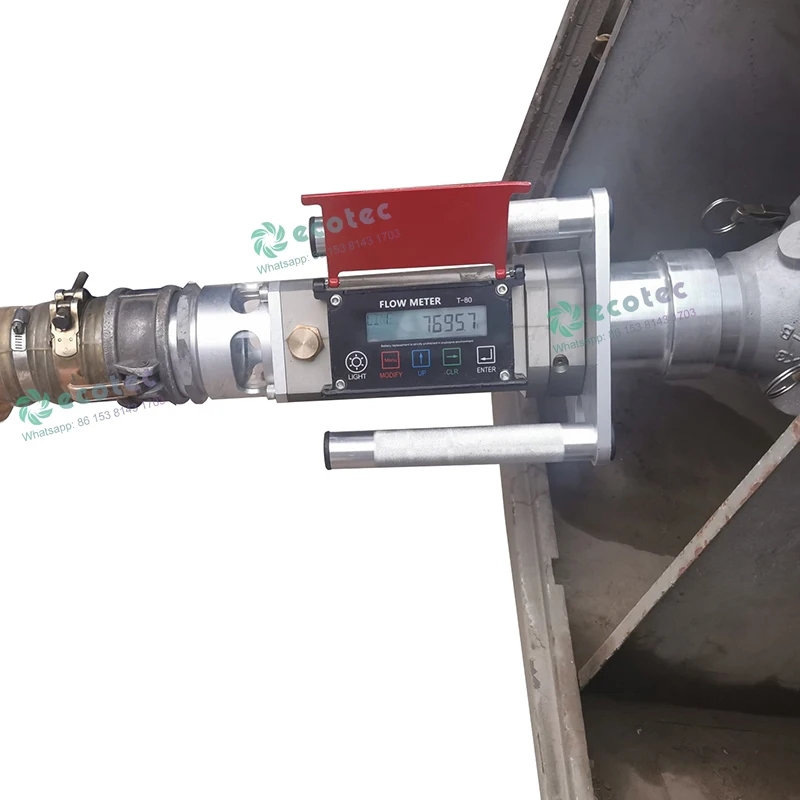

T80 гравитационный топливный танкер разгрузочный расходомер для разгрузки топлива
- Категория: >>>
- Поставщик: Wenzhou Ecotec Energy Equipment Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1601220163984:
Описание и отзывы
Характеристики
Products Description
Petrol Pump Fuel Dispenser Parts Spare Parts For Fuel Dispenser Sparepart Accessories
- Ecotec Design & Manufacture
Technical Features:
• Accuracy: ±0.2%
• Flow Rate: 130-1300L/Min
• Max pressure: 0.5Mpa
• Viscosity Range: ≤13 mm^2/S
• Product weight: 6 kgs
The type flow meter can be applied to:
• Regular unloading of oil at gas stations
• Oil receiver (tanker)
• Segmented unloading
• Oil recovery
• Calibration of tank gauge
• Portable flow meter interface specification
• Inlet interface: 3 inch quick connector Negative end (DN80)
• Oil outlet interface: 3 inch quick connector (DN80)
Data Communication
• Portable flow meter can be equipped with data collector to upload data to computer through USB data cable.
• The metering parameters and configuration files of the portable flow meter can be uploaded separately to facilitate the testing
of the equi pment (periodic inspection, inspection and diagnosis)
• Display - Metering module (UNI) manages unloading metering related operations and fault maintenance. UNI module operating
temperature range: -25°C to 55°C.
User Menu
The display metering module has no switch and the display is always on. Reset is required before starting the new test.
Save and reset the last measurement data and display the current data. Each button should last 3 seconds.
• Accuracy: ±0.2%
• Flow Rate: 130-1300L/Min
• Max pressure: 0.5Mpa
• Viscosity Range: ≤13 mm^2/S
• Product weight: 6 kgs
The type flow meter can be applied to:
• Regular unloading of oil at gas stations
• Oil receiver (tanker)
• Segmented unloading
• Oil recovery
• Calibration of tank gauge
• Portable flow meter interface specification
• Inlet interface: 3 inch quick connector Negative end (DN80)
• Oil outlet interface: 3 inch quick connector (DN80)
Data Communication
• Portable flow meter can be equipped with data collector to upload data to computer through USB data cable.
• The metering parameters and configuration files of the portable flow meter can be uploaded separately to facilitate the testing
of the equi pment (periodic inspection, inspection and diagnosis)
• Display - Metering module (UNI) manages unloading metering related operations and fault maintenance. UNI module operating
temperature range: -25°C to 55°C.
User Menu
The display metering module has no switch and the display is always on. Reset is required before starting the new test.
Save and reset the last measurement data and display the current data. Each button should last 3 seconds.
Place OF Origin | Wenzhou Zhejiang |
Warranty | 1 Years |
Customization | OEM ODM |
Brand Name | Ecotec |
Model Number | HG-PTFM Portable Turbine Flow Meter |
Item | Diesel Fuel Discharge Flow Meter |
Certification | ATEX CE |
Coupling For Option | 3" (DN80) |
Flow Rate | 130 - 1300 LPM ( 8-80m3/H ) |
Liquids | Gasoline Diesel Kerosene Ethanol Gasoline ...Oil Products |
Bluetooth | Yes |
Operating Pressure | 0.5 Mpa |
Operating Temperature | -25 - 55 Deg.C |
Min Scale | 1 Liter (0.264 Gal) |
Process Connection | 3" Quick Coupling |
Power | Rechargeable Lithium Battery Powered |
Protection Grade | IP67 |
Package In Wooden Box. | Unit Package Weight: 24Kg Unit Package Dimension: 83*30*50cm |
- Other fuel Disepnser parts
ET Vane Pumps for fuel dispenser can be used to transfer gas-liquid mixture with the function of separation theair from gasoline, kerosene, diesel etc, Pump design like Tatsuno, tokheim, bennett all avaialbleThe pump is a collection of pumping ,separation and transmission with advantage of reasonable and compactdesign, low noise, long working life, aluminum die casting, beautiful modeling.ET Gear Pump, made by cast iron is applicable to gasoline, kerosene, diesel and gasohol.inlets of the pump.Air separator, by-pass valve, check valve and inlet filter are built in.Gear Pump offer various capacity for choice, flowrate available for 45LPM, 70LPM, 9OLPM and 120LPM
Company Profile
WENZHOU ECOTEC ENERGY EQUIPEMNT CO., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customer and Dedication is what we standarding for, we will alwasy focus customers need, and struggle for it, Looking forward to cooperate with you!
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries.
Customer and Dedication is what we standarding for, we will alwasy focus customers need, and struggle for it, Looking forward to cooperate with you!
Exhibition
Ecotec frequently participate in exhibitions around the world to strengthen contact with customers and provide better services
Certifications
Ecotec produce products with higher standards than the industry, and have been certified by relevant institutions and have a variety of certificates.
Packaging & Shipping
Ecotec accept air, ocean, and land shipping, and will choose the most suitable packaging for you according to the shipping
transportation.
transportation.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
Products Specifications
Standard Model List | ||||||||||
Dispenser | Model | Product/Pump | Flow Meter /Nozzle /Hose | Display | Flow rate LPM | |||||
Suction type | A112S | 1 | 1 | 2 | 50L/M | |||||
A122S | 1 | 1 | 2 | 45L/M | ||||||
A224S | 2 | 2 | 4 | 50L/M | ||||||
A112R | 1 | 1 | 2 | 50L/M | ||||||
Submersible type | A122R | 1 | 1 | 2 | 45L/M | |||||
A224R | 2 | 2 | 4 | 50L/M | ||||||
Nozzle number, product number ,flow rate all can be customized, contact for more details | ||||||||||
Specification | ||||
Pump | Type | Optional (tatsuno, tokheim, bennett, submersible) | ||
Inlet Pressure | ≥54kPa. | |||
Flow rate (L/min. ) | 55±5 | |||
Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |||
Type | Optional | |||
Accuracy | ±0.2% | |||
Voltage(V) | 110V/220V/380V, 50Hz/60Hz | |||
Capacity(HP) | 1HP(0.75kw) | |||
Input Voltage | 110V/220V/380V, 50Hz/60Hz | |||
Nozzle | Auto Shut-off Nozzle | |||
Environmental Condition | -40ºC~~+55ºC | |||
Control Type | Solenoid Vale Control Type | |||
Preset | Function Provided(Small LCD Indicator) | |||
Display(Counter) | Type | LCD and Bright Backlight | ||
Digit of Volume | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~999, 999(6 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~9999(4 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Type | LCD and Bright Backlight | |||
Digit of Volume | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Amount | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |||
Digit of Unit price | 0~~999999(6 Digits), Decimal point can be changed | |||
Digit of Total Range | 0~~99, 999, 999, 99 | |||
Totalizer | 1~~9, 999, 999 | |||
Hose | 4.5m | |||
Weight | 250kg | |||
Dimension(L×W×H) | 1060*600*2200(mm) | |||
Qty of Container | 40FT: 66pcs 20FT: 22pcs | |||
Похожие товары
Китайский поставщик новый вилочный погрузчик 3 тонны мини цены лидер продаж в Европе ручной Электрический 2 с CE
7 690,00-9 399,00 $

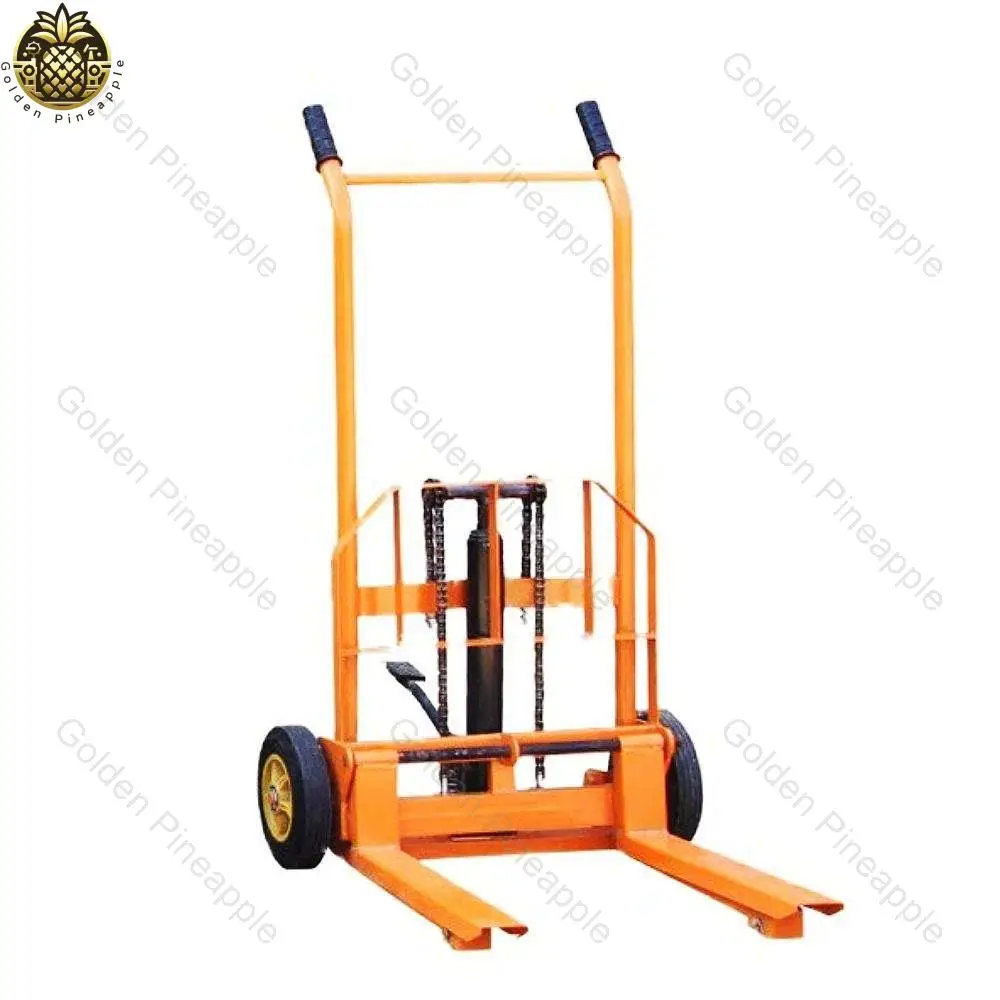

Небольшой бытовой ручной гидравлический автомобильный микропогрузчик: подталкивающая легкая подъемная платформа для разгрузки и хранения инструментов
