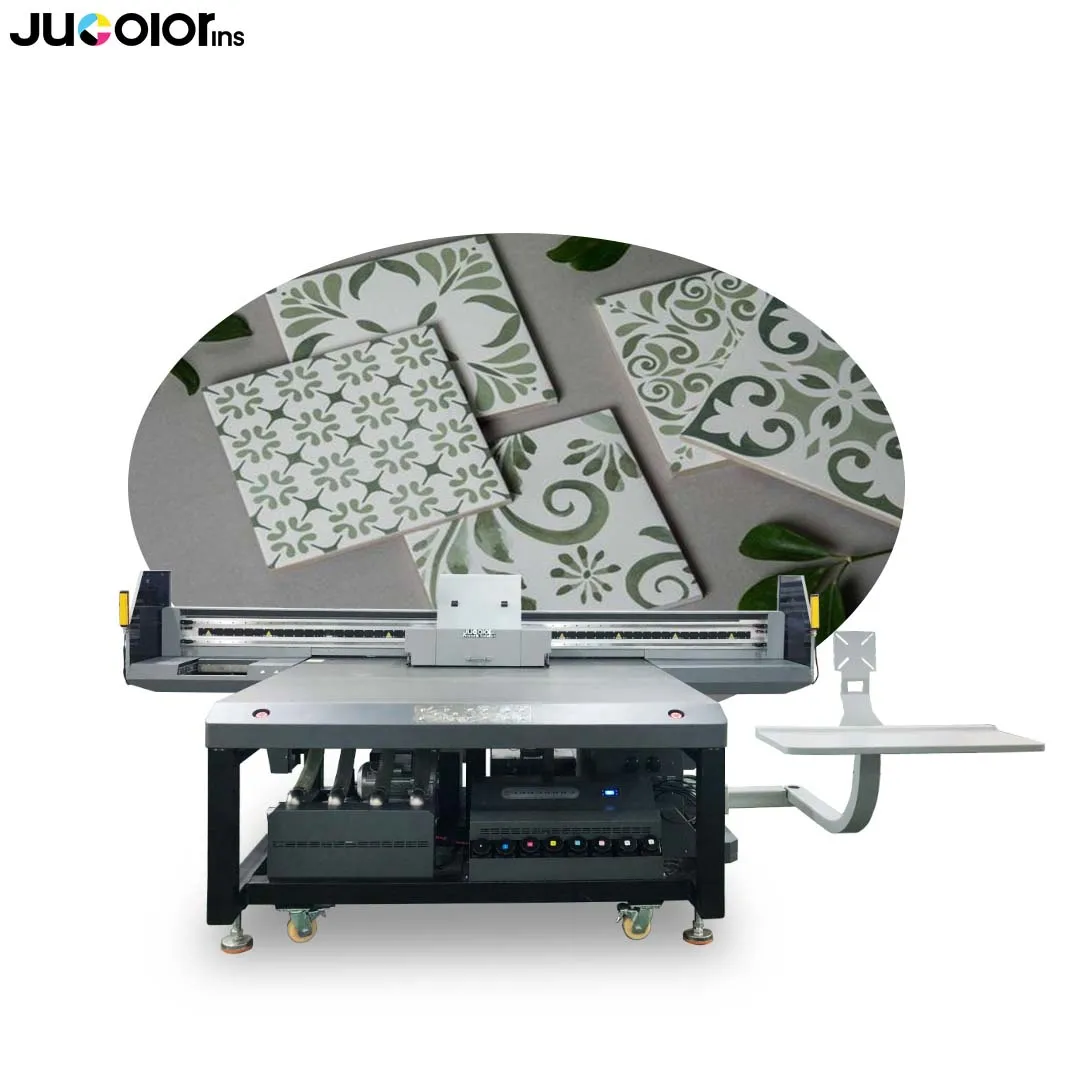

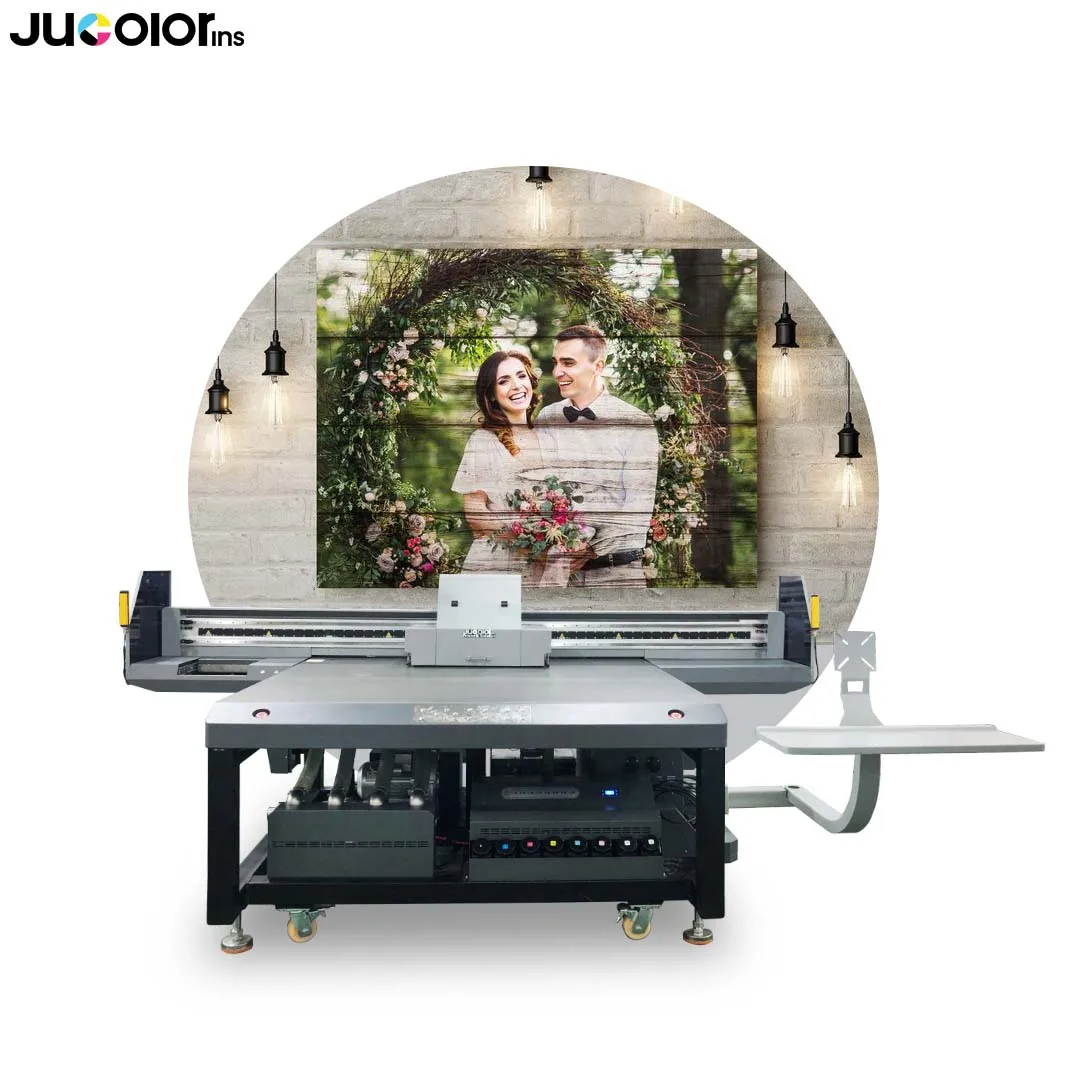

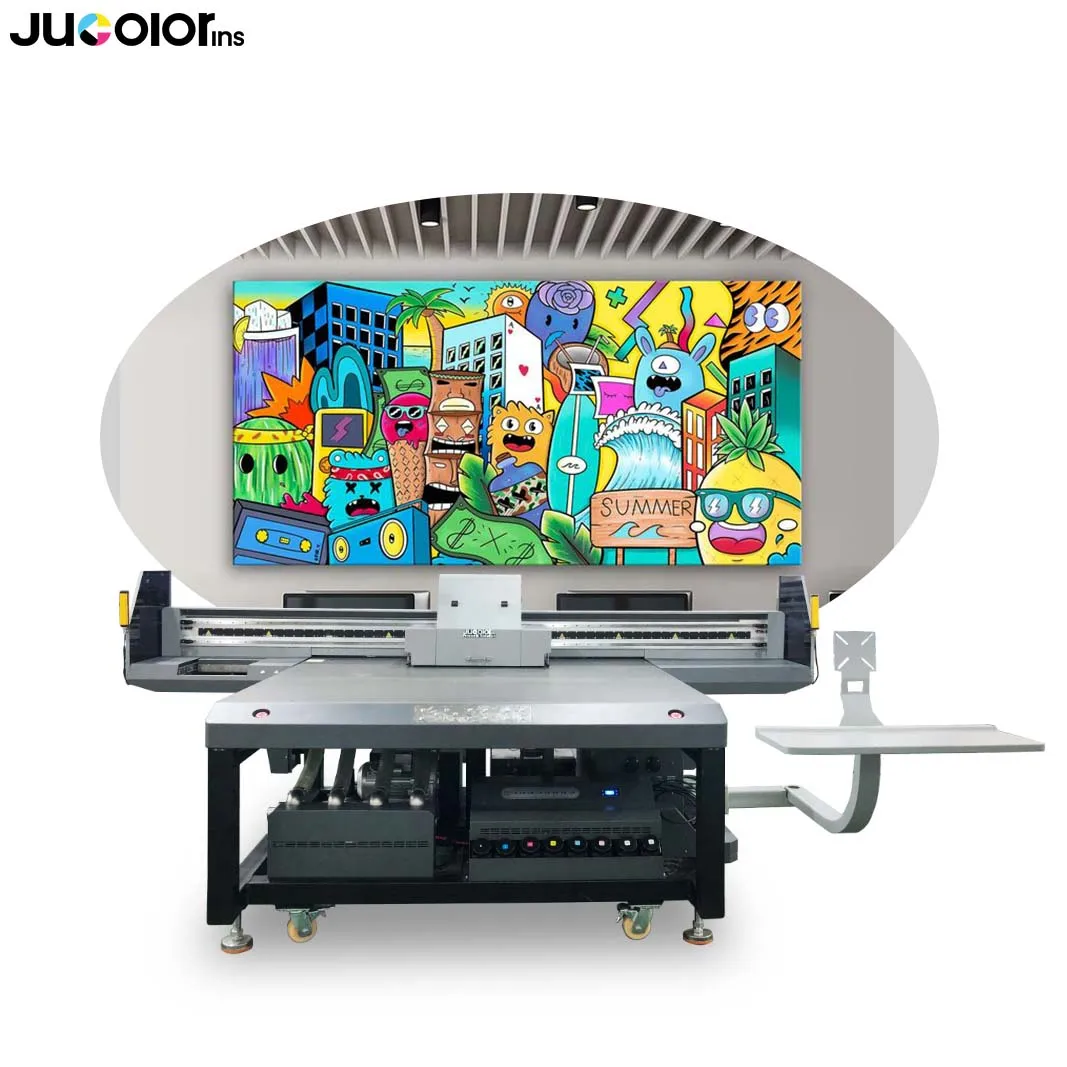

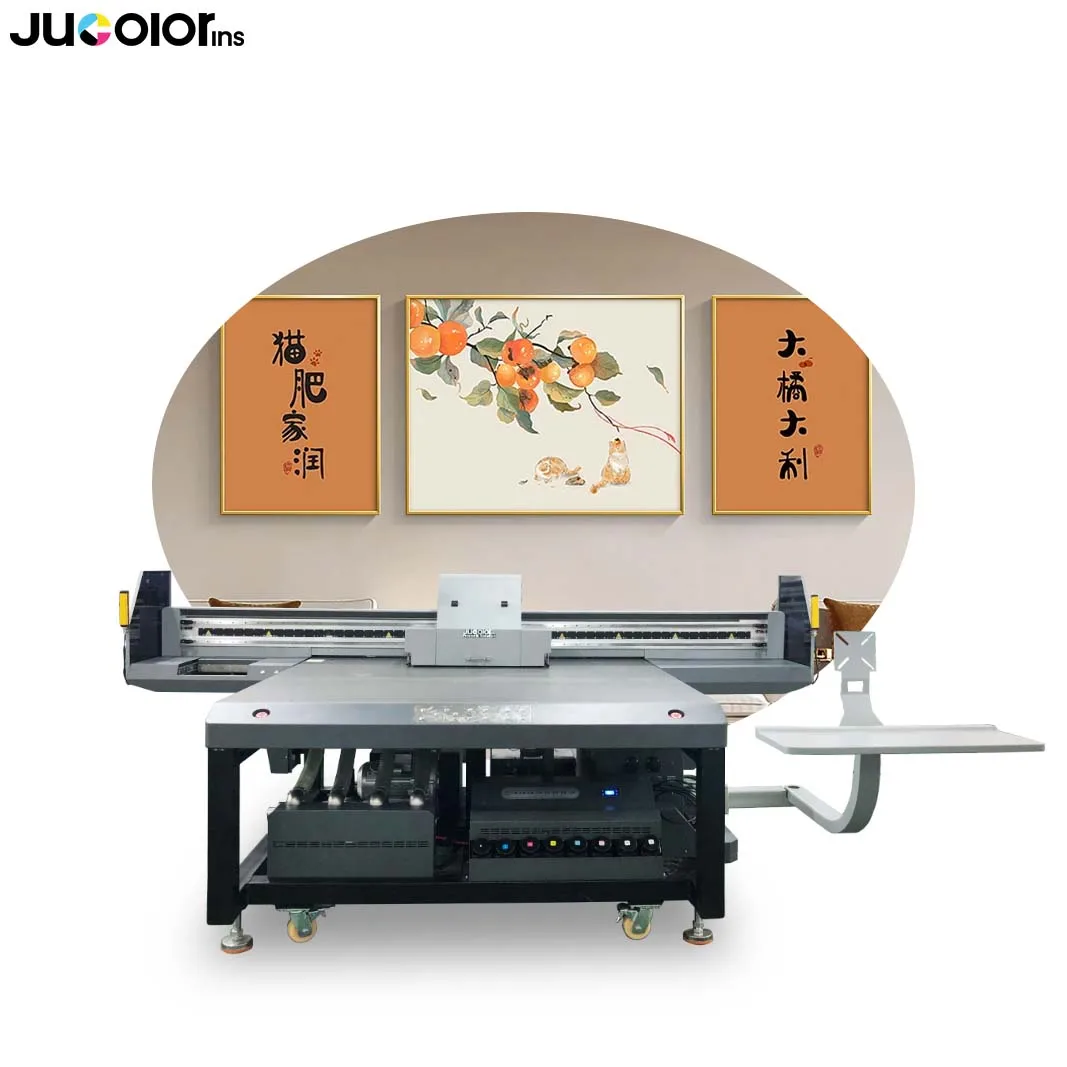

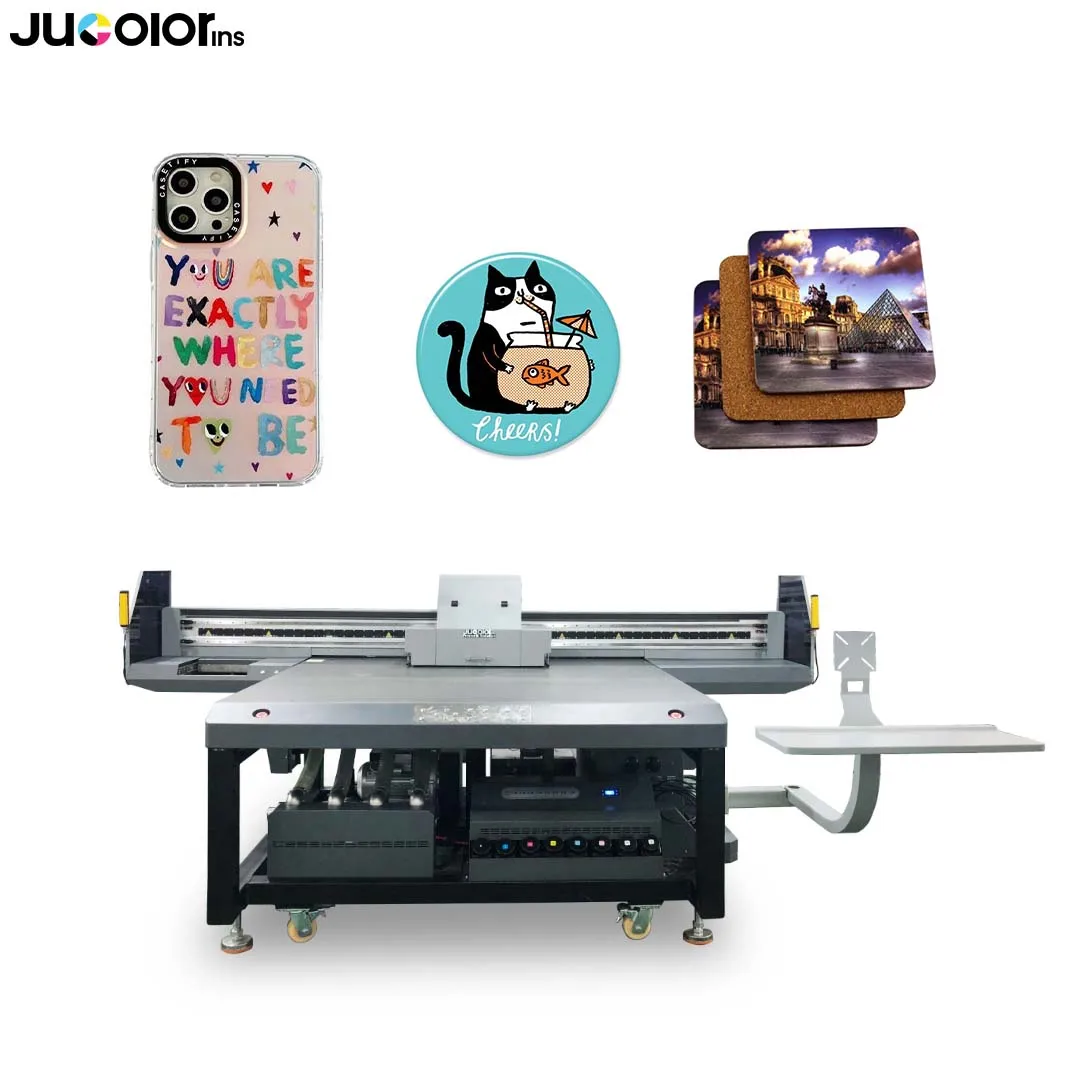

Jucolor лидер продаж промышленный принтер 1613uv широкоформатный планшетный для резинового баннера печать на деревянной доске
- Категория: >>>
- Поставщик: Shanghai jucolor industry Co .Ltd
Сохранить в закладки 1601220215448:
Описание и отзывы
Характеристики
Model | CJ-UV1613Pro | Ink type | Uv led curing ink | |||
Print head | RICOH GEN6/GEN5/G5i Print Heads | Ink color | CMYK, LC,LM,White, Varnish | |||
Print size | 160*130cm/5.3*4.3ft | Print height | 36cm/14'' Accept Customization | |||
Numbers of print heads | 3-5 | Cartridge Capacity | 1000 ML each color, lack of ink alarm,White Ink Stirring | |||
Printing medias | Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc | |||||
Resolution | 720DPI 900DPI 1200 DPI 1800DPI | |||||
Printing Speed | 10-120 m2/h(different print heads different printing speed) | |||||
Power Supply | 50/60Hz, 220-240V 5KW | Working temperature | 16℃-30℃（62℉-86℉） | |||
RIP software | SAI flexi print | Working humidity | 40%-60% | |||
Printer size | 2950*2050*1426 mm,850 kg | Packing size | 3150*220*145 cm 1335 KG | |||
Products Description
Print head
* Ensure printer longer stable, high quality printing out
* Support cmyk/cmyk,lc,lm+white+Varnish inks printing one pass, 3D embossed effect printing varnish glossy effect printing
* 15 mm high droplet printing
* support 3-5 pcs print heads for fast speed printing,
* Support cmyk/cmyk,lc,lm+white+Varnish inks printing one pass, 3D embossed effect printing varnish glossy effect printing
* 15 mm high droplet printing
* support 3-5 pcs print heads for fast speed printing,
Layout of print heads
* Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh Gen6 print head adopts an all-steel structure, which is extremely.
* corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.
* 5.0pl , the variable drop technology enables excellent print output quality.
* corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.
* 5.0pl , the variable drop technology enables excellent print output quality.
Layout of print heads
* Using Japan's Ricoh Gen6 all-metal industry print head, Ricoh Gen6 print head adopts an all-steel structure, which is extremely.
* corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.
* 5.0pl , the variable drop technology enables excellent print output quality.
* corrosive, long working life, can be more than 3 years, high stability, greatly reduces maintenance time and cost.
* 5.0pl , the variable drop technology enables excellent print output quality.
Magnetic levitation linear motor
* Jucolor 1613 Gen6 print head printer adopts linear motor, reliable and long life, fast printing speed, simple structure,
accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running
time without wear.
* Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the
customer's requirements for printing speed. * Low noise effectively alleviate noise in working environment, reliable and long life
can effectively reduce replacement cost.
accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running
time without wear.
* Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the
customer's requirements for printing speed. * Low noise effectively alleviate noise in working environment, reliable and long life
can effectively reduce replacement cost.
Printer ink
We will provide custo mers with our company-specific ink, and we do not recommend customers to buy other brands of ink, because
the ink quality of each brand is different, it may cause damage to the machine, and it is not easy to use for a long time.
the ink quality of each brand is different, it may cause damage to the machine, and it is not easy to use for a long time.
4 pcs printing heads - printing speed
8 pcs printing heads - printing speed
The all-metal secondary ink cartridge
Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate.
Hard oxide adsorption platform with automatic positioning function.
Jucolor 1613 printers use Hard-oxidized honeycomb-hole sub-chamber adsorption platform has strong adsorption capacity, which can effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensure high-precision printing output, avoid print heads scraping caused by material warping. Damage problem, adsorption area can be adjusted at will, platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean.
Pin Position System
Easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials.
Auto Thickness Sensor
Pin sensor to measure thickness upto 15cm/5.9inch
Easy to alignment of substrate quick loading, facilitate users to quickly find printing position and allow customers to quickly place materials.
Auto Thickness Sensor
Pin sensor to measure thickness upto 15cm/5.9inch
Four wind zone design
With this design, The area that needs suction can be opened at will, and the application is more flexible
Adopt a new four-pipe process, simplify the pipeline, and the suction force is not reduced.
Adopt a new four-pipe process, simplify the pipeline, and the suction force is not reduced.
Automatic height measuring system
Automatically detect the suitable printing distance between the nozzle and the printing material. Accurate, efficient, convenient and fast, effectively avoid problems such as ink flying and blurred printing quality caused by incorrect printing height, ensure high-quality print output, effectively support bidirectional high-speed printing
automatic collision avoidance system
Jucolor 1613 uv printer equipped anti-collision system for print head. This anti-collision system sensors are equipped on both sides of printing system. When safety of print heads are threatened, this system will stop printing directly, effectively protecting print head from being damaged.
Y-axis dual servo motor drive
For Y axis, we use dual motor drive. Compared with single motor, dual motor has a simpler structure,running directly, no need belt, avoids the poor accuracy of belt drive, the failure rate is high, drive more accurate, and failure rate is lower.
Variable Sized Droplet Technology
The ink drop size can be well controlled, making the printed pattern transition more natural, making the printing effect
outstanding.
outstanding.
Похожие товары
Струйные принтеры многофункциональная цифровая струйная печатная машина для рекламной промышленности
Торт горячий пользовательский латте арт принтер машина изображения простой в использовании печати
Принтер Для Фотопечати 1 3 м высокого качества 8 цветов

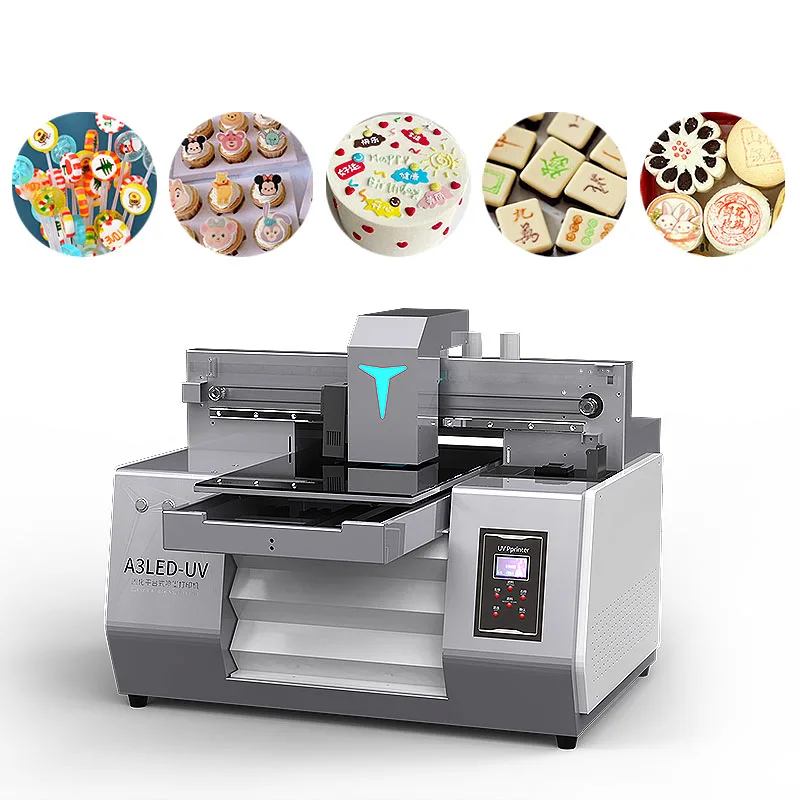

Изготовитель на заказ A3 UV принтер для пищевых изображений печатная машина тортов и конфет
Новое поступление мини-футболка печатная машина для стеклянной пластиковой кожи деревянная сертифицированная CE

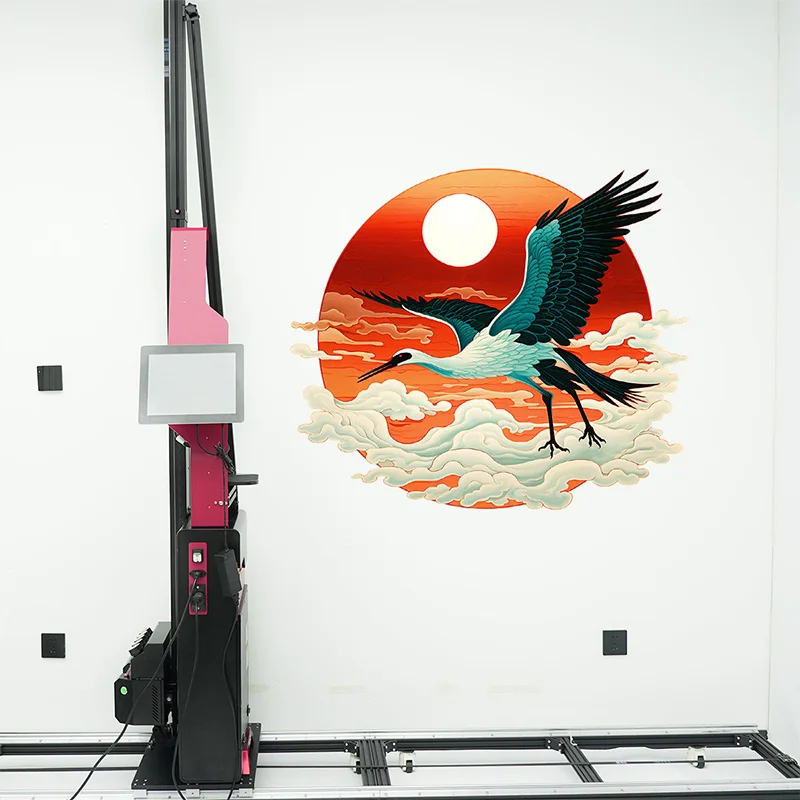

3D dX10 настенный принтер украшения изображения печатная машина Uv чернила Вертикальная настенная

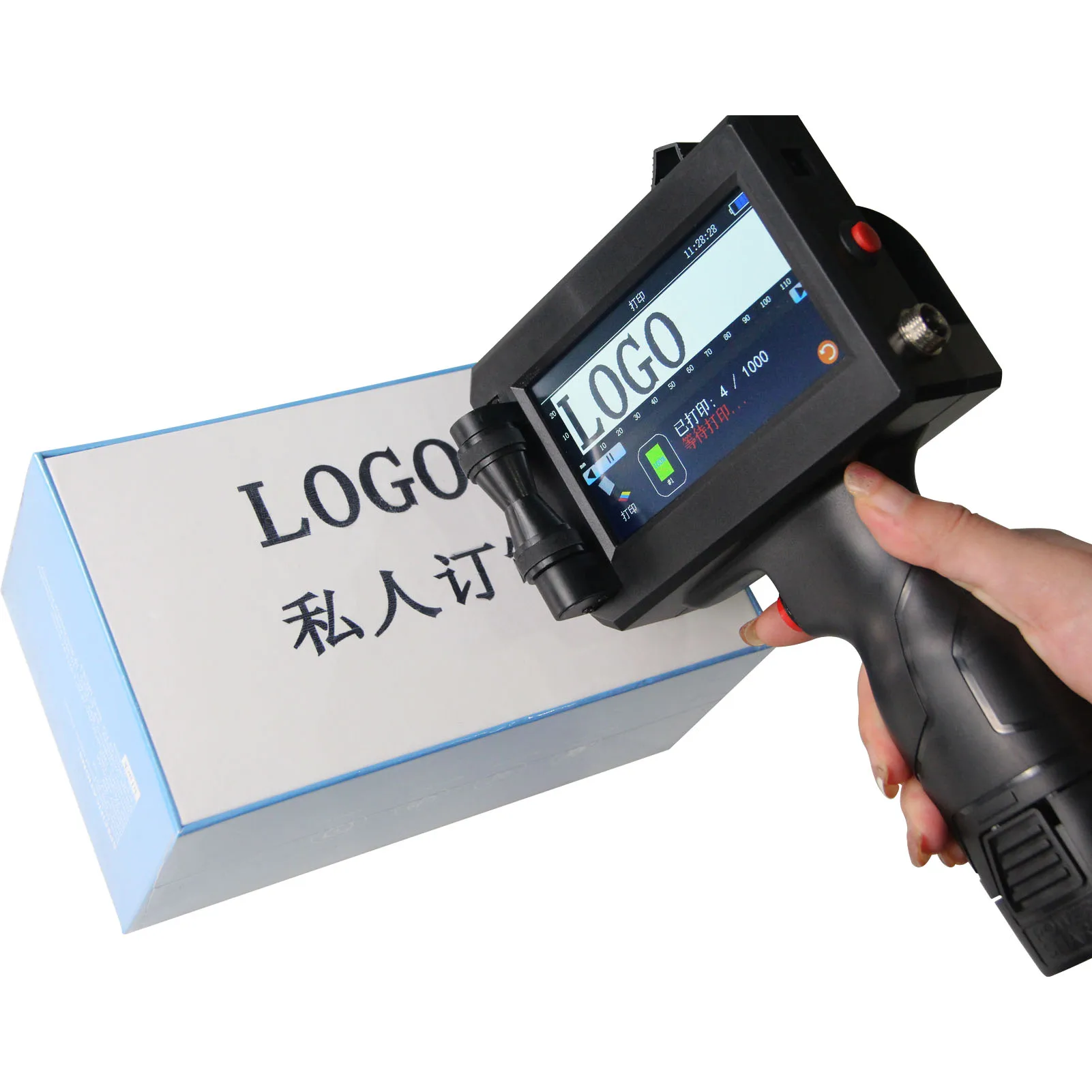

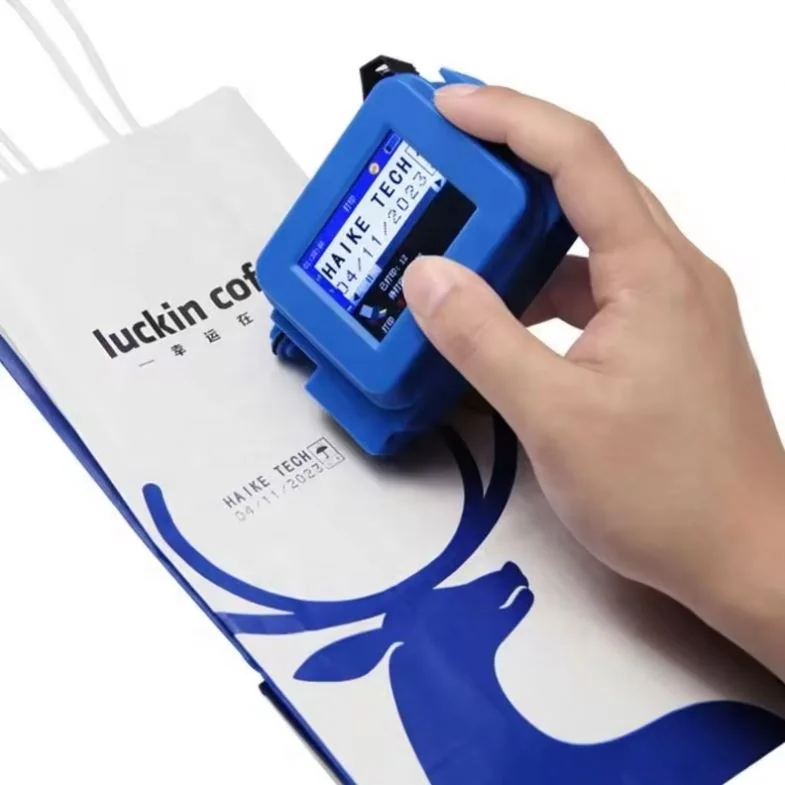

Ручной мини струйный принтер 12 7 мм TIJ для штрих-кода логотипа QR-кода изображения и даты печати термоструйный кодовый
