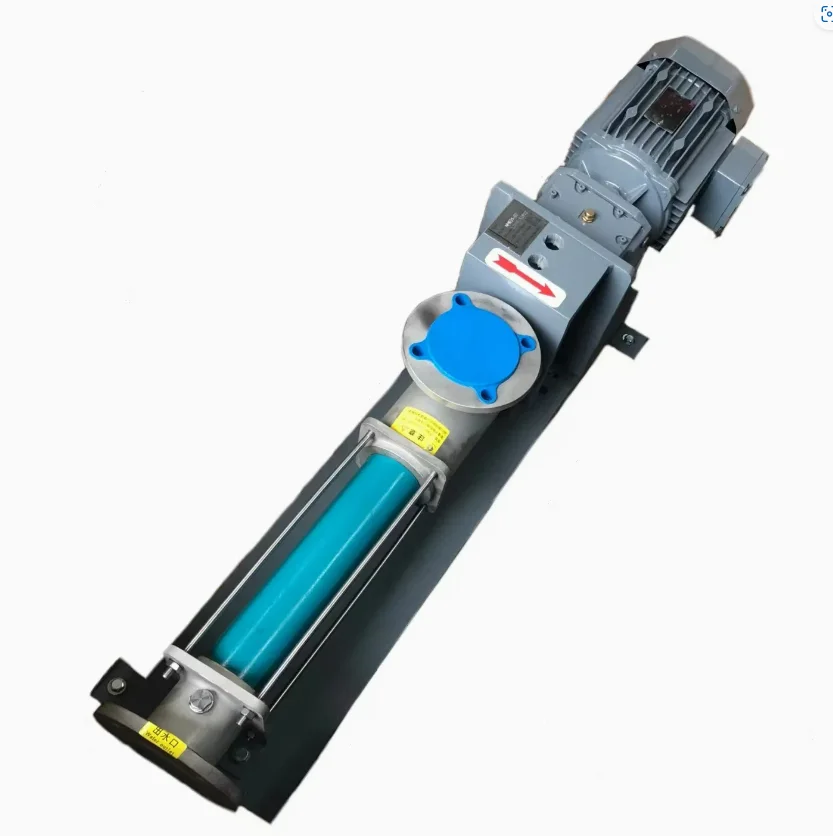

Высокостандартный Netzsch/Seepex/моно Одношнековый насос прогрессивный полостной
94 770,68-98 237,90 ₽
Модель атмосферного консистометра Qingdao Haitongda HTD1200 для испытания времени загущения цемента нефтяной скважины
- Категория: >>>
- Поставщик: Qingdao Haitongda Special Instrument Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601220396053:
Описание и отзывы
Характеристики

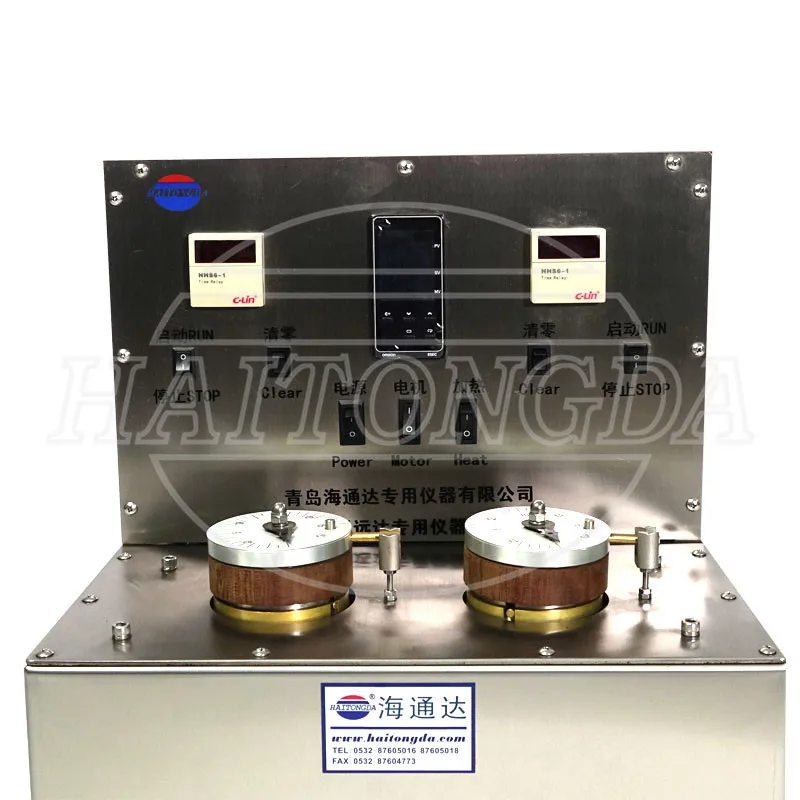

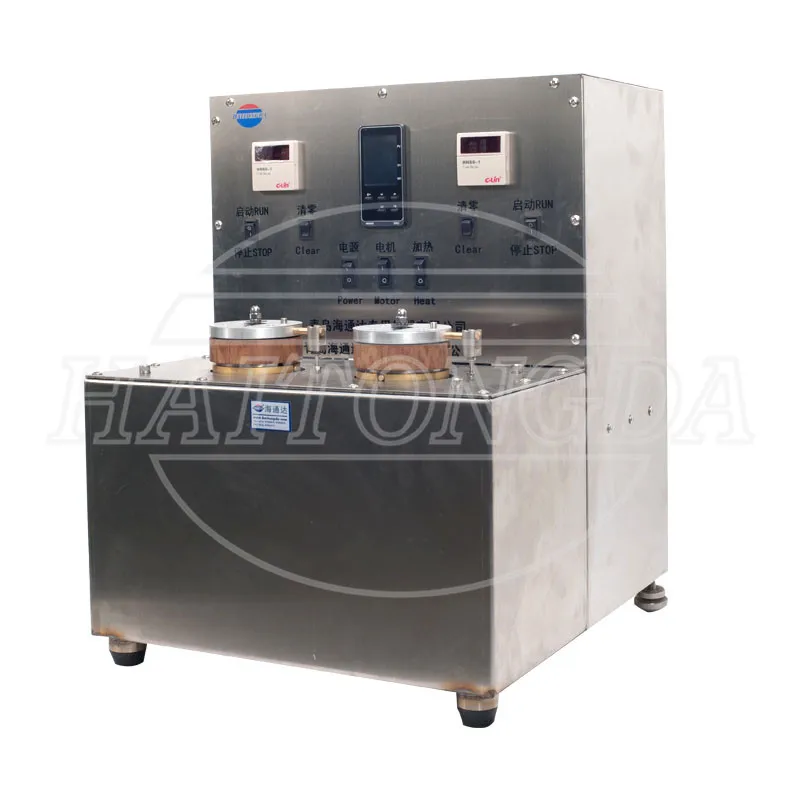

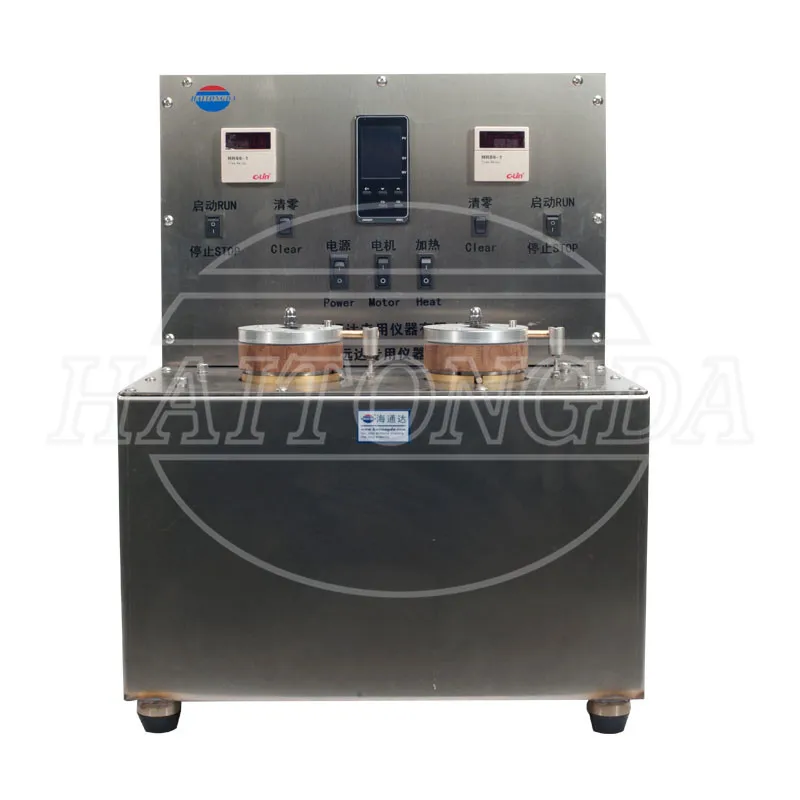

Model HTD1200 Atmospheric Consiscometer For Oil Well Cement Thickening Time Test
Product Description
1、Introduction
The Model HTD1200 Atmospheric Consistometer is used for various tests of oil well cements as detailed in the American Petroleum Institute Specification for Materials and Testing for Well Cements - Specification 10 (API Spec 10). The apparatus is used in
conjunction with tests for:
* Determination of Water Content of Slurry
* Determination of Fluid Loss
* Determination of Rheological Properties of Cement Slurries
The Model HTD1200 Atmospheric Consistometer is used for various tests of oil well cements as detailed in the American Petroleum Institute Specification for Materials and Testing for Well Cements - Specification 10 (API Spec 10). The apparatus is used in
conjunction with tests for:
* Determination of Water Content of Slurry
* Determination of Fluid Loss
* Determination of Rheological Properties of Cement Slurries
Product Paramenters
Technical Specification | |||
No. | Item | Model | |
HTD1200 | |||
1 | Power supply | AC(220±11)V 50Hz | |
2 | The input power | 2000W | |
3 | Slurry Cup's volume | 470ml | |
4 | Heating rods | 1500W | |
5 | Mixing speed | 150rpm±15rpm | |
6 | Scope of consistency | 0-100BC | |
7 | Pressure limit | Ordinary pressure | |
8 | Temperature range | Room temperature -200℉（93℃） | |
9 | Net weight / Gross weight | 28.58kg/55kg | |
10 | Overall dimensions | 400×450×550mm | |
11 | Packing size | 440×495×586mm | |

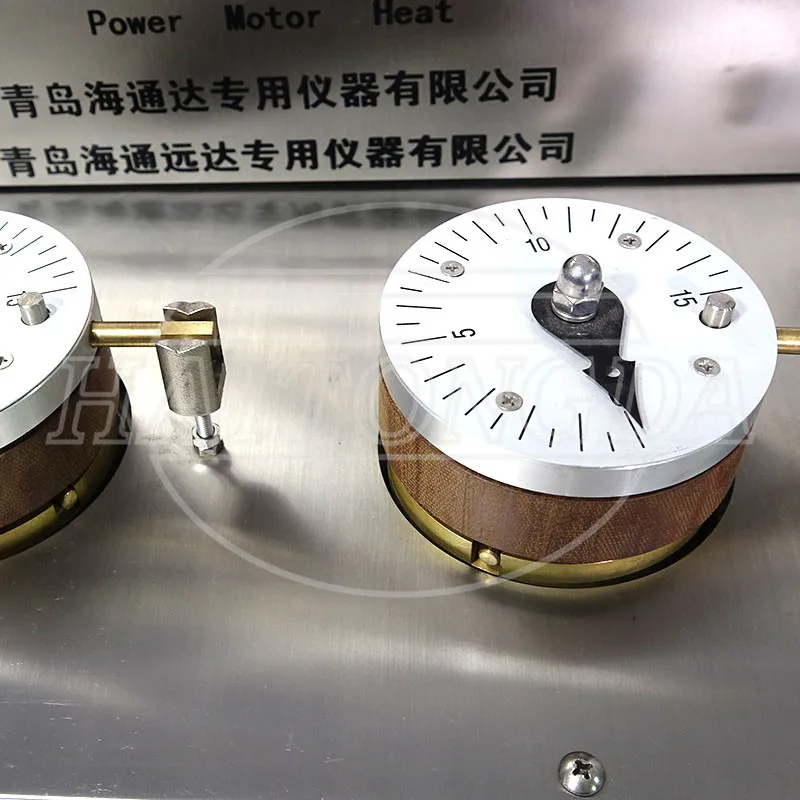

Detailed Images
Related Products
Packing&Shipping
Export Carton Packing or Export Wooden packing
After Sales Service
1 Year Warranty
▶Spare parts for one year operation (Free for more than 50 sets.)
▶Field maintenance and repair service(Only limited to large scale equipment.)
Company Introduction
Qingdao haitongda special instrument co., LTD, PRODUCTION OF DRILLING FLUID ANALYSIS INSTRUMENT AND CEMENT TESTING INSTRUMENT FOR OIL WELL AND RELATED EMS MANAGEMENT ACTIVITIES.
Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Our Services & Strength
From 1987 to 1999, products of the company were widely used in oil drilling, geological survey, chemical engineering units and scientific research institutes, which won a high reputation among users.
In 2000, China national natural gas corporation specified the company as the only supplier, to supply the instruments for their international drilling fields. In February of the same year, the first EP Lubricity Tester in China was successfully developed and put into mass production, and became a substitute for imported products in China.
In 2003, it passed ISO9000 quality management system certification of national quality management center. The DLA-II Drilling Fluid Lubricity Analyzer was developed successfully. In September of the same year, in the product appraisal meeting,the product passed the identification at one time and put into mass production. In the same year, the project won the award of "Qingdao science and technology achievement".
In 2004, the oil well cement tester was put into mass production.It has been awarded as one of the top ten enterprises in shinan district.In 2006, it was rated as AA level enterprise.
In 2008, it attended the product standard documents' drafting and compiling together with North China Oilfield and Shengli Oilfield.
In 2009, it was appraised as a clean producing enterprise.In 2010, the HPHT Swell Meter apply for national patent and be accepted.
In 2000, China national natural gas corporation specified the company as the only supplier, to supply the instruments for their international drilling fields. In February of the same year, the first EP Lubricity Tester in China was successfully developed and put into mass production, and became a substitute for imported products in China.
In 2003, it passed ISO9000 quality management system certification of national quality management center. The DLA-II Drilling Fluid Lubricity Analyzer was developed successfully. In September of the same year, in the product appraisal meeting,the product passed the identification at one time and put into mass production. In the same year, the project won the award of "Qingdao science and technology achievement".
In 2004, the oil well cement tester was put into mass production.It has been awarded as one of the top ten enterprises in shinan district.In 2006, it was rated as AA level enterprise.
In 2008, it attended the product standard documents' drafting and compiling together with North China Oilfield and Shengli Oilfield.
In 2009, it was appraised as a clean producing enterprise.In 2010, the HPHT Swell Meter apply for national patent and be accepted.
FAQ
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
Похожие товары

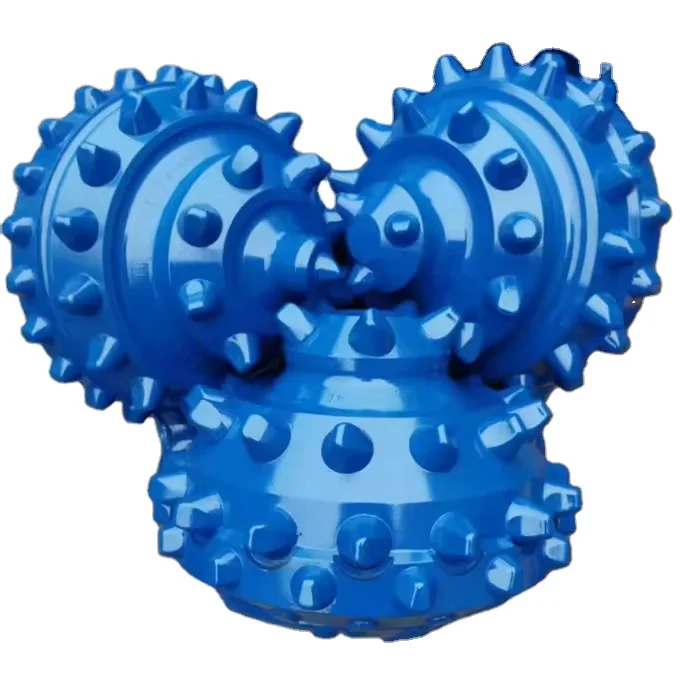

Все размеры оптовая продажа индивидуальное сверло TCI Tricone для добычи твердых пород
57 045,02-59 373,39 ₽

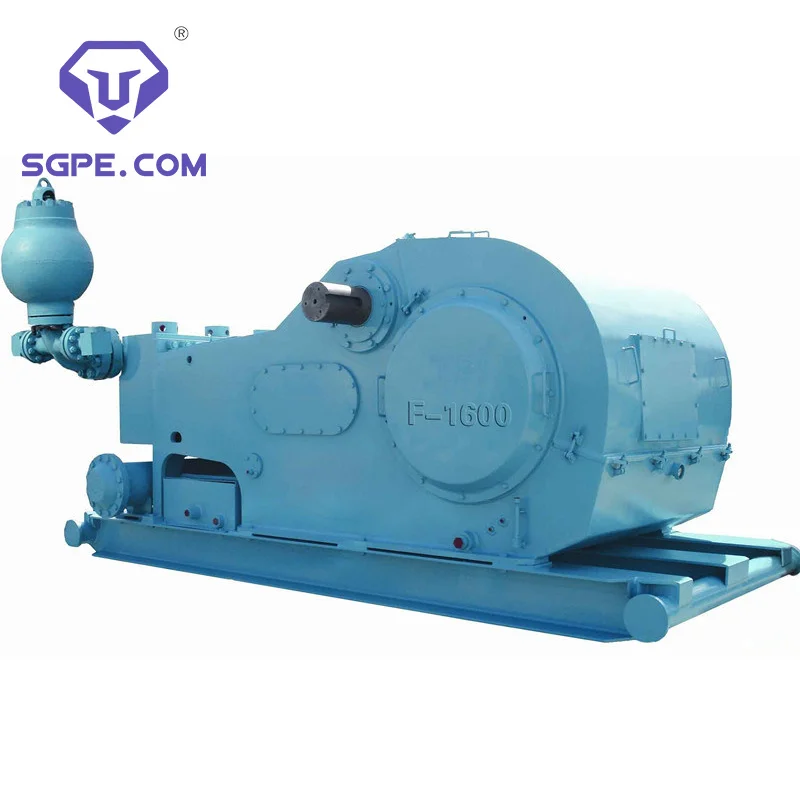

Насос для бурового раствора API F500 F800 F1000 F1300 F1600
7 859 032,00-8 090 180,00 ₽

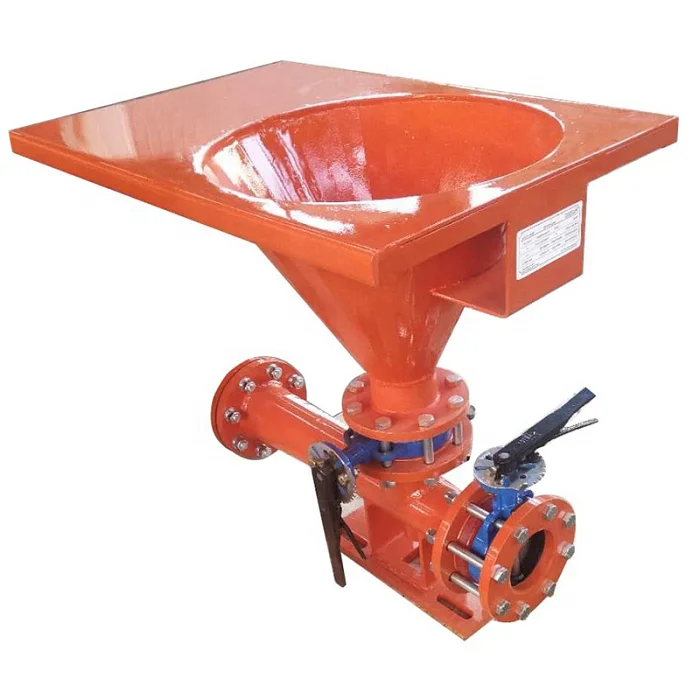

Инструмент для смешивания бурового раствора
104 776,56 ₽
Мешалка для бурения нефтяных месторождений система твердых жидкостей мешалка твердого контрольного оборудования
93 134,72-116 418,40 ₽

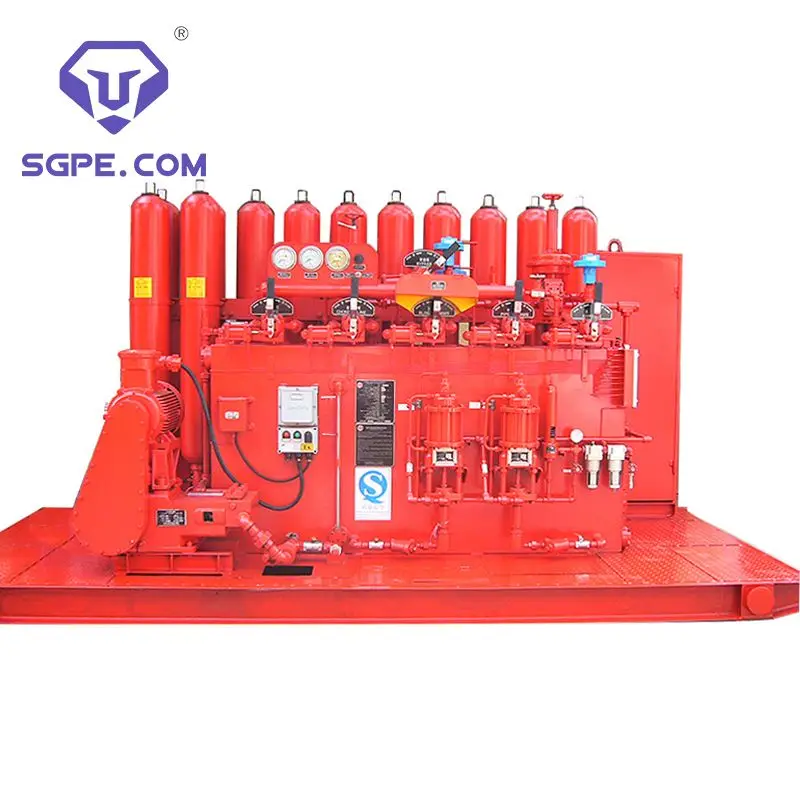

Блок управления API 16D Bop с буровым оборудованием для бурения скважин
1 541 791,90-1 779 127,50 ₽
Оборудование для нефтяных месторождений катушка намотки

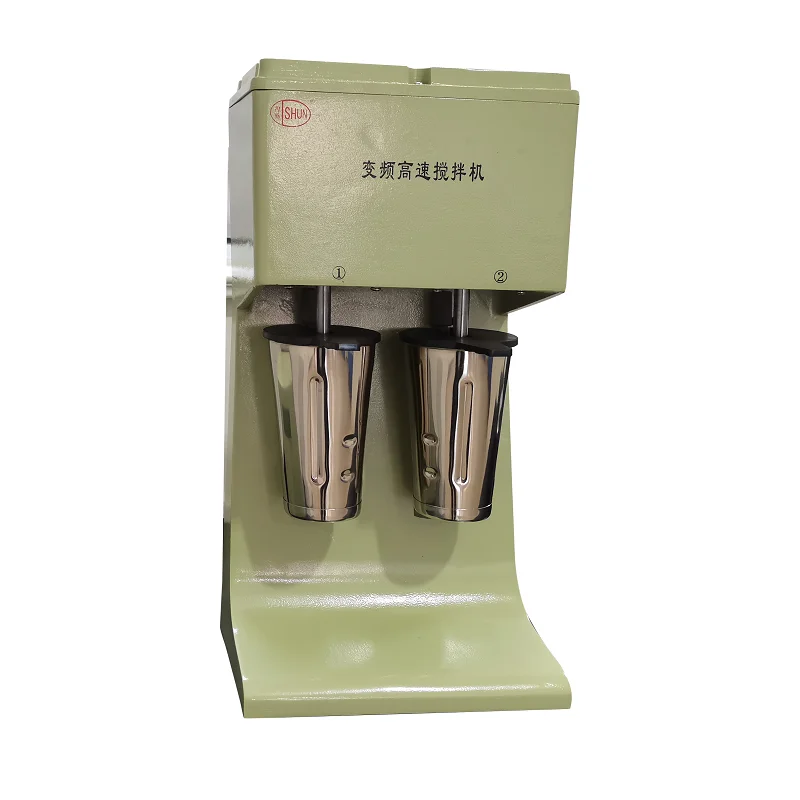

Высокоскоростной смеситель с двухвальным преобразованием частоты для перемешивания лабораторный буровых растворов
