Автоматическая алюминиевая дырокол для дверей и окон с ЧПУ новая Гидравлическая подшипниковая система ПВХ строительная промышленность
171 125,58 ₽ - 204 246,66 ₽

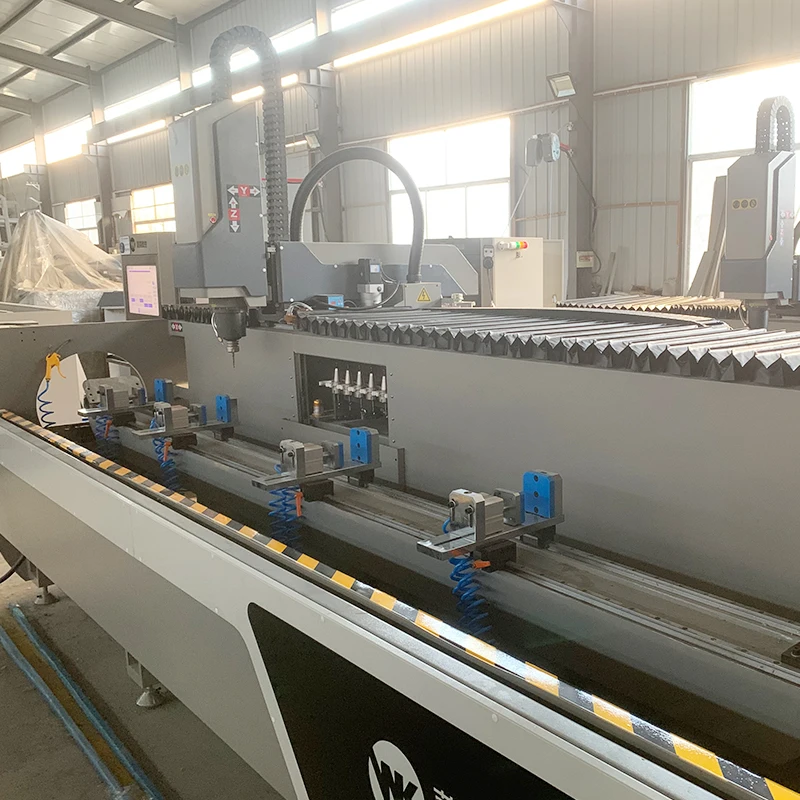

WEIKE CNC 3 aixs фрезерный станок cnc обрабатывающий центр Автоматическая смена инструмента
- Категория: >>>
- Поставщик: Shandong Weike Cnc Machinery Co. Ltd.
Сохранить в закладки 1601220575022:
Описание и отзывы
Характеристики
WEIKE CNC Aluminum Profile Drilling Milling Machine is suitable for processing industrial aluminum alloy profiles, including circular holes, slot holes, lock holes, irregular holes, milling, chamfering, and other processes for door and window aluminum alloy profiles, as well as curtain wall aluminum alloy profiles. The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality.
* The system adopts CNC numerical control, equipped with a professional graphics library and profile library, supporting barcode processing and CAD graphic import processing. It is easy to operate and highly efficient.
* The X-axis, Y-axis, and Z-axis utilize rack and pinion drive, ensuring smooth transmission and high precision.
* The X-axis, Y-axis, and Z-axis utilize rack and pinion drive, ensuring smooth transmission and high precision.

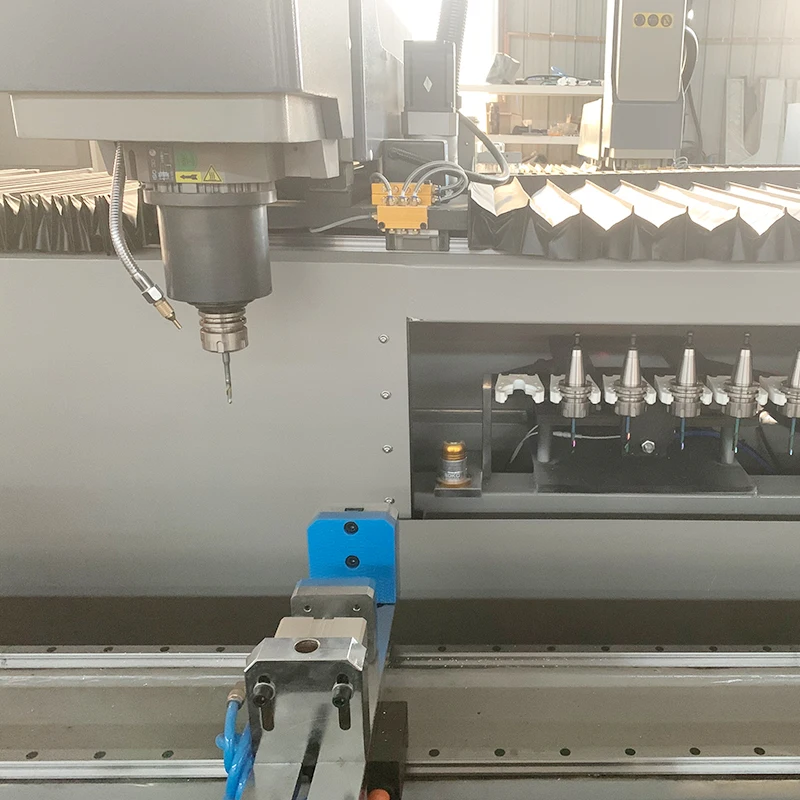

* Equipped with a 6-position tool magazine as standard, it can achieve continuous and uninterrupted processing.
* The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality.
* The machine employs two electric spindle, characterized by high precision, high power, excellent safety, and high reliability.
* 3-axis full-servo motors, truly achieving three-axis linkage, ensuring efficient and stable processing.
* The machine employs two electric spindle, characterized by high precision, high power, excellent safety, and high reliability.
* 3-axis full-servo motors, truly achieving three-axis linkage, ensuring efficient and stable processing.
Specification
Model | WSZH-CNC-3200 |
Spindle Speed | 24000r/min |
X-axis travel | 3200mm |
Y-axis travel | 400mm |
Z-axis travel | 300mm |
Processing Range | 130*150mm |
Overall dimensions | 4000×1800×2200mm |
Working Pressure | 0.5-0.8MPa |
Control System | CNC |
Function | Aluminum profile milling |
After-sales Service Provided | Engineers available to service machinery overseas |
Wide range of processing types
Suitable for processing industrial aluminum alloy profiles, including circular holes, slot holes, lock holes, irregular holes, milling, chamfering, and other processes for door and window aluminum alloy profiles, as well as curtain wall aluminum alloy profiles.
3-sided flipping workbench
The worktable can be flipped from -90° to +90°, allowing three-sided processing with a single clamping of the profile, enhances processing efficiency and drilling quality.
CNC control system
Equipped with a professional graphics library and profile library, supporting barcode processing and CAD graphic import processing. It is easy to operate and highly efficient.
3-axis full-servo motors
Truly achieving three-axis linkage, ensuring efficient and stable processing.
Factory Introduction
Shandong Weike CNC Machinery Co.,Ltd. is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It‘s the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.
Shandong Weike CNC Machinery Co.,Ltd. adheres to the development concept of”strive for progress and pursue excellence”, continuously strengthens the core competitiveness of the industry, strives to achieve leap-forward development, and is committed to building a world-class professional supplier of energy-saving doors and windows for building buildings.
Offline Exhibition
Certificates
After Sale Service Introduction
1. 3 year warranty. Provide a full range of technical support for life.
2. From monday to sunday 9am to 18pm. Experienced technician to guarantee lifetime online support (by whatsapp /skyper /wechat /email) . So there is no need to worry about technical support due to time difference.
3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia, etc.
Packing & Delivery
Professional package of mitre saw cutting machine:
1. Whole film packaging mitre saw cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Похожие товары

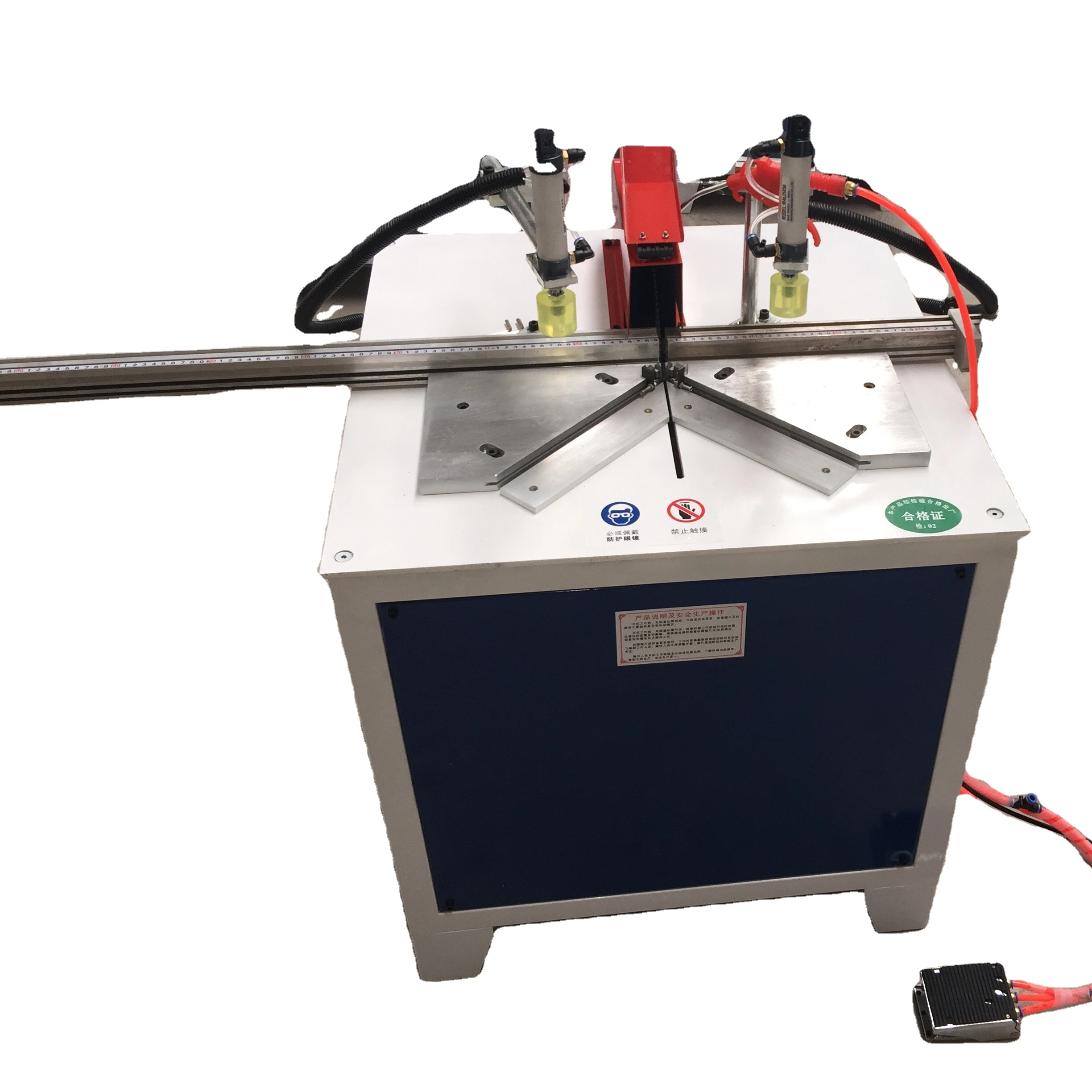

Honggang алюминиевая дверная машина для резки алюминиевого профиля многофункциональная угловая
52 000,10 ₽ - 57 409,88 ₽
Полностью автоматическая машина для вспенивания полиуретана
752 621,35 ₽
Устойчивые к ураганам двери и окна высокая воздухонепроницаемость пластиковые стальные трехслойное утолщенное стекло
9 936,33 ₽ - 13 248,44 ₽
WEIKE CNC система управления полной мощностью шпинделя МОТОР Концевая машина WDX3-CNC-350
670 149,86 ₽ - 692 230,58 ₽
Прецизионные алюминиевые дверные пилы окна новые условия ПВХ детали сердечника ПЛК двигателя из НПВХ изготовление окон с двойной головкой
241 231,87 ₽

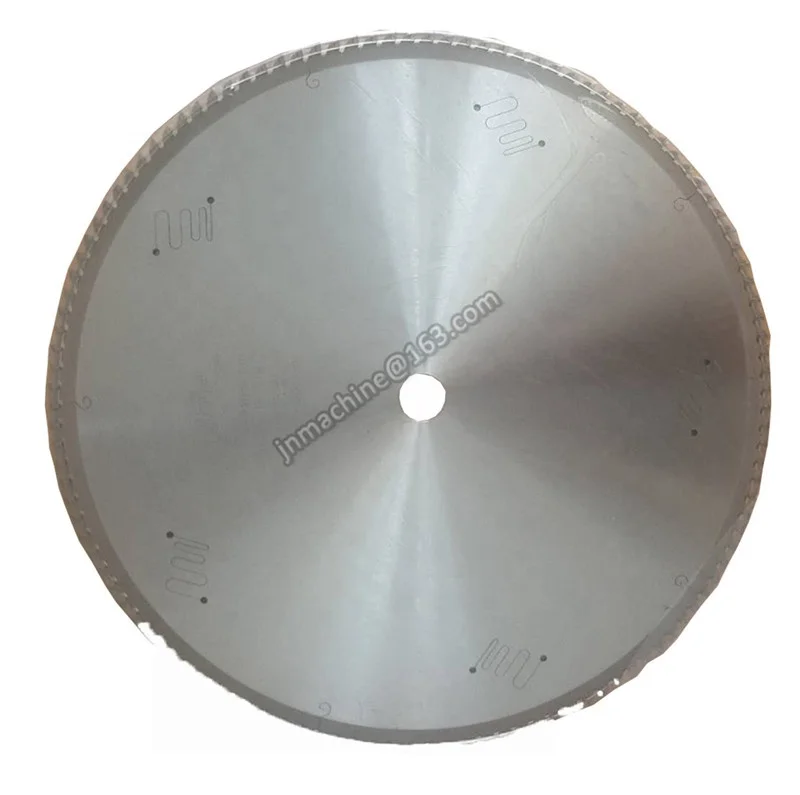

Японская марка: KANEFUSA 450 мм карбидный пильный диск
