Заводская поставка алюминиевый радиатор холодной ковки с черным анодированием

Заводская поставка алюминиевый радиатор холодной ковки с черным анодированием

Категория: >>>
Поставщик: Dongguan Renxin-Seiko Industry Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Feature

Excellent thermal conductivity due to special aluminum pin fin heat sink feature improved Faster heat conduction due to their almost pure aluminum alloy (Al 99.5; 210-236 W/m K) and high material density from forging. Heat evenly dissipates in the base and the pin material for free or forced convection.Streamlined omnidirectional fin geometries, Suitable for free and forced convection, no direction bounded installation position, Flat semiconductor mounting surfaces, contour also as milled parts according to your demands

_Material	1070 (99.5%) Aluminum
_Surface	Anodize (Colors available)
_{Base Diameter}	163mm (6.42 inch)
_{Base Height}	10 mm (0.39inch)
_{Pin Height}	60 mm (2.36 inch)
_{Pin Count}	386 Pieces
_Weight	1015 g
_{Thermal resistance}	< 0. 5 ℃/W
_Volumen(mm3)	372380.39
_Surface(mm2)	270590.16
_{LED Module applicable watt}	100-110 Watts

Drawing

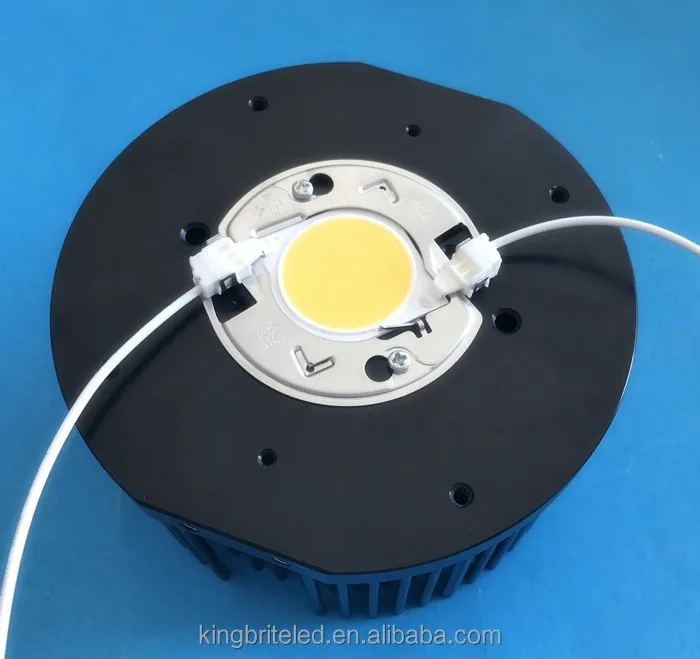

Heatsink provides 45-85 Watts passive cooling for CXA/CXB 3590, Luminus CXM-22 COB, Bridgelux Vero 29, V22, Vero 18, Vero 13, Zhaga 3, 35mm, CLU048-1212,CLU048-1812, CLU048-1818 .Recommended max current 2.1 amps for 36V-40V Cobs and 1.4 amps for 52V Cobs. 'Cree CXB/CXA 3070 and Citizen CLU048 option comes with standard 35mm spacing for COB holders.

Thermal Parameters

The measurements quoted in the heatsink were obtained in Renxin.Thermal laboratories under the following conditionsm, Heatsink anodised matt black and arranged vertically,One heat source(CXB3590) in the centre of heatsink, Temperature measured between the adjacent ,

surface of LED Source and heatsink,

Surrounding temperature measured at a distance of 1 metre (cabinet 1m ) from object , The measurements are stated as temperature increases resulting from power input for different watts . The thermal resistance for the relevant power input is calculated and summarised in an

adjoining curve These curve demonstrate how the thermal resistance depends on the level of power input.

\t\t\t\t\t\t\t\t\tProduct Details \t\t\t\t\t\t\t

About the performance of the LED Grow lightening products, besides the LED source chip , the heatsink count most. Heatsink of superior quality must be specially designed by the thermal engineers who are responsible for thermal technology and fabricated according to advanced procedures, as well as strictly controlled within quality system requirements and tested according to relevant procedures, so as to ensure superior quality and customer satisfaction. We have accumulated lots of data and Solutions for all of our heatsink during various Solutions, from design to CFD simulating calculation, thermal analysis and optimization. The products can be verified and tested in our own laboratory. All processes including manufacture, testing, packing, and delivering are controlled according to quality system ISO9001:2015,

At present, suppliers on B2B have many small business workshops and Traders , causing malicious competition and bad product quality. Now our products are sold online to ensure the customers can order goods from professional and standard factory. Besides, customers are welcomed to visit our factory

Feature &Application

Feature

1. Easy to install. Our tutorials allow you to assemble perfect LED grow lights , a practice well loved by DIY's

2. We provide standard products from 40W - 500W for you to choose from. our on-site thermal design engineers will

provide professional thermal analysis reports, CAD design, and free technical support.

3. All the LED grow lighting accessories are made available in one-stop style to save your valuable time while allowing

you to have professionally assembled LED grow lighting products.

4.Special aluminum brackets and fasteners are available to make the assembled light fittings into a professional and

perfect LED grow lighting system while saving you a lot of cost and time.

5.We are a Specialized manufacturer backed by a complete quality management system and provide all-round

after-sales service. We promise to offer a warranty of 5 years for all of our products.

Example 1: Single 75-90 Watts:

1:Top Bin CXB3590/Vero29/CLU048 + Driver : MW HBG-100-48A
2: Flower Coverage Area : < 4 Square Feet, Veg Coverage Area : ~3 Square Feet

Example 2: RAPID LED GORW LIGHT 100-120 Watts

1: 2 x Top Bin CXB3590/Vero29/CLU048 + Driver : MW HLG-185H-C1400B
2: Aluminum profiles Fixture
3: Veg Coverage Area :6.5-8.3Square Feet

Example 3: RAPID LED GORW LIGHT 315-375 Watts

1: x 5 Top Bin CXB3590/Vero29/CLU048 + Driver : MW HLG-185H-C1400B
2: Aluminum profiles Fixture
3: Veg Coverage Area :6.5-8.3Square Feet

Installation Instructions

Installation Instruction

COB grow lights can be compounded freely according to plants' different needs, In a word, we will take our advantage to provide the best Heatsink and thermal solutioin and services as per yourvarious requests

Product packaging

Single Box

Renxin.Thermal Pin Heatsink are packaged in small carton of 1 Pieces

Carton

20 pieces samll carton placed inside a big carton, for a total of 20 Pin Heatsink per carton. Each carton contains 20 Pin Heatsink from the same performance .

Our Advantages

Company Profiles

Renxin.Thermal Technology is producing mechanical electronic components such as heatsinks, Extruded cases and ,LED light ODM/OEM , CNC machining OEM since 2004 Our product range contains devices and complete cooling systems for dissipating semi-conductors as well as heatsinks direct from the manufacturer. Furthermore we offer various extruded case for aluminum and Extruded profiles for aluminum in different designs. In the area of cases especially our modern design cases are convincing. Moreover system-independent cases can be found in our programme.
