Product Description

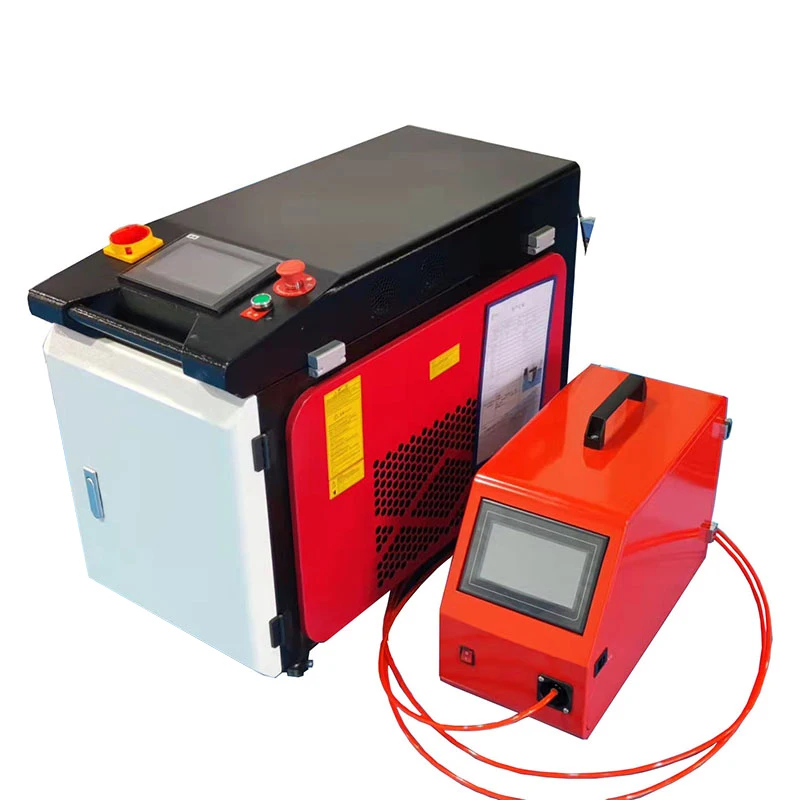

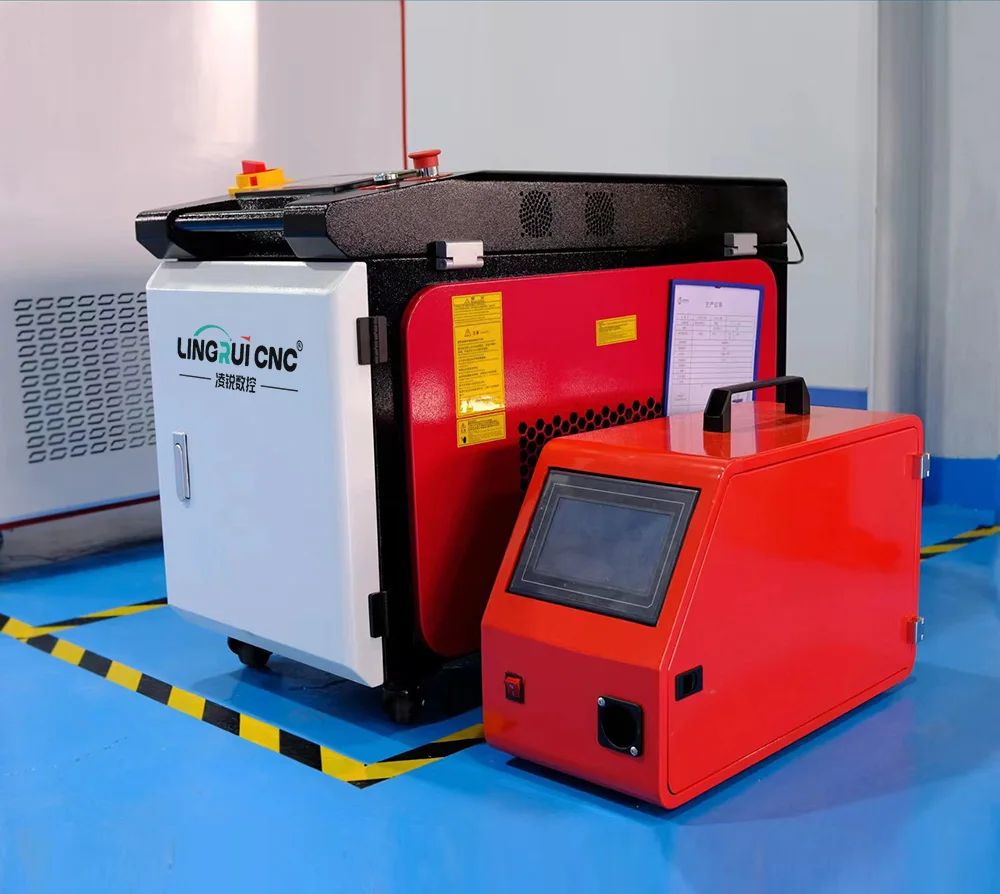

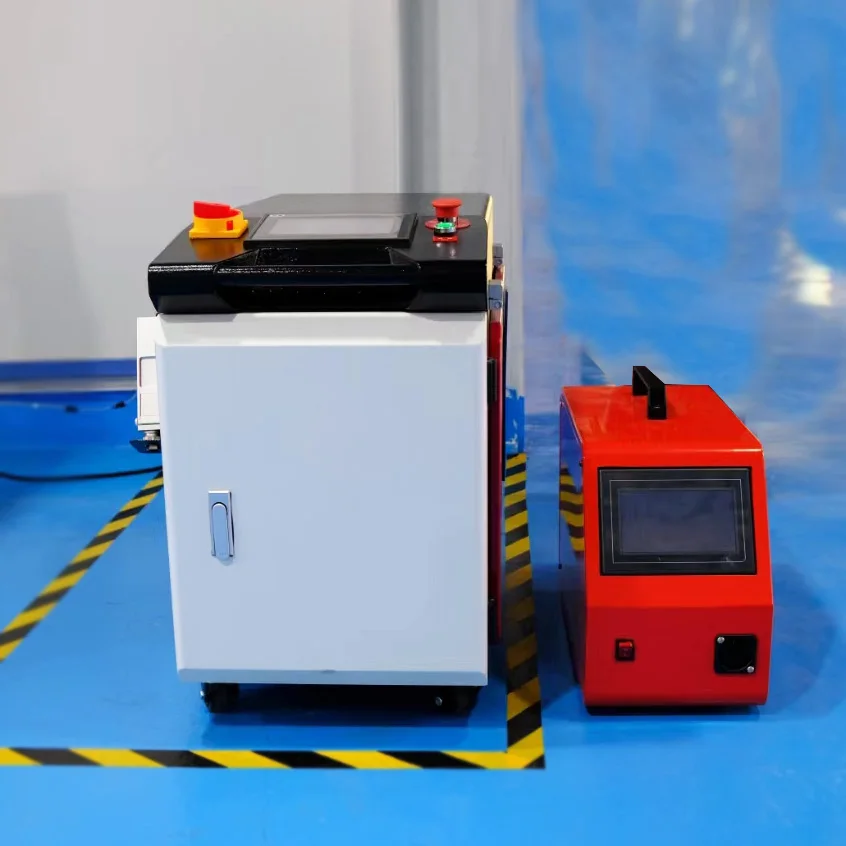

Advantages of the new 4 in 1 fiber laser welding machine:
Advantages of the new 4 in 1 handheld fiber laser welding machine:
1: High power, 100% full power, 8mm thickness, single-sided welding and double-sided forming.
2: Small size, small volume, intelligent temperature control, continuous welding, handheld welding gun is only 680g, easy to use.
3: Welding + cutting + seam cleaning + remote cleaning, one machine meets four functions.
4: Built-in dual temperature control, constant temperature water cooling system, constant temperature work, can cope with various environments -20℃--45℃ continuous work.
5: Touch screen panel intelligent control system, built-in laser intelligent application system, basic personnel can easily get started.
6: The weld is beautiful and not deformed, the weld is smooth, the welded workpiece is not deformed, there is no weld scar, the welding is firm, and the subsequent grinding process is reduced, saving time and cost.
1: High power, 100% full power, 8mm thickness, single-sided welding and double-sided forming.
2: Small size, small volume, intelligent temperature control, continuous welding, handheld welding gun is only 680g, easy to use.
3: Welding + cutting + seam cleaning + remote cleaning, one machine meets four functions.
4: Built-in dual temperature control, constant temperature water cooling system, constant temperature work, can cope with various environments -20℃--45℃ continuous work.
5: Touch screen panel intelligent control system, built-in laser intelligent application system, basic personnel can easily get started.
6: The weld is beautiful and not deformed, the weld is smooth, the welded workpiece is not deformed, there is no weld scar, the welding is firm, and the subsequent grinding process is reduced, saving time and cost.

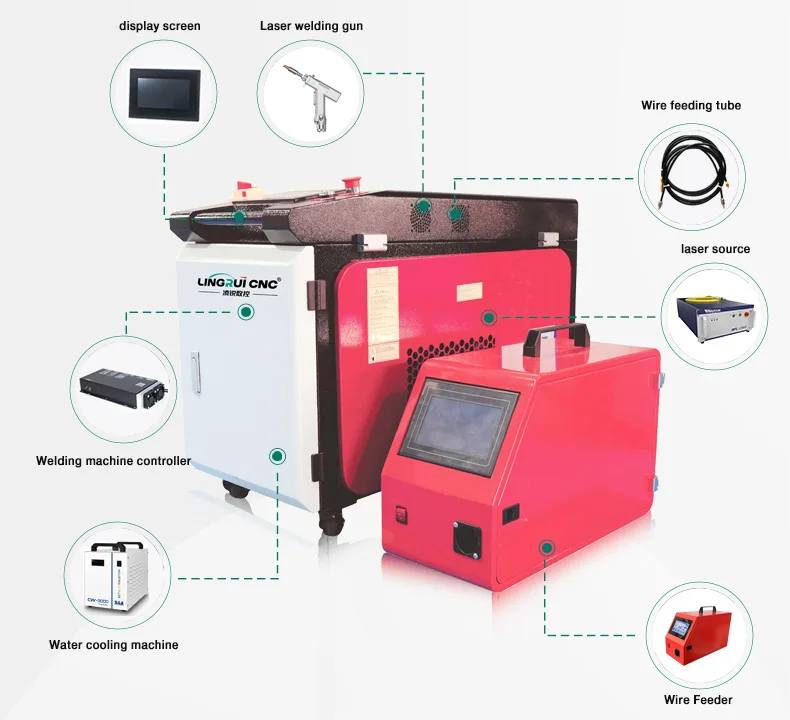

Details Images
Using RAYCUS laser source, high electro-optical conversion efficiency, single-mode continuous fiber laser, sustainable high-power
output, using the second-generation fiber transmission system for cutting, welding is more stable and precise, the welded material
is smoother, and the advantages are obvious.
output, using the second-generation fiber transmission system for cutting, welding is more stable and precise, the welded material
is smoother, and the advantages are obvious.
With the intelligent operating system, all operations can be mastered in 30 minutes. The system presets multiple sets of process packages. Users can quickly select welding parameters according to different materials and welding thicknesses and start processing easily.
Precise wire feeding, wire rewinding without wire jamming, single drive/double drive wheel wire feeding system with welding speed up to 2 meters per minute, automatic wire filling speed continuously adjustable, suitable for feeding welding wires of various diameters, multiplying work efficiency, reducing labor intensity, saving labor and equipment costs.
Built-in S&A chiller, multiple alarm functions, all-round protection for the laser, equipped with water pressure gauge: convenient for observing the water pump outlet pressure; equipped with drain valve for easy drainage; high-precision temperature control system, dual temperature control circulation refrigeration function, two independent temperature control systems cooling at the same time, better effect.
Fully automatic wire feeding, simple operation, more flexible handheld operation, neat and smooth welding seams, no need for manual secondary grinding, welding speed can reach 2 meters per minute, faster welding speed, novices can easily operate.
Laser Cutting
Handheld laser cutting is more flexible to use and can cope with cutting in various environments. It uses the second-generation
optical fiber transmission system for cutting, which makes cutting more stable and precise, and the cutting seam of the cut material is narrower, making it more convenient to use.
optical fiber transmission system for cutting, which makes cutting more stable and precise, and the cutting seam of the cut material is narrower, making it more convenient to use.
No consumables are required, handheld operation, flexible cleaning, no radiation, clean cleaning, fast cleaning speed, easy to deal with cleaning and rust removal, non-contact cleaning, no need for cleaning fluid, can remove heavy rust, oxide film, welds, paint, oil stains, etc. Safer and more environmentally friendly.
Product Paramenters
MODEL | LR-1000-SW | LR-1500-SW | LR-2000-SW | LR-3000-SW | |||
Rated output power | 1000W | 1500W | 2000W | 3000W | |||
Output fiber length | 10M | 15M | |||||
Welding thickness | 0.3mm-3mm | 0.3mm-4mm | 0.3mm-6mm | 0.3mm-8mm | |||
Voltage | 220v±10v | 220v±10v | 220v±10v | 380v±10v | |||
Indicator light | Red Light | ||||||
Cooling method | Water cooling | 220v±10v | 220v±10v | ||||
Max pressure | 10bar | ||||||
Total Power | 5KW | 7KW | 9KW | 11KW | |||
Working model | Continuous / modulation | ||||||
Working environment | Flat, no vibration and shock | ||||||
Working humidity | <70% | ||||||
Operating temperature | -20--45℃ | ||||||
Applications & Samples
Customer Photos
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Customer Reviews
Company Profile
FAQ
1. Are you a factory or a trading company?
We are a factory with an export license.
2. Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4. How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5. Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
7. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee. or if you have other payment
methods, we can also consider them
Похожие товары
Лазерный сварочный аппарат Yag по заводской цене портативный лазерный паяльный для золота серебра ювелирных изделий и мелких металлических деталей
309 938,72-381 463,04 ₽
Высококачественный Ручной Волоконно-лазерный сварочный аппарат можно использовать для сварки тонких пластин ниже 8 мм с хорошим эффектом
298 018,00-333 780,16 ₽
Прямая продажа с фабрики оптовая высокоскоростной ручной аппарат 500 Вт волоконным лазером сварочный
8% скидка многофункциональный лазерный сварочный аппарат волоконно-лазерный роторный
Ручной Мини Портативный Raycus Max IPG 1000 ватт 1500 Ватт 2000 из нержавеющей стали волоконно-лазерный сварочный аппарат
548 353,12-572 194,56 ₽
ЧПУ волоконно-Автоматический Портативный Ручной Волоконно-лазерный сварочный аппарат для металлических ювелирных изделий из нержавеющей стали

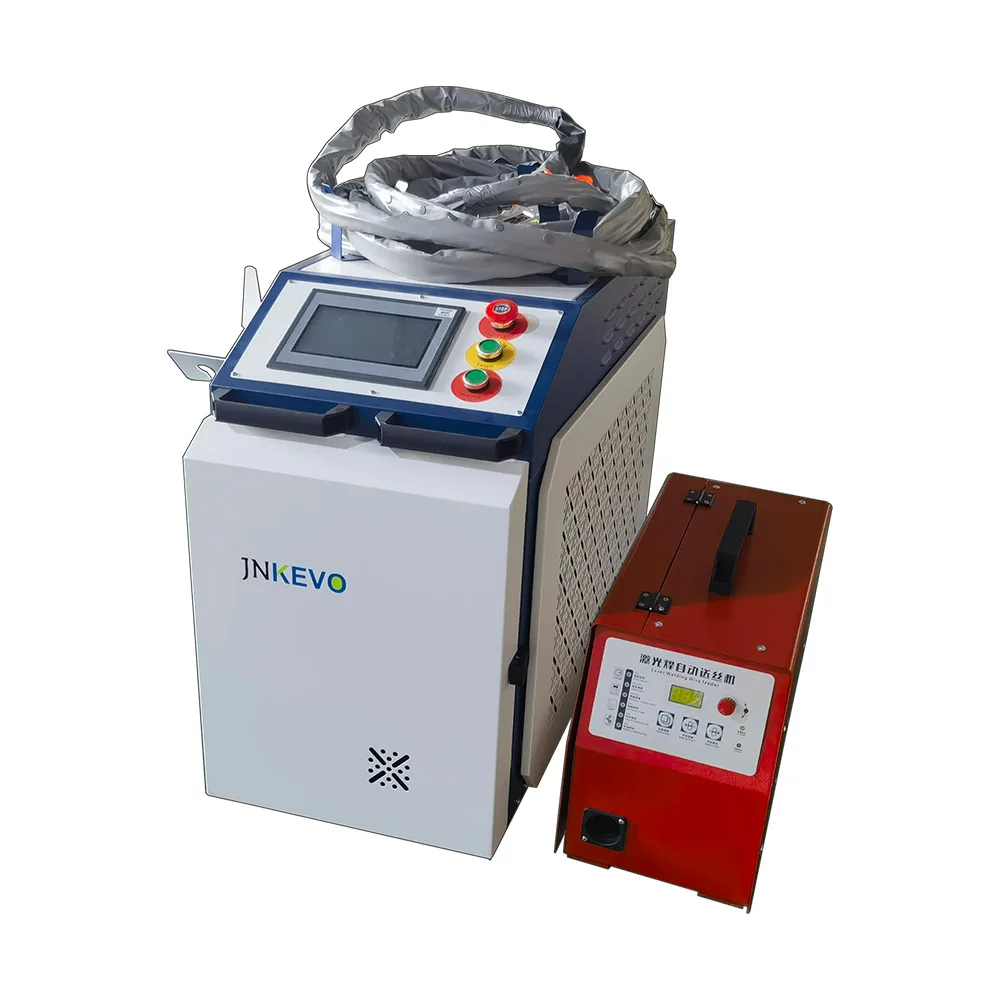

JNKEVO ручной лазерный сварочный аппарат 1000 Вт 1500 2000 3000 портативный для металла
