SCC060LG несколько сетевых методов NBIoT LoRaWan LoRamesh интеллектуальная функция управления солнечным уличным фонарем контроллер mppt
- Категория: >>>
- Поставщик: Guangzhou Shuwang Technology Co. Ltd.
Сохранить в закладки 1601221270614:
Описание и отзывы
Характеристики
Product Description

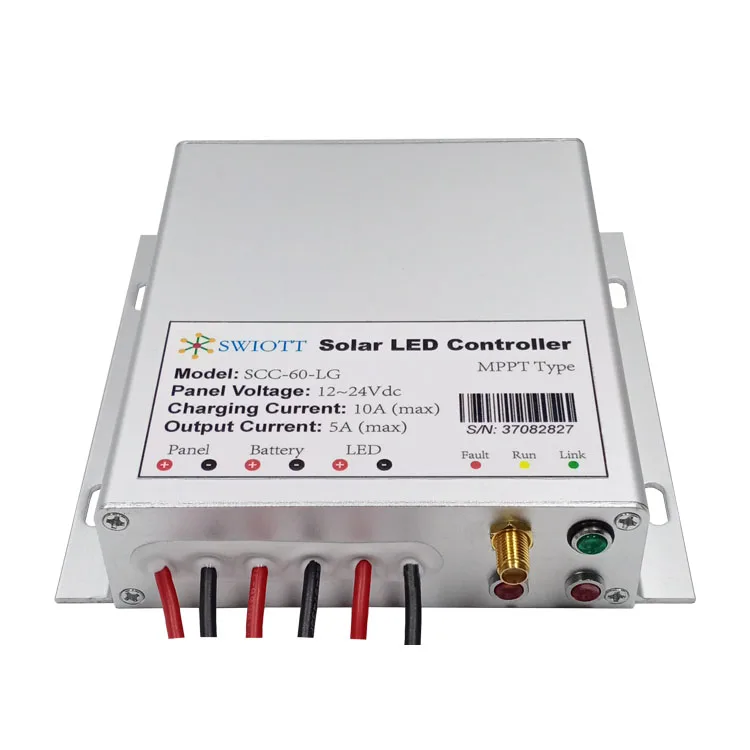

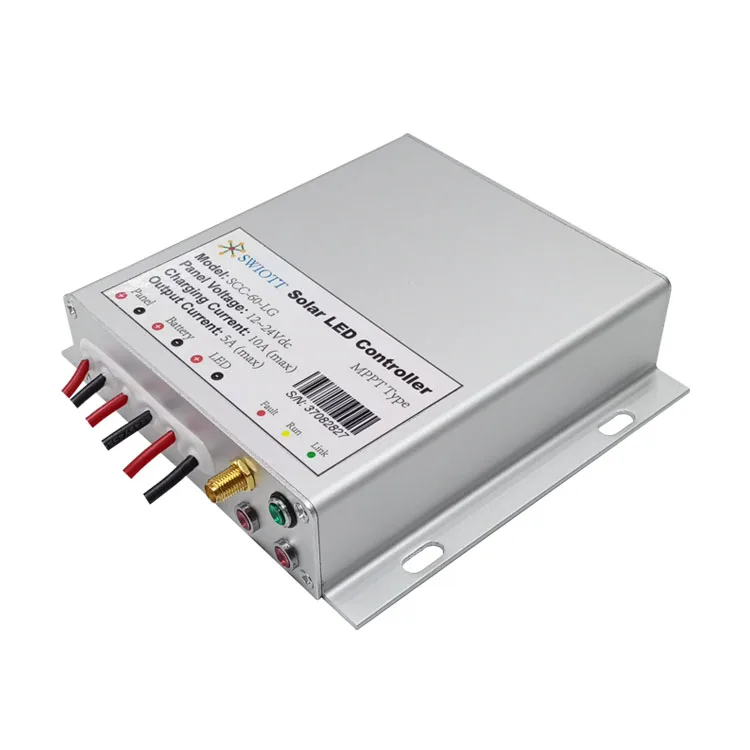

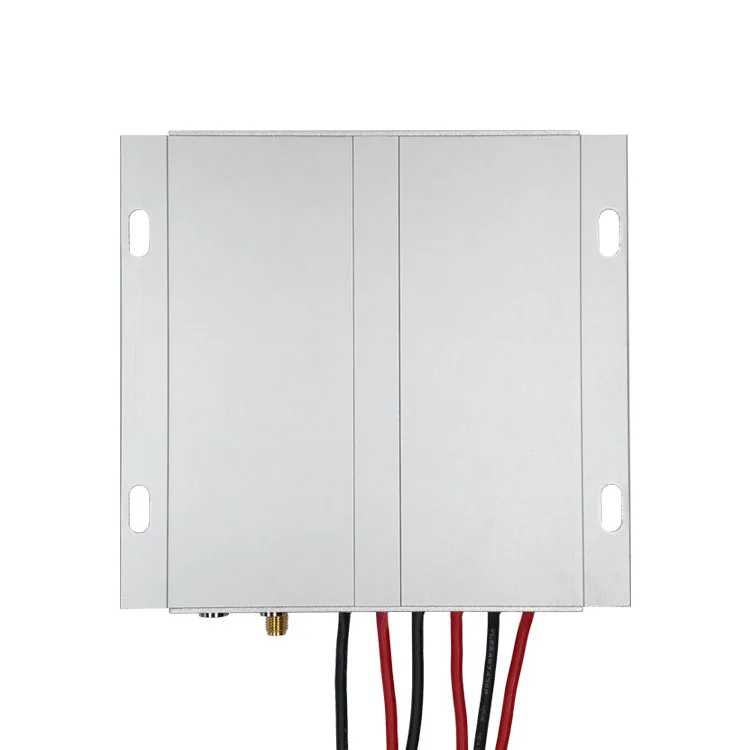

Solar street light controller
The controller integrates the charge and discharge of solar cells and the constant current drive of LED lamps, and has built-in MPPT algorithm and battery SOC algorithm, which always ensures that the photovoltaic panel works at the maximum power output and improves the solar energy conversion efficiency. A variety of networking methods can be selected, including: NBIoT,LoRaWan,LoRamesh, to realize remote control and intelligent management functions. It can be connected to human body induction and motion sensors to achieve ondemand lighting and delay the lighting time.
Specifications
Place of Origin | Guangdong, China | Brand Name | swiott |
Application | Smart Solar light | type | SCC-40-LG |
PV power | 240W 18V | PV voltage | 18V~24V |
Certificate | CE/RoHS | Warranty | 2 Years |
Product name | Smart MPPT solar controller | Charge mode | MPPT |
System voltage | 12V | Water proof | IP68 |
Protection | Temperature, voltage, current, power | Communication | LoRaMesh |
Item | SCC-040-xx | SCC-060-xx | SCC-080-xx | SCC-120-xx | |||
PV Rate Voltage | 24Vdc | 24Vdc | 24Vdc | 24Vdc | |||
Battery Voltage | 10Vdc~16Vdc | 10Vdc~16Vdc | 10Vdc~16Vdc | 10Vdc~16Vdc | |||
Rate Charge Current | 7.8A@12V | 10A@12V | 12A@12V | 20A@12V | |||
Rate Charge Power | 100W@12V | 120W@12V | 150W@12V | 240W@12V | |||
PV open Voltage | 24V | 24V | 24V | 24V | |||
MPPT Voltage | Battery voltage to 24V | Battery voltage to 24V | Battery voltage to 24V | Battery voltage to 24V | |||
LED rate current | 0.85A | 1.25A | 1.67A | 2.5A | |||
LED power (Max) | 40W | 60W | 80W | 120W | |||
LED voltage range | 20V~48Vdc | 20V~48Vdc | 20V~48Vdc | 20V~48Vdc | |||
LED open voltage | 50Vdc | 50Vdc | 50Vdc | 50Vdc | |||
LED dimming range | 1%~100% | 1%~100% | 1%~100% | 1%~100% | |||
Battery Type | Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery:LiFePO4/Li-NiCoMn | ||||||
Communication | NBIoT, LoRaWan, LoRaMesh Manage via IoT platform | ||||||
MPPT efficiency | ＞99% | ||||||
Charge efficiency (Max) | 98% | ||||||
Driver efficiency (Max) | 97% | ||||||
Operate Temperature | -40℃~+60℃ | ||||||
Water proof | IP68 | ||||||
Dimension/Weight | (13*8*3.1)cm,0.5KG | ||||||
Company Profile
Guangzhou SWIOTT Technology Co., Ltd. is a company integrating the Internet of Things, communications, large-scale
Data and other technological means are applied to enterprises in the field of lighting, and the team has many years of experience in the development and research of smart lighting solutions, dedicated to provide scientific overall solutions for customer lighting application scenarios.At present, the company's urban smart lighting and industrial IoT related products have been widely used.
It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include
Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.
Data and other technological means are applied to enterprises in the field of lighting, and the team has many years of experience in the development and research of smart lighting solutions, dedicated to provide scientific overall solutions for customer lighting application scenarios.At present, the company's urban smart lighting and industrial IoT related products have been widely used.
It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include
Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.

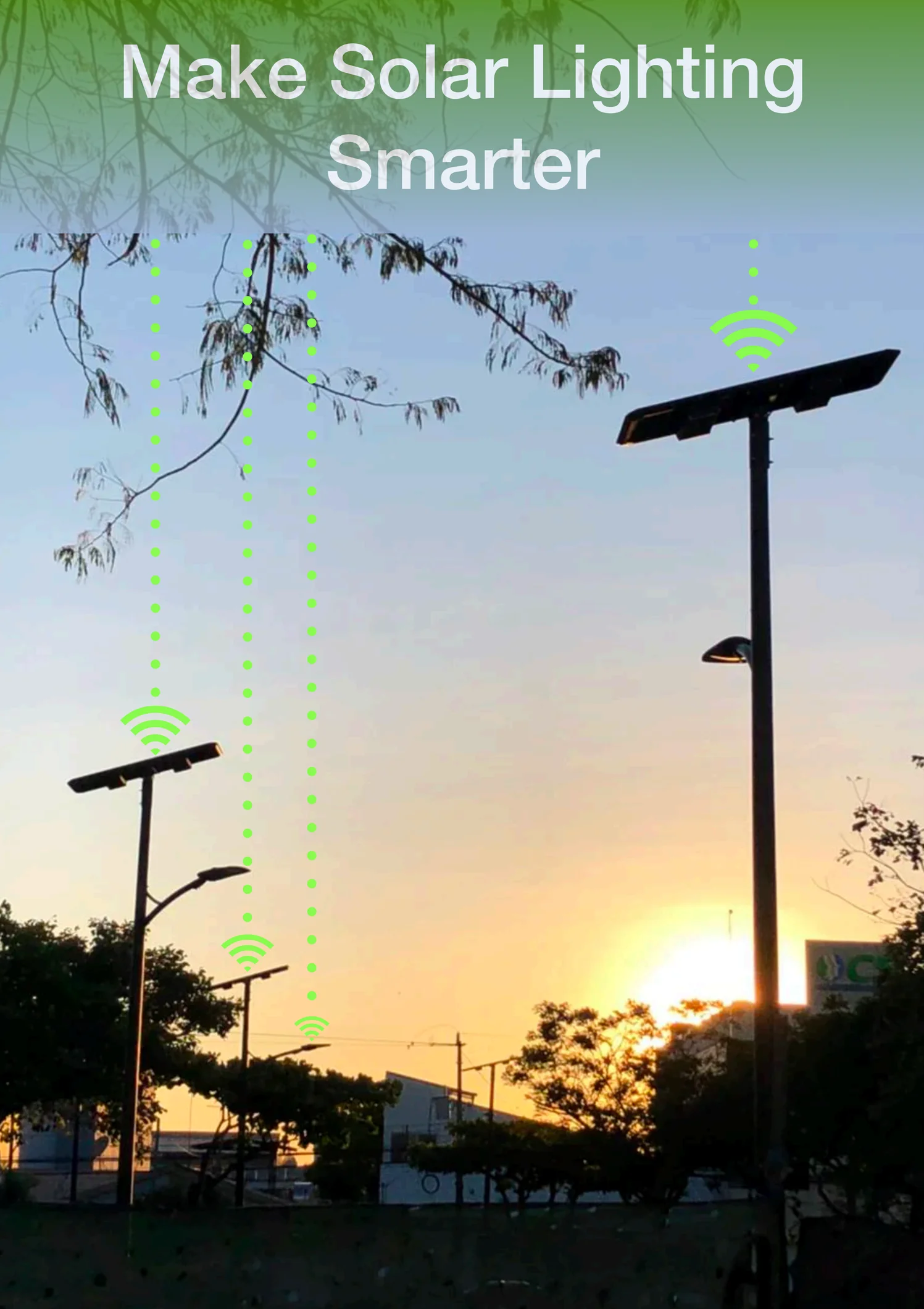

Practical Application
Production Process
Certifications
Packing & Delivery
FAQ
Q1. Can the light controller be ordered as a sample?
Yes, we accept sample orders, welcome to order samples to test and check the quality
Q2. Are you a trader or a manufacturer?
A: We are manufacturer, We can guarantee product quality.
Q3.Do your products come with a guarantee?
Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
Yes, we accept sample orders, welcome to order samples to test and check the quality
Q2. Are you a trader or a manufacturer?
A: We are manufacturer, We can guarantee product quality.
Q3.Do your products come with a guarantee?
Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
Похожие товары

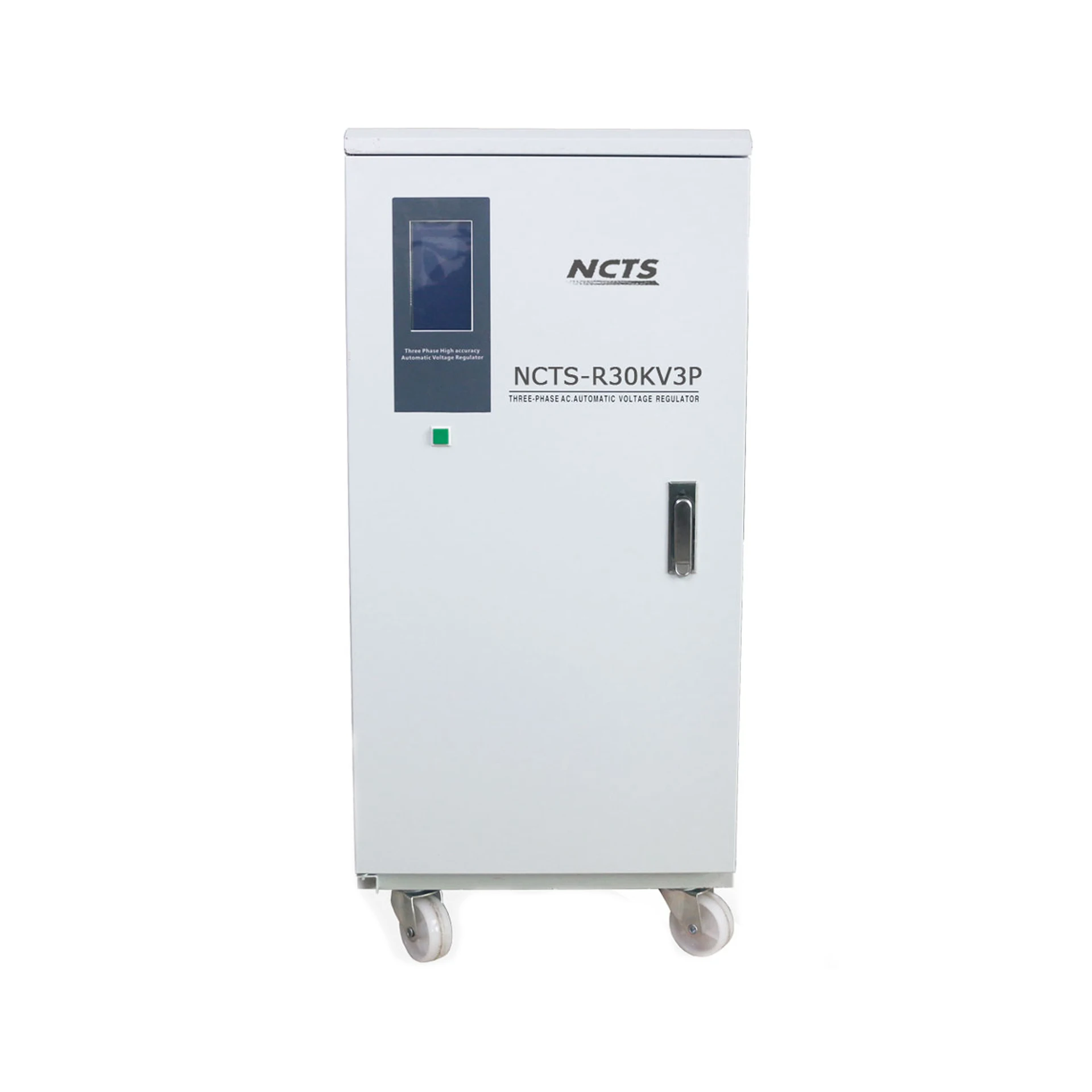

Китай изготовленный на заказ 30Kv3P высокого напряжения/низкого напряжения стабилизатор напряжения
55 372,45 ₽ - 56 468,93 ₽

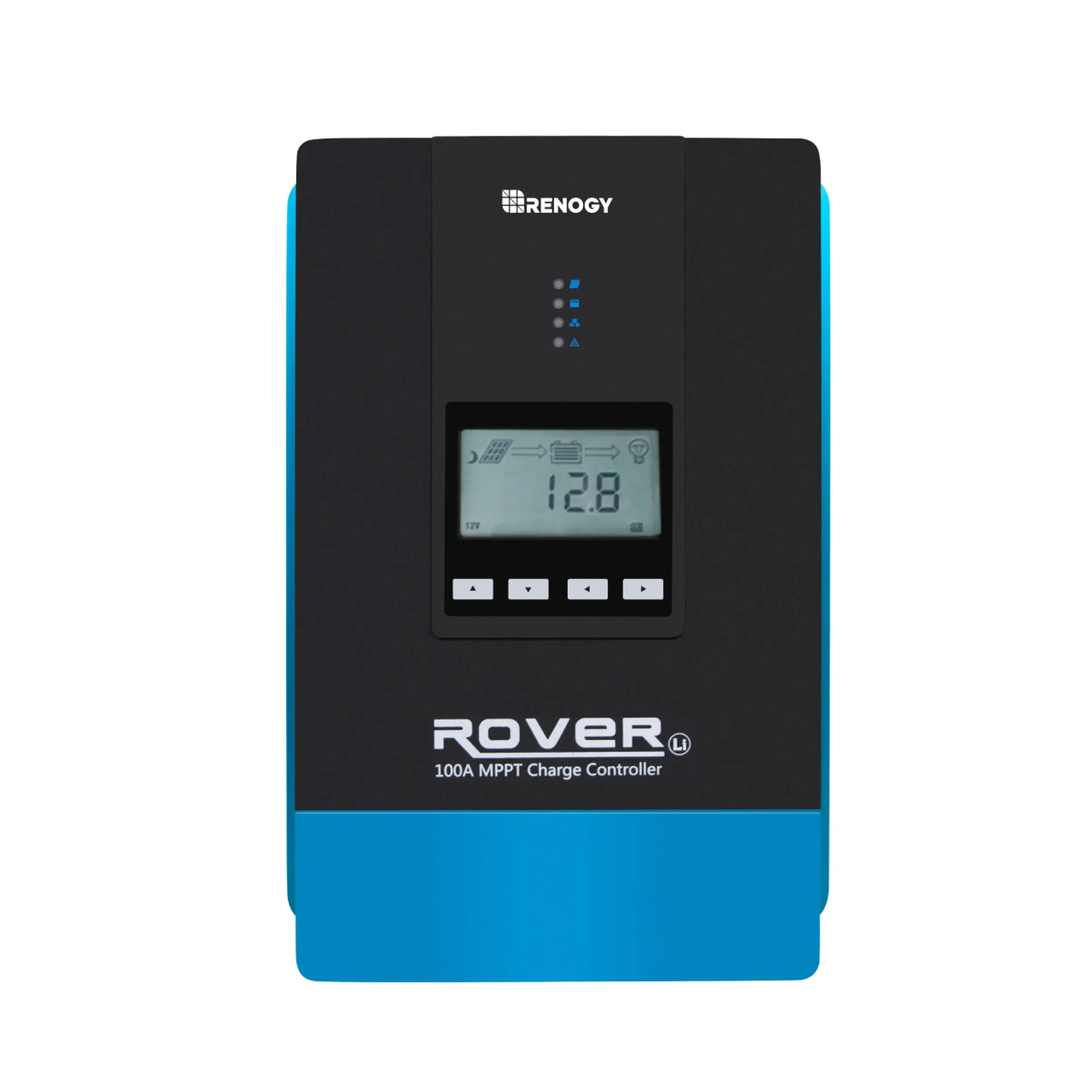

Rover 100 Amp MPPT контроллер солнечного заряда

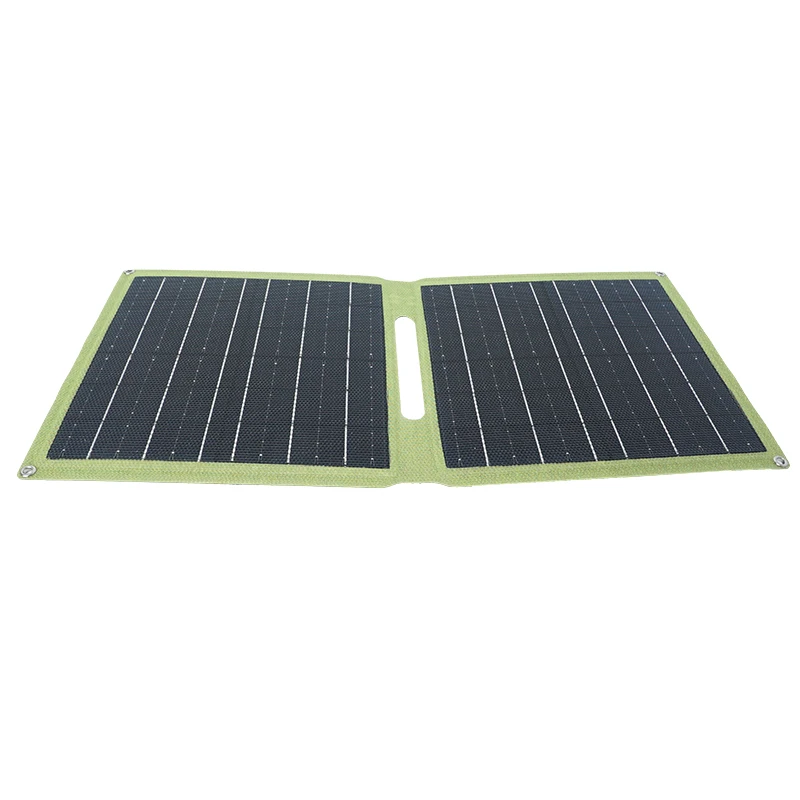

Наружная зарядка, зеленый, 20 Вт 6 В, ETFE материал, мобильный телефон, плоская панель солнечного зарядного устройства, солнечная панель

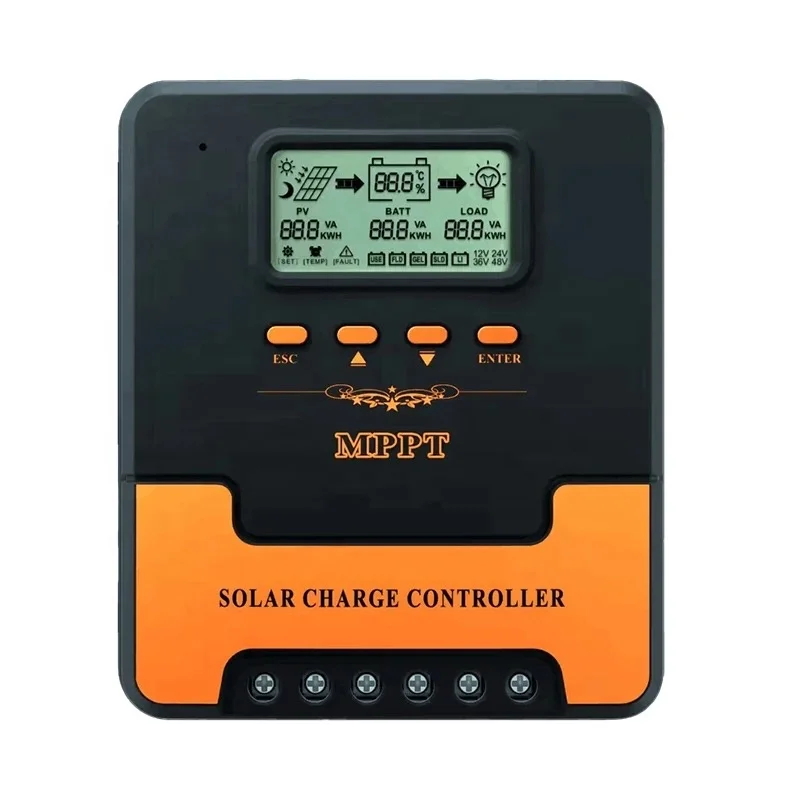

Регулятор заряда солнечной батареи MPPT 40A 60A, 60 А, 12 В, 24 В, отрицательный регулятор заземления для PV 100 В солнечной рабочей станции

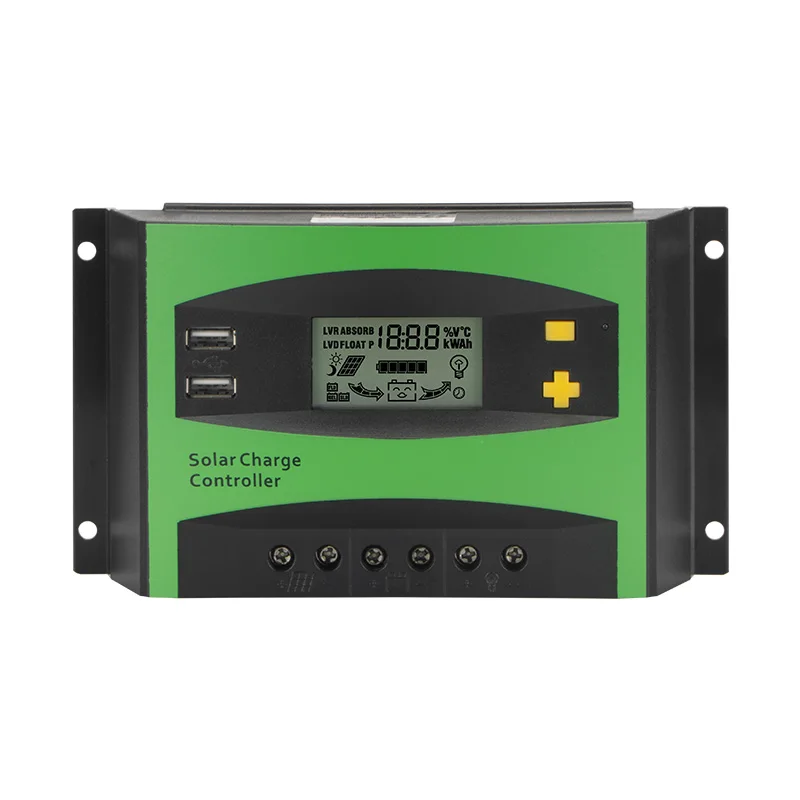

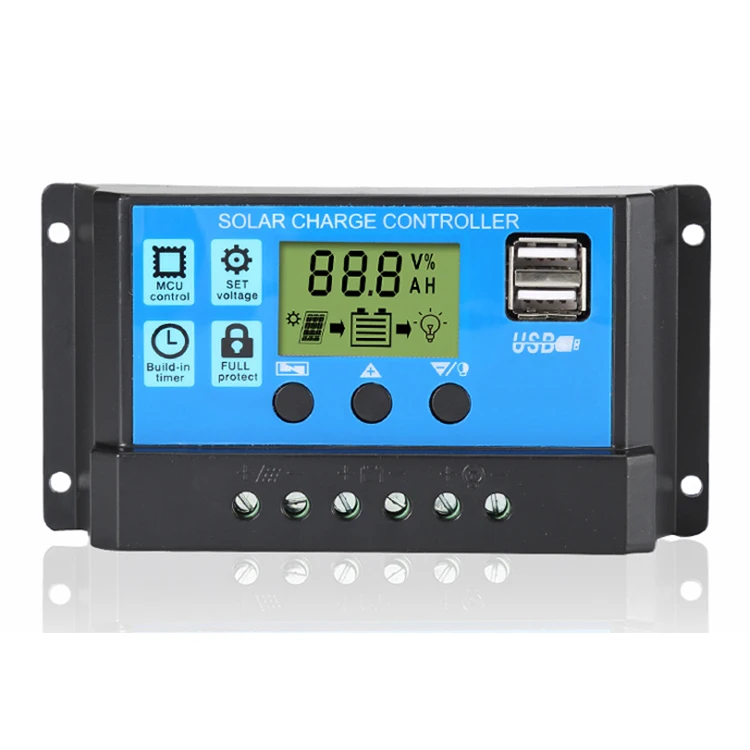

Регулятор панели солнечных батарей 12 В/24 В с регулируемым ЖК-дисплеем, двойной USB-порт, настройка таймера PWM, автоматический параметр
Заводская цена, 12 В, 24 В, свинцово-кислотный литиевый Аккумулятор lifepo4, 10А 20А, 30А, 40А, 50А, 60А, контроллер солнечного зарядного устройства

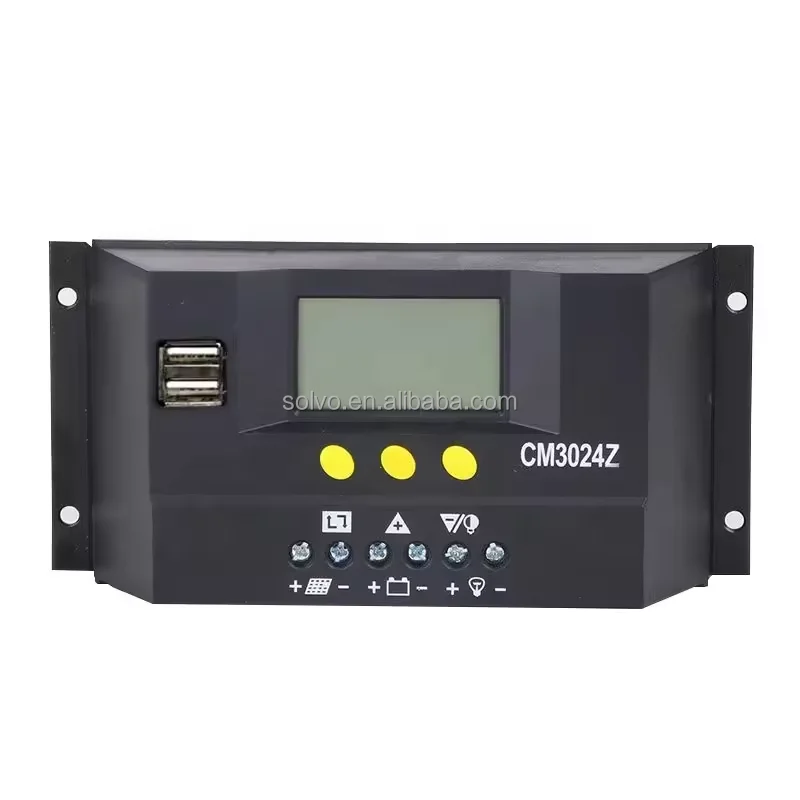

Контроллер солнечного заряда Solvo хорошего качества, PWM 10A 20A 30A 50A 60A 12/24 В, контроллер солнечного заряда
