Product Description

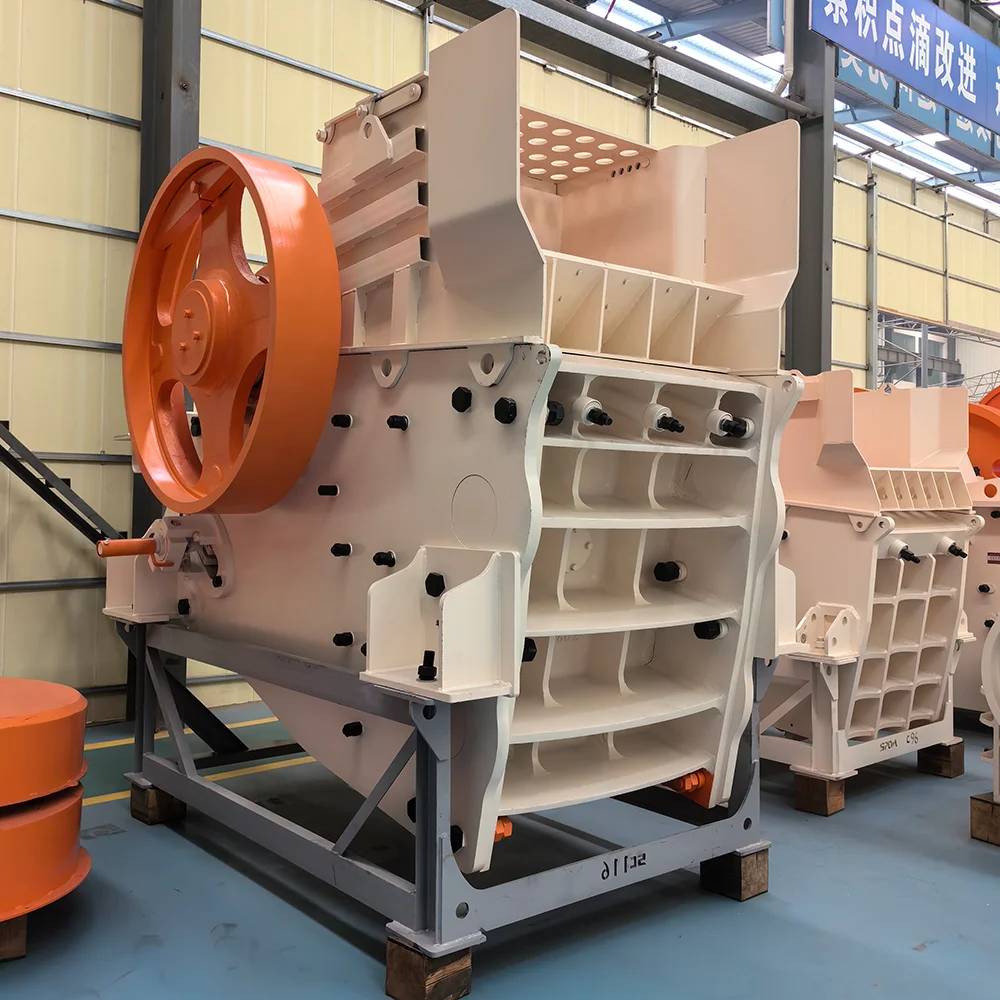

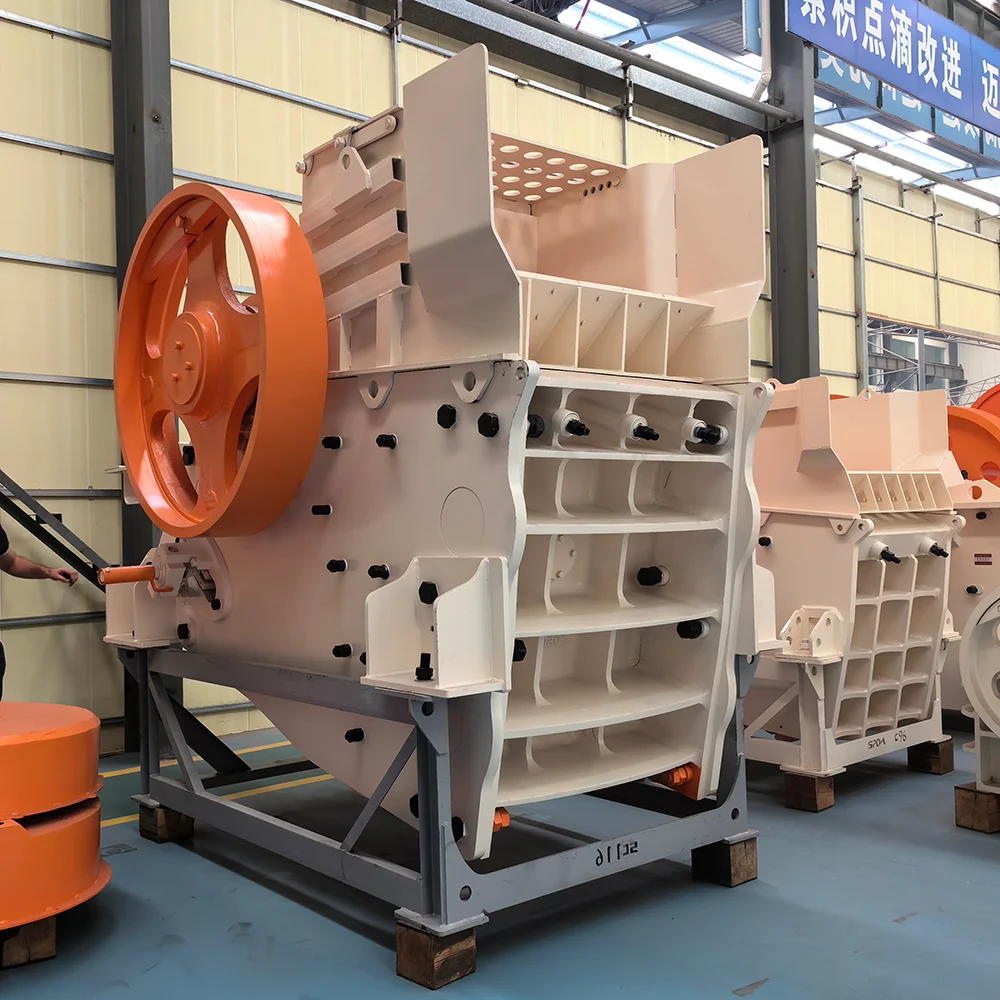

SC series jaw crusher is a set of high efficiency and energy saving stone crushing equipment designed and manufactured by European advanced technology. It can fully meet the demand of production capacity from 30 tph to 1000 tph.

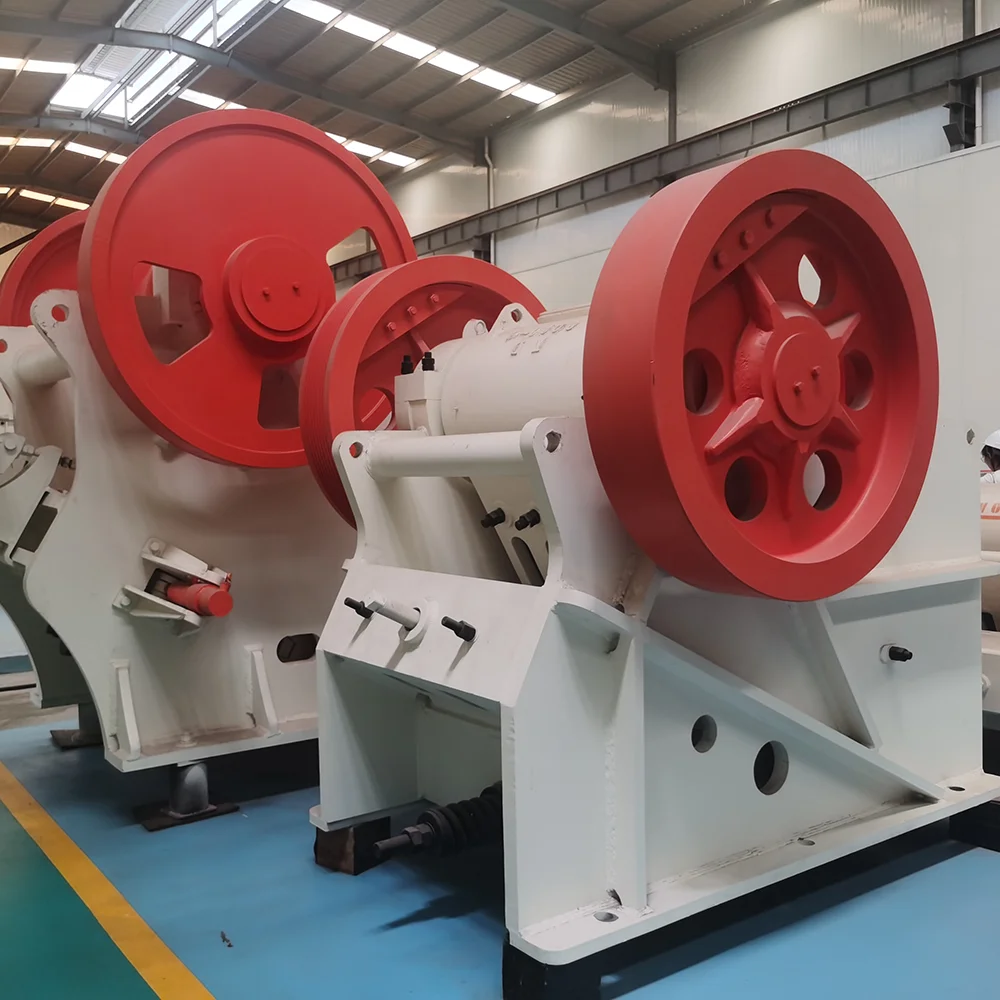

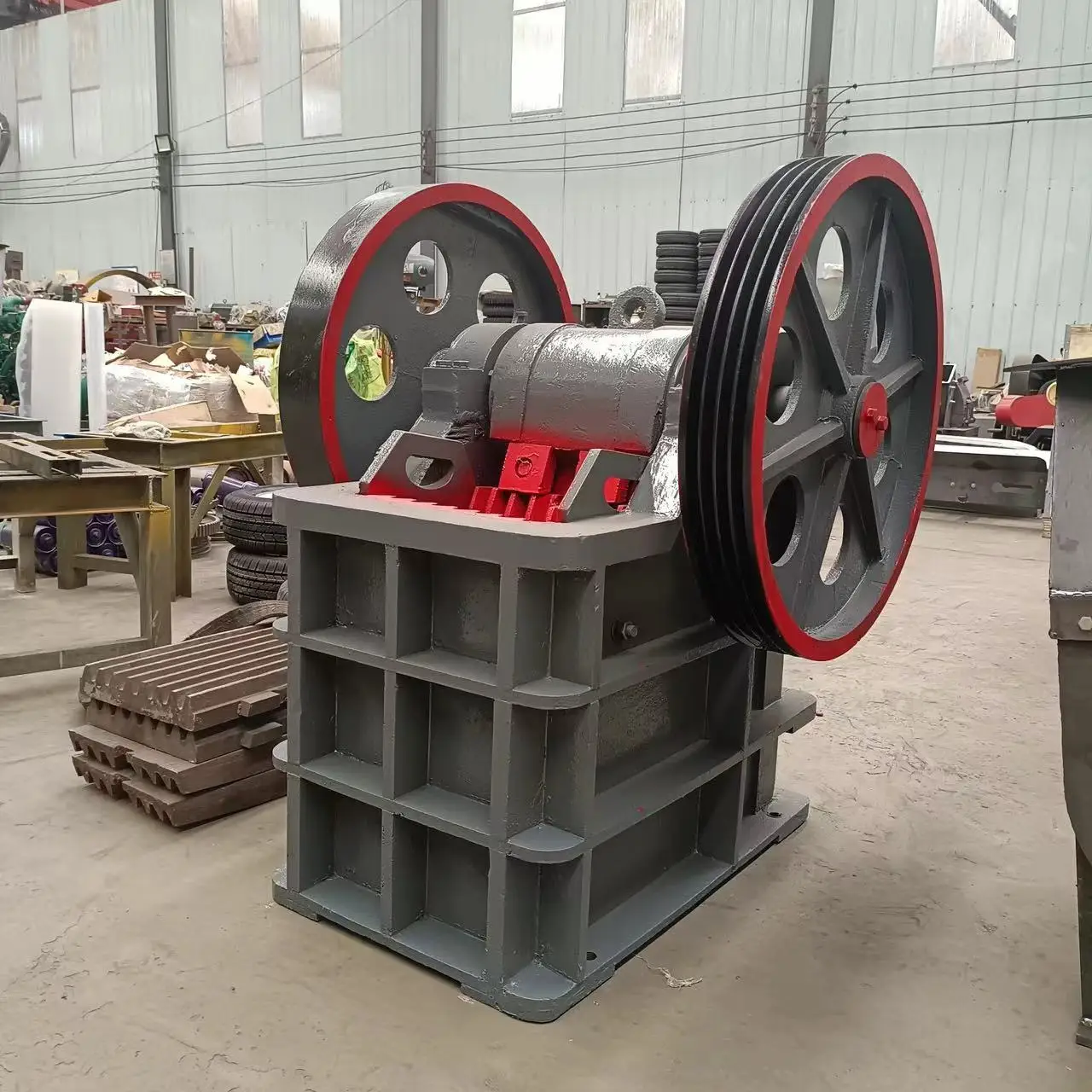

Jaw crusher is a kind of stone crushing machine which is widely used as primary crusher. WOCATSPOM manufactures coarse jaw crusher in stationary type or mobile type.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc We are able to provide the best and most economical solutions according to the specific requirements of stone specifications, production capacity and usage.
Product Advantage
High output
Low energy consumption
Easy maintenance
Our jaw crushers are based on pinned and bolted, non-welded frame construction. This design principle contributes to their excellent fatigue life and strength, which has been proven in FEM calculations, extensive simulations and in the toughest real-life applications.
Technical Parameters
Model | Feeding Size(mm) | Maximum Feed(mm) | Power(kW) | Outlet size (mm) | Capacity(t/h) |
SC96 | 930×580 | 490 | 90 | 60-175 | 120-410 |
SC106 | 1060×700 | 600 | 110 | 70-200 | 165-520 |
SC110 | 1100×850 | 720 | 160 | 70-200 | 180-540 |
SC116 | 1150×760 | 650 | 132 | 70-200 | 190-625 |
SC120 | 1200×870 | 740 | 160 | 70-175 | 190-560 |
SC125 | 1250×870 | 740 | 185 | 100-250 | 260-775 |
SC150 | 1400×1200 | 1020 | 220 | 125-250 | 355-900 |
SC160 | 1600×1200 | 1020 | 250 | 150-300 | 445-1170 |
The jaw crusher works on a very simple principle and is driven directly by an electric motor. The plant is designed to achieve the highest productivity with the lowest operating costs.
Working site

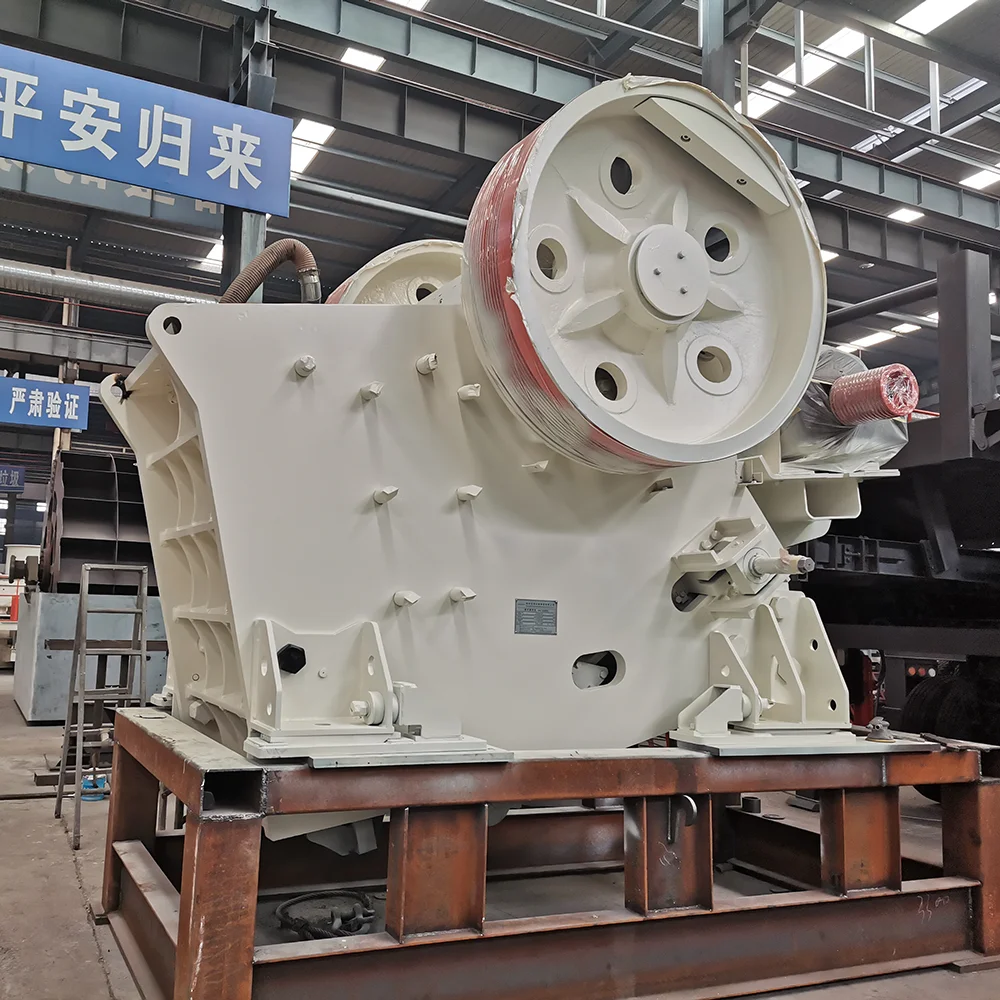

SC Jaw crusher

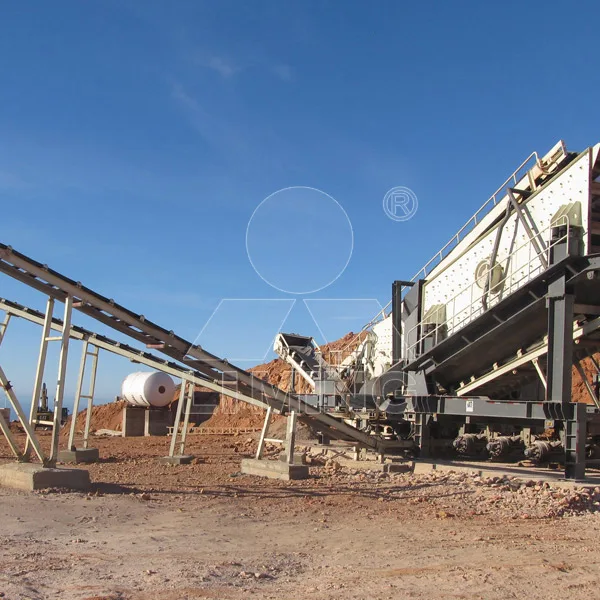

This is 300 tons per hour limestone crushing and screening production line in Fiji , max feeding size 750mm, final product size 0-5mm 5-20mm 20-40mm, secondary crusher is two sets PFV1315 impact crushers . This design is only suitable to crush soft stone like limestone , concrete etc.
This is a photo of our engineers working on a construction site in Djibouti. The SC jaw crusher, a key piece of equipment in this project, has a power of 160 kW, an outlet size ranging from 70 to 200 mm, and a processing capacity of 180 to 540 tons per hour. The buyer is extremely satisfied with our collaboration and the performance of the machine.
Packing & Shipping
SC Jaw crushers have a advanced design that saves time and installation costs. Our crushers are shipped in containers, usually the whole machine undivided. They can be installed within a few days, minimizing on-site engineering and fabrication work. Our strong production capacity ensures the shortest delivery times. We offer various shipping methods to ensure safe and timely arrival of goods.
ABOUT US
Wocat Spom Group Mineral Tech Co., Ltd., a professional manufacturer of stone crushers, grinding mills as well as solution provider, is located in Zhengzhou, Henan province with 25,000 square meters of standardized heavy industrial plants. The total number of employees is 125, of which 30 are professional technicians and engineers. We integrate research and development, design, manufacturing, sales and after-sales service, focusing on the development of automatic and mobile, energy-saving and environmental protection equipment. We are an expert in mobile crushers including crawler crusher, wheel-mounted crusher and skid-mounted crusher etc, helping to process construction waste, contributing to efficient infrastructure development and green mining.
Our products have been sold to 120 countries and regions in Southeast Asia, Eastern Europe, South America, the Middle East and Africa, and we will expand to more foreign markets in the future.
FAQ
1、If I need a complete stone production line, can you build it for us?
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!
5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
Yes, our company has a strong design, R&D and manufacturing team, we can design the complete mineral production and processing line combined with your actual needs, and provide you with relevant professional advice when needed. We have set up many mining projects in China and overseas. We can set up the complete processing line according to your requirements.
3、Which countries have your products been exported to?We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!
5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
Похожие товары

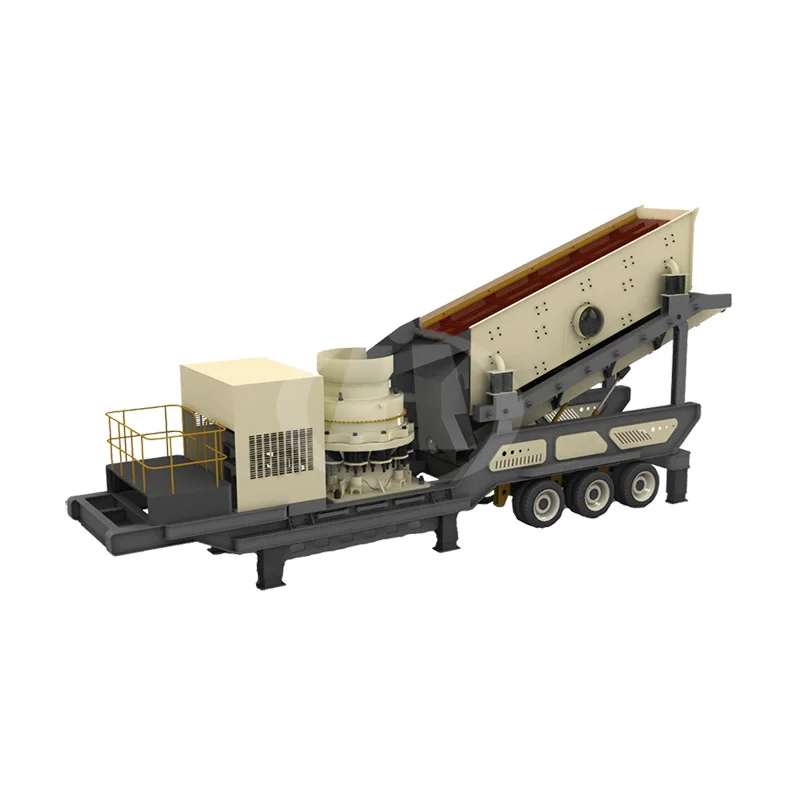

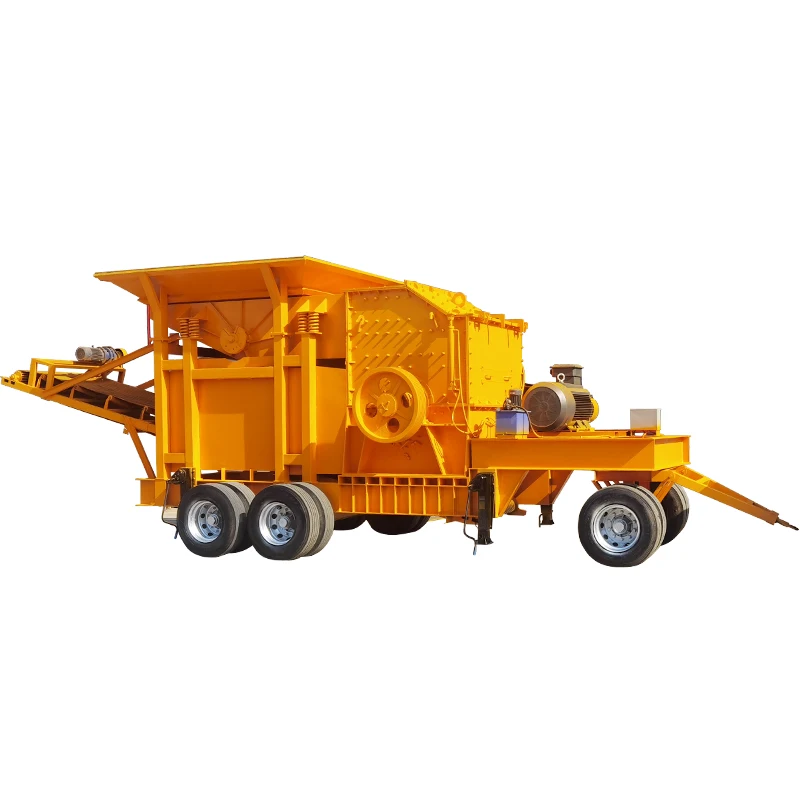

Высокое качество Перлит каменный уголь портативная дробилка мобильная дробильная станция
1 084 359,00 ₽
Щековая дробилка, добывающая каменная дробилка, pe 150x250, Стабильная и надежная дизельная щековая дробилка
124 701,29 ₽ - 130 123,08 ₽

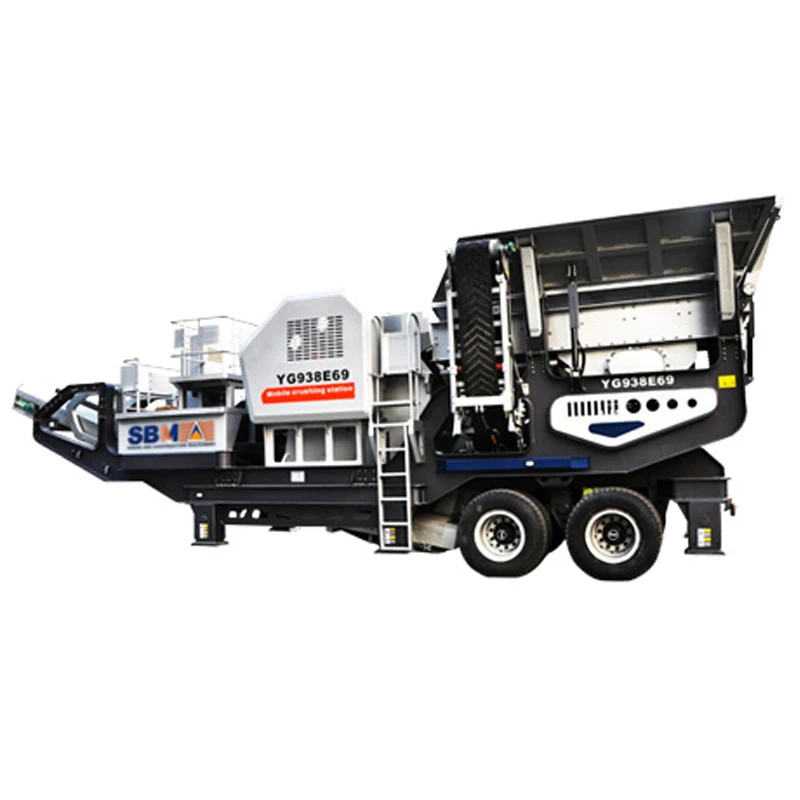

Заводская цена, мобильная каменная щековая дробилка, дизельная дробилка для бетона, каменная дробилка
1 355 448,75 ₽ - 1 626 538,50 ₽
Оптовая продажа, сельскохозяйственное дробильное оборудование, мобильная дробилка, бренд Concasseur Mchoires Prix
9 759 231,00 ₽ - 10 843 590,00 ₽

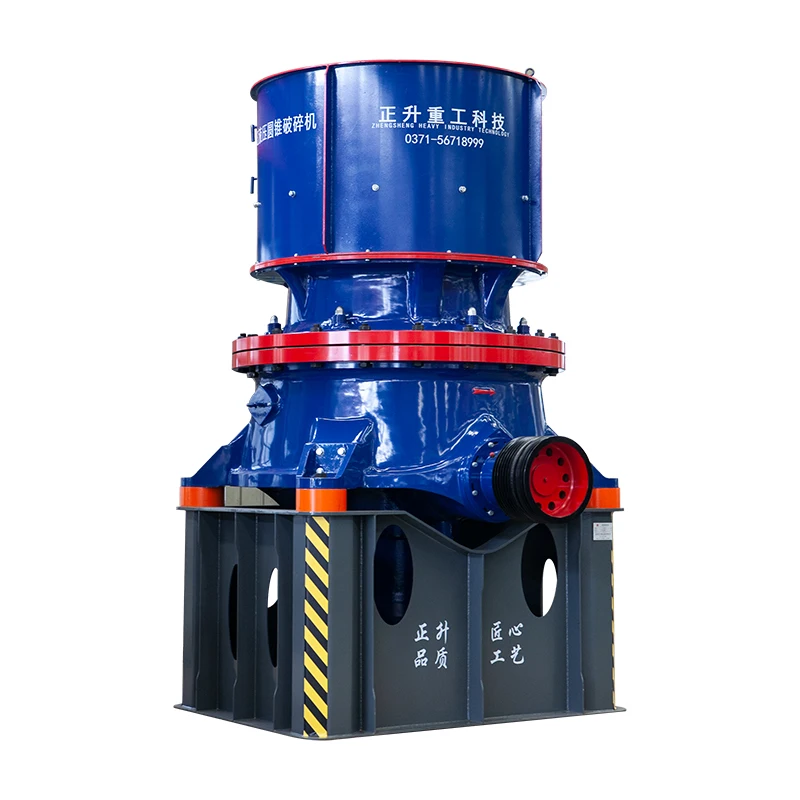

Hh & HS одноцилиндровая Гидравлическая Конусная Дробилка Из Китая в Узбекистане
