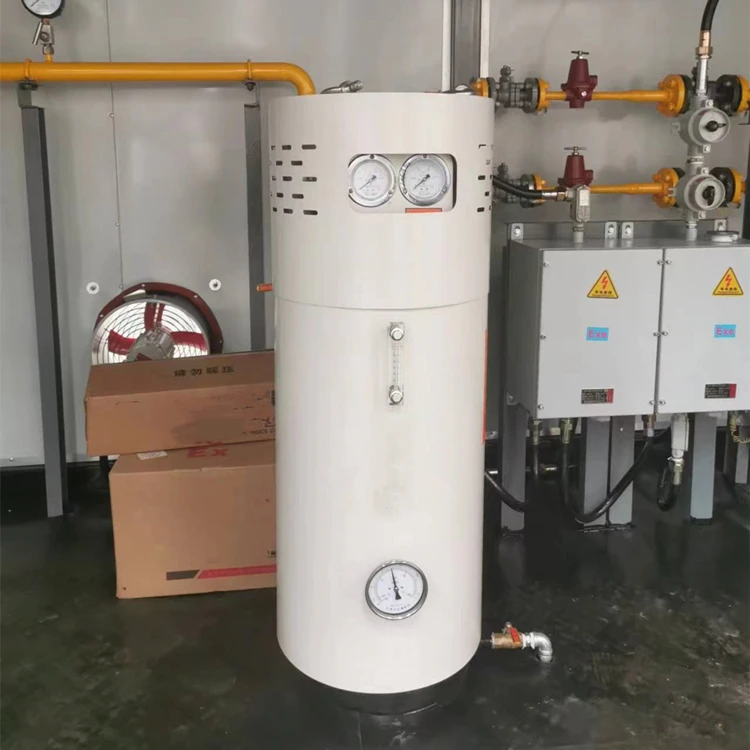

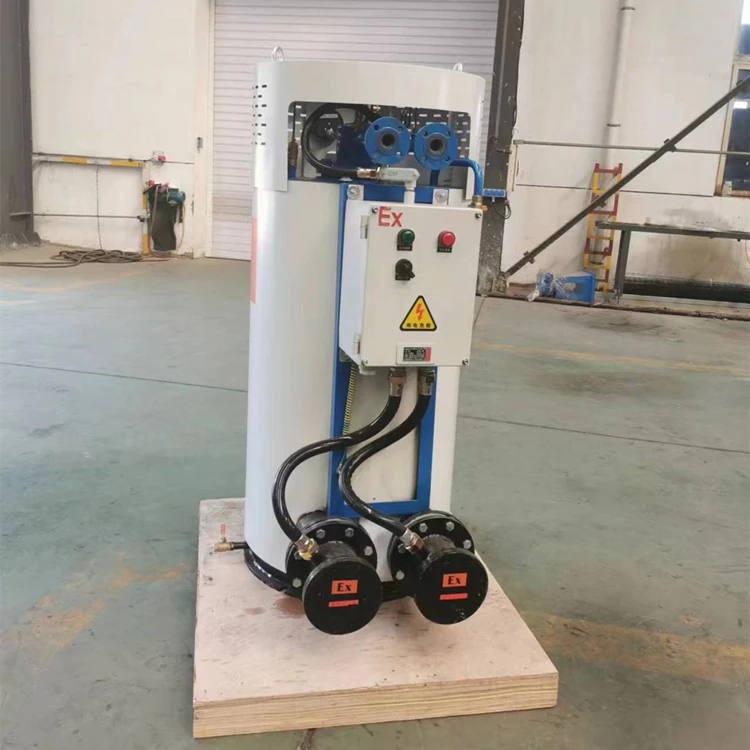

50kg/h High Pressure Lpg Air Heated Vaporizer For Gas Skid
Product introduction
LPG electric heating vaporizer is a safe, reliable automatic heat exchange equipment, it can be liquefied petroleum gas through full heat exchange so that the gasification rate is higher than the natural gasification, to the user's need Stable flow and pressure.
Optional Configuration
1.For the materials of the tunnel body ,you can choose carbon steel or stainless steel
2.The acousto-optic alarm of the temperature of the exits
3.Emergency cutting off equipment
4.The whole equipment is picking designed
5.We can design and produce according to the standard of electronic grade
6.It can adopts explosion prevention electric cabinet and explosion prevention electric heating equipment
2.The acousto-optic alarm of the temperature of the exits
3.Emergency cutting off equipment
4.The whole equipment is picking designed
5.We can design and produce according to the standard of electronic grade
6.It can adopts explosion prevention electric cabinet and explosion prevention electric heating equipment
Product Parameter
Model | YD-50 | YD-100 | YD-150 | YD-200 | YD-300 | YD-400 | YD-500 |
Vaporition capacity | 50Kg/h | 100Kg/h | 150Kg/h | 200Kg/h | 300Kg/h | 400Kg/h | 500Kg/h |
Power voltage | ~380V | ~380V | ~380V | ~380V | ~380V | ~380V | ~380V |
Power | 8KW | 15KW | 23KW | 30KW | 46KW | 60KW | 75KW |
Max Working pressure | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa |
Working temperature | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ |
opening pressure of safety valve | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa |
Heat exchange medium | water | water | water | water | water | water | water |
Inlet size | DN15 | DN20 | DN20 | DN25 | DN25 | DN25 | DN25 |
Outlet size | DN20 | DN25 | DN25 | DN25 | DN40 | DN40 | DN50 |
weight | 110Kg | 110 Kg | 150 Kg | 180 Kg | 240 Kg | 280Kg | 320 Kg |
our advantages
1.The device uses electricity as the heating source, and the water is indirectly heated by the heat transfer medium to liquid liquefied petroleum gas.The equipment has good air tightness.
2.The equipment has the characteristics of high automation control, convenient operation and safe and reliable.The automatic control part adopts the imported intelligent PI D temperature controller, which has the work indicator and various safety chain control devices.Including anti - liquid measures, overheating and power - off protection function.
3.The device is disabled in the form of siphon exhaust, which can completely eliminate the residue in the vaporizer.
2.The equipment has the characteristics of high automation control, convenient operation and safe and reliable.The automatic control part adopts the imported intelligent PI D temperature controller, which has the work indicator and various safety chain control devices.Including anti - liquid measures, overheating and power - off protection function.
3.The device is disabled in the form of siphon exhaust, which can completely eliminate the residue in the vaporizer.
Send Inquiry>>
Right Choice, Right Now
Right Choice, Right Now
Product Packing

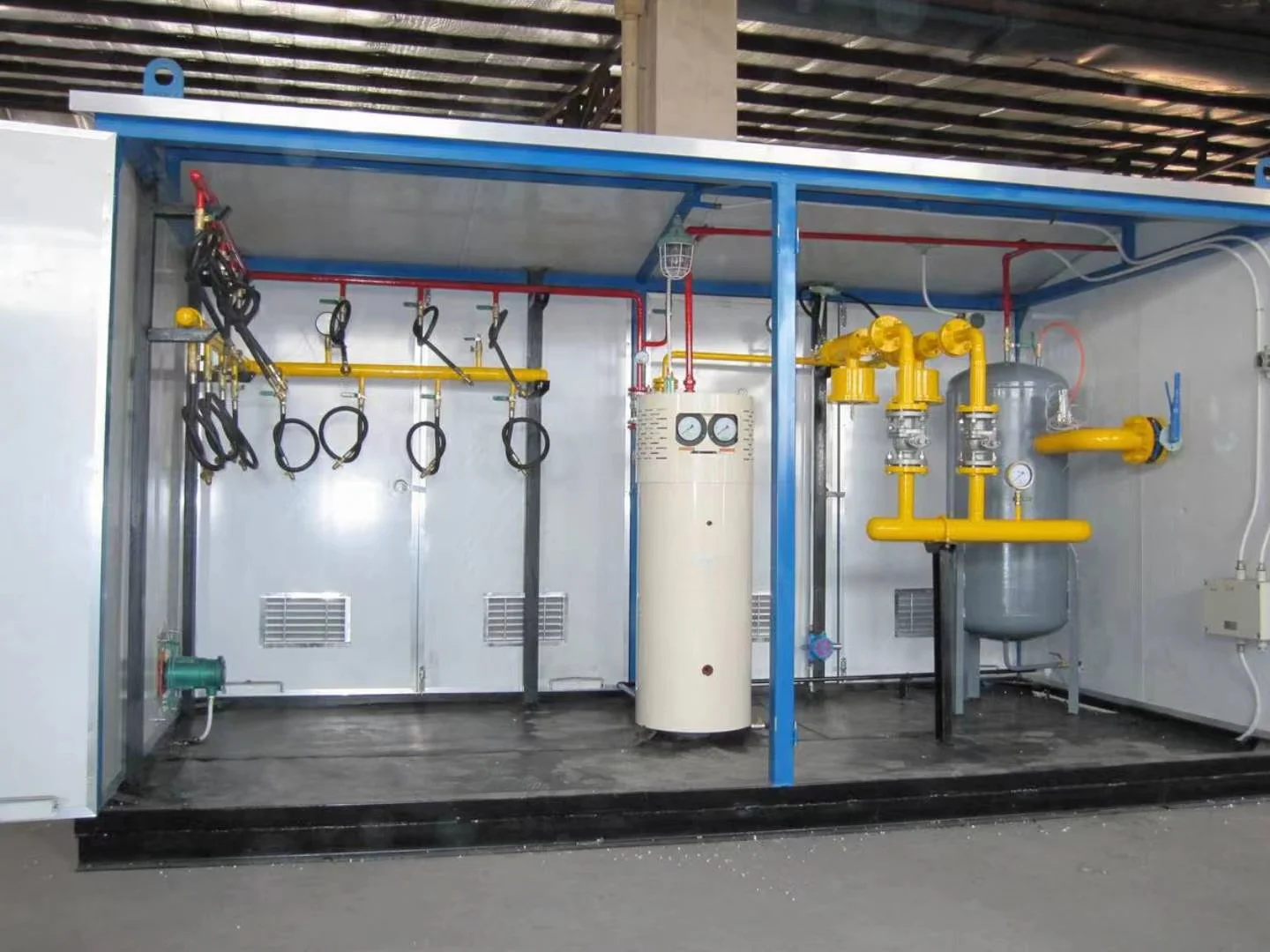

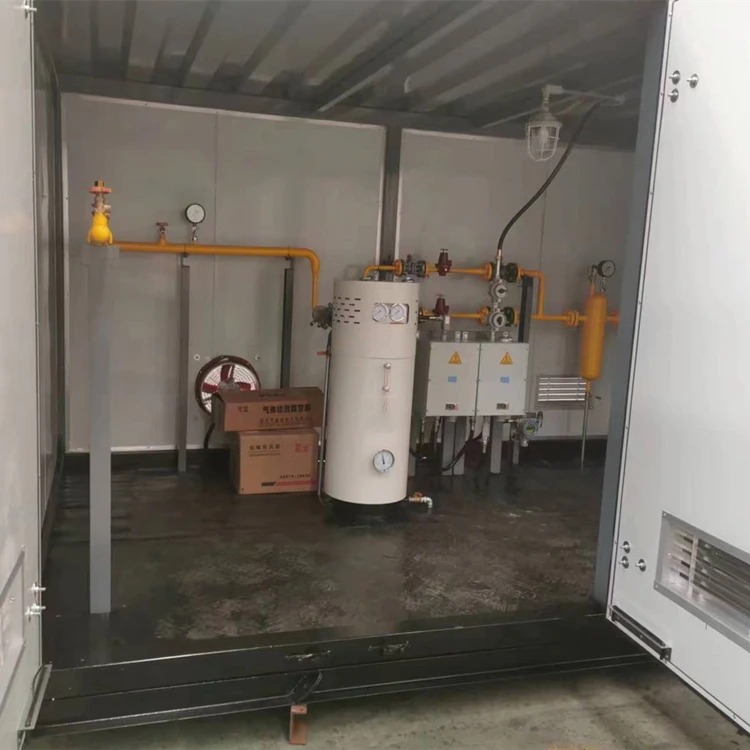

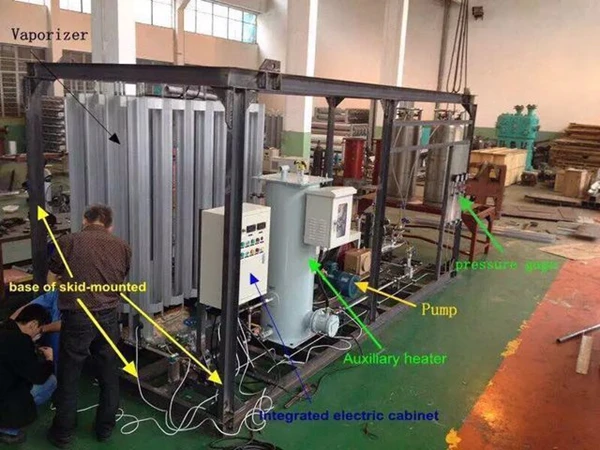

Project Case
Company Profile
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (CNCD Company) was founded in 2002, company is located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas)storage tank, cryogenic liquid pump, ambient vaporizer, liquid dewar cylinder, lpg tank, 20ft iso tank container,microbulk tank,small liquid nitrogen tank and related products in the field of research and development, design, manufacture and installation.Click here to view the factory VR video.
The company more than 90,000 square meter for workshop.Our company have exported products to foreign countries more than 22 years,have rich experience in production and exported ,products have exported to more than 70 countries ,also have branch office in the Vietnam.
Customer Photos
OUR CUSTOMERS ARE VERY SATISFIED
Our customers are so satisfied that they said:"in addition to seeing the high quality products and complete production plants in CNCD company, we also enjoy a good service Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Our customers are so satisfied that they said:"in addition to seeing the high quality products and complete production plants in CNCD company, we also enjoy a good service Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Exhibition
We often participate in various gas exhibitions at home and abroad, have face-to-face communication with customers, and visit local customers.
More promation please enquiry us>>
More promation please enquiry us>>
FAQ
1. Can you provide installation and commissioning services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service.
Except those we will ship the related files such as "installation, commissioning and operation instructions”, graphic materials, related video and audio materials together with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance files to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. Can you use English (or other languages) version of your control system panel, operating language and factory materials?
Absolutely. We can provide it in all languages according to your request.
3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have professional design engineers to provide you with customized design services.
4. What is the service life of your product?
Designed service life is 20 years. In fact it can be extended according to the actual use situation. Some of our customers have used it for 30 years.
5. Can I put my logo on the product?
Of course, we support product painting color and logo customization.
According to your requirements, we can provide you with:
(1) On-site installation and construction services;
(2) On-site technical engineer guidance service;
(3) Online technical guidance service.
Except those we will ship the related files such as "installation, commissioning and operation instructions”, graphic materials, related video and audio materials together with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance files to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.
2. Can you use English (or other languages) version of your control system panel, operating language and factory materials?
Absolutely. We can provide it in all languages according to your request.
3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have professional design engineers to provide you with customized design services.
4. What is the service life of your product?
Designed service life is 20 years. In fact it can be extended according to the actual use situation. Some of our customers have used it for 30 years.
5. Can I put my logo on the product?
Of course, we support product painting color and logo customization.
Похожие товары
Генератор азота PSA высокой чистоты 99.999% генератор для упаковки пищевых продуктов
Азотный генератор насыщенный азотный система очистки азота для лазерной резки/производства электроники/упаковки
70 000,00 $
Высокобезопасная воздухоразделительная установка Криогенная криогенная азотная оборудование для разделения воздуха
5L PSA генератор кислорода для Koi прудов основной компонент двигателя 220 В кислородное оборудование напряжения
545,00-556,00 $

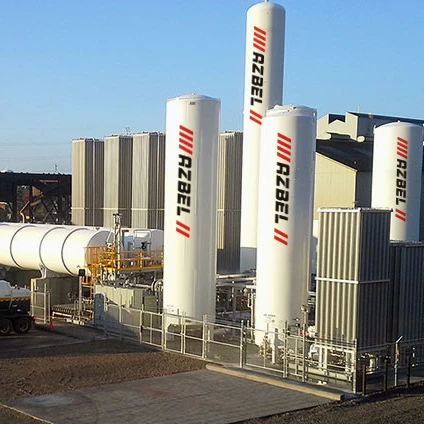

Установка AZBEL для производства кислорода кислородного газа азотного газового баллона заправочная установка
