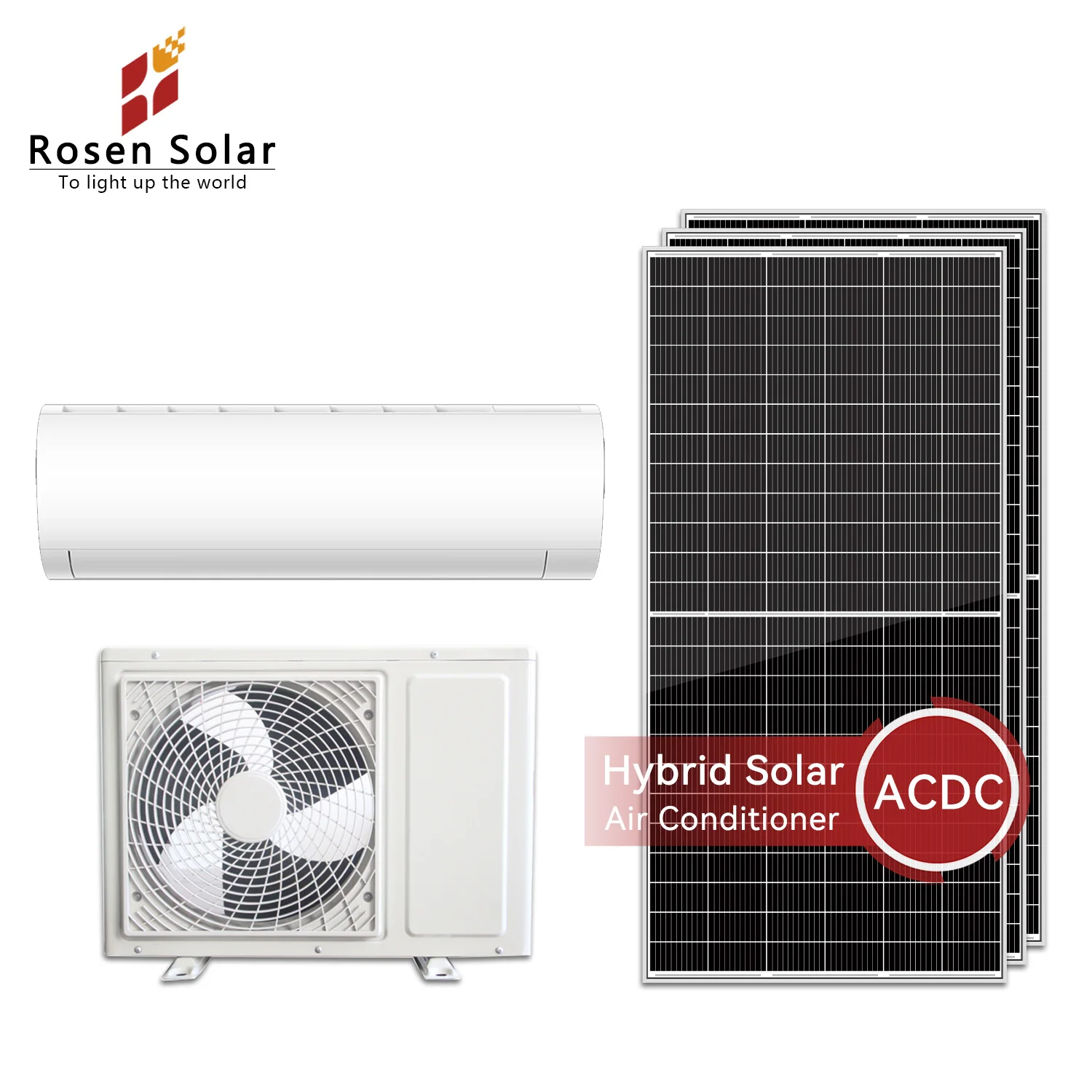

Настенная розетка переменного тока DC гибридная Солнечная энергия 12000btu 18000btu 24000btu инвертор солнечная панель AC кондиционер для дома
399,00 $ - 499,00 $
Кондиционер на солнечной батарее
- Категория: >>>
- Поставщик: Jiaxing Gold Lion Decoration Material Co. Ltd.
Сохранить в закладки 1601222966190:
Описание и отзывы
Характеристики
Products Description
Equipped With Panasonic Compressor | ||||||||
Model | Unit | UNP-35GW/ACDCB1-P | UNP-50GW/ACDCB1-P | |||||
Rated Capacity | Cooling | W | 3500 | 5000 | ||||
Heating | W | 3500 | 5000 | |||||
Rated Power Consumption | Cooling | W | 870 | 1358 | ||||
Heating | W | 940 | 1450 | |||||
Rated Running Current | Cooling | A | 3.97 | 6.01 | ||||
Heating | A | 4.26 | 6.34 | |||||
Max. Input Power | W | 1500 | 1900 | |||||
Max. Input Current | A | 7 | 9 | |||||
EER Cooling | W/W | 3.86 | 3.66 | |||||
COP Heating | W/W | 3.64 | 3.56 | |||||
Power supply source | V/Ph/Hz | 208-230V~/50-60Hz | 208-230V~/50-60Hz | |||||
VDC | 80-350 | 80-350 | ||||||
Refrigerant | R32 | R32 | ||||||
Refrigerant Charged | g | 820 | 960 | |||||
Max. Discharge Pressure | Mpa | 4.30 | 4.30 | |||||
Max. Suction Pressure | Mpa | 1.15 | 1.15 | |||||
Air Flow Volume | Mpa | 650 | 1050 | |||||
Noise level | dB（A) | 43 | 49 | |||||
Noise level | dB（A) | 51 | 57 | |||||
Indoor Unit Size | Net Dimension | mm | 900*290*195 | 1080*327*227 | ||||
Packing Dimension | mm | 971ˣ364ˣ281 | 1150ˣ405ˣ310 | |||||
Outdoor Unit Size | Net Dimension | mm | 780*255*540 | 820*300*600 | ||||
Packing Dimension | mm | 885ˣ355ˣ615 | 1045ˣ455ˣ700 | |||||
Indoor unit weight （Net/Gross Weight) | Kg | 10/13 | 13/16 | |||||
Outdoor unit weight (Net/Gross Weight） | Kg | 29/32.5 | 37/41 | |||||
Dehumidification | L/h | 1.05 | 1.38 | |||||
Compressor | Brand | Panasonic | Panasonic | |||||
Capacity | W | 2765 | 3995 | |||||
Input | W | 980 | 1479 | |||||
Container Loading 20/40/40HQ | sets | 104/228/261 | 81/166/193 | |||||
Equipped With GMCC Compressor | ||||||||||||||
Model | Unit | UNP-26GW/ACDCB1 | UNP-35GW/ACDCB1 | UNP-50GW/ACDCB1 | UNP-70GW/ACDCB1 | UNP-100GW/ACDCB1 | ||||||||
Power Supply | V | DC50-380V | DC50-380V | DC50-380V | DC50-380V | DC50-380V | ||||||||
PH-V-HZ | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | 1Ph,220~,50/60Hz | |||||||||
Cooling | Capacity | Btu/h | 9000 (500-11000) | 12000 (7000-14000) | 18000 (6200-19500) | 24000 (5100-26900) | 36000 (6500-37500) | |||||||
Power Input | W | 590 (100-1200) | 865 (110-1500) | 1320 (140-1800) | 1980 (240-3030) | 2850 (320-3510) | ||||||||
Current | A | 2.68 (0.45-5.45) | 3.93 (0.5-6.82) | 6 (0.6-8.18) | 9 (1.0-13.2) | 12.95 (1.45-15.95) | ||||||||
Heating | Capacity | Btu/h | 9500 (3800-11500) | 13000 (4000-15000) | 19000 (4700-20000) | 25000 (5500-30000) | 37500 (7000-39000) | |||||||
Power Input | W | 625 (120-1200) | 880 (130-1510) | 1465 (200-1900) | 2050 (260-3140) | 3000 (350-3650) | ||||||||
Current | A | 2.84 (0.5-5.45) | 4 (0.59-6.86) | 6.66 (0.9-8.63) | 9.32 (1.1-13.7) | 13.63 (1.59-16.59) | ||||||||
Moisture Removal | L/h | 1.0 | 1.3 | 1.7 | 2.5 | 3.6 | ||||||||
Max input | W | 1320 | 1500 | 2300 | 3200 | 3800 | ||||||||
Max current | A | 6.00 | 7.50 | 10.45 | 14.54 | 14.54 | ||||||||
Indoor air flow(H/M/L) | m3/h | 570/470/370 | 570/470/370 | 721/566/458 | 970/780/590 | 1150/900/700 | ||||||||
Indoor noise(H/M/L) | dB(A) | 41/36/28 | 41/36/28 | 43/37/32 | 45/39/34 | 46/40/35 | ||||||||
Indoor unit | Net Size (W*D*H) | mm | 734*194*285 | 775*194*285 | 921*213*302 | 1026*220*327 | 1080*220*327 | |||||||
Pack Size (W*D*H) | mm | 780*270*360 | 830*270*360 | 995*305*380 | 1105*310*405 | 1155*310*405 | ||||||||
Net/Gross | kg | 8.1/9.9 | 8.1/9.9 | 9.5/12.5 | 11.9/15.2 | 13.7/17.2 | ||||||||
Outdoor air flow | m3/h | 2100 | 2100 | 2100 | 2900 | 3800 | ||||||||
Outdoor noise | dB(A) | ＜50 | ＜50 | ＜52 | ＜56 | ＜64 | ||||||||
Outdoor unit | Net Size (W*D*H) | mm | 835*320*540 | 835*320*540 | 835*320*540 | 910*340*700 | 946*410*810 | |||||||
Pack Size (W*D*H) | mm | 900*400*600 | 900*400*600 | 900*400*600 | 1063*457*780 | 1090*500*860 | ||||||||
Net/Gross | kg | 28.9/33.4 | 29/33.5 | 31/36 | 49.5/56 | 65/73 | ||||||||
Operation temp. | ℃ | 16~30 | 16~30 | 16~30 | 16~30 | 16~30 | ||||||||
Ambient temp.(cooling/heating) | ℃ | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | 18-52/-15-34 | ||||||||
Application area | m2 | 12-18 | 16-23 | 24-35 | 32-47 | 47-63 | ||||||||
Solar panels recommendation | W | 700-1290 | 1030-1900 | 1580-2900 | 2370-4350 | 3400-6270 | ||||||||
CONFIGURATION TABLE | ||||
Model | Solar Panel | Quantity | ||
9000BTU | 400W | 2-3 Pieces | ||
12000BTU | 400W | 3-5 Pieces | ||
18000BTU | 400W | 4-6 Pieces | ||
24000BTU | 400W | 6-8 Pieces | ||
30000BTU | 500W | 5-7 Pieces | ||
36000BTU | 500W | 6-8 Pieces | ||
SYSTEM ADVANTAGES
* AC And DC Dual Power Supply
* High Energy Efficiency: Maximum Up to SEER 36;
* Convenient and Quick Installation, No Longer Require Solar Controller, Battery and Inverter

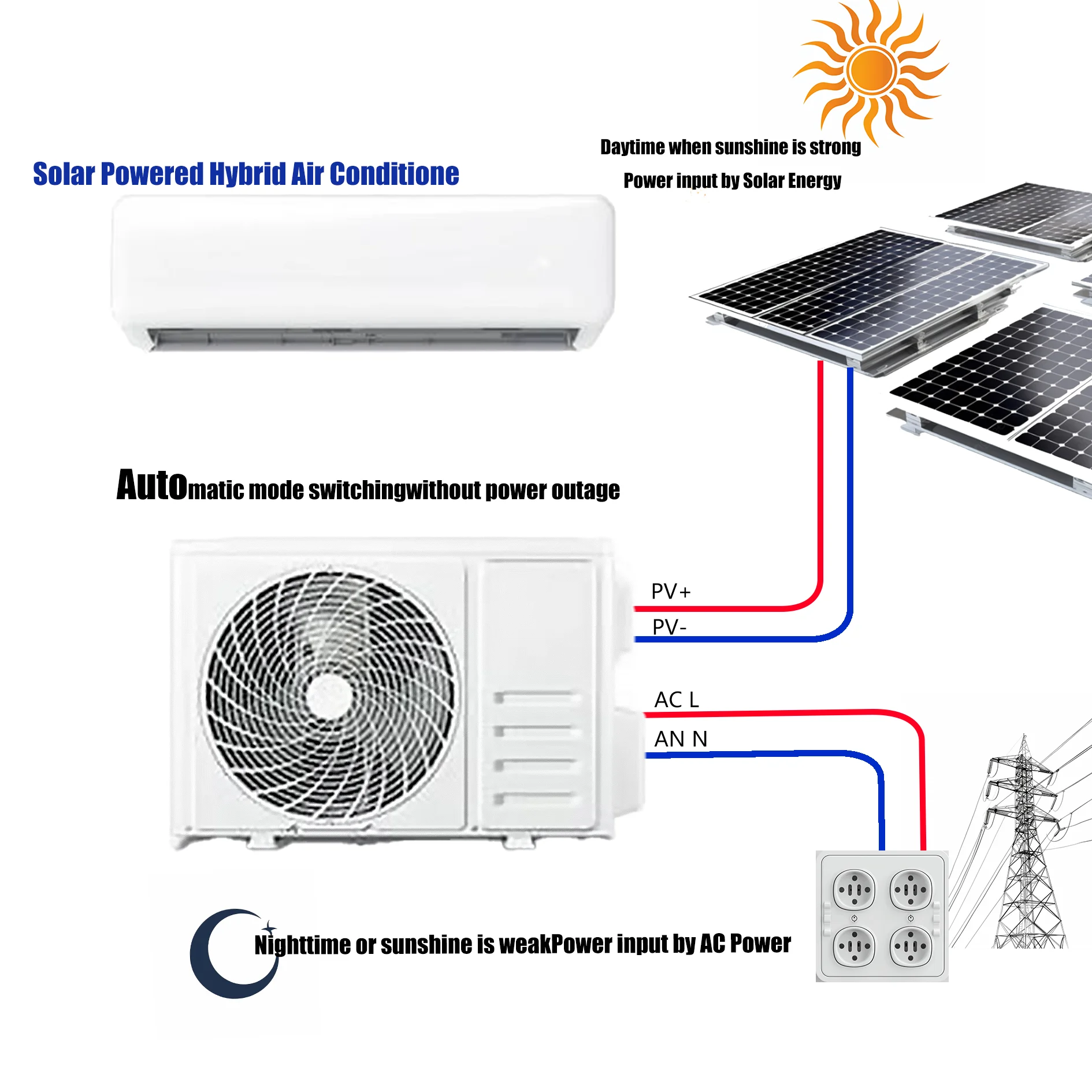

* Automatic Selection Between Solar Power and Grid Power Supply that Provides Uninterrupted Power Supply.
* Wide Voltage Design, Free Combination of Solar Panels, Not Limited by Installation Place.
* High-SEER Brushless Inverter DC Permanent Magnet
Compressors
* Wide Operating Temperature Range: -15°C To +58°C
* Anti-Corrosion Technology.
* Eco-Friendly R32 Refrigerant
* Solar Connector Terminal – Easy Connection and Maintenance Plug and Play
* Quiet Indoor Unit (As Low as 26db)
* High Energy Efficiency: Maximum Up to SEER 36;
* Convenient and Quick Installation, No Longer Require Solar Controller, Battery and Inverter
* Automatic Selection Between Solar Power and Grid Power Supply that Provides Uninterrupted Power Supply.
* Wide Voltage Design, Free Combination of Solar Panels, Not Limited by Installation Place.
* High-SEER Brushless Inverter DC Permanent Magnet
Compressors
* Wide Operating Temperature Range: -15°C To +58°C
* Anti-Corrosion Technology.
* Eco-Friendly R32 Refrigerant
* Solar Connector Terminal – Easy Connection and Maintenance Plug and Play
* Quiet Indoor Unit (As Low as 26db)
Solar Air Conditioner Parts
The unit's components include solar panels, DC wiring, and the air conditioning unit itself. It is important to size the solar
panel array and battery bank correctly to meet the energy demands of the air conditioner unit and ensure optimal performance.
panel array and battery bank correctly to meet the energy demands of the air conditioner unit and ensure optimal performance.

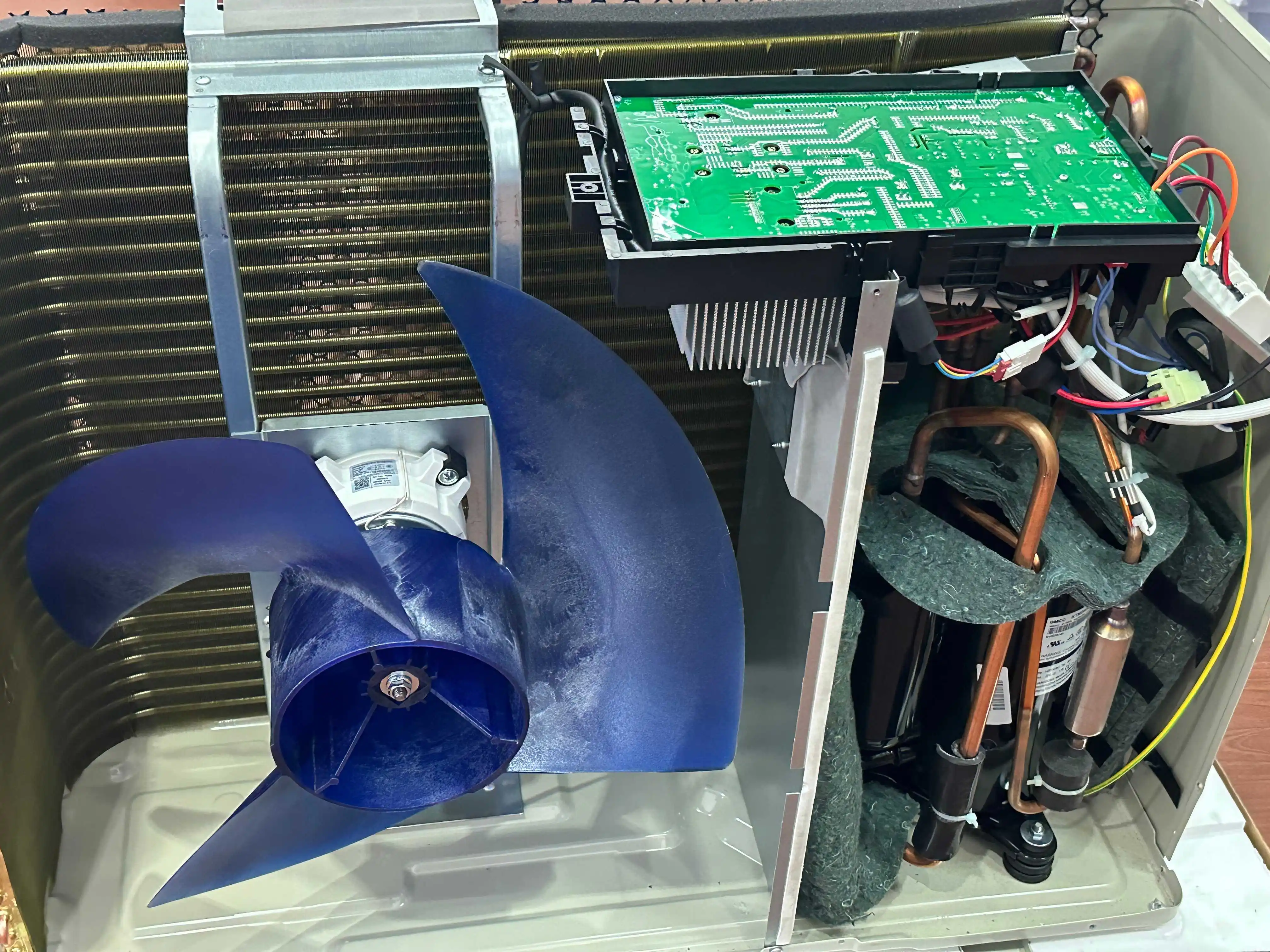

Outdoor Unit

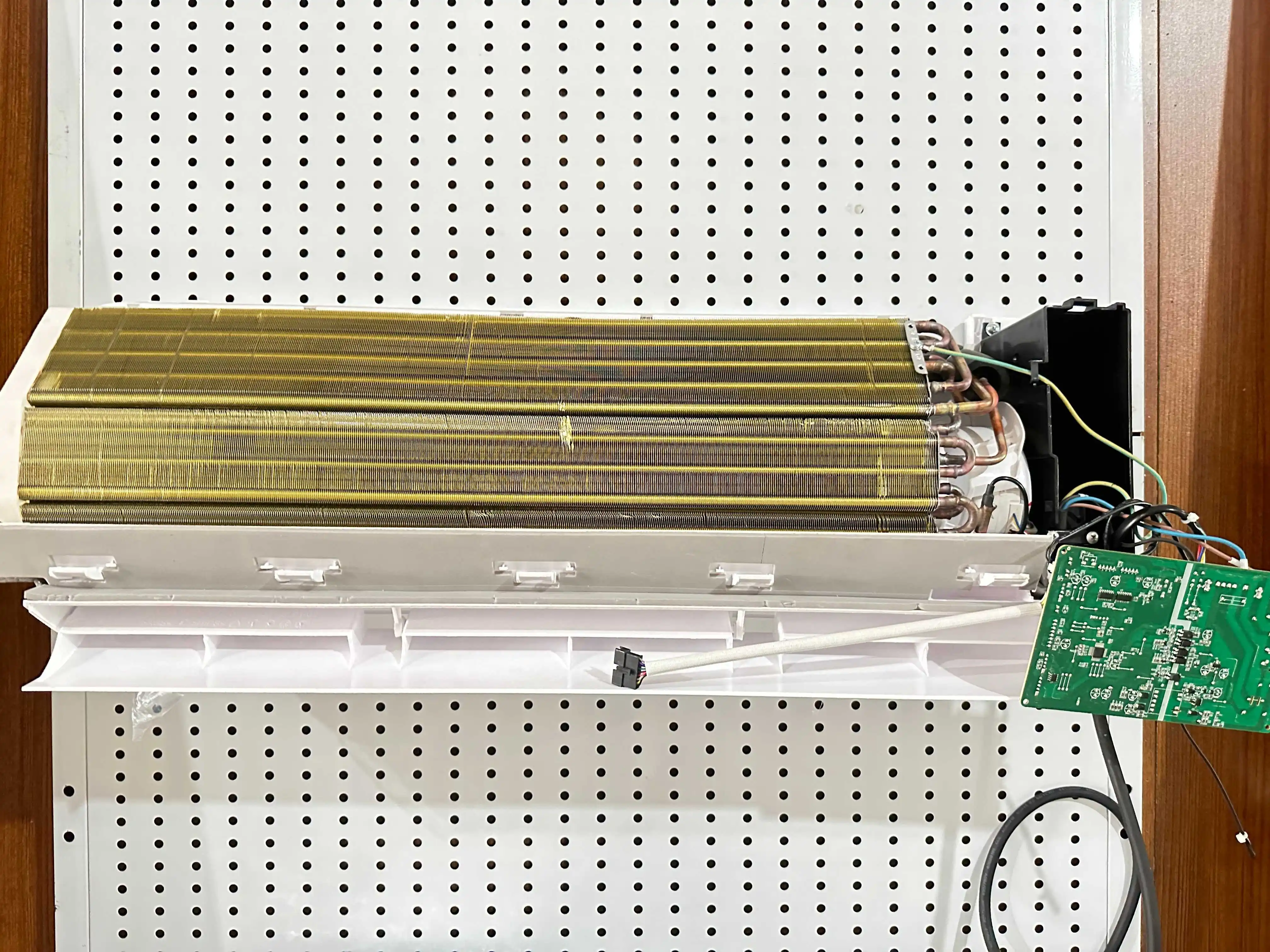

Indoor Unit
- Full DC
- Outdoor unit: Rust and corrosion resistance.
-Compressor: Strong power, stable performance.-Motor: Pure copper coils increase efficiency.
-Copper tube: Inner grooved design improve the heat transfer rate.
-Double-muting technology: Keep the environment quiet and comfortable.
-Strainer: Effectively prevents dust from entering, easy to remove and wash.
- Outdoor unit: Rust and corrosion resistance.
-Compressor: Strong power, stable performance.-Motor: Pure copper coils increase efficiency.
-Copper tube: Inner grooved design improve the heat transfer rate.
-Double-muting technology: Keep the environment quiet and comfortable.
-Strainer: Effectively prevents dust from entering, easy to remove and wash.
Application
SHIPPING METHODS
Exhibition
FAQ
1. What is a BTU? (British Thermal Unit) A unit in which we measure heat. 2. What does a 2-ton hybrid air conditioner mean? This
is also a unit in which we measure the hybrid air conditioner's ability to cool. There are 12,000 BTUs per ton so 2 tons X12,000
BTU = 24,000 BTU capacity.
3.Air Conditioner Sizing by Home Size
1,400-1,600 square feet home size needs 24,000 BTUs
1,600-1,800 square feet home size needs 27,000 BTUs
1,800-2,000 square feet home size needs 30,000 BTUs
2,000-2,200 square feet home size needs 33,000 BTUs
4. What is the MOQ?
MOQ: 1 set
is also a unit in which we measure the hybrid air conditioner's ability to cool. There are 12,000 BTUs per ton so 2 tons X12,000
BTU = 24,000 BTU capacity.
3.Air Conditioner Sizing by Home Size
1,400-1,600 square feet home size needs 24,000 BTUs
1,600-1,800 square feet home size needs 27,000 BTUs
1,800-2,000 square feet home size needs 30,000 BTUs
2,000-2,200 square feet home size needs 33,000 BTUs
4. What is the MOQ?
MOQ: 1 set
