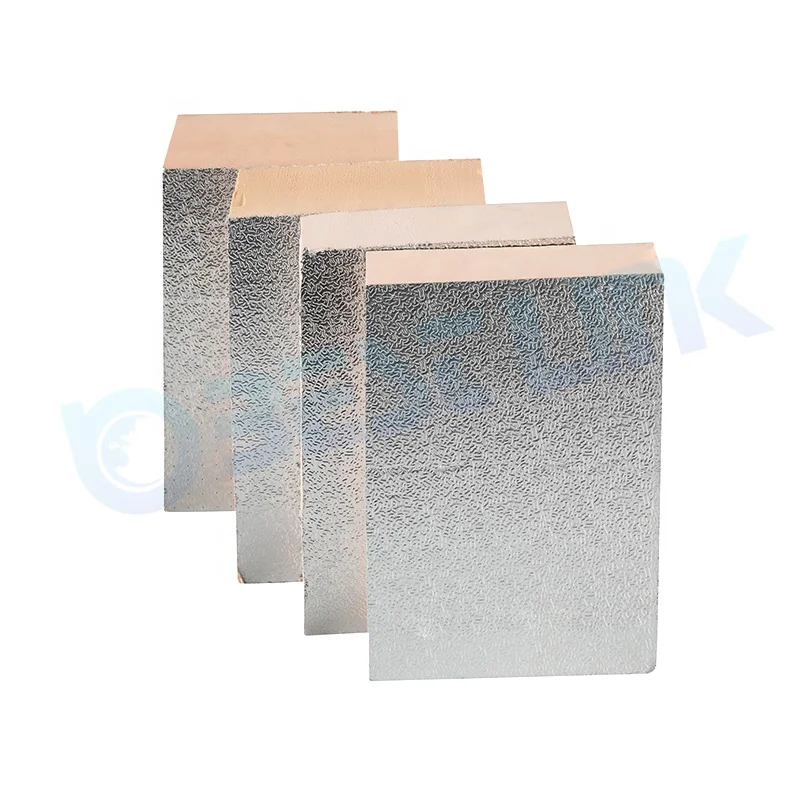

Теплоизоляционный материал фенольная пенопластовая изоляционная панель для изоляции стен система воздуховодов HVAC изоляция крыши
- Категория: >>>
- Поставщик: Suzhou Best Link New Material Co. Ltd
Сохранить в закладки 1601223440376:
Описание и отзывы
Характеристики

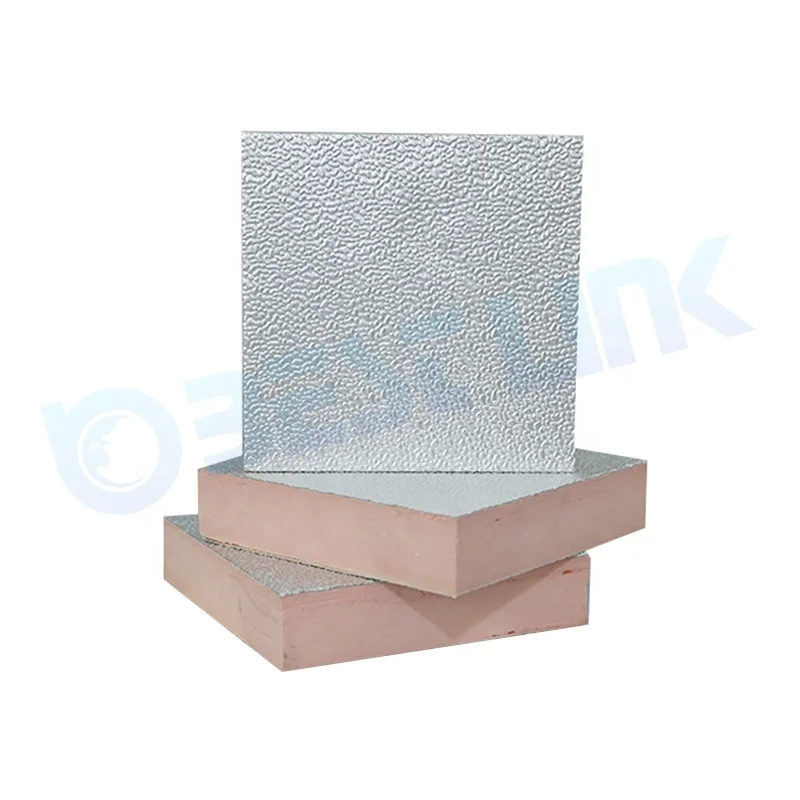

Product Description

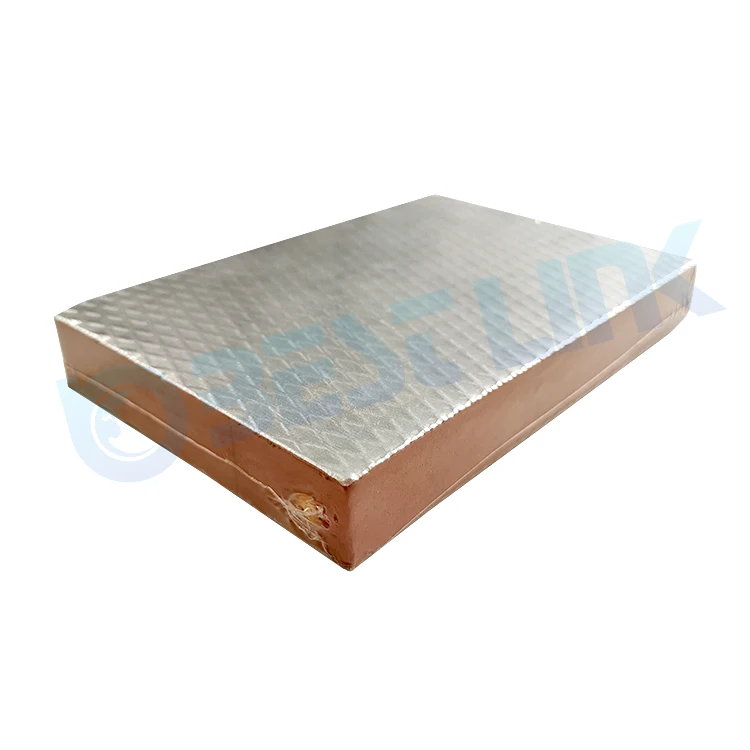

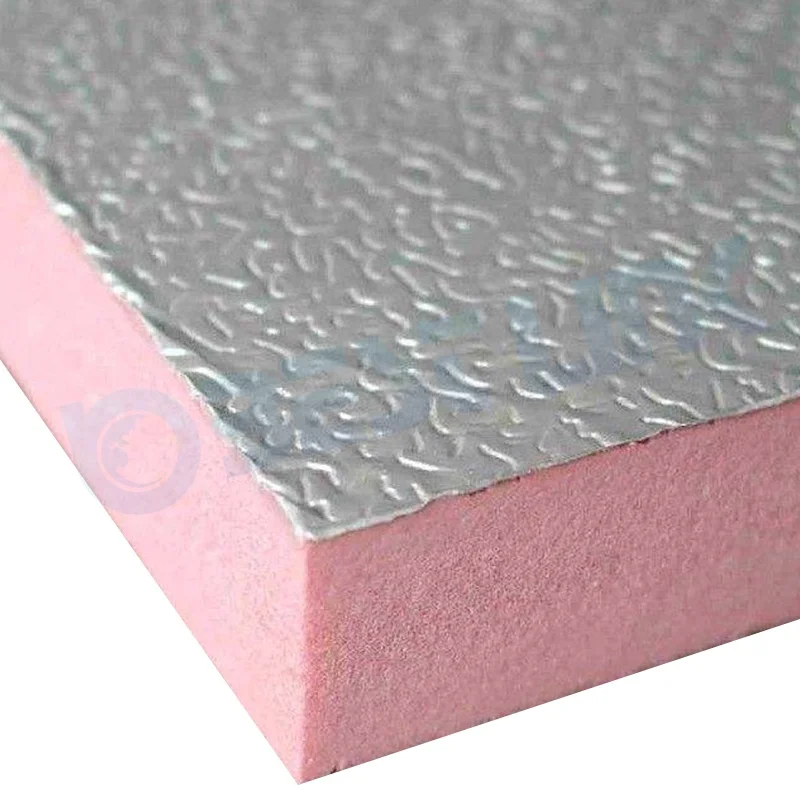

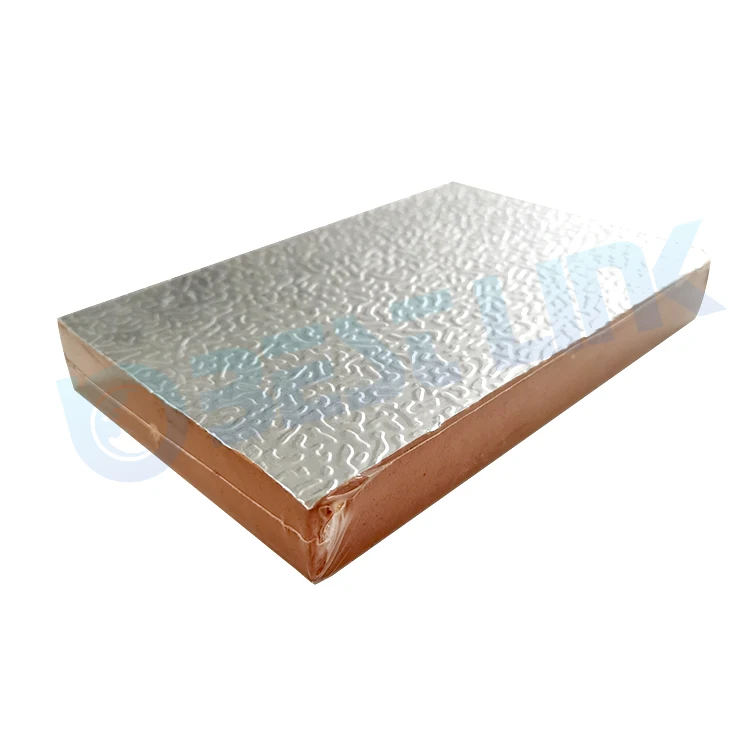

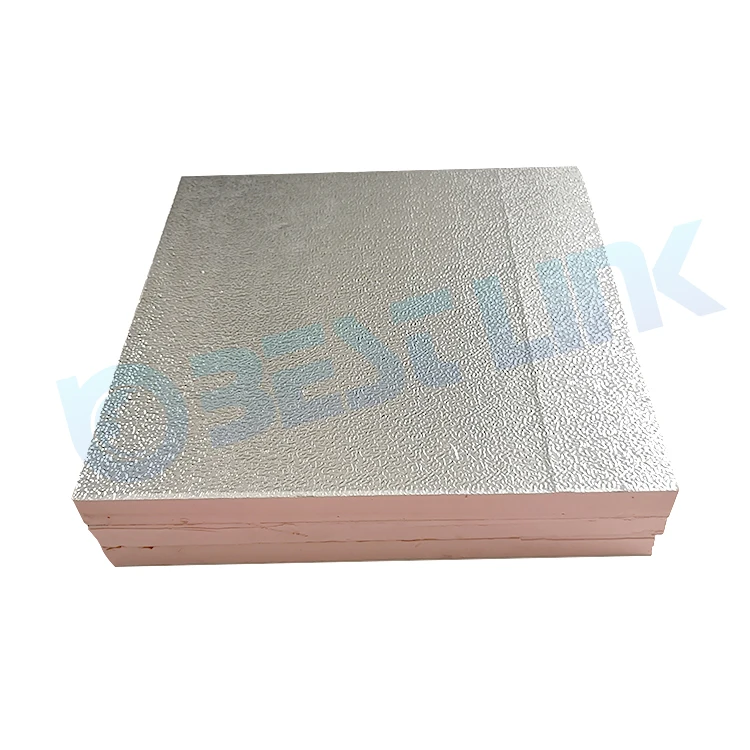

Phenolic Foam is manufactured from phenol formaldehyde resin, and is available as either an open or closed cell product. The boards usually come with a foil facing on one or both sides. Phenolic board has the feature of good flame retardant, effective thermal insulation, better sound absorption properties, sanitary, beautiful and morden, light weight, easy to install, long service life, etc. It is much less combustible than other rigid insulations. It should be protected from prolonged exposure to sunlight and water.

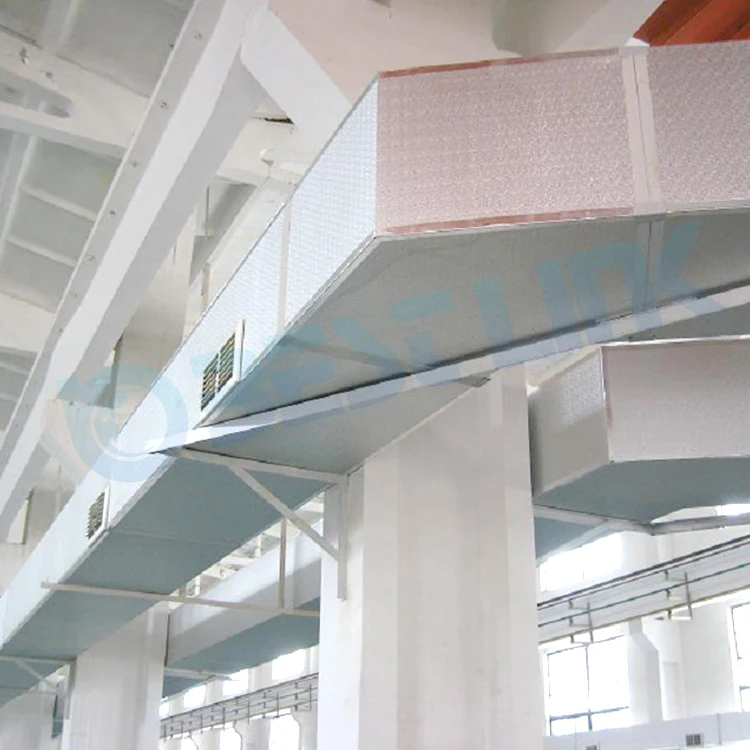

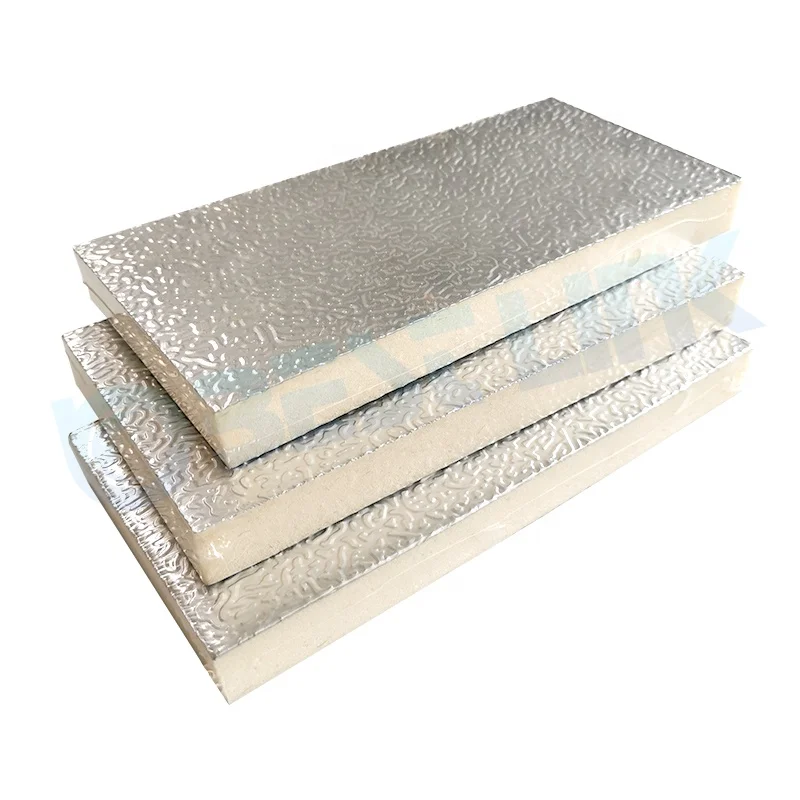

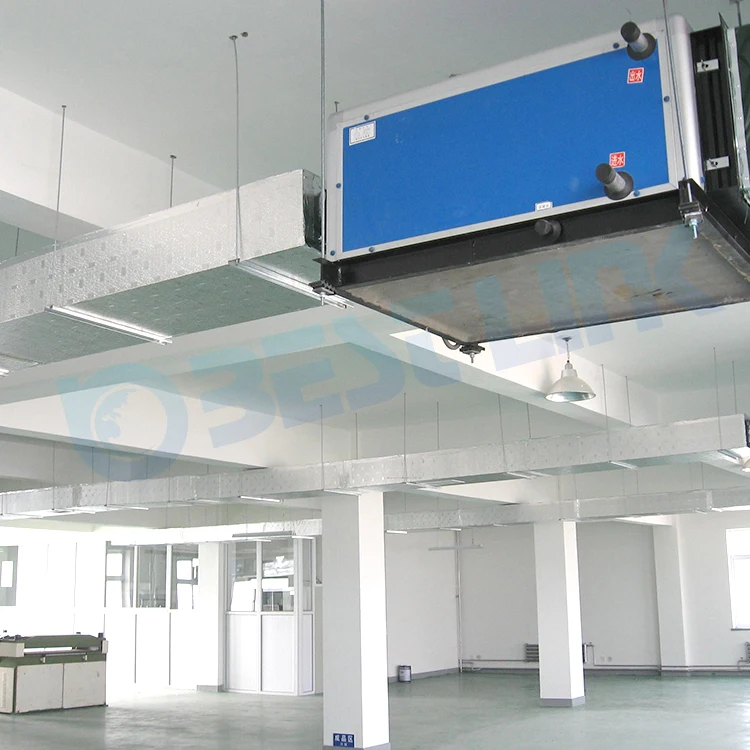

Aluminum foil laminated phenolic board has been widely used in the construction of industrial builgings. It has been widely welcomed by the engineering design units, construction units and end users. It has been widely welcomed by the engineering design units, construction units and end users.
1.Do it in one time, no lag insulation required, save the labor and cost.
2.Save the building space
3.Very light, decrease the total weight of building
4.Little air leakage by flange joint connecting
5.Low thermal conductivity, no condensation and energy saving
6.Closed cell foam, good acoustic insulation
7.Fire proof, no smoke when exposing to fire
8.Faced with aluminum foil, it's water proof and anti-microbial
9.CFC and HCFC free, environment friendly
2.Save the building space
3.Very light, decrease the total weight of building
4.Little air leakage by flange joint connecting
5.Low thermal conductivity, no condensation and energy saving
6.Closed cell foam, good acoustic insulation
7.Fire proof, no smoke when exposing to fire
8.Faced with aluminum foil, it's water proof and anti-microbial
9.CFC and HCFC free, environment friendly
Item | Specification |
Panel Structure | Alu./Foam/Alu. |
Standard Panel Size | 3950*1200*20 mm |
Alu. Foil Thickness | 80 micron |
Foam Density | 60 kg/m3 |
Thermal Conductivity | 0.021 w/m.k |
Compressing Strength | 0.25 Mpa |
Bending Strength | 1.0 Mpa |
Combustibility Property | Class 0 (BS476 Part 6 & 7) Class A (ASTM E84) |
Water Absorption | 1.9% |
Max Smoke Density | 2% |
Dimension Change | 0.3% |
Working Temperature | -250-+150 ℃ |
Maximum Allowable Wind Velocity | ≤12 m/s |
Continuous Running Maximum Temperature | ≤120℃ |
Company Profile
Suzhou Best Link New Material Co., Ltd. is a manufacturer specializing in the R&D, production, sale, and export of PE FILM,ALUMINUMFOIL ROLL &INSULATION MATERIALS. We are located in the Wuzhong District of Suzhou, an economically developed city in the YangtzeRiver Delta of China, adjacent to the international metropolis Shanghai, with superior geographical location and transportation.Our main products are of the qualities of durability, attractive appearance, eco-friendly, etc. These products are widely used in building, chemical, food, clothing, packaging, e-commerce, logistics, and exported to UK, USA, Australia, South Africa, EuropeanUnion, and other countries.
We own scientific management methods, modern production equipment, a professional team with technology and skills, and considerateand high-quality services. Adhering to the tenet of focusing on people-oriented and sustainable development, we are committed toproviding customers with first-class, efficient, innovative, and sustainable solutions.
We own scientific management methods, modern production equipment, a professional team with technology and skills, and considerateand high-quality services. Adhering to the tenet of focusing on people-oriented and sustainable development, we are committed toproviding customers with first-class, efficient, innovative, and sustainable solutions.
We sincerely look forward to your contactand cooperation.

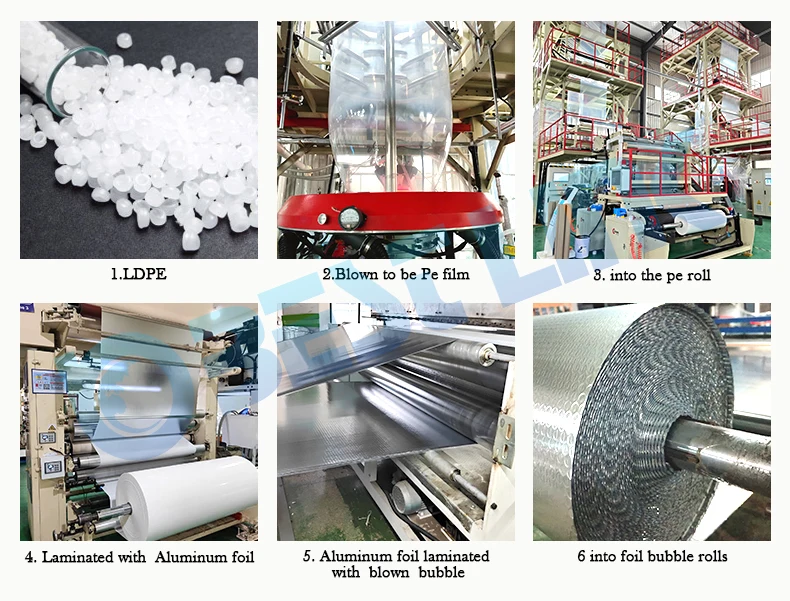

production line
1.LDPE；
2.Blown to be Pe film；
3. into the pe roll；
4. Laminated with Aluminum foil；
5. Aluminum foil extuder with foam；
6. into foil bubble roll.
4. Laminated with Aluminum foil；
5. Aluminum foil extuder with foam；
6. into foil bubble roll.
Exhibition
Cooperative customers
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.Are you the factory or trading company?
We are a manufactory of PE film,Alu foil &insulation materials ,factory locates in Suzhou, near shanghai only 30min by train
2.Does your company accept customization?
Of course. We accept ODM service.
3.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
4.How about the products packing?
Flexible packing according to the specific requirements of the clients.
5.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
6.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
We are a manufactory of PE film,Alu foil &insulation materials ,factory locates in Suzhou, near shanghai only 30min by train
2.Does your company accept customization?
Of course. We accept ODM service.
3.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
4.How about the products packing?
Flexible packing according to the specific requirements of the clients.
5.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
6.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
