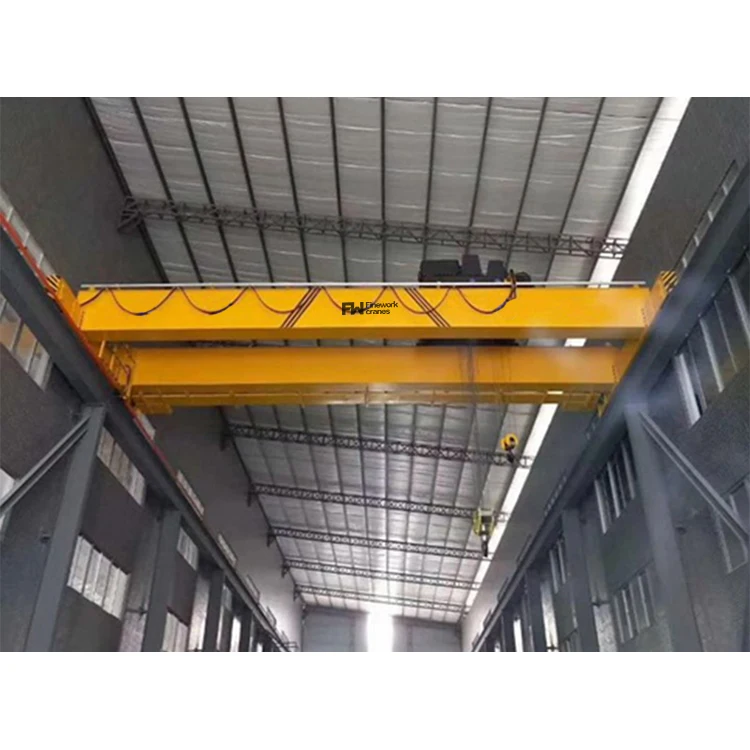

Подъемный подъемный кран с двумя балками 5/10/16/25/35/50/80 тонн
285 560,71-543 277,34 ₽
Сверхмощный индивидуальный двухбалочный мостовой кран 30 тонн 50 80 для мастерской
- Категория: >>>
- Поставщик: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601223607361:
Описание и отзывы
Характеристики
Products Description

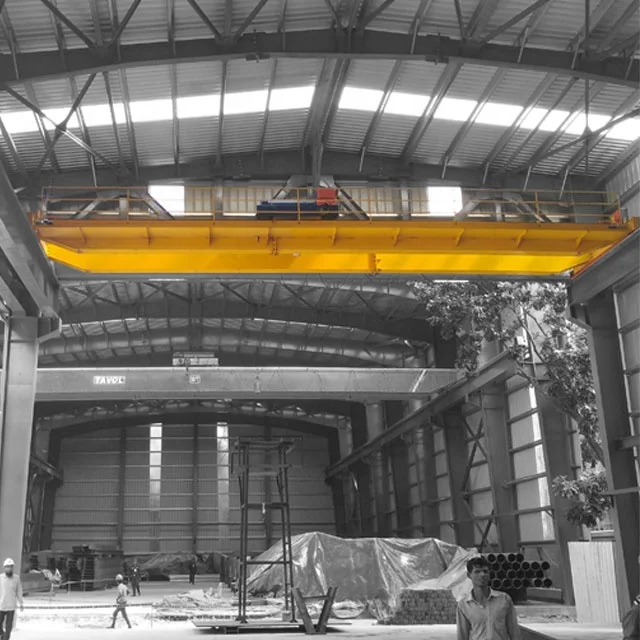

Long service time double girder electric traveling bridge crane is an advanced lifting solution designed for industrial environments where heavy-duty material handling is essential. Known for the robustness, reliability, and efficiency of Huasui's double girder series, it is engineered to handle large loads with precision and safety. It is ideal for various applications, including manufacturing, warehousing, maintenance, and assembly operations.
By incorporating advanced designs from the industry, Huasui's double girder overhead crane fully meets FEM standards. Its advanced design and customizable features make it an indispensable tool for industries that require reliable and powerful material handling capabilities. Investing in a double girder overhead crane of Huasui to enhanced operational efficiency, safety, and productivity in any industrial setting.
By incorporating advanced designs from the industry, Huasui's double girder overhead crane fully meets FEM standards. Its advanced design and customizable features make it an indispensable tool for industries that require reliable and powerful material handling capabilities. Investing in a double girder overhead crane of Huasui to enhanced operational efficiency, safety, and productivity in any industrial setting.
Features
Dual Girder Design: The crane features two parallel girders, enhancing its load-bearing capacity and stability. This design allows for better distribution of the load and reduces stress on the structural components.
High Load Capacity: Capable of lifting loads ranging from several tons to over a hundred tons, the double girder design significantly increases the maximum load capacity compared to single girder cranes.
Increased Span and Height: Double girder overhead cranes can cover larger spans and greater heights, making them suitable for large-scale operations and expansive facilities.
Enhanced Safety Features: Equipped with advanced safety mechanisms, including overload protection, emergency stop functions, and anti-collision systems. These features ensure safe operation even in demanding environments.
High Load Capacity: Capable of lifting loads ranging from several tons to over a hundred tons, the double girder design significantly increases the maximum load capacity compared to single girder cranes.
Increased Span and Height: Double girder overhead cranes can cover larger spans and greater heights, making them suitable for large-scale operations and expansive facilities.
Enhanced Safety Features: Equipped with advanced safety mechanisms, including overload protection, emergency stop functions, and anti-collision systems. These features ensure safe operation even in demanding environments.
High Efficiency: The dual girder design allows for faster and more efficient lifting operations, reducing downtime and increasing productivity.
Versatility: Suitable for a wide range of industrial applications, from heavy manufacturing to precise assembly tasks.
Durability: Built to withstand harsh industrial environments, ensuring long-term operation with minimal maintenance requirements.
Enhanced Load Distribution: The load is evenly distributed across the two girders, minimizing structural stress and enhancing the longevity of the crane and the facility’s infrastructure.
Versatility: Suitable for a wide range of industrial applications, from heavy manufacturing to precise assembly tasks.
Durability: Built to withstand harsh industrial environments, ensuring long-term operation with minimal maintenance requirements.
Enhanced Load Distribution: The load is evenly distributed across the two girders, minimizing structural stress and enhancing the longevity of the crane and the facility’s infrastructure.
Detailed Images
Hoist and Trolley
The hoist, mounted on a trolley, moves along the bridge girders. It is responsible for lifting and lowering the load. The trolley's movement along the girders allows for precise positioning of the load.
Bridge Girders
Two robust girders form the main structure, providing superior strength and stability. These are constructed from high-quality
steel to ensure durability and longevity.
steel to ensure durability and longevity.
End Carriage
Mounted on both ends of the girders, these components house the wheels that run on the runway rails. The end trucks ensure smooth
and stable movement along the length of the crane's path.
and stable movement along the length of the crane's path.
Control System
Includes both manual and automated control options. Operators can control the crane via a pendant control, radio remote control, or an advanced cabin control system with ergonomic design for enhanced operator comfort and efficiency.
Technical Parameter
Capacity | Main | T | 63 | 75 | 100 | 125 | 160 | 400 | ||||
Aux | 16 | 20 | 20 | 32 | 32 | 50 | ||||||
Span | M | 13~32 | 13~32 | 16~32 | 16~32 | 24 | 34 | |||||
Lifting Height | 18 | 18 | 18 | 16 | 26 | 40 | ||||||
Working Grade | A5 | A5 | A5 | A5 | A5 | A5 | ||||||
Speed | Main | M/min | 0.35~3.5 | 0.35~3.5 | 0.3~3 | 0.22~2.2 | 0.25~2.5 | 0.2~2 | ||||
Aux | 0.76~7.6 | 0.6~6 | 0.6~6 | 0.5~5 | 0.5~5 | 0.4~4 | ||||||
Trolley Travelling | 3~30 | 2.7~27 | 2.7~27 | 2.7~27 | 2.65~26.5 | 2.5~25 | ||||||
Crane Travelling | 4.8~48 | 4.8~48 | 4.7~47 | 4.7~47 | 4.67~46.7 | 3~30 | ||||||
Limit Dime. | L1 | MM | 672 | 672 | 672 | 715 | 825 | 1400 | ||||
L2 | 1804 | 1907 | 2122 | 2182 | 2490 | 3200 | ||||||
L | 1458 | 1505 | 1560 | 1657 | 1315 | 2800 | ||||||
h | 348~194 | 509~355 | 478~376 | 340~186 | 195.5/95.5 | 600 | ||||||
h1 | 141 | 707 | 562 | 588 | 342 | 1028 | ||||||
Main Dime. | H0 | MM | 376 | 250 | 376 | 460 | 460 | 500 | 4893 | |||
H1 | 2414~2568 | 1730~1782 | 2547~2701 | 2954~3056 | 3030~3184 | 3061/3161 | 3285 | |||||
H2 | 2511~3015 | 2524~2674 | 2661~3115 | 2663~3165 | 2807~3261 | 2690~3290 | - | |||||
H3 | 348~590 | 99~249 | 236~690 | 238~740 | 382~836 | - | - | |||||
B | 7702/7902 | 5422 | 7702/7902 | 8152/8252 | 8152/8252 | 9120 | 13970 | |||||
W | 5800/6000 | 3550 | 5800/6000 | 5850/5950 | 5850/5950 | - | - | |||||
K | 3200 | 3200 | 3200 | 3200 | 4400 | 0 | ||||||
B1 | 250 | 250 | 280 | 280 | 264 | 480 | ||||||
B2 | 250 | 250 | 280 | 280 | 340~940 | - | ||||||
Max. Wheel Loading | kN | 222~260 | 64~80 | 259~302 | 343~383 | 408~455 | 531.9~574.9 | 627 | ||||
Power | kW | 89 | 12.64 | 105 | 107 | 126 | 153/161 | 279 | ||||
Rec. Rail | QU80 | QU80 | QU100 | QU100 | QU120 | QU120 | ||||||
Application
Steel Factory
Stone Processing
Solid Waste Disposal Stations
Recommend Products
About Our Factory
Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand-new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.
Through the integration of technology and optimization of manufacturing process, Huasui has gained a firm foothold in the manufacturing of overhead cranes, gantry cranes, wire rope electric hoists, straddle carriers and beam launcher in compliance with FEM standards.
