200 м 300 глубокая буровая установка для бурения скважин с грязевым насосом
5 500,00-10 000,00 $
Машина для бурения скважин 100 м
- Категория: >>>
- Поставщик: Luohe Orange Mechanical Equipment Co. Ltd.Luohe Ltd.
Сохранить в закладки 1601223644317:
Описание и отзывы
Характеристики
◆ Product Description
Introduction
1. The fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on the advanced technology of similar drilling rigs at home and abroad.

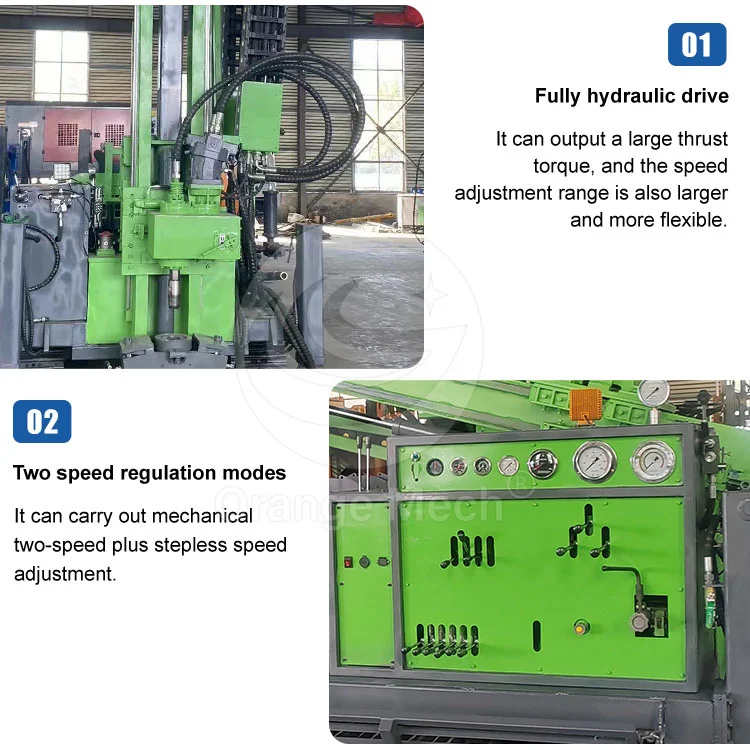

2. The power head adopts a mechanical two-speed stepless speed regulation design, which doubles the torque at low speeds, making drilling stable and reliable.
3. The power head is equipped with a lateral translation mechanism to facilitate lifting and placing drilling tools.

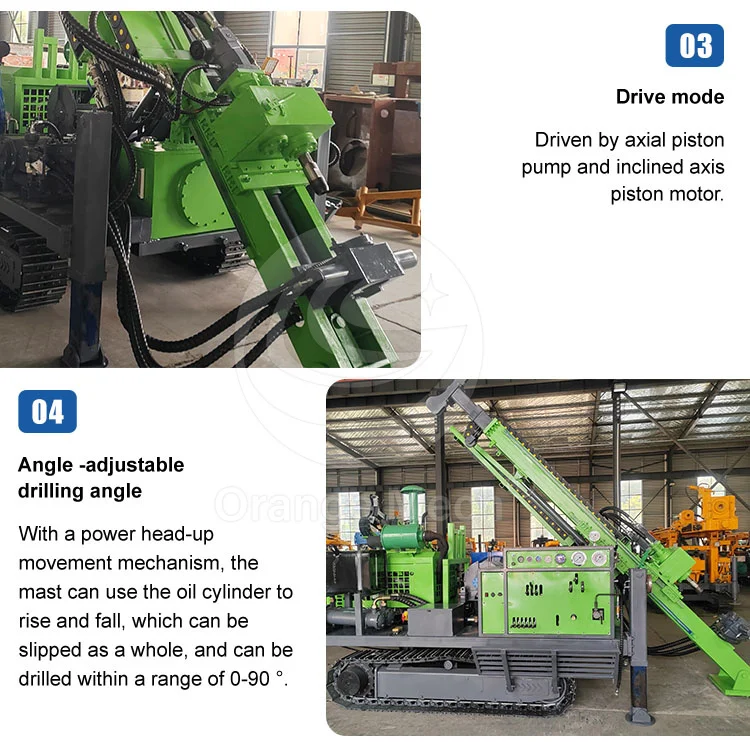

4. Equipped with inclined axis piston motor drive, it has the characteristics of compact structure, small size, high power, impact resistance, long life and high torque, which greatly improves drilling efficiency.
5. The engine adopts Yuchai/Weichai turbocharged engine. Famous brands can also be customized according to customer needs. It is fully hydraulically driven by axial piston pump + triple gear pump. It has high system pressure and strong power output.
Application
It is widely used in geological exploration, engineering geology, shallow oil, natural gas, etc. drilling, and can also be used for drilling exploration of railways, highways, bridges, water conservancy, hydropower and tunnel engineering.
Technical Parameter
Rig model | orangemech-JY-600 | ||
Drilling ability | BTW (m) | 650 | |
NTW (m) | 600 | ||
HTW (m) | 300 | ||
Hydraulic system | Rated pressure (Mpa) | 32+16 | |
Cooling method | Secondary air cooling + water cooling | ||
Plunger motor | Ward 107 | ||
Piston pump | Ward 115 | ||
Engine parameters | Model | Cummins 93kw, 4cylinders | |
Rated power (Kw) | 93 | ||
Mud pump | BW160/10 | Three cylinders | |
Power head parameters | Variable box | Two gears | |
Maximum torque (N.m) | 1800 | ||
Maximum (rpm) | 1400 | ||
Give the course (m) | 2 | ||
Through hole diameter (mm) | 95 | ||
Lifting force (ton) | 30 | ||
Propulsion (ton) | 15 | ||
The rope asks for core winch parameters | The capacity of the rope (m) | 1000 | |
Lifting force (KN) | 20 | ||
Increase speed (m/min) | 110 | ||
Wire rope diameter (mm) | 6 | ||
Mast parameters | Full height (m) | 6.1 | |
Drilling angle (°) | 45-90 | ||
Slip stroke (mm) | 1200 | ||
Gripper parameters | Through hole 130mm | ||
Track parameters | Maximum climbing angle (°) | 20 | |
Maximum travel speed (km/h) | 2 | ||
Shipping dimensions | Length * width * height (mm) | 5000*2100*2800 | |
Whole machine gross weight | 6 ton | ||

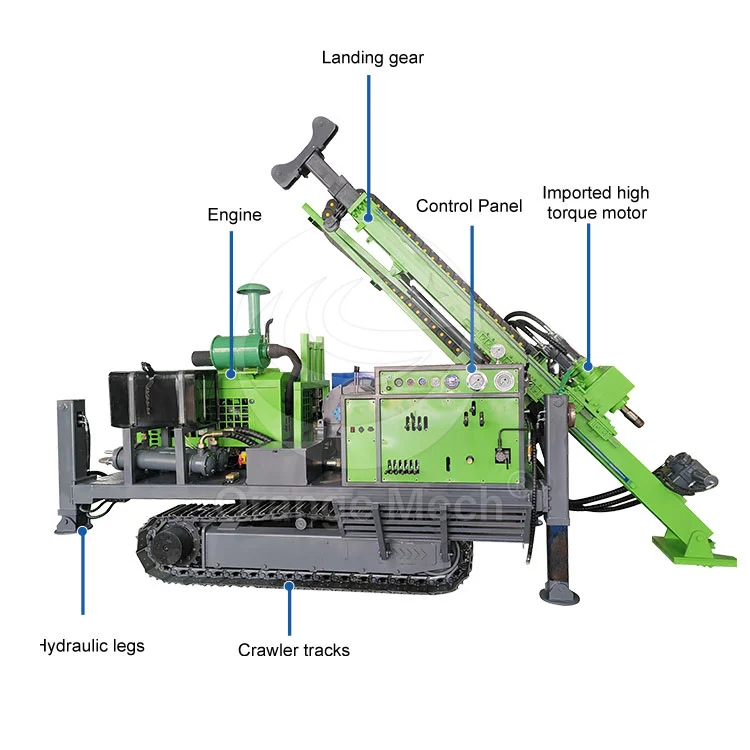

◆ Product Details
◆ Related Machines

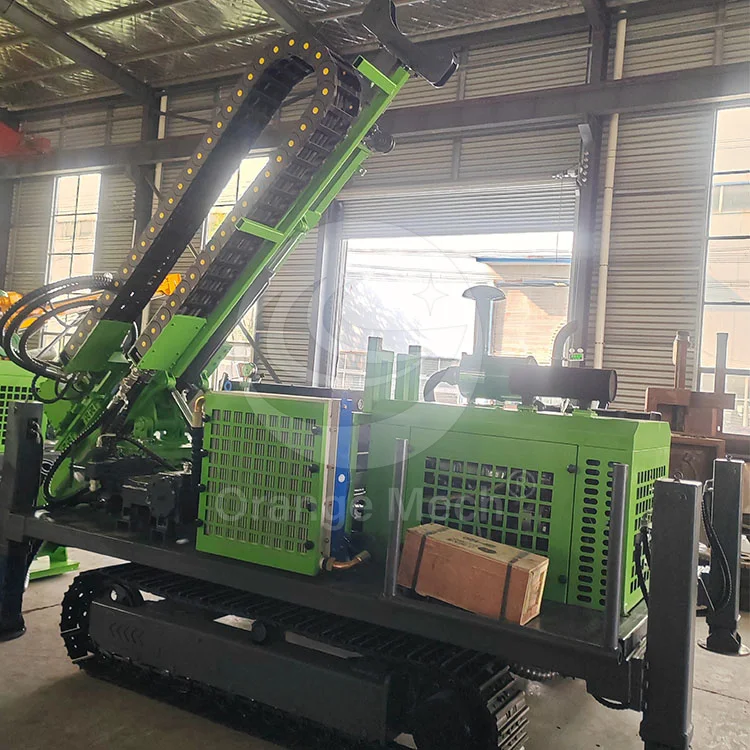

◆ Product Photograph
◆ Packaging & Shipping
▶ Install waterproof membrane to reduce dust and water pollution.
▶ Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
◆ Company Information
▶ More than 20 years of professional mechanical equipment manufacturers.
▶ R&D team keep sustained technology improving and developing.
▶ Strict Q.C.and full process monitoring management.
▶ ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
▶ Self owned professional R&D capacity,lab, QC capability.
▶ Take a Photo with Customers
222
▶ Exhibition Photos

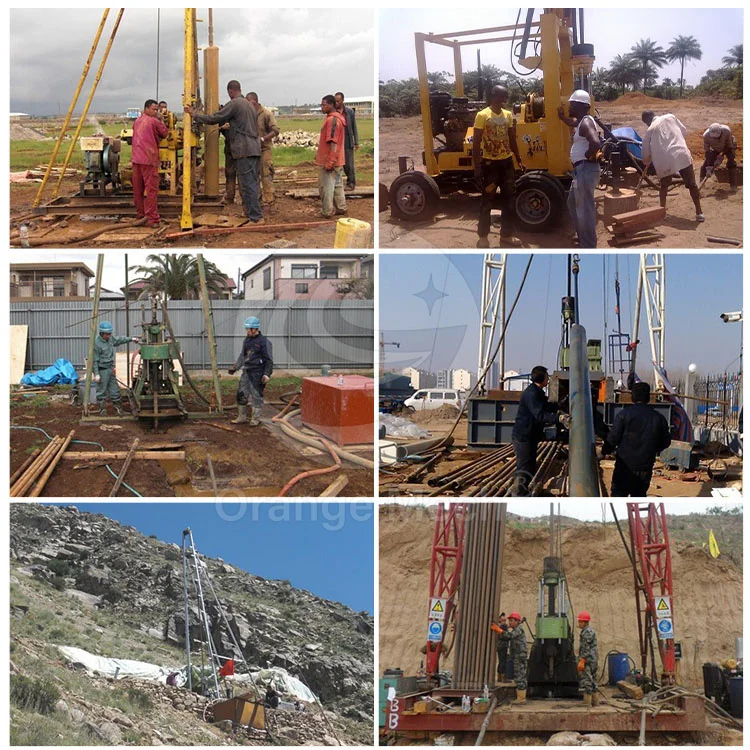

▶ Overseas After-sales Photo
◆ F A Q
Q1：What's your company after-sales service?
Q3: How to transport without customs clearance experience ？
A3： We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4：Does your company provide training？
A4 : Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q5：Differences from other brands in China ？
A5 : We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
A1: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2： Do you provide any warranty about your equipment?
Q2： Do you provide any warranty about your equipment?
A2： One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？
A3： We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4：Does your company provide training？
A4 : Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q5：Differences from other brands in China ？
A5 : We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
◆ Our Services
1. 24-hour communication service
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training
4. New design or product recommendation
5. Participate in international expositions and negotiate face-to-face with customers
6. If you come to China, please provide a formal invitation
7. Front desk service, help you book the hotel
8. Support local after-sales service
Похожие товары
Китайский производитель установка для бурения твердых пород/воздуха 200 м геологическое бурение скважин цена
5 800,00-6 800,00 $
Новая установка для бурения водяных скважин гусеничного типа унитаза: легко перемещаться по сложной местности на глубине 150 м
1 550,00-2 650,00 $
Усовершенствованная установка для бурения артезианских скважин доступа к подземным источникам воды в пределах 200 м
2 162,00-2 658,80 $
Хорошее состояние роторная буровая установка Строительная техника Usd Soilmec Bg38 дешевая для продажи
250 000,00-270 000,00 $
Заводские цены XCM G XSL4/200 400 м буровые установки для бурения глубоководных скважин на продажу
Усовершенствованная буровая установка артезианской скважины для доступа к подземным источникам воды в пределах 200 м
2 499,00-2 849,00 $

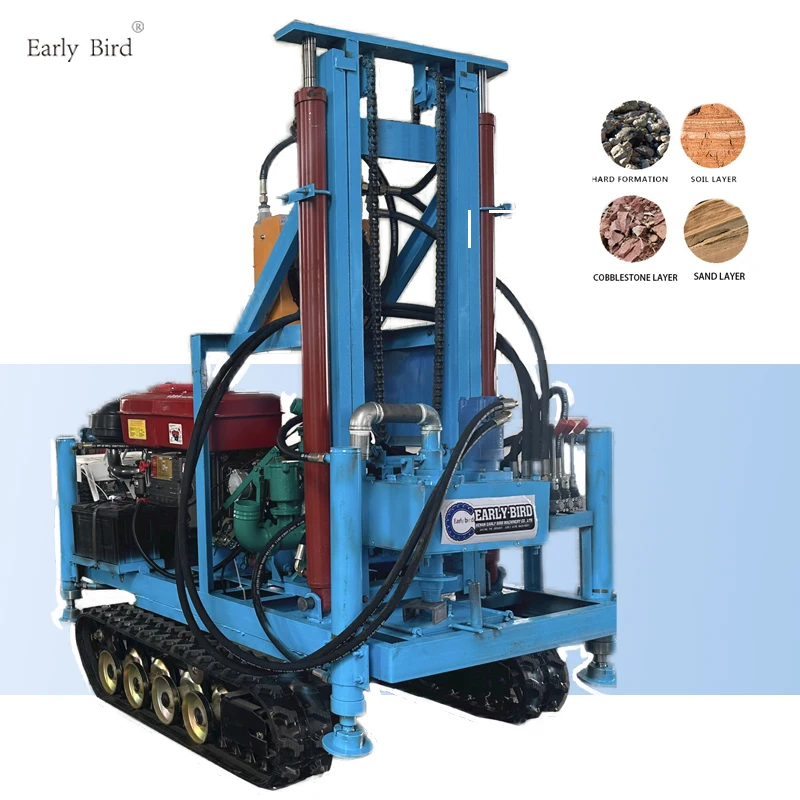

Earlybird Инженерная буровая установка для бурения скважин геологоразведочная горных пород на продажу
