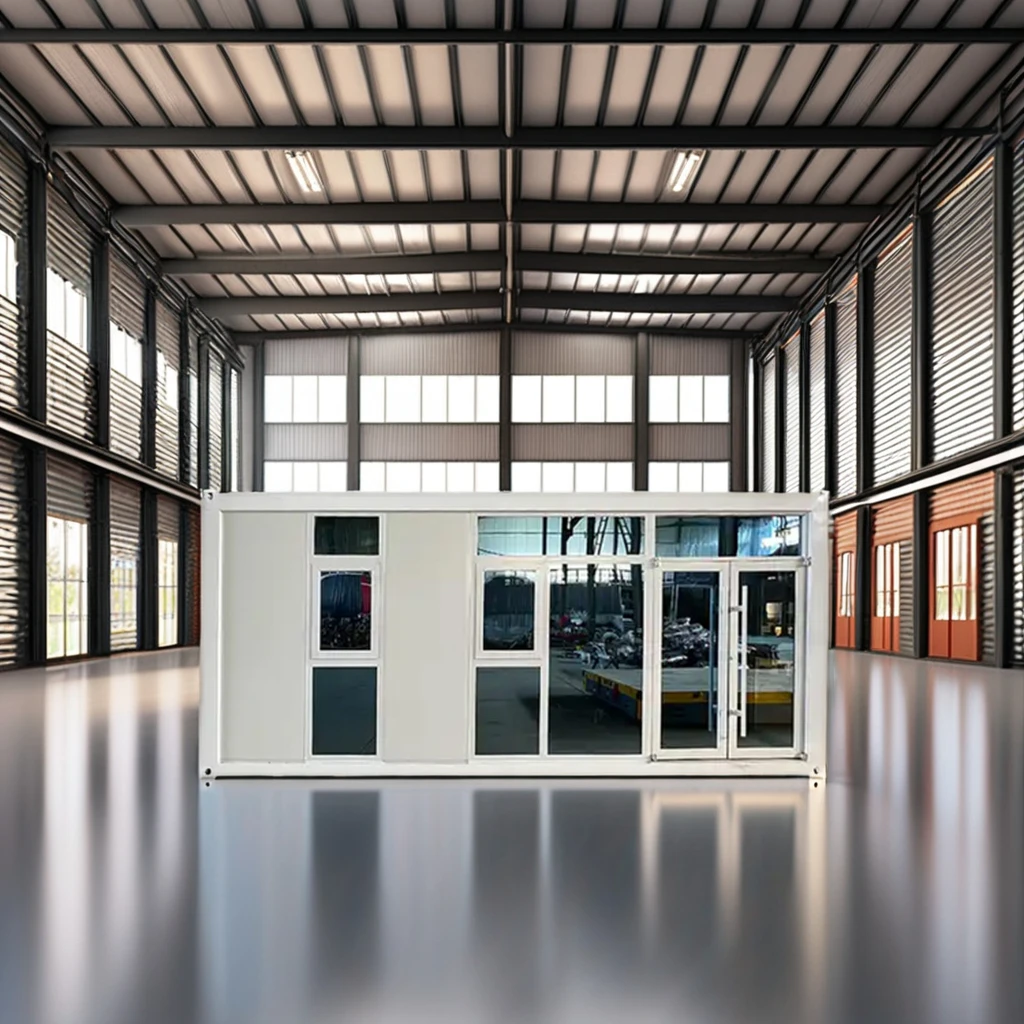

Китайский завод съемный роскошный модульный домашний сборный дом для тайского дома
143 160,72 ₽ - 165 202,40 ₽
Китай контейнерный дом низкая цена сборный модульный офисный мобильный
- Категория: >>>
- Поставщик: Hebei Xindian Construction Engineering Co. Ltd.
Сохранить в закладки 1601223704213:
Описание и отзывы
Характеристики
Advantages of container house:
Transport:
Convenient transportation, especially suitable for frequent replacement of construction units;
Quality & Stress resistance:
Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;
Sealing:
Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness
Product application scope:
The mobile home is based on a standard steel chassis, which can be derived from a number of combination Spaces. Such as conference room, dormitory, kitchen, toilet and so on. The standard width is 2. 4 meters, height 2. 2 meters, 4 to 12 meters in length.
Merits:
Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.
Convenient transportation, especially suitable for frequent replacement of construction units;
Quality & Stress resistance:
Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;
Sealing:
Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness
Product application scope:
The mobile home is based on a standard steel chassis, which can be derived from a number of combination Spaces. Such as conference room, dormitory, kitchen, toilet and so on. The standard width is 2. 4 meters, height 2. 2 meters, 4 to 12 meters in length.
Merits:
Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.
we sale both 20ft 40ft containers / customized size is also welcomed .

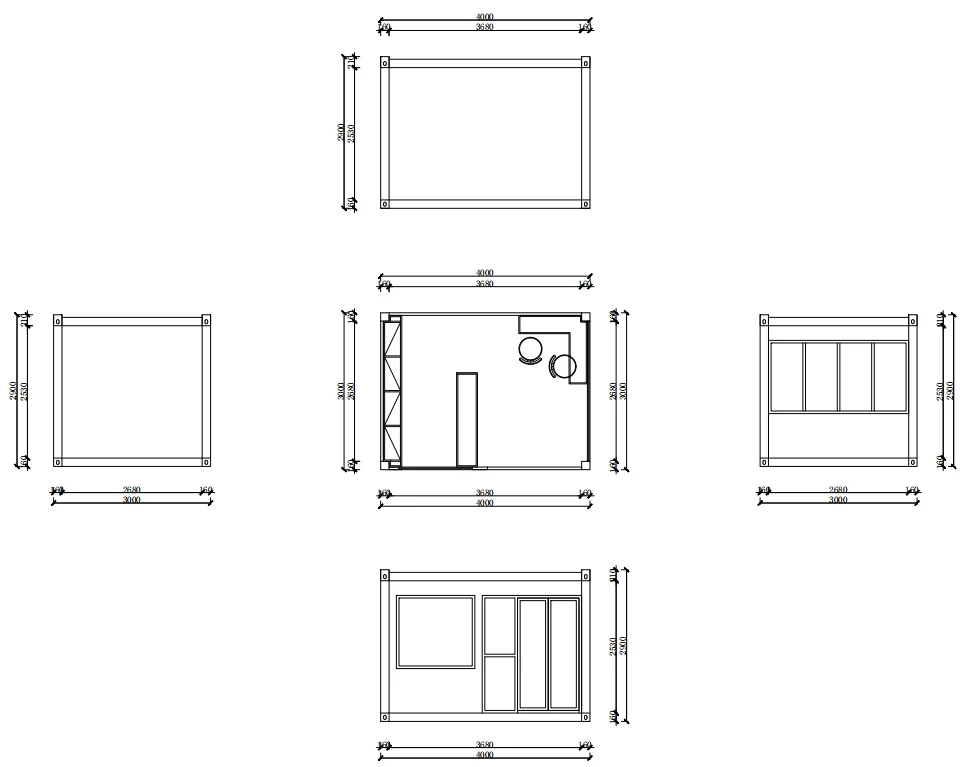

The below one is just for your reference only . If you have the new project , welcome to show us ,we can custom made as your request .
The below one is just for your reference only . If you have the new project , welcome to show us ,we can custom made as your request .
Product Paramenters
Profile Standard | Components | Configuration Details | |||||
2990mm*6055mm*2900mm 2.5mm profile card | top beam | Top beam 180 mm high, L1=5632, L2=2687, one wire box | |||||
bottom beam | Bottom beam 160mm height, L1=5632,L2=2687 | ||||||
upright post | 150*210, L=2535*4 | 150*210, L=2535*4 | |||||
Corner piece | 150 * 210 Top-corner piece 200, Bottom corner piece 160 Angle piece wall thickness 4.0 | ||||||
spray paint | Refractory 70 ° 48 Hour Test, No Bubbles, Cracks, Cracks, Fading | ||||||
Top Secondary Beam | Top:80 * 40C section steel 1.3 thickness 5 pieces.1 square tube of 30 * 30.Arch 4 square pipes of 20 * 20.3 m L-angle iron, 2 square pipes of 30 * 30 for ceiling tiles. | ||||||
bottom secondary beam | 9100 * 50 galvanized rectangular tubes, 1.2 mm thick | ||||||
Capping | Lottery Capping | Standard 0.45 colour steel plate, fully bonded with butyl glue | |||||
Top Insulation | Insulation cotton 75 thick, 30 kg bulk weight | ||||||
Ground | cement sanding board | 18 mm (fibre cement plate) | |||||
plastic floor | 1.6 mm wear-resistant, skid-proof plastic floor | ||||||
Door | Intermediate Gate | Dedicated door for 950 * 75 wallboards, frame door | |||||
Window | 930 * 1130, plastic steel double glass push-pull with screen window and guardrail | ||||||
WALL PLATES | Purification Plate | 950 * 75, purification plate, iron sheet double sided 0.3 mm, rock wool volume weight 80 kg | |||||
Manufacturing Technique
Recommend Products
Certifications
Product packaging
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project.
For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products? If have, how long?
Under conventional climate and environment, the service life of container house steel frame is 20 years
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure.
Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
We provide very detailed installation instrution drawings and videos for every project.
For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products? If have, how long?
Under conventional climate and environment, the service life of container house steel frame is 20 years
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure.
Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
Похожие товары

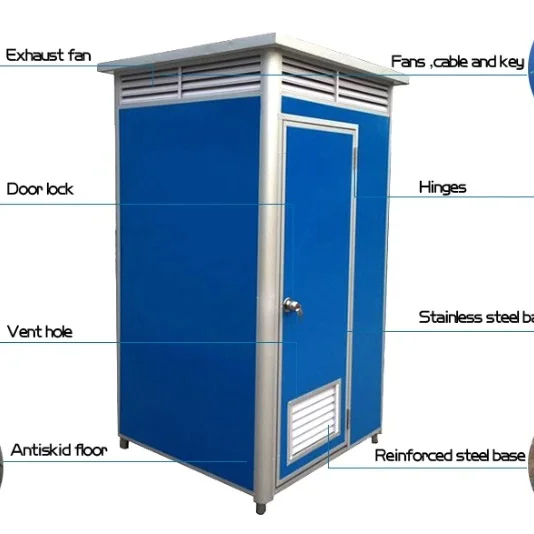

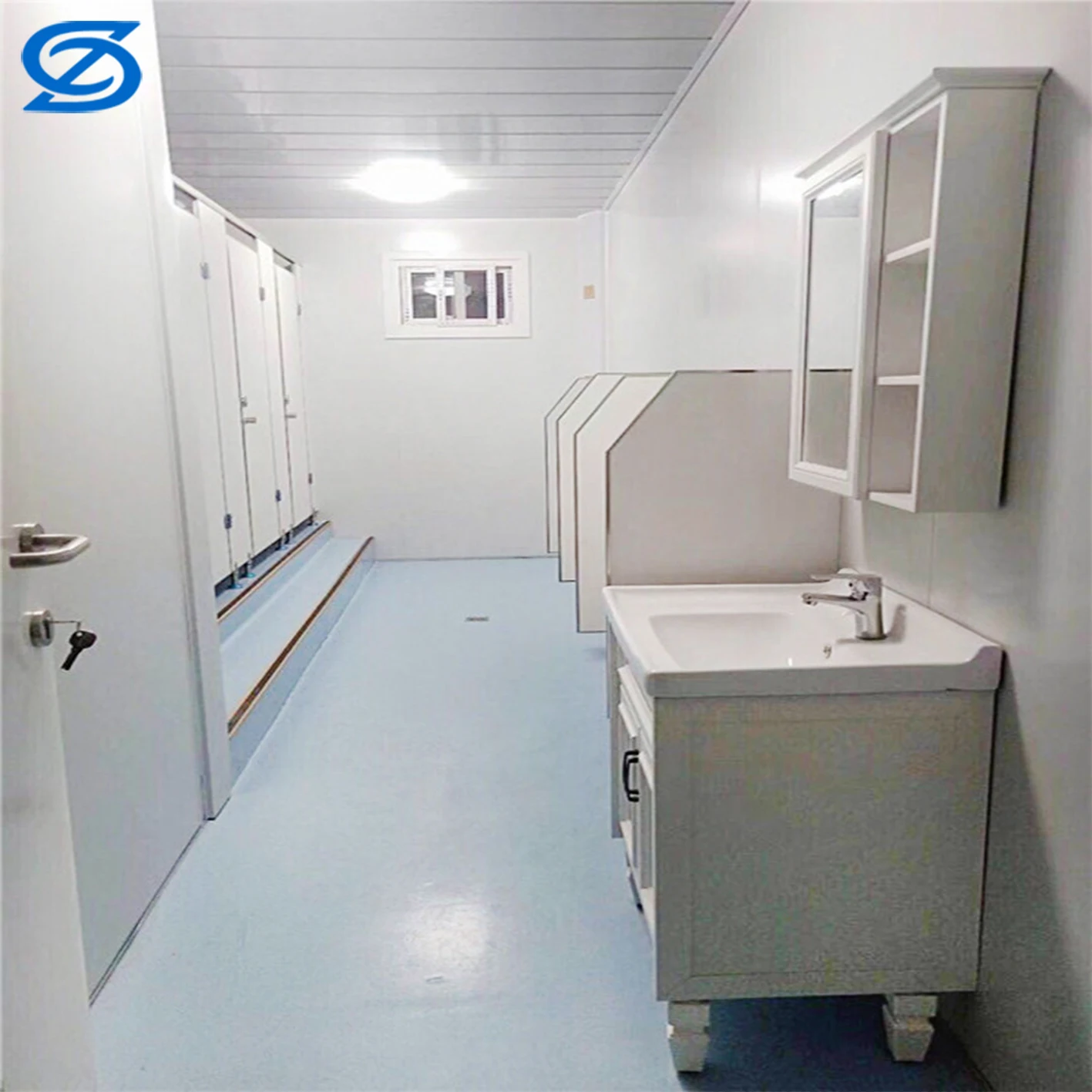

Открытый китайский мобильный туалет модульный передвижной душ портативный для ванной комнаты контейнер
143 160,72 ₽
Производит уличные портативные модульные контейнерные унитазы Sentry Box Guard house здание сэндвич-панелей
27 552,10 ₽ - 29 756,27 ₽
Новейший сборный контейнерный дом в Румынии с двумя спальнями склад

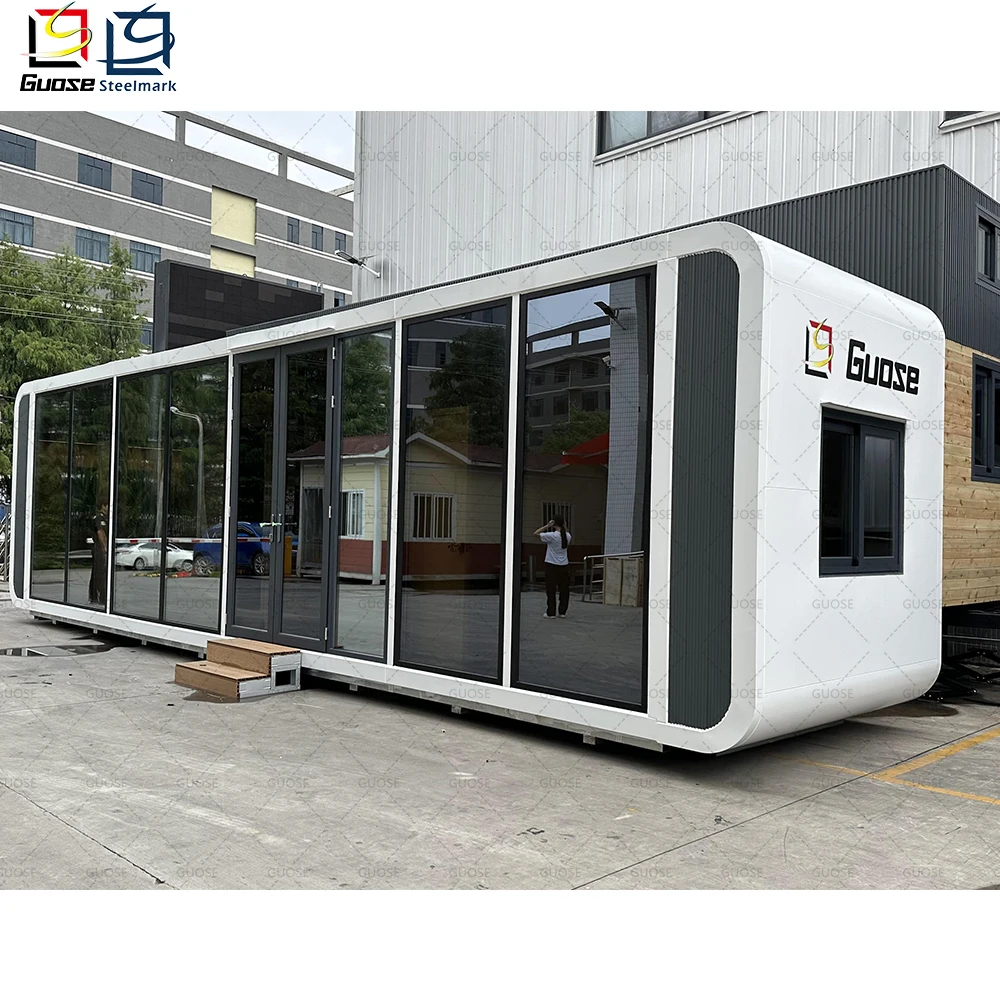

Заводская цена сборные домики 20/40 футов садовые жилые дома яблочная кабина капсула домашний контейнер
Дом бунгало плоский контейнер для дома Несколько блоков собранных вместе офиса
10 469,80 ₽ - 11 020,84 ₽

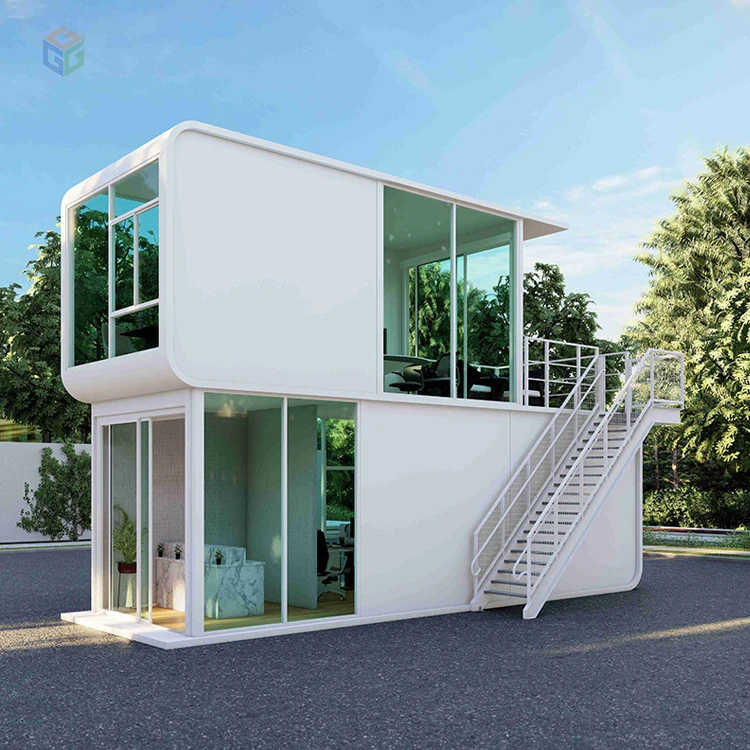

Прекрасный милый контейнерный дом популярные яблочные каюты соединенные вместе сборный для гостиной ресторана и офиса
