100 Вт лазерная машина для резки и гравировки ювелирных изделий кулон лазерный станок

What can fiber laser cutting and marking machines do?

A fiber laser marking machine can be used to mark all metals and some plastics;
Can be used to cut gold, silver, copper, stainless steel, aluminum jewelry names,
Used for surface marking / deep engraving of jewelry, metal part, tumbler, firearm,customized gifts.
Marking photo bitmaps on pendants, dog tags and other metals;
What's more, the 60W 100W 200W 300W machines use JPT mopa laser source and can also mark colors on stainless steel and titanium materials. (20W 30W 50W laser comes with standard Raycus laser source)

Can you laser engrave jewelry?

For jewelry engraving, we have rotary system for rings bracelets inside and outside engraving; the metal fixture device to fix the metal sheet during cutting and deep engraving process;

What is the work area of your laser?

About work area, we have different field lenses 70*70MM, 110*110MM to 300*300MM for choice. The smaller the field lens, the stronger the beam focusing energy; the smaller the spot diameter, the finer the marking effect; the faster the marking speed, the shorter the marking time.

Is it worth buying this laser engraving machine?

This fiber laser is widely used on all metals and most plastic . It can engrave metal tumbler / keychain / pens / dog tag / medal / jewelry / watch / slate coaster / coins /knives / tiles / stone , etc . Below are marking and cutting samples for reference.

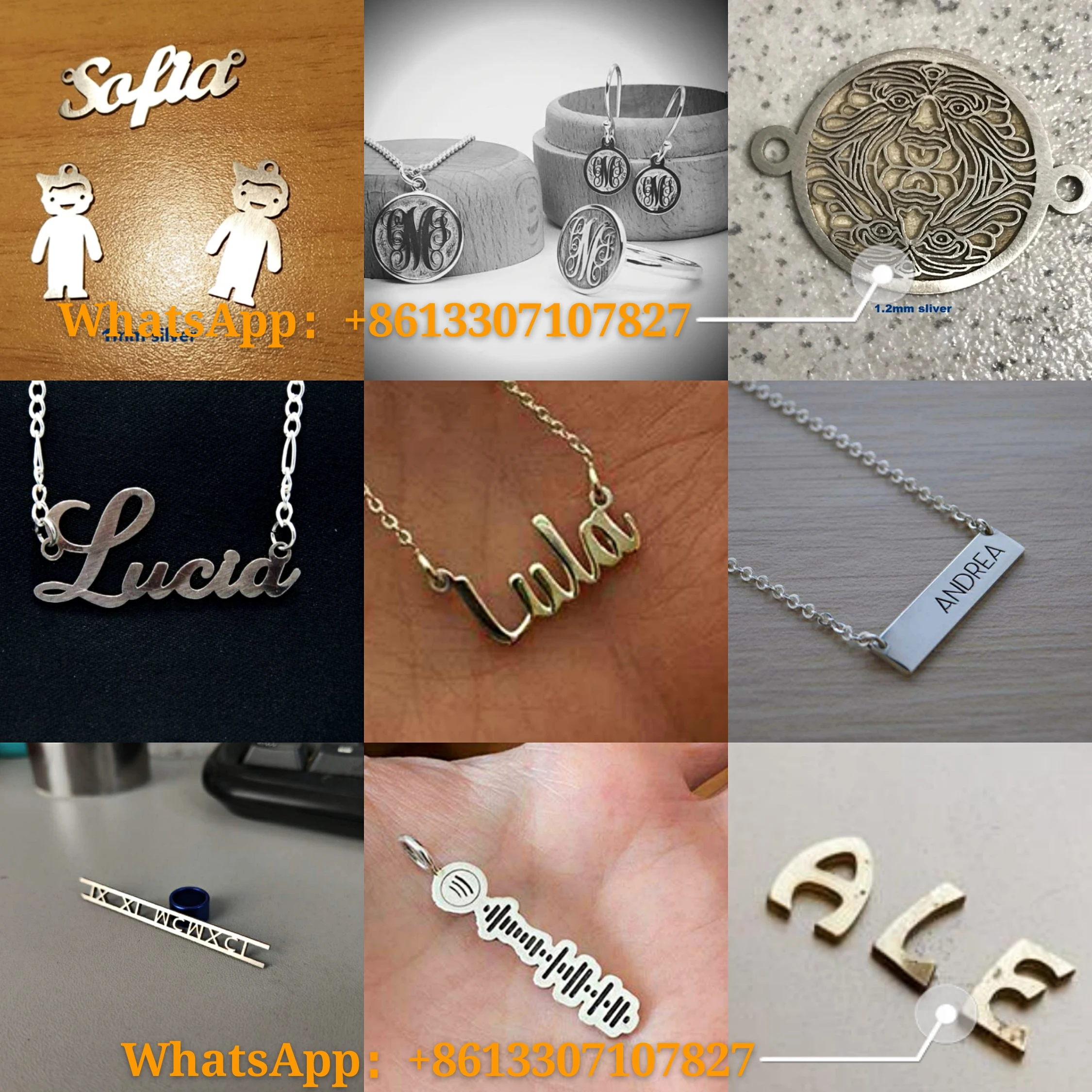

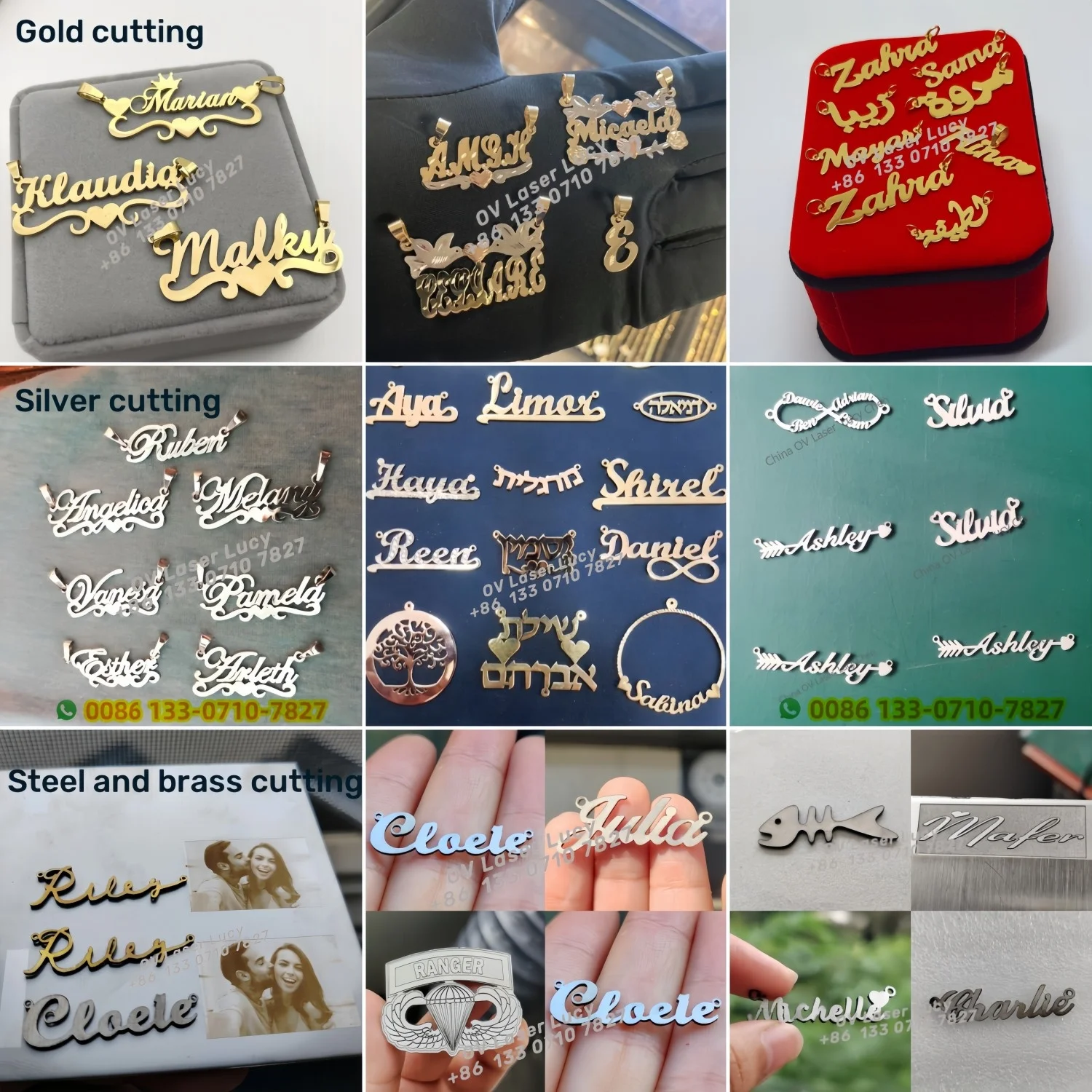

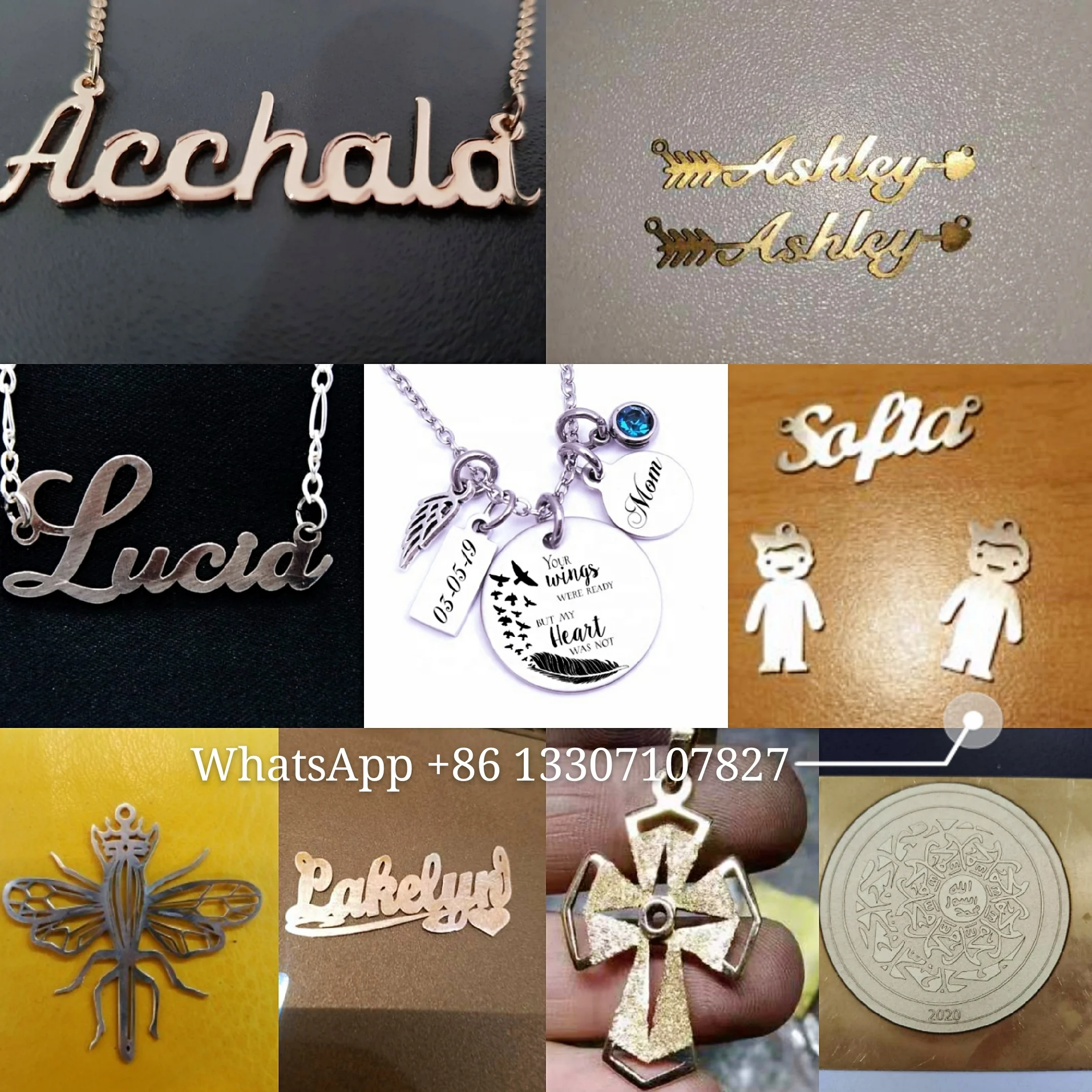

Gold jewelry engraving and cutting samples

Rings bracelets inside and outside engraving

Bitmap photo marking on necklace

Arabic samples

Metal gifts cups tumblers marking samples

Plastic marking samples

60W 100W  200W laser comes with MOPA laser source, which with an extra function for color marking on stainless steel and titanium

What's difference between 2D and 2.5D laser?

Generally, for 0.1-1.0mm metal cutting, we recommend using a 2D laser, when the metal thickness exceeds 1.0mm, we are more prefer to share 2.5D laser with customers. The latest 2.5D machine consists of a motorized Z-axis and EZCAD 3.0 software. It is mainly used for coin relief engraving, metal mold deep engraving, 1.0-2.0mm metal plate engraving and cutting, etc., and is cheaper than 3D machines. (Noted: this is an optional function with extra cost, welcome to contact Lucy for more details)

2.5D laser for 1.0-2mm gold silver brass nameplate cutting

2.5D laser for gun knife metal coin medal relief engraving

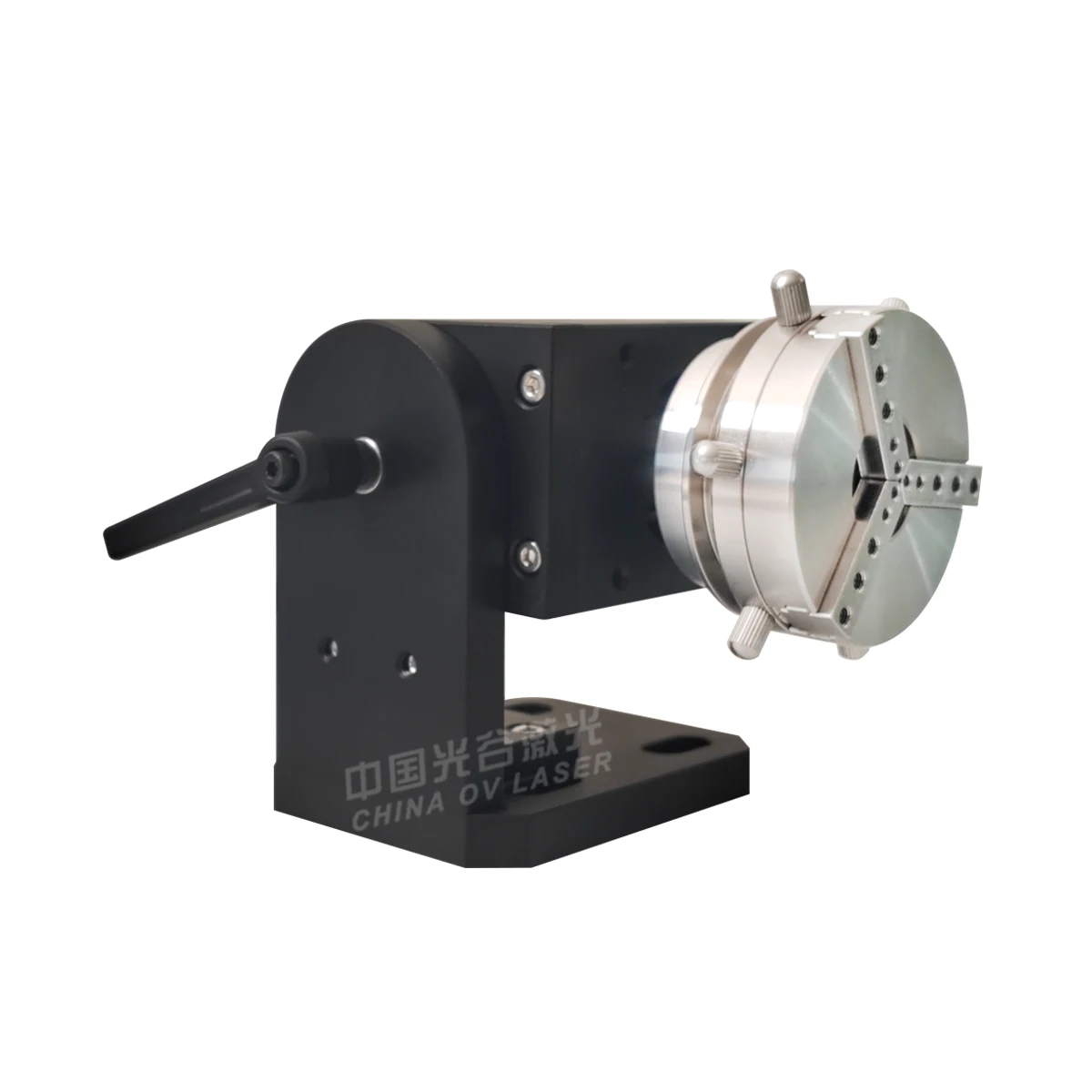

Optional Accessories

Can you make customized fixture as needs?

We can customize various extra cost fixtures and accessories according to customer needs ;

For or pens, we have pen rotary, pen conveyor belt ;
For cup, we have D80 rotary, cup rotary with different holders, cup rotating dics
For ring bracelet, we have D65 D69 rotary to choose from.

Welcome to contact Lucy to request the latest quotation and discount;
We provide free technical support, reference parameters, operation videos, software updates, etc.
