Definition and use

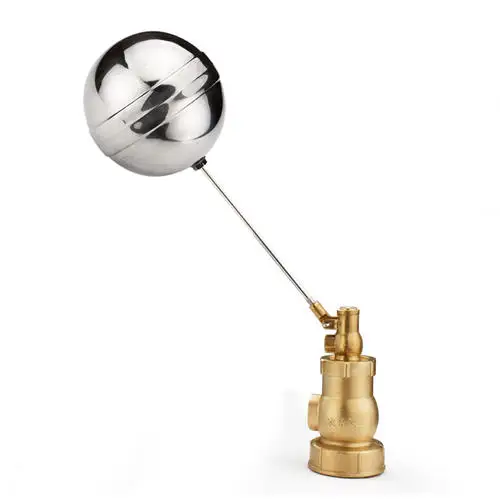

Threaded floating ball valve is a valve designed using hydraulic principles, which has theadvantages of compact structure, reliable opening and closing actions, high sensitivity, low head loss, and no water hammer phenomenon. Its design combines the characteristics of light weight, small size, and easy installation and maintenance, making it
widely applicable in automatic water supply systems for various water tanks, pools, and towers in industrial and mining
enterprises and civil buildings. In addition, the threaded float ball valve can also be used as a circulating water supply control valve for atmospheric boilers. The structural form is lever type, with a nominal pressure of 0.03Mpa to 1.6Mpa, and the connection method is flange. It is suitable for temperatures not exceeding 100 ° C and is driven by liquid level control. The valve body material is made of stainless steel. Threaded float ball valve is suitable for controlling media such as water, oil, and liquids In terms of working principle, the floating ball of the threaded floating ball valve always floats on the water surface. When the water level rises, the floating ball rises and drives the valve core to close the valve through the movement of the connecting rod; When the water level drops, the float descends and opens the valve through the movement of the connecting rod. This working principle keeps the liquid level in the water tank at a reasonable position, suitable for domestic water, water supply and drainage systems, sewage treatment systems, HVAC and other systems
Threaded floating ball valve is a valve designed using hydraulic principles, which has theadvantages of compact structure, reliable opening and closing actions, high sensitivity, low head loss, and no water hammer phenomenon. Its design combines the characteristics of light weight, small size, and easy installation and maintenance, making it
widely applicable in automatic water supply systems for various water tanks, pools, and towers in industrial and mining
enterprises and civil buildings. In addition, the threaded float ball valve can also be used as a circulating water supply control valve for atmospheric boilers. The structural form is lever type, with a nominal pressure of 0.03Mpa to 1.6Mpa, and the connection method is flange. It is suitable for temperatures not exceeding 100 ° C and is driven by liquid level control. The valve body material is made of stainless steel. Threaded float ball valve is suitable for controlling media such as water, oil, and liquids In terms of working principle, the floating ball of the threaded floating ball valve always floats on the water surface. When the water level rises, the floating ball rises and drives the valve core to close the valve through the movement of the connecting rod; When the water level drops, the float descends and opens the valve through the movement of the connecting rod. This working principle keeps the liquid level in the water tank at a reasonable position, suitable for domestic water, water supply and drainage systems, sewage treatment systems, HVAC and other systems
Application | General |
Port Size | DN15---DN100 |
Valve type | float valve |
Power | Hydraulic |
Temperature of Media | Normal Temperature |
Brand Name | Sitong Xintiandi |
Structure | Angle |
Media | Water |
Customized support | Software reengineering |
Product name | Threaded float valve |
Material | copper+stainless steel |
Medium | Water |
Standard or Nonstandard | Standard |
Connection type | Threaded |
