Гибридный инвертор Zumax, 4 кВт, 24 В, 6 кВт, 48 В, 220/230 В, AC
45 362,61 ₽ - 49 682,86 ₽
Высококачественный Сертифицированный Гибридный инвертор 3 5 кВт 10 четыре режима зарядки для домашних солнечных инверторов
- Категория: >>>
- Поставщик: Redsun new energy Co. Ltd
Сохранить в закладки 1601224883400:
Описание и отзывы
Характеристики
Product Description

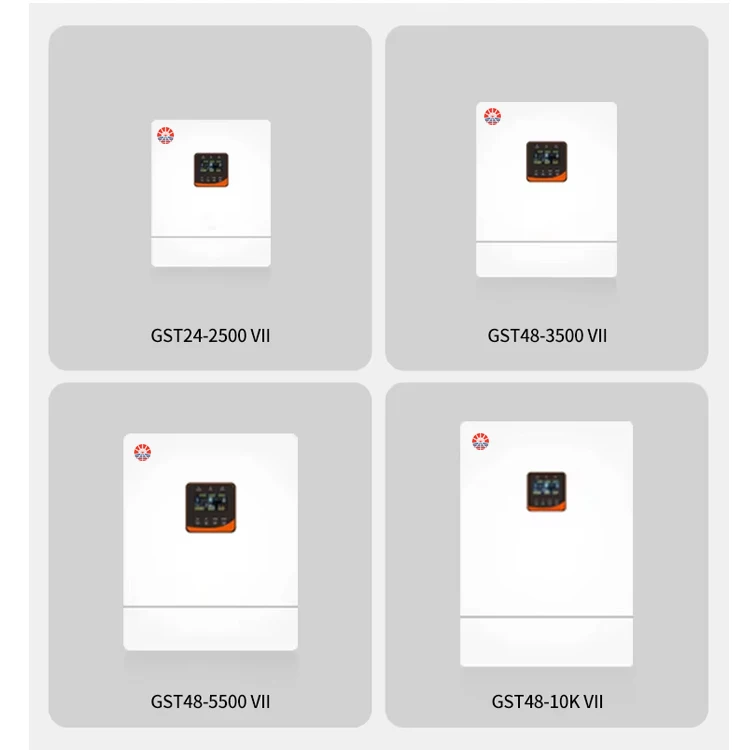

MODEL | GST24-2500 VII | GST48-3500 VII | GST48-5500 VII | GST48-10K VII | ||||
INVERTER OUTPUT | ||||||||
Rated output power | 2500W | 3500W | 5500W | 10000W | ||||
Rated output power | 2500VA | 3500VA | 5500VA | 10000VA | ||||
Maximum Peak Power | 5000W | 6000W | 10000W | 15000W | ||||
Load Capacity with Motors | 2HP | 2HP | 4HP | 6HP | ||||
Rated AC Output | 230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz | |||||||
Output Voltage Waveform | Pure Sine Wave | |||||||
Inverter and Bypass Switching Time | 10ms (typical) | |||||||
Parallel Capacity | 9 | |||||||
Maximum Battery Inverte | 93% | |||||||
BATTERY | ||||||||
Battery Type | Lithium / Lead-acid / User Defined | |||||||
Rated Battery Voltage | 24Vdc | 48Vdc | ||||||
Battery Voltage Range | 20-33Vdc | 40-60Vdc | ||||||
Max.MPPT Charging Current | 60A | 60A | 100A | 200A | ||||
Max.Mains Charging Current | 60A | 60A | 60A | 120A | ||||
Max.Hybrid Charging Current | 120A | 120A | 100A | 200A | ||||
Charging current error | ±3Adc | |||||||
Charging Short Circuit protection | Blown Fuse | |||||||
PV CHARGING | ||||||||
PV CHARGING | 1 | 1 | 1 | 2 | ||||
Max. PV array power | 1700W | 3400W | 5500W | 5500W+5500W | ||||
Max. Pv input current | 50A | 50A | 22A | 22A+22A | ||||
Max. Open Circuit Voltage | 100Vdc | 145Vdc | 500Vdc | 500Vdc+500Vdc | ||||
MPPT Voltage Range | 30-85Vdc | 60-115Vdc | 120-450Vdc | |||||
MPPT Tracking Efficiency | 99.9% | |||||||
MAINS INPUT | ||||||||
Input Voltage Range | 90-280Vac/170-280Vac | |||||||
Frequency Range | 50/60Hz±0.3Hz | |||||||
Output Short Circuit Protection | Circuit breaker | |||||||
Bypass Overload Current | 24A | 30A | 40A | 63A | ||||
Features:

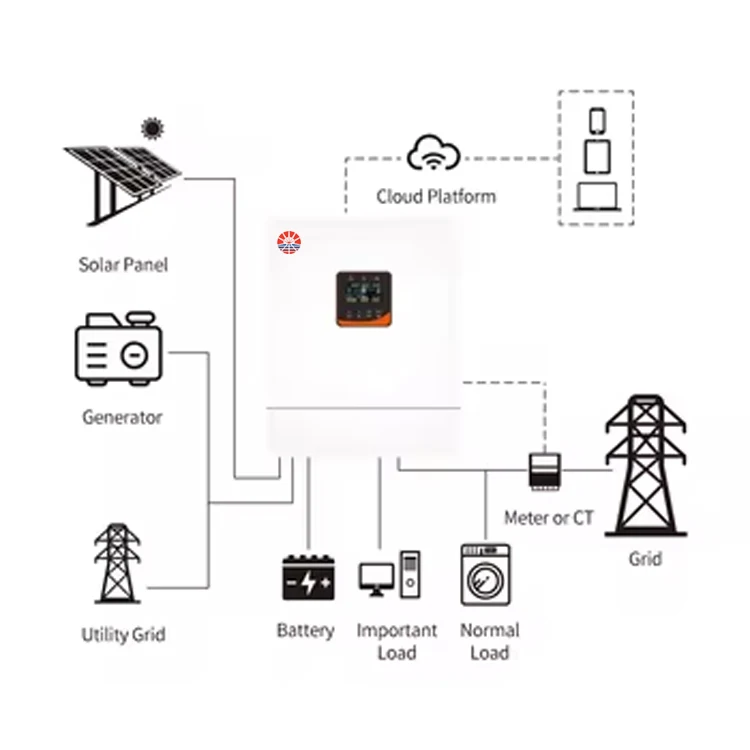

1. Anti-backflow grid connection function, support for inverter and mains power hybrid output, support for use without
battery, can be set up for on-grid power generation.
battery, can be set up for on-grid power generation.
2. Two output modes: mains bypass and inverter output and UPS function.
3.4charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. Power saving mode available to reduce no-load loss.
6. Intelligent variable speed fan efficiently dissipate heat and extend system life.
7. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
8. Complete protections, including short circuit protection, over voltage and under voltage protection,overload protection, etc.
9. Parallel machine number is up to 9.

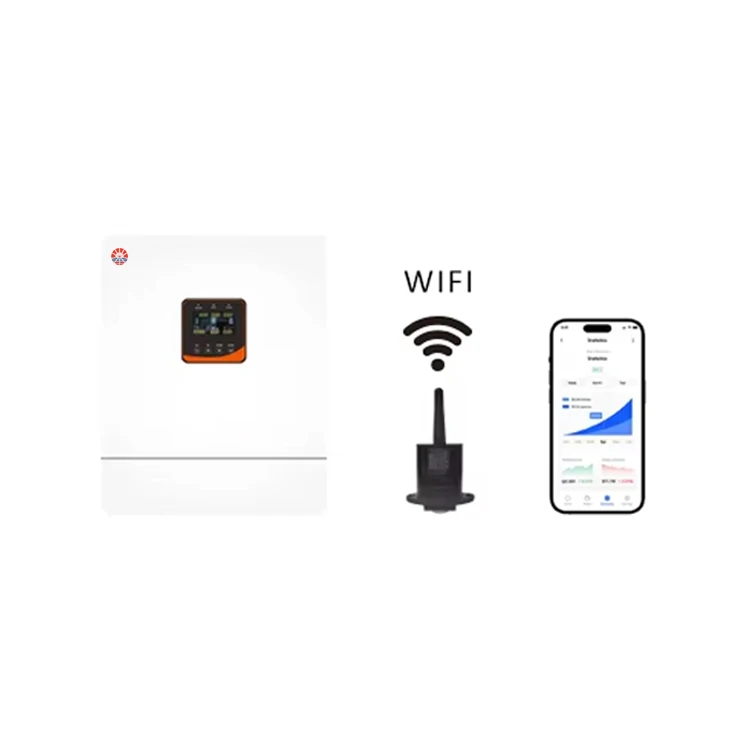

10. Support for WIFI/GPRS remote Monitoring
3.4charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. Power saving mode available to reduce no-load loss.
6. Intelligent variable speed fan efficiently dissipate heat and extend system life.
7. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
8. Complete protections, including short circuit protection, over voltage and under voltage protection,overload protection, etc.
9. Parallel machine number is up to 9.
10. Support for WIFI/GPRS remote Monitoring
① | Overload protector | ⑩ | Dry contact port |
② | ON /OFF,rocker switch | ⑪ | Cooling fan |
③ | PV port | ⑫ | Battery port |
④ | AC input port | ⑬ | Cooling fan |
⑤ | RS485-2 communication port (Host computer or WiFi/GPRS communication module) | ⑭ | AC output port |
⑥ | Current sharing port (parallel module only) | ⑮ | Function key |
⑦ | Parallel communication port (parallel module only) | ⑯ | Indicator light |
⑧ | USB communication port | ⑰ | LCD screen |
⑨ | RS485-1 communication port (BMS) |
Reference Projects
Customer feedback
Certificate
Production workshop
Company Profile
Located in the beautiful spring city - Jinan, Redsun (Shandong) New Energy Co., Ltd. is committed to the development of new energy science and technology and the popularity of environmental protection energy.
The production base is located in Linuo Science and Technology Park, No. 30766, Jingshi East Road, Jinan Hi-Tech Zone. It maintains close cooperation with several large-scale high-tech enterprises in China and has signed long-term co-operation agreements for the development of distributed photovoltaic projects.
By the beginning of 2024, we had provided products and services for more than 1,000MW of PV power plant projects in more than 20 countries and regions, and have successfully explored the markets in Africa, Europe, North America and Asia-Pacific.
Our photovoltaic modules, inverters and energy storage batteries are exported to many European countries. Redsun New Energy is always committed to the strategic development of new green energy for mankind to meet the ever-changing world energy demand.
By the beginning of 2024, we had provided products and services for more than 1,000MW of PV power plant projects in more than 20 countries and regions, and have successfully explored the markets in Africa, Europe, North America and Asia-Pacific.
Our photovoltaic modules, inverters and energy storage batteries are exported to many European countries. Redsun New Energy is always committed to the strategic development of new green energy for mankind to meet the ever-changing world energy demand.
Product packaging &shipping
FAQ
1. How to insatll and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
2.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
3.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
4. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
2.What is the payment term?
By T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
3.How can guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
4. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.
