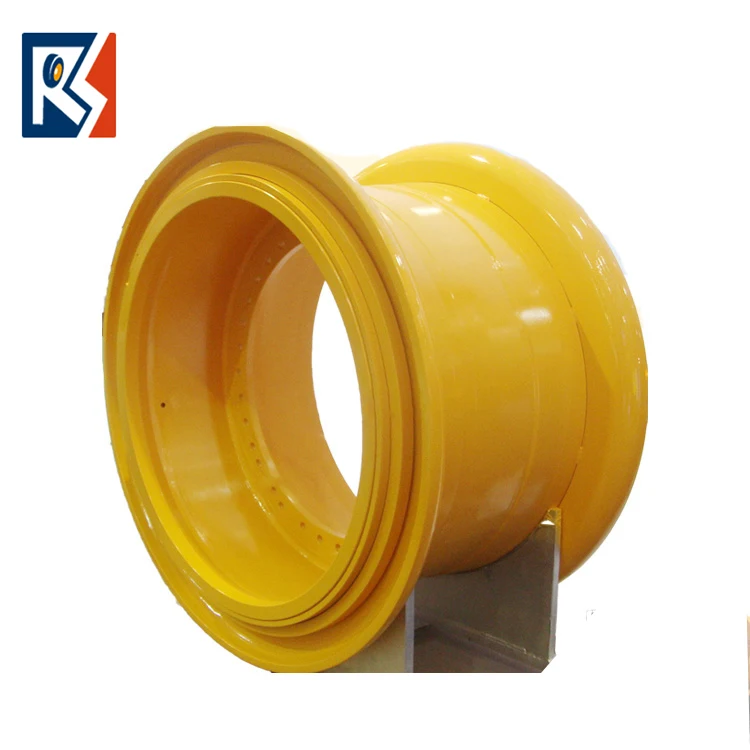

Обод колеса для продажи 33-22 00/4 0 инженерный обод
113 012,48 ₽

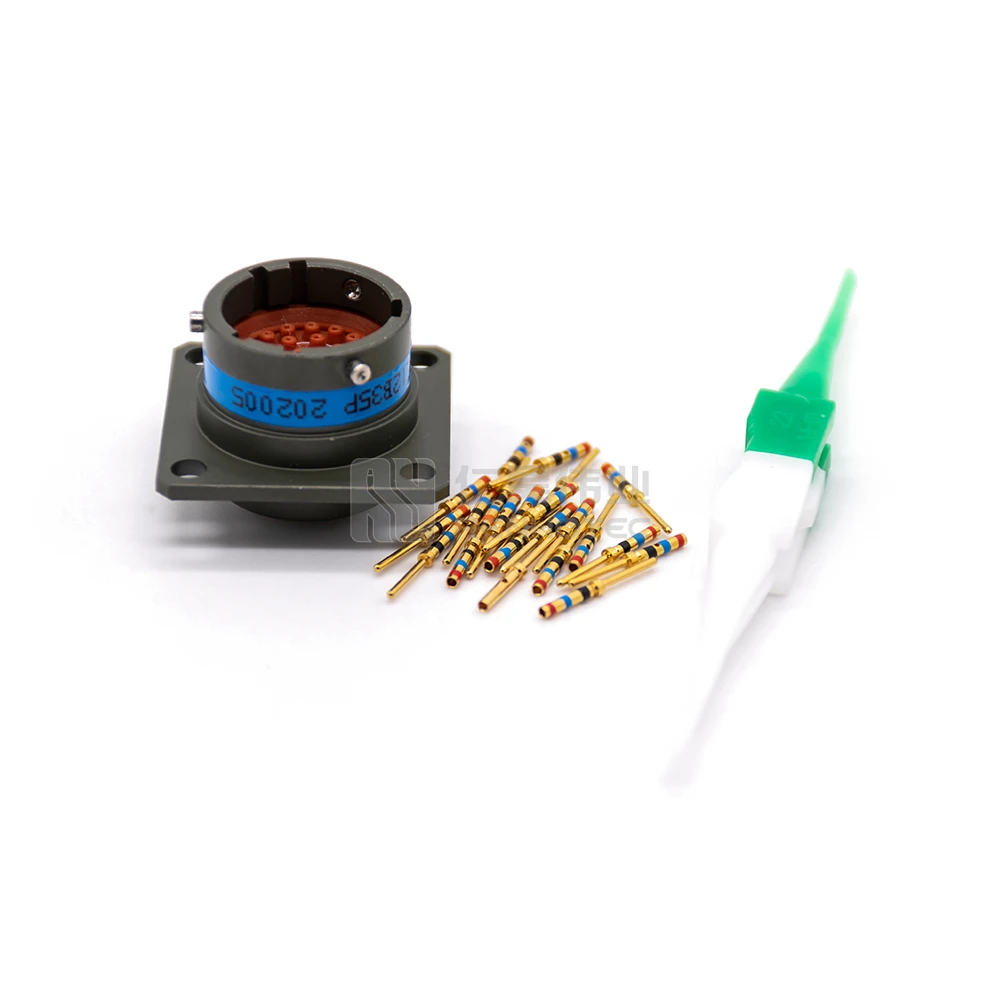

MS27508E12B35P 22Pin настенный квадратный фланцевый разъем аэрокосмический
- Категория: >>>
- Поставщик: Shenzhen Renhotec Technology Electronics Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601224953747:
Описание и отзывы
Характеристики
Full Series : D38999 Connector
All types of Circular Connector from OEM Manufacturer in China
All types of Circular Connector from OEM Manufacturer in China
Product Description
D38999 Connector
Previously known as MIL-C-38999, MIL-DTL-38999 connectors come in four series: Series I, Series II, Series III and Series IV. They are environmentally resistant connectors that use removable crimp contacts and have an operating range of -65 to +200°C.
Series I connectors are bayonet coupled and have high-vibration properties. They are scoop proof and are ideal for heavy wind and moisture environments. They are utilised when a fast disconnect coupling system is required.
Series II connectors are bayonet coupled, are non-scoop proof, and have a low profile, so are used when weight or space is limited, or in low-vibration, high moisture, and strong wind situations.
Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories. Series III connectors are most commonly use in Military and Aerospace designs.
Series IV connectors are coupled by a Breech-Lok mechanism, are scoop proof, lightweight and suitable for blind mating applications, and they also have high-vibration attributes. They are well suited in high wind and moisture environments when used with the appropriate accessories.
Integrated Plug
Tight and firm, avoid corrosion, aging deformation, fracture and other situations caused by welding
Wear-resistant, anti-corrosion and anti-rust, delicate hand feeling, long-lasting
Stable Performance
Copper pin gold plating, electrical conductivity, strong oxidation, plugging resistance
D38999 Connector | ||
Standard | MIL-DTL-D38999 | |
Series | Series I / Series II / Series III / Series IV | |
Connector Type | Plug / Socket | |
Number of Positions | 3 / 4 / 5 / 6 / 8 / 10 / 12 / 13 / 19 / 22 / 37 / 66 / 79 Pin | |
Orientation | Straight | |
Shell Size | A / B / C / D / E / F / G / H / J | |
Type of Fastening | Bayonet / Threaded | |
Mounting Type | Cable Mount / Panel Mount | |
Mounting Feature | Flange / Bulkhead | |
Rated Voltage | 600V-2300V | |
Rated Current | 5A / 7.5A / 13A / 23A / 40A | |
Insulation Resistance | ≥5000 MΩ to 25° C and 65 % HR max. | |
IP Rating | IP67 | |
Mechanical Operation | ＞500 Mating Cycles | |
Ambient Temperature | -65℃ to +175℃ / -65℃ to +200℃ | |
How to Order
How to choose an item to place an order
Step 1: Confirm Connector Type
Panel mount, field assembly or form cable etc.
Code, Pin Mumber, Gender
If the cable: cable length,connectors on both ends of the cable
Step 2: Confirm Specs or Data Sheets
Step 3: Confirm price and delivery time
Product Details
Connector
Backshell
Dust Caps
Application Industry
Automated Control
Ship Industry
Automobile Manufacturing
Aerospace
Communication Equipment
Home Appliance Audio
Packaging & Logistics
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order will be shipped by FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass order.
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order will be shipped by FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass order.
FAQ
Q: What is the Minimum Order Quantity(MOQ)?
A: The MOQ is 1pcs, the custom-made products will have different MOQ according to the products.
Q: When can I get the quotation?
A: All of inquiries will be replied within 12 hours. If it is urgent, we can be reached at +86 027-51830420.
Q: How much do I need to pay for your OEM service?
A: It depends. Some products will have no extra cost if the quantity meet the MOQ.
Q: How do you guarantee the quality?
A: All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to ROHS standards. QC will inspect goods before shipping to ensure the quality.
Q: What is your warranty?
A: Our warranty is 12 months after delivery, RENHOTEC pays high attention to after-sales service.
If any questions, please do not hesitate to contact with us at any time.
A: The MOQ is 1pcs, the custom-made products will have different MOQ according to the products.
Q: When can I get the quotation?
A: All of inquiries will be replied within 12 hours. If it is urgent, we can be reached at +86 027-51830420.
Q: How much do I need to pay for your OEM service?
A: It depends. Some products will have no extra cost if the quantity meet the MOQ.
Q: How do you guarantee the quality?
A: All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to ROHS standards. QC will inspect goods before shipping to ensure the quality.
Q: What is your warranty?
A: Our warranty is 12 months after delivery, RENHOTEC pays high attention to after-sales service.
If any questions, please do not hesitate to contact with us at any time.
About Us
- RENHOTEC Have More Than 16+ Years Experience on Electronic Connectors and HasAchieved Good Reputation in the Industry.
- We Acquired ISo 9001 , ROHS , IP Waterproof Test, Environment and Management SystemsCertification to Ensure High Quality. Please Contact Us Free for More Details if lnterested.
- In Addition, You Are Always Welcome to Visit Our Office and Factory for Face to FaceConversation!
100+
Countries and Areas
300+
Technician
20000+
M2 Production Workshop
Home
E-mail: sale@renhotec.com Tel: 0086-769-81100186 Web: www.renhotecpro.com
Похожие товары

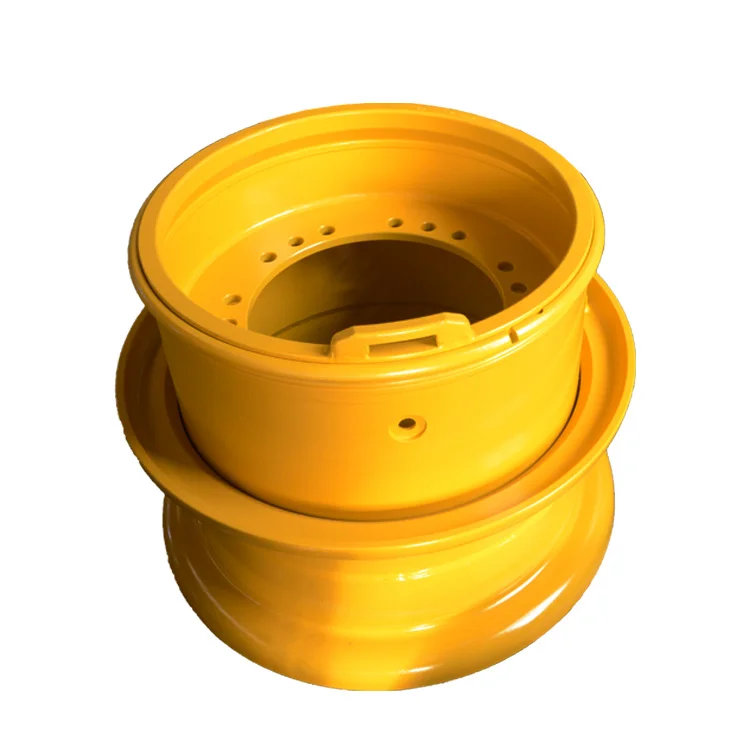

Производители стальных колесных дисков 19 50-25 для самосвала B30E
70 590,38 ₽

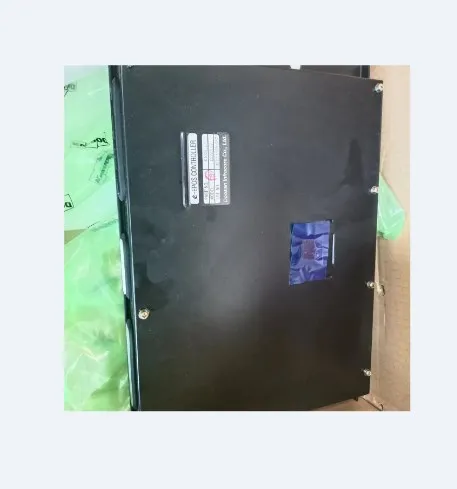

Doosan Daewoo Hyunda i Develon аксессуары для экскаватора запасные части 543-00055A EPOS контроллер

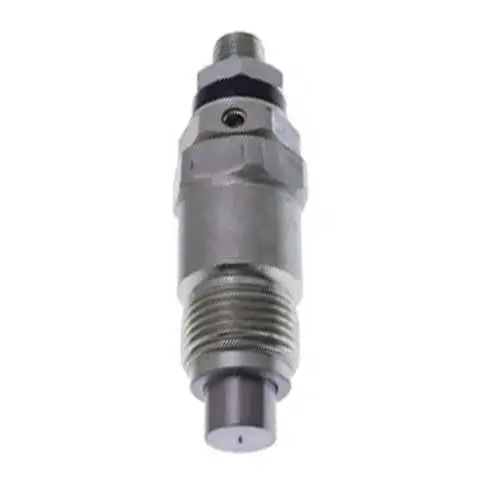

Топливная Форсунка 281245A1 83938608 131406330 для мини-экскаваторов CX15 CX16 с двигателем 103-09 103-10
1 131,26-1 696,89 ₽

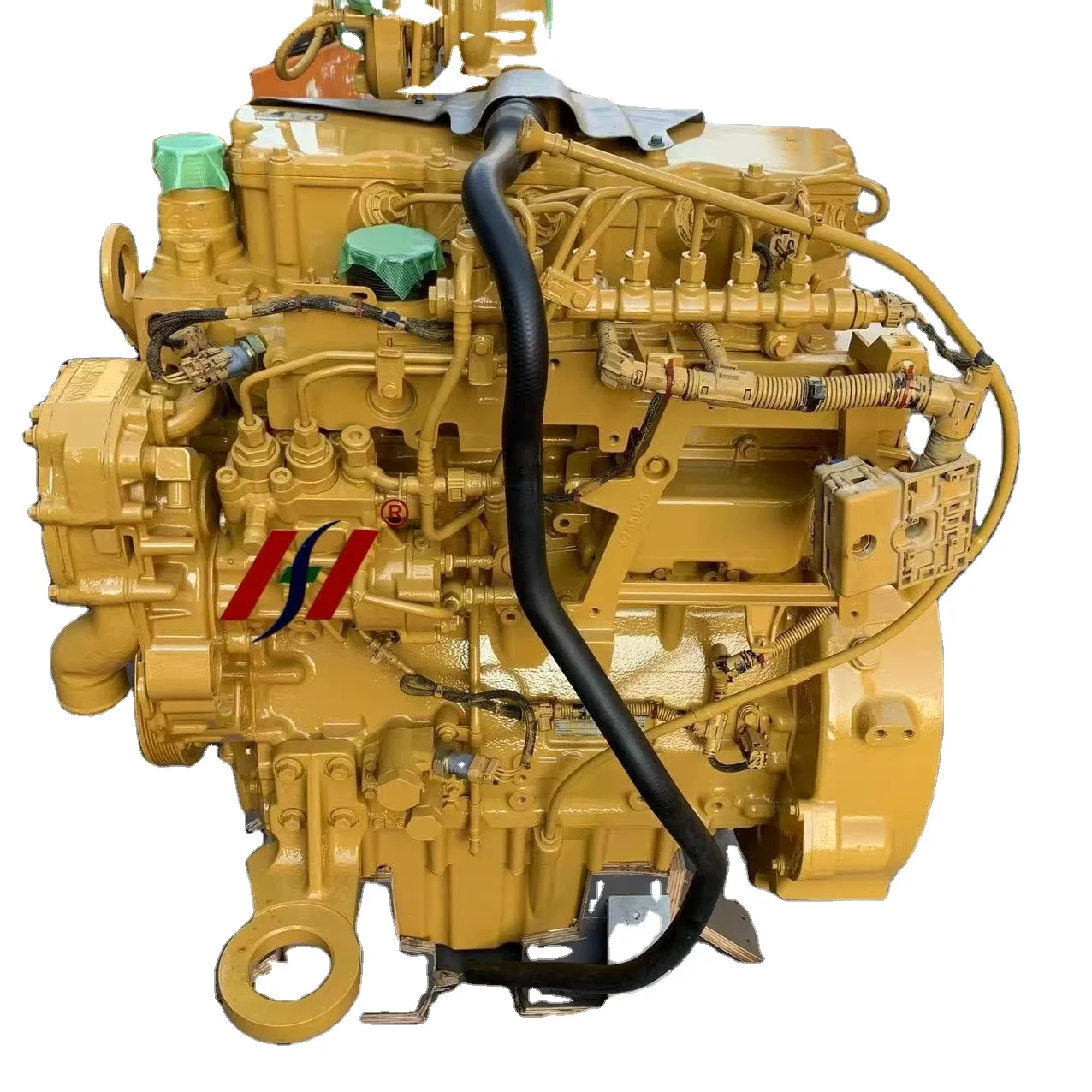

C4.4 двигатель экскаватор CAT дизельный электронный для гусеницы
565 628,00-588 253,12 ₽
Napo W прямые продажи с завода запасные части для экскаватора горячая трубка 561-87-87121

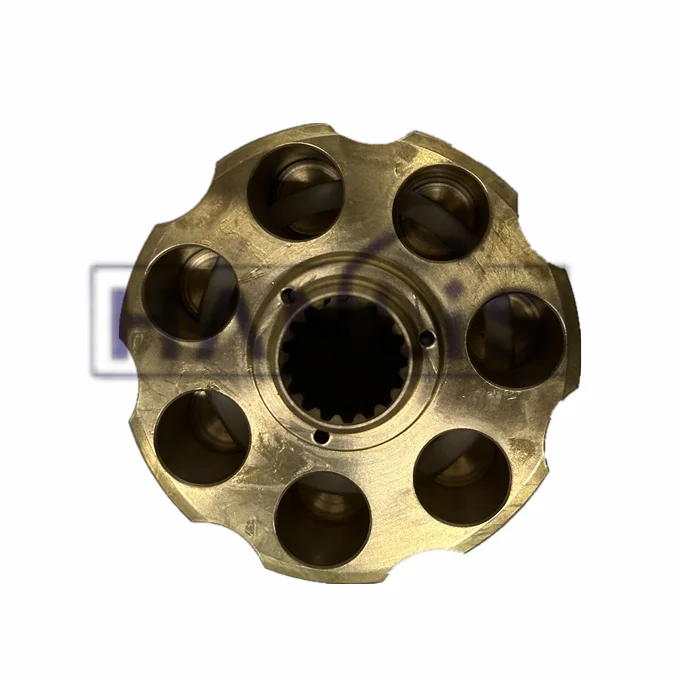

Запчасти для строительной техники TZ312B2004-00 экскаватора Nabtesco гидравлические запчасти PC30 T/M блок Cyilnder 5 кг GM05VL
