Бренд JUKKY RC-100 круглая автоматическая швейная машина режущая ткань с лазерным источником для системы управления Cypcut по металлу
4 502,40-9 050,05 ₽
Высокоточная печатная плата лазерная резка УФ 10/15/20 Вт
- Категория: >>>
- Поставщик: Shenzhen Jiahe Laser Intelligent Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601225051038:
Описание и отзывы
Характеристики
Prodcut Description

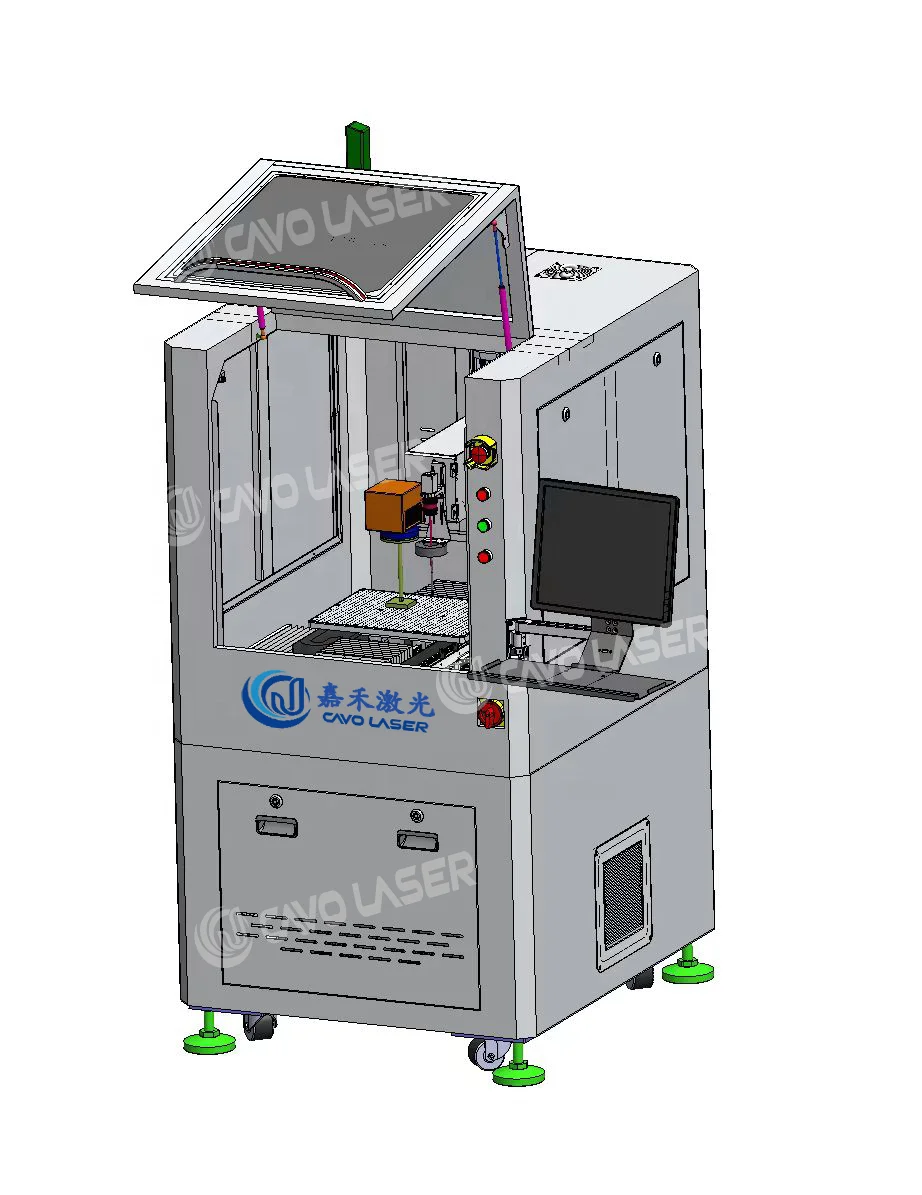

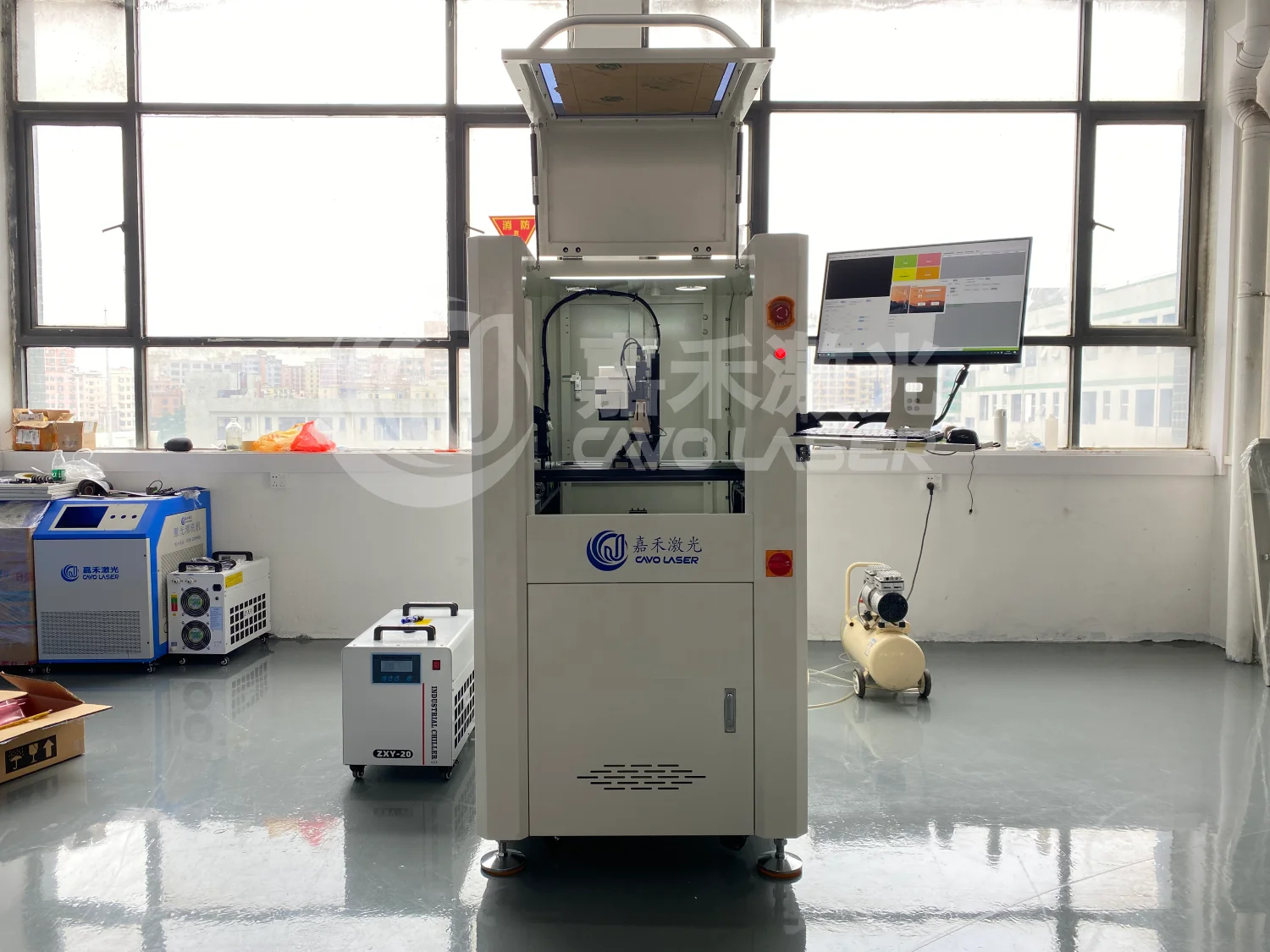

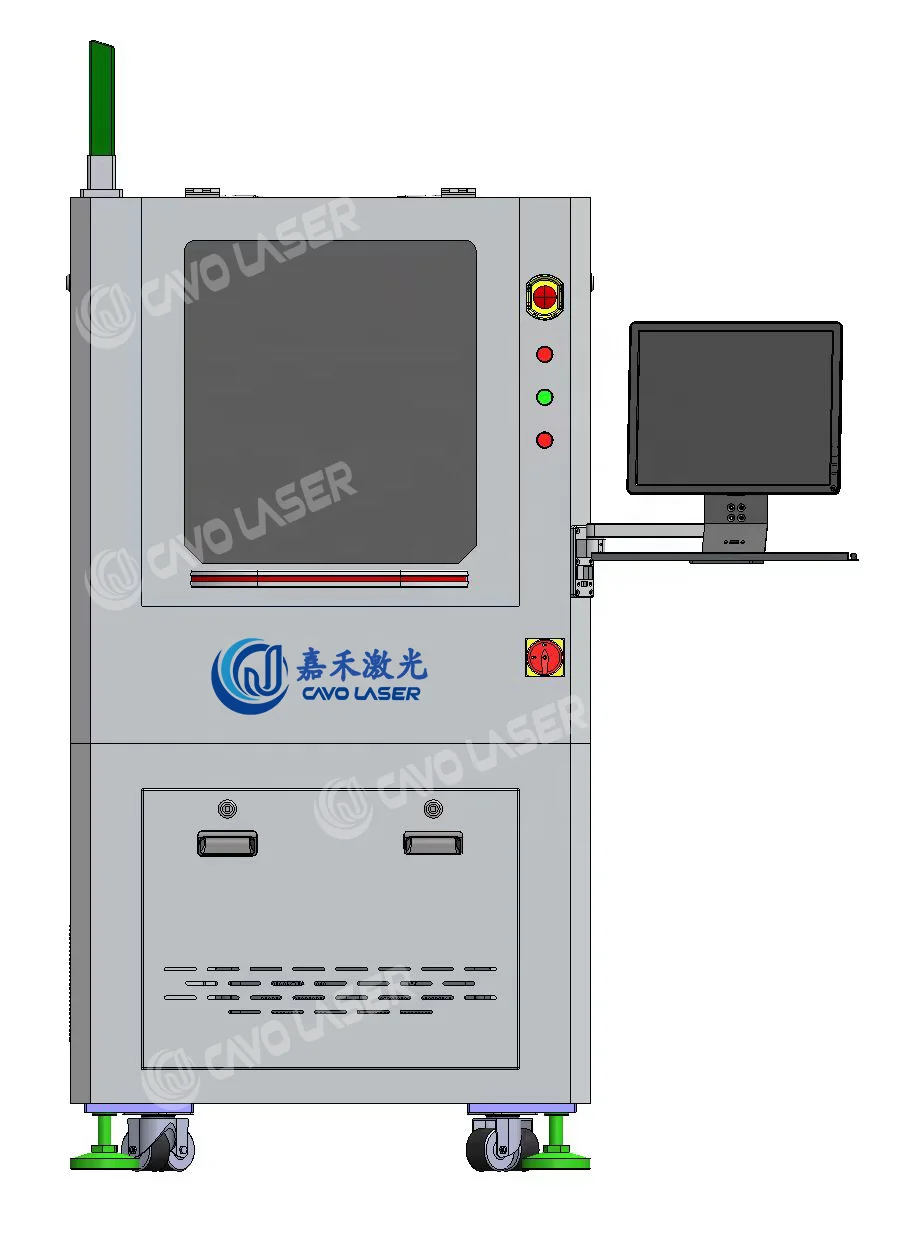

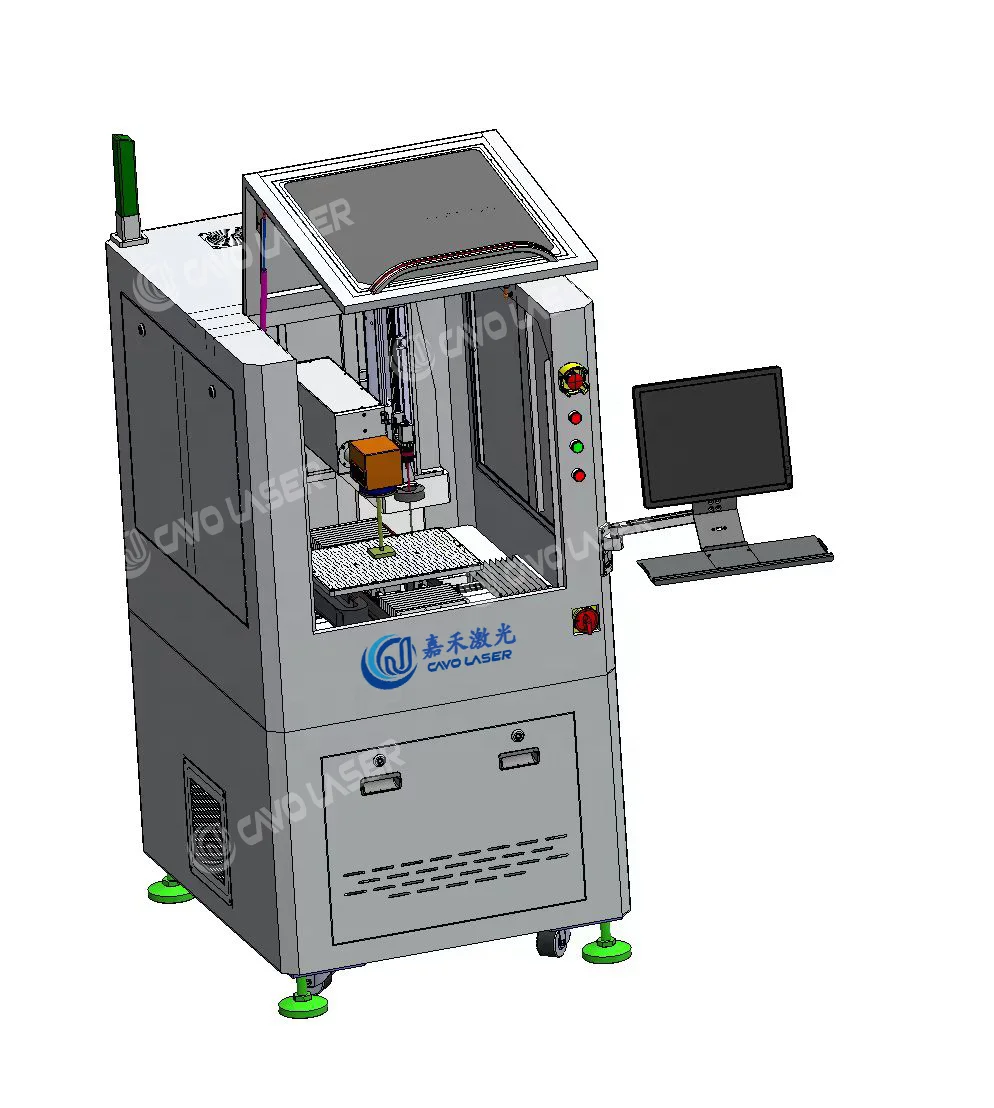

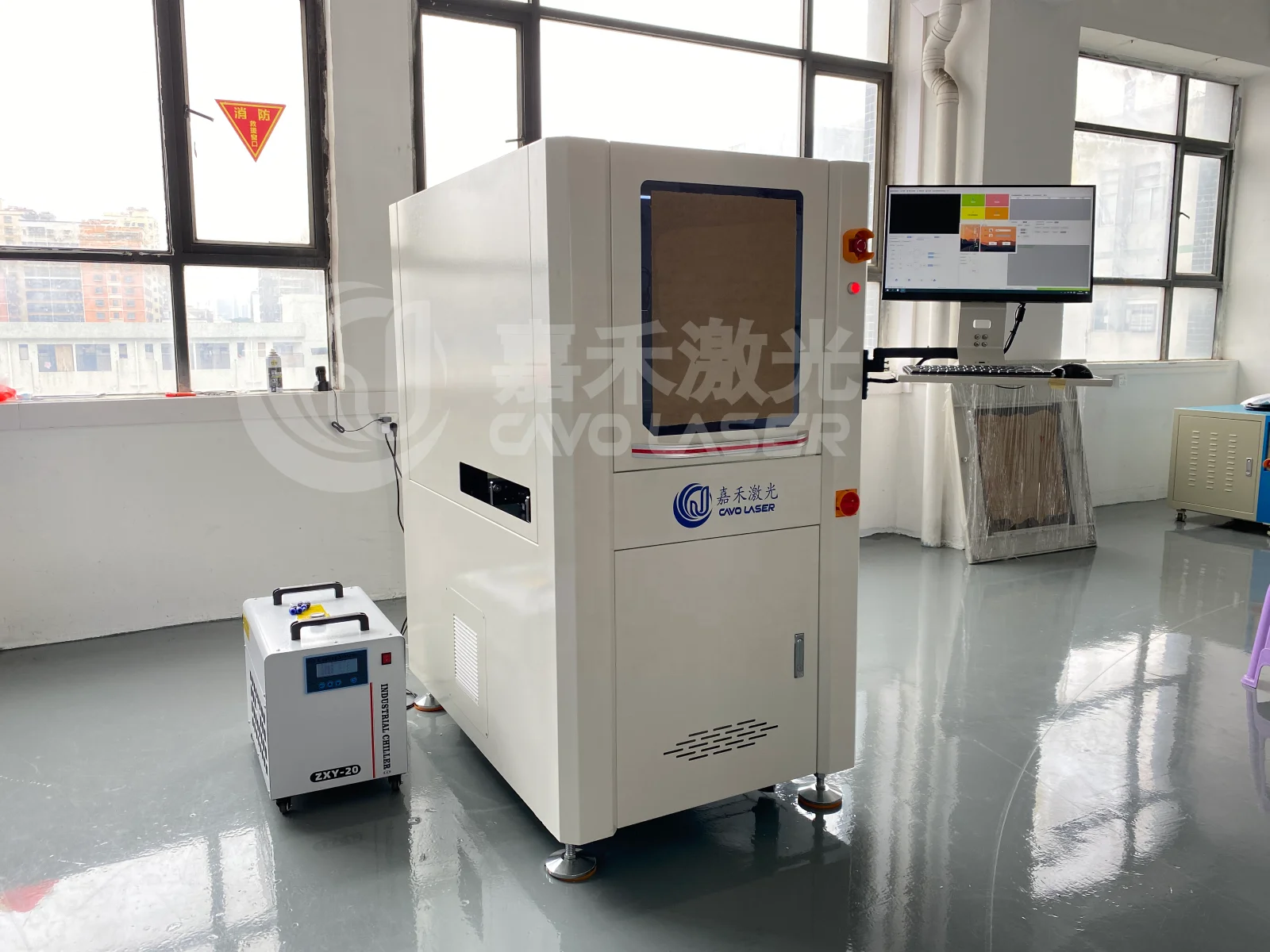

PCB laser cutting(marking) machine
The PCB laser cutting machine uses 355nm UV laser, which is focused by beam expanders, galvanometers, focusing mirrors and other optical devices to form a light spot smaller than 10μm.
The XY motor deflection of the galvanometer is controlled through software, and the light spot is focused The mirror moves within the scanning range. By controlling the movement of the light spot, it scans within a certain area and peels off the material on the surface of the material, thereby achieving the purpose of cutting(marking) the material.
Features
1. Using ultraviolet laser cold light source laser, the heat affected area is as small as 10μm.
2. High-precision linear motor worktable with fast speed.
3. Optional CCD automatic positioning; vacuum adsorption fixed plate, no other fixtures required.
4. The processing process is controlled by computer software and provides real-time feedback on the processing status.
5. The focused light spot can be as small as 10μm, suitable for precision cutting and marking of organic/inorganic materials.
2. High-precision linear motor worktable with fast speed.
3. Optional CCD automatic positioning; vacuum adsorption fixed plate, no other fixtures required.
4. The processing process is controlled by computer software and provides real-time feedback on the processing status.
5. The focused light spot can be as small as 10μm, suitable for precision cutting and marking of organic/inorganic materials.
Details
Applications
Specification
Name | PCB LASER CUTTING(MARKING) MACHINE |
Model | JH-UV10/15/20/25-QG |
Power | 10W/15w/20w/25w |
Laser wavelength | 355nm |
Working size | 50*50mm- 450*450mm( Optional) |
Speed | ≤7000 mm/s |
Min line width | ≤10μm |
Material thickness | ≤3mm |
Repeated accuracy | 0.01mm |
Motorized table | X-Y linear servo module |
Positioning system | Coaxial CCD system |
Voltage | AC 220V/50Hz |
Gas Supply specification | 0.5-0.6MPa |
Cooling system | Water cooling |
Machine Size | 1400*1230*1850 mm |
Packaging
Company profile
CAVOLASER
Shenzhen Jiahe Laser Inteligent Technology Co, Ltd. is located in Shenzhen city, Guangdong, China. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries.
Jiahe laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Jiahe laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products.
Jiahe Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2021, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customerswith timely, comfortable pre-sales, sales, after-sales support and services.
Certifications
Похожие товары
Оптовая продажа хорошая цена 1 кВт 6000 Вт волоконно-лазерная машина для резки высокой мощности углеродный плоский металл мм алюминий с новым заводом
961 567,60-1 006 817,84 ₽
39% скидка! Машина для резки труб газовый резак 100-600 мм магнитная модель
169 688,40-226 251,20 ₽
Мини-станок для лазерной резки металла лазерная резка/машина резки/станок с ЧПУ

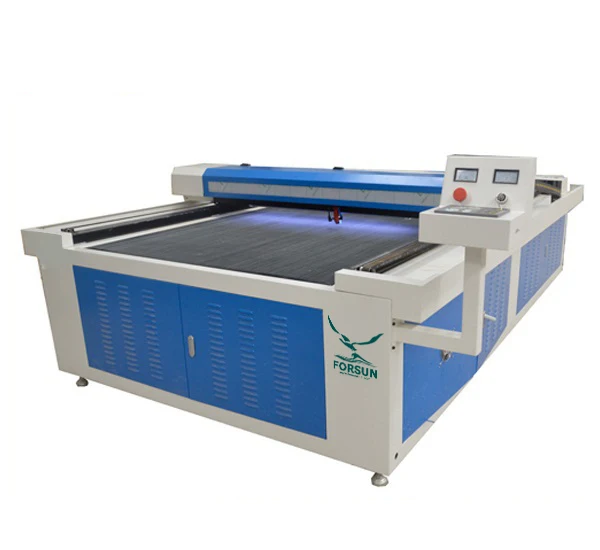

Домашний лазерный резак 6090 3d принтер гравер с ЧПУ Недорогой forsun
226 251,20-237 563,76 ₽

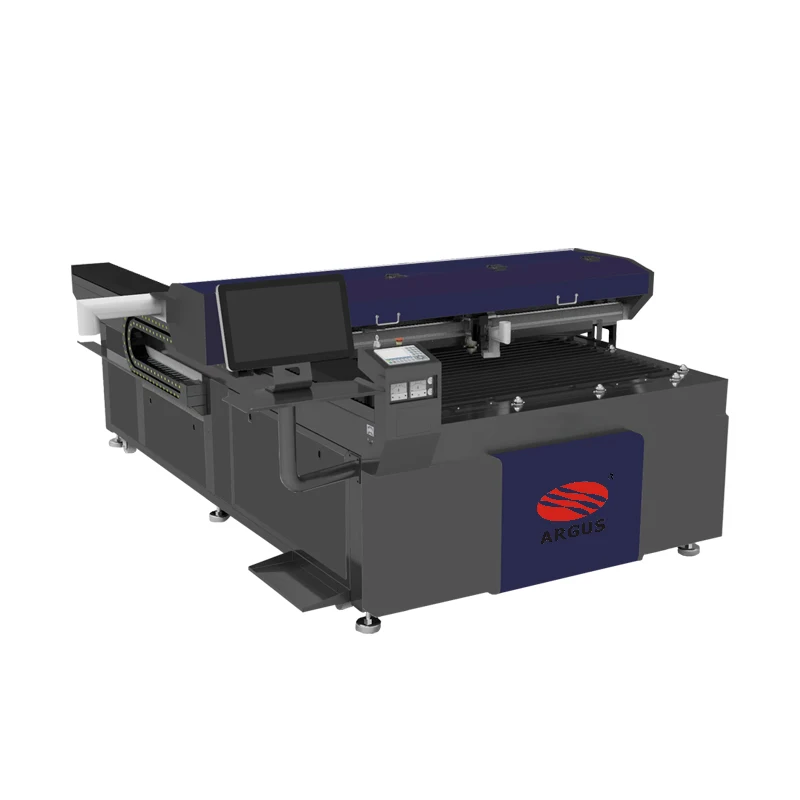

1325 Аргус СО2 лазерная машина 300 Вт RF металлическая трубка для 20 мм дерева/МДФ/акриловых гравировки и резки
