Машина для прессования/тиснения подошвы обуви eva марки Jing Yi
1 157 188,20 ₽ - 1 267 396,60 ₽
Спортивная машина для термоформования и резки подошвы
- Категория: >>>
- Поставщик: Huizhou Yiyuan Machinery Co. ltd
Сохранить в закладки 1601225218116:
Описание и отзывы
Характеристики
Product Description:

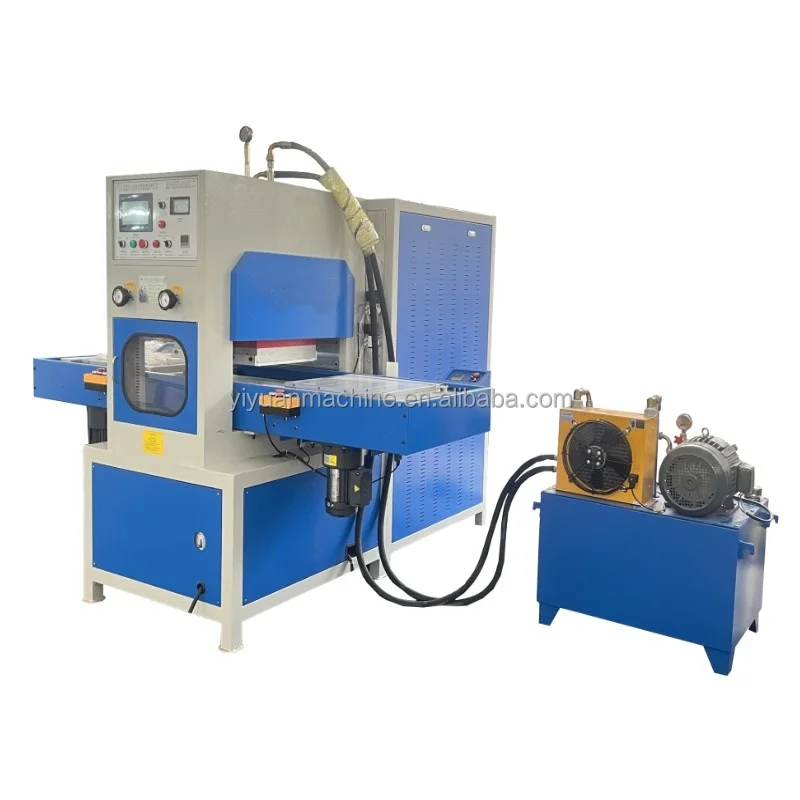

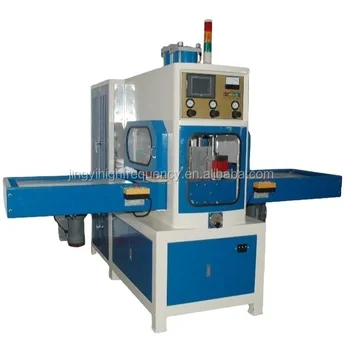

15kw High Frequency Welding Embossing And Cutting Machine

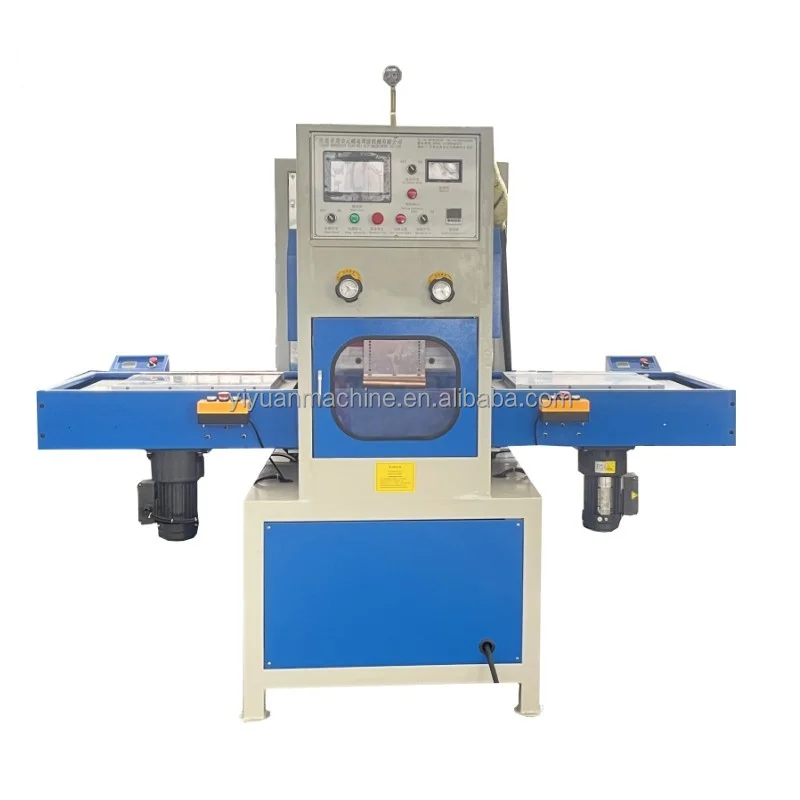

Slide Table High Frequency Welding & Cutting Machine
1. With PLC+HMI,convenient for paramters setting and operation,high level automatic
2. Shuttle working stations,machine adopts with shuttle working station,one machine with two working stations,when one working
station is welding,and other station can be prepared the material for welding.Greatly improve working efficiency.
3. Easily adjustable tuner,machine output power can be adjusted at the tuner according to electrode size and material thickness.In
addition,other control devices and special electrical circuits have cut down required welding time considerably to raise the
machine productiovity.
4. High sensitivity anti-spark system,it can automaticlly cut off the power if machine over current or occur spark to protect the material,mould and oscillation tubes.Frequency deviation caused by mis-operation is also prevented
1. With PLC+HMI,convenient for paramters setting and operation,high level automatic
2. Shuttle working stations,machine adopts with shuttle working station,one machine with two working stations,when one working
station is welding,and other station can be prepared the material for welding.Greatly improve working efficiency.
3. Easily adjustable tuner,machine output power can be adjusted at the tuner according to electrode size and material thickness.In
addition,other control devices and special electrical circuits have cut down required welding time considerably to raise the
machine productiovity.
4. High sensitivity anti-spark system,it can automaticlly cut off the power if machine over current or occur spark to protect the material,mould and oscillation tubes.Frequency deviation caused by mis-operation is also prevented
.5. No high frequency radiation,in order to anti-disturbing other electric devices like cellphone,computer and so on .The machine equiped with good shielding device,can reduce the leakage of radio wave greatly.
6. Double current adjustment, two side working station can make different kind of product.
Machine Working Principle:
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.
Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Specifications:
Model | YY8000HR | YY12000HR | YY15000HR | ||
Output Power | 8KW | 12KW | 15KW | ||
Voltage | AC220/380/400/415/440V 3φ 50/60HZ(Customized) | ||||
Input Power | 15KVA | 21KVA | 25KVA | ||
Oscillation Frequency | 27.12MHZ | 27.12MHZ | 27.12MHZ | ||
Oscillation Tube | 7T69RB | E3130 | 8T85RB | ||
Anti-Spark System | NL-5557 | NL-5557 | NL-5557 | ||
Max Pressure | 15T | 20T | 30T | ||
Gap of Electrode | 200mm | 200mm | 200mm | ||
Size of Upper Electrode | 300*500mm | 400*500mm | 400*600mm | ||
Size of Working Table | 350*550mm | 450*550mm | 450*650mm | ||
Machine Size | 2300*1800**1950mm | 2300*2100**1950mm | 2500*2100*1950mm | ||
Machine Weight | 1200kg | 1350kg | 1500kg | ||

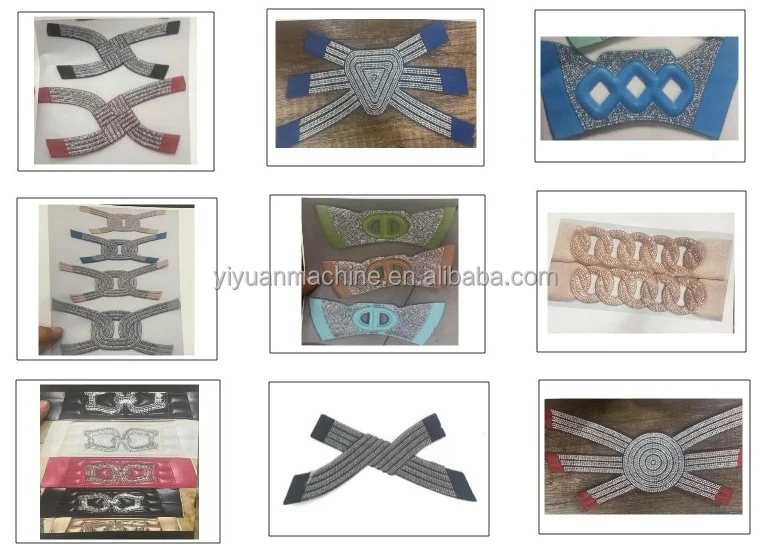

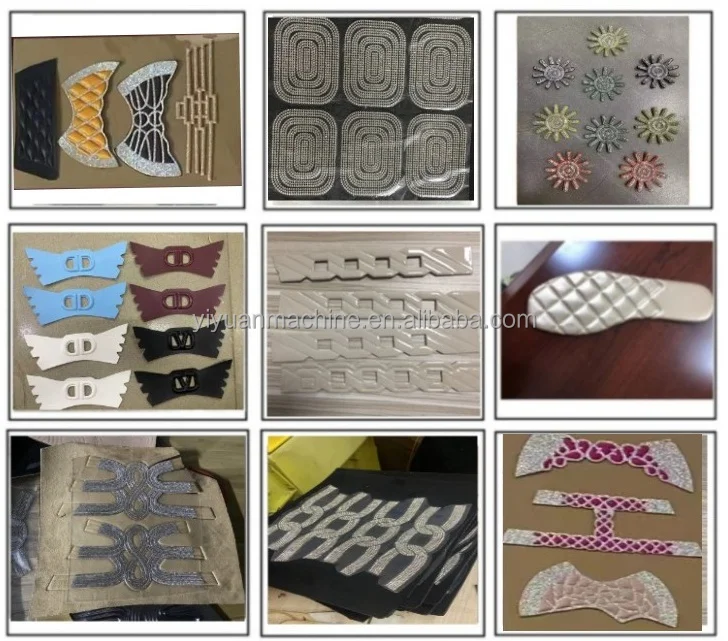

Application:
Suitable for PVC,TPU PU Leather embossing,EVA Foam shoes insole pad embossing,footwear upper welding,embossing and cutting PVC,PETG,GAG
box die cutting and creasing,urine bag,blood bag and other medical bag welding and cutting,PVC,PET blister packing,etc.
Details Images:

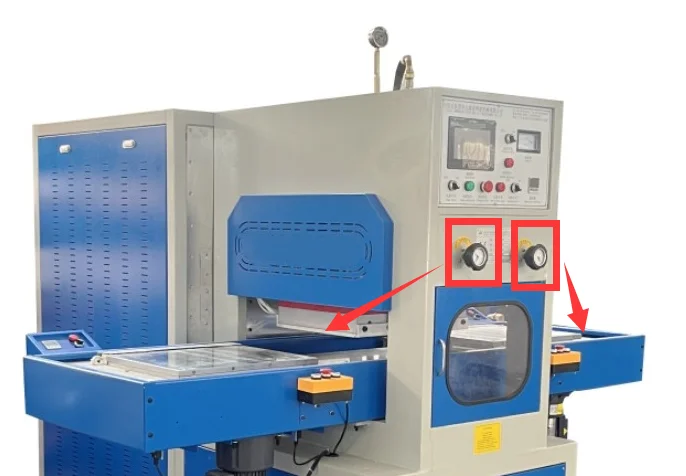

Double current adjustment
Model: NL-5557
Function: High sensitive anti-spark tube to protect the welding bar and welding products.
Function: High sensitive anti-spark tube to protect the welding bar and welding products.
Brand: Japan & JINGGUANG
Original: JAPAN & CHINA
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.
Original: JAPAN & CHINA
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.
Packing & Delivery:
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
Company Profile:
Since its foundation, Huizhou YIYUAN machinery CO.,Ltd has been devoted to optimization and integration of developing,
producing,selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot
AirWelding Machine(Hot Air Seam Sealing Machine), High Frequency Welding Machine, Ultrasonic PLastic Welding Machine, Ultrasonic Tube Sealing Machine, Heat Staking Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
Your available specialist for:
1.Solution for shoes upper welding: HF welding machine, HF welding and embossing machine, Hot press and could molding machine
2. Solution for plastic welding: HF welding machine, ultrasonic welding machine, metal welding machine, hot air welding machine etc.
3. Solution for blister packaging: blister vacuum forming machine, blister folding machine, blister cutting machine, blister
sealing machine.
producing,selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot
AirWelding Machine(Hot Air Seam Sealing Machine), High Frequency Welding Machine, Ultrasonic PLastic Welding Machine, Ultrasonic Tube Sealing Machine, Heat Staking Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery.
Your available specialist for:
1.Solution for shoes upper welding: HF welding machine, HF welding and embossing machine, Hot press and could molding machine
2. Solution for plastic welding: HF welding machine, ultrasonic welding machine, metal welding machine, hot air welding machine etc.
3. Solution for blister packaging: blister vacuum forming machine, blister folding machine, blister cutting machine, blister
sealing machine.
FAQ:
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free
chargeto replace the new one to you . The warranty will begin after the machine send out we received the B/L .
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free
chargeto replace the new one to you . The warranty will begin after the machine send out we received the B/L .
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Contact US:
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Huizhou YIYUAN machinery CO.,Ltd | ||
Contact Person | Carrie Gong | |
Mobile/Whats App/wechat | +86 13620006372 | |
Email: | dgyiyuan@aliyun.com | |
Youtube | www.youtube.com/@carriegong581 | |
Facebook | facebook.com/carrie.gong.92 | |
Website | www.yiyuanmachine.en.alibaba.com | |
Add: Longqiu 2nd Str,Longxi Town,Boluo County,Huizhou,Guangdong Province | ||
Huizhou YIYUAN Machinery Co.,Ltd | ||
Contact Person | Jack Zhu | |
Mobile/Whats App/wechat | +86 15017056514 | |
Email: | jingyihf@aliyun.com | |
Youtube | https://www.youtube.com/channel/UClrrhp0S4ffhadPy-hz-CuQ | |
Facebook | facebook.com/hfplasticwelder | |
Website | www.yiyuanmachine.en.alibaba.com | |
Add: Longqiu 2nd Str,Longxi Town,Boluo County,Huizhou,Guangdong Province | ||
Похожие товары
Автоматическое изготовление подошвы для обуви из ПВХ резиновая обувь верхняя машина изготовления сандалий с тисненым логотипом
1 157 188,20 ₽ - 1 322 500,80 ₽

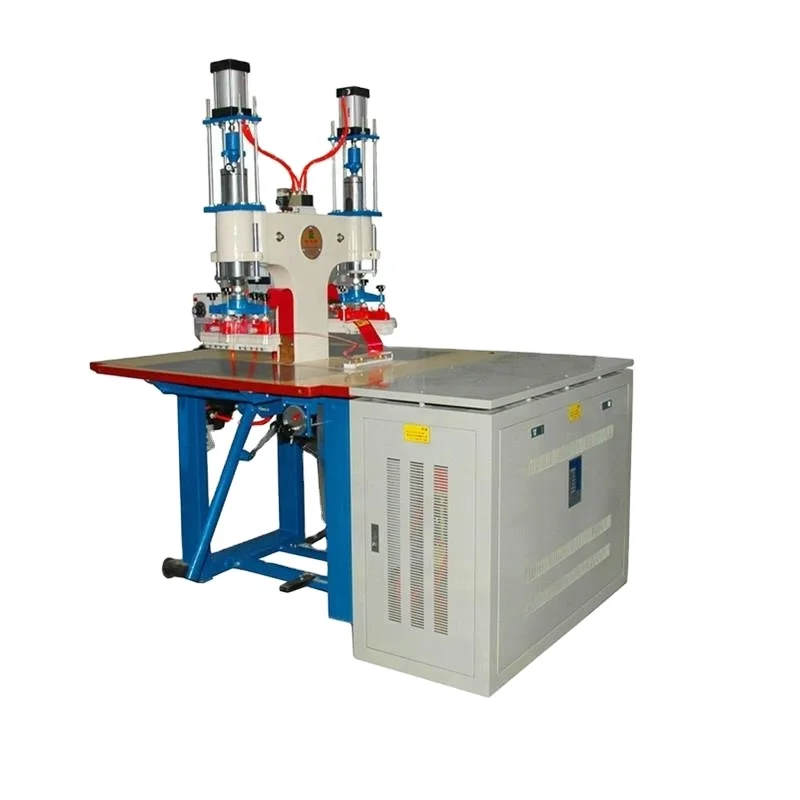

Высокочастотный сварочный аппарат для тиснения подошвы обуви марки Jing Yi
1 487 813,40 ₽ - 1 818 438,60 ₽
Бесшовная технология ТПУ термо плавкая клейкая прессовочная машина для изготовления верха обуви
881 667,20 ₽ - 991 875,60 ₽
Простая в эксплуатации машина для плавки и изготовления обуви
Высокая частота ПВХ горячая вода мешок сварочный аппарат делая машину

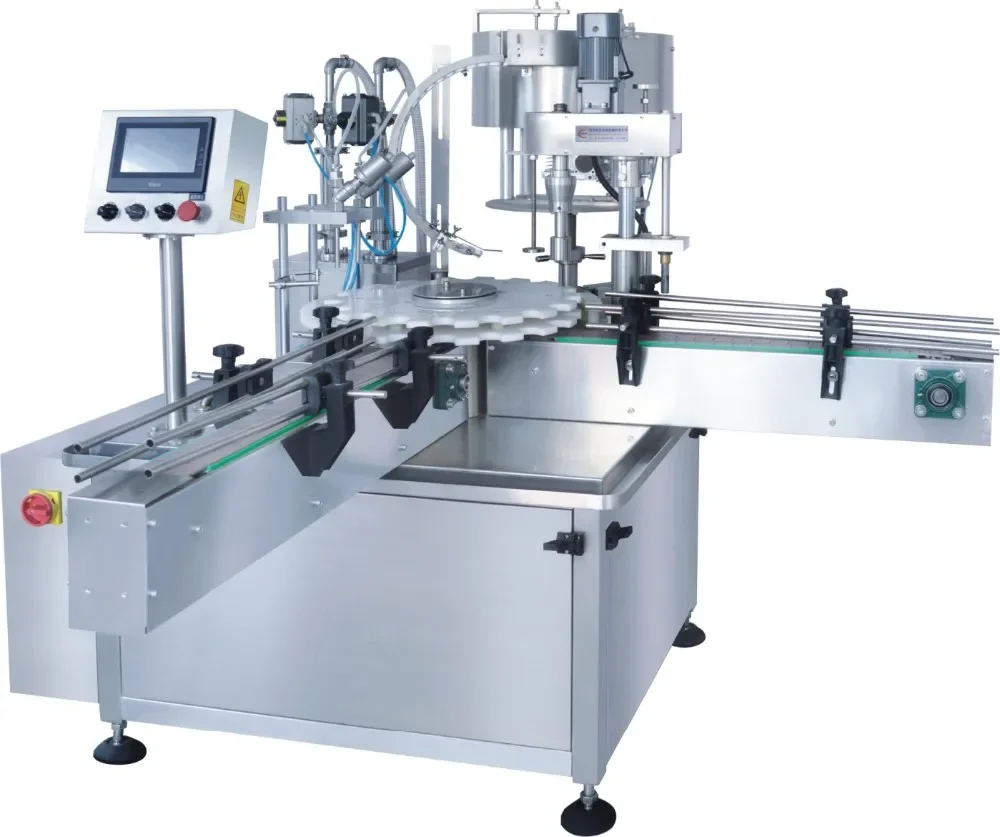

Автоматическая машина для наливки пищевых продуктов и растительного масла
1 323 602,89 ₽

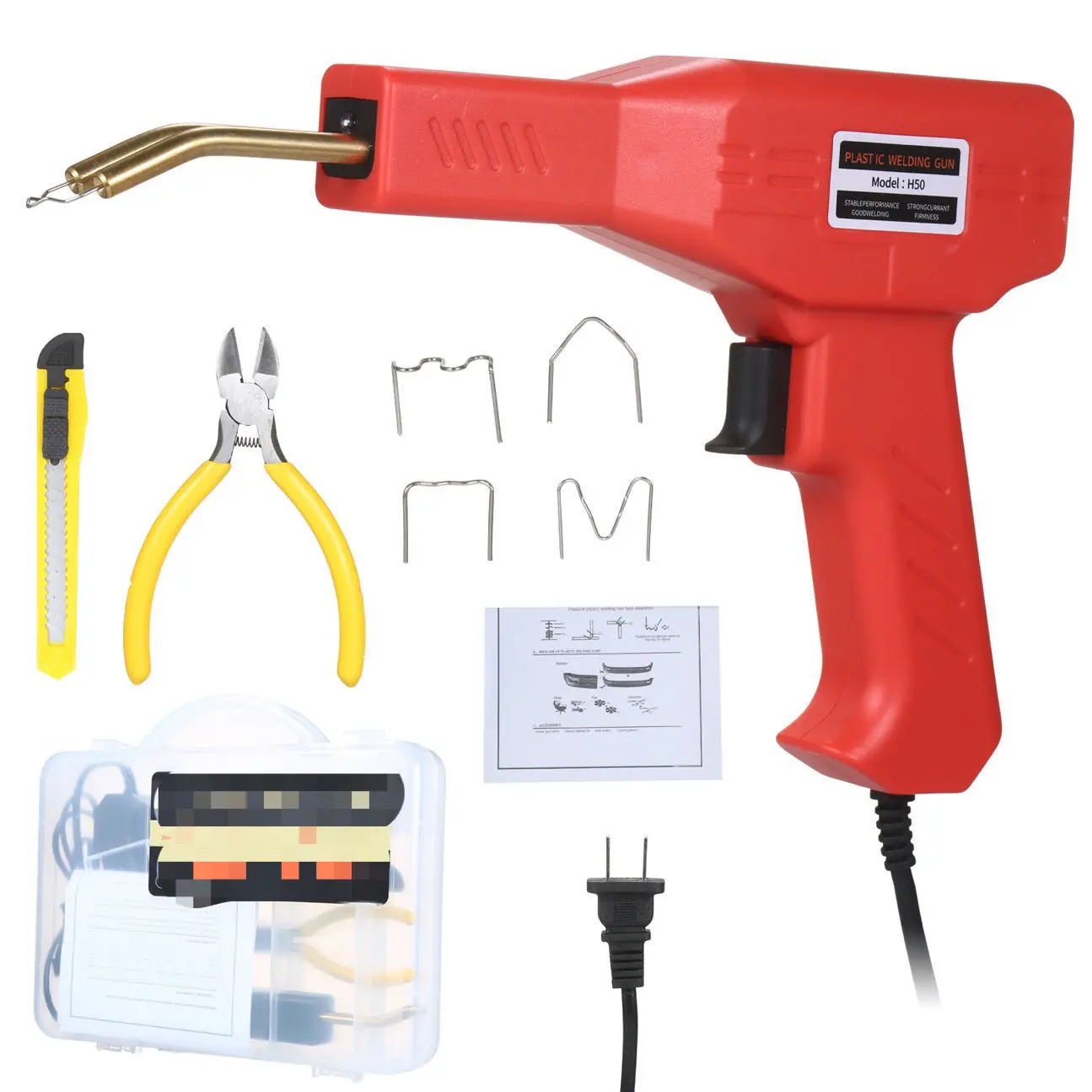

Инструменты для ремонта бампера автомобиля пластиковый сварочный пистолет горячий степлер аппарат паяльник пластикового степлера машина ПВХ
837,59 ₽ - 881,67 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Changan 4*2 Электрический небольшой моющий грузовик высокого давления для продажи от производителя
3 890-4 890 $
45-тонный экологически чистый контейнерный штабелер SANY SRSC45C30 ISO сертифицированный кран
35 700-53 550 $
CL0126 304 U-образная металлическая плитка внутренняя отделка для плитки из нержавеющей стали Декоративная полоса
0,68-2,88 $
Черная Светоотражающая зимняя рабочая одежда для работы на открытом воздухе Улучшенная видимость и комфорт безопасности спецодежда
10,60-15 $
Костюм для выступлений
Оптическая полка для очков футляр
26,82-51,43 $
Оптовая Продажа 1000 Люмен USB Cob перезаряжаемые светодиодные фары красный свет безопасности для бега кемпинга водонепроницаемый Солнечный литий ионный
Производитель больничной униформы наборы и халаты удобные стильные для врачей персонала
8,49-9,99 $
