Строительное оборудование манипулятор для обработки стекла/стеклоподъемник кран паук китайский
- Категория: >>>
- Поставщик: Zhengzhou Yugong Construction Machinery Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601225720478:
Описание и отзывы
Характеристики
Products Description

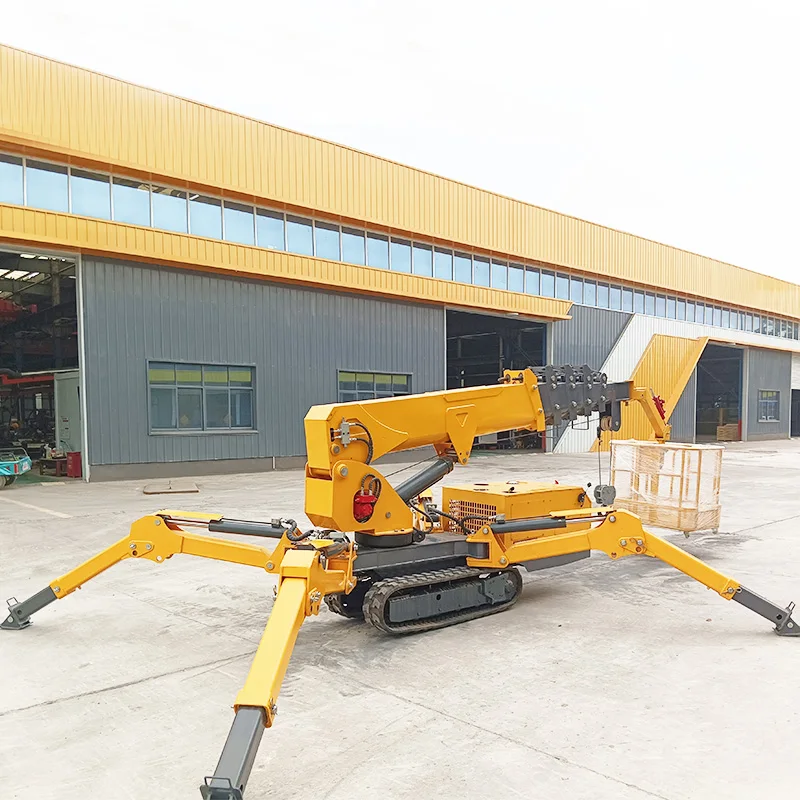

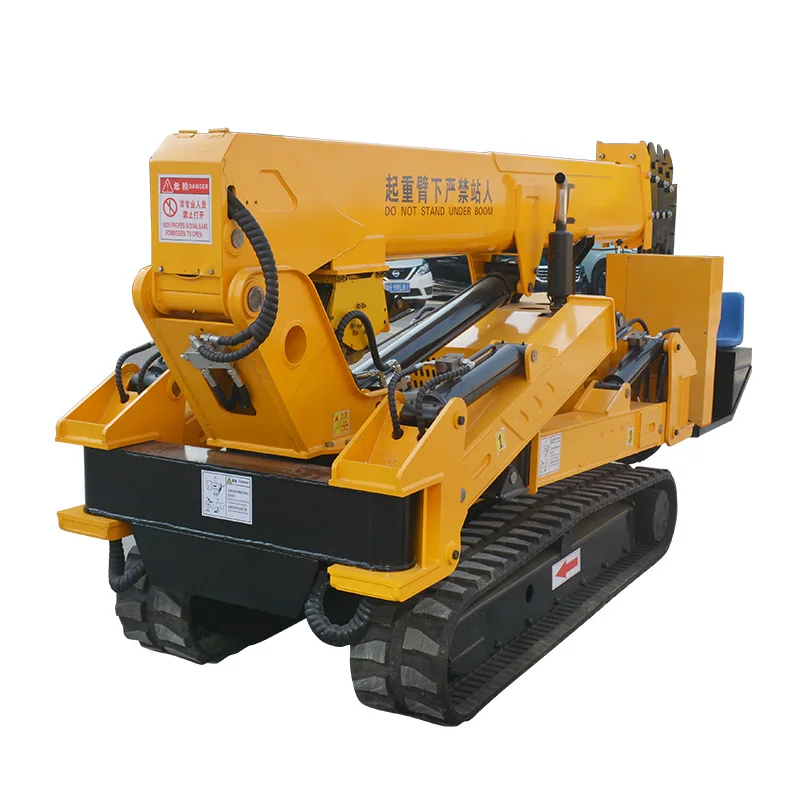

Product features of spider crane
1. The spider crane is small in size, powerful and has a high safety level, which is a machine that ordinary cranes or hoists cannot match;
2. The spider crane was born to complete the glass installation work more efficiently. The mini spider crane is also widely used in indoor, narrow spaces and narrow passages.
3. The small and compact body design of the spider crane means that it can work indoors or in areas with limited space. The compact body of the spider crane can easily enter the construction site and reduce the cost of use;
4. The spider crane is small in size and easy to transport. It is used during curtain wall construction. It has a wide range and can be used for vertical transportation, hoisting, etc. The lifting capacity is generally 3 tons to 8 tons, which can meet most of the hoisting needs of the construction site;
5. Some places cannot be entered by ordinary cranes, and on the roof, indoors, shopping malls or densely populated places, ordinary cranes cannot operate, but micro spider cranes can complete the work easily and freely;
6. Spider cranes are used for hoisting projects of building materials such as airports, railway stations, and dam construction sites. With its flexibility and convenience in narrow places, spider cranes have been used in many municipal construction operations and help construction workers solve many problems;
1. The spider crane is small in size, powerful and has a high safety level, which is a machine that ordinary cranes or hoists cannot match;
2. The spider crane was born to complete the glass installation work more efficiently. The mini spider crane is also widely used in indoor, narrow spaces and narrow passages.
3. The small and compact body design of the spider crane means that it can work indoors or in areas with limited space. The compact body of the spider crane can easily enter the construction site and reduce the cost of use;
4. The spider crane is small in size and easy to transport. It is used during curtain wall construction. It has a wide range and can be used for vertical transportation, hoisting, etc. The lifting capacity is generally 3 tons to 8 tons, which can meet most of the hoisting needs of the construction site;
5. Some places cannot be entered by ordinary cranes, and on the roof, indoors, shopping malls or densely populated places, ordinary cranes cannot operate, but micro spider cranes can complete the work easily and freely;
6. Spider cranes are used for hoisting projects of building materials such as airports, railway stations, and dam construction sites. With its flexibility and convenience in narrow places, spider cranes have been used in many municipal construction operations and help construction workers solve many problems;
Product Paramenters
YG-3T | YG-5T | YG-8T | |
Specification | 3t | ||
Maximum working radius | 8.83mx0.15t | ||
Maximum above-ground head | 9.9mx0.7t | ||
Winch device | Hook Speed | 0-8m/min(4 rope | |
Rope diameter | 8mm-45m | ||
Telescopic system | Boom Type | 5-section boom, pentagonal structure | |
Boom Length/Time | 3.1m-9.2m/20sec | ||
Up and down | Boom Angle/Time | 0°~78°/13sec | |
Slew system | Slew Angle/Speed | 0-360°continuous/60sec | |
Traction system | Walking Way | Hydraulic motor drives | |
Walking Speed | 0~2.5km/h | ||
Grade Ability | (25°)36% | ||

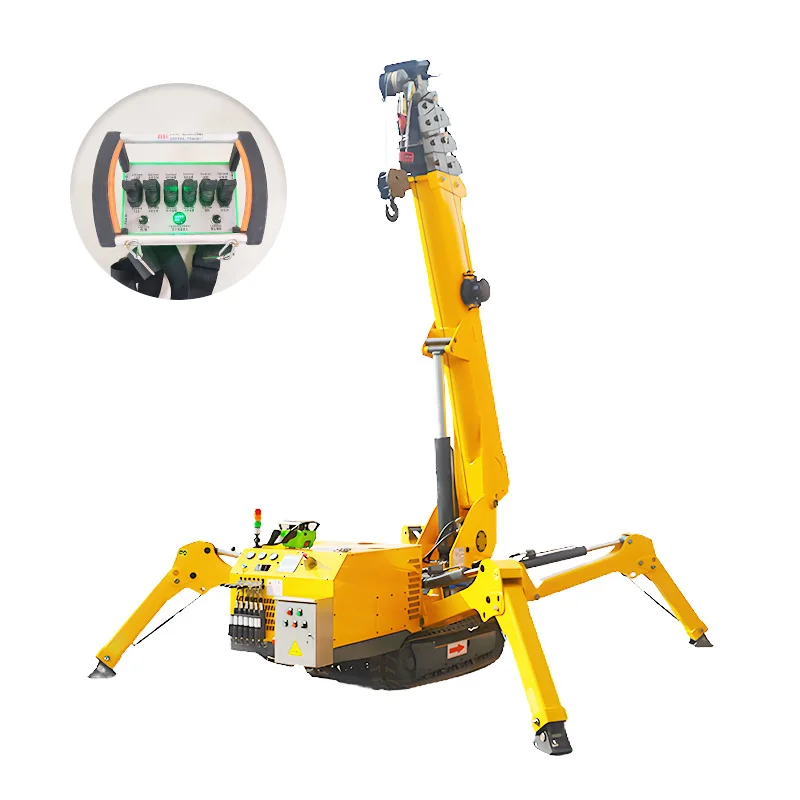

Operating characteristics | Manual operation, remote control | ||
Transport parameters | L*W*H | 2950*980*1560mm | |
Total weight | 2700kg | ||
Products Description Details Images Product packaging
