Product Description

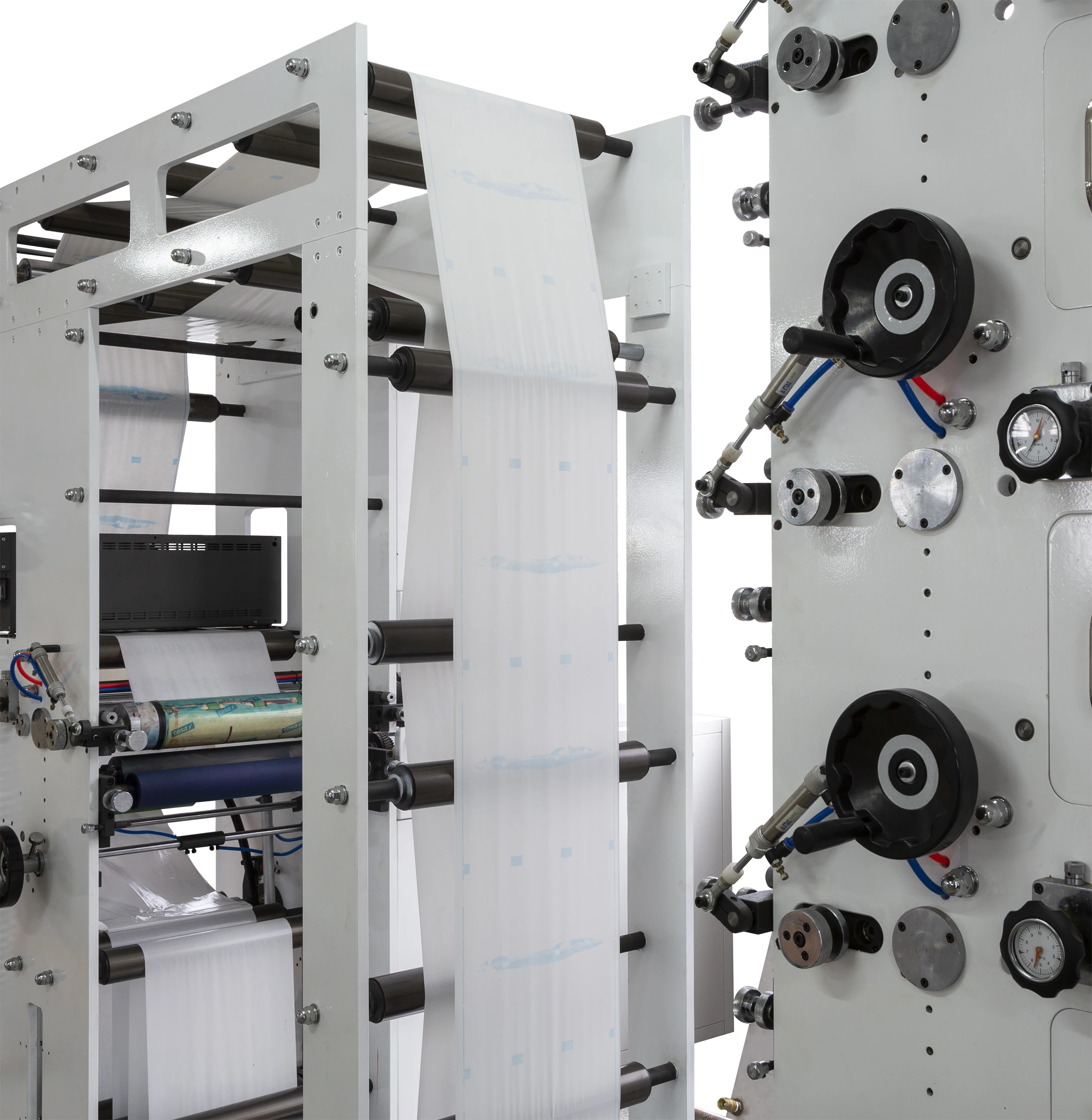

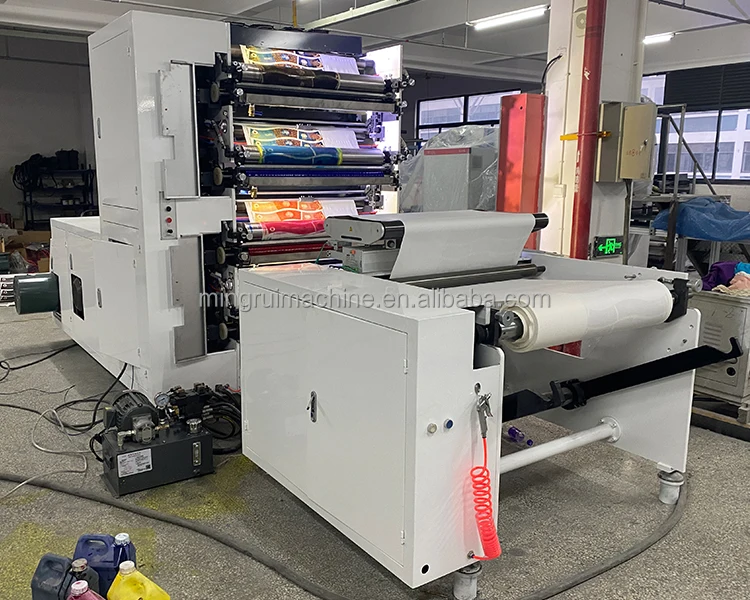

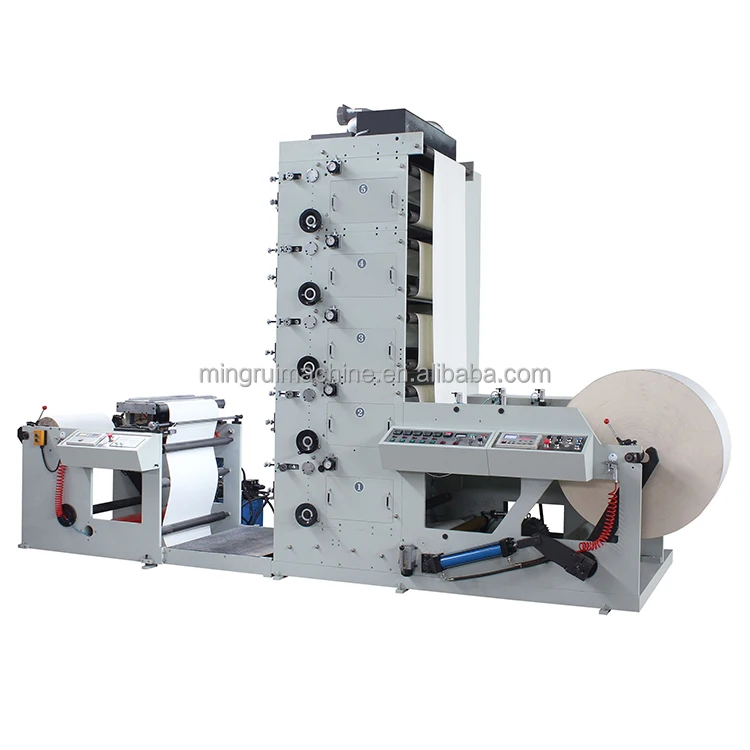

Top sale vertical paper cup plastic film flexo printing machine die cutting machine in stock
Flexographic printing machinery is a spectacular blend of letterpress and rotogravure printing, employing relief plates made up of flexible rubber or photo-polymer plates. Flexographic printing press comprises four rollers such as ink roller, meter roller, plate cylinder, and impression cylinder.The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.
Machine Details
Unwinding Unit
Independent Unwing Track
With 1pc 3" air expanding shaft,max unwinding diameter 1000mm

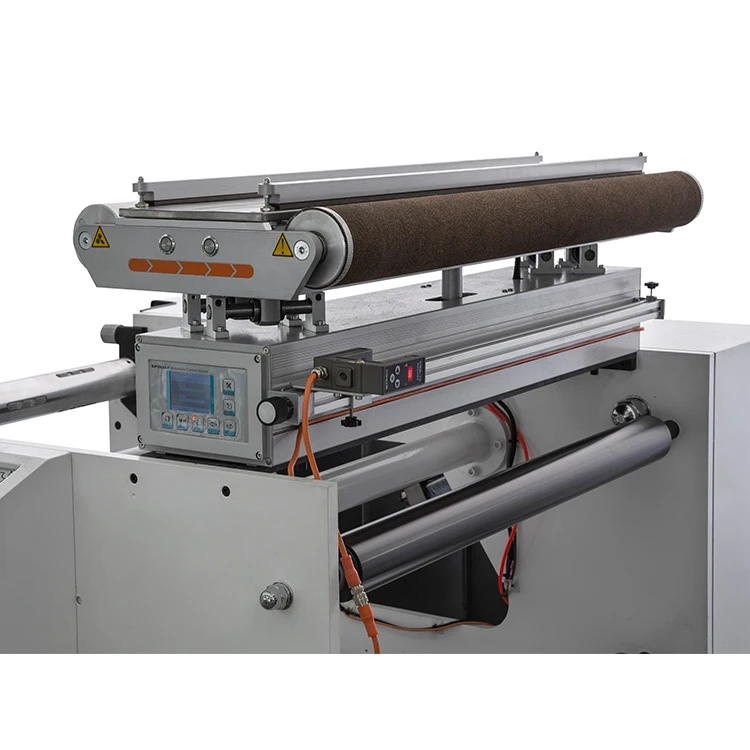

Wed Guide System

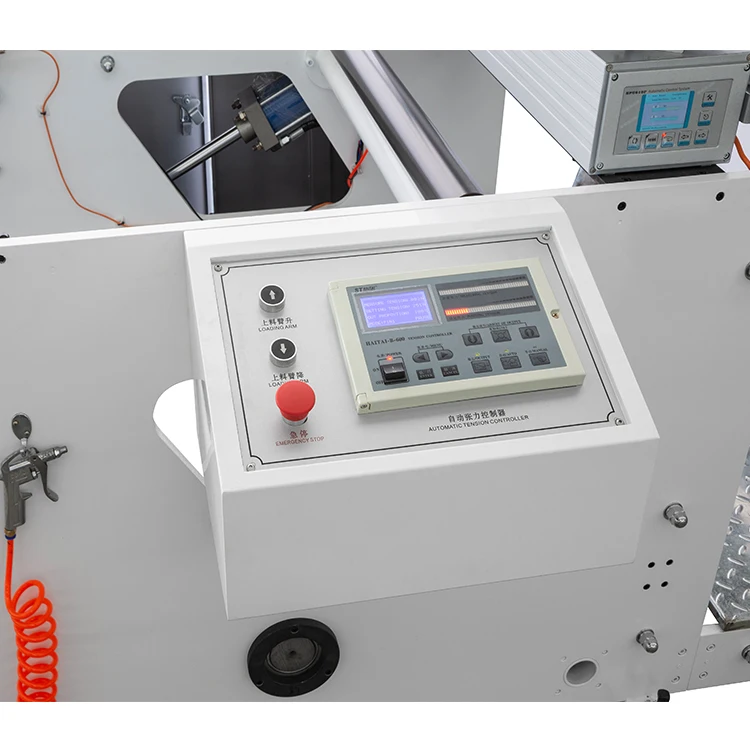

Auto Tension Controller

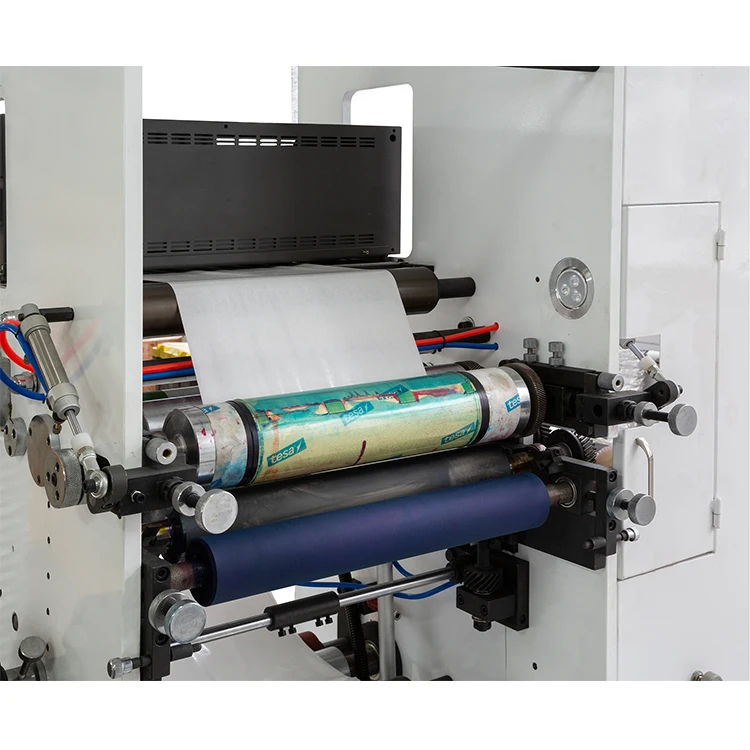

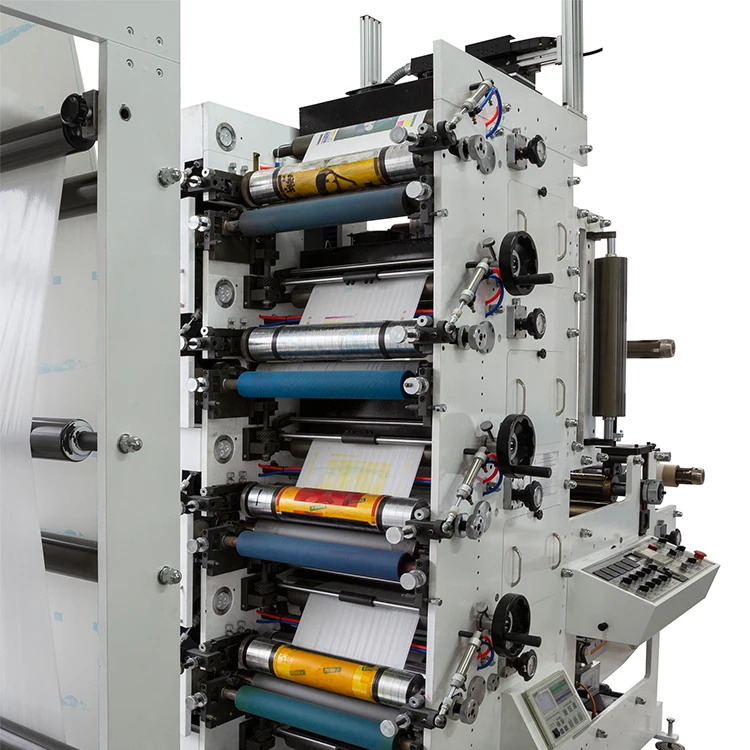

Printing Color Unit
Printing Color Unit
IR Dryer system
Infrared Heating Drying Unit--- 1 unit / each color station
1 pcs IR lamp each IR heating unit
UV Drying System
The supporting equipment of the printing equipment can provide the efficiency and effect of the finished printing products.
Suitable for plastic film production.
LED UV Dryer
During printing, the printing ink temperature becomes very high due to UV curing,
so it is equipped with a water-cooled roller to eliminate the deformation of the printing material, reduce the surface temperature
of the
material,
of the
material,
reduce the friction between the layout and the surface of the printing material, and increase the number of flexographic printing
Die Cutting Unit
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
Model | MRP-850 | MRP-950 | |
Printing Color Station | 1-8 color | ||
Max. Web Width | 850mm | 950mm | |
Max. Effective Width | 850mm | 950mm | |
Max.Unwinding Diameter of Roller Material | 1400mm | ||
Printing Girth | 175-380mm | ||
Printing Speed | 50-60m /min | ||
Plate Thickness (Both side adhesive tape included) | 1.70m | ||
Plate mounting tape | 0.38mm | ||
Diameter of air shaft | 75mm | ||
Precision of chromatography | ±0.1mm | ||
Machine Weight | 3000kg | 3500kg | |
Overall Dimension | 2300*1500*2000mm | 2500*2000*2000mm | |
Voltage | 380V 50HZ 3 Phase Electricity | ||
Features:
1. The flexo printing machine adopts the anilox rollers to spread ink.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake,clutch.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake,clutch.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Unwinding Uint
Independent Unwing TrackWith

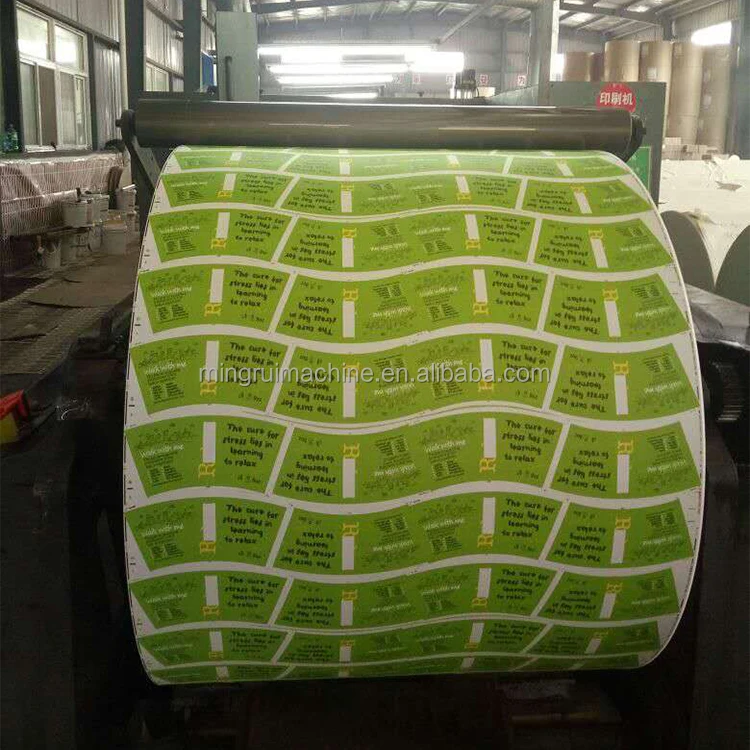

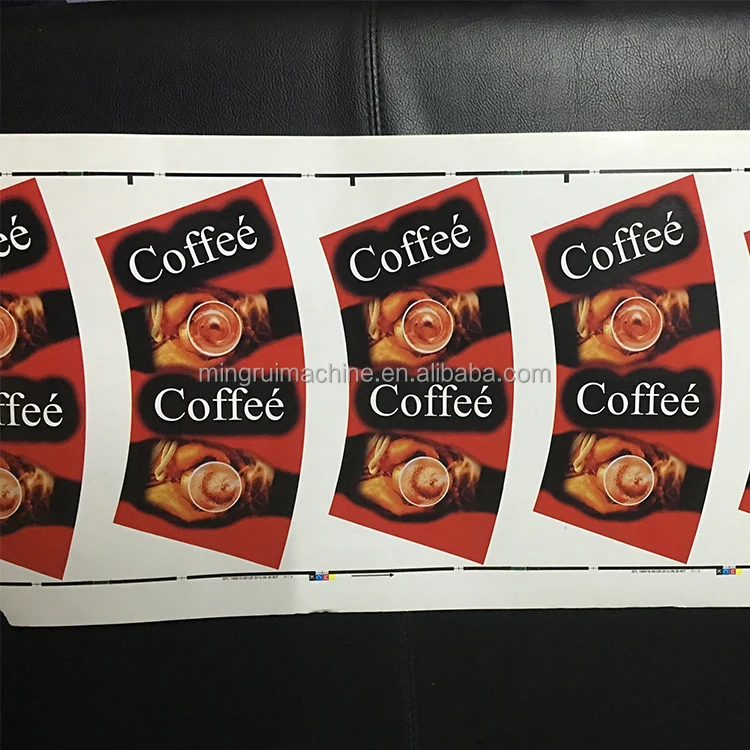

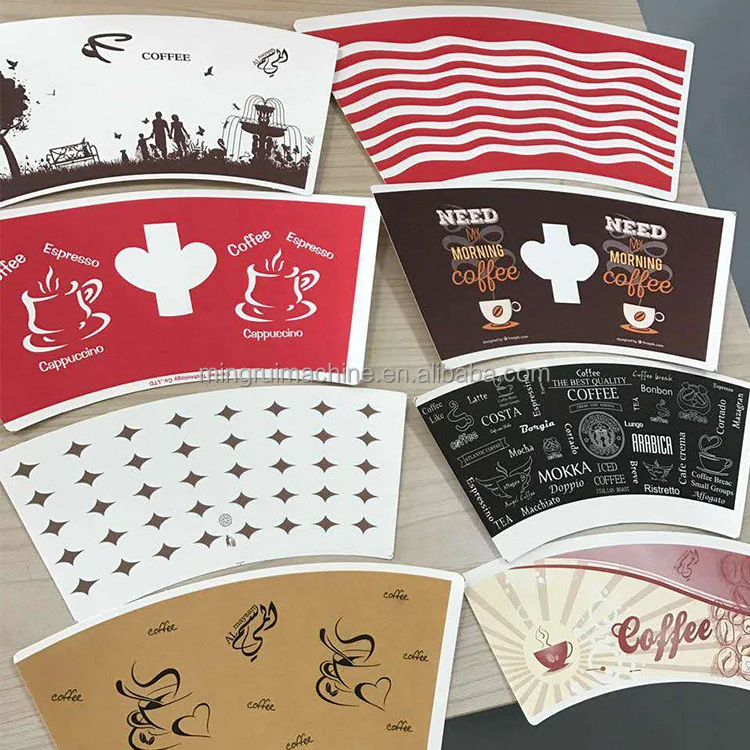

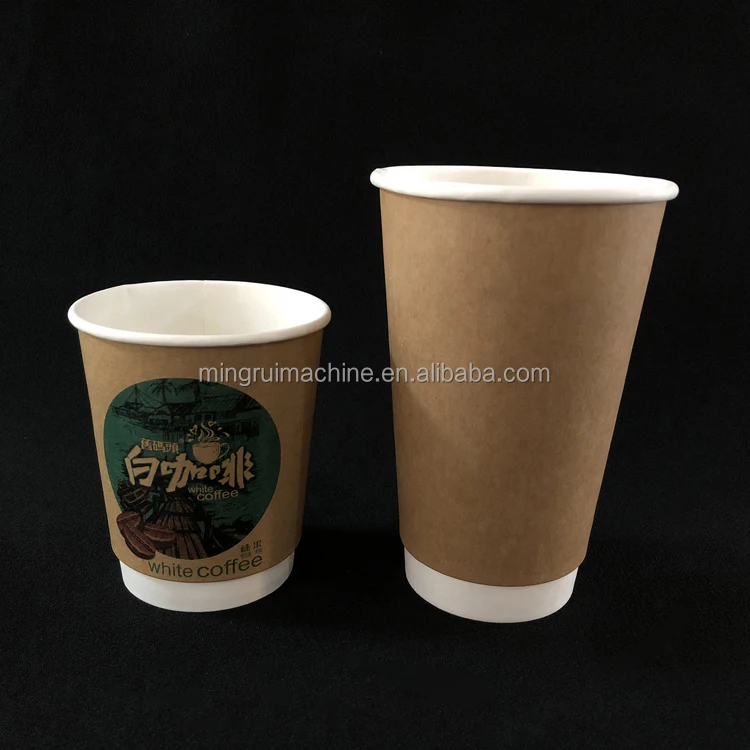

For loading jumbo rolls with large diameter size and weight.Finished Product
Company Profile

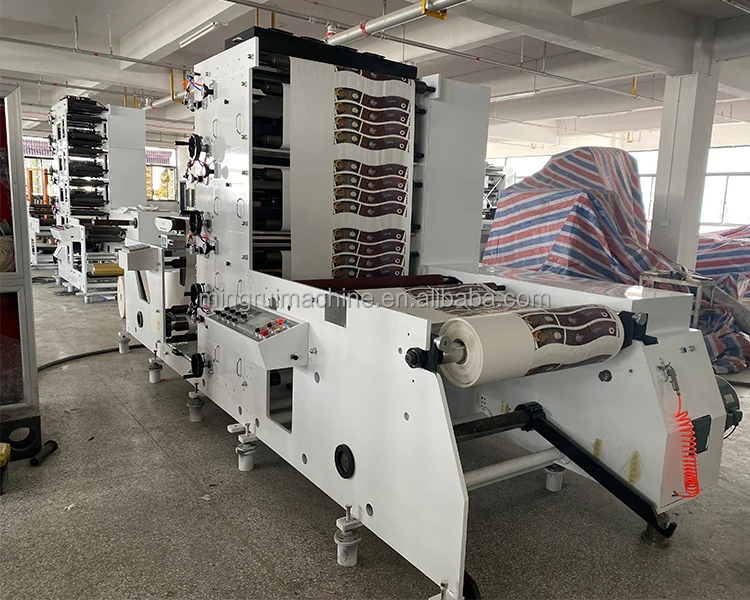

Our Factory
Sales Team
Pingyang Mingrui Machinery Co.LTD is the first manufacture specializing in the production and sales of paper cup machine,paper cup die cutting machine, paper box machine and paper cup printing machine in Wenzhou city,China.We have the most advanced processing equipments, experienced structural engineers,modern production workshop and scientific management system.We keep talking with famous companies from Europe,Japan and U.S for technical exchanging.
All of these ensure the high quality of each machine and our technology are always far ahead in China.
We speak English, French, Spanish, Portuguese, Russian and other languages.Engineers can come to your factories to help you debug machine or provide free training by video call with real-time language translation.Now our clients and business partners are from all over the world. Mingrui Machinery Look forward to working with you!

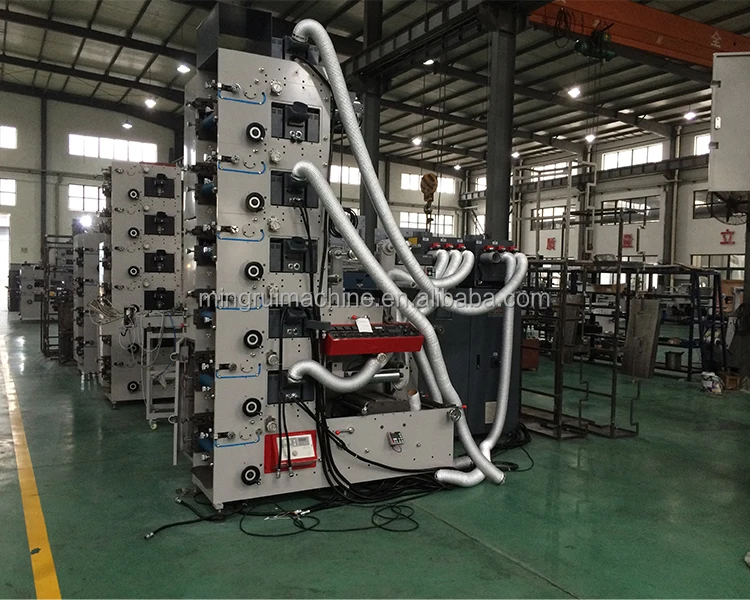

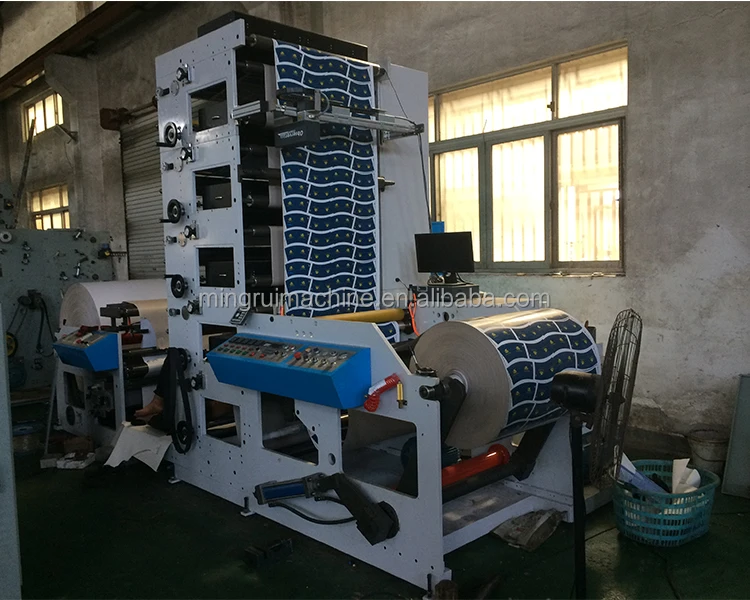

Our workshop

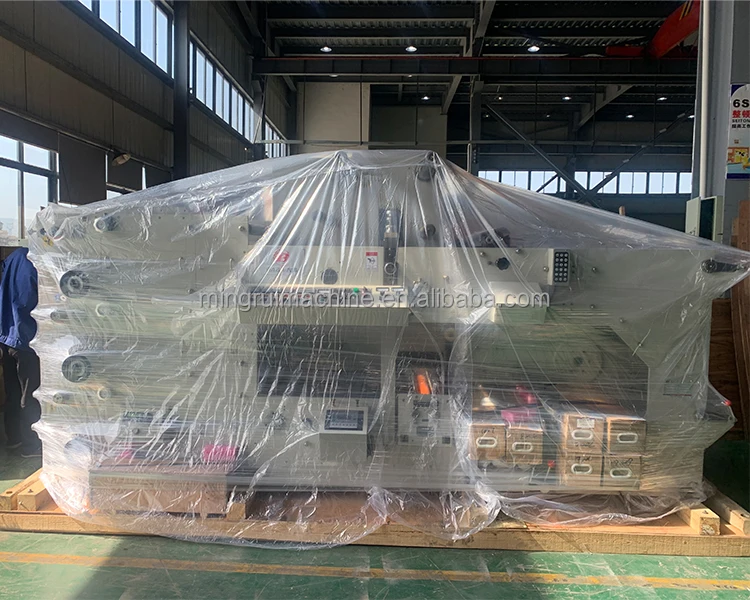

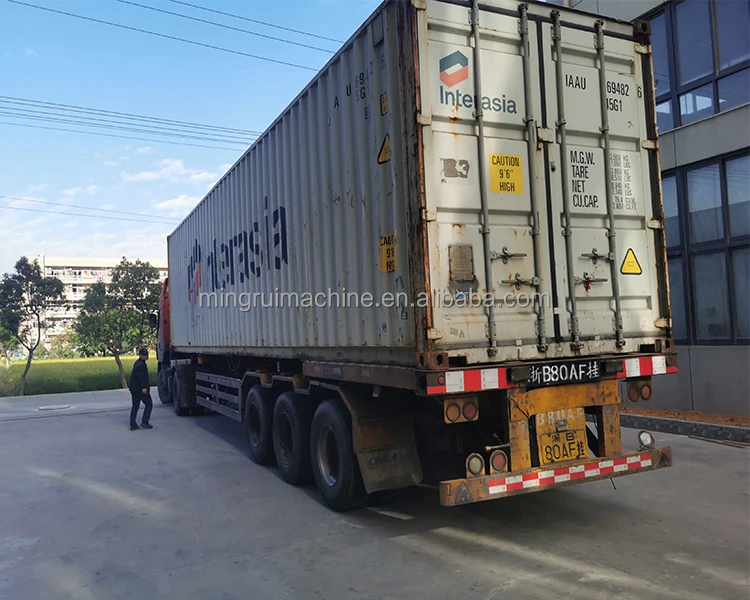

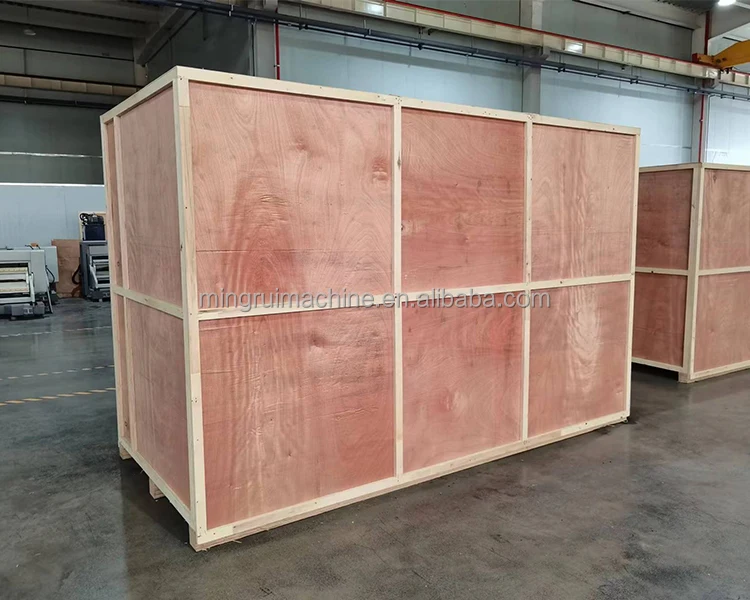

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: why should you buy from us not from other suppliers?
A: Quality and the after-sale service is our aim. We not only sell the products but solutions. We believe that you will be satisfied with both our products and service.
A: Quality and the after-sale service is our aim. We not only sell the products but solutions. We believe that you will be satisfied with both our products and service.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very small thing (even a small screw we will choose the best quality) to the whole machine.
A: Quality is priority. We always attach great importance to quality control from the very small thing (even a small screw we will choose the best quality) to the whole machine.
3. Q: What is your after-sale service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
